the MICE beam line status

RATE in MICE BL much lower (~500 x) than requested to do physics The BL still need to be characterized: Progress during summer shifts heard Other needed: e.g. what is the ACTUAL EMITTANCE of the beam? Optics:

becca
Download Presentation

the MICE beam line status

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

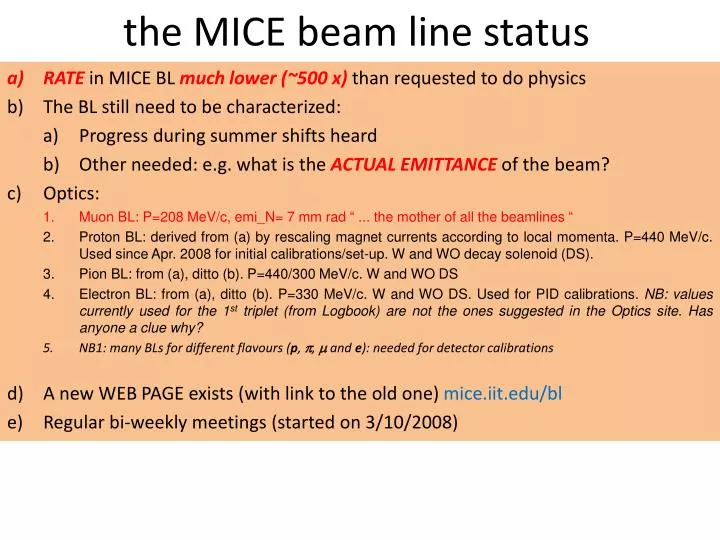

  1. RATEin MICE BL much lower (~500 x) than requested to do physics • The BL still need to be characterized: • Progress during summer shifts heard • Other needed: e.g. what is the ACTUAL EMITTANCEof the beam? • Optics: • MuonBL: P=208 MeV/c, emi_N= 7 mm rad “ ... the mother of all the beamlines“ • Proton BL: derived from (a) by rescaling magnet currents according to local momenta. P=440 MeV/c. Used since Apr. 2008 for initial calibrations/set-up. W and WO decay solenoid (DS). • PionBL: from (a), ditto (b). P=440/300 MeV/c. W and WO DS • Electron BL: from (a), ditto (b). P=330 MeV/c. W and WO DS. Used for PID calibrations. NB: values currently used for the 1st triplet (from Logbook) are not the ones suggested in the Optics site. Has anyone a clue why? • NB1: many BLs for different flavours (p, p, m and e): needed for detector calibrations • A new WEB PAGE exists (with link to the old one) mice.iit.edu/bl • Regular bi-weekly meetings (started on 3/10/2008) the MICE beam line status

  2. Low proton/pion rate in MICE. • ISIS beam simulation (ORBIT, A.Dobbs: CM22 Sunday) and interaction with TGT  signals on BLM7,8 • Is pion capture optimal ? In other words, is the first Q-pole focusing at the right position? • Where is the tgt dipping ?  dimensional survey available MICE Note 216 • COMMENT: believe we will have to optimize our tgt dipping and negotiate with ISIS about beam losses. b) and c) can improve our rate • (and possibly explain other discrepancies) but they will NOT “recover” a factor 500. • PSI solenoid sick! Last coil missing  new optics sought. Which way (i.e. code?) • TPT/TTL (more natural and fast to define the optics) • G4MICE (I believe it is quite useful for a further hi-definition study) • G4beamline (as above) • Q.: check geometries vs dimensional survey To do list ... TOF work (M. Rayner): use TOF stations as emittance measurement devices (Analysis-CM22, Tuesday) Customize beamline using local momenta [CAVEAT still work in progress] http://www.isis.rl.ac.uk/accelerator/MICE/Task%20Notes%20and%20Specifications/beamline%20-%20optics/some_reference_data.htm General Optics Scaling Spreadsheet for commissioning(MA/KT): Here:- Beamline Scaling • Conversion field/current: status in the MLCR ? • A new web page is born ... Need to be filled • Complete the (e,P) matrix: • P=140/240 MeV/c, emi_N= 2,10 mm rad (*) (*) essential for commissioning

  3. ISIS-MICE TGT alignment purpose: understand sources of reduced rate comment: probably a 2nd order effect CAVEAT: result still preliminary, need a thorough check Please DON’T use them in your simulations !!! MICE Beam Line PC - 031008

  4. CAVEAT: used old drawings Author: MJK CLRC 2006 Plus some info from Note 216 486.05 MICE Beam Line PC - 031008

  5. Q4-point-1 Q4-point-6 1.76o Inclined_Frame_3 Inclined_Frame_2 Inclined_Frame_1 MICE Beam Line PC - 031008

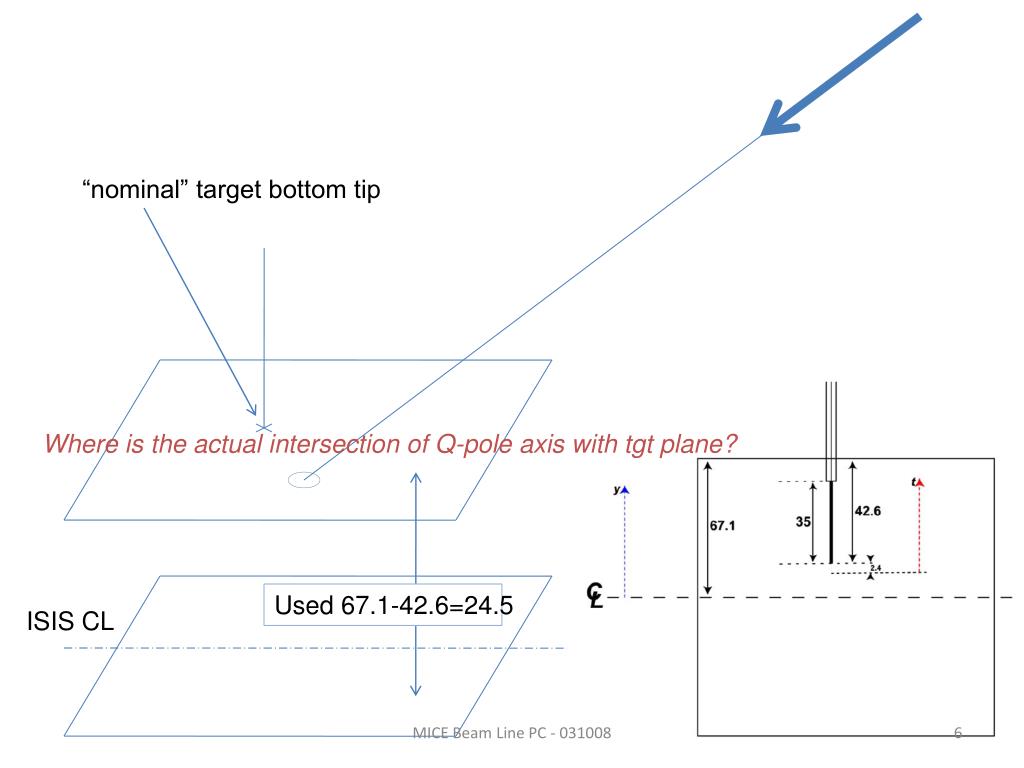

  6. “nominal” target bottom tip Where is the actual intersection of Q-pole axis with tgt plane? Used 67.1-42.6=24.5 ISIS CL MICE Beam Line PC - 031008

  7. Q1

  8. Vert Pos is the DISTANCE FROM CL == Y

  9. TURTLE – a better look at the muon BL (just before D2 on)

  10. In Q4 After D1 Q5?

  11. Just before diffuser

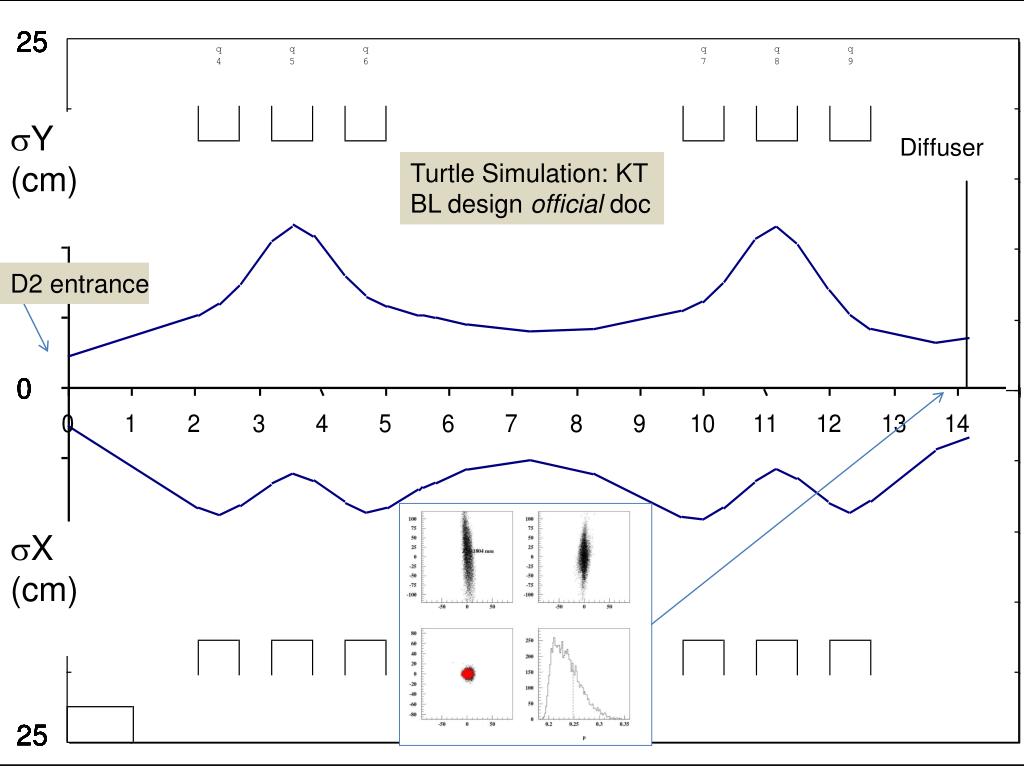

  12. sY (cm) Turtle Simulation: KT BL design official doc D2 entrance sX (cm)

  13. 9/10 solenoid case – • a snapshot with Transport purpose: understand how the beam envelope changes when operating with a reduced solenoid == last coil silenced comment: we may want to know it for future decisions A finer assessment should rely on higher codes (G4XXX) MICE Beam Line PC - 031008

  14. Dx ~ 11 cm Dx ~ 5 cm Dx ~ 4 cm Dx ~ 9 cm • Used transport with (444 MeV/c pions): • http://www.isis.rl.ac.uk/accelerator/MICE/Task%20Notes%20and%20Specifications/beamline%20-%20optics/referencedecks&matching.htm • CM14-7.1-200 Transport.FILE1.dat • all DECAY SOLENOID red • reduced DS (9/10) cyan

  15. This is Kevin Optics for 440 MeV/c protons WITH NO SOLENOID MICE Beam Line PC - 031008

  16. Clearly removing the last coil from the solenoid introduces a growth of the beta: b0+(s-s0)2/b0 a linear growth in the envelope However a solution for 440 MeV/c from production to Q6 exists which Produces a decent result. I need to find the TPT deck and have some trials.

  17. (d) an example of beamline re-scaling for electrons (similar tables exist for p and pi) (using smart excel tables)

  18. (f) thanks Ken for the kickstart ...

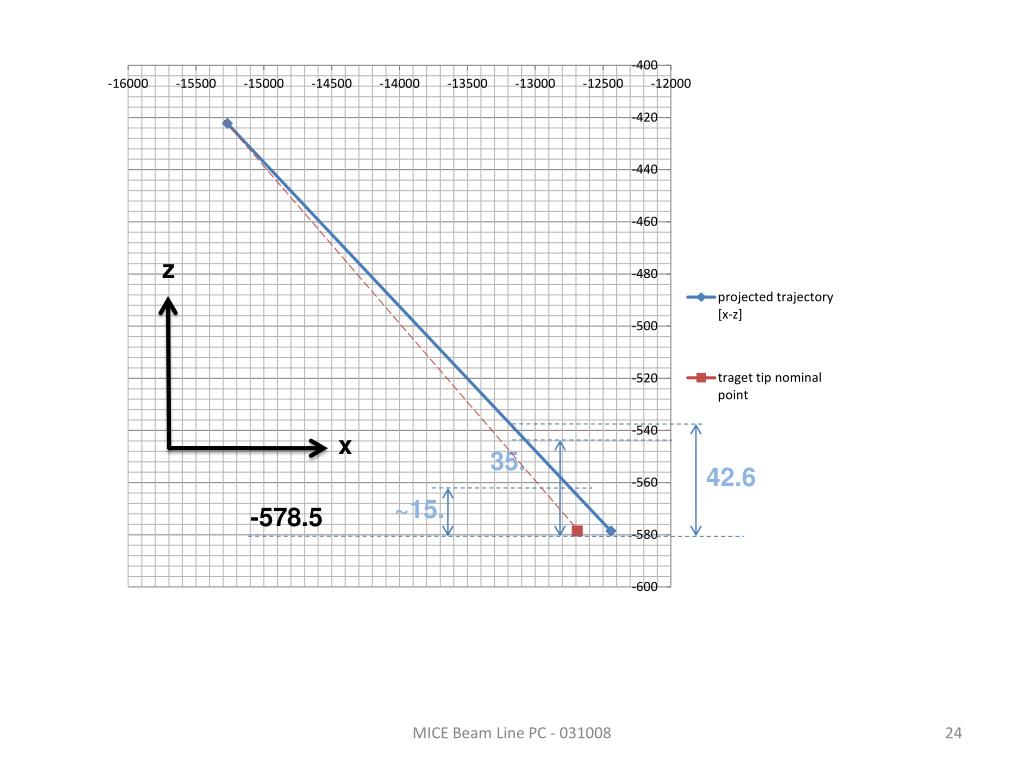

  19. z x 35. 42.6 ~15. -578.5 MICE Beam Line PC - 031008

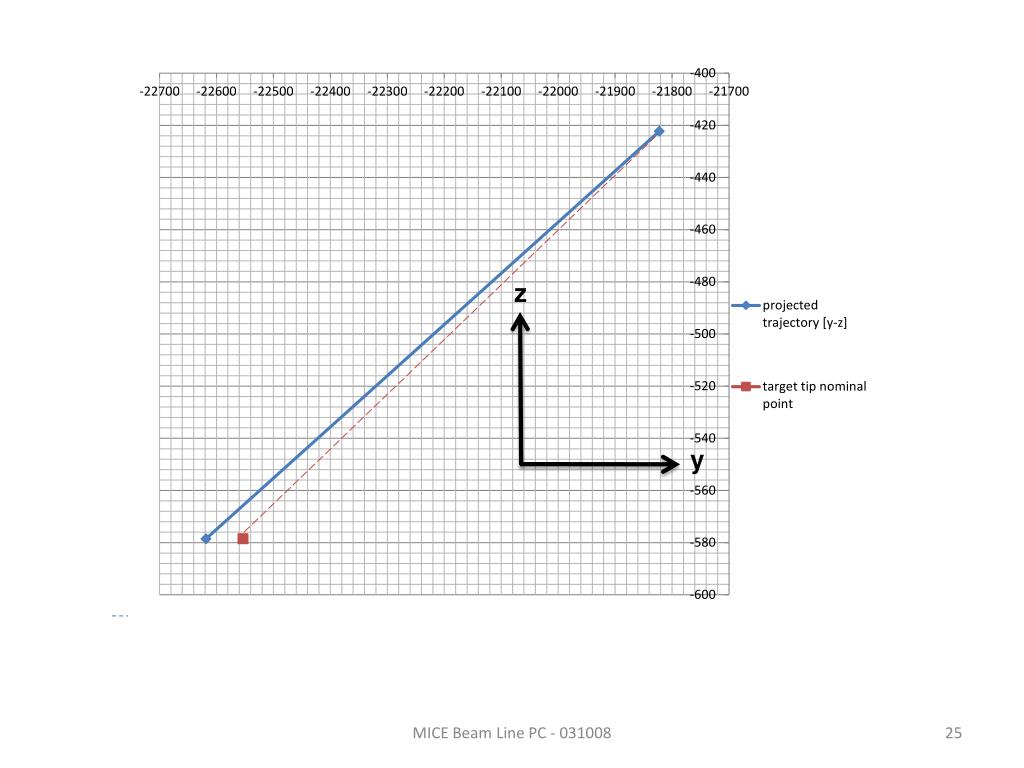

  20. z y MICE Beam Line PC - 031008

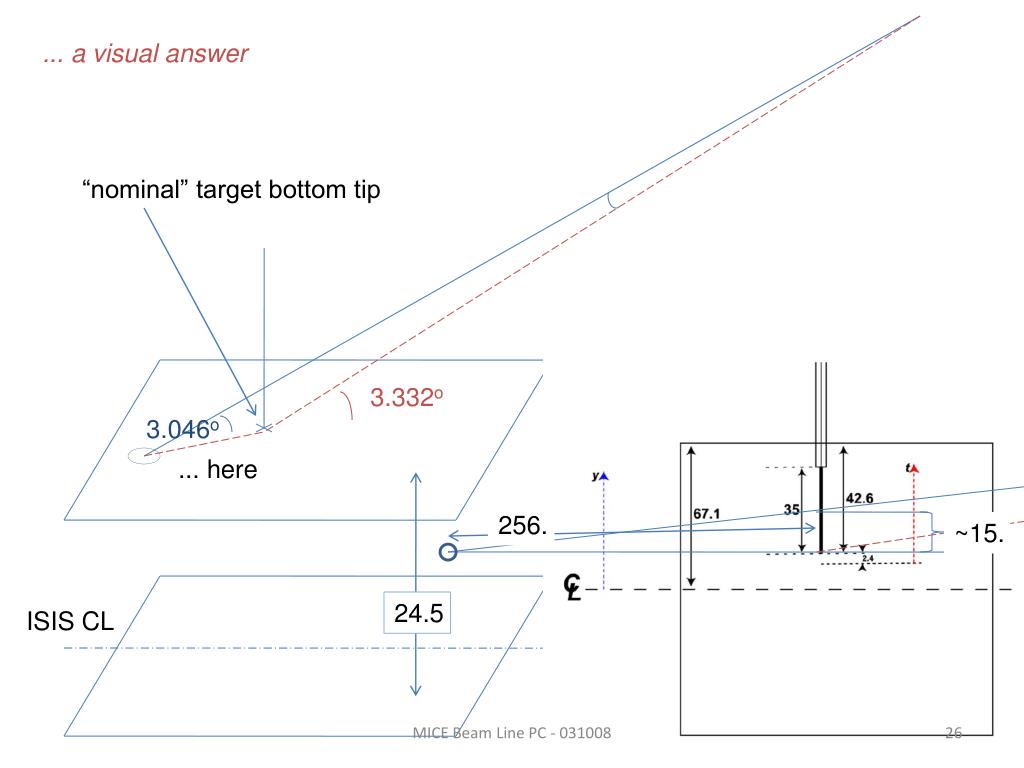

  21. ... a visual answer “nominal” target bottom tip 3.332o 3.046o ... here 256. ~15. 24.5 ISIS CL MICE Beam Line PC - 031008

  22. CONCLUSIONS with a caveat • from this preliminary study a misalignment is noticed which correspond to an angle of • 0.286o : it is the angle by which the bottom tip of the target (at its lowest point) sees • the entrance of Q1 • how important is this to pion collection at the 1st Q-pole? • my gut feeling says: not relevant • the real answer should rely on a MC simulation • I used an old reference (1st survey by CCLRC) because I think I understand the drawings. • Also partly used info from note 216, but I found it a bit more difficult to understand. • So I want to have the latest figures and re-calculate the axis of the q-poles towards the • target plane • before launching yourself into simulations let me be convinced of the numbers MICE Beam Line PC - 031008
