bamboo housing 03 043

Bamboo Housing(03-043)

Fan Yiheng (2O2)

Leon Ng Joo Keat (2O2)

Ong Tiet Gan (2O3)

Per Sheng Xiang (2P4)

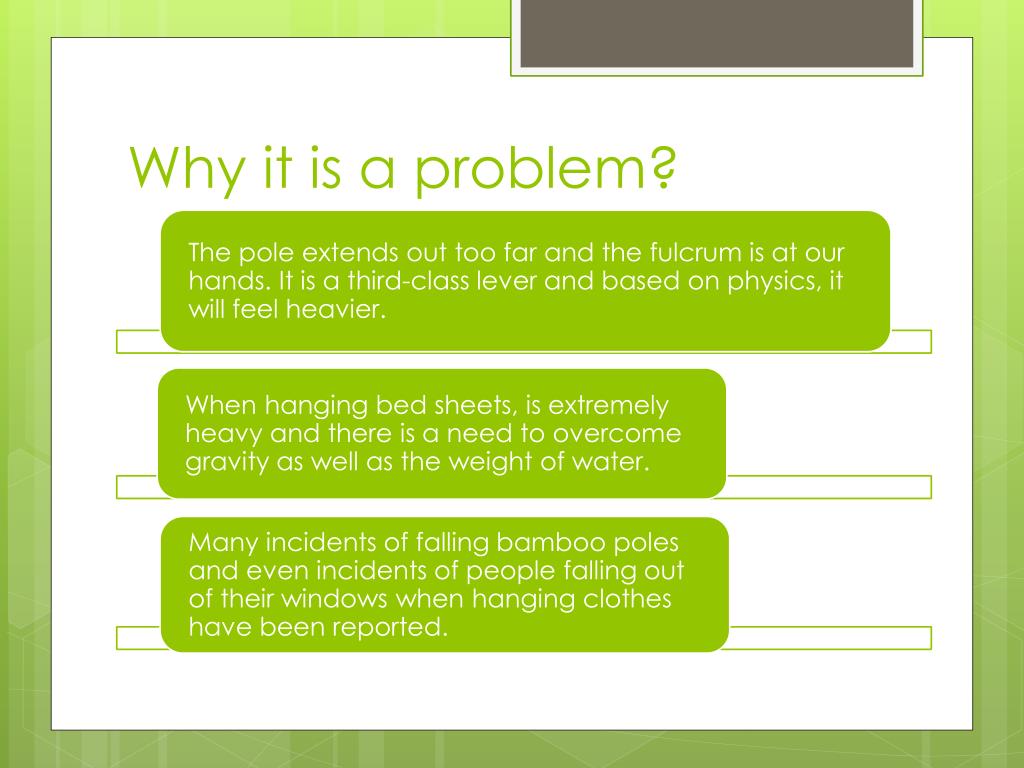

problem
Problem
  • It is very dangerous when we collect our clothes hung on the external laundry poles.
  • We have to bend our bodies over the window frame and go against the weight of our clothing and the bamboo pole.

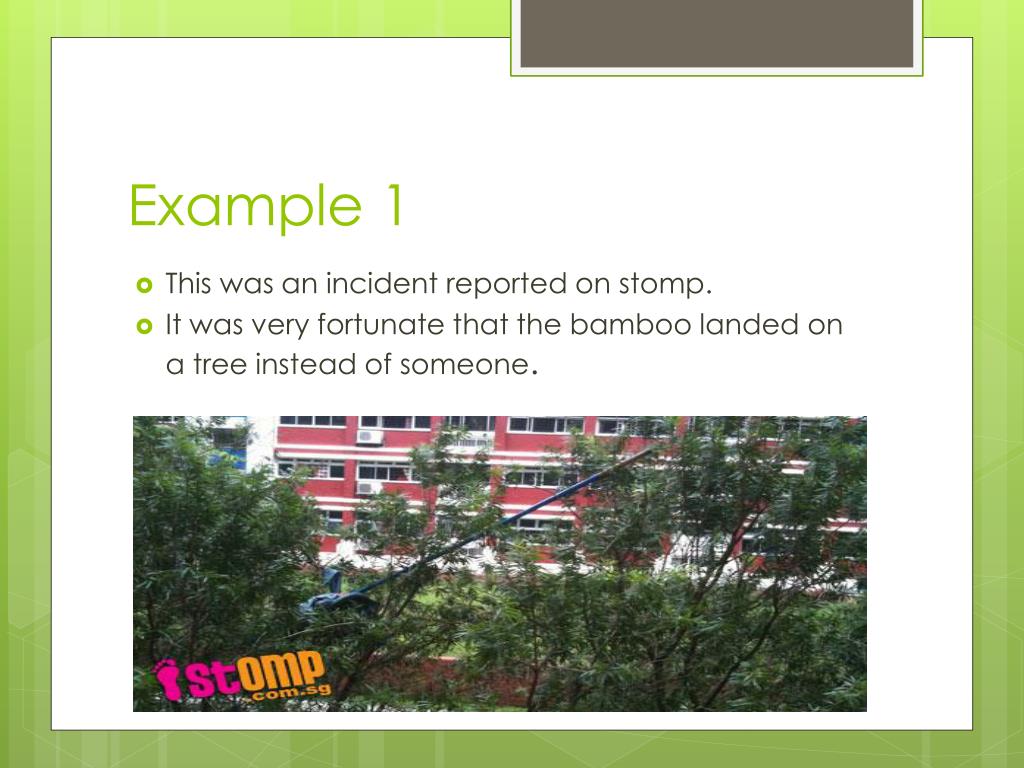

example 1
Example 1
  • This was an incident reported on stomp.
  • It was very fortunate that the bamboo landed on a tree instead of someone.
example 2

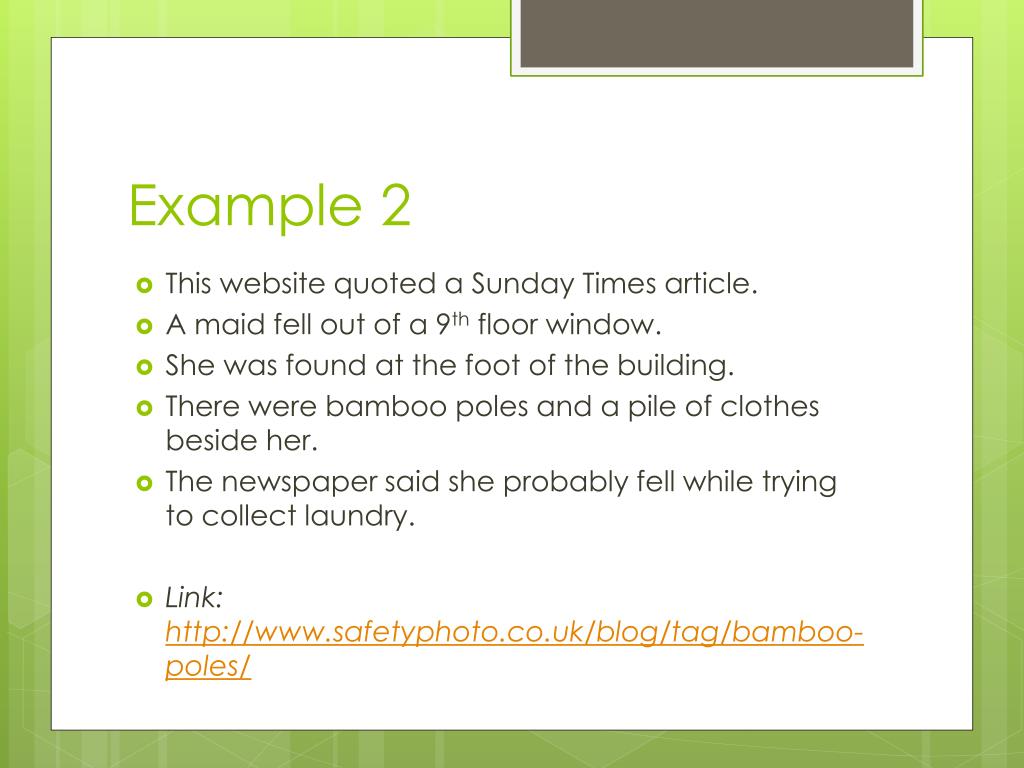

Example 2
  • This website quoted a Sunday Times article.
  • A maid fell out of a 9th floor window.
    • She was found at the foot of the building.
    • There were bamboo poles and a pile of clothes beside her.
    • The newspaper said she probably fell while trying to collect laundry.
  • Link: http://www.safetyphoto.co.uk/blog/tag/bamboo-poles/

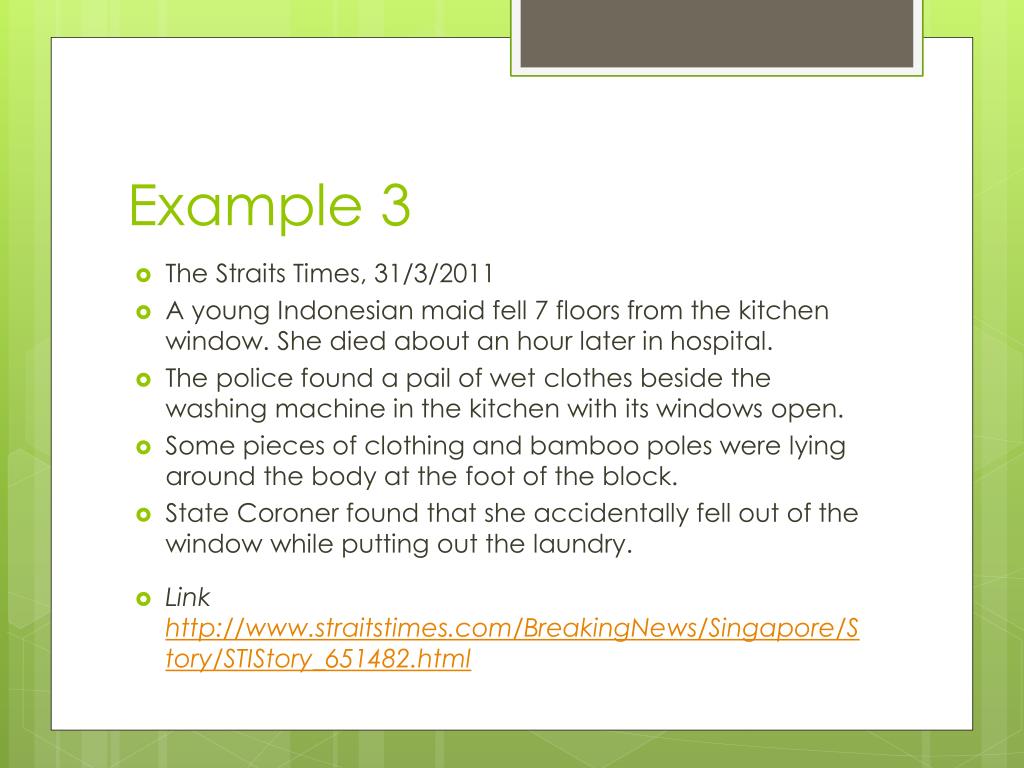

example 3
Example 3
  • The Straits Times, 31/3/2011
  • A young Indonesian maid fell 7 floors from the kitchen window. She died about an hour later in hospital.
  • The police found a pail of wet clothes beside the washing machine in the kitchen with its windows open.
  • Some pieces of clothing and bamboo poles were lying around the body at the foot of the block.
  • State Coroner found that she accidentally fell out of the window while putting out the laundry.
  • Link http://www.straitstimes.com/BreakingNews/Singapore/Story/STIStory_651482.html
convention

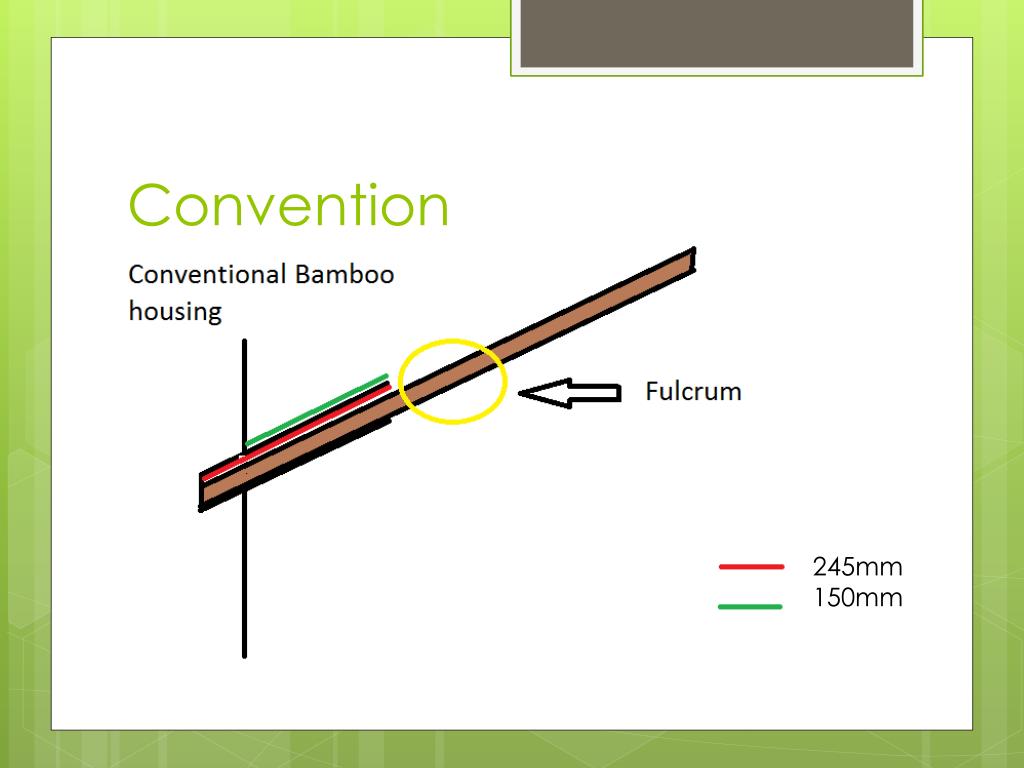

Convention

245mm

150mm

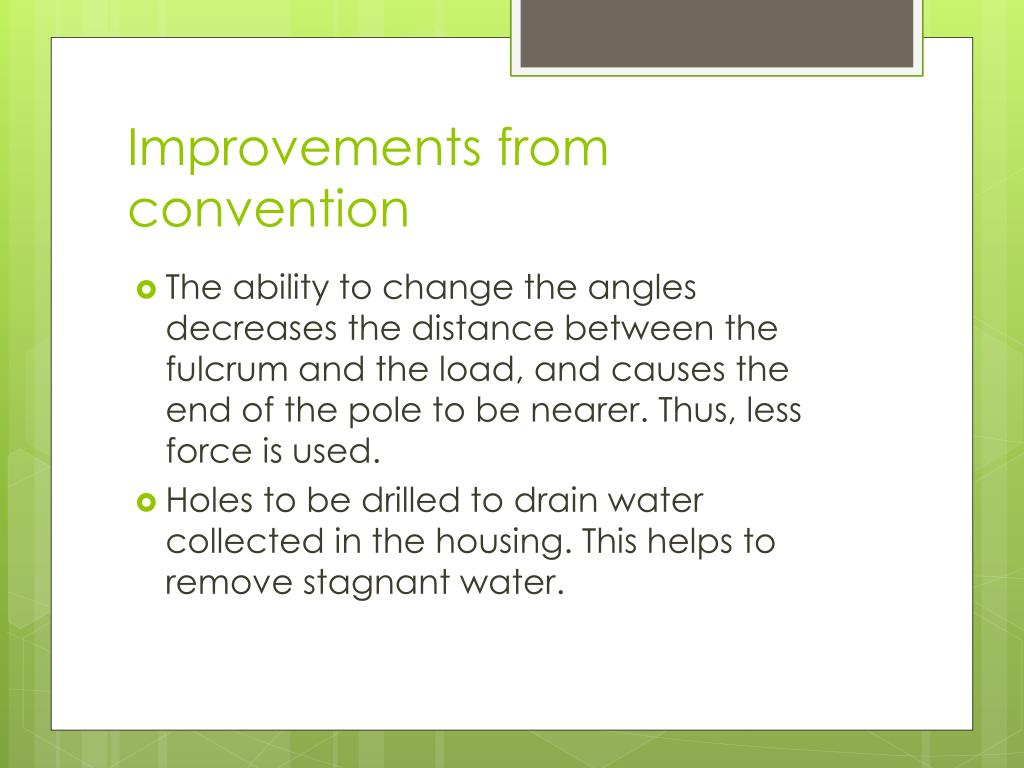

improvements from convention

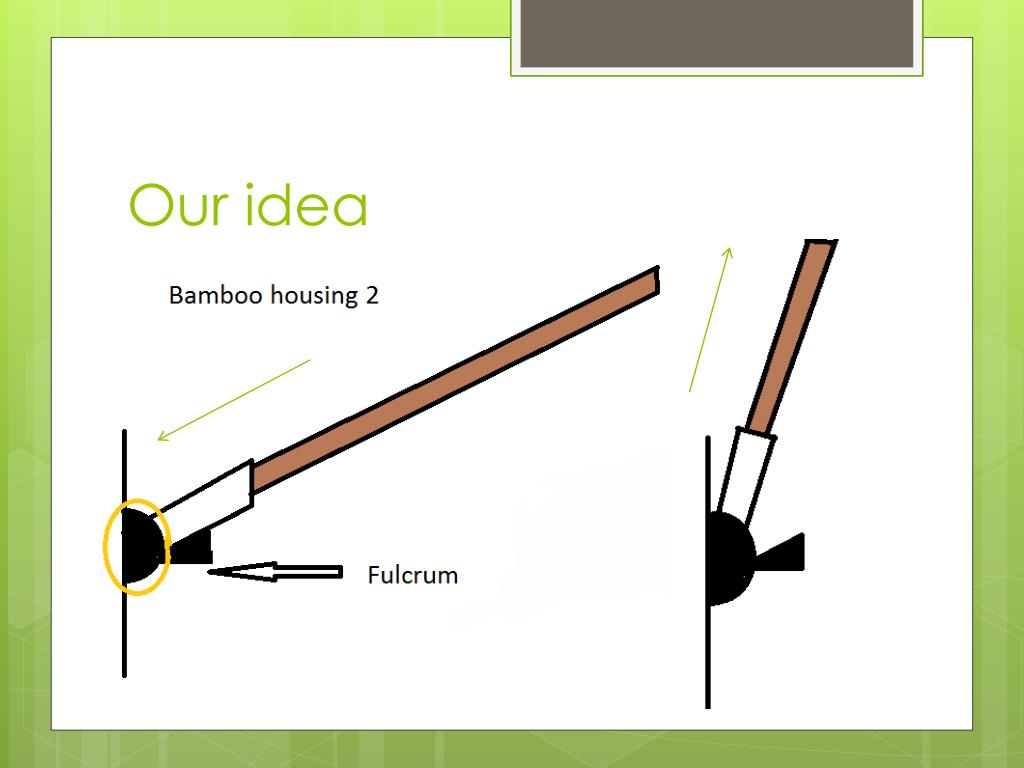

Improvements from convention
  • The ability to change the angles decreases the distance between the fulcrum and the load, and causes the end of the pole to be nearer. Thus, less force is used.
  • Holes to be drilled to drain water collected in the housing. This helps to remove stagnant water.
conclusion
Conclusion:

Our invention improves safety significantly while minimizing additional cost.

thank you

Thank you!

Fan Yiheng (2O2)

Leon Ng Joo Keat (2O2)

Ong Tiet Gan (2O3)

Per Sheng Xiang (2P4.
