Presentation Transcript

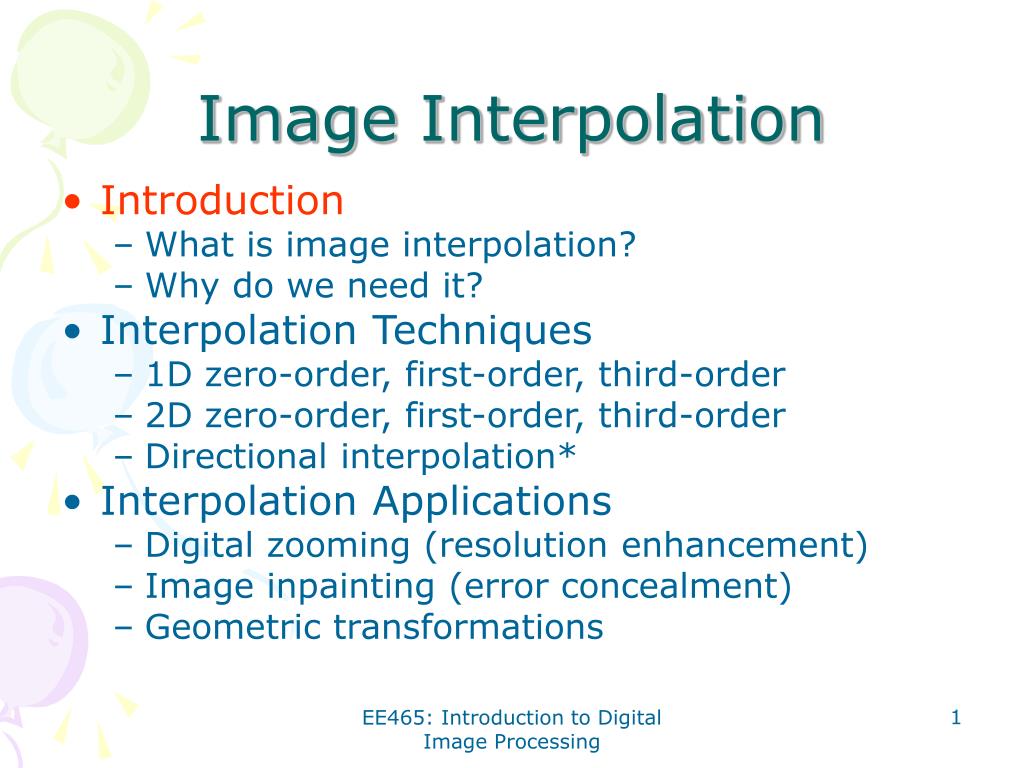

image interpolation
Image Interpolation
  • Introduction
    • What is image interpolation?
    • Why do we need it?
  • Interpolation Techniques
    • 1D zero-order, first-order, third-order
    • 2D zero-order, first-order, third-order
    • Directional interpolation*
  • Interpolation Applications
    • Digital zooming (resolution enhancement)
    • Image inpainting (error concealment)
    • Geometric transformations

EE465: Introduction to Digital Image Processing

introduction
Introduction
  • What is image interpolation?
    • An image f(x,y) tells us the intensity values at the integral lattice locations, i.e., when x and y are both integers
    • Image interpolation refers to the “guess” of intensity values at missing locations, i.e., x and y can be arbitrary
    • Note that it is just a guess (Note that all sensors have finite sampling distance)

EE465: Introduction to Digital Image Processing

introduction con t
Introduction (Con’t)
  • Why do we need image interpolation?
    • We want BIG images
      • When we see a video clip on a PC, we like to see it in the full screen mode
    • We want GOOD images
      • If some block of an image gets damaged during the transmission, we want to repair it
    • We want COOL images
      • Manipulate images digitally can render fancy artistic effects as we often see in movies

EE465: Introduction to Digital Image Processing

scenario i resolution enhancement
Scenario I: Resolution Enhancement

Low-Res.

High-Res.

EE465: Introduction to Digital Image Processing

slide5

Scenario II: Image Inpainting

Non-damaged

Damaged

EE465: Introduction to Digital Image Processing

scenario iii image warping
Scenario III: Image Warping

EE465: Introduction to Digital Image Processing

slide7

Image Interpolation

  • Introduction
    • What is image interpolation?
    • Why do we need it?
  • Interpolation Techniques
    • 1D zero-order, first-order, third-order
    • 2D zero-order, first-order, third-order
    • Directional interpolation*
  • Interpolation Applications
    • Digital zooming (resolution enhancement)
    • Image inpainting (error concealment)
    • Geometric transformations

EE465: Introduction to Digital Image Processing

slide8

1D Zero-order (Replication)

f(n)

n

f(x)

x

EE465: Introduction to Digital Image Processing

slide9

1D First-order Interpolation (Linear)

f(n)

n

f(x)

x

EE465: Introduction to Digital Image Processing

linear interpolation formula
Linear Interpolation Formula

Basic idea: the closer to a pixel, the higher weight is assigned

f(n)

f(n+a)

f(n+1)

a

1-a

f(n+a)=(1-a)f(n)+af(n+1), 0<a<1

Note: when a=0.5, we simply have the average of two

EE465: Introduction to Digital Image Processing

numerical examples
Numerical Examples

f(n)=[0,120,180,120,0]

Interpolate at 1/2-pixel

f(x)=[0,60,120,150,180,150,120,60,0], x=n/2

Interpolate at 1/3-pixel

f(x)=[0,20,40,60,80,100,120,130,140,150,160,170,180,…], x=n/6

EE465: Introduction to Digital Image Processing

slide12

1D Third-order Interpolation (Cubic)

f(n)

n

f(x)

x

Cubic spline fitting

EE465: Introduction to Digital Image Processing

slide13

From 1D to 2D

  • Just like separable 2D transform (filtering) that can be

implemented by two sequential 1D transforms (filters)

along row and column direction respectively, 2D

interpolation can be decomposed into two sequential

1D interpolations.

  • The ordering does not matter (row-column = column-row)
  • Such separable implementation is not optimal but enjoys low

computational complexity

EE465: Introduction to Digital Image Processing

slide14

Graphical Interpretationof Interpolation at Half-pel

row

column

f(m,n)

g(m,n)

EE465: Introduction to Digital Image Processing

numerical examples1
Numerical Examples

a b

c d

zero-order

first-order

a a b b

a a b b

c c d d

c c d d

a (a+b)/2 b

(a+c)/2(a+b+c+d)/4 (b+d)/2

c (c+d)/2 d

EE465: Introduction to Digital Image Processing

slide16

Numerical Examples (Con’t)

Col n+1

Col n

X(m,n)

X(m,n+1)

row m

b

a

1-a

Y

1-b

row m+1

X(m+1,n)

X(m+1,n+1)

Q: what is the interpolated value at Y?

Ans.: (1-a)(1-b)X(m,n)+(1-a)bX(m+1,n)

+a(1-b)X(m,n+1)+abX(m+1,n+1)

EE465: Introduction to Digital Image Processing

bicubic interpolation
Bicubic Interpolation*

EE465: Introduction to Digital Image Processing

limitation with bilinear bicubic
Edge blurring

Jagged artifacts

Limitation with bilinear/bicubic

Jagged artifacts

Edge blurring

Z

X

Z

X

EE465: Introduction to Digital Image Processing

directional interpolation
Directional Interpolation*

Step 1: interpolate the missing pixels along the diagonal

a

b

Since |a-c|=|b-d|

x

x has equal probability

of being black or white

c

d

black or white?

Step 2: interpolate the other half missing pixels

a

Since |a-c|>|b-d|

x

d

b

x=(b+d)/2=black

c

EE465: Introduction to Digital Image Processing

slide20

Image Interpolation

  • Introduction
    • What is image interpolation?
    • Why do we need it?
  • Interpolation Techniques
    • 1D zero-order, first-order, third-order
    • 2D zero-order, first-order, third-order
    • Directional interpolation*
  • Interpolation Applications
    • Digital zooming (resolution enhancement)
    • Image inpainting (error concealment)
    • Geometric transformations

EE465: Introduction to Digital Image Processing

slide21

Pixel Replication

low-resolution

image (100×100)

high-resolution

image (400×400)

EE465: Introduction to Digital Image Processing

slide22

Bilinear Interpolation

low-resolution

image (100×100)

high-resolution

image (400×400)

EE465: Introduction to Digital Image Processing

slide23

Bicubic Interpolation

low-resolution

image (100×100)

high-resolution

image (400×400)

EE465: Introduction to Digital Image Processing

edge directed interpolation li orchard 2000
Edge-Directed Interpolation(Li&Orchard’2000)

low-resolution

image (100×100)

high-resolution

image (400×400)

EE465: Introduction to Digital Image Processing

image demosaicing color filter array interpolation
Image Demosaicing(Color-Filter-Array Interpolation)

Bayer Pattern

EE465: Introduction to Digital Image Processing

image example
Image Example

Advanced CFA Interpolation

Ad-hoc CFA Interpolation

EE465: Introduction to Digital Image Processing

error concealment
Error Concealment

damaged

interpolated

EE465: Introduction to Digital Image Processing

image inpainting
Image Inpainting

EE465: Introduction to Digital Image Processing

geometric transformation
Geometric Transformation

Widely used in computer graphics to generate special effects

MATLAB functions: griddata, interp2, maketform, imtransform

EE465: Introduction to Digital Image Processing

basic principle
Basic Principle
  • (x,y)  (x’,y’) is a geometric transformation
  • We are given pixel values at (x,y) and want to interpolate the unknown values at (x’,y’)
  • Usually (x’,y’) are not integers and therefore we can use linear interpolation to guess their values

MATLAB implementation: z’=interp2(x,y,z,x’,y’,method);

EE465: Introduction to Digital Image Processing

rotation
Rotation

y

y’

x’

θ

x

EE465: Introduction to Digital Image Processing

matlab example
MATLAB Example

z=imread('cameraman.tif');

% original coordinates

[x,y]=meshgrid(1:256,1:256);

% new coordinates

a=2;

for i=1:256;for j=1:256;

x1(i,j)=a*x(i,j);

y1(i,j=y(i,j)/a;

end;end

% Do the interpolation

z1=interp2(x,y,z,x1,y1,'cubic');

EE465: Introduction to Digital Image Processing

slide33

Rotation Example

θ=3o

EE465: Introduction to Digital Image Processing

scale
Scale

a=1/2

EE465: Introduction to Digital Image Processing

affine transform
Affine Transform

parallelogram

square

EE465: Introduction to Digital Image Processing

slide36

Affine Transform Example

EE465: Introduction to Digital Image Processing

shear
Shear

parallelogram

square

EE465: Introduction to Digital Image Processing

slide38

Shear Example

EE465: Introduction to Digital Image Processing

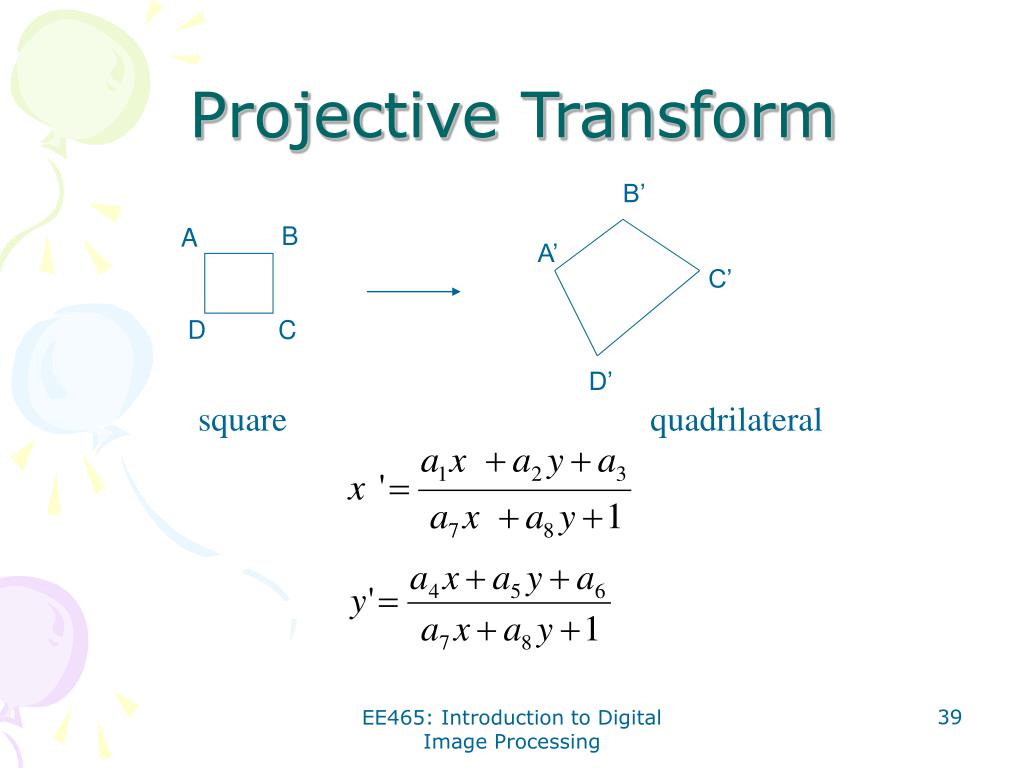

projective transform
Projective Transform

B’

B

A

A’

C’

D

C

D’

square

quadrilateral

EE465: Introduction to Digital Image Processing

slide40

Projective Transform Example

[-4 2; -8 -3; -3 -5; 6 3]

[ 0 0; 1 0; 1 1; 0 1]

EE465: Introduction to Digital Image Processing

polar transform
Polar Transform

EE465: Introduction to Digital Image Processing

iris image unwrapping
Iris Image Unwrapping

r

EE465: Introduction to Digital Image Processing

use your imagination
Use Your Imagination

r -> sqrt(r)

http://astronomy.swin.edu.au/~pbourke/projection/imagewarp/

EE465: Introduction to Digital Image Processing

free form deformation
Free Form Deformation

Seung-Yong Lee et al., “Image Metamorphosis Using Snakes and

Free-Form Deformations,”SIGGRAPH’1985, Pages 439-448

EE465: Introduction to Digital Image Processing

application into image metamorphosis
Application into Image Metamorphosis

EE465: Introduction to Digital Image Processing

summary of image interpolation
Summary of Image Interpolation
  • A fundamental tool in digital processing of images: bridging the continuous world and the discrete world
  • Wide applications from consumer electronics to biomedical imaging
  • Remains a hot topic after the IT bubbles break

EE465: Introduction to Digital Image Processing
