  1. Prediction Basic concepts

  2. Scope Prediction of: • Resources • Calendar time • Quality (or lack of quality) • Change impact • Process performance • Often confounded with the decision process

  3. Historical data Y (dependent, observed, response variable) explained variance of observed Yi prediction interval of new observation Y0 at x0 x0 X (independent, prediction variable) known unknown

  4. Methods for building prediction models • Statistical • Parametric • Make assumptions about distribution of the variables • Good tools for automation • Linear regression, Variance analysis, ... • Non-parametric, robust • No assumptions about distribution • Less powerful, low degree of automation • Rank-sum methods, Pareto diagrams, ... • Causal models • Link elements with semantic links or numerical equations • Simulation models, connectionism models, genetic models, ... • Judgemental • Organise human expertise • Delphi method, pair-wise comparison, rule-based methods

  5. Common SE-predictions • Detecting fault-prone modules • Project effort estimation • Change Impact Analysis • Ripple effect analysis • Process improvement models • Model checking • Consistency checking

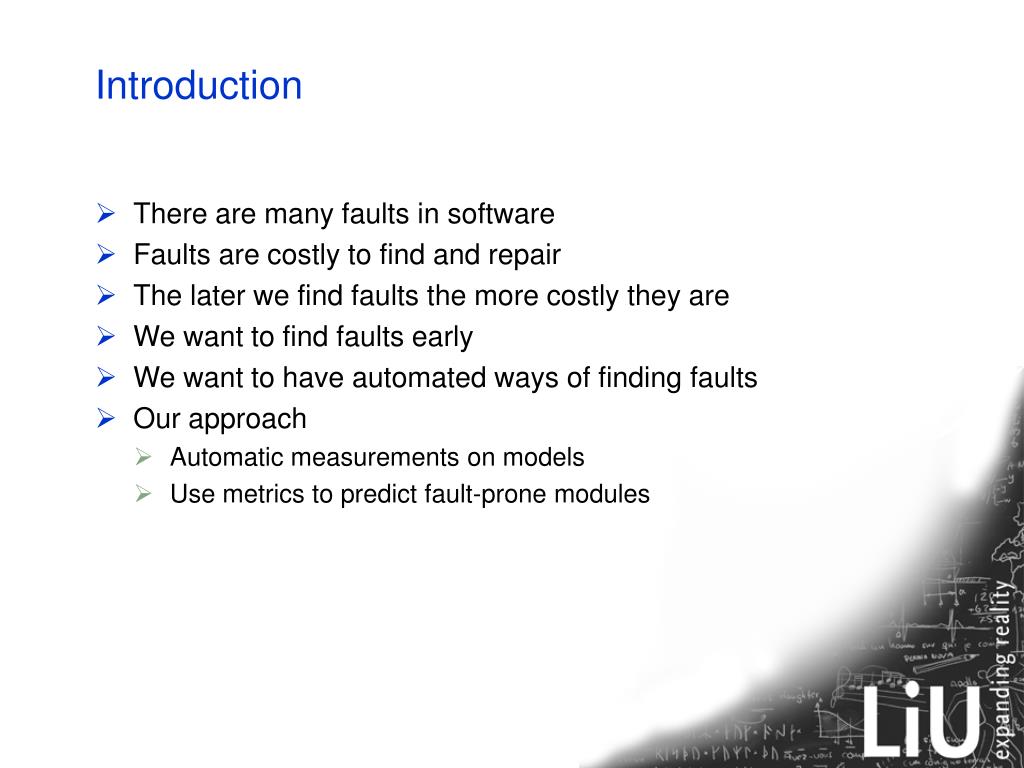

  6. Introduction • There are many faults in software • Faults are costly to find and repair • The later we find faults the more costly they are • We want to find faults early • We want to have automated ways of finding faults • Our approach • Automatic measurements on models • Use metrics to predict fault-prone modules

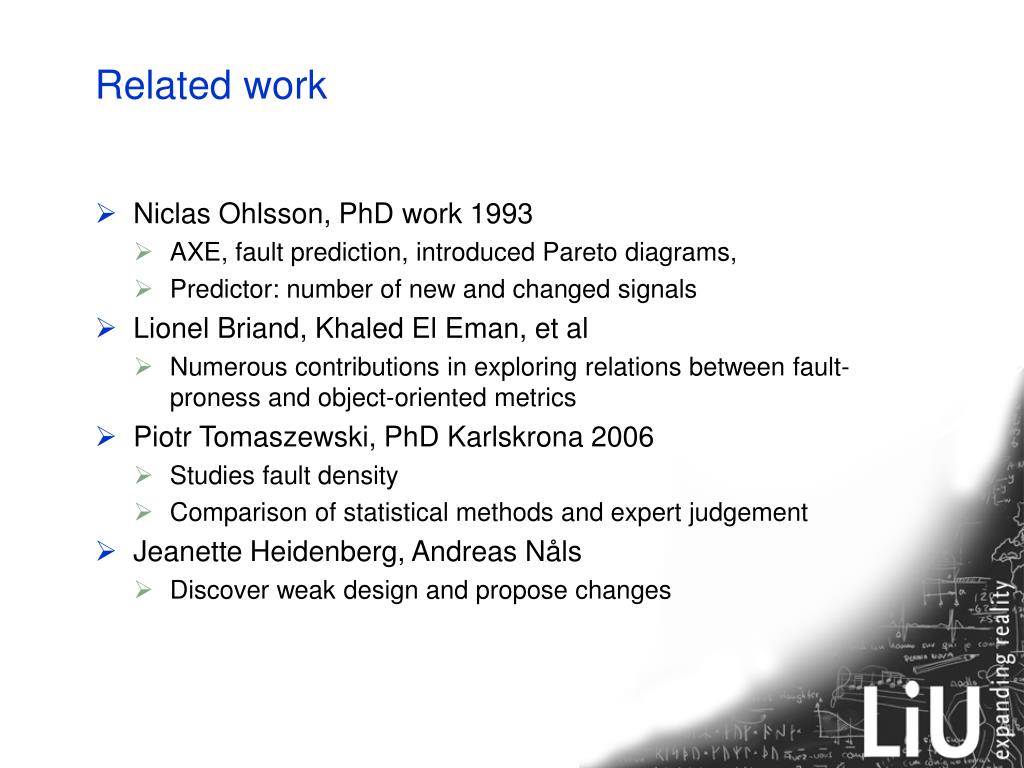

  7. Related work • Niclas Ohlsson, PhD work 1993 • AXE, fault prediction, introduced Pareto diagrams, • Predictor: number of new and changed signals • Lionel Briand, Khaled El Eman, et al • Numerous contributions in exploring relations between fault-proness and object-oriented metrics • Piotr Tomaszewski, PhD Karlskrona 2006 • Studies fault density • Comparison of statistical methods and expert judgement • Jeanette Heidenberg, Andreas Nåls • Discover weak design and propose changes

  8. Approach • Find metrics (independent variables) • Number of model elements (size) • Number of changed methods (change) • Transitions per state (complexity) • Changed operations * transitions per state (combinations) • ... • Use metrics to predict (dependent variable) • Number of TRs

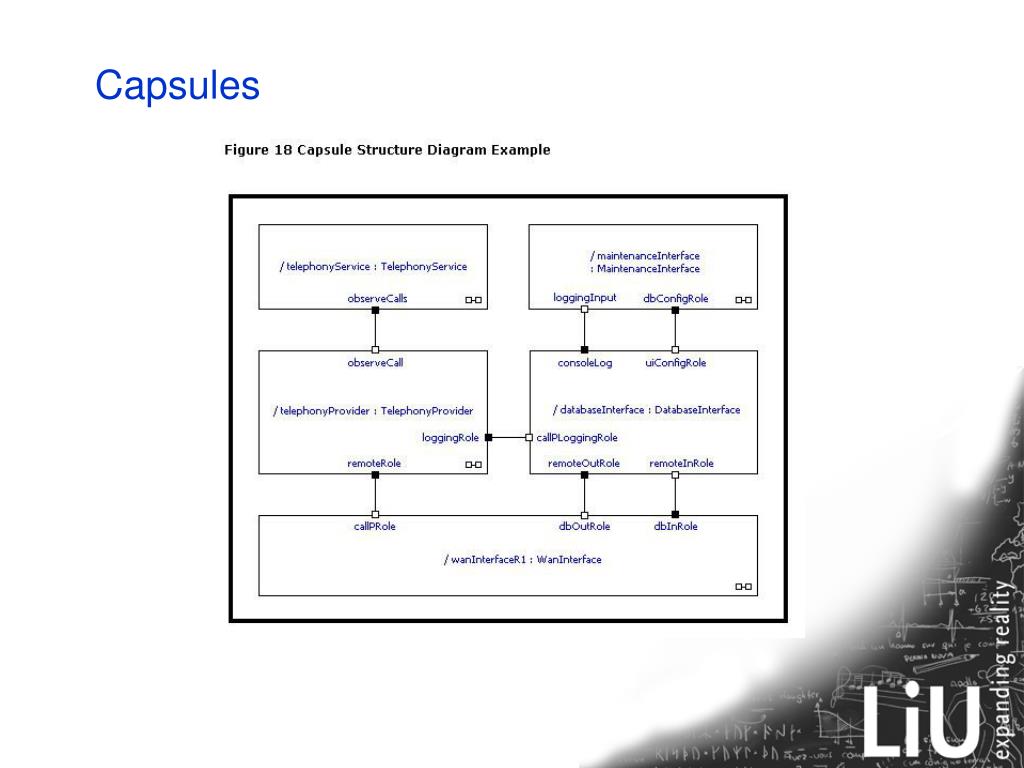

  9. Capsules

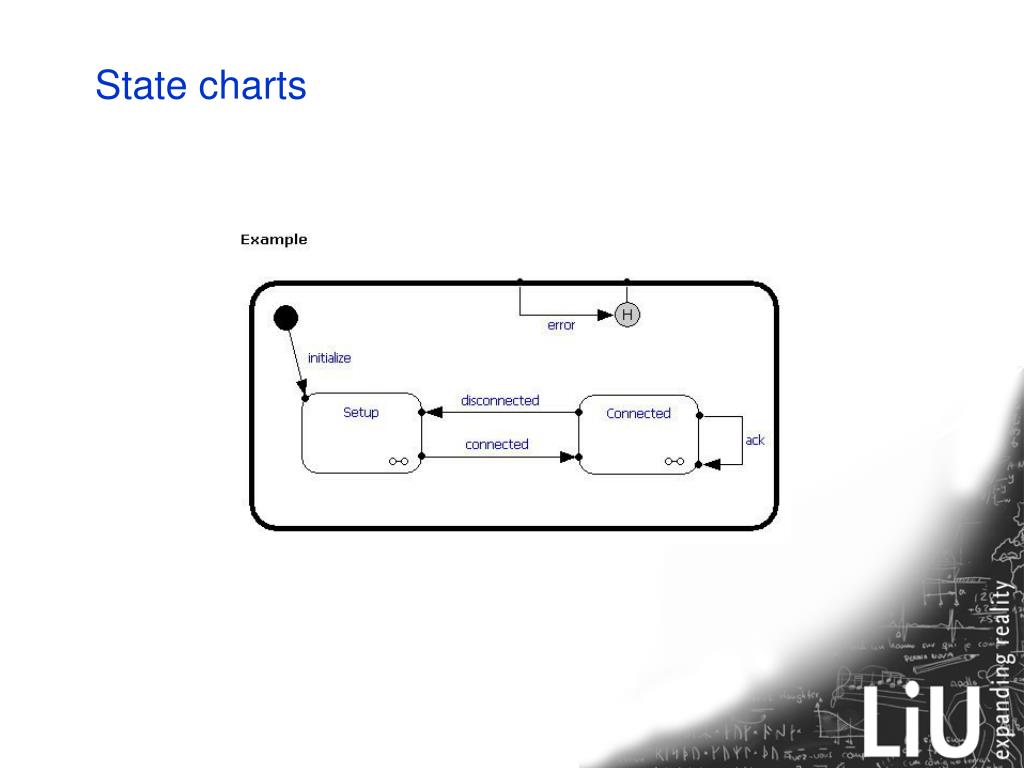

  10. State charts

  11. Data model package capsule class port protocol attribute operation State machine signal State transition

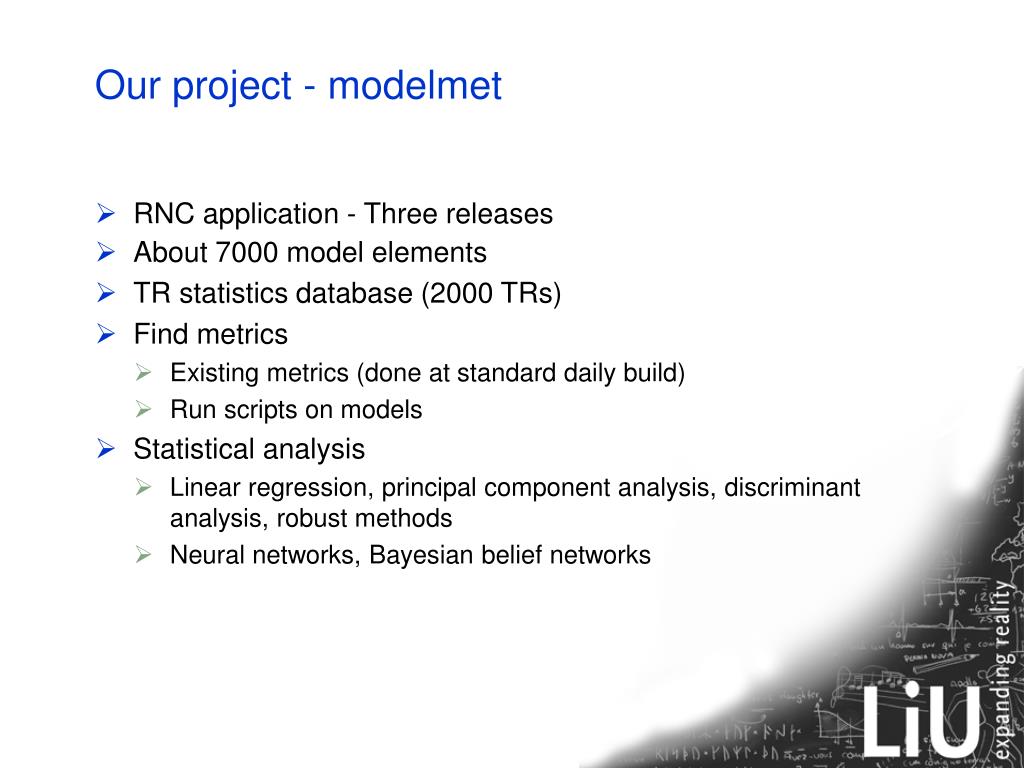

  12. Our project - modelmet • RNC application - Three releases • About 7000 model elements • TR statistics database (2000 TRs) • Find metrics • Existing metrics (done at standard daily build) • Run scripts on models • Statistical analysis • Linear regression, principal component analysis, discriminant analysis, robust methods • Neural networks, Bayesian belief networks

  13. Size Change Complexity Combined

  14. Metrics based on change, system A

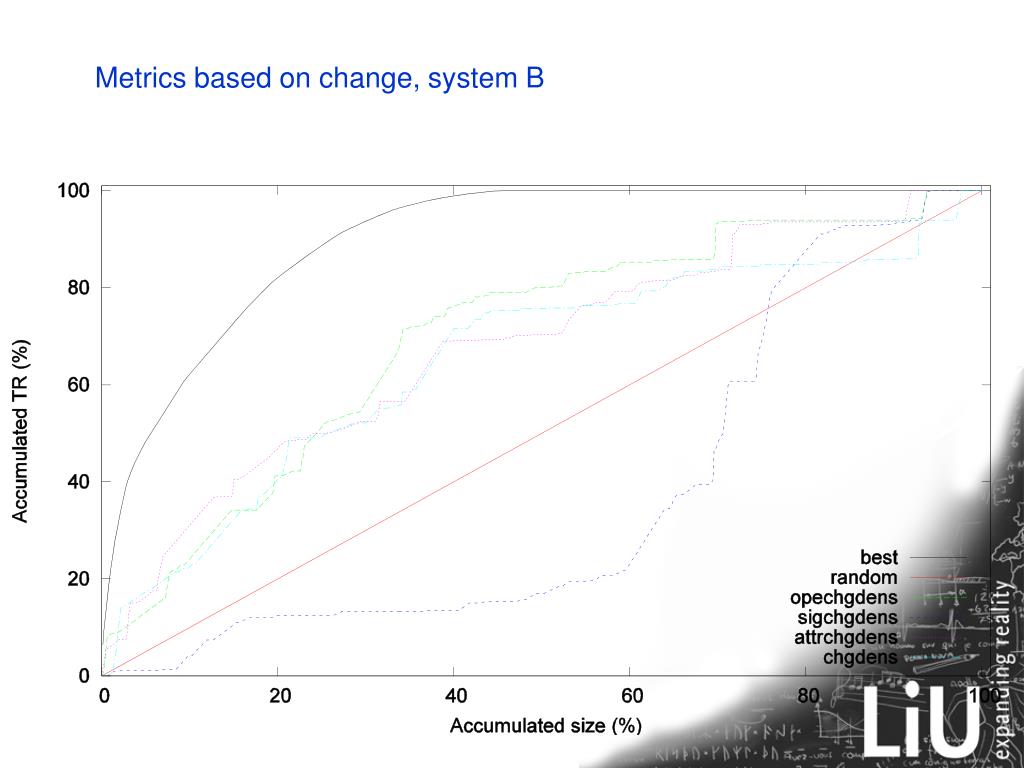

  15. Metrics based on change, system B

  16. Complexity and size metrics, system A

  17. Complexity and Size metrics, system B

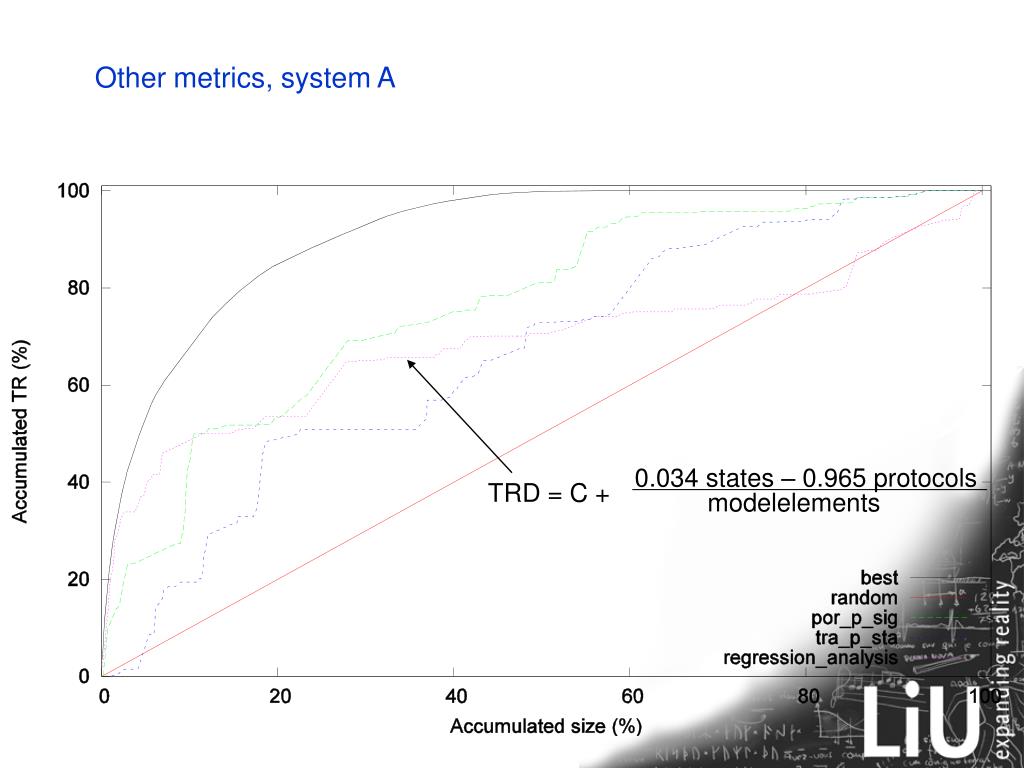

  18. Other metrics, system A 0.034 states – 0.965 protocols TRD = C + modelelements

  19. Other metrics, system B

  20. How to use predictions • Uneven distribution of faults is common – 80/20 rule • Perform special treatment on selected parts • Select experienced designers • Provide good working conditions • Parallell teams • Inspections • Static and dynamic analysis tools • ... • Perform root-cause analysis and make corrections

  21. Results Contributions: • Valid statistical material: • Large models, large number of TRs • Two change projects • Two highly explanatory predictors were found • State chart metrics are as good as OO metrics Problems: • Some problems to match modules in models and TRs • Effort to collect change data
