Naming Alkanes Problem Set. 1. . 2. 2-methylbutane. 2-methylbutane. 4. 3. 2,3-dimethylbutane. 3,3,4-trimethylhexane. Naming Alkanes Problem Set. 5. . 3-ethyl-2,4,5-trimethylheptane. 6. 6-ethyl-2,7-dimethylnonane. Naming Alkanes Problem Set. 7. . 8. 2,3,4-trimethylhexane.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Naming Alkanes Problem Set' - bao


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
naming alkanes problem set
Naming Alkanes Problem Set

1.

2.

2-methylbutane

2-methylbutane

4.

3.

2,3-dimethylbutane

3,3,4-trimethylhexane

naming alkanes problem set1
Naming Alkanes Problem Set

5.

3-ethyl-2,4,5-trimethylheptane

6.

6-ethyl-2,7-dimethylnonane

naming alkanes problem set2

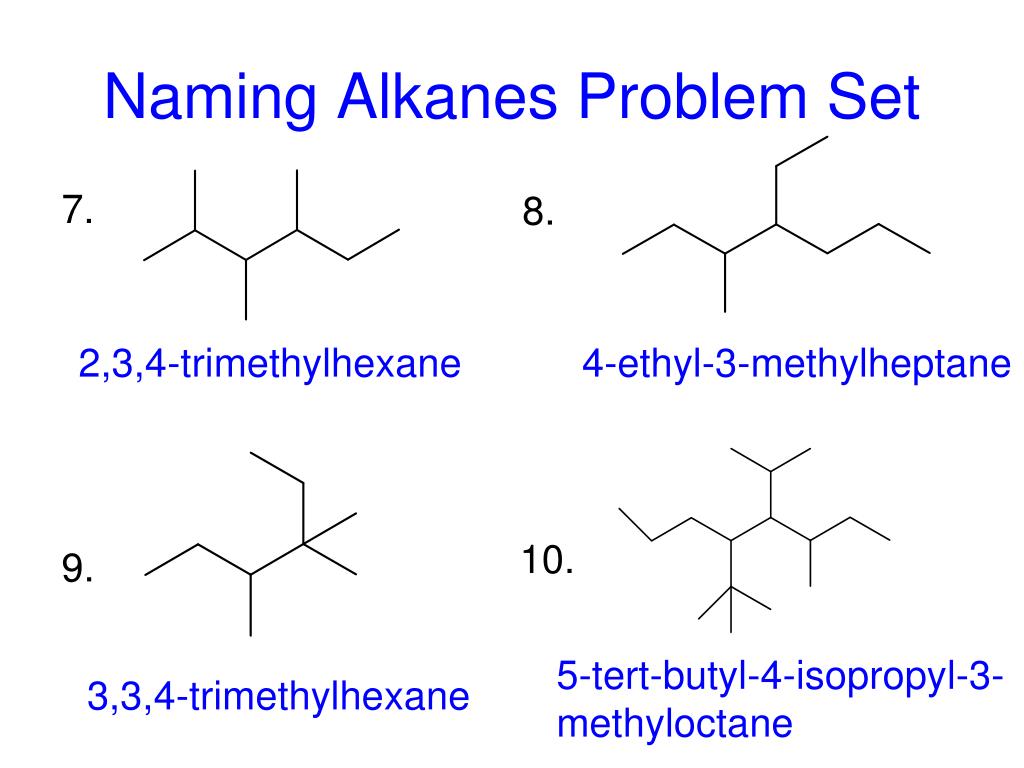

Naming Alkanes Problem Set

7.

8.

2,3,4-trimethylhexane

4-ethyl-3-methylheptane

10.

9.

5-tert-butyl-4-isopropyl-3-methyloctane

3,3,4-trimethylhexane

naming alkanes problem set3
Naming Alkanes Problem Set

11.

2,2,3-trimethylheptane

12.

6-ethyl-2-methyl-5-propylnonane

naming alkanes problem set4
Naming Alkanes Problem Set

13.

14.

3,5-dimethyl-4-propylheptane

3,4,4-trimethylheptane

16.

15.

4-ethyl-6-isobutyl-2,9-dimethyldecane

3-ethyl-2,2,3-trimethylpentane

naming alkanes problem set5

4

6

8

2

7

1

3

5

1

7

6

2

3

5

4

Naming Alkanes Problem Set

1,1,6-trimethylhexane

17.

2-methyloctane

2-tert-butyl-4-ethyl-3-isopropylpentane

18.

4-isopropyl-2,2,3,5-tetramethylheptane

naming alkanes problem set6

4

6

10

5

8

2

1

9

3

7

4

6

3

2

7

1

5

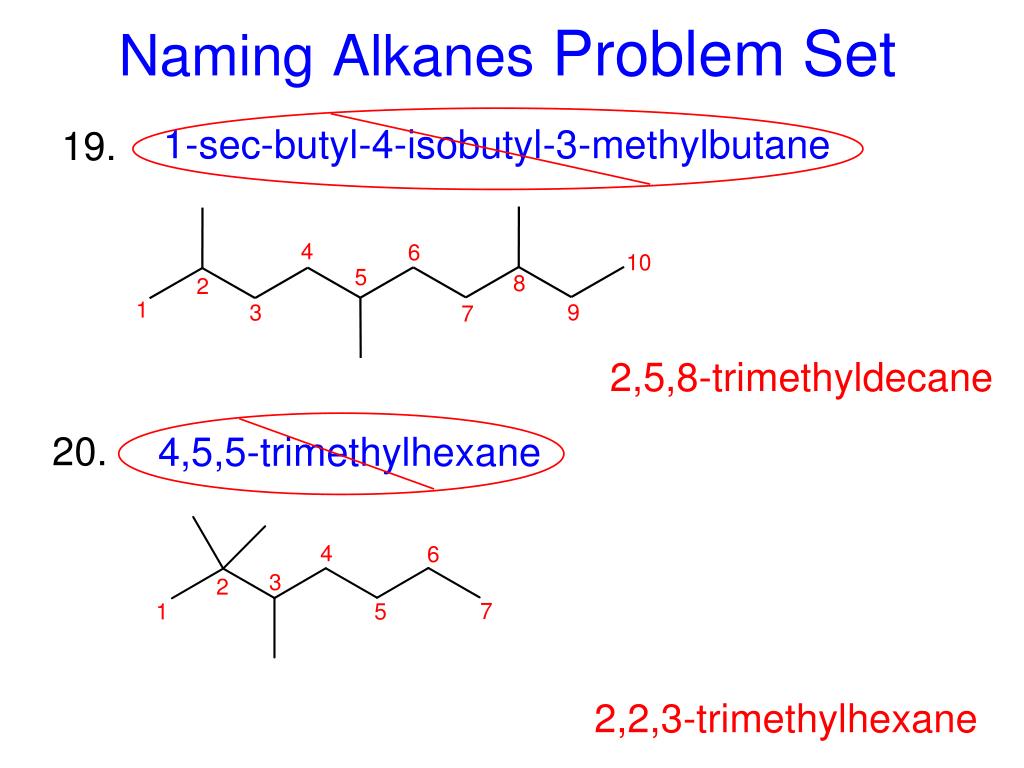

NamingAlkanes Problem Set

1-sec-butyl-4-isobutyl-3-methylbutane

19.

2,5,8-trimethyldecane

20.

4,5,5-trimethylhexane

2,2,3-trimethylhexane
