  1. IGEL UD Series Product Marketing Manager October2011 Florian Spatz Universal Desktop Series

  2. Overview • IGEL Universal Firmware • IGEL Universal Desktop Hardware • IGEL UD2 series • IGEL UD3 series • IGEL UD5 series • IGEL UD9 series

  3. Overview

  4. User scenarios • Workplace for: • Microsoft® Windows® Remote Desktop Services and VDI Suite • Citrix XenAppTM and XenDesktopTM • VMware View environments • RedHat Enterprise Virtualization forDesktop • Mainframe environments • Enhanced Security and personalization via smartcard or eToken • Access to web-applications using local browser • Low energyconsumptionand TCO

  5. ProductNaming

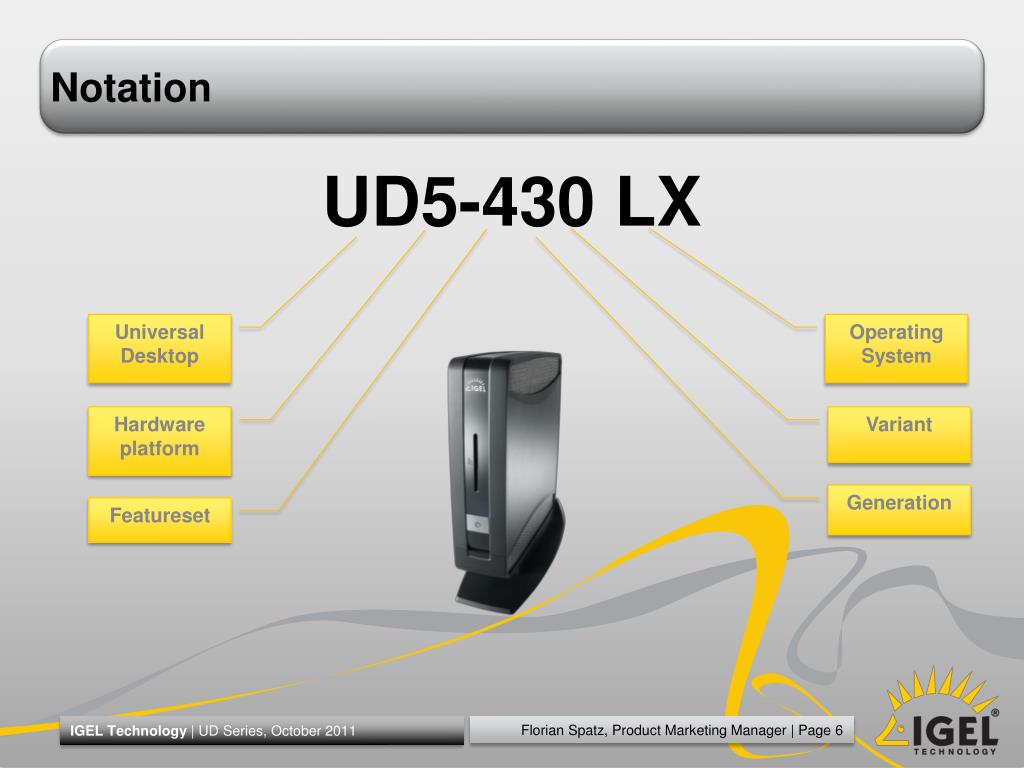

  6. UD5-430 LX Notation Universal Desktop Operating System Hardware platform Variant Generation Featureset

  7. UD5-430 LX Notation – in detail Operating System

  8. Firmware

  9. Operating System • IGEL Universal Desktop OS (Linux based) • High performance on moderate hardware requirements • Embedded closed system ensures maximum system stability • Small footprint and modular design • Universal Firmware Concept – one firmware image includes all feature packs • Microsoft® Windows® Embedded Standard • Microsoft Windows user interface • Genuine Microsoft RDP • Customizable via application installation • Universal Firmware Concept – one firmware image includes all feature packs

  10. Entry Universal Desktop

  11. Standard Universal Desktop (Entry+)

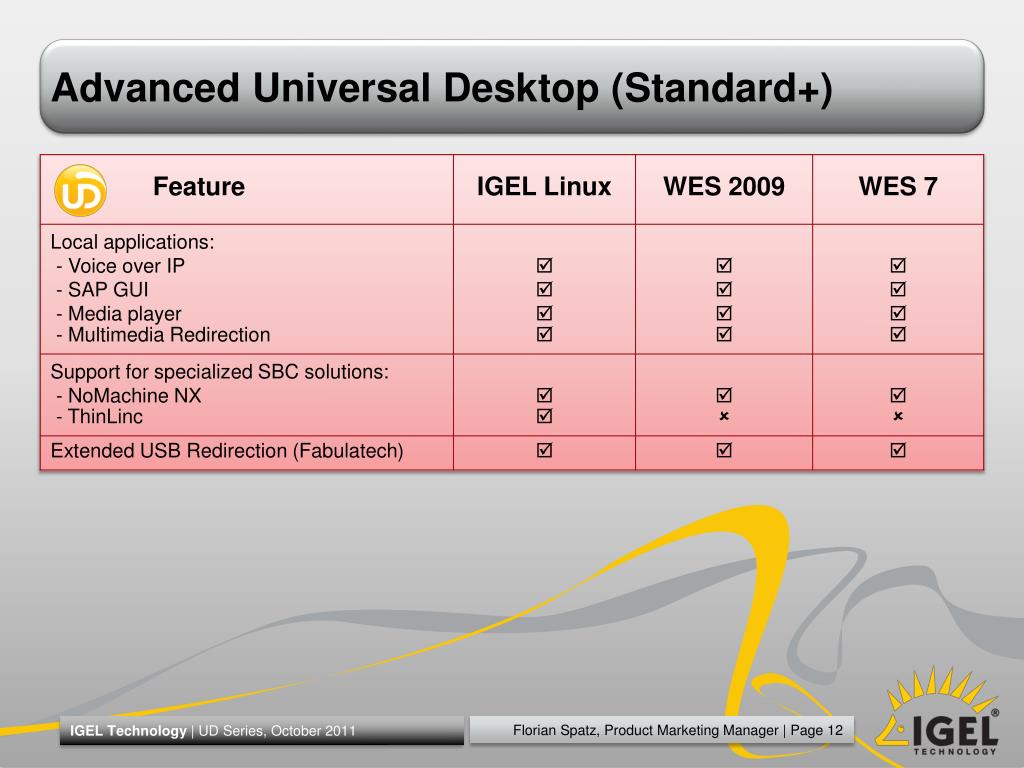

  12. Advanced Universal Desktop (Standard+)

  13. Hardware

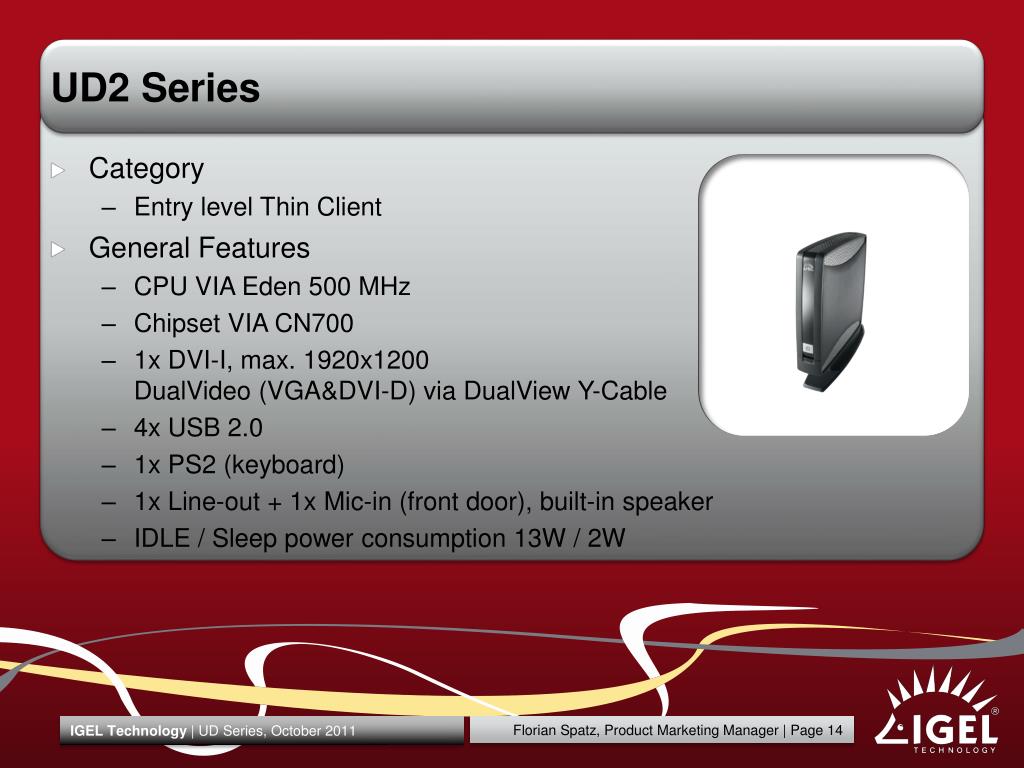

  14. UD2 Series • Category • Entry levelThin Client • General Features • CPU VIA Eden 500 MHz • Chipset VIA CN700 • 1x DVI-I, max. 1920x1200DualVideo(VGA&DVI-D) via DualView Y-Cable • 4x USB 2.0 • 1x PS2 (keyboard) • 1x Line-out + 1x Mic-in (front door), built-in speaker • IDLE / Sleep power consumption13W / 2W

  15. UD2 Series - Details • Operating Systems • IGEL Linux • Add-ons(optional) • VESA mount • Rubber feet • DualView Y-Cable • USB-to-Serial adapter • USB-to-Parallel adapter

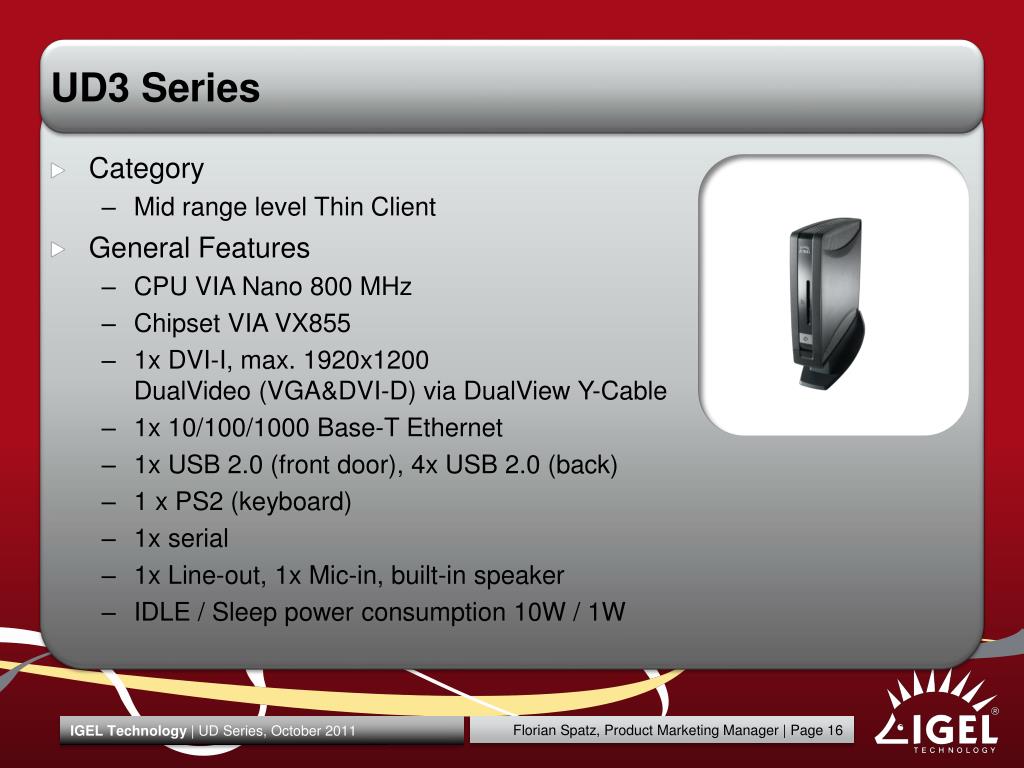

  16. UD3 Series • Category • Mid rangelevelThin Client • General Features • CPU VIA Nano 800 MHz • Chipset VIA VX855 • 1x DVI-I, max. 1920x1200DualVideo(VGA&DVI-D) via DualView Y-Cable • 1x 10/100/1000 Base-T Ethernet • 1x USB 2.0 (front door), 4x USB 2.0 (back) • 1 x PS2 (keyboard) • 1x serial • 1x Line-out, 1x Mic-in, built-in speaker • IDLE / Sleep power consumption 10W / 1W

  17. UD3 Series - Details • Operating Systems • IGEL Linux • Windows Embedded Standard 2009 • Add-ons(optional) • VESA mount • Rubber feet • Connectivity Foot 1:1x serial, 1x anti-theft USB • Connectivity Foot 2:1x serial, 802.11 b/g WLAN • DualView Y-Cable • Built-in Smartcard Reader • USB-to-Serial and USB-to-Parallel adapter

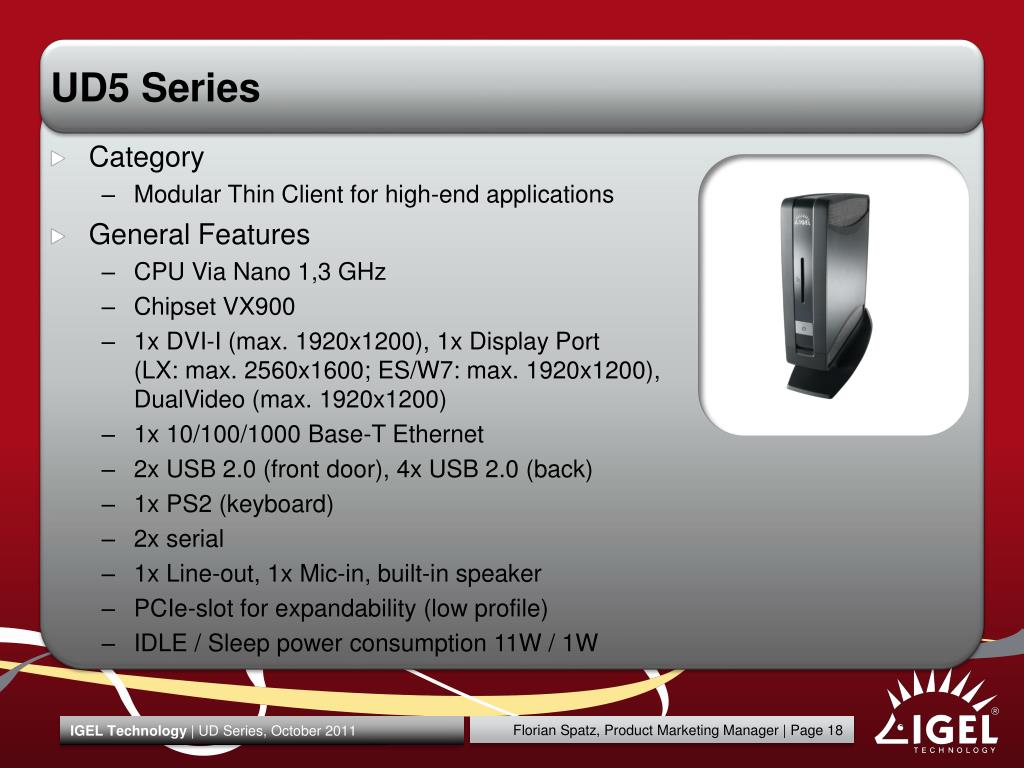

  18. UD5 Series • Category • Modular Thin Client for high-end applications • General Features • CPU Via Nano 1,3 GHz • Chipset VX900 • 1x DVI-I (max. 1920x1200), 1x Display Port (LX: max. 2560x1600; ES/W7: max. 1920x1200), DualVideo (max. 1920x1200) • 1x 10/100/1000 Base-T Ethernet • 2x USB 2.0 (front door), 4x USB 2.0 (back) • 1x PS2 (keyboard) • 2x serial • 1x Line-out, 1x Mic-in, built-in speaker • PCIe-slot forexpandability (lowprofile) • IDLE / Sleep power consumption11W / 1W

  19. UD5 Series - Details • Operating Systems • IGEL Linux • Windows Embedded Standard 2009 • Windows Embedded Standard 7 (Advanced only) • Add-ons (optional) • Rubber feet • Connectivity Foot 1: 1x parallel, 1x anti-theftUSB • Connectivity Foot 2: 1x serial, 802.11 b/g WLAN • Built-in Smartcard Reader • USB-to-Serial adapter • USB-to-Parallel adapter

  20. UD9 Series • Category • TFT Display withintegrated high-end Thin Client • General Features • CPU Atom n270 processor 1,6 GHz • ChipsetIntel 945 GSE • 21,5’’ TFT Panel, max. 1920x1080 Pixel • 1x VGA out (DualView Option) • 1x 10/100/1000Base-T Ethernet • 4x USB 2.0 • 2x PS/2 • 2x serial, 1x parallel • 1x Line-out / 1x Line-in / 1x Mic-In • IDLE / Sleep power consumption 38W / 2W

  21. UD9 Series - Details • Operating Systems • IGEL Linux (Advancedonly) • Windows Embedded Standard 2009 (Advancedonly) • Options • Resistivetouchscreen • Wireless LAN 802.11 b/g/n • Built-in Smartcard Reader • USB-to-Serial adapter • USB-to-Parallel adapter

  22. Accessories: Connectivity Foot 1 • Serial Port • Anti-theft USB Port • Designedforpublicfacingenvironments • Target devicesfor anti-theft USB port: • USB flashsticksforextendedstorage • WiFidongles • Recommended devicefor LX: D-Link DWA-131 • Bluetooth dongles (onlysupported in WES)

  23. Benefits

  24. Benefits of the Universal Desktop series • Software update mechanism reduces network load & increases productivity • Assured future investment: Large Compact Flash size provides plenty of free space for future updates, new features and developments • Products designed for customers needs: Entry, Standard or Advanced feature set on the desired hardware platform • Energy efficient hardware keeps costs down and the ecological impact small • Modular upgrade of hardware connectivity with Connectivity Feet • Smooth migration of existing client infrastructure with the Universal Desktop Converter

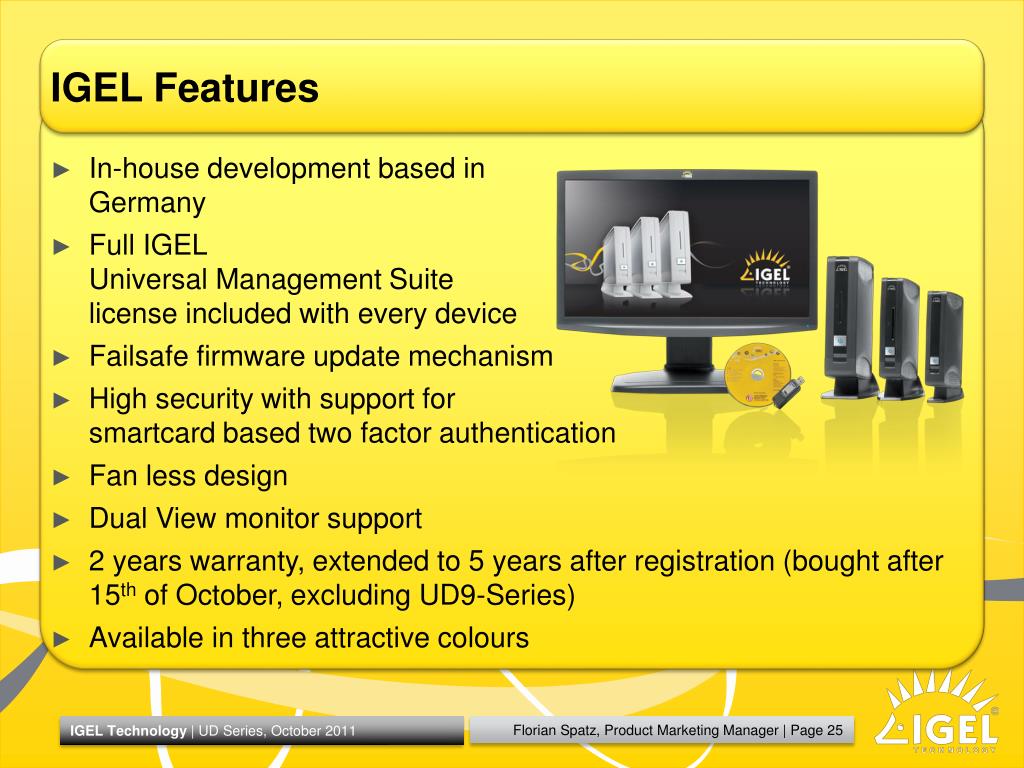

  25. IGEL Features • In-house development based inGermany • Full IGEL Universal Management Suite license included with every device • Failsafe firmware update mechanism • High security with support for smartcard based two factor authentication • Fan less design • Dual View monitor support • 2 years warranty, extended to 5 years after registration (bought after 15th of October, excluding UD9-Series) • Available in three attractive colours
