an introduction to propositional logic

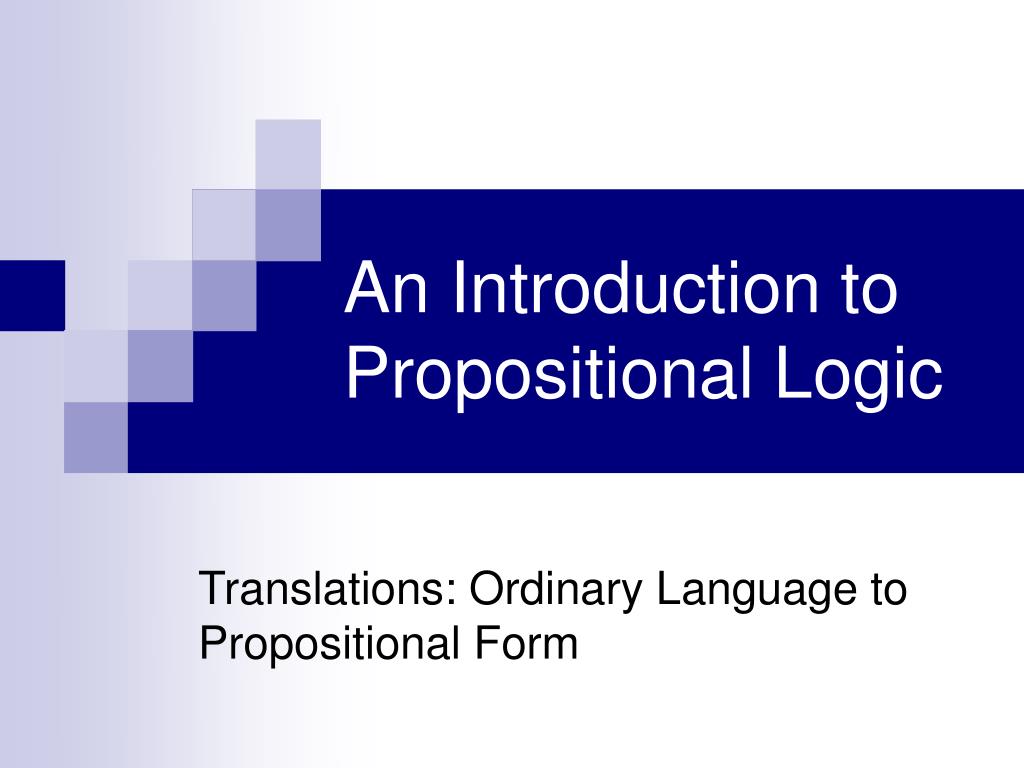

An Introduction to Propositional Logic

Translations: Ordinary Language to Propositional Form

what is a proposition

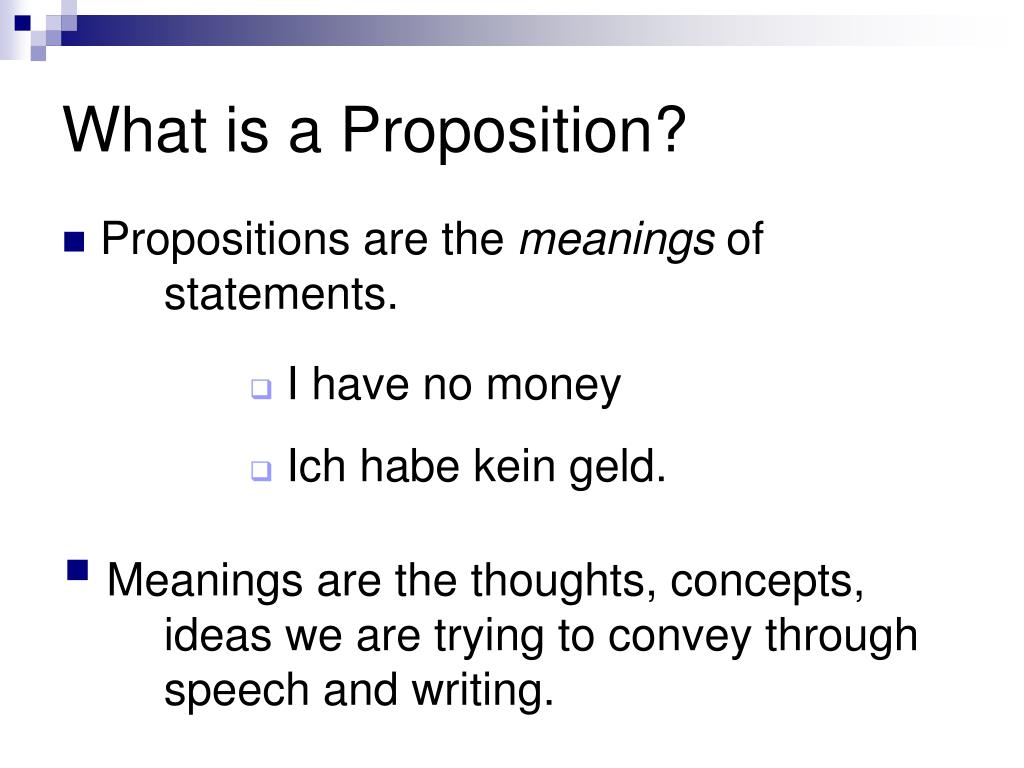

What is a Proposition?
  • Propositions are the meanings of statements.
  • I have no money
  • Ich habe kein geld.
  • Meanings are the thoughts, concepts, ideas we are trying to convey through speech and writing.
simple propositions

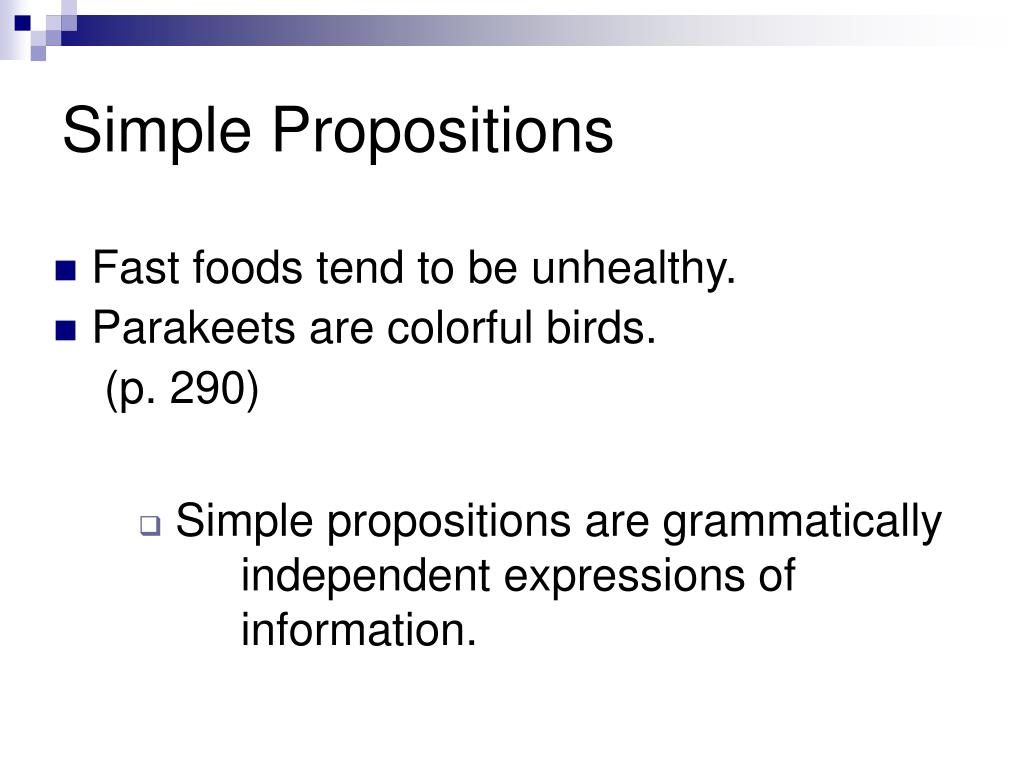

Simple Propositions
  • Fast foods tend to be unhealthy.
  • Parakeets are colorful birds.

(p. 290)

  • Simple propositions are grammatically independent expressions of information.
compound propositions

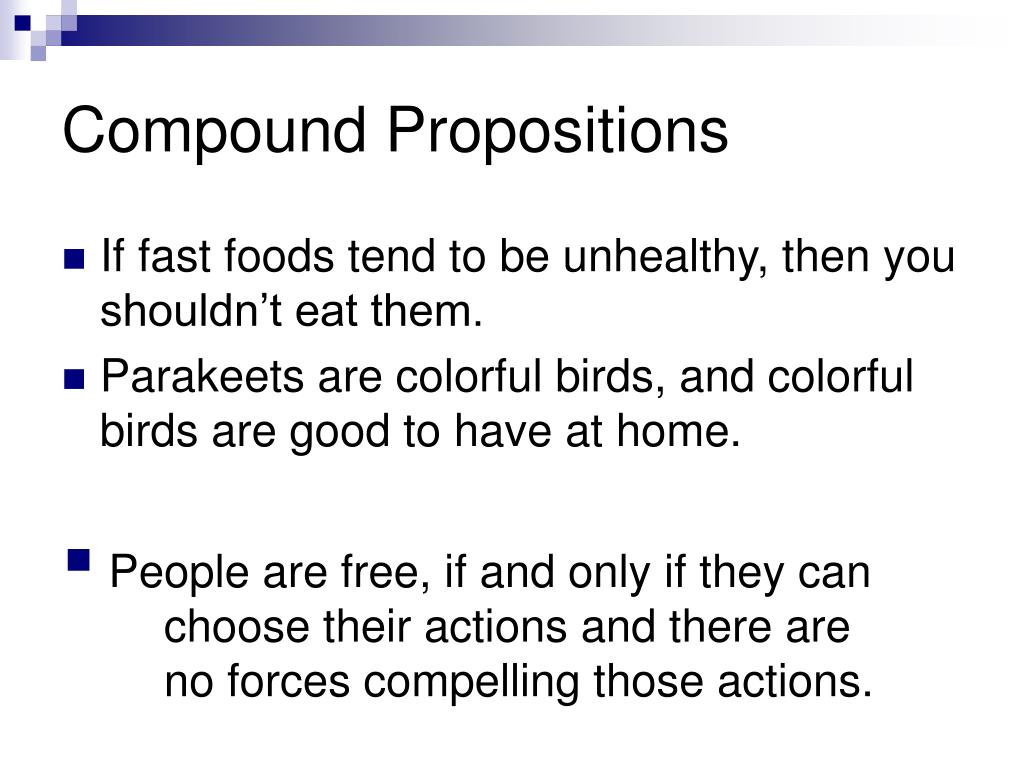

Compound Propositions
  • If fast foods tend to be unhealthy, then you shouldn’t eat them.
  • Parakeets are colorful birds, and colorful birds are good to have at home.
  • People are free, if and only if they can choose their actions and there are no forces compelling those actions.

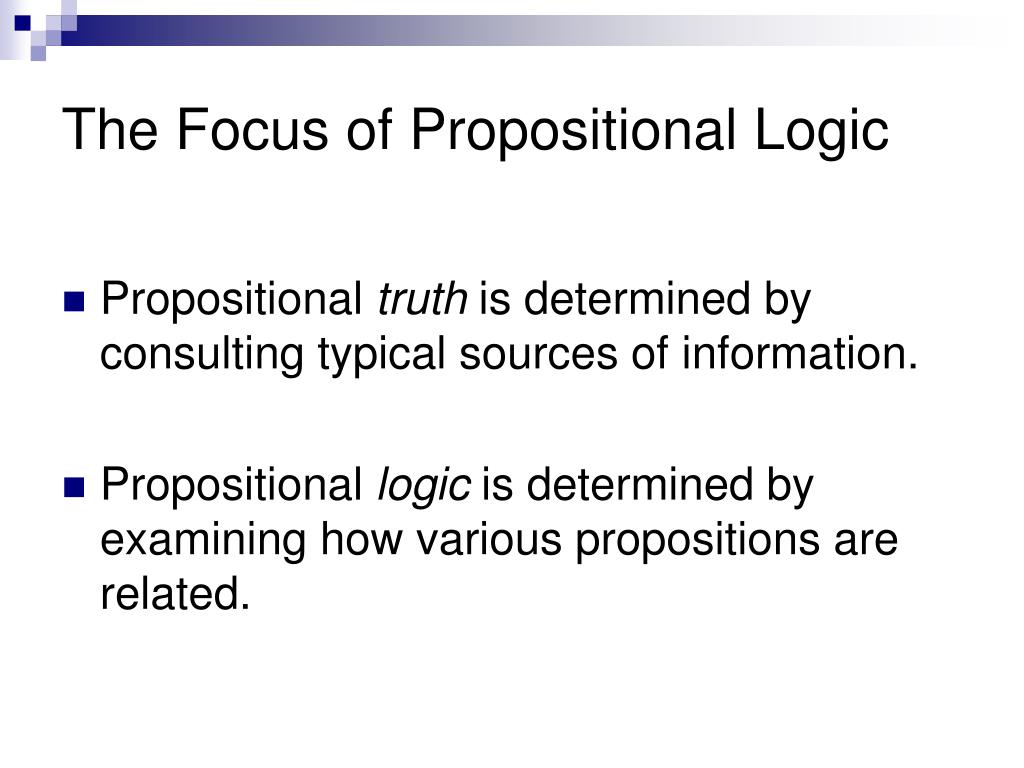

the focus of propositional logic
The Focus of Propositional Logic
  • Propositional truth is determined by consulting typical sources of information.
  • Propositional logic is determined by examining how various propositions are related.

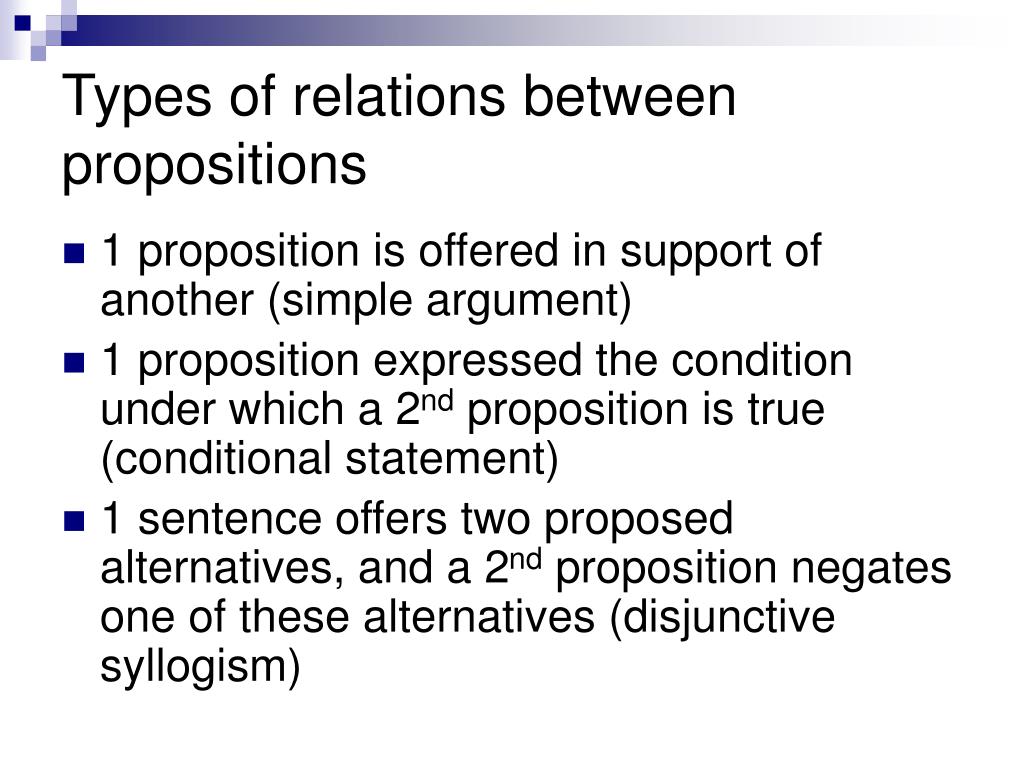

types of relations between propositions
Types of relations between propositions
  • 1 proposition is offered in support of another (simple argument)
  • 1 proposition expressed the condition under which a 2nd proposition is true (conditional statement)
  • 1 sentence offers two proposed alternatives, and a 2nd proposition negates one of these alternatives (disjunctive syllogism)
propositional symbols
Propositional Symbols
  • Symbolizing propositions allows us to focus on the relations between propositions (logic) rather than the content of those propositions (truth).
module objectives 1

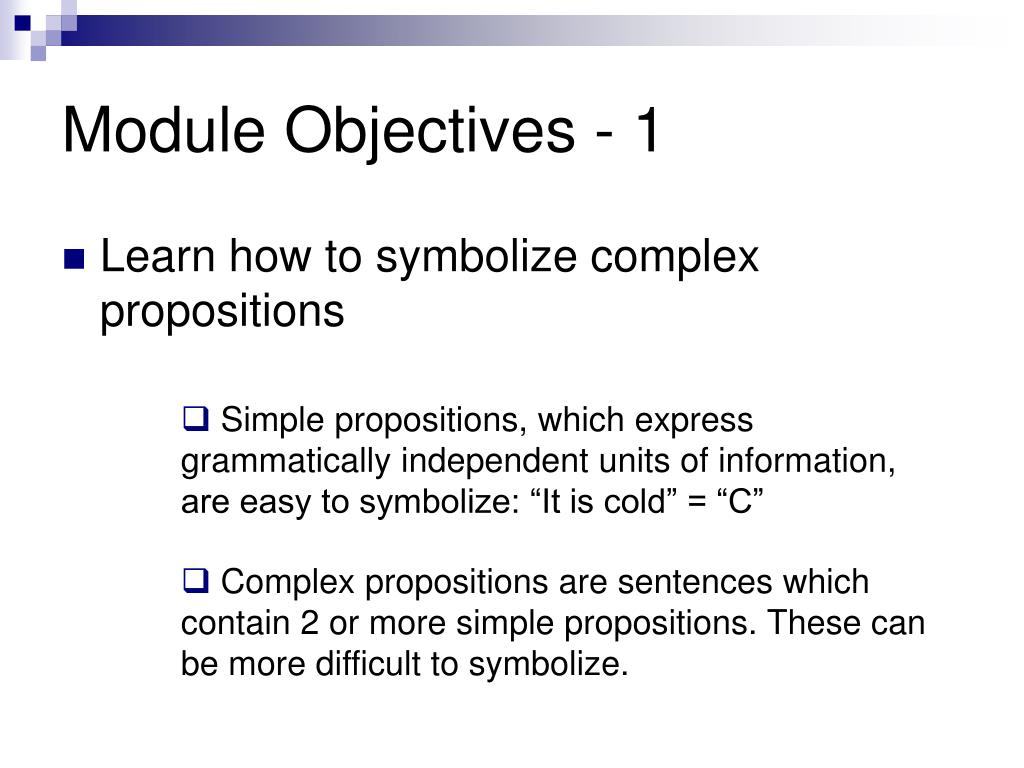

Module Objectives - 1
  • Learn how to symbolize complex propositions
  • Simple propositions, which express grammatically independent units of information, are easy to symbolize: “It is cold” = “C”
  • Complex propositions are sentences which contain 2 or more simple propositions. These can be more difficult to symbolize.
module objectives 2

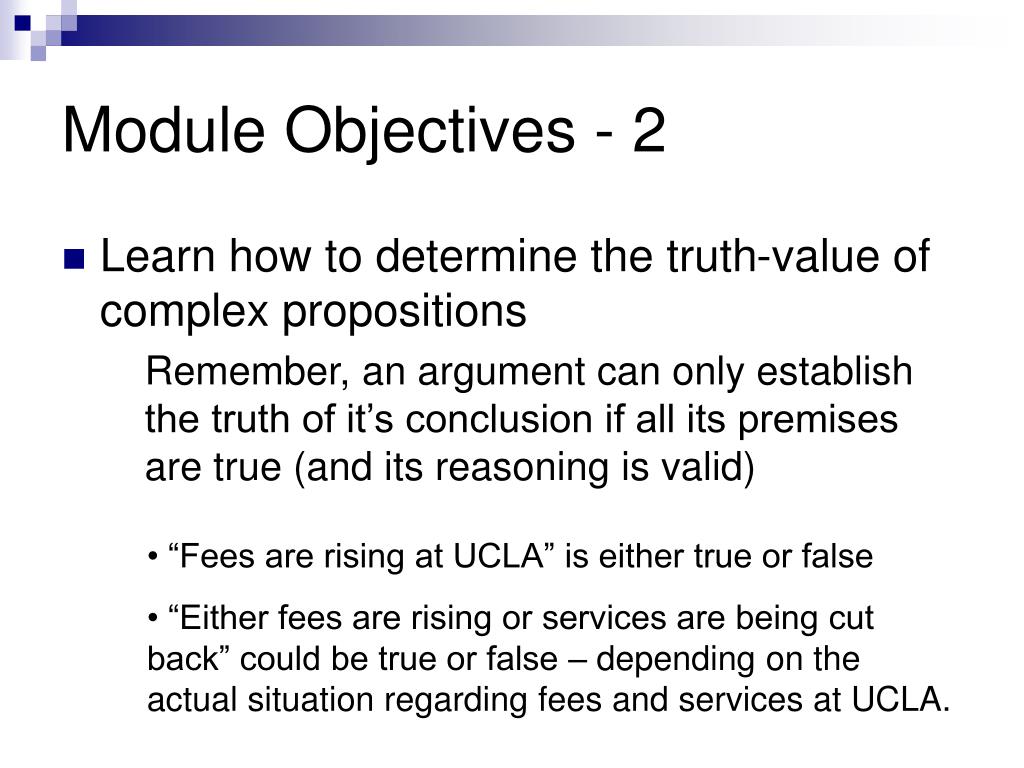

Module Objectives - 2
  • Learn how to determine the truth-value of complex propositions

Remember, an argument can only establish the truth of it’s conclusion if all its premises are true (and its reasoning is valid)

  • “Fees are rising at UCLA” is either true or false
  • “Either fees are rising or services are being cut back” could be true or false – depending on the actual situation regarding fees and services at UCLA.
module objectives 3

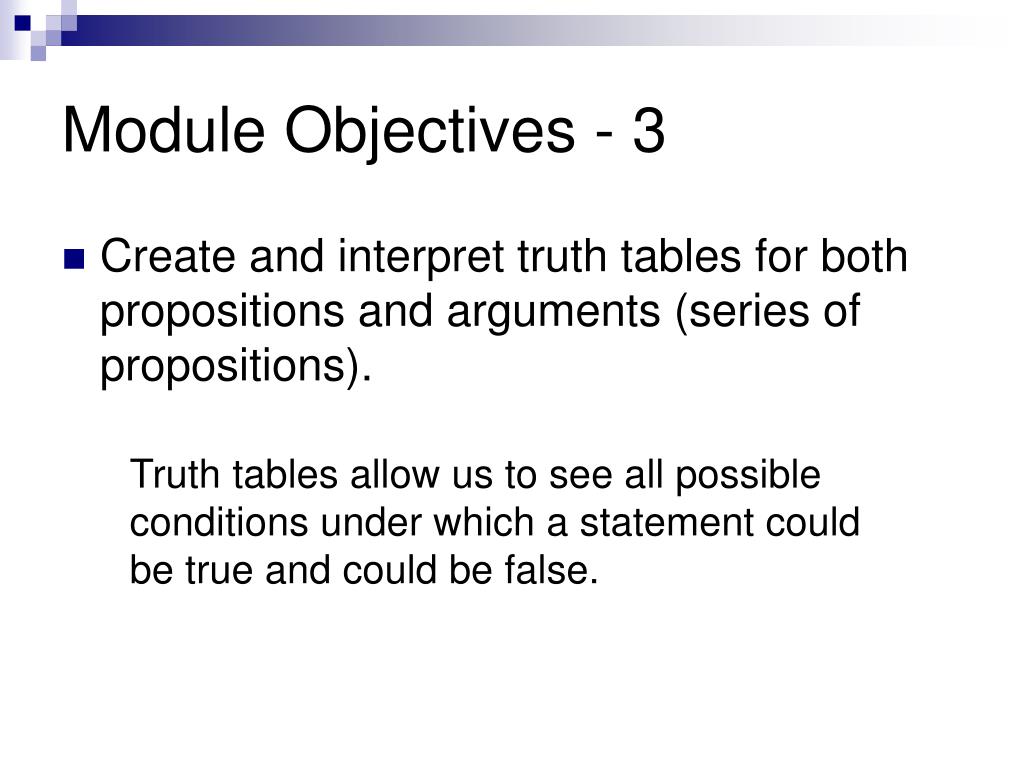

Module Objectives - 3
  • Create and interpret truth tables for both propositions and arguments (series of propositions).

Truth tables allow us to see all possible conditions under which a statement could be true and could be false.

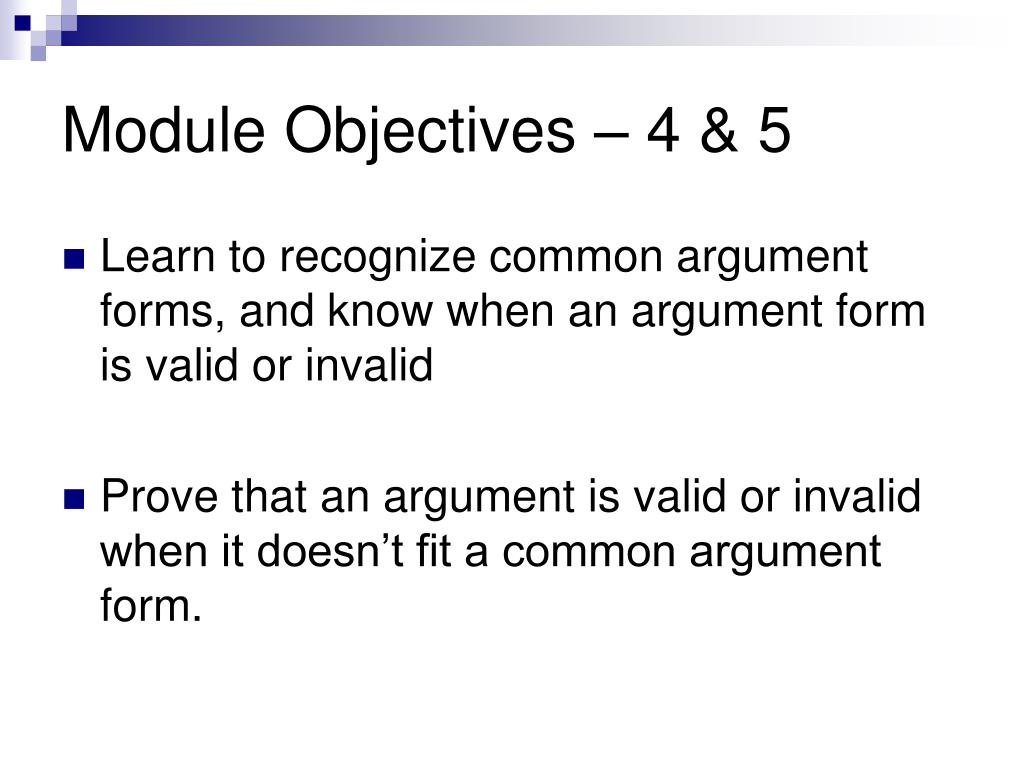

module objectives 4 5
Module Objectives – 4 & 5
  • Learn to recognize common argument forms, and know when an argument form is valid or invalid
  • Prove that an argument is valid or invalid when it doesn’t fit a common argument form.
basics of propositional logic

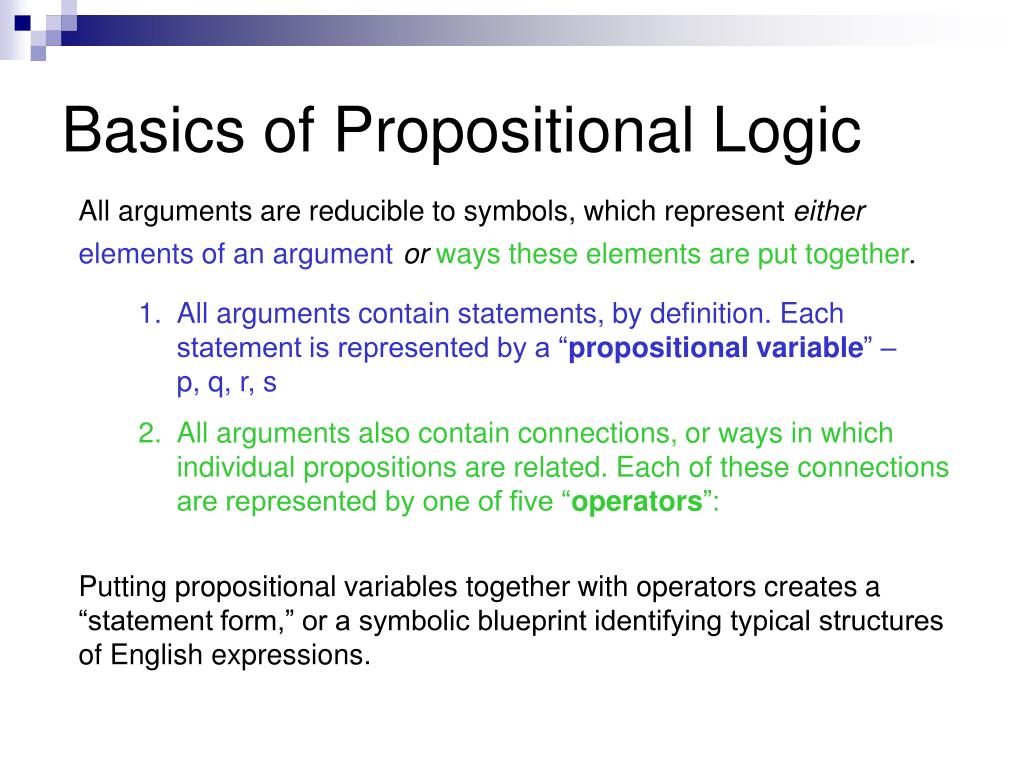

Basics of Propositional Logic

All arguments are reducible to symbols, which represent either

elements of an argument

orways these elements are put together.

  • All arguments contain statements, by definition. Each statement is represented by a “propositional variable” – p, q, r, s
  • All arguments also contain connections, or ways in which individual propositions are related. Each of these connections are represented by one of five “operators”:

Putting propositional variables together with operators creates a “statement form,” or a symbolic blueprint identifying typical structures of English expressions.

propositional operators

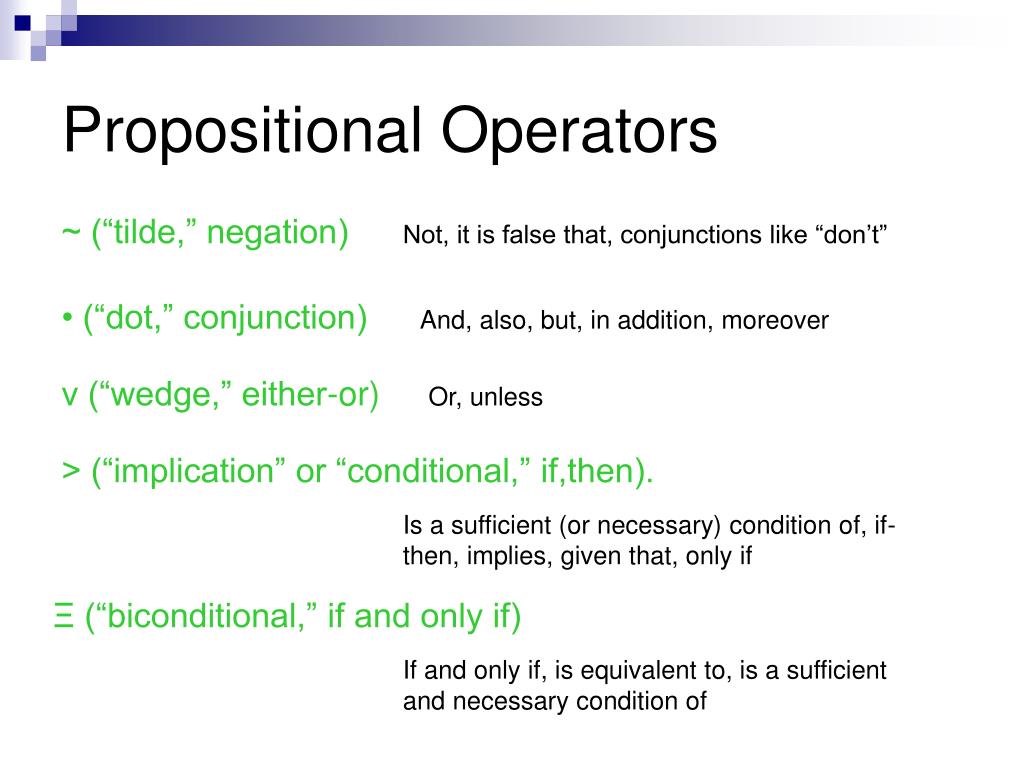

Propositional Operators

~ (“tilde,” negation)

Not, it is false that, conjunctions like “don’t”

• (“dot,” conjunction)

And, also, but, in addition, moreover

v (“wedge,” either-or)

Or, unless

> (“implication” or “conditional,” if,then).

Is a sufficient (or necessary) condition of, if-then, implies, given that, only if

Ξ (“biconditional,” if and only if)

If and only if, is equivalent to, is a sufficient and necessary condition of

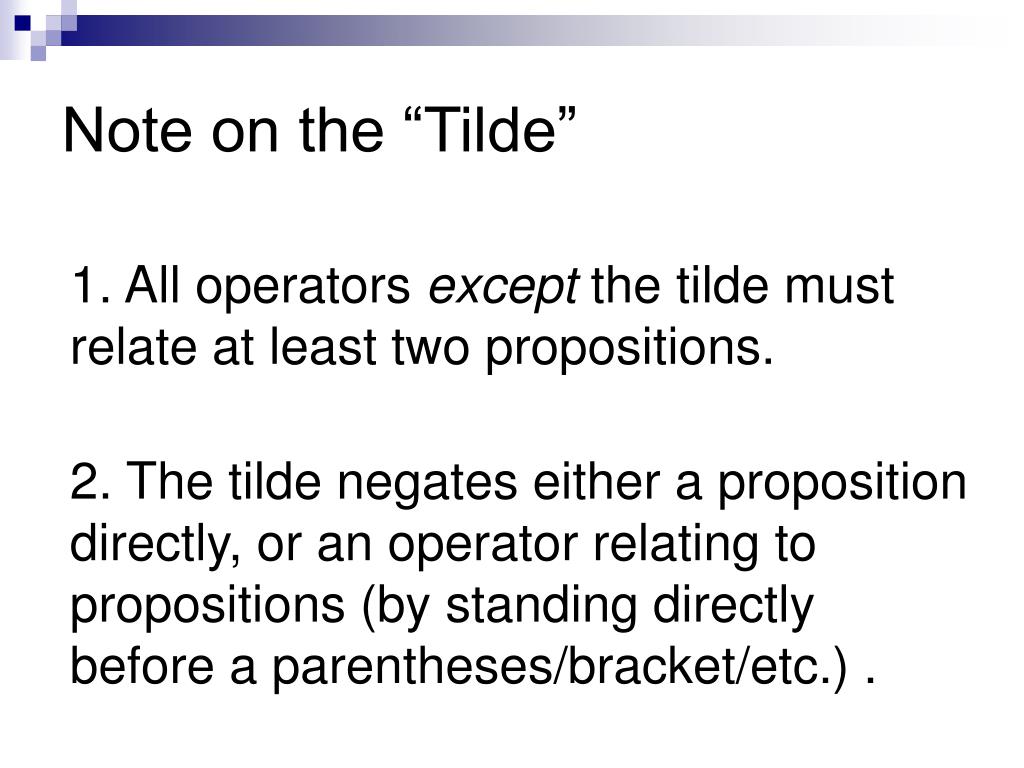

note on the tilde
Note on the “Tilde”

1. All operators except the tilde must relate at least two propositions.

2. The tilde negates either a proposition directly, or an operator relating to propositions (by standing directly before a parentheses/bracket/etc.) .

examples of tilde functions

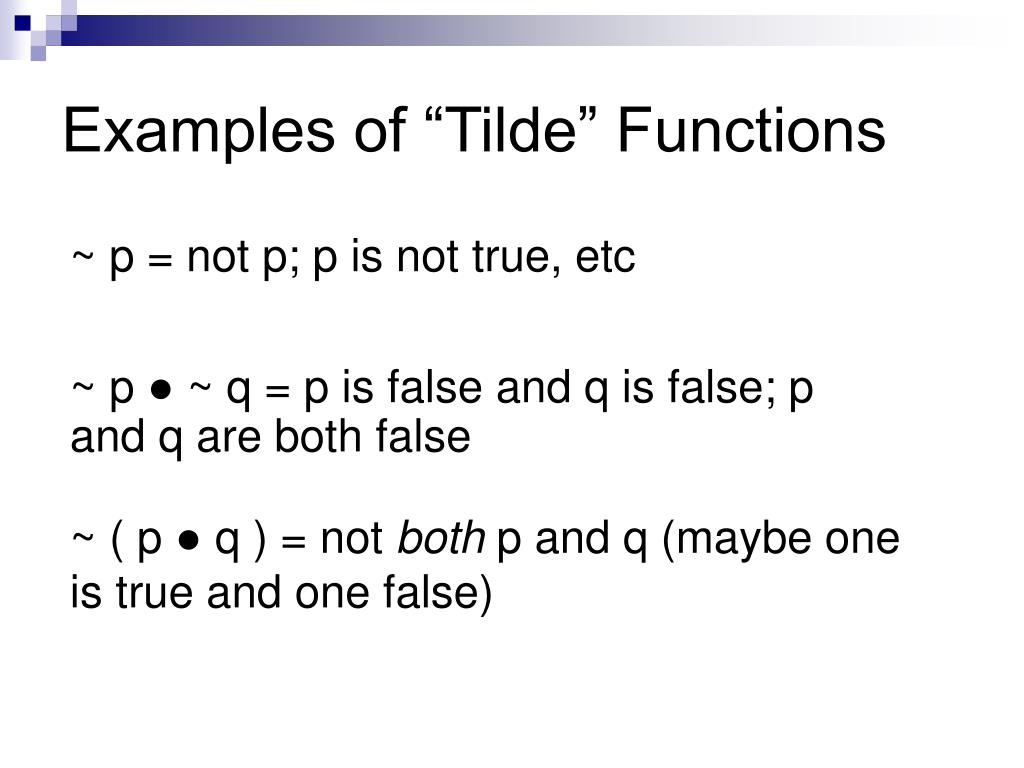

Examples of “Tilde” Functions

~ p = not p; p is not true, etc

~ p ● ~ q = p is false and q is false; p and q are both false

~ ( p ● q ) = not both p and q (maybe one is true and one false)

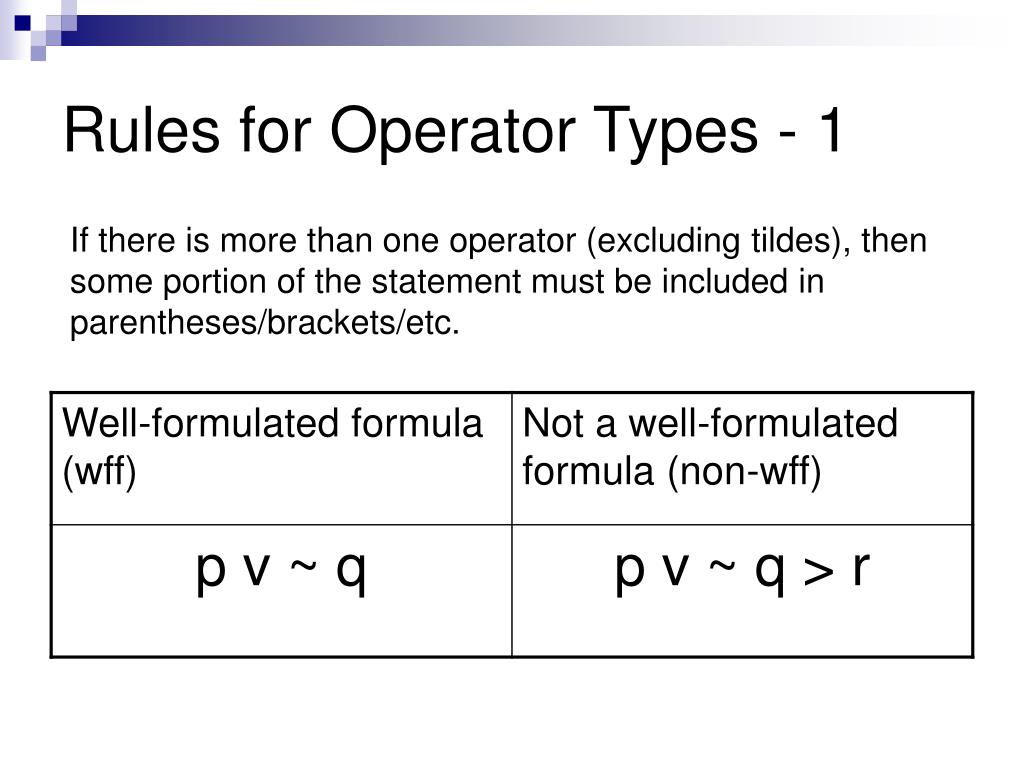

rules for operator types 1
Rules for Operator Types - 1

If there is more than one operator (excluding tildes), then some portion of the statement must be included in parentheses/brackets/etc.

rules for operator types 2
Rules for Operator Types - 2

The tilde negates either a proposition directly, or an operator relating to propositions (by standing directly before a parentheses/bracket/etc.).

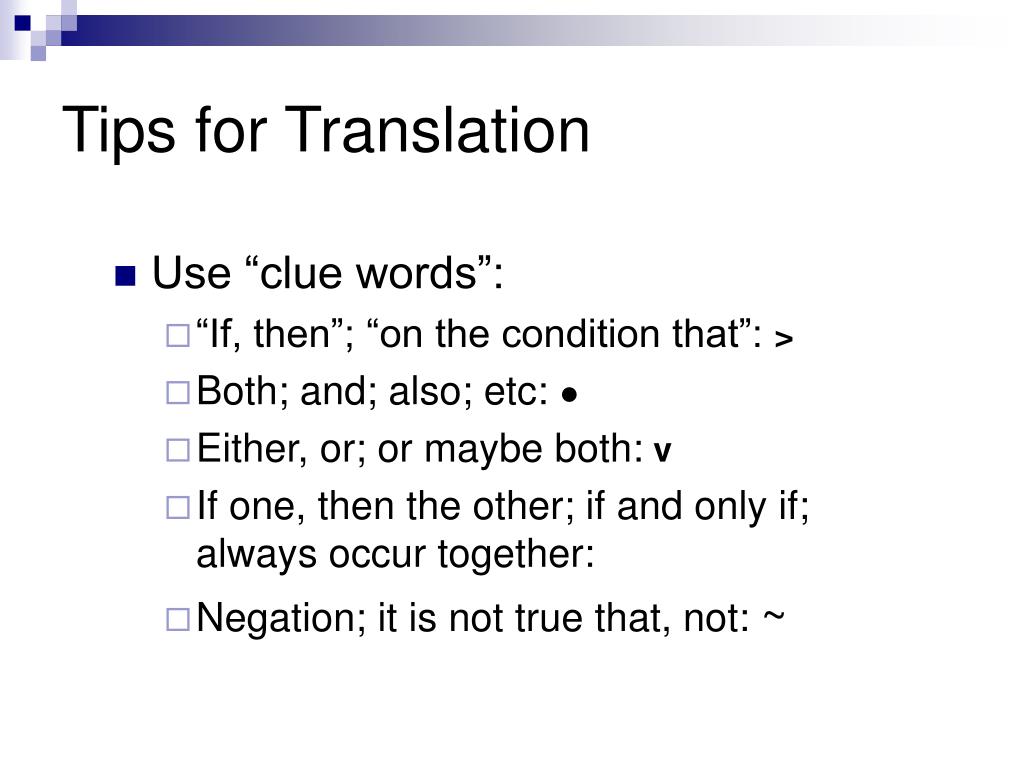

tips for translation
Tips for Translation
  • Use “clue words”:
    • “If, then”; “on the condition that”: >
    • Both; and; also; etc: ●
    • Either, or; or maybe both:v
    • If one, then the other; if and only if; always occur together:
    • Negation; it is not true that, not: ~
