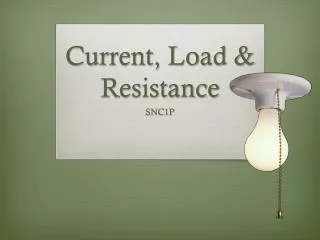

  1. Current, Load & Resistance SNC1P

  2. Journal Can the positive charges flow out of a battery to createelectricity? Why or why not? Use Pictures and Words. + Chemical Changes -

  3. Source

  4. Current, Load, and Resistance Date: • Electric Current: the flow of charges • Symbol: I Water Current: Flow of water

  5. Current Direction?

  6. Current ???

  7. Electrons • ________________ flow in ONE direction in a circuit.

  8. Water Current: Flow of water Electric Current: Flow of charges • Does the amount of current flowing from the top of stream to the bottom of stream change? • What about a in a wire?

  9. The AMOUNT of current flowing into one end of the wire is the same flowing out. • Amperes: measure AMOUNT of current • Symbol: A

  10. Electric Current: Flow of charges • Symbol: I • Measured in: Amperes What is the device that measures Current?

  11. Remember … • : the device that measures the potential difference Voltmeter

  12. Current ( ) is measured in Amperes ( ). Ammeter: the device that measure current in a circuit Multimeter

  13. Source • Current

  14. What are some examples of a LOAD? LOAD

  15. Load: device that converts electrical energy into another form of energy • Ex: Light bulb, ________, _________

  16. The Load and Resistance How could you slow the flow of the current in a stream? Dam puts resistance on the current

  17. A Load resists the flow of current.

  18. The Load and Resistance Filament

  19. Resistance: the amount that current that is slowed by the load

  20. Source • Current Load

  21. VIDEO
