  1. New Generation IP Camera Unique Sales Points

  2. In 2006, First to Launch Embedded Video Analytics In 2009, First to implement H.264into Surveillance Cameras In 2012, First to Launch Hybrid Camera In 2012, Sony announcedIPELA ENGINE

  3. What is “IPELA ENGINE”?

  4. The “IPELA ENGINE” is the general term of Sony’s integrated signal processing system for high picture quality which combines the company’s unique signal processing and video analytics technologies. IPELA Engine is a key technology for the next generation camera.

  5. Realizes the best ever picture quality by industry-first technologies The Best Signal Processing System The Best Image Sensor Sony proprietary image sensing technology Sony proprietary image processing technology Industry first 130dB @1920x1080 Face Detection Industry first High Frame Rate XDNR 60fps @1920x1080 Excellent noise reduction

  6. IPELA Engine won “Best CCTV Product 2012” Award • DETEKTOR international award was announced on 19th Sep, 2012 at SKYDD exhibition (Security exhibition in Nordic) • Sony IPELA Engine won the “Best CCTV Product 2012” award, which is the 1st prize of the CCTV category

  7. Movie

  8. Unique Sales Points Sensitivity up More than double of current generation Support VBR/CBR (Variable Bit Rate) / (Constant Bit Rate) SD Card All Form Factors

  9. Current Product Line Up X-Series V-Series PTZ CH210 RH124 ER580 EP580 CH240 CH140 CH220 CH120 ZB550 CH280 CH160 CH180 CH260 ZM550 DH220 DH140 DH120 DH240 DH240T DH120T DH220T DH140T ZM551 DH160 DH180 DH280 CH110 RH164 ZR550 ER550 EP550 ZP550 DH210 Z-Series E-Series DH110 DH260 DH210T DH110T

  10. New Generation Product Line-up New V-Series X-Series V-Series PTZ CH210 VB630 RH124 ER580 EP580 CH120 CH240 CH140 CH220 ZB550 CH180 CH260 CH160 CH280 ZM550 DH220 DH140 DH120 DH240 DH240T DH220T DH120T DH140T ZM551 DH160 DH180 DH280 CH110 VB600 RH164 ER550 ZR550 ZP550 EP550 DH210 VB600B VM600 VM600B VM630 VM631 VM601B VM601 Z-Series E-Series DH110 DH260 DH210T DH110T

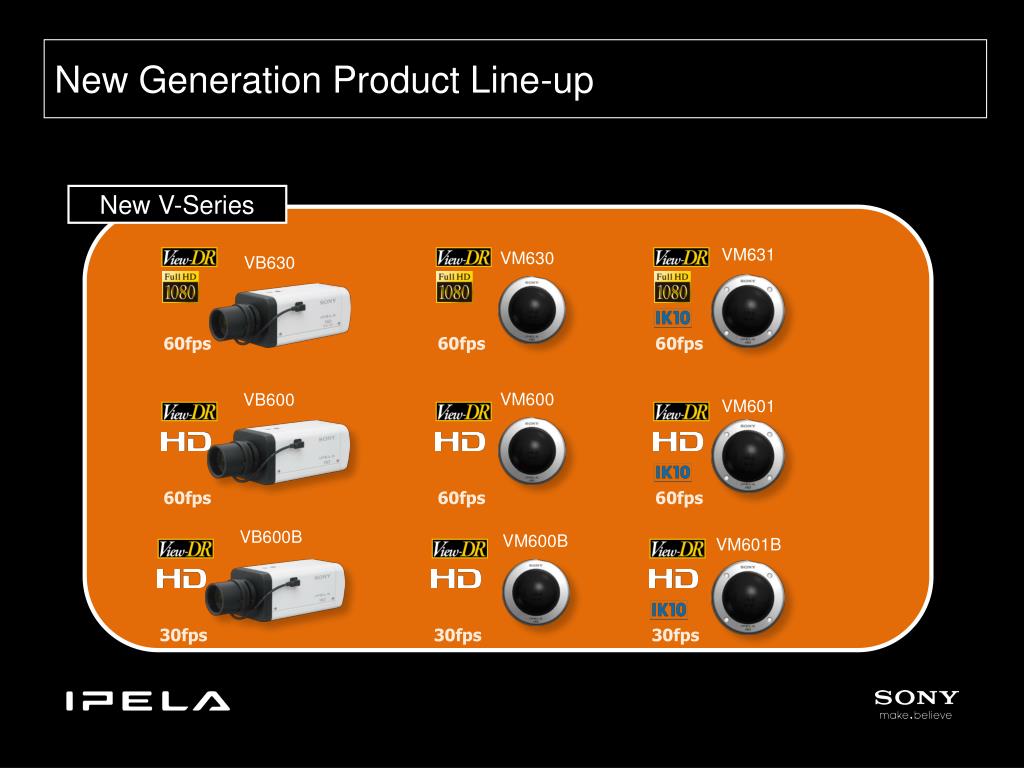

  11. New Generation Product Line-up VB630 New V-Series VB600 60fps 60fps 60fps VM601 VB600B VM630 VM600B VM600 VM631 VM601B 60fps 60fps 60fps 30fps 30fps 30fps

  12. High Frame Rate Transportation 30fps (HD/Full HD) 60fps (HD/FullHD) Smooth video suitable for a casino,trafficsurveillance, etc.

  13. High Frame Rate : SNC-CH140 example as 30fps Sony Confidential Don’t Distribute This Slide

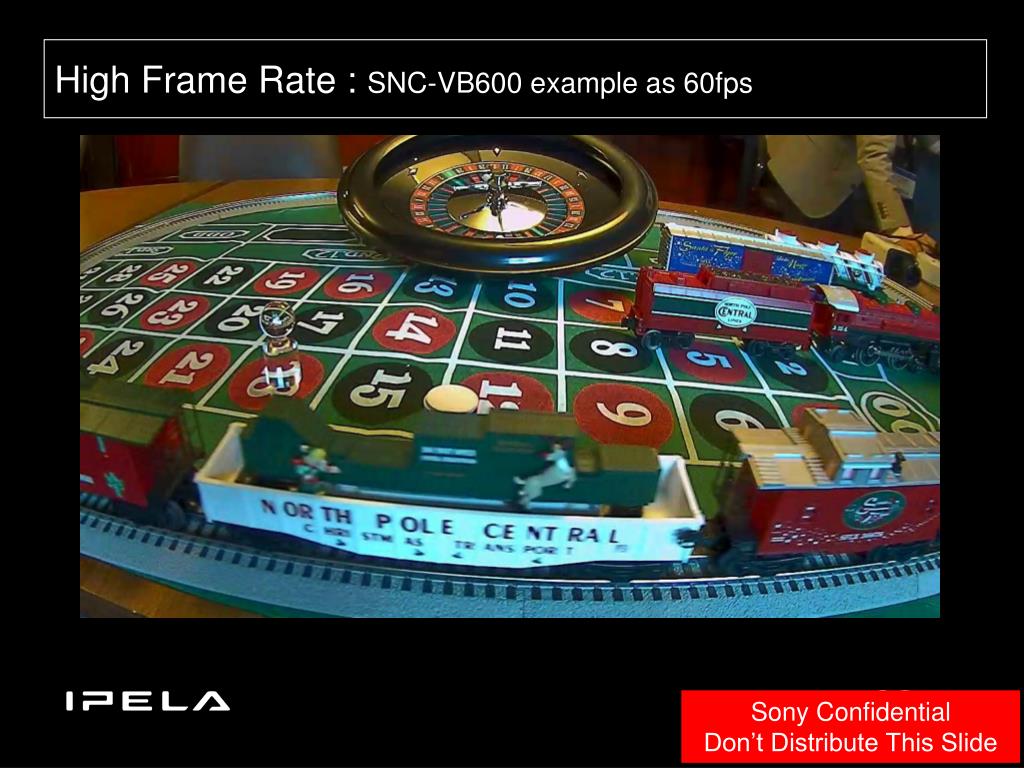

  14. High Frame Rate : SNC-VB600 example as 60fps Sony Confidential Don’t Distribute This Slide

  15. View-DR Multiple pictures for every frame are taken. Using a high speed shutter and the new CMOS Exmor sensor we can take up to 120 pictures per second A complex Wide Dynamic Range algorithm combines the images Visibility Enhancer is then applied for further picture enhancements

  16. Visibility Enhancer and View-DR Off SNC-CH140 Example

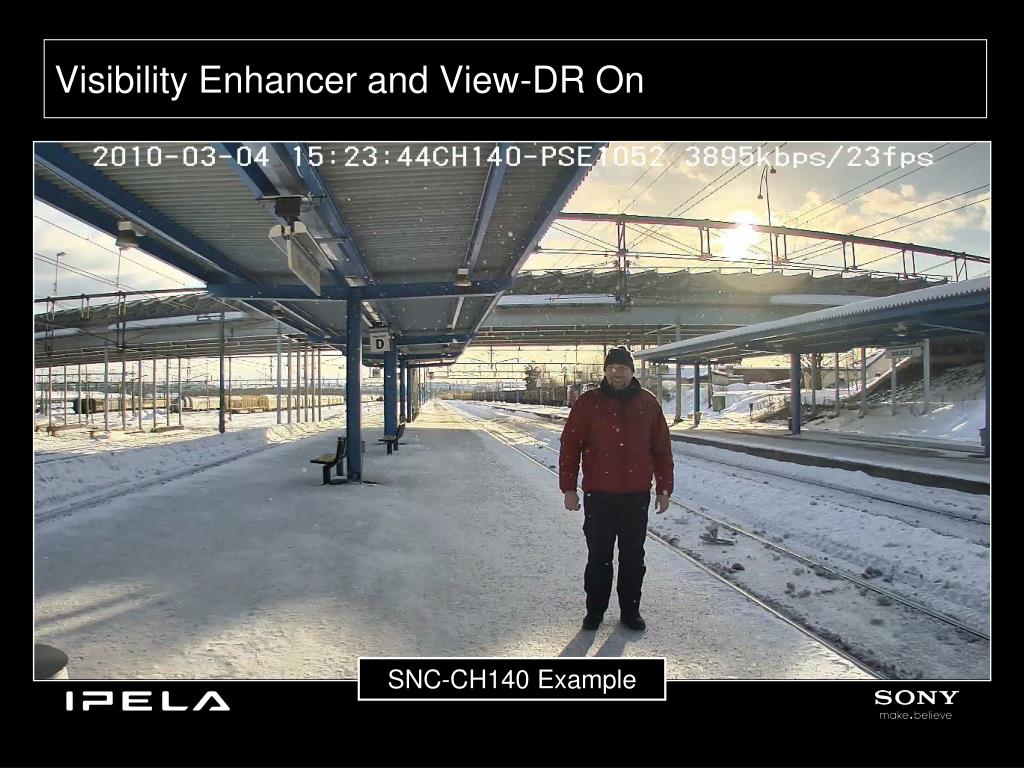

  17. Visibility Enhancer and View-DR On SNC-CH140 Example

  18. DEPA Advanced Current Generation New Generation Motion Detection Tamper alarm Motion Detection Tamper alarm Face Detection Left Object Detection Disappearance Passing Passing Appearance Existing RemovedObjectDetection Appearance Capacity VMF (Video Motion Filter)

  19. Noisy XDNR (eXcellent Dynamic Noise Reduction) • Technology from Sony in Cameras and Encoders • Designed to maximise noise reduction • Designed to minimize motion blur under low illumination Smooth Edges Reduction of Noise Reduction of Noise Blurry Clear

  20. XDNR (eXcellent Dynamic Noise Reduction) • Applies 3D noise reduction to static object dynamically • Applies 2D noise reduction to moving object • Combination of 2D and 3D noise reduction algorithm XDNR Off XDNR On

  21. High Sensitivity: New Exmor CMOS and XDNR SNS-CH140 SNC-VB600 Comparison under low light with a spot light Sensitivity more than doubled thanks to new 1/3 type Exmor CMOS sensorand XDNR (View-DR off)

  22. High Sensitivity: New Exmor CMOS and XDNR SNS-CH140 SNC-VB600 (View-DR on) Sony Confidential Don’t Distribute This Slide

  23. H.264: High Profile/Main Profile Generally - Main profile is more efficient than base line by 15% to 20%. - High profile is more efficient than main profile. Current Generation New Generation Company A H.264 (High Profile) H.264 (Main Profile) H.264 (Main Profile) H.264 (Base Line) H.264 (Base Line) H.264 (Base Line) MPEG4 JPEG JPEG JPEG

  24. Audio: AAC 48Khz/16Khz Note: Soundeffect functions such as echo canceller cannot be used with AAC (48Khz) Current Generation New Generation Company A AAC (48Khz) AAC (16Khz) AAC (16Khz) AAC (8Khz) G.726 G.726 G.726 G.711 G.711 G.711 Support AAC for clear sound.

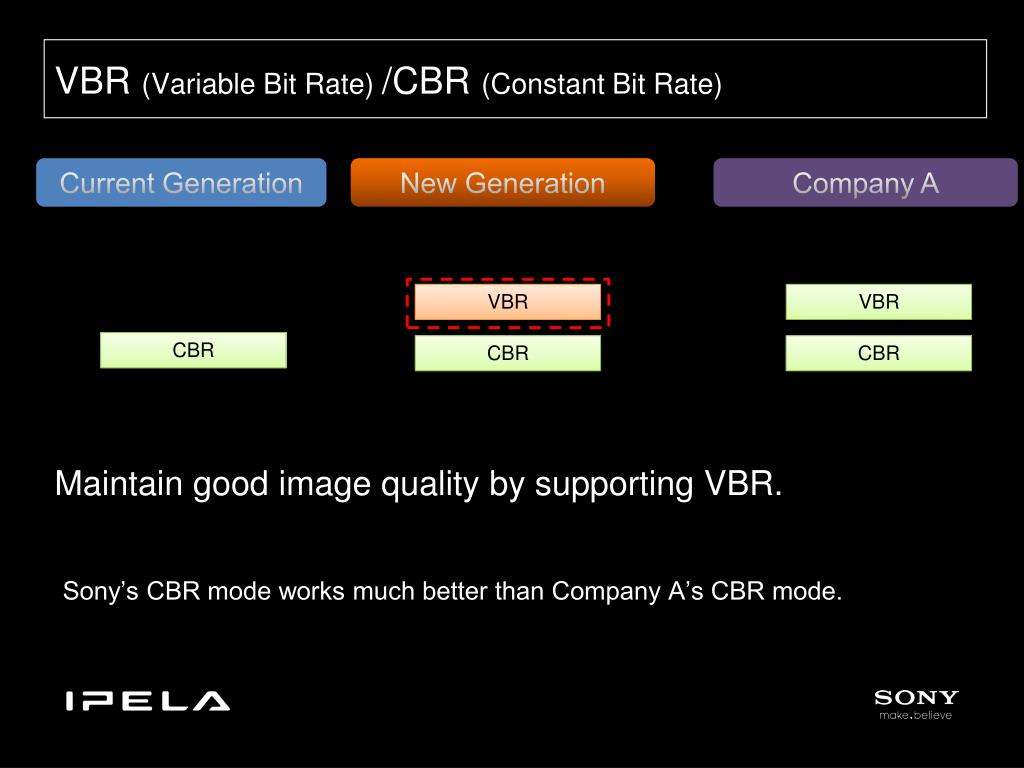

  25. VBR(Variable Bit Rate) /CBR(Constant Bit Rate) Maintain good image quality by supporting VBR. Current Generation New Generation Company A VBR VBR CBR CBR CBR Sony’s CBR mode works much better than Company A’s CBR mode.

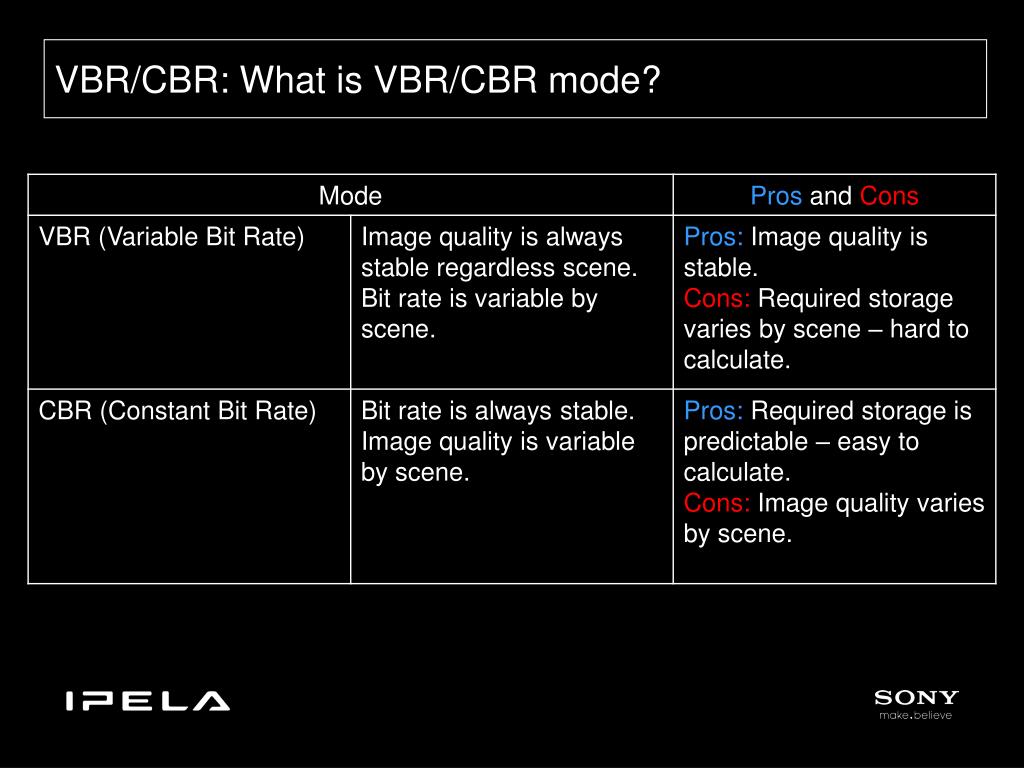

  26. VBR/CBR: What is VBR/CBR mode?

  27. VBR/CBR : Sony vs. CompanyA VBR 8Mbps CBR 4Mbps CBR 4Mbps “Frame Rate” prioritized Company A SNC-CH240 8Mbps

  28. Edge Storage: Supported by Mini Dome Note: SD/SDHC/SDXCcards are available up to 128GB. *SDXC card needs to be formatted in FAT32. Current Generation New Generation CF Card SD Card Indoor Box Indoor Box Mini Dome Indoor Vandal Resistant Mini Dome

  29. Easy Focus Two easy ways of focusing • Easy focus button on back of camera  Reduce installation time • Focus adjustment via web browser  De-focused images can even be fixed remotely without going to site. Push to Focus Push to Focus

  30. Easy Zoom • Auto Focus • 3.0x Optical Zoom Zoom and Focus Push to Focus

  31. Other Features • Image Stabilizer • Polygonal Privacy Masking • Triple Streaming 1st streaming for monitoring 2nd streaming for recording 3nd streaming for mobile monitoring
