Presentation Transcript
slide1

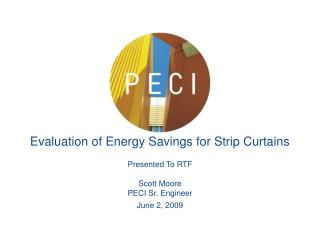

Evaluation of Energy Savings for Strip CurtainsPresented To RTFScott MoorePECI Sr. EngineerJune 2, 2009

presentation overview
Presentation Overview
  • Justification for laboratory testing
  • Methodology for laboratory tests
  • Review test results
  • Discuss potential annual savings and BC ratios
  • Provide overview of current CPUC/ ADM Associates strip curtain evaluation
justification for laboratory testing
Justification For Laboratory Testing
  • All known savings results prior to 2007 were calculations based on ASHRAE infiltration formulas
  • BPA conducted field M&V testing in 2007
    • Pre and post strip curtain test runs
    • Inconsistent door open times between test runs
    • Energy data not normalized for weather or differences in length of defrost
    • Inconclusive results
    • BPA conducted field M&V testing in 2007
  • BPA and PECI concurred on laboratory testing to control variables
peci test overview
PECI Test Overview
  • Emerson Sidney, Ohio Test Laboratory
  • Separate Low and Medium temperature tests
  • 12 hour runs
    • Closed door
    • Open door with strip curtains
    • Open door without strip curtains
average medium temp run conditions
Average Medium Temp Run Conditions
  • 38F internal temperature
  • 74-75F D.B. / 61-63F W.B.
  • 79-80F condenser air inlet
  • 27.4 sq. ft door
  • Open door 4 minutes every 2 hours

Consistent with BPA for auto closer / gasket / strip tests

average low temp run conditions
Average Low Temp Run Conditions
  • -4F internal temperature
  • 75-77F D.B. / 53-54F W.B.
  • 80-82F condenser air inlet
  • 27.4 sq. ft door
  • Open door 4 minutes every 2 hours

Consistent with BPA for auto closer / gasket / strip tests

application of lab results for utility measure
Application of Lab results for Utility Measure
  • Unscaled

Variable = Door open time

  • Scaled

Variables = Door open time

Compressor system type and EER

Climate zone

annual energy savings sq ft opening unscaled
Annual Energy Savings / Sq. Ft. Opening(Unscaled)
  • Medium Temp:

0.8 hr open (48 minute lab test): 40 kWh

1 hr. open: 50 kWh

2 hr. open: 100 kWh

2.5 hr. open: 125 kWh

3 hr. open: 150 kWh

4 hr. open: 200 kWh

  • Low Temp:

0.8 hr. open: 182.5 kWh

1 hr. open: 228 kWh

2 hr. open: 456 kWh

2.5 hr. open: 570 kWh

3 hr. open: 684 kWh

4 hr open: 912 kWh

determination of potential scaled annual savings for bpa territory
Determination Of Potential Scaled Annual Savings For BPA Territory
  • Determine door open time standard
  • Adjust test results for system type, EER and annual outdoor ambient conditions
    • Multiplex system (FHP, FSP)
    • Single system (fixed head pressure)
    • Varying climate zones
    • Control systems
door open times
Door Open Times

Logged data from 2007-2008 BPA Field tests for walk in box strip curtains and auto door closures:

  • 18 logged boxes
  • Per day range: 0.6 hrs.- 5.8 hrs.
  • Per day average: 2.5 hours
final lab results weighting factors for northwest
Final Lab Results Weighting Factors for Northwest
  • Medium Temp: 77%*
  • Low Temp: 82%*

*Accounts for population of different compressor system types, EER’s and climate zones

potential savings
Potential Savings*
  • Medium Temp. Box Annual Savings:

kWh/sq.ft./hr * door open hours * weighting factor

= 50 * 2.5 * 0.77 = 96 kWh/sq. ft

  • Low Temp. Box Annual Savings:

kWh/sq.ft./hr * door open hours * weighting factor

= 228 * 2.5 * 0.82 = 467 kWh/sq. ft

* Based on 2.5 hr. open/day/365days/yr.

potential savings weighted by population of box type
Potential Savings (Weighted by population of box type)
  • PECI Grocer Smart ECM motor database
    • 73% Medium temp boxes
    • 27% Low temp boxes

96 kWh/sq. ft (med.) * 0.73 = 70.0 kWh

467 kWh/sq. ft. (low) * 0.27 = 126.0 kWh

= 196 kWh

Combined low/med weighted savings = 196 kWh/sq. ft.

bc ratio trc levelized cost input
BC Ratio / TRC Levelized Cost Input
  • $10.00 sq. ft. total 2008 installed cost
  • $9.55 sq. ft. total deflated installed cost
  • 4 year Measure Life
  • No annual maintenance
bc ratio trc levelized cost
BC Ratio / TRC Levelized Cost*

TypeB/C RatioTRC Levelized Cost

Med. 2.1 11.8

Low 10 -9.2

Combo 4.2 -1.5

*$10.00/ sq. ft. total install cost, deflated to $9.55/ sq. ft.

* 4 Year Measure Life

cpuc adm study
CPUC / ADM Study
  • ADM Associates is lead contractor for strip curtain study for the CPUC
  • ADM research concluded:
    • Previous savings numbers calculated by various state utilities
    • Previous work paper savings based on calculations using ASHRAE infiltration guidelines and formulas
    • No field M&V or logging of door open times
adm proposal for analysis
ADM Proposal For Analysis
  • Domain of study
    • Type of business
    • Type of refrigeration unit
    • Geographical location of site
  • Develop a site sample design
    • Paired study
    • With strip curtains
    • Without strip curtains
adm m v approach
ADM M&V Approach
  • Use statistical model
  • Conduct tracer gas measurements of air infiltration
  • Calculate loads based on refrigeration system weather dependant COP
  • Log system energy use
  • Conduct door monitoring with data loggers
    • Number of openings
    • Length of openings
