Nsect dentification from raps

nsect dentification from raps

Developed by: Mike Brand MS

7th Grade Science Teacher

Oasis Elementary (623)-412-4800

Peoria, Arizona

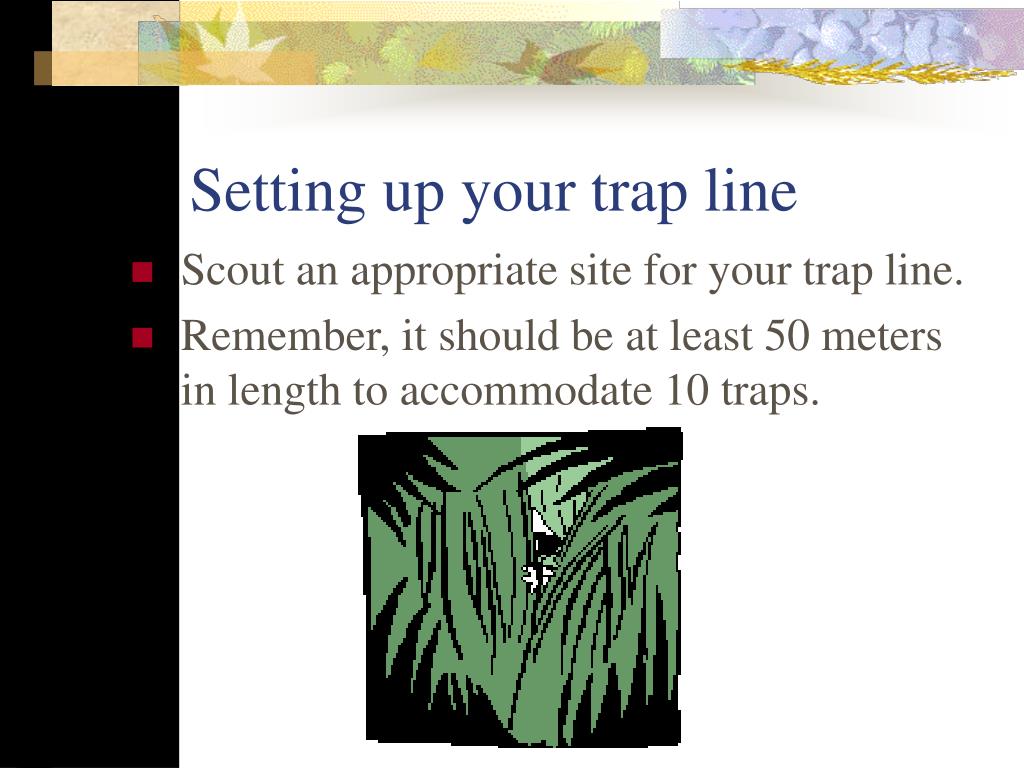

Setting up your trap line
Setting up your trap line

  • Scout an appropriate site for your trap line.

  • Remember, it should be at least 50 meters in length to accommodate 10 traps.

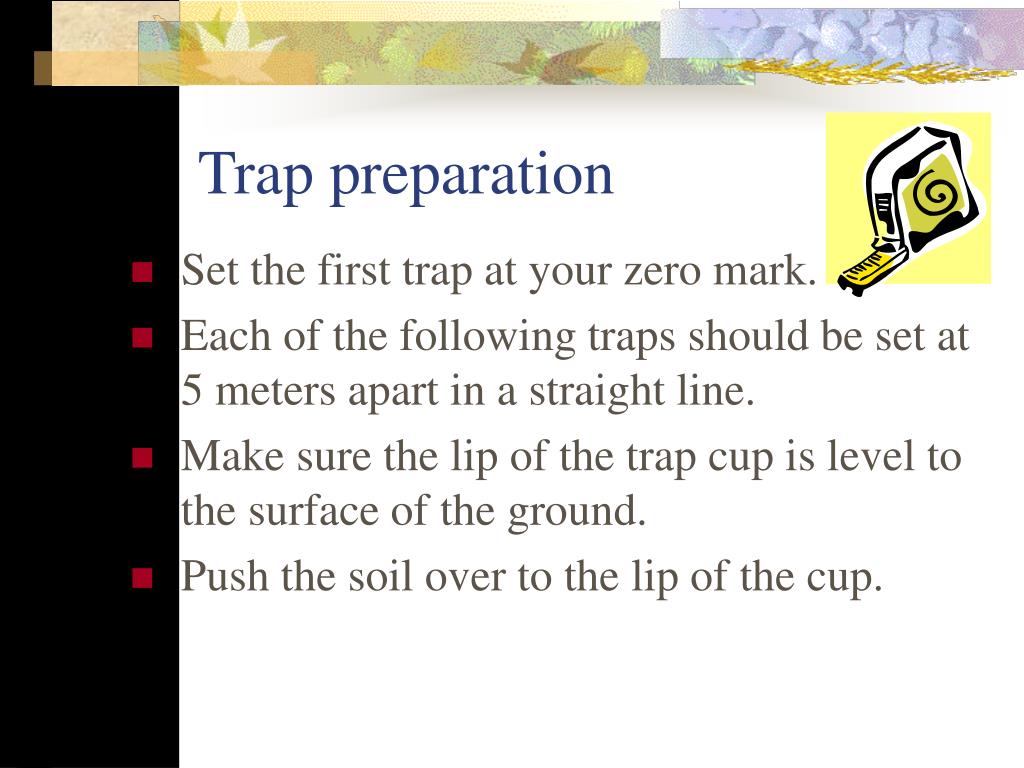

Trap preparation
Trap preparation

  • Set the first trap at your zero mark.

  • Each of the following traps should be set at 5 meters apart in a straight line.

  • Make sure the lip of the trap cup is level to the surface of the ground.

  • Push the soil over to the lip of the cup.


Retrieving traps
Retrieving traps

  • Return to the site after 72 hours to collect the traps.

  • Empty all of the contents of the trap into a plastic baggie and seal it.

  • Place the sealed baggie into the freezer for at least 48 hours.

  • You are ready to identify your collection.


Recording and entering data
Recording and Entering Data

  • Record your data onto the data sheet

  • Go to the Ecology Explorers website

  • http://caplter.asu.edu/explorers/

  • Enter your data in the Data Center

  • http://caplter.asu.edu/eedata/index.jsp


Insect identification
Insect Identification

  • The following pictures are intended to assist in the identification of arthropods found in your traps.

  • The photos are species that are likely to be found. Remember, there are many varying species in each order, and there are different stages that each species may be found in.


Insect identification1
Insect Identification

  • These arthropod pictures are grouped by classes, and then by their orders.

  • Order names on the picture slides are followed by the family names and/or common names.


More than 8 legs
More than 8 legs

  • Diplopoda - Millipede

  • Isopoda – Pillbug

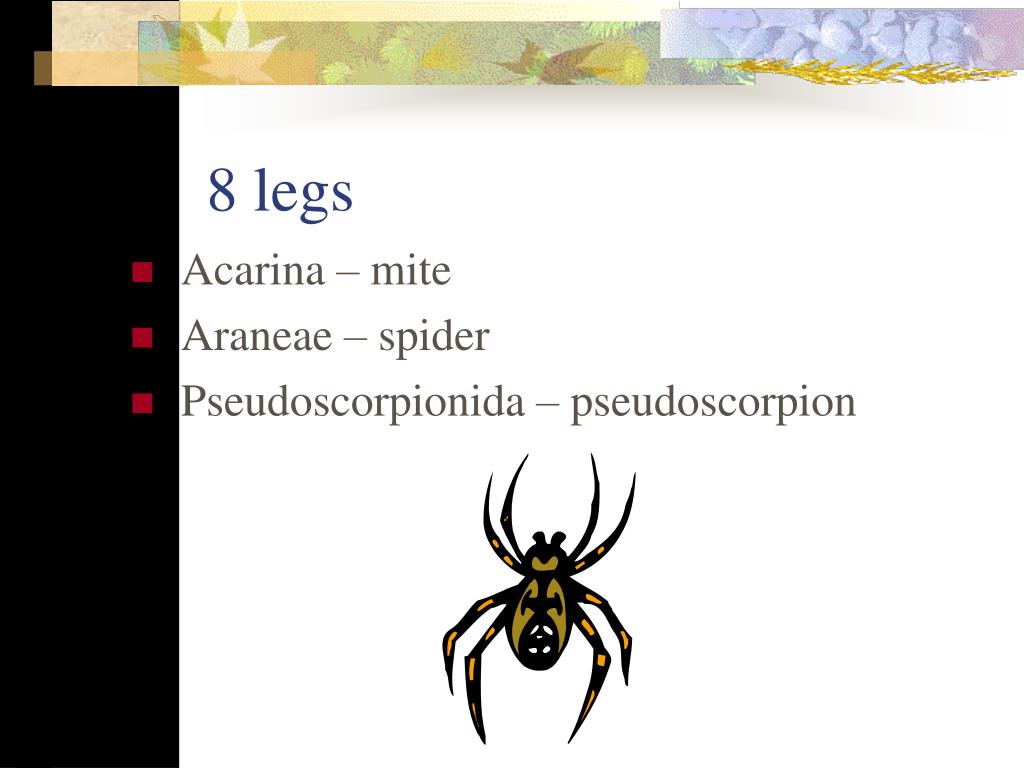

8 legs
8 legs

  • Acarina – mite

  • Araneae – spider

  • Pseudoscorpionida – pseudoscorpion







6 legs
6 legs

  • Hemiptera

  • Homoptera

  • Coleoptera

  • Hymenoptera

  • Collembola

  • Dermaptera

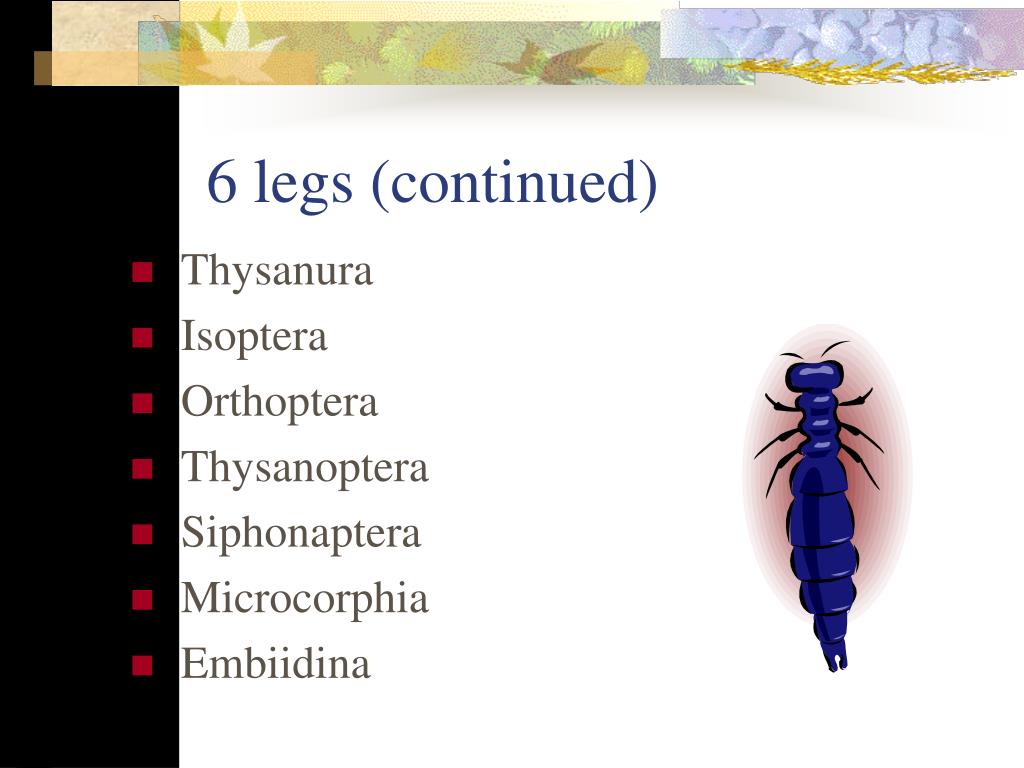

6 legs continued
6 legs (continued)

  • Thysanura

  • Isoptera

  • Orthoptera

  • Thysanoptera

  • Siphonaptera

  • Microcorphia

  • Embiidina









Ecology explorers
Ecology Explorers

  • Measuring with accuracy


Ecology explorers1
Ecology Explorers

  • Observing ants


Ecology explorers2
Ecology Explorers

  • Learning how to pin the specimen that are collected for display in your class

  • Visiting the insect collection on campus
