  1. LIVE INTERACTIVE LEARNING @ YOUR DESKTOP NSDL/NSTA Web Seminar: Earth in Reverse: Magnetic Wiggles on the Ocean Floor Tuesday, January 29, 2008

  2. http://nsdl.org Today’s NSDL Experts Dr. Chris Massell Symons, Researcher at the Scripps Institution of Oceanography Dr. Anthony Koppers, Associate Professor of Marine Geology and Geophysics at Oregon State University http://earthref.org/ERESE

  3. http://nsdl.org How did we get from “blue” oceans to such great detail? Magnetic Wiggles!!!

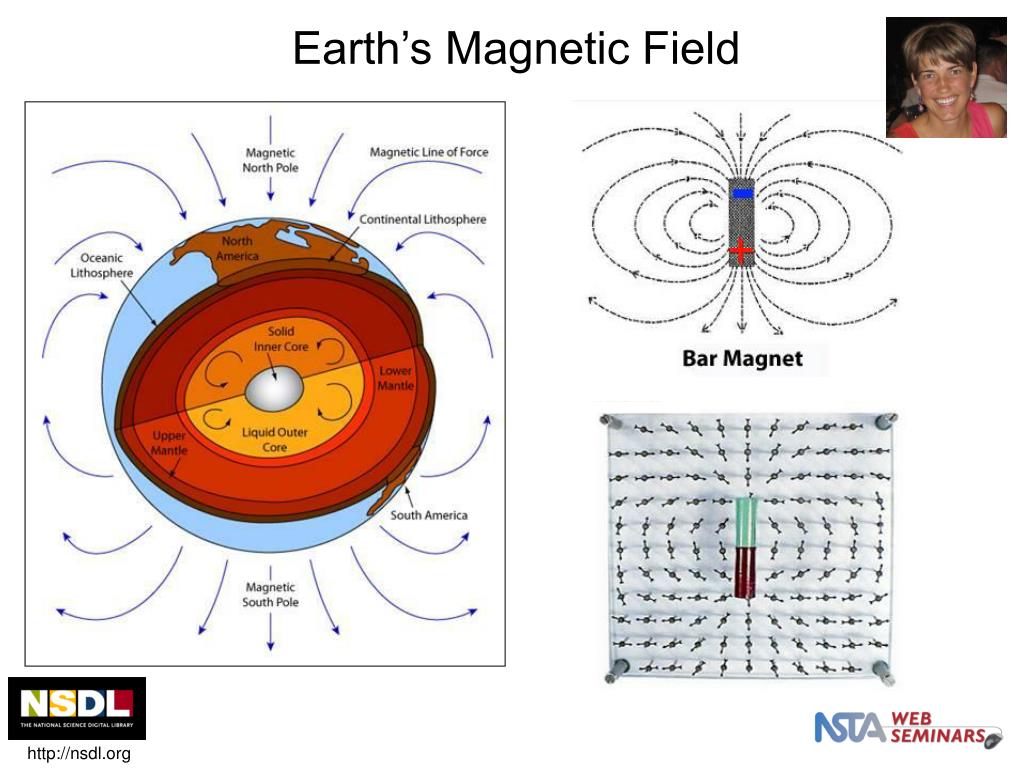

  4. http://nsdl.org Earth’s Magnetic Field

  5. http://nsdl.org BUT…..Magnetic North is NOT at the North Pole

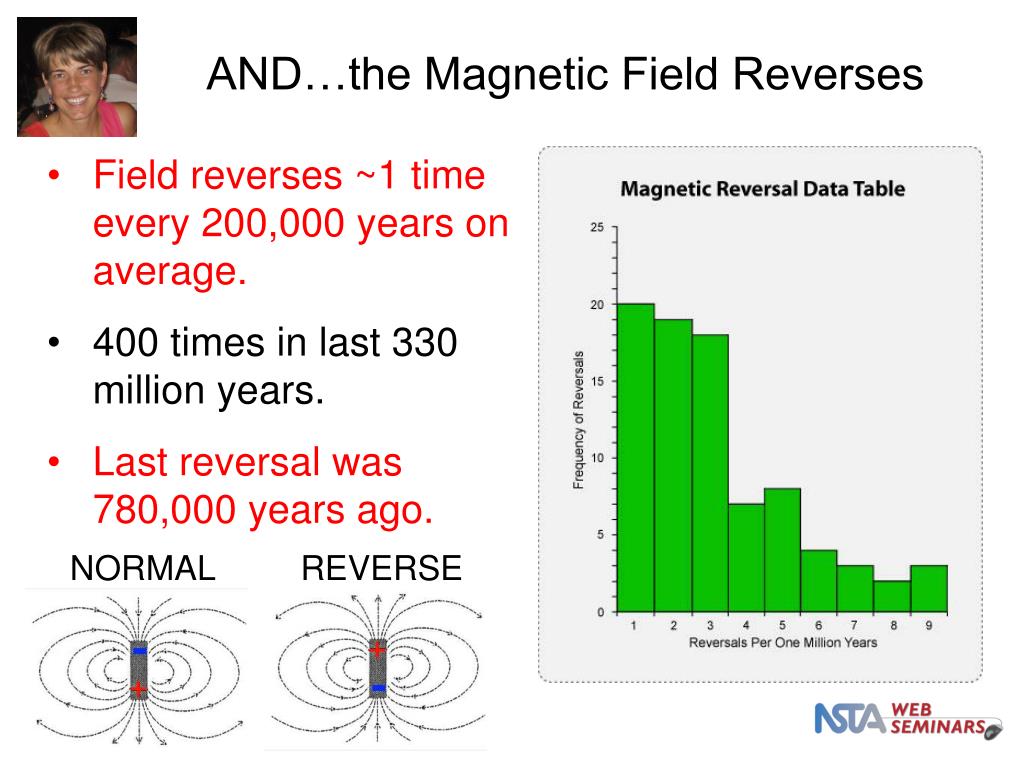

  6. AND…the Magnetic Field Reverses • Field reverses ~1 time every 200,000 years on average. • 400 times in last 330 million years. • Last reversal was 780,000 years ago. NORMAL REVERSE

  7. http://nsdl.org Poll Question! On average, how long does each magnetic reversal take to complete? • 10,000 years • 5,000 years • 1,000 years • 100 years

  8. http://nsdl.org Let’s pause for two questions from the audience….

  9. NORMAL REVERSE MID-OCEAN RIDGE http://nsdl.org Recording the Magnetic signature

  10. http://nsdl.org Sampling the Seafloor

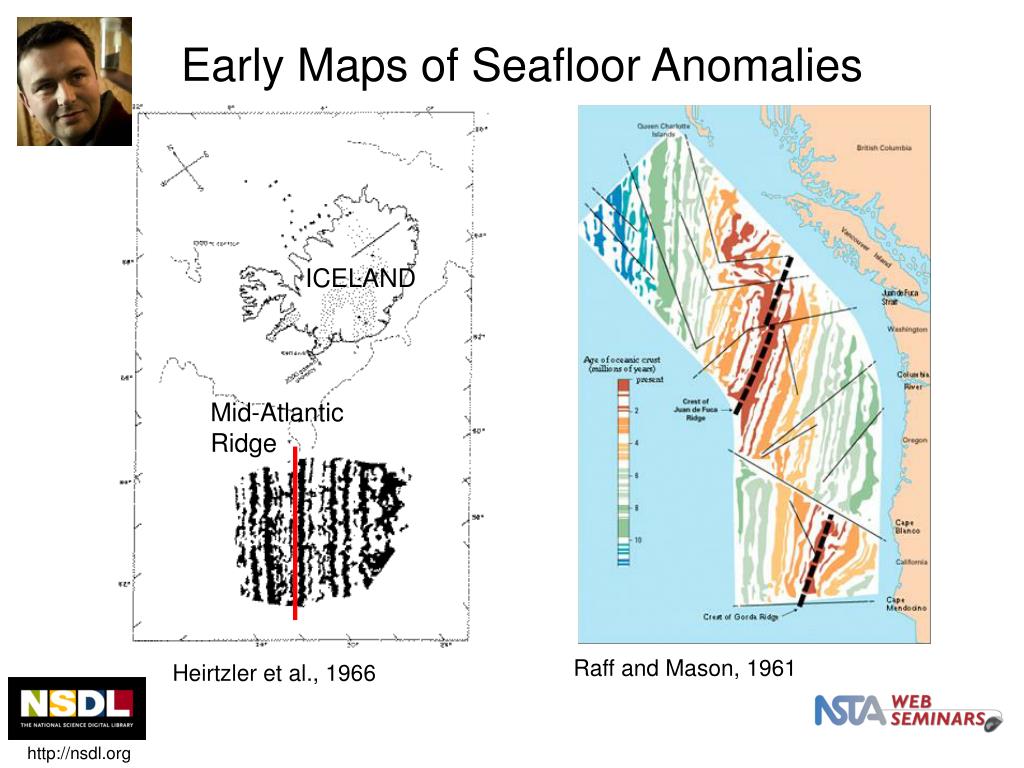

  11. ICELAND Mid-Atlantic Ridge http://nsdl.org Early Maps of Seafloor Anomalies Raff and Mason, 1961 Heirtzler et al., 1966

  12. http://nsdl.org Sample Profiles across Mid-Ocean Ridges

  13. http://nsdl.org Changing Spreading Rate = Modified Wiggle Pattern

  14. http://nsdl.org Shipboard Magnetic Data Across the EPR MEXICO PROFILE 1 PROFILE 2

  15. http://nsdl.org East Pacific Rise MODEL PROFILE 2 Using the marker, identify the location of the spreading ridge on PROFILE 2.

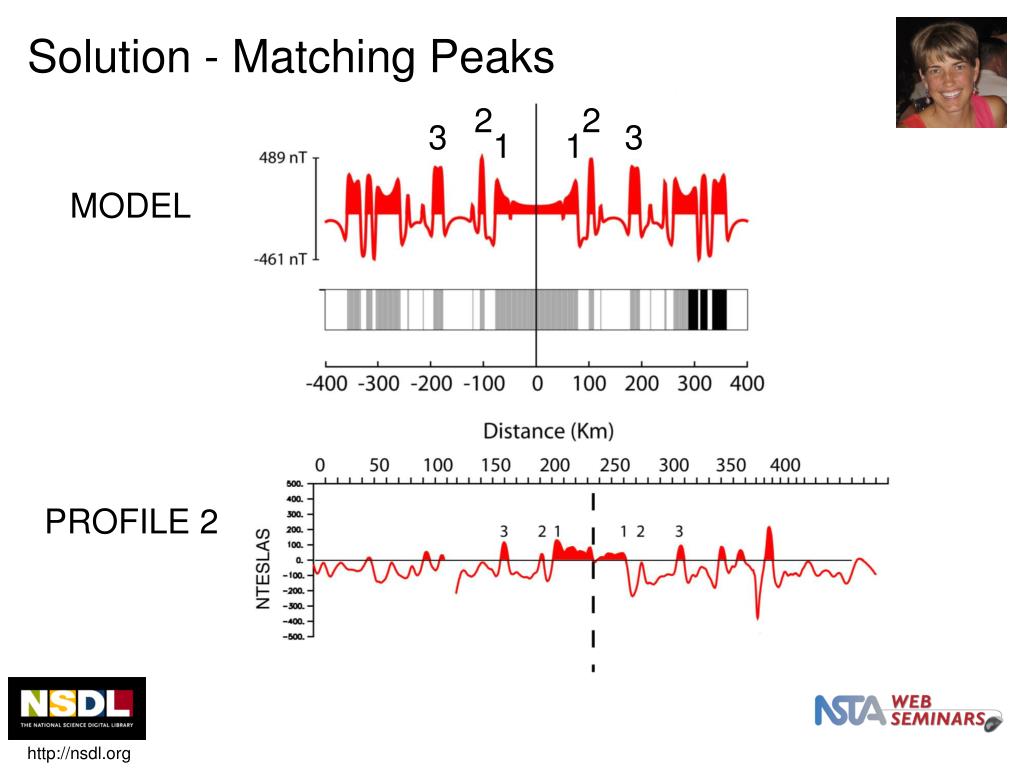

  16. http://nsdl.org Solution - Matching Peaks 2 2 3 3 1 1 MODEL PROFILE 2

  17. http://nsdl.org How fast is the East Pacific rise spreading?

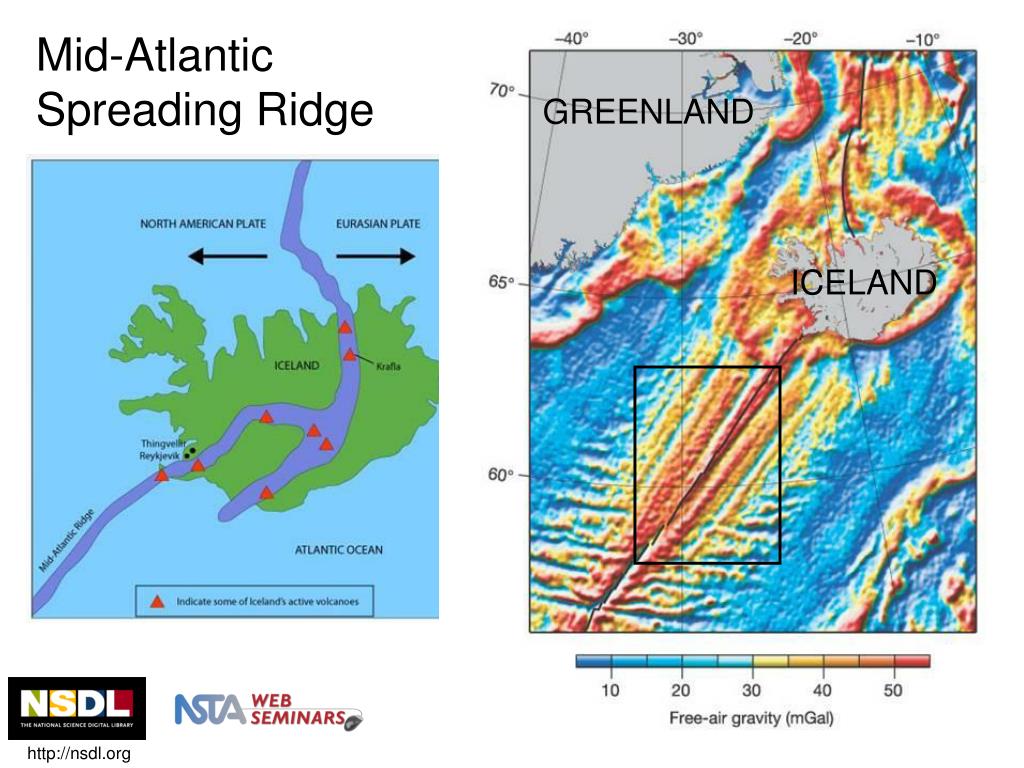

  18. GREENLAND ICELAND http://nsdl.org Mid-Atlantic Spreading Ridge

  19. http://nsdl.org Data across Reykjanes Ridge

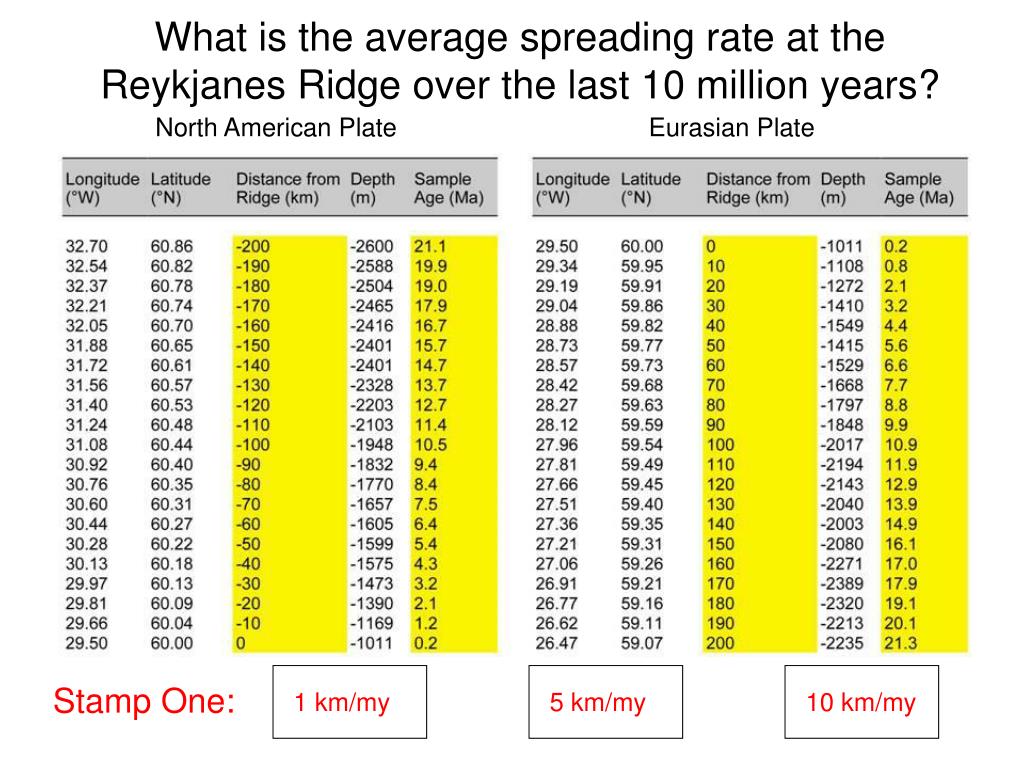

  20. What is the average spreading rate at the Reykjanes Ridge over the last 10 million years? North American Plate Eurasian Plate 1 km/my 5 km/my 10 km/my Stamp One:

  21. http://nsdl.org Let’s pause for two questions from the audience….

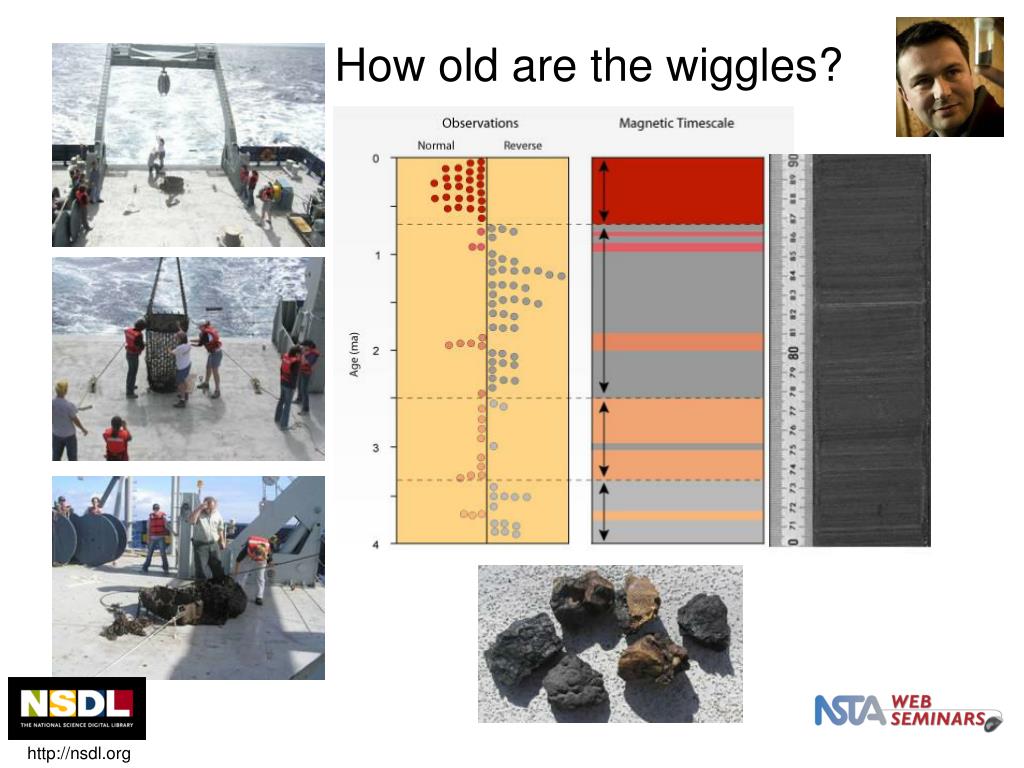

  22. http://nsdl.org How old are the wiggles?

  23. http://nsdl.org Time Scale

  24. http://nsdl.org EXTREME AGES • Age of the Earth ~ 4.6 Billion Years • Oldest Rock ~ 3.5 Billion Years • Oldest Mineral ~ 3.0 Billions Years • Oldest Seafloor ~ xxx ???

  25. http://nsdl.org Seafloor Age Map

  26. http://nsdl.org Dating OLDEST Seafloor

  27. http://nsdl.org Ocean Drilling Program1983-2003http://www.odplegacy.org/

  28. http://nsdl.org From seafloor to analysis to storage…..

  29. http://nsdl.org Argon-40/Argon-39 Dating

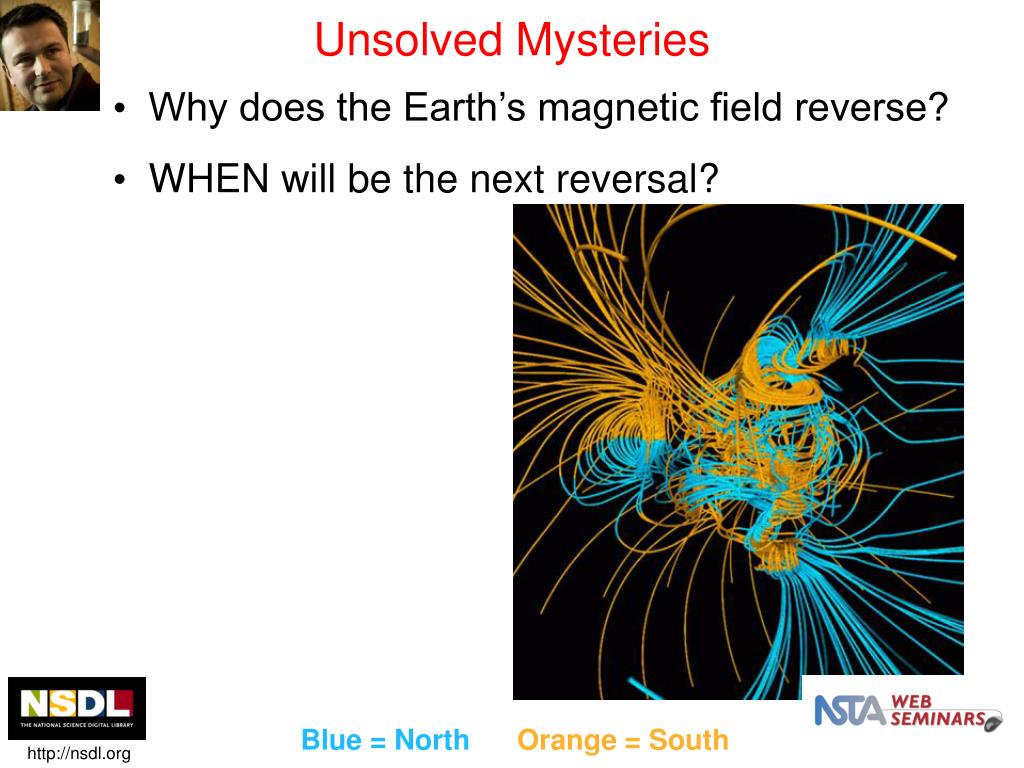

  30. http://nsdl.org Unsolved Mysteries • Why does the Earth’s magnetic field reverse? • WHEN will be the next reversal? Blue = NorthOrange = South

  31. http://nsdl.org Dr. Chris Massell Symons csymons@ucsd.edu THANK YOU! Dr. Anthony Koppers akoppers@coas.oregonstate.edu http://earthref.org/ERESE

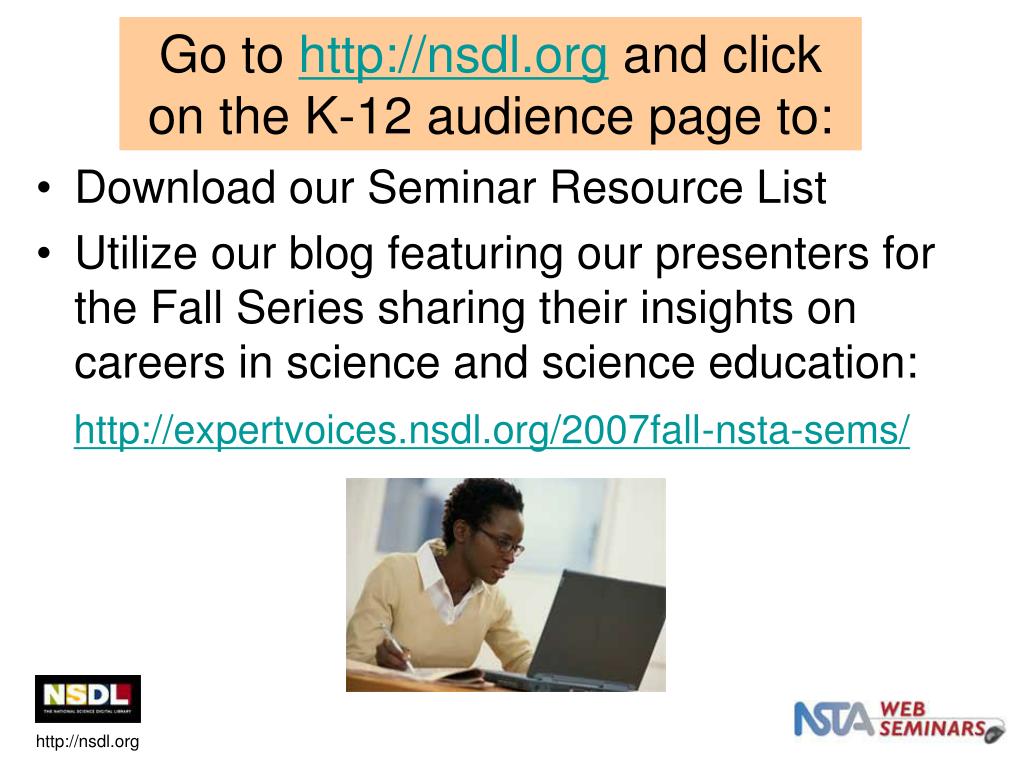

  32. http://nsdl.org Go to http://nsdl.org and click on the K-12 audience page to: • Download our Seminar Resource List • Utilize our blog featuring our presenters for the Fall Series sharing their insights on careers in science and science education: • http://expertvoices.nsdl.org/2007fall-nsta-sems/

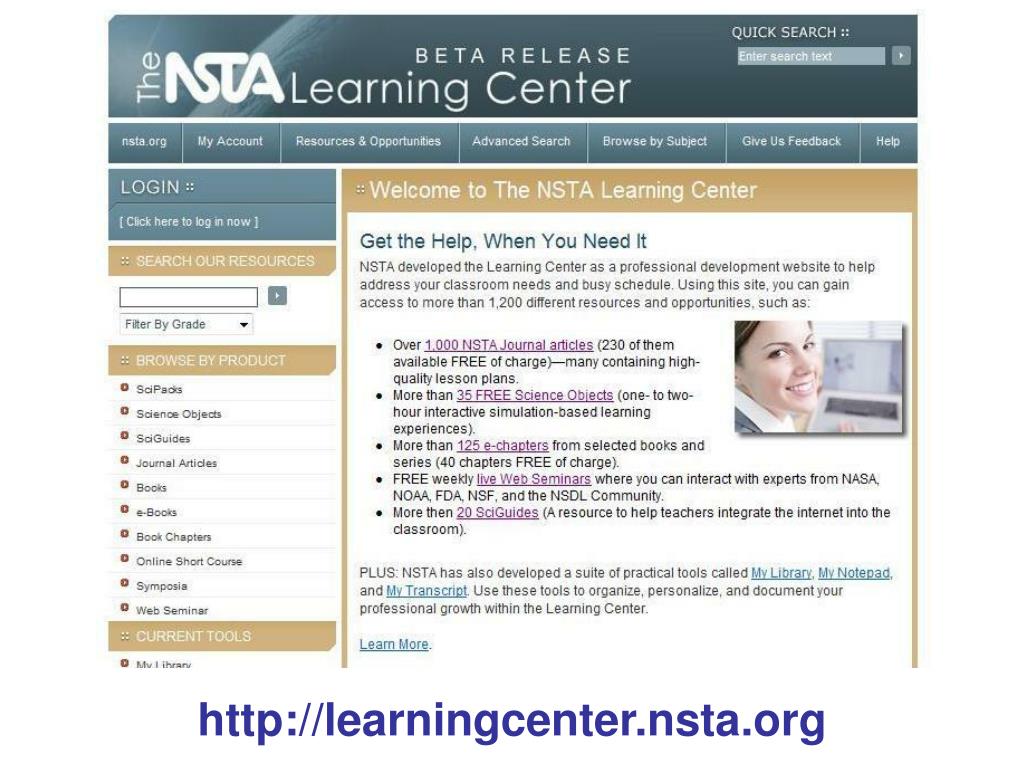

  33. NLC screenshot http://learningcenter.nsta.org
