Ch.6 Simple Linear Regression: Continued

Ch.6 Simple Linear Regression: Continued. To complete the analysis of the simple linear regression model, in this chapter we will consider how to measure the variation in y t , that is explained by the model how to report the results of a regression analysis

azra
Download Presentation

Ch.6 Simple Linear Regression: Continued

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Ch.6 Simple Linear Regression: Continued To complete the analysis of the simple linear regression model, in this chapter we will consider • how to measure the variation in yt, that is explained by the model • how to report the results of a regression analysis • how changes in the units of measurement affect the estimates • some alternative functional forms that may be used to represent possible relationships between yt and xt.

  2. The Coefficient of Determination (R2) Two major reasons for analyzing the model y = 1 + 2x + e are • To explain how the dependent varaible (yt) changes as the independent variable (xt) changes • To predict yo given xo. We want the independent variable (xt) to explain as much of the variation in the dependent variable (yt) as possible. We introduced the independent variable (xt) in hope that its variation will explain the variation in y A measure of goodness of fit will measure how much of the variation in the dependent variable (yt) has been explained by variation in the independent variable (xt).

  3. Separate yt into its explainable and unexplainable components: is explainable. where The error term etis unexplainable. Using our estimates for 1 and 2, we get estimates of E(yt) and our residuals give us estimates of the error terms. Residual is defined as the difference between the actual and the predicted values of y.

  4. The total variation in ytis measured as the sum of the squared deviations from the mean: Also known as SST (Total Sum of Squares) A single deviation of ytfrom its mean can be split into two parts: The sum of squared deviations from the mean is: This term is zero

  5. Graphically, a single y deviation from mean can be split into the two parts: Unexplained Total Variation  Explained xt

  6. Analysis of Variance (ANOVA): Where: SST: Total Sum of Squares with T-1 degrees of freedom. It measures the total variation in the actual yt values about its mean. SSR: Regression Sum of Squares with 1 degree of freedom. It measures the variation in the predicted values of yt about their mean. It is the part of the total variation that is explained by the model. SSE: Error Sum of Squares with T-2 degrees of freedom. It measures the variation in the actual ytvalues about the predicted ytvalues. It is the part of the total variation that is left unexplained. SST = SSR + SSE

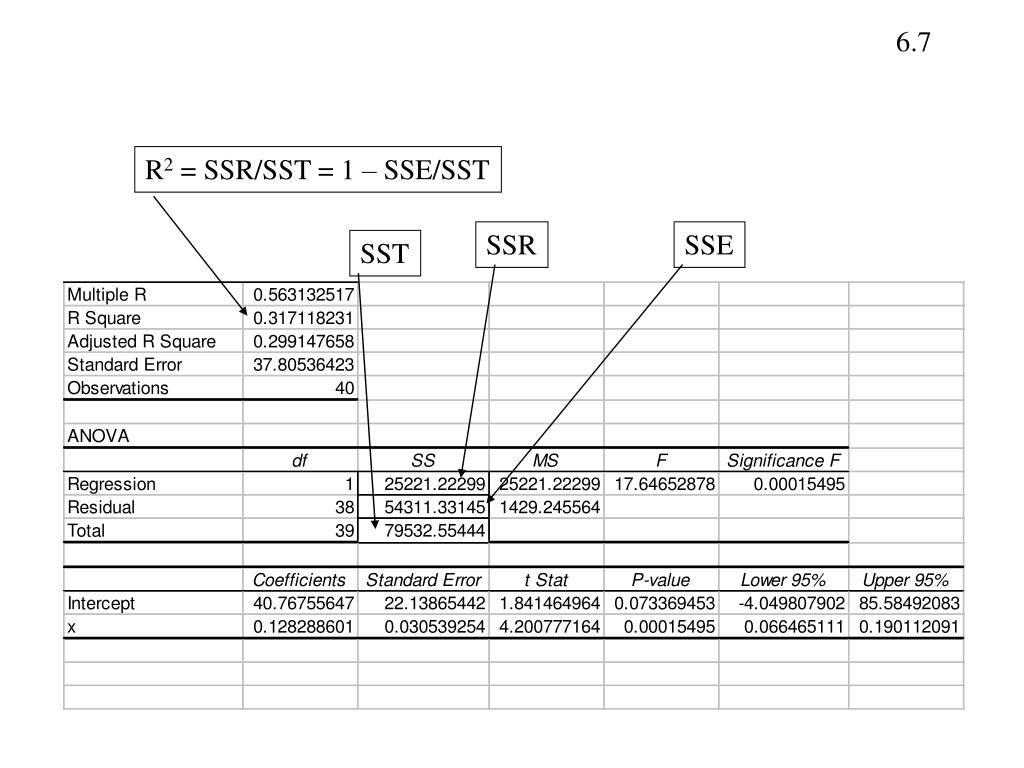

  7. R2 = SSR/SST = 1 – SSE/SST SSR SSE SST

  8. Coefficient of Determination: R2 • R2 is the proportion of the total variation (SST) that is explained by the model. We can also think of it as one minus the proportion of the total variation that is unexplained (left in the residuals). • 0  R2  1 • The closer R2 is to 1.0, the better the fit of the model and the greater is the predictive ability of the model over the sample. • If R2 =1  the model has explained everything. All the data points lie on the regression lie (very unlikely). There are no residuals. • If R2 = 0  the model has explained nothing.

  9. Graph A y R2 appears to be 1.0. All data Points lie on a line. x Graph B y R2 appears to be 0. The best line thru these points appears to have a slope of zero. x

  10. Graph C y R2 appears to be close to 1.0. x Graph D y R2 appears to be greater than 0 but less than R2 in graph C. x

  11. In the food expenditure example, R2 = 0.317  “31.7% of the total variation in food expenditures has been explained by variation in household income.” • More Examples:

  12. Correlation Analysis • Correlation coefficient between x and y is: • The Sample Correlation between x and y is: • It is always true that -1  r  1 • It measures the strength of a linear relationship between x and y.

  13. Correlation and R2 • It can be shown that the square of the sample correlation coefficient for x and y is equal to R2. • R2 can also be computed as the square of the sample correlation coefficient for the y values and the values. • It can also be shown that

  14. Reporting Regression Results • The numbers in parentheses are the standard errors of the coefficients estimates. These can be used to construct the necessary t-statistics to ascertain the significance of the estimates. • Sometimes, authors will report the t-statistic instead of the standard error. This would be the t-statistic for the Ho:  = 0 (s.e.) (22.139) (0.0305) R2 = 0.317 (t-stat) (1.841) (4.201) R2 = 0.317

  15. Units of Measurement b1 is measured in “y units” b2 is measured in “y units over x units” Example 3.15 from Chapter 3 Exercises y = number of sodas sold x = temperature in degrees (oF) If xo = 0o then the model predicts: So b1 is measured in y units (# of sodas). b2 = 6 where 6 is in (# of sodas / degrees). If x increases by 10 degrees  y increases by 60 sodas ^

  16. Let newx = x/100. We have no change to b1 because b1 is in Y units. b2 increases by 100, because it is in y units/x units. If newx increases by 1 unit (weekly income increases by $100), the model predicts food spending to rise by $12.83. Note this isn’t a new result. It still predicts that if income increases by $1, food spending will increase by $0.1283

  17. Functional Forms A linear model is one that is linear in the parameters with an additive error term. y = 1 + 2x + e The coefficient 2measures the effect of a one unit change in x on y. As the model is written above, this effect is assumed to be constant: However, we want to have the ability to model relationships among economic variables where the effect of x on y is not constant. Example: our food expenditure example assumes that the increase in food spending from an additional dollar of income was the same whether the family had a high or low income. We can capture these effects using logs, powers and reciprocals yet still maintain a model that is linear in the parameters with an additive error term.

  18. The Natural Logarithm • We will use the derivative property often: • Let y be the log of X: y = ln(x)  dy/dx = 1/x or dy = dx/x • This means that the absolute change in the log of X is equivalent to the relative change in the level of X. Let x=50  ln(x) = 3.912 Let x=52  ln(x) = 3.951  dln(x) = 3.951 – 3.912 = 0.039 The absolute change in ln(x) is 0.039, which can be interpreted as a relative change in X (X increases from 50 to 52, which, in relative terms, is 3.9%)

  19. Linear Log Ex: food expenditures Diagram What does 2 measure?

  20. Example: Y: food $, X: Weekly Income

  21. Log-Linear Ex: wages Diagram What does 2 measure?

  22. Double-Log Ex: demand model Diagram What does 2 measure?

  23. Linear Model Double Log Model
