CHEMICAL BONDS

CHEMICAL BONDS. How atoms combine to form different bonds How to predict what type of bond will form. Electrons are what cause atoms to “bond.” Two main types of bonding IONIC bonding : atoms transfer electrons COVALENT bonding : atoms share electrons. TYPES OF BONDS.

azizi
Download Presentation

CHEMICAL BONDS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. CHEMICAL BONDS • How atoms combine to form different bonds • How to predict what type of bond will form

  2. Electrons are what cause atoms to “bond.” Two main types of bonding • IONIC bonding: atoms transfer electrons • COVALENT bonding: atoms share electrons TYPES OF BONDS

  3. Held by +/- attraction • Form ions (e- transfer) & conduct electricity • OPPOSITE sides of Periodic Table non-metal + metal IONIC BONDS

  4. IONIC BONDING PRACTICE: draw the formation of sodium chloride • Step 1: Na + Cl Na + Cl • Step 2: draw dots around the reactants • Step 3: draw dots and charges around the products sodium gives e leaving it with a full valence orbital chlorine gains e- leaving it with a full valence orbital

  5. PREDICTING IONIC BONDING • Opposite sides of PT (i.e. metal + non-metal) • Big difference in Electronegativity (≥ 1.8)

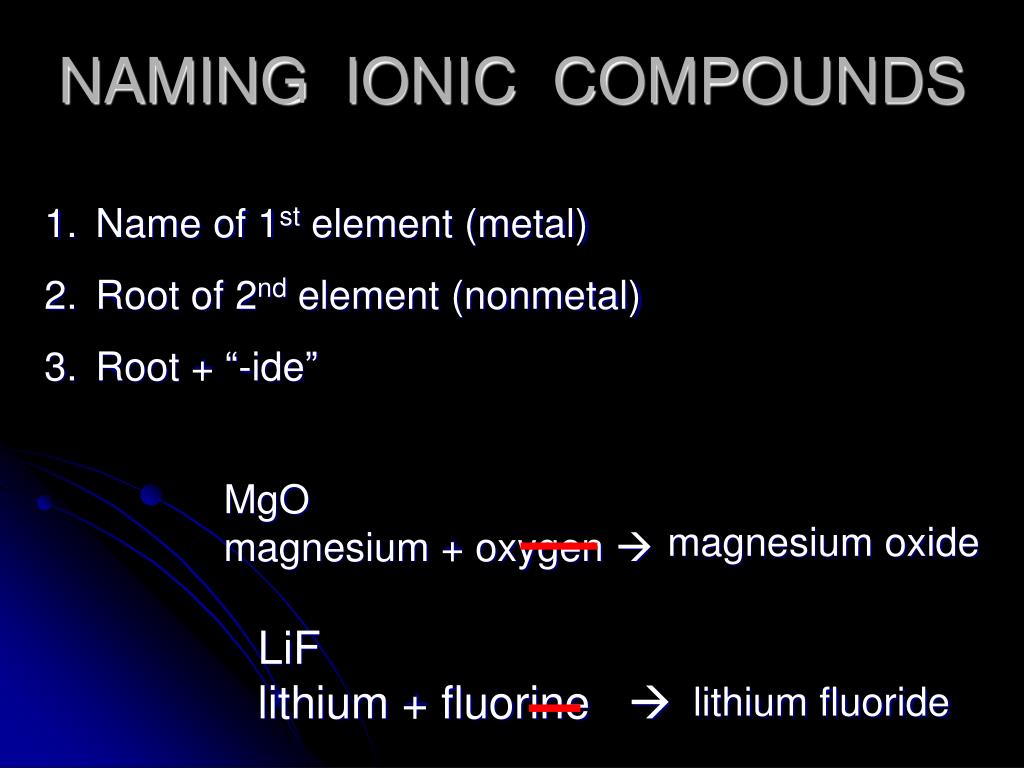

  6. NAMING IONIC COMPOUNDS • Name of 1st element (metal) • Root of 2nd element (nonmetal) • Root + “-ide” MgOmagnesium + oxygen  magnesium oxide LiFlithium + fluorine  lithium fluoride

  7. Held by sharing electrons(co=together valent=valence e-) • Does NOT conduct electricity • Usually same side of PT COVALENT BONDS non-metal + non-metal or metal + metal Special type of covalent is metal to metal = metallic bond

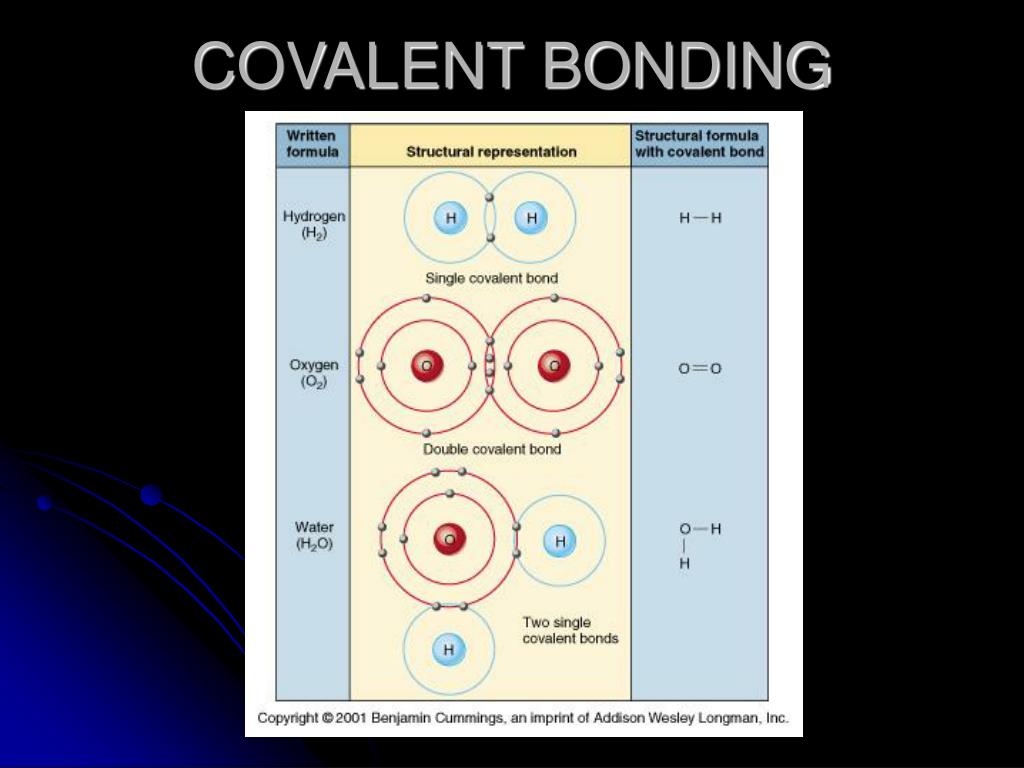

  8. COVALENT BONDING

  9. PREDICTING COVALENT BONDING • Same sides of PT (non-metal + non-metal) • Small difference in Electronegativity (< 1.8)

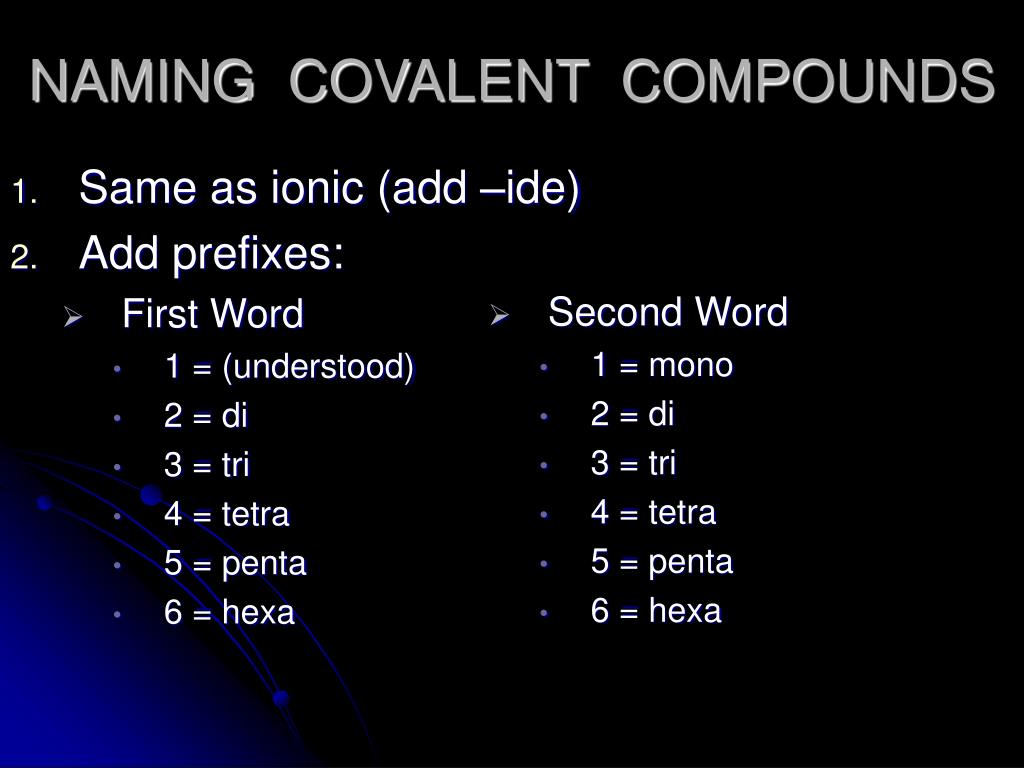

  10. NAMING COVALENT COMPOUNDS • Same as ionic (add –ide) • Add prefixes: • First Word • 1 = (understood) • 2 = di • 3 = tri • 4 = tetra • 5 = penta • 6 = hexa • Second Word • 1 = mono • 2 = di • 3 = tri • 4 = tetra • 5 = penta • 6 = hexa

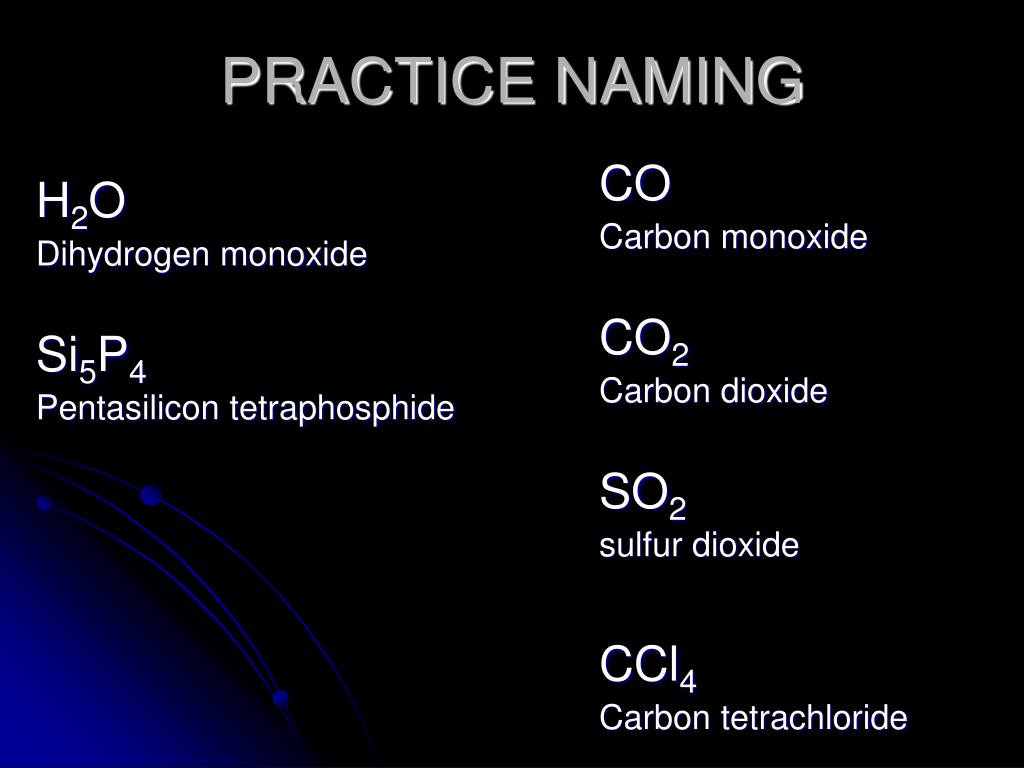

  11. PRACTICE NAMING CO Carbon monoxide CO2 Carbon dioxide SO2 sulfur dioxide CCl4 Carbon tetrachloride H2O Dihydrogen monoxide Si5P4 Pentasilicon tetraphosphide

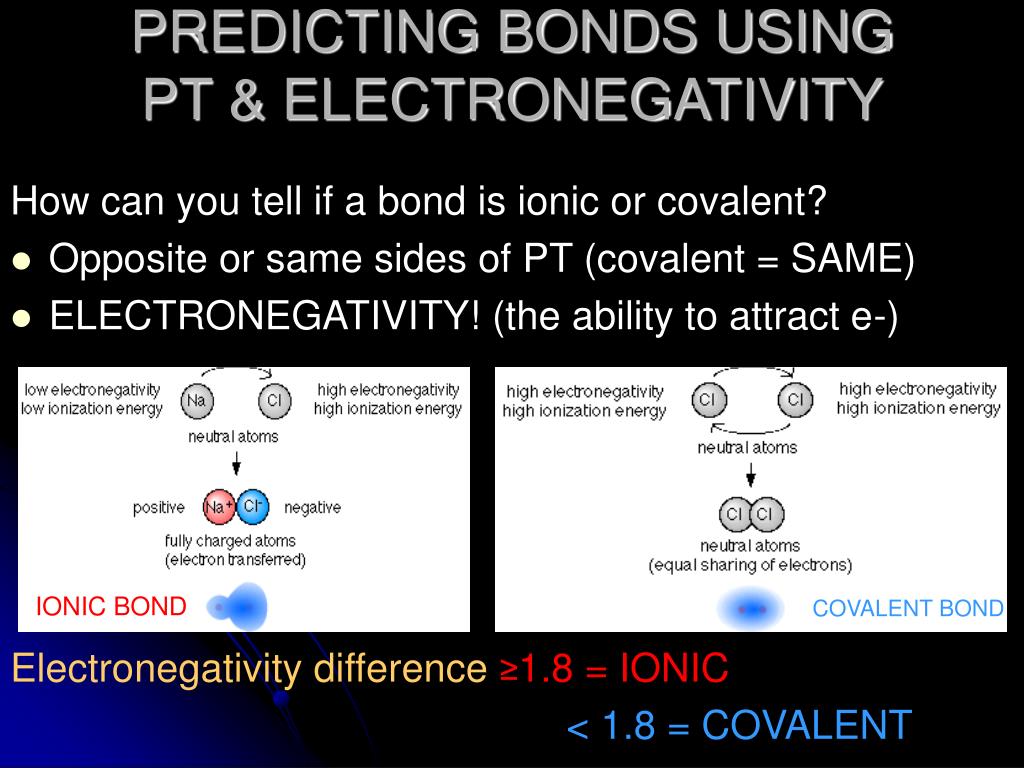

  12. PREDICTING BONDS USING PT & ELECTRONEGATIVITY COVALENT BOND IONIC BOND How can you tell if a bond is ionic or covalent? • Opposite or same sides of PT (covalent = SAME) • ELECTRONEGATIVITY! (the ability to attract e-) Electronegativity difference≥1.8 = IONIC < 1.8 = COVALENT

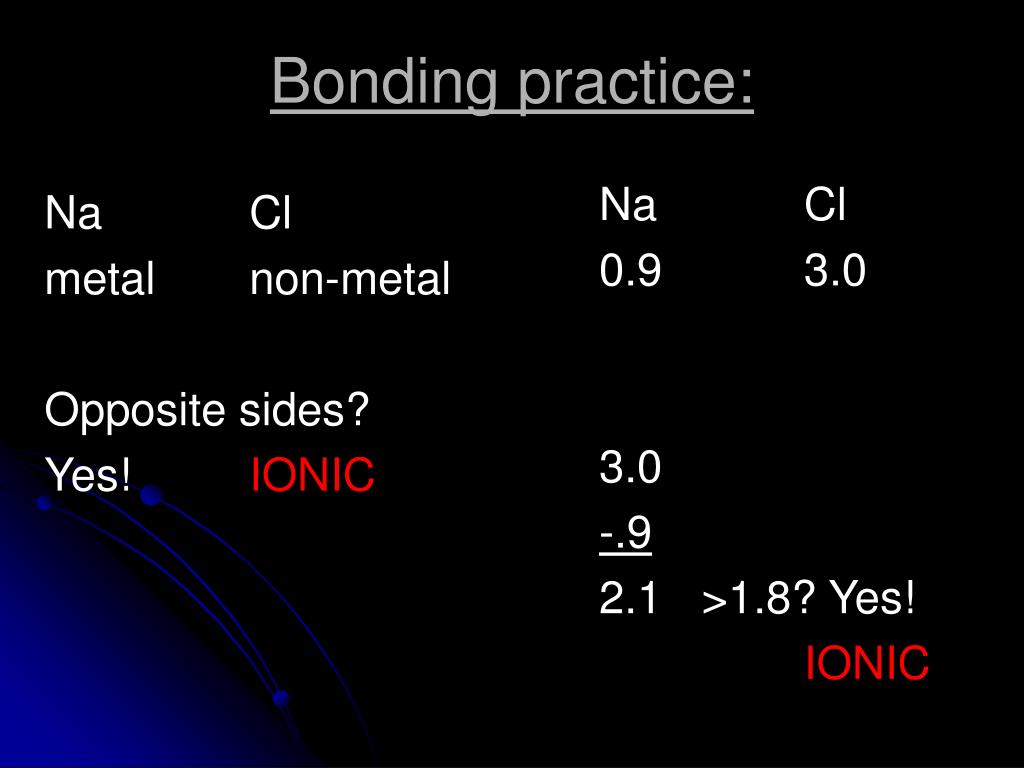

  13. Bonding practice: Na Cl 0.9 3.0 3.0 -.9 2.1 >1.8? Yes! IONIC Na Cl metal non-metal Opposite sides? Yes! IONIC

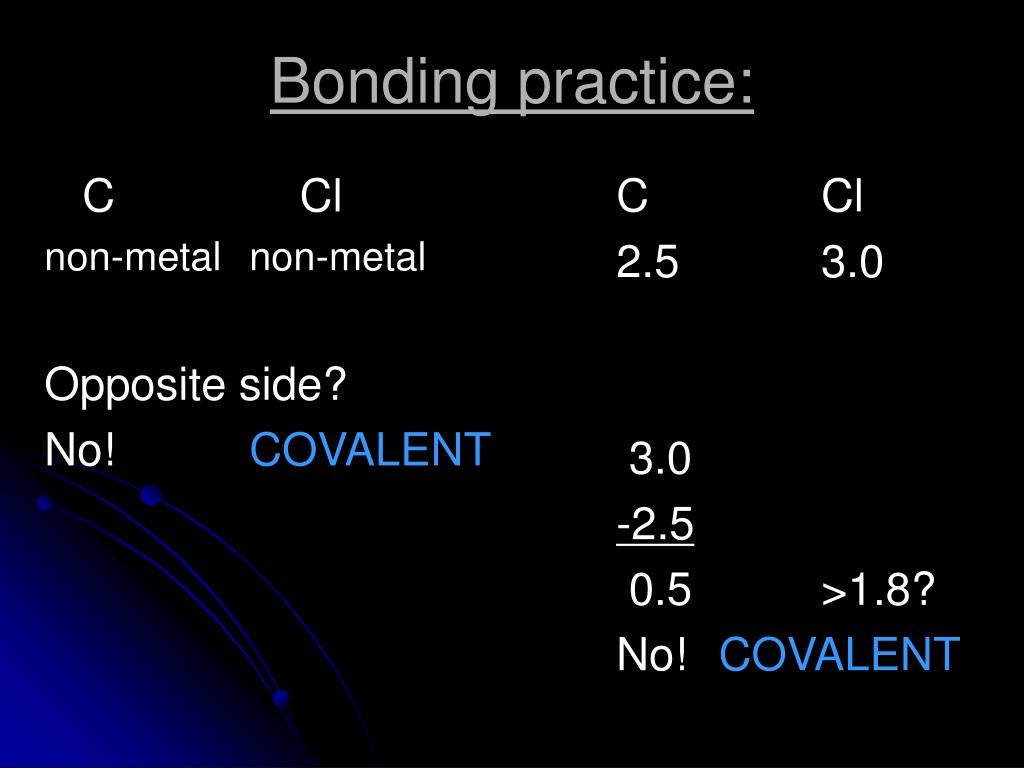

  14. Bonding practice: C Cl non-metal non-metal Opposite side? No! COVALENT C Cl 2.5 3.0 3.0 -2.5 0.5 >1.8? No! COVALENT
