Presentation Transcript
slide1

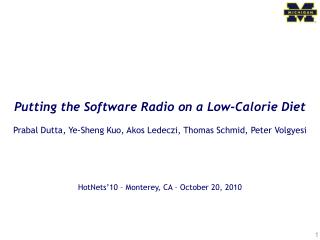

Putting the Software Radio on a Low-Calorie Diet

Prabal Dutta, Ye-Sheng Kuo, Akos Ledeczi, Thomas Schmid, Peter Volgyesi

HotNets’10 – Monterey, CA – October 20, 2010

mobile and low power wireless research has not benefitted as much from software radios
Mobile and low-power wireless research has not benefitted as much from software radios

USRP

Mote

  • Three SDR scaling challenges
  • Power (Active and Sleep)
    • A: USRP (10 W) vs Mote (60 mW)
    • S: USRP (10 W?) vs Mote (20 W)
  • Cost
    • USRP ($850) vs Mote ($65)
    • WARP cost >> USRP cost
  • Size
    • USRP (36 in2) vs Mote (1 in2)
    • WARP (64 in2) vs Mote (1 in2)
imagine if we could build a small inexpensive and low power software radio
Imagine if we could build a small, inexpensive, and low-power software radio
  • Software radios that you could
    • Hold in the palm of your hand
    • Embed in the physical world
    • Deploy at very large scale
    • Operate from solar power
    • Hand out for student labs
  • Software radios that would enable
    • Mobile networking research
    • Application-driven research
    • Large-scale, in situ evaluations
    • Energy-adaptive communications
    • Hands-on learning
outline
Outline
  • Introduction
  • Scaling Challenges
  • Technology Enablers
  • Architectural Sketch
  • Research Challenges
challenge 1 power
Challenge #1: Power
  • Low-power systems duty cycle
    • Attempt to achieve power proportional operation
    • Architectures support power control
    • High CPU and radio power draws
    • Radio turned off or in standby
    • CPU halted and put to sleep
  • SDRs cannot duty cycle
    • Fail to achieve power proportional operation
    • Architectures do not support it
    • Processor does not support sleep
    • SRAM-based FPGA cannot sleep
    • Radio power controls not exposed
challenge 1 power or why sram fpgas are not power proportional
Challenge #1: Power(or, why SRAM FPGAs are not power-proportional)
  • High in-rush current
  • High static power
    • Approximately 10x transistors needed
    • Increases with smaller transistors
    • Increases with lower Vth
  • High configuration current (and time)
  • Not amenable to efficient duty cycling
challenge 2 size or why modularity is expensive
Challenge #2: Size(or, why modularity is expensive)
  • Conventional SDRs
    • General-purpose
    • Highly reconfigurable
    • Modular platforms
    • Large size
  • Reconfigurable Motes
    • Application-specific
    • Modestly reconfigurable
    • Not modular
    • Small size
    • Examples
      • Waldo Mote
      • Bridge Monitor

Waldo Mote. Src: S. Lanszisera

Bridge Monitor. Src: P. Volgyesi

challenge 3 cost or why discrete components drive up costs
Challenge #3: Cost(or, why discrete components drive up costs)
  • XC4VFX100-10FF1517C FPGA
    • 94,896 logic cells
    • $2400
  • Radio board
    • MAX2829
    • Power Amp
    • Ant Switch
    • SMA I/F
    • AD9777
    • AD9248
    • AD9200

http://warp.rice.edu/trac/wiki/HardwarePlatform

summary of the scaling challenges
Summary of the scaling challenges
  • Power
    • SRAM FPGAs have high static power and cannot duty cycle
    • SDR architectures do not support power controls
  • Size
    • Modular designs are large and 3-dimensional
    • Discrete chips for RF and baseband pathways take up space
  • Cost
    • Ultra high-performance FPGAs are expensive
    • Discrete chips for RF and baseband pathways is costly
outline12
Outline
  • Introduction
  • Scaling Challenges
  • Technology Enablers
  • Architectural Sketch
  • Research Challenges
emerging mixed signal fpgas e g actel smartfusion
Emerging mixed-signal FPGAs (e.g. Actel SmartFusion)
  • Integrates
    • FPGA (200K/500K gates)
    • Hard CPU (ARM Cortex-M3)
    • Analog Compute Engine (ACE)
  • FPGA
    • Flash-based
    • Low-power
    • Logic tiles + SRAM blocks
  • CPU
    • 100 MHz+ operation
    • 64K SRAM / 256K Flash
    • FPGA memory-mapped on AHB
  • ACE
    • 600 ksps ADC/DAC
    • Fast comparators
    • Simple DSP operations

http://www.actel.com

cpu and fpga compute fabrics interfaced via ahb
CPU and FPGA compute fabrics interfaced via AHB

CPU

FPGA

Source: ActelSmartFusion MSS User Guide

flash based fpga can be duty cycled
Flash-based FPGA can be duty cycled
  • Low in-rush current
  • Low static power (W)
  • No configuration current
  • No configuration delay
  • Amenable to duty cycling
    • “FlashFreeze” mode
    • Clock domains suspended
    • High-impedance I/O
    • Memory contents preserved
  • Limitations
    • Slow max speed (10-40 MHz)
    • Lower gate count (130 nm node)
    • Long reprogramming time (flash erase/write)
    • Limited number of programming cycles (~1000)
highly integrated rf transceivers
Highly-integrated RF transceivers
  • Small layout size
    • Approx 150 mm2
    • Including externals
  • Low-power
    • Active: ~200-900 mW
    • Sleep: ~30 W
  • High integration
    • RF transceiver
    • Integrated PA
    • Integrated RX/TX SW
    • Integrated diversity SW
  • ADCs/DACs
    • Integrated in FPGA
    • (at least slow ones)
outline17
Outline
  • Introduction
  • Scaling Challenges
  • Technology Enablers
  • Architectural Sketch
  • Research Challenges
architectural sketch of a lean sdr platform
Architectural sketch of a lean SDR platform
  • Mixed-signal FPGA
    • Flash-based matrix + PLL
    • ARM Cortex CPU (M1 or M3)
    • ADC/DAC/Analog Comparator
  • 2.4 GHz Radio
    • RF-to-baseband
    • Osc, Dig Frq Synth
    • PA, RX/TX Switch
  • Timebase
    • 32 kHz TCXO + DCO + VHT
  • Power
    • DC/DC converters
    • Energy metering
  • Optional
    • 40 Msps ADC / 40 MHz DAC
addressing the scaling challenges
Addressing the scaling challenges
  • Power
    • SRAM FPGAs have high static power  Use Flash-based FPGAs
    • SDRs do not support power controls  Support Power Mgmt
  • Size
    • Modular designs are large  De-modularize the design
    • Discrete chips take up space  Leverage IC integration
  • Cost
    • High-end FPGAs are expensive  Remove, complement with CPU
    • Discrete chips are costly  Leverage integration, PCB Ant, …
a few other odds and ends
A few other odds and ends…
  • Power-proportional timer system
    • Offers virtual high-resolution time
    • Balances fast-timer resolution (xx:34)
    • …with slow-timer power draw (12:xx)
    • Provides resolution on demand
  • Fast radio startup
    • Accelerates sleep  active transition
    • Uses crystal to train ring oscillator
    • Uses ring oscillator to kickstart crystal
    • Balances high-Q and fast radio startup
  • Regulator-integrated energy meter
    • Supports application-level power profiling
    • Counts switching cycles of regulator
    • Transfers fixed energy quanta per cycle
back of the envelope evaluation
Back-of-the-envelope evaluation

Desc Mfg Part Size Cost Power (mW)

FPGA Actel A2F200M3F 17x17 mm $40 TBD*

Radio Maxim MAX2830 7x7 mm $4 186/0.030

OSC Maxim DS32kHz 11x11 mm $4 0.005/na

PCB 4PCB 4-layer PCB 38x63 mm $5 na

Power TI Various 25x25 mm $5 20% overhead

ADC ADI AD9288 9x9 mm $6 156/6

DAC Maxim MAX5189 6x10 mm $5 7/1

Misc Various Various Various$31n/a

~4 x 6 cm ~$100 ~350/10

* Actel IGLOO active power ~ 10’s mW and standby power ~10 W.

* Actel SmartFusion power to be characterized.

outline22
Outline
  • Introduction
  • Scaling Challenges
  • Technology Enablers
  • Architectural Sketch
  • Research Challenges
time multiplex algorithms on the cpu or parallelize algorithms on the fpga fabric
Time multiplex algorithms on the CPU orparallelize algorithms on the FPGA fabric?

FPGA

  • Verilog/VHDL RTLs
  • Parallel
  • Fast to run
  • Hard to write
  • Great power-efficiency
  • Gate-limited
  • Use soft CPU core?
  • CPU
  • Assembly/C/C++
  • Sequential
  • Slow to run
  • Easy to write
  • Poor power-efficiency
  • Memory-limited
  • Use hard CPU core
how should we reuse existing sdr libraries
How should we reuse existing SDR libraries?
  • Lots of SDR & soft router software
  • Better to not reinvent the wheel
  • How can these libraries be wrapped?
  • Implications on computation model?

Click

http://gnuradio.org/redmine/repositories/browse/gnuradio/gnuradio-core/src/lib

let chaos reign then rein in the chaos
Let chaos reign… then rein in the chaos
  • Many basic architectural questions
    • How much low-level detail should be exposed to applications?
    • How to balance component library flexibly and reuse?
    • How should computations be scheduled?
  • But many questions don’t need immediate answers
    • Allow exploration of the design space
    • Allow competing software architectures
    • Eventually converge on known good design points
outline26
Outline
  • Introduction
  • Scaling Challenges
  • Technology Enablers
  • Architectural Sketch
  • Research Challenges
slide28
Questions?

Comments?

Discussion?
