Model Comparison for Tree Resin Dose Effect On Termites

1. Model Comparison for Tree Resin Dose Effect On Termites Lianfen Qian Florida Atlantic University Co-author: Soyoung Ryu, University of Washington

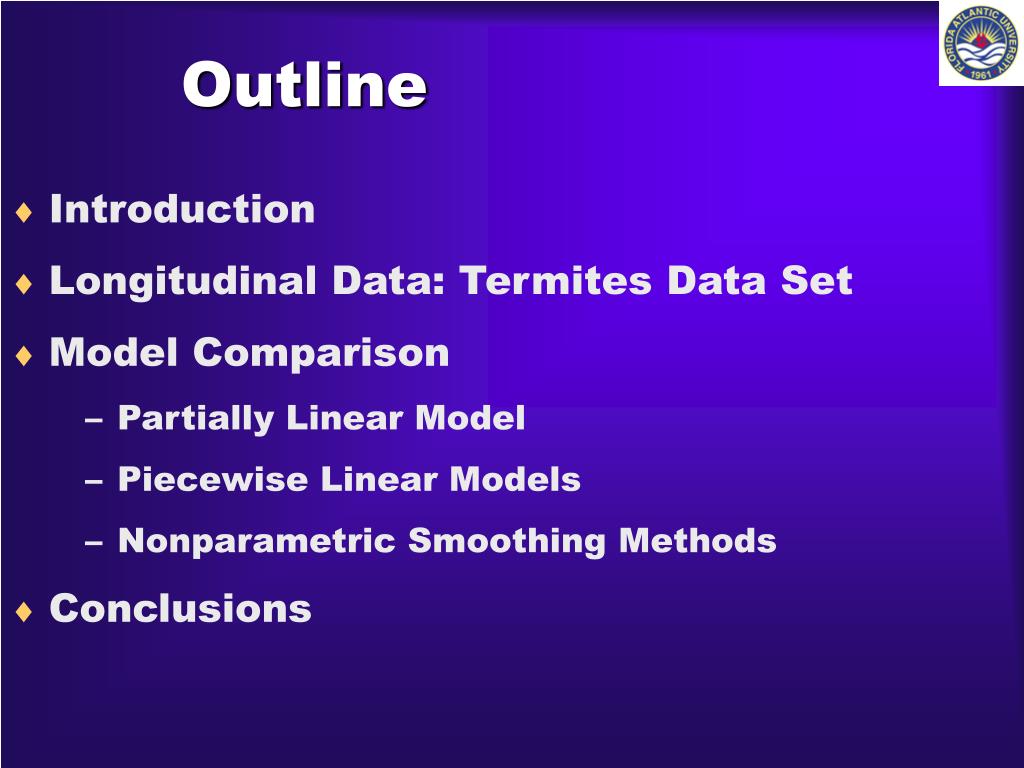

2. Outline • Introduction • Longitudinal Data: Termites Data Set • Model Comparison • Partially Linear Model • Piecewise Linear Models • Nonparametric Smoothing Methods • Conclusions

3. Introduction Termite destruction in Florida is a serious problem. • Each year wood termites bore into thousands of homes and businesses causing millions of dollars of damage. • Current chemical pesticides that are used in the control of termites and protection from their damage are potentially harmful to Florida’s delicate environment.

5. Goal of study To determine the effectiveness of a natural tropical tree resin in controlling termites thus providing protection from their destruction.

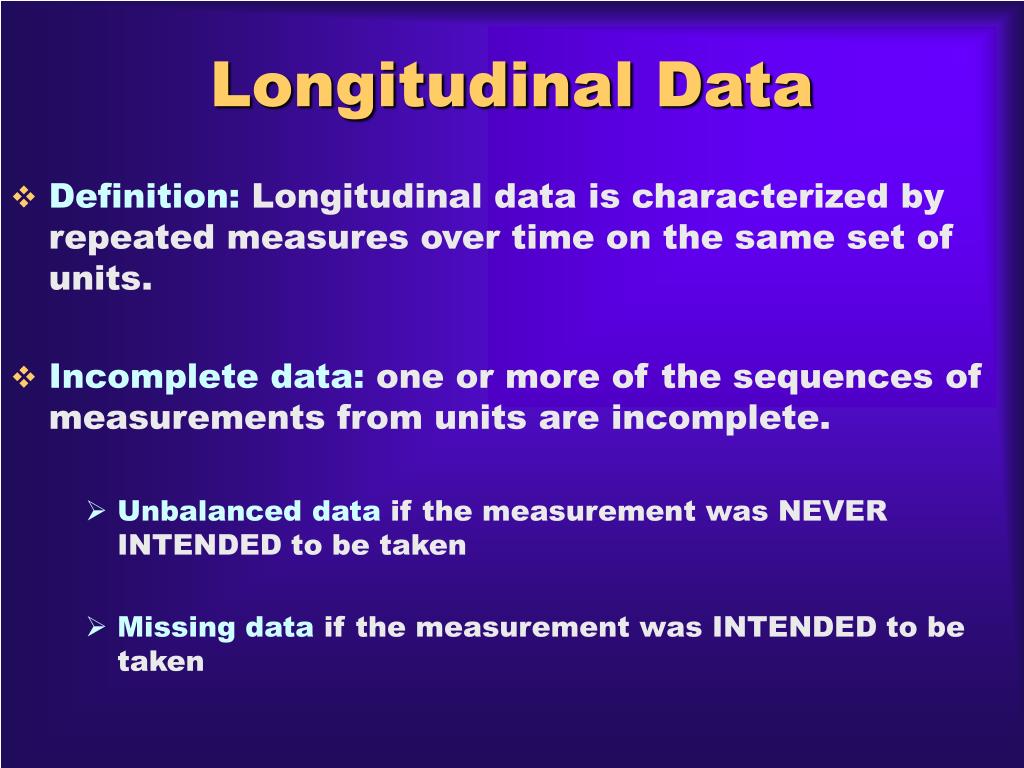

6. Longitudinal Data • Definition: Longitudinal data is characterized by repeated measures over time on the same set of units. • Incomplete data: one or more of the sequences of measurements from units are incomplete. • Unbalanceddata if the measurement was NEVER INTENDED to be taken • Missing data if the measurement was INTENDED to be taken

7. Longitudinal Data, Cont. • Benefits • Distinguish changes over time within units from the differences among units • Use units efficiently once they are enrolled in a study • Issue: Repeated observations on the same subject tend to be correlated • Need to find appropriate statistical analysis considering this correlation.

8. 25 5mg or 10mg O O O O O O O O O O O O O O O O O O O O O O O O O Termites Data Set • The resin was derived from the bark of tropical trees and was dissolved in a solvent and is placed on filter paper in two different levels of concentration, either 5mg or 10mg dosage. • There are eight dishes for each dose. • Twenty five alive termites are placed in each dish. Each dish was observed on 13 specific days. No observation was made on day 3 and day 9.

9. 5mg Termites Data, Cont. 10mg

10. Scatter Plot

11. Longitudinal Plots (a) 5mg dose (b) 10mg dose

12. Data Set EDA Strange Behavior of dishes 1 & 2 for 10mg dose is found Mistake? NO YES Remove dishes 1 & 2 for 10mg Add additional unknown levelof dosage. *mg, 5mg, 10mg Add random effect of dish Common time effect for the different dose Different time effect for the different dose Are error terms correlated? YES Add correlation additional term to catch the correlation No End Partially Linear Model

13. Partially Linear Model Benefits: • It is more efficient than the standard linear regression model, when the response variable depends on some variables in linear relationship, but is nonlinearly related to other covariates. • It can provide a parsimonious description of relationship between the response variable and explanatory variables. • It has the flexibility of the nonparametric model.

14. Partially Linear Model Yij = xijTβ + g(tij) + εij , i = 1,…,m, j = 1,…, ni • m is the number of units • ni is the number of observations for each unit • (xij, tij) is either independent and identically distributed random design points or fixed design points • g is an unknown non-parametric function • εij are a set of N random variables, each with zero mean and finite variance. • N = n1+…+nm

15. Back-fitting Algorithm 1. Given the current estimate , calculate residuals rij=Yij-xTij  and use these in place of Yij to calculate a cubic spline estimate, g(t). 2. Given g, calculate residuals, rij=Yij-g(tij), and update the estimate  using generalized least squares, ß = (XTV-1 X)-1 XTV-1 r, where X is the matrix with rows xTij, V is the assumed block diagonal covariance matrix of the data and r is the vector of residuals. 3. Repeat steps 1 and 2 for convergence. ^ ^ ^ ^ ^ ^ ^

16. Spline Estimator of g • Among all functions g(x) with two continuous derivatives, find the one that minimizes the penalized residual sum of squares: ∑{rij – g(xij)}2 + λ ∫{g″(t)}2 dt • λ controls the smoothness of the fitted curve: • Larger λ => Smaller variance => Smoother curve => Larger bias • Trade-off between bias and variance.

17. The Generalized Cross-Validation function (Rice & Silverman, 1991) is used to choose λ: Minimize

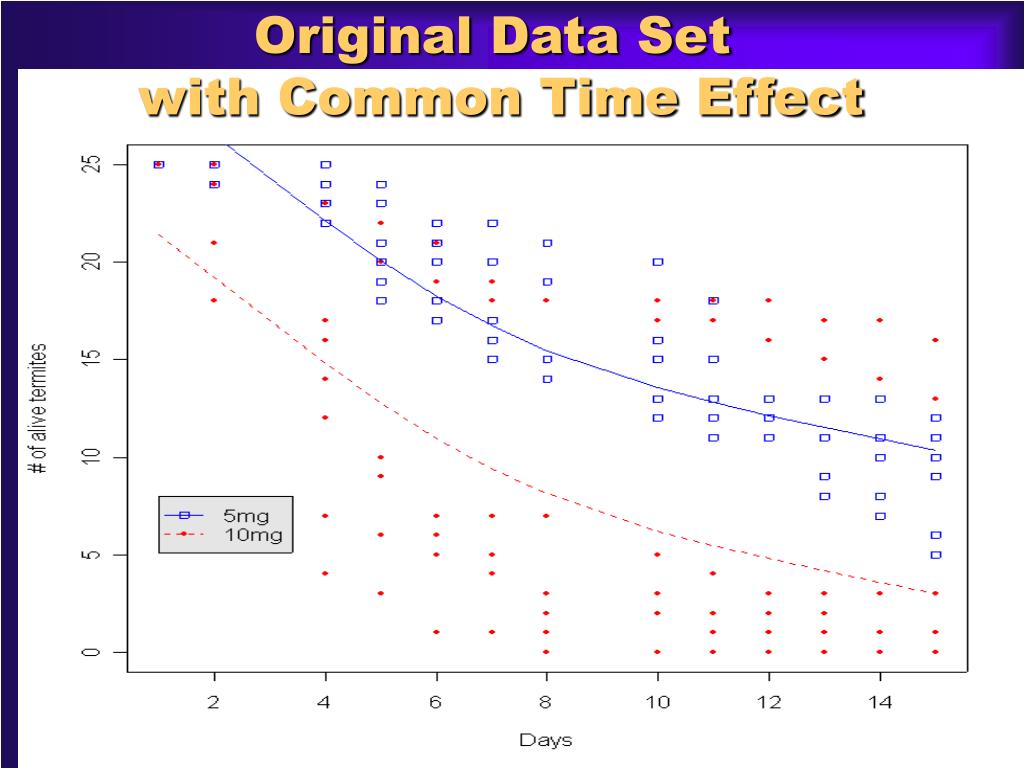

18. Original Data Set with Common Time Effect

19. Removing Outliers (dishes 1 &2)

20. Add Additional Dose

21. Different Time Effect for Dose

22. Piecewise Linear Regression Model • For 5mg, the data does not show change point. • For 10mg, the data shows a change point. • Use the following piecewise linear model: E(y|x)= 0 + 1 x, if x< 0 + 1 x, otherwise. • Change point estimated using M-estimation • (Koul & Qian & Surgailis, 2003)

27. Two-Phase Linear Regression

28. Piecewise Linear Regression

29. Cubic Splines Smoothing Cubic Splines E(y|x)=+1x+ 2x2+ 3x3+ 4 (x-7)3+

30. (a) 5 mg dose (b) 10 mg dose (c) Unknown dose Cubic Spline Method No significant different between cubic smoothing and piecewise models

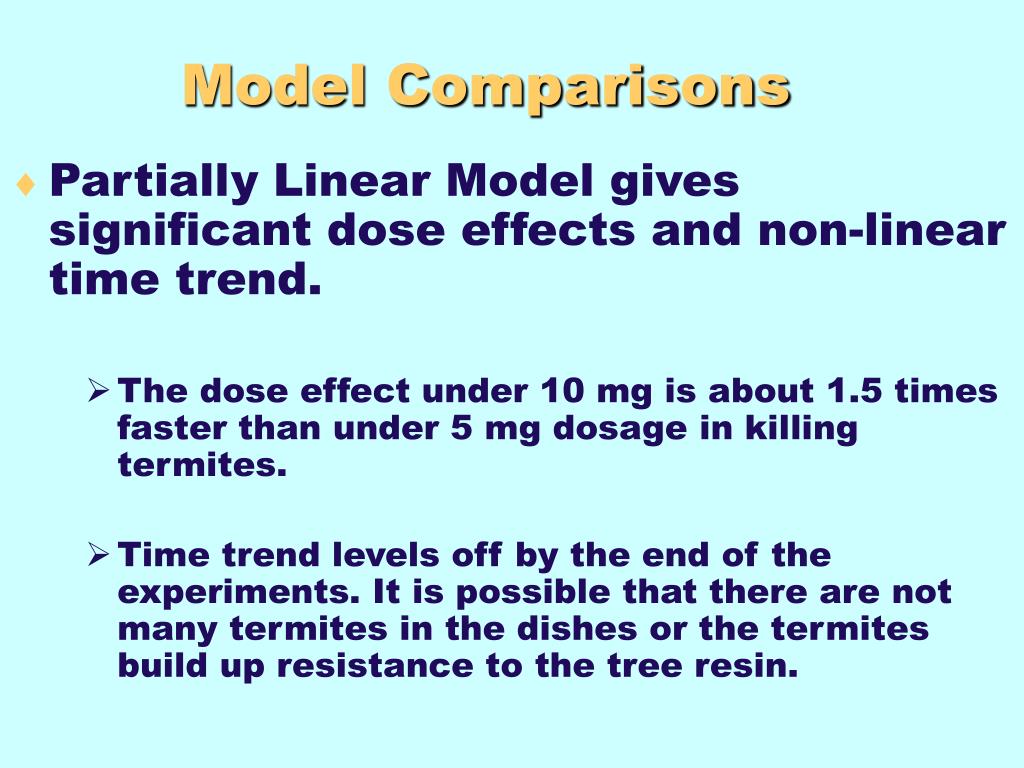

31. Model Comparisons • Partially Linear Model gives significant dose effects and non-linear time trend. • The dose effect under 10 mg is about 1.5 times faster than under 5 mg dosage in killing termites. • Time trend levels off by the end of the experiments. It is possible that there are not many termites in the dishes or the termites build up resistance to the tree resin.

32. Piecewise Linear Models • It shows that there is a dramatic effect in the first seven days under 10 mg dosage. • There is linear trend and dose effect under 5 mg dosage. • For the two strange dishes under 10 mg dosage, the first seven day effect is not significantly from 5 mg dose, while after seven days, it shows worse effect than 5 mg dose. This indicates that there are recording or operating mistakes for those two dishes’records.

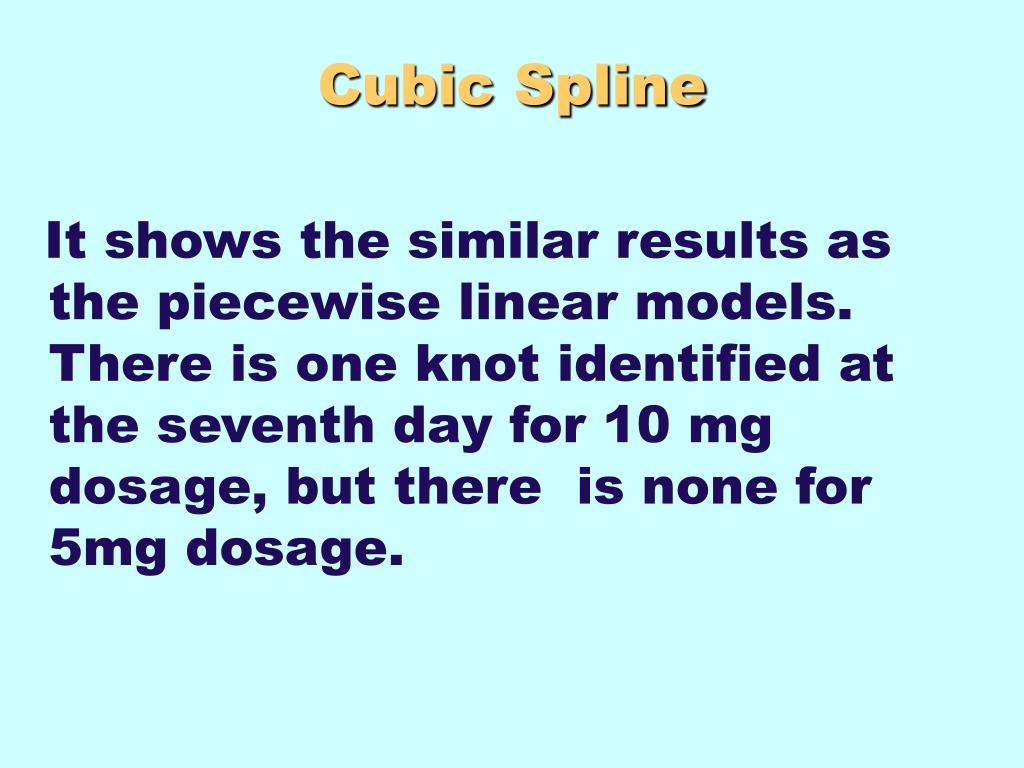

33. Cubic Spline It shows the similar results as the piecewise linear models. There is one knot identified at the seventh day for 10 mg dosage, but there is none for 5mg dosage.

34. Conclusions • Overall, 10 mg dose is significantly more effective than 5 mg dose. • For 10 mg dose, both piecewise linear model and cubic spline smoothing show that termites are killed in about 7 days.

35. Conclusion, Cont. • For 5 mg dose, all methods (linear, partial linear, piecewise linear and cubic spline smoothing) show that the effect is linear. It takes more than double time to kill termites comparing 10 mg dose. • Two dishes recorded for 10 mg dose behaviors insignificant from 5 mg dose for the first 7 days. After seven days, it shows significantly none effectiveness on killing termites.

36. Conclusions, cont. • The estimated treatment effect is time varying with a change point at day 7. • The final piecewise model fits the data with adjusted R2=93.7%. • On average, 10mg is 68.9% more efficient than 5mg in killing termites during the first week.
