Presentation Transcript
Supplier quality assurance marking guideline l.jpg

Supplier Quality AssuranceMARKING GUIDELINE


Slide2 l.jpg

MARKING

The Reference systems

These reference systems are included for information purposes and may be modified or replaced

BTG0027

Large Nacelle

A380 A318 A340 500/600

IFHD 68004

Small Nacelle

CF34-8 BR710 F7X

HS 900100 F° 0044

DT 05-89

Mature programme

A320 A340 200/300


Marking l.jpg
MARKING

REFERENCE SYSTEM

Large Nacelle

A380=======ASL or ATL

A318=======ARL

BTG0027

The marking technique appears on the PN sheet sent with the definition elements

(CAD, PLAN, CATIA file…….)

On the A340 500/600 programme APLXXXX-XX-X ,

the note of the plan bears the MARKING data


Marking4 l.jpg

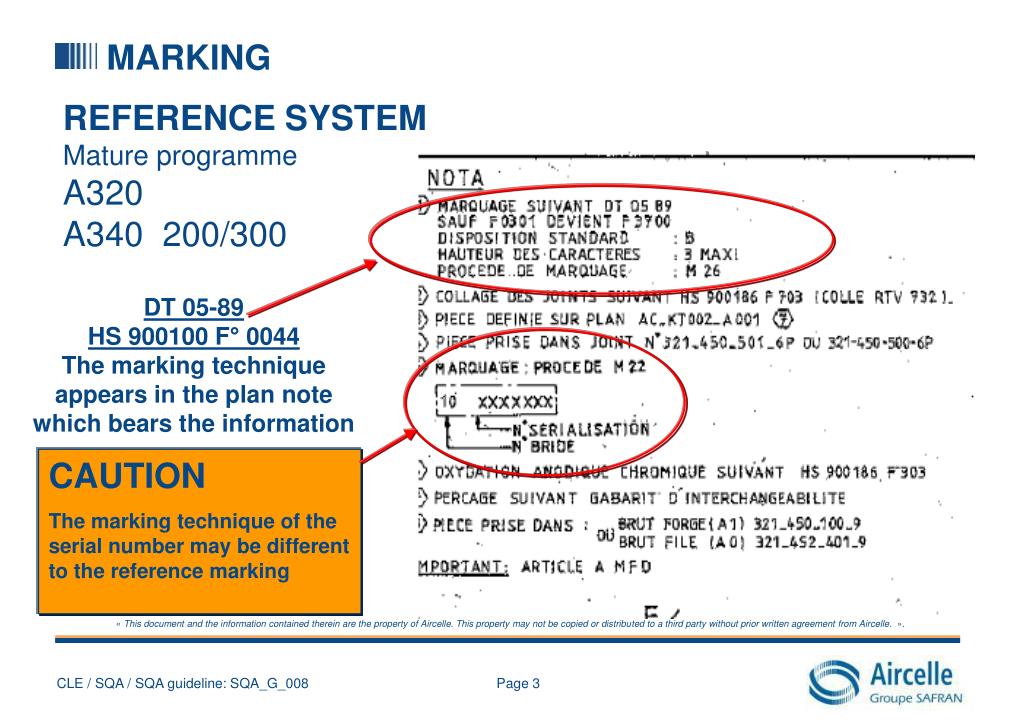

MARKING

REFERENCE SYSTEM

Mature programme

A320

A340  200/300

DT 05-89

HS 900100 F° 0044

The marking technique

appears in the plan note

which bears the information

CAUTION

The marking technique of the serial number may be different to the reference marking


Marking5 l.jpg
MARKING

REFERENTIAL

Mature program

A320

A340  200/300

  • A320-CFM :

  • 321-XXX-XXX-X

  • or

  • ALLXXX-XXX-X(no dash after the “ L”)

  • A340-CFM :

  • AFLXXX-XXX-X (no dash after the “ L”)

  • Example of marking that generates issues :

  • AFL-109-453-6

  • 3214727006

  • ALL-458-901-0

IMPORTANT : SUFFIXES AT THE END OF REFERENCES ARE FORBIDDEN


Slide6 l.jpg

MARKING

Article order in -7,-8

Marking in -6 or -0 on the article

depending on the definition technique

Label marking (M31) of the ordered example

The definition markings

-6 & -0 must appear on the article which can be delivered to the end client.


Slide7 l.jpg

MARKING

Position of the marking

When this symbol comprises dotted lines (short breaks) the marking of the article must be done on the side opposite the view of the plan

Marking side


Marking8 l.jpg
MARKING

Position of the marking

When the marking position symbol is an FULL LINE, the marking of the article must be apposed on the side identified on the plan.

Full line symbol

Marking on this side


Slide9 l.jpg

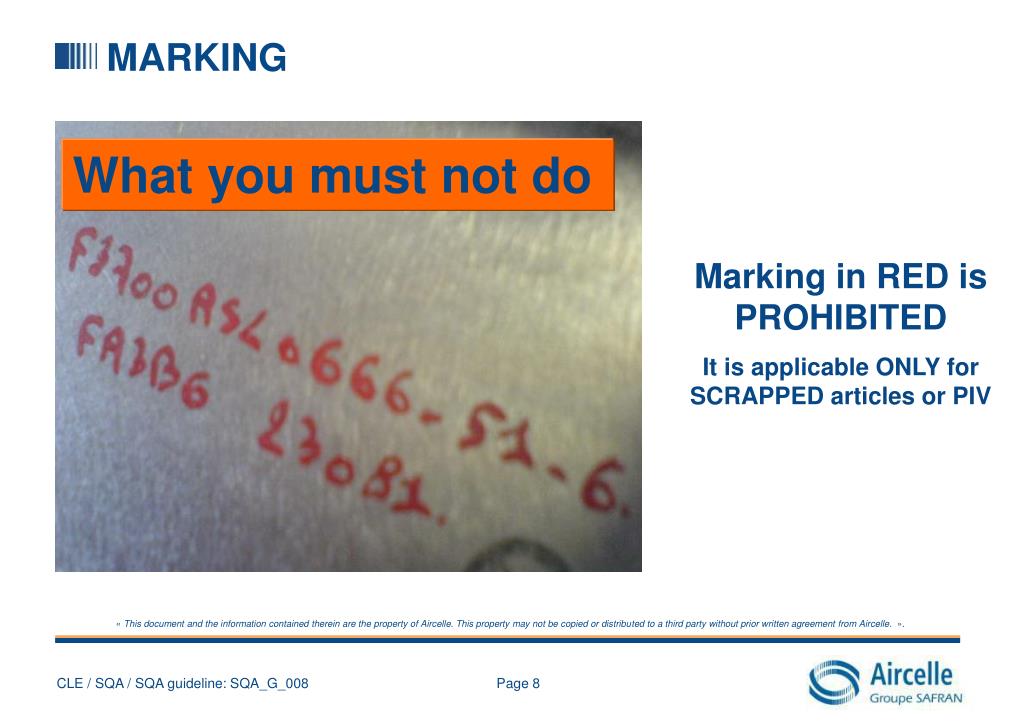

MARKING

What you must not do

Marking in RED is PROHIBITED

It is applicable ONLY for SCRAPPED articles or PIV


Slide10 l.jpg

MARKING

What you must not do

The space between the points is not adhered to

In this case there is a weakening

of the marking zone.

A Dispensation request

must be sent to AIRCELLE.


Slide11 l.jpg

MARKING

What you must not do

RED varnish, like red paint,

is PROHIBITED

In this case there are

TWO cases of non-compliance:

1- COLOUR of the varnish

2- Validation of the ingredient

Indeed, an ingredient is a product which must be validated by AIRCELLE


Slide12 l.jpg

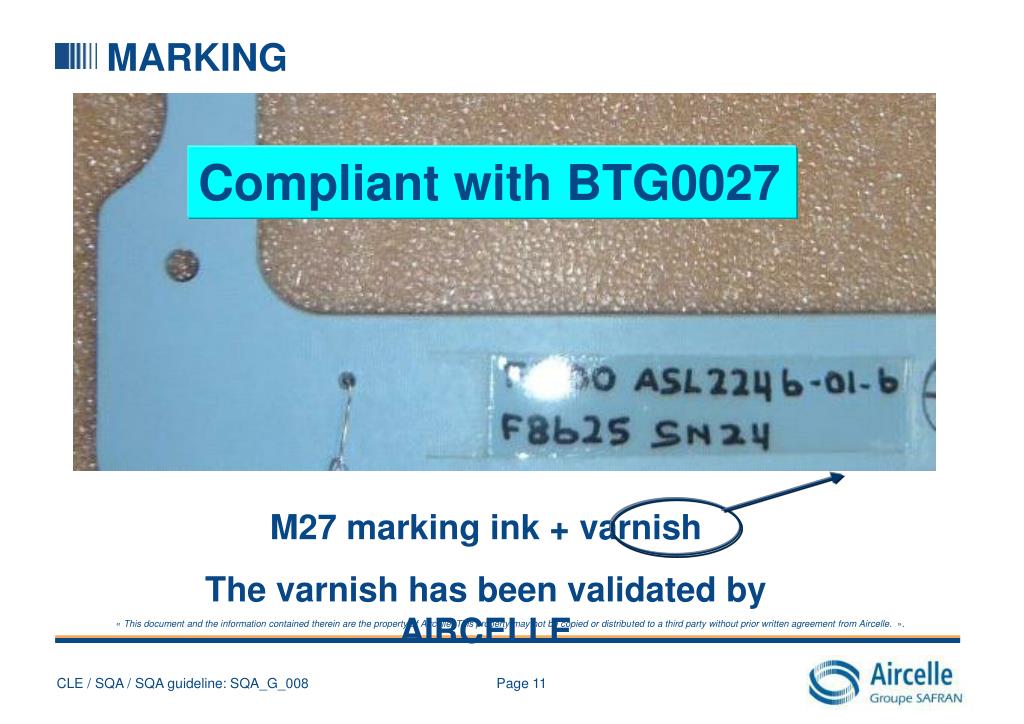

MARKING

Compliant with BTG0027

M27 marking ink + varnish

The varnish has been validated by AIRCELLE


Slide13 l.jpg

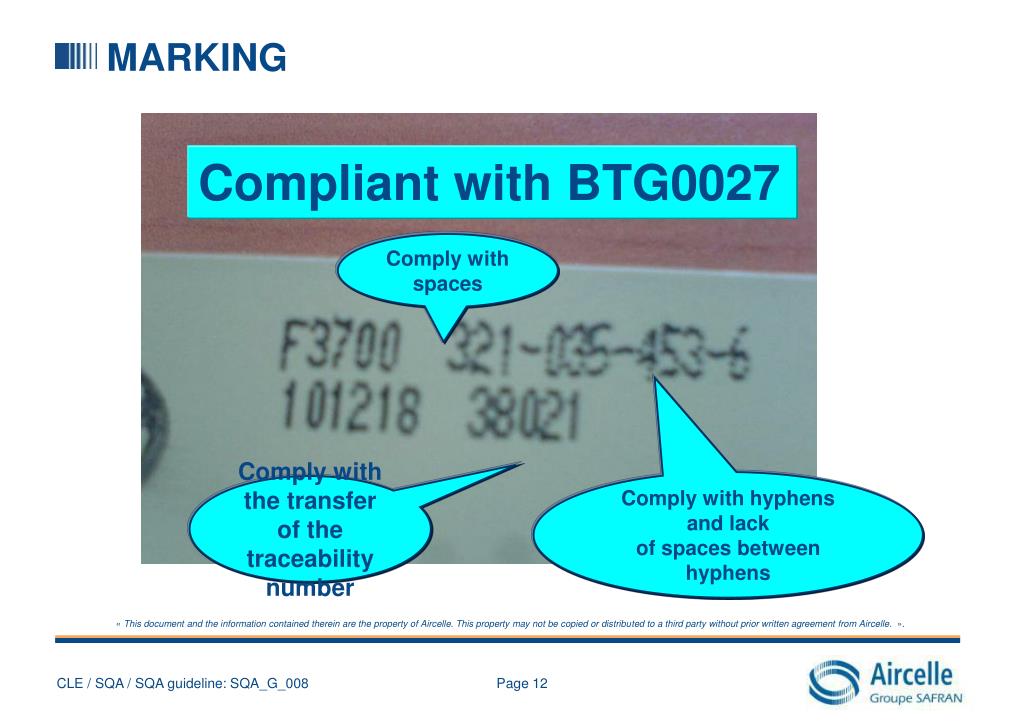

MARKING

Compliant with BTG0027

Comply with spaces

Comply with hyphens and lack

of spaces between hyphens

Comply with the transfer of the traceability number


Slide14 l.jpg

MARKING

CONCLUSIONS

The articles, sometimes of high technical level, manufactured

by our suppliers are articles which represent

hours of work:

1- contract review

2- assembly procedures

3- manufacture of the tools

4- manufacture

5- …………

All this effortwasted because of a marking error

or a deviation in the delivery documentation.
