What are The Different Types of Cable Lugs

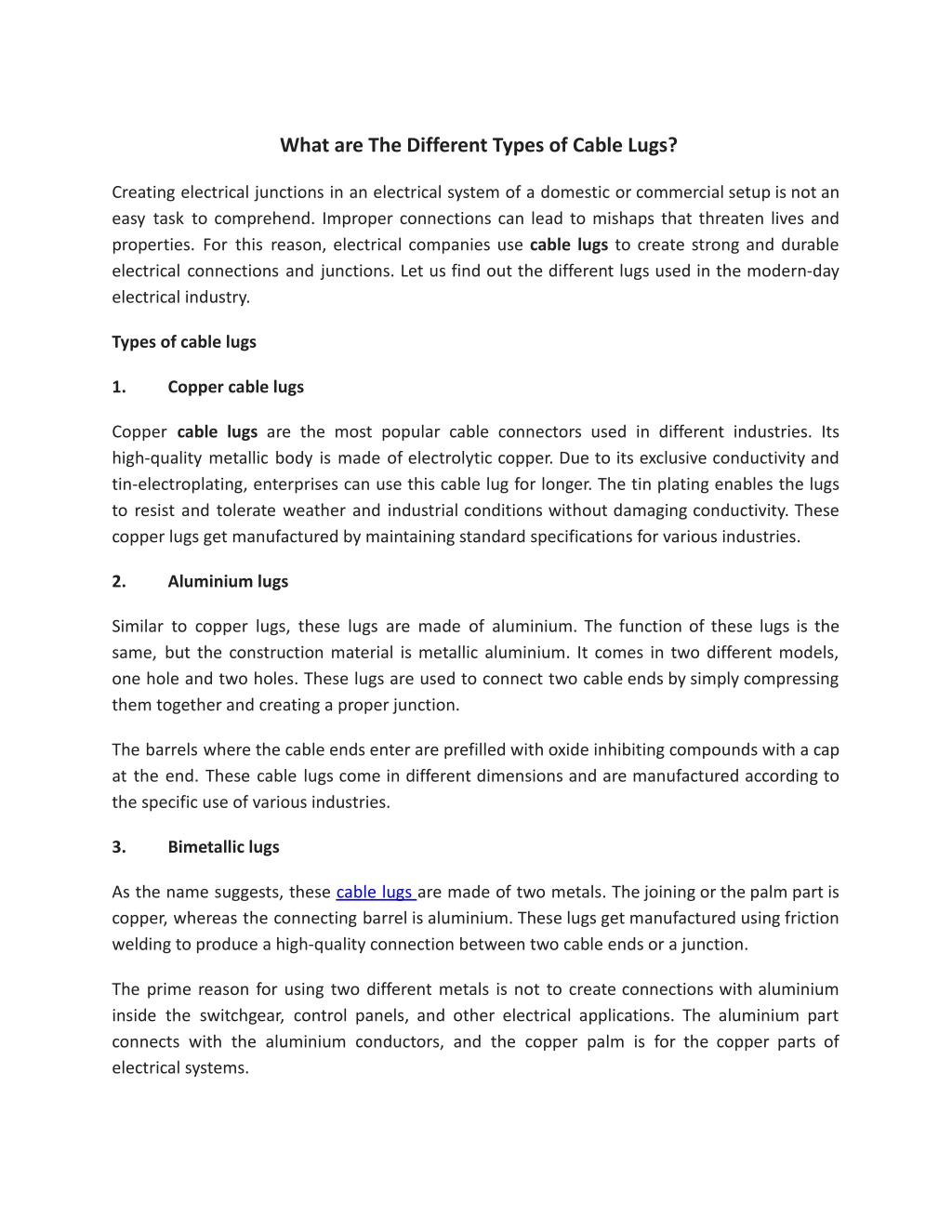

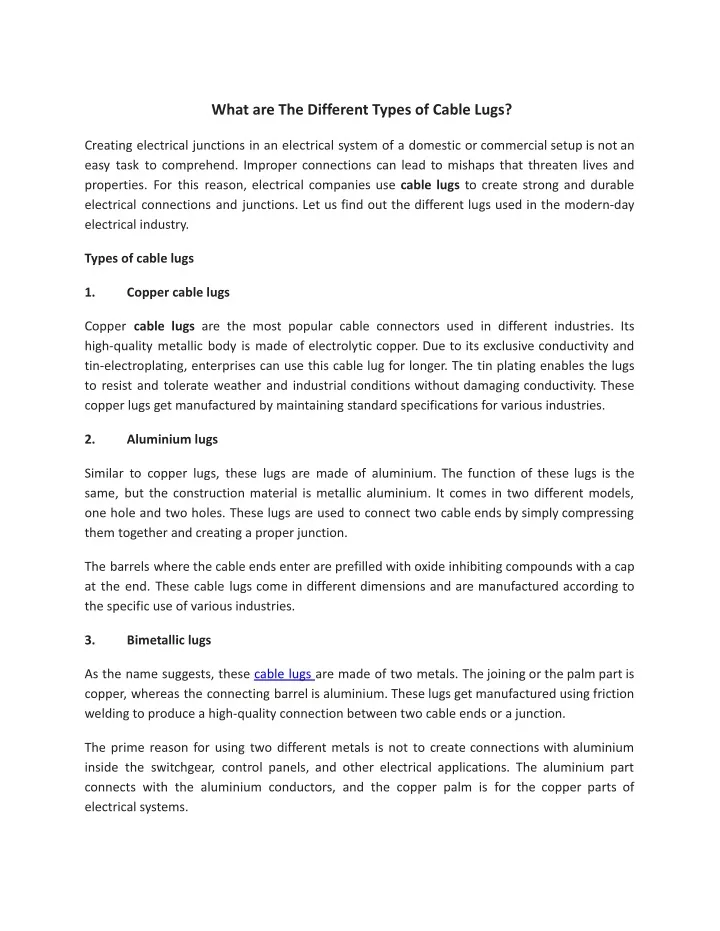

1. What are The Different Types of Cable Lugs? Creating electrical junctions in an electrical system of a domestic or commercial setup is not an easy task to comprehend. Improper connections can lead to mishaps that threaten lives and properties. For this reason, electrical companies use cable lugs to create strong and durable electrical connections and junctions. Let us find out the different lugs used in the modern-day electrical industry. Types of cable lugs 1. Copper cable lugs Copper cable lugs are the most popular cable connectors used in different industries. Its high-quality metallic body is made of electrolytic copper. Due to its exclusive conductivity and tin-electroplating, enterprises can use this cable lug for longer. The tin plating enables the lugs to resist and tolerate weather and industrial conditions without damaging conductivity. These copper lugs get manufactured by maintaining standard specifications for various industries. 2. Aluminium lugs Similar to copper lugs, these lugs are made of aluminium. The function of these lugs is the same, but the construction material is metallic aluminium. It comes in two different models, one hole and two holes. These lugs are used to connect two cable ends by simply compressing them together and creating a proper junction. The barrels where the cable ends enter are prefilled with oxide inhibiting compounds with a cap at the end. These cable lugs come in different dimensions and are manufactured according to the specific use of various industries. 3. Bimetallic lugs As the name suggests, these cable lugs are made of two metals. The joining or the palm part is copper, whereas the connecting barrel is aluminium. These lugs get manufactured using friction welding to produce a high-quality connection between two cable ends or a junction. The prime reason for using two different metals is not to create connections with aluminium inside the switchgear, control panels, and other electrical applications. The aluminium part connects with the aluminium conductors, and the copper palm is for the copper parts of electrical systems.

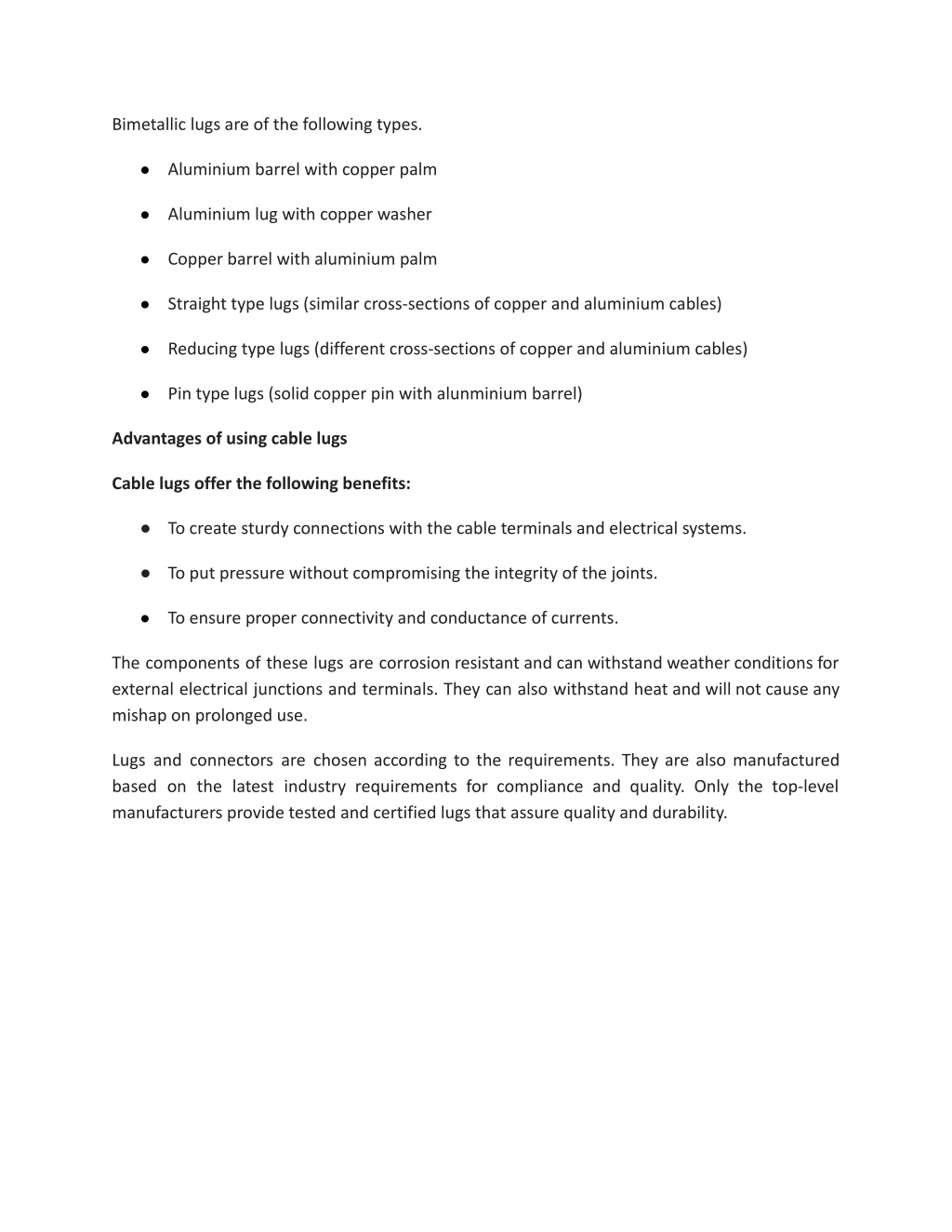

2. Bimetallic lugs are of the following types. ● Aluminium barrel with copper palm ● Aluminium lug with copper washer ● Copper barrel with aluminium palm ● Straight type lugs (similar cross-sections of copper and aluminium cables) ● Reducing type lugs (different cross-sections of copper and aluminium cables) ● Pin type lugs (solid copper pin with alunminium barrel) Advantages of using cable lugs Cable lugs offer the following benefits: ● To create sturdy connections with the cable terminals and electrical systems. ● To put pressure without compromising the integrity of the joints. ● To ensure proper connectivity and conductance of currents. The components of these lugs are corrosion resistant and can withstand weather conditions for external electrical junctions and terminals. They can also withstand heat and will not cause any mishap on prolonged use. Lugs and connectors are chosen according to the requirements. They are also manufactured based on the latest industry requirements for compliance and quality. Only the top-level manufacturers provide tested and certified lugs that assure quality and durability.
