  1. Dynamic and Secure DNS CSE591 Project Tianyi Xing

  2. Project Goal • Establish a dynamic and secure DNS service in the mobicloud system

  3. Roadmap • By mid-term • Establish a DNSSEC server within the mobicloud system • Successfully installed • at configuration stage • Configure the network to make sure DNSSEC server serve the right purpose in the mobicloud system • By Final • Perfect its function • Dynamically cooperate with the user ID and IP address • Dynamically update the ip(ID) and domain pair • Documentation

  4. System Setup • Hardware • Dell Rack Server • Switches • Software • Ubuntu 10.10 • Xenserver 5.6 • Xencenter • Dnssec-keygen • Bind9 • dhcpd

  5. Solutions • 1. Semi-automatically DNS • Everytime VM is created, backend part of the mobicloud system reads UserID from the DB and register “UserID.mobicloud.asu.edu” in DNS server. • 2. Dynamic secure DNS+DHCP • Everytime VM is created, DHCP will automatically register “hostname.mobicloud.asu.edu” at the DNS.

  6. Solution1 - Work Flow

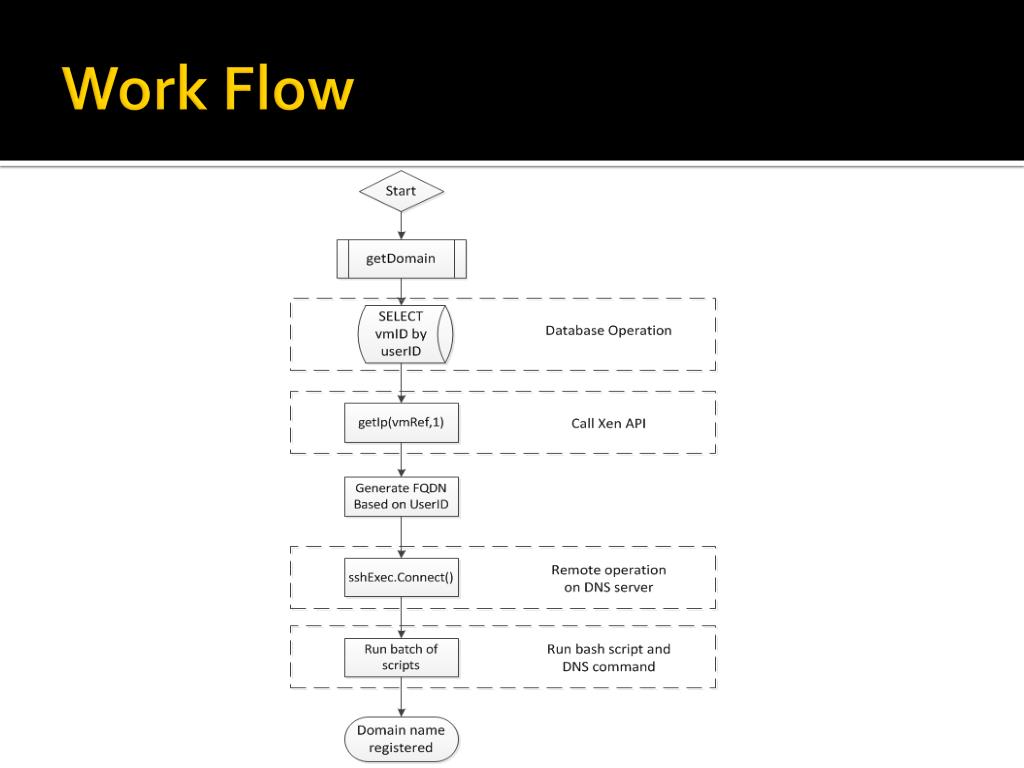

  7. Work Flow

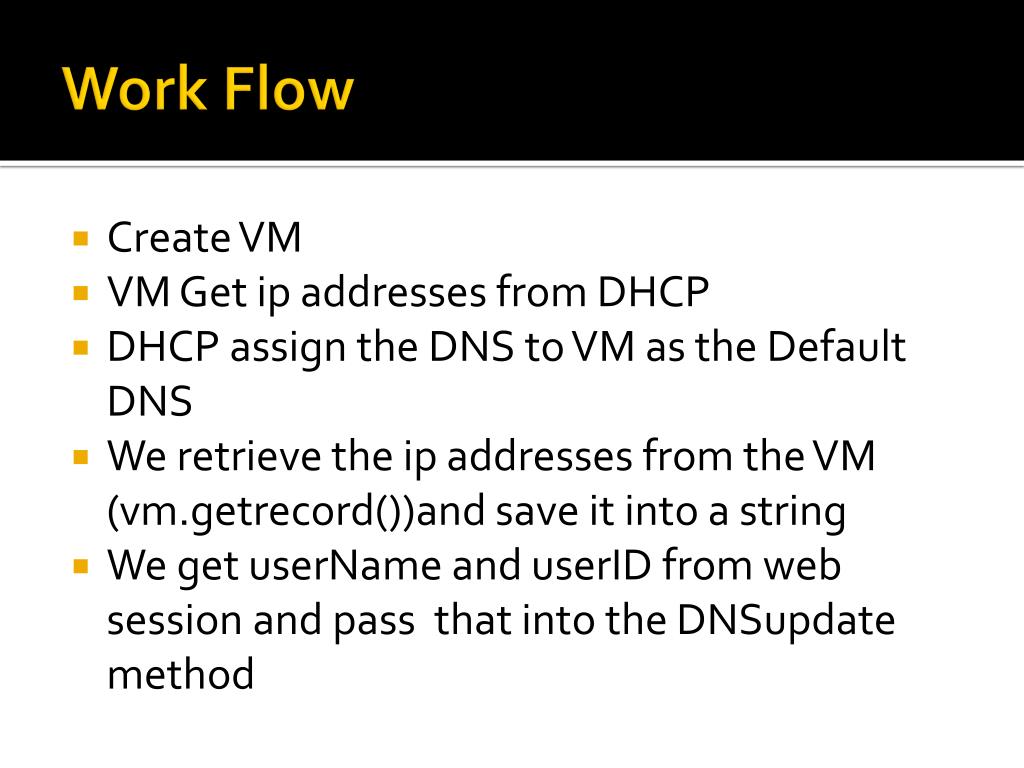

  8. Work Flow • Create VM • VM Get ip addresses from DHCP • DHCP assign the DNS to VM as the Default DNS • We retrieve the ip addresses from the VM (vm.getrecord())and save it into a string • We get userName and userID from web session and pass that into the DNSupdate method

  9. Work Flow • Generate the domain name based on the userName. (i.e., terry.mobicloud.asu.edu) • SSH on to the DNS server and write all the command into a script file. • Run that script with nsupdate command • Use ping to check, ping terry.mobicloud.asu.edu , then it works !!!

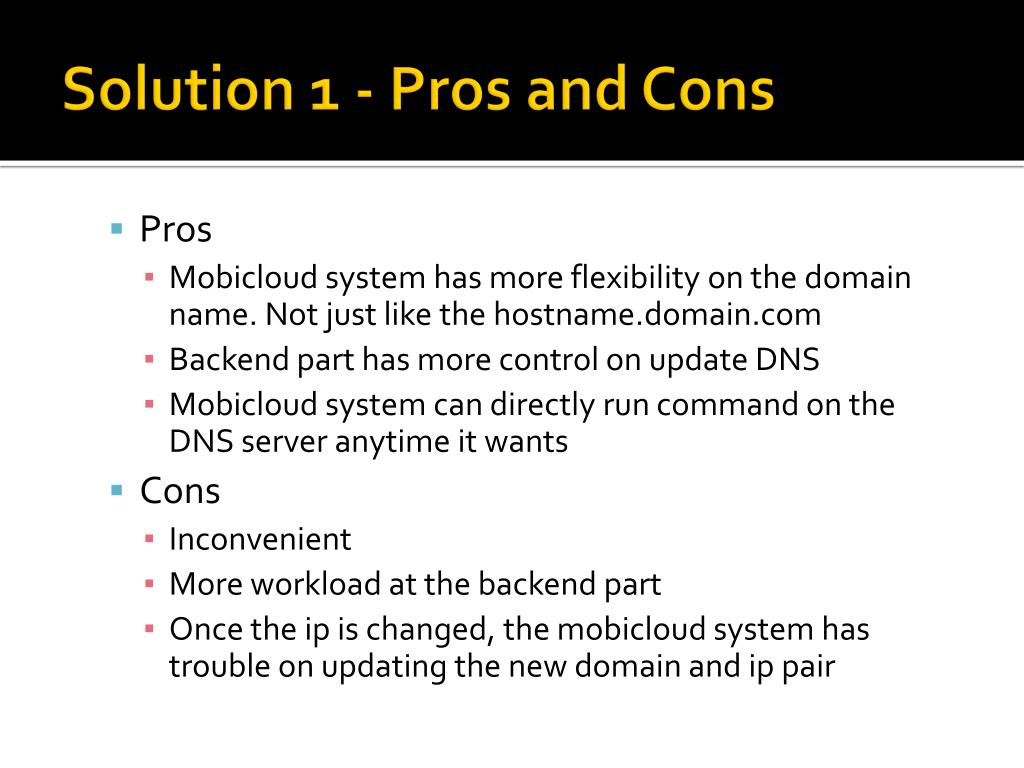

  10. Solution 1 - Pros and Cons • Pros • Mobicloud system has more flexibility on the domain name. Not just like the hostname.domain.com • Backend part has more control on update DNS • Mobicloudsystem can directly run command on the DNS server anytime it wants • Cons • Inconvenient • More workload at the backend part • Once the ip is changed, the mobicloud system has trouble on updating the new domain and ip pair

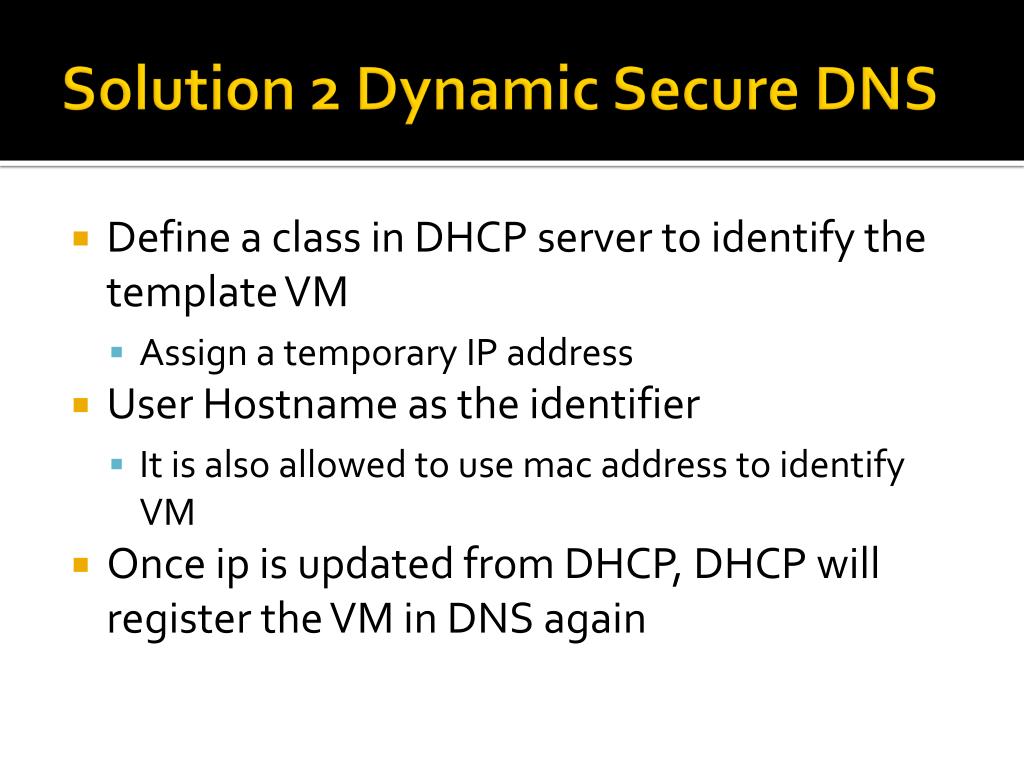

  11. Solution 2 Dynamic Secure DNS • Define a class in DHCP server to identify the template VM • Assign a temporary IP address • User Hostname as the identifier • It is also allowed to use mac address to identify VM • Once ip is updated from DHCP, DHCP will register the VM in DNS again

  12. Dynamic Update From DHCP

  13. Work Flow

  14. Work Flow • Create VM • Get ip from DHCP server • Backend sent the UserName and Label to SSH server • Let the SSH server change the hostname(UserID and Label) of the VM • Send the DHCP request again with new hostname • Update DNS with key

  15. Solution 2 – pros and cons • Pros • Backend do not need to read from the Database and get the userID and define the schema of the domainname, once the VM is created, “hostname.mobicloud.asu.edu” is registered. • Whenever VM get new ip, the DHCP will dynamically update the zone entry in the DNS • Cons • Only when ip is updated, the DNS is updated

  16. Demo – Everything is automatically • Clone a new VM • New VM gets a short term ip from DHCP server • Check the domain name ”hostname.mobicloud.asu.edu” • Change the hostname to newhostname • DHCP request • Check with the domain newhostname.mobicloud.asu.edu

  17. Thanks
