The patent process

The patent process. Jonah Probell (not an attorney). The main steps. White board Provisional Non-provisional filing Foreign filings Office actions Amendments and arguments Continuation Allowance, issuance Maintenance. White board. Snap photos of the whiteboard often.

avi
Download Presentation

The patent process

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. The patent process Jonah Probell (not an attorney)

  2. The main steps • White board • Provisional • Non-provisional filing • Foreign filings • Office actions • Amendments and arguments • Continuation • Allowance, issuance • Maintenance

  3. White board Snap photos of the whiteboard often. Redraw it neatly in Visio or even PowerPoint.

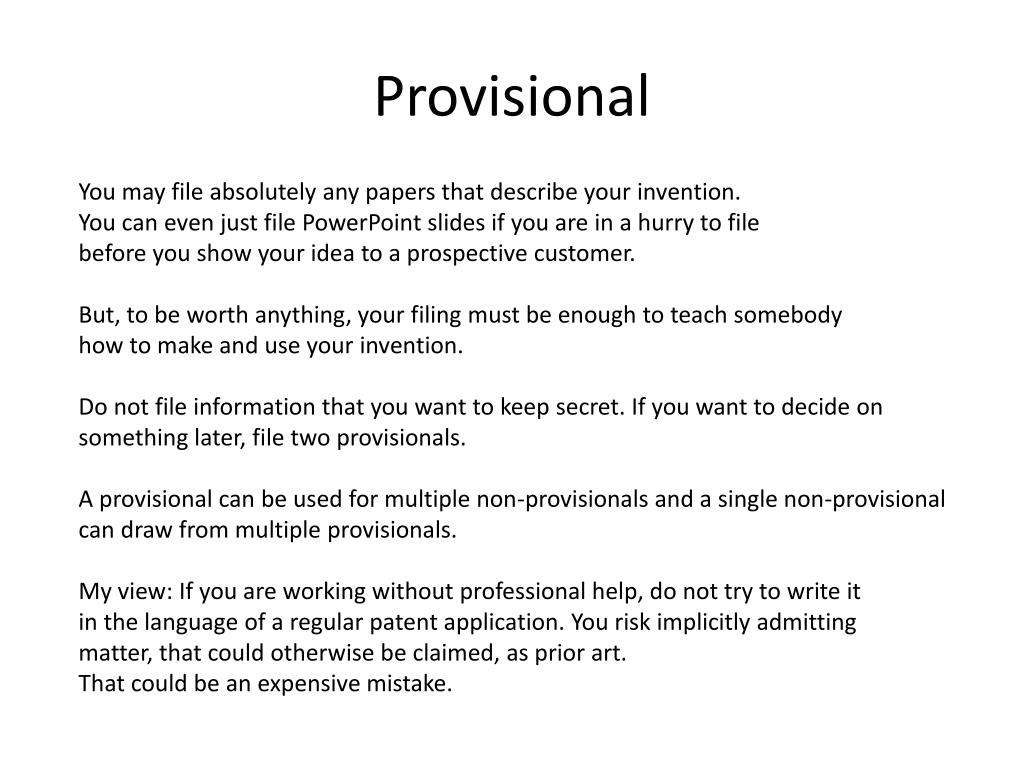

  4. Provisional You may file absolutely any papers that describe your invention. You can even just file PowerPoint slides if you are in a hurry to file before you show your idea to a prospective customer. But, to be worth anything, your filing must be enough to teach somebody how to make and use your invention. Do not file information that you want to keep secret. If you want to decide on something later, file two provisionals. A provisional can be used for multiple non-provisionals and a single non-provisional can draw from multiple provisionals. My view: If you are working without professional help, do not try to write it in the language of a regular patent application. You risk implicitly admitting matter, that could otherwise be claimed, as prior art. That could be an expensive mistake.

  5. Non-provisional filing I am not an attorney or agent, so trust my advice. Work with an experienced attorney or agent. One poorly considered word in a patent application renders a million dollar patent worthless. Patents are big business. If you can not afford the $10k-$20k dollars to hire an attorney or agent, look for a partner/investor to put in the money. I have written about 30 patent applications, and I still have an experienced attorney, who understands my business strategy, thoroughly review my writing before every filing.

  6. Sections

  7. Sections of an application These pictures are from my template. In French, “toto” is equivalent to “foo” in English

  8. Foreign filing Consider your business (don’t rely on your attorney for this). From what countries will your competitors come in 5 or 10 years? In what countries do you expect most of the future sales revenue from your product? One or two countries? You have one year from your first provisional or regular filing. More countries? (Prepare to take out your wallet) You have one year to file a PCT application, then 30 months from your first provisional or regular filing to file individually in each country. Your attorney will sub-contract the work for each country to firms in those countries. Translations will take time and money.

  9. US office action process These are some typical steps. Office: Wait for 3 years. Office: “Non-final” rejection You: amendment / argument Office: “Final” rejection You: Request for continued examination (RCE) Office: Non-final rejection You: amendment / argument / add different claims Office: “Final” rejection You: file continuation Office: Non-final rejection You: Appeal Office: Allowance You: file continuation and pay fee Office: Issue patent number You: wait for continuation to be examined.

  10. US office action examples

  11. US office action examples

  12. US office action examples

  13. US office action examples

  14. US office action examples

  15. US office action examples

  16. US office action examples

  17. Maintenance / Annuities Different in every country. In US, due at years 3, 7, and 11 after issuance Many other places, due annually during pendency and after issuance. Some due on anniversary of filing, others due at end of month. If you have a lot of patents in a lot of countries, hire a maintenance paying service.
