  1. Workshop BIM~ISO15926Technical overview ISO15926 Onno Paap Integration manager Fluor Corporation Radisson Plaza Hotel Minneapolis, MN September 17-19, 2007

  2. The data model • An example of a very basic model is how we can tell what kind of object ('Class') a particular 'Thing' is • The boxes are entity data types defined in the data model • Next to an identifier they have (almost) no attributes. • 'classification' is a relationship with two attributes: • 'classified' that refers to the thing that is classified • 'classifier' that refers to the classifying class

  3. The 15926 model

  4. Mapping an application to ISO 15926 Façade RDL Standard classes Façade OIM Application database Standard Product Models Mapping activity Trans formation FaçademyProject ISO15926 Compliant data

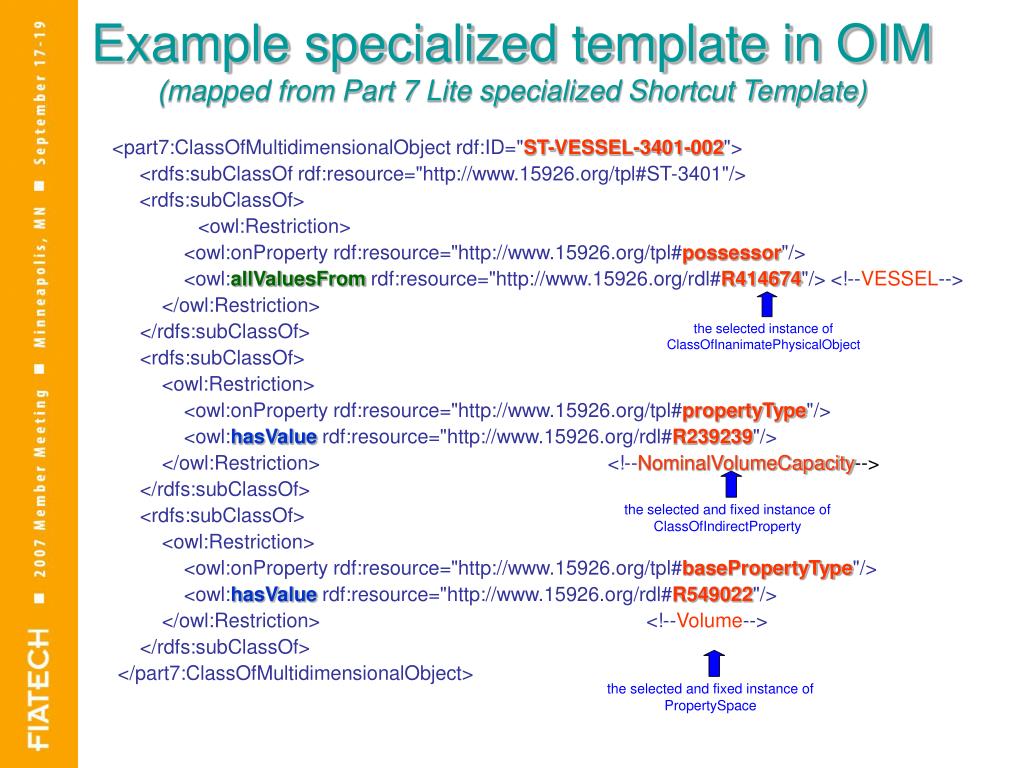

  5. Mapping methodology

  6. Example specialized template in OIM(mapped from Part 7 Lite specialized Shortcut Template) <part7:ClassOfMultidimensionalObject rdf:ID="ST-VESSEL-3401-002"> <rdfs:subClassOf rdf:resource="http://www.15926.org/tpl#ST-3401"/> <rdfs:subClassOf> <owl:Restriction> <owl:onProperty rdf:resource="http://www.15926.org/tpl#possessor"/> <owl:allValuesFrom rdf:resource="http://www.15926.org/rdl#R414674"/> <!--VESSEL--> </owl:Restriction> </rdfs:subClassOf> <rdfs:subClassOf> <owl:Restriction> <owl:onProperty rdf:resource="http://www.15926.org/tpl#propertyType"/> <owl:hasValue rdf:resource="http://www.15926.org/rdl#R239239"/> </owl:Restriction> <!--NominalVolumeCapacity--> </rdfs:subClassOf> <rdfs:subClassOf> <owl:Restriction> <owl:onProperty rdf:resource="http://www.15926.org/tpl#basePropertyType"/> <owl:hasValue rdf:resource="http://www.15926.org/rdl#R549022"/> </owl:Restriction> <!--Volume--> </rdfs:subClassOf> </part7:ClassOfMultidimensionalObject>

  7. Typical exchange file in RDF/XML <rdf:RDF declarations> <. . . transmittal data . . .> A TYPICAL NODE <part2:ClassOfInanimatePhysicalObject rdf:ID="FPO-347621"> <!--myVessel (individual)--> <rdf:type rdf:resource="http://www.15926.org/rdl#R414674"/> <!--VESSEL (class)--> </part2:ClassOfInanimatePhysicalObject> AND A TYPICAL TEMPLATE INSTANCE <part2:MultidimensionalObject rdf:ID="ST-267634"> <rdf:type rdf:resource="http://www.15926.org/oim#ST-VESSEL-3401-002"/> <part7:temporalWhole rdf:resource="#FPO-347621"/> <part7:context rdf:resource="#COTWP-438834"/> <!--Project 4502 CR23--> <part7:beginning rdf:resource="#XSDT_20060306T1357Z"/> <!--March 6th, 2006 at 01:57pm GMT--> <part7:possessor rdf:resource="#FPO-347621-20060306T1357Z"/> <!--temporal part--> <part7:propertyType rdf:resource="http://www.15926.org/rdl#R239239"/> <!--NominalVolumeCapacity--> <part7:basePropertyType rdf:resource="http://www.15926.org/2006/02/part4#R549022"/><!--Volume--> <part7:numericalValue rdf:resource="#XSFL_50.75"/> (means: an xsd:float of '50.75') <part7:unitOfMeasure rdf:resource="http://www.15926.org/2006/02/part4#R567689"/> <!--m3--> </part2:MultidimensionalObject> </rdf:RDF>

  8. Application database Façade map Façades Façade query &map Other’s Façades

  9. Application database Application database Application database Application database Façade Façade Façade Façade map map map map Façades

  10. Application database Application database Application database Application database Façade Façade Façade Façade map map map map Façades ISO 15926 part 4 Reference data library EPC contractor 1 EPC contractor 2 Supplier catalog

  11. WIP - architecture Reference Data System http://rds.posccaesar.com RDS Temporary holder for ISO 15926 part 4 Reference data library (2 years) Also called ERDL (Epistle Reference Data Library)

  12. WIP - architecture FREE ACCESSWeb application rds.posccaesar.com RDS ISO 15926 part 4 12,000 classes POSC-Caesar lib 50,000 classes

  13. WIP - architecture • Enter new classes • Taxonomy • By certified users RDS • Classes approval • By domain experts • Enter new properties • By certified users • Starts from IDS project • Move properties to Object • Information Models (OIM) • By domain experts

  14. WIP - architecture Façade Façade Façade Façade Semantic Web interface for RDS FIATECH ADI project RDS project IDS project Evergreen operations RDS map

  15. WIP - workflow Façade Façade ISO 15926 Façade Façade WIP Reference Data Library Object Information Models Bentley class editor RDS Maintenance New entry Approval (by cert user) (by ISO)

  16. Between any two systems we may see the following types of data exchange causing problems: Query - exchange - hand-over

  17. Query - exchange - hand-over

  18. Reference Data Libraries

  19. Confederation of Façades
