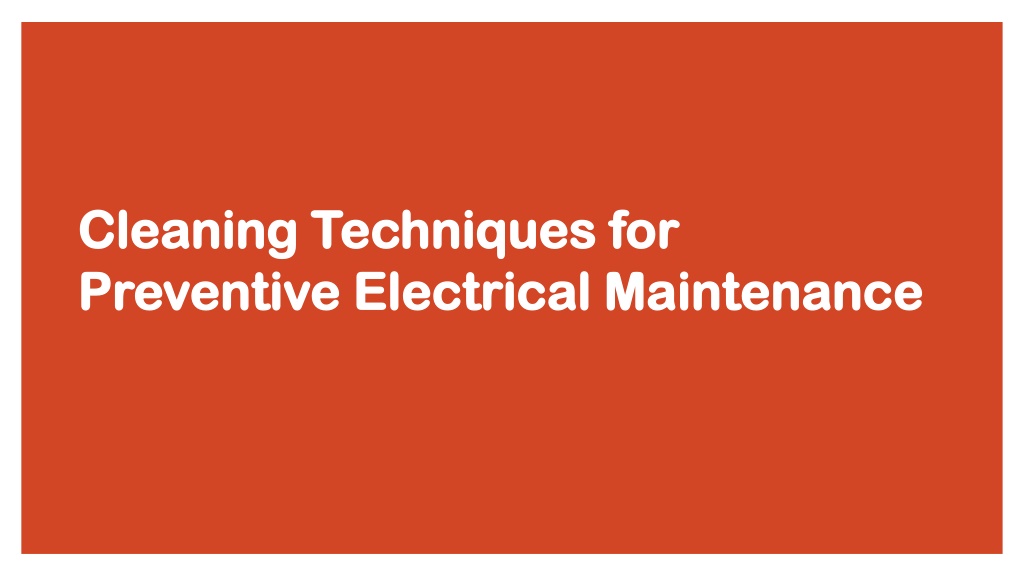

  1. Cleaning Techniques for Preventive Electrical Maintenance

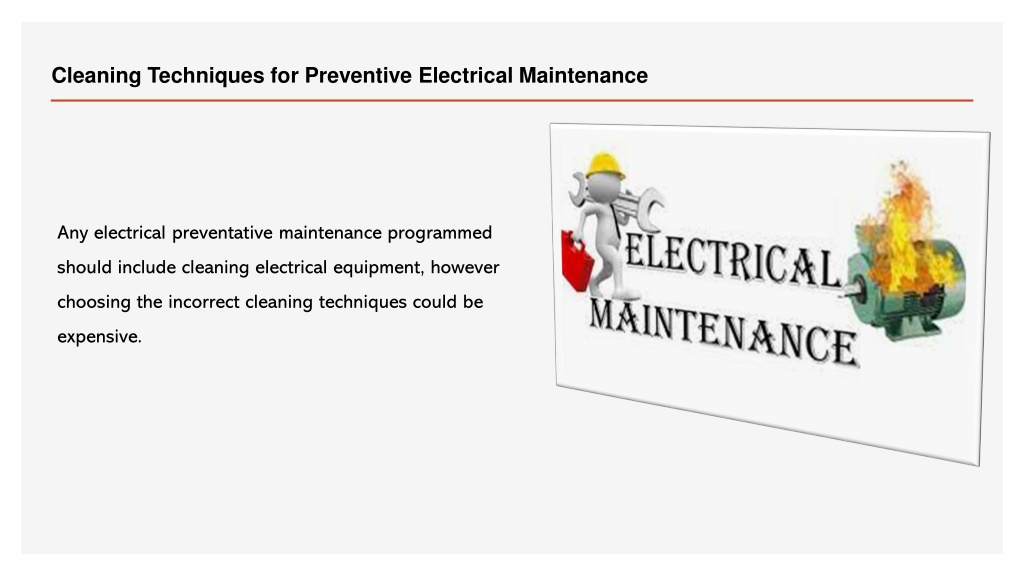

  2. Cleaning Techniques for Preventive Electrical Maintenance Any electrical preventative maintenance programmed should include cleaning electrical equipment, however choosing the incorrect cleaning techniques could be expensive.

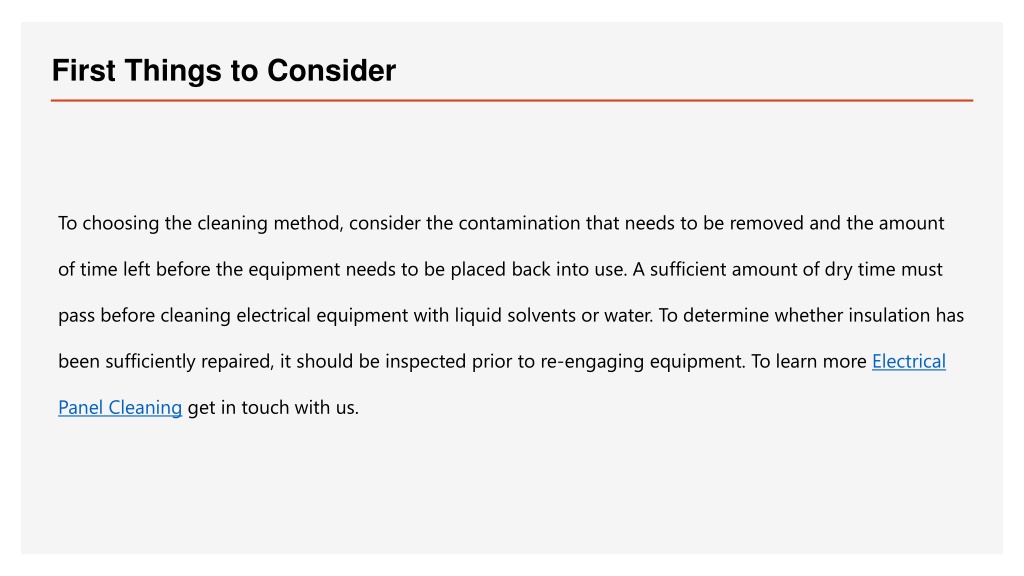

  3. First Things to Consider To choosing the cleaning method, consider the contamination that needs to be removed and the amount of time left before the equipment needs to be placed back into use. A sufficient amount of dry time must pass before cleaning electrical equipment with liquid solvents or water. To determine whether insulation has been sufficiently repaired, it should be inspected prior to re-engaging equipment. To learn more Electrical Panel Cleaning get in touch with us.

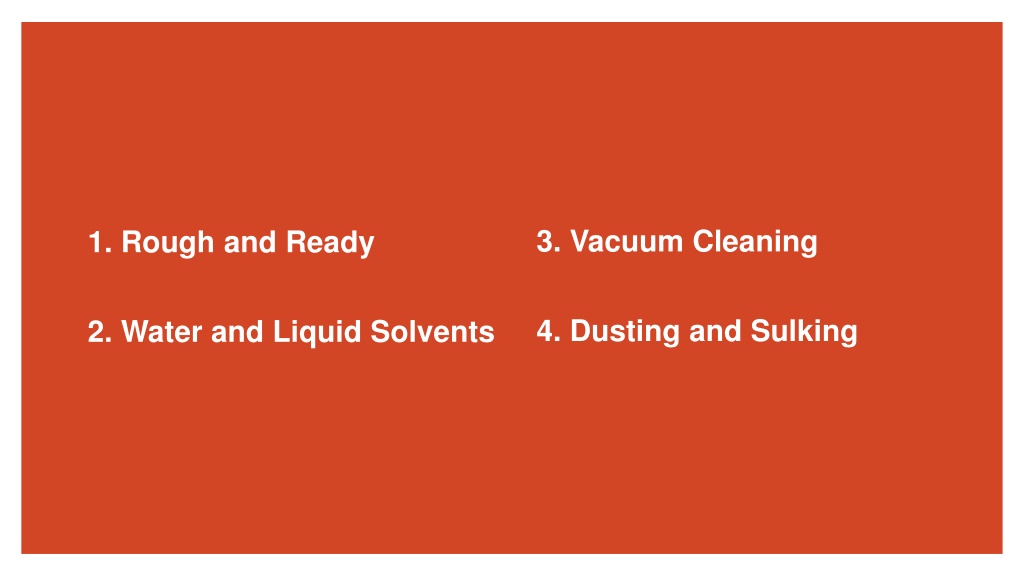

  4. 1. Rough and Ready2. Water and Liquid Solvents 3. Vacuum Cleaning4. Dusting and Sulking

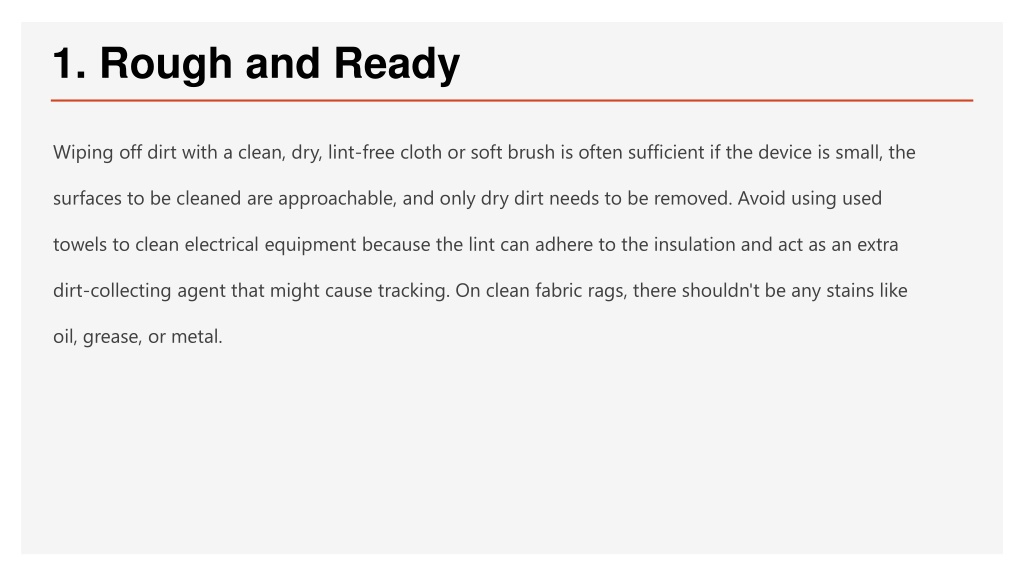

  5. 1. Rough and Ready Wiping off dirt with a clean, dry, lint-free cloth or soft brush is often sufficient if the device is small, the surfaces to be cleaned are approachable, and only dry dirt needs to be removed. Avoid using used towels to clean electrical equipment because the lint can adhere to the insulation and act as an extra dirt-collecting agent that might cause tracking. On clean fabric rags, there shouldn't be any stains like oil, grease, or metal.

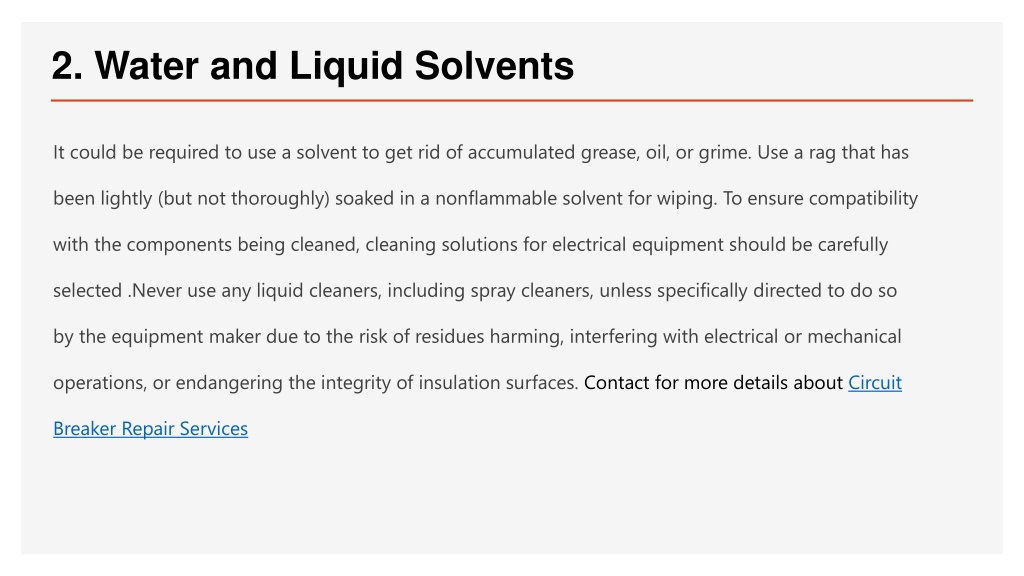

  6. 2. Water and Liquid Solvents It could be required to use a solvent to get rid of accumulated grease, oil, or grime. Use a rag that has been lightly (but not thoroughly) soaked in a nonflammable solvent for wiping. To ensure compatibility with the components being cleaned, cleaning solutions for electrical equipment should be carefully selected .Never use any liquid cleaners, including spray cleaners, unless specifically directed to do so by the equipment maker due to the risk of residues harming, interfering with electrical or mechanical operations, or endangering the integrity of insulation surfaces. Contact for more details about Circuit Breaker Repair Services

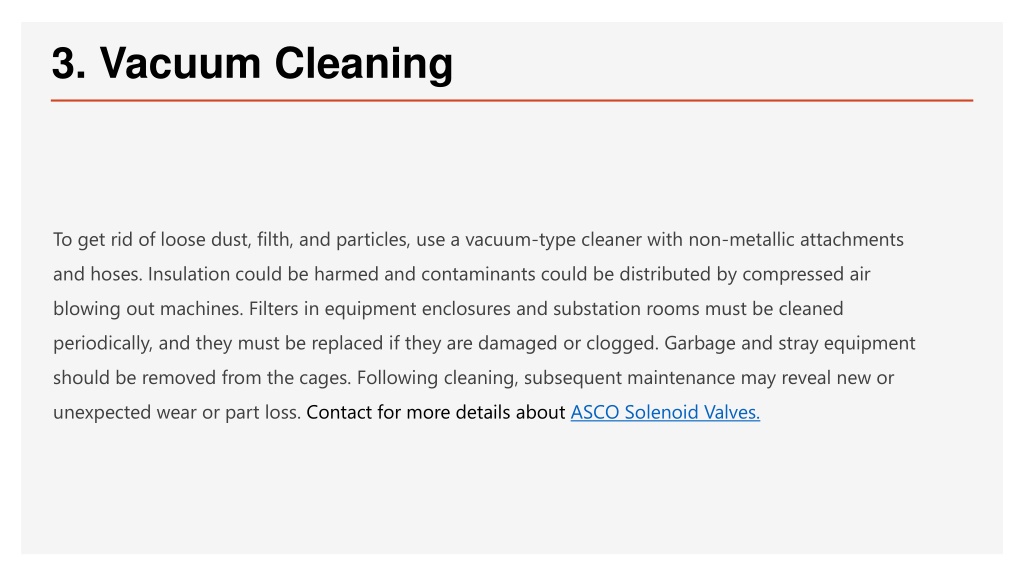

  7. 3. Vacuum Cleaning To get rid of loose dust, filth, and particles, use a vacuum-type cleaner with non-metallic attachments and hoses. Insulation could be harmed and contaminants could be distributed by compressed air blowing out machines. Filters in equipment enclosures and substation rooms must be cleaned periodically, and they must be replaced if they are damaged or clogged. Garbage and stray equipment should be removed from the cages. Following cleaning, subsequent maintenance may reveal new or unexpected wear or part loss. Contact for more details about ASCO Solenoid Valves.

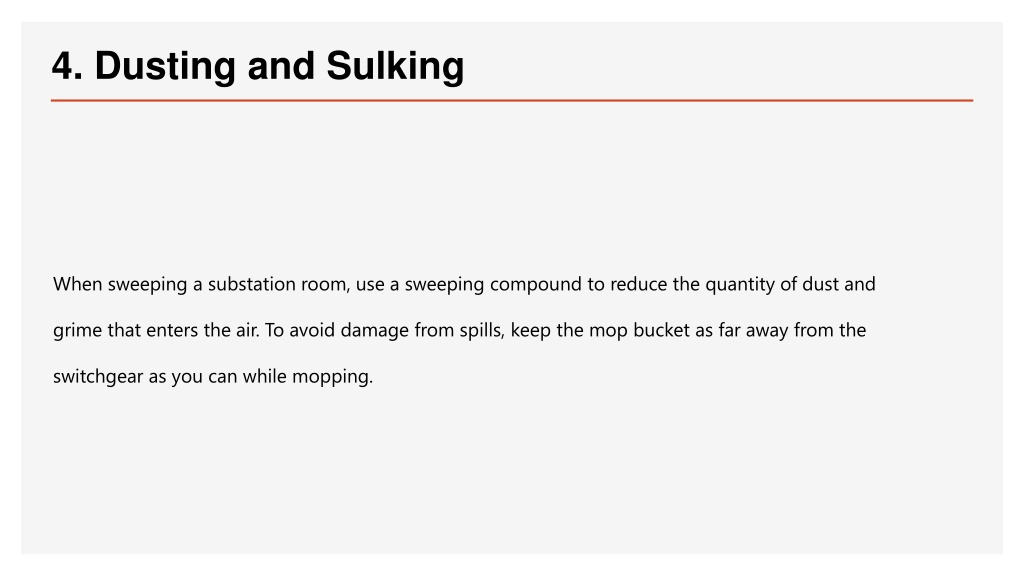

  8. 4. Dusting and Sulking When sweeping a substation room, use a sweeping compound to reduce the quantity of dust and grime that enters the air. To avoid damage from spills, keep the mop bucket as far away from the switchgear as you can while mopping.
