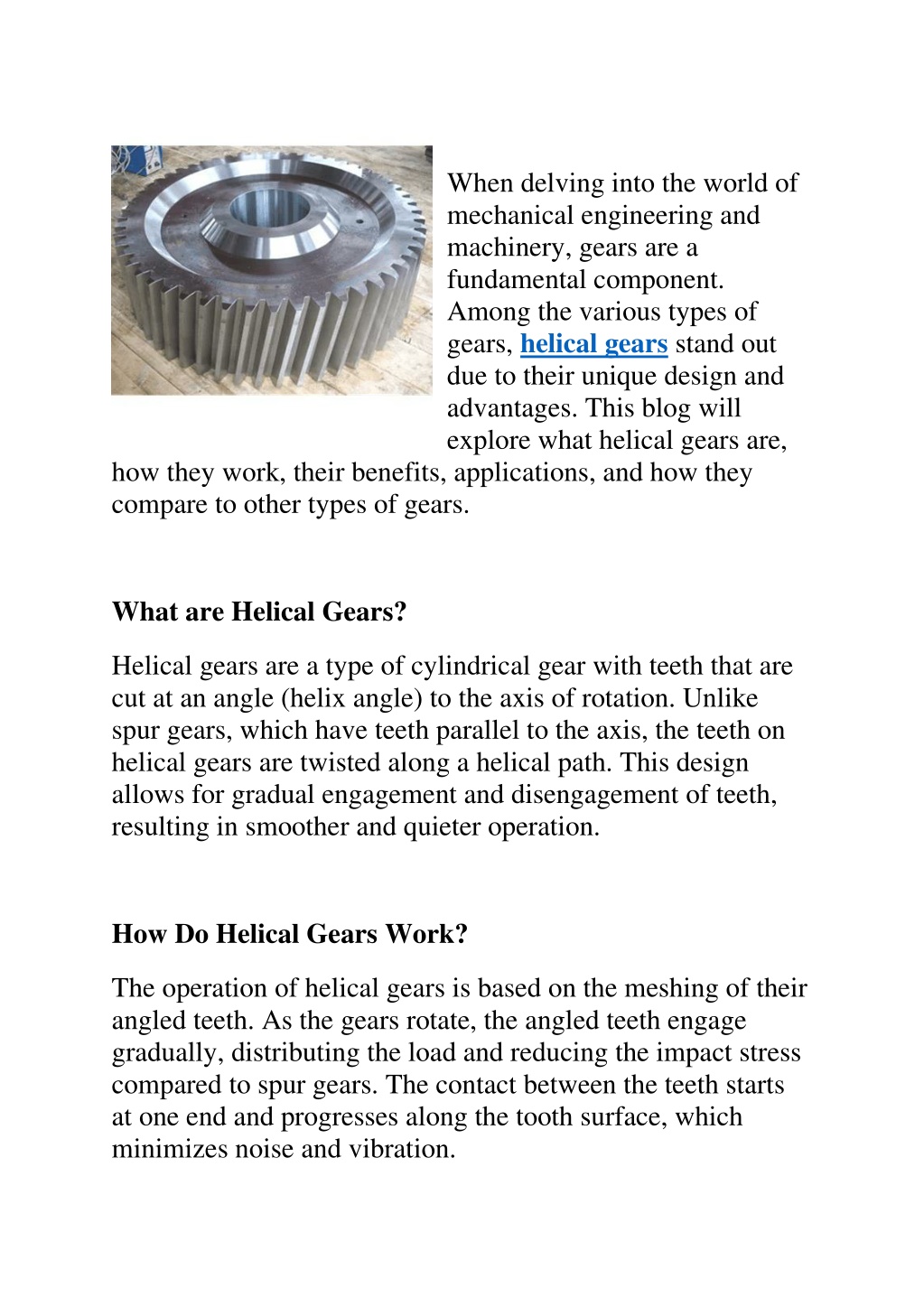

2. When delving into the world of mechanical engineering and machinery, gears are a fundamental component. Among the various types of gears, helical gears stand out due to their unique design and advantages. This blog will explore what helical gears are, how they work, their benefits, applications, and how they compare to other types of gears. What are Helical Gears? Helical gears are a type of cylindrical gear with teeth that are cut at an angle (helix angle) to the axis of rotation. Unlike spur gears, which have teeth parallel to the axis, the teeth on helical gears are twisted along a helical path. This design allows for gradual engagement and disengagement of teeth, resulting in smoother and quieter operation. How Do Helical Gears Work? The operation of helical gears is based on the meshing of their angled teeth. As the gears rotate, the angled teeth engage gradually, distributing the load and reducing the impact stress compared to spur gears. The contact between the teeth starts at one end and progresses along the tooth surface, which minimizes noise and vibration.

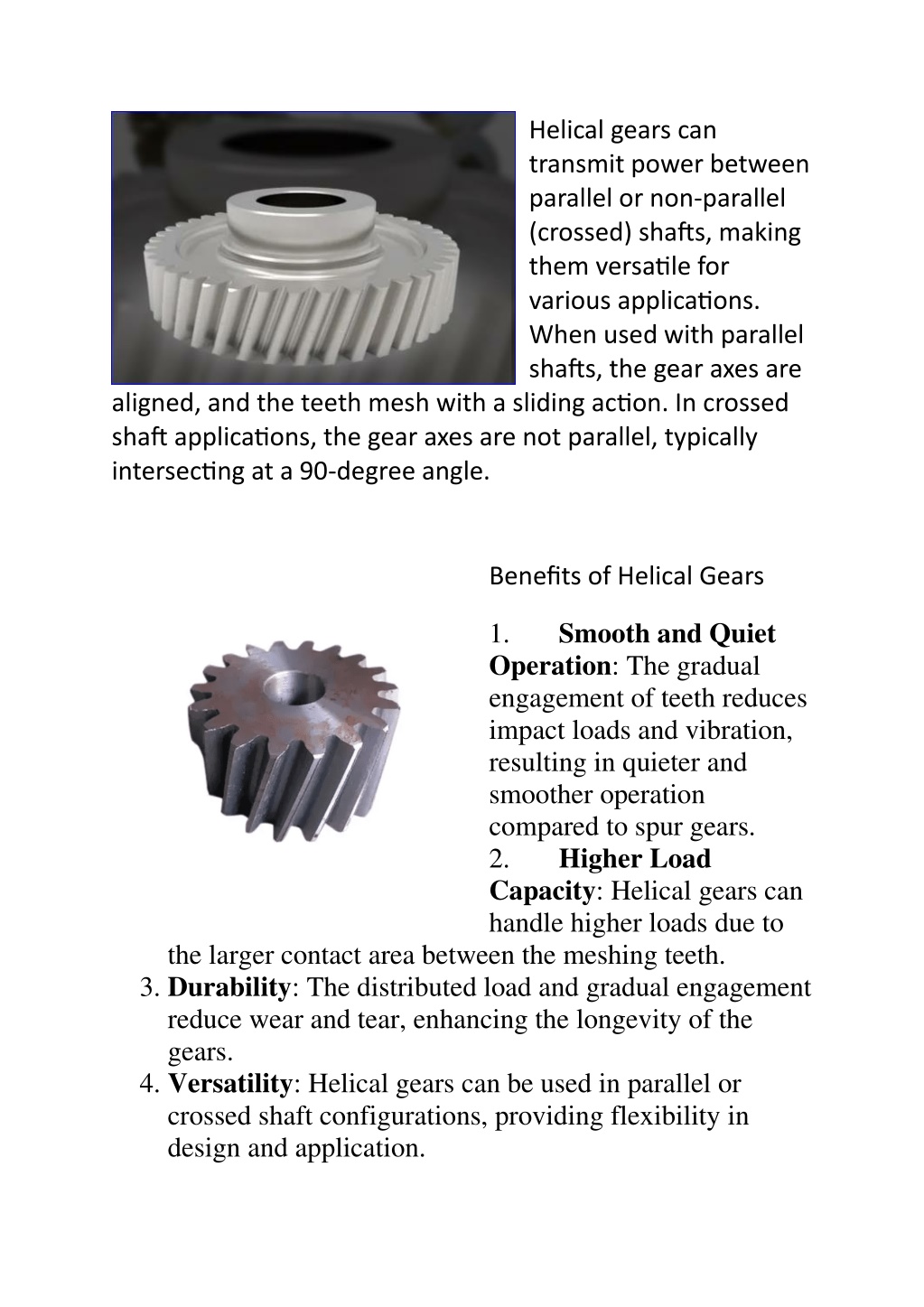

3. Helical gears can transmit power between parallel or non-parallel (crossed) shafts, making them versatile for various applications. When used with parallel shafts, the gear axes are aligned, and the teeth mesh with a sliding action. In crossed shaft applications, the gear axes are not parallel, typically intersecting at a 90-degree angle. Benefits of Helical Gears 1. Operation: The gradual engagement of teeth reduces impact loads and vibration, resulting in quieter and smoother operation compared to spur gears. 2. Higher Load Capacity: Helical gears can handle higher loads due to Smooth and Quiet the larger contact area between the meshing teeth. 3.Durability: The distributed load and gradual engagement reduce wear and tear, enhancing the longevity of the gears. 4.Versatility: Helical gears can be used in parallel or crossed shaft configurations, providing flexibility in design and application.

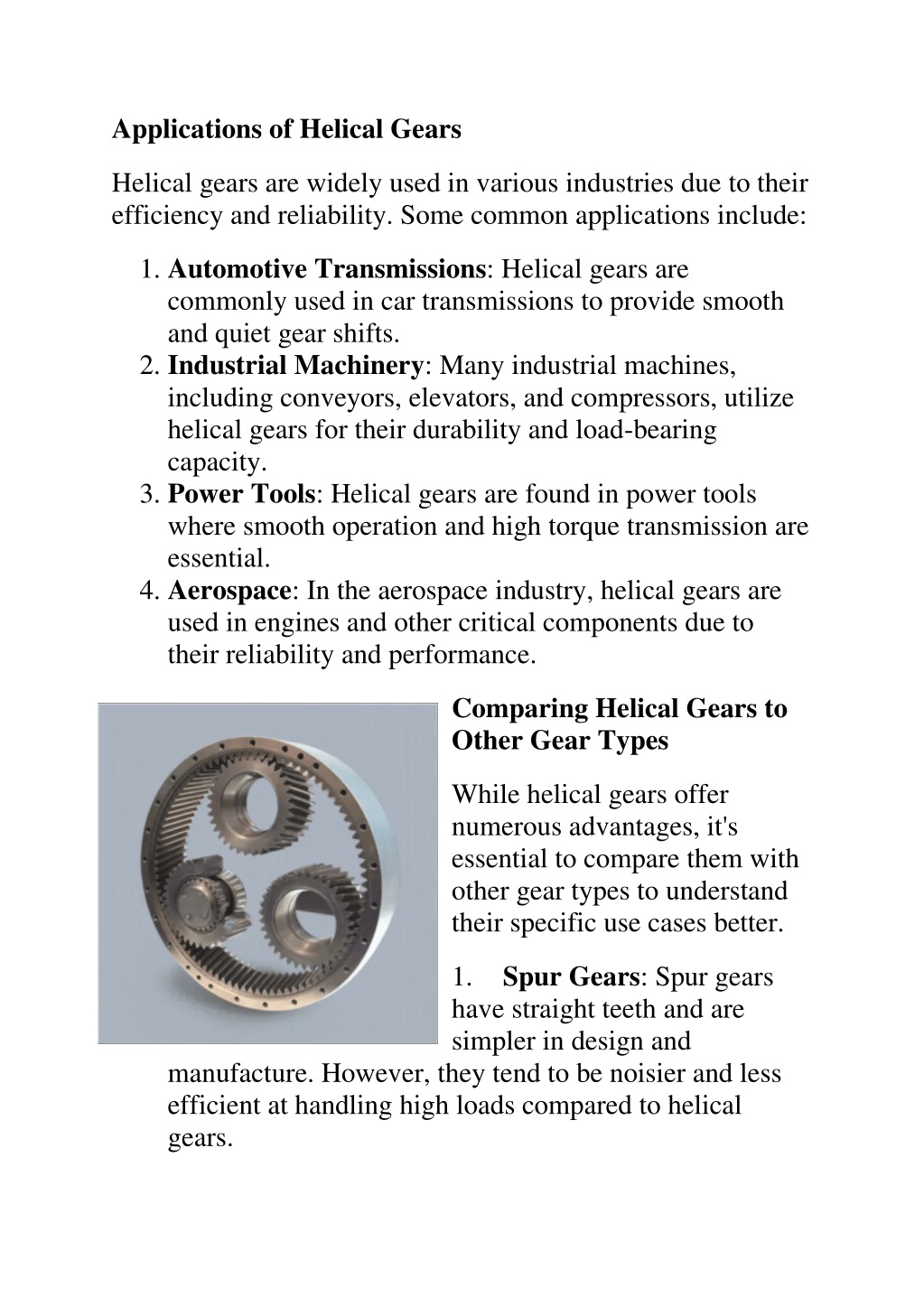

4. Applications of Helical Gears Helical gears are widely used in various industries due to their efficiency and reliability. Some common applications include: 1.Automotive Transmissions: Helical gears are commonly used in car transmissions to provide smooth and quiet gear shifts. 2.Industrial Machinery: Many industrial machines, including conveyors, elevators, and compressors, utilize helical gears for their durability and load-bearing capacity. 3.Power Tools: Helical gears are found in power tools where smooth operation and high torque transmission are essential. 4.Aerospace: In the aerospace industry, helical gears are used in engines and other critical components due to their reliability and performance. Comparing Helical Gears to Other Gear Types While helical gears offer numerous advantages, it's essential to compare them with other gear types to understand their specific use cases better. 1.Spur Gears: Spur gears have straight teeth and are simpler in design and manufacture. However, they tend to be noisier and less efficient at handling high loads compared to helical gears.

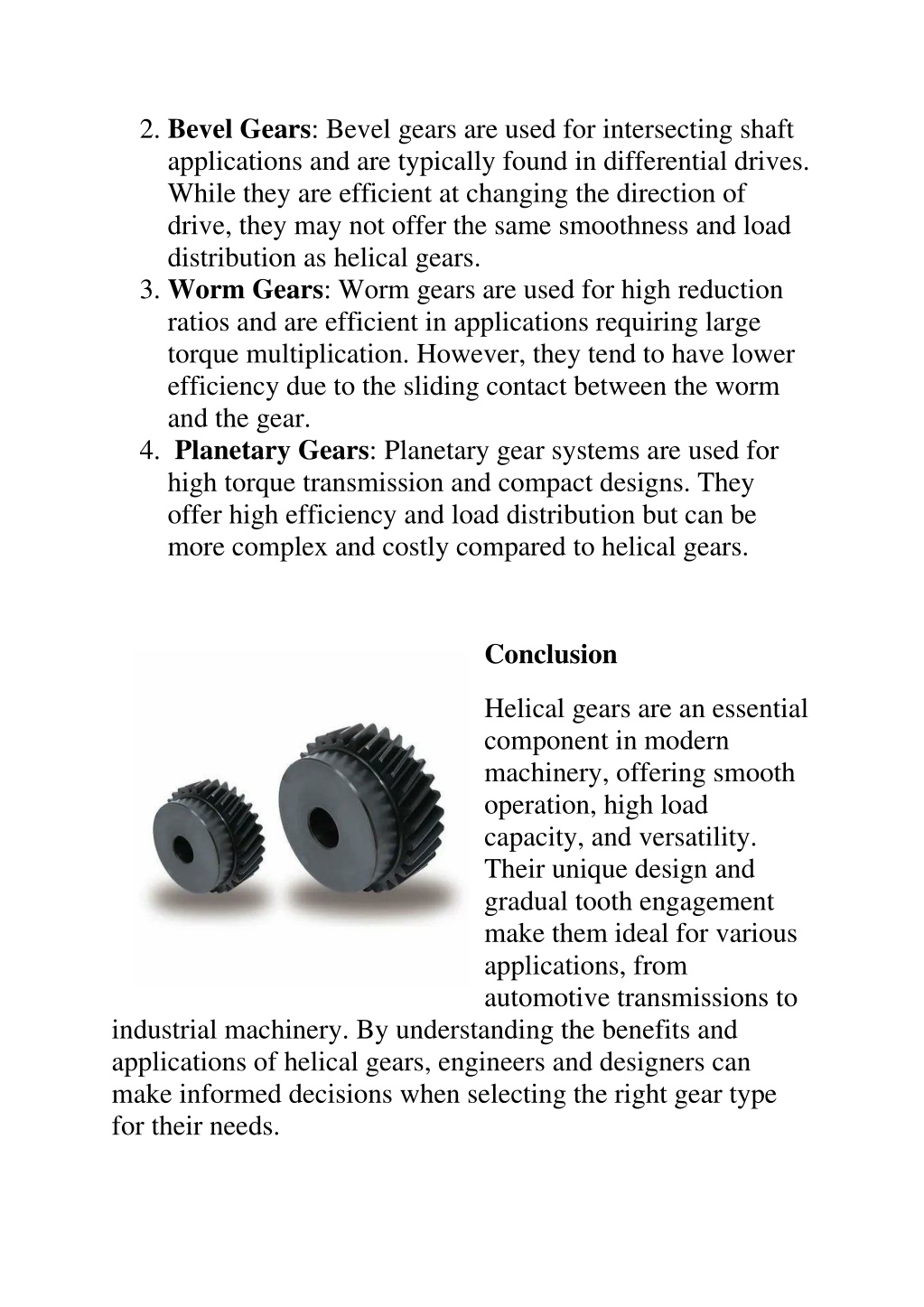

5. 2.Bevel Gears: Bevel gears are used for intersecting shaft applications and are typically found in differential drives. While they are efficient at changing the direction of drive, they may not offer the same smoothness and load distribution as helical gears. 3.Worm Gears: Worm gears are used for high reduction ratios and are efficient in applications requiring large torque multiplication. However, they tend to have lower efficiency due to the sliding contact between the worm and the gear. 4. Planetary Gears: Planetary gear systems are used for high torque transmission and compact designs. They offer high efficiency and load distribution but can be more complex and costly compared to helical gears. Conclusion Helical gears are an essential component in modern machinery, offering smooth operation, high load capacity, and versatility. Their unique design and gradual tooth engagement make them ideal for various applications, from automotive transmissions to industrial machinery. By understanding the benefits and applications of helical gears, engineers and designers can make informed decisions when selecting the right gear type for their needs.
