the web operating system towards wide area ubiquitous computing

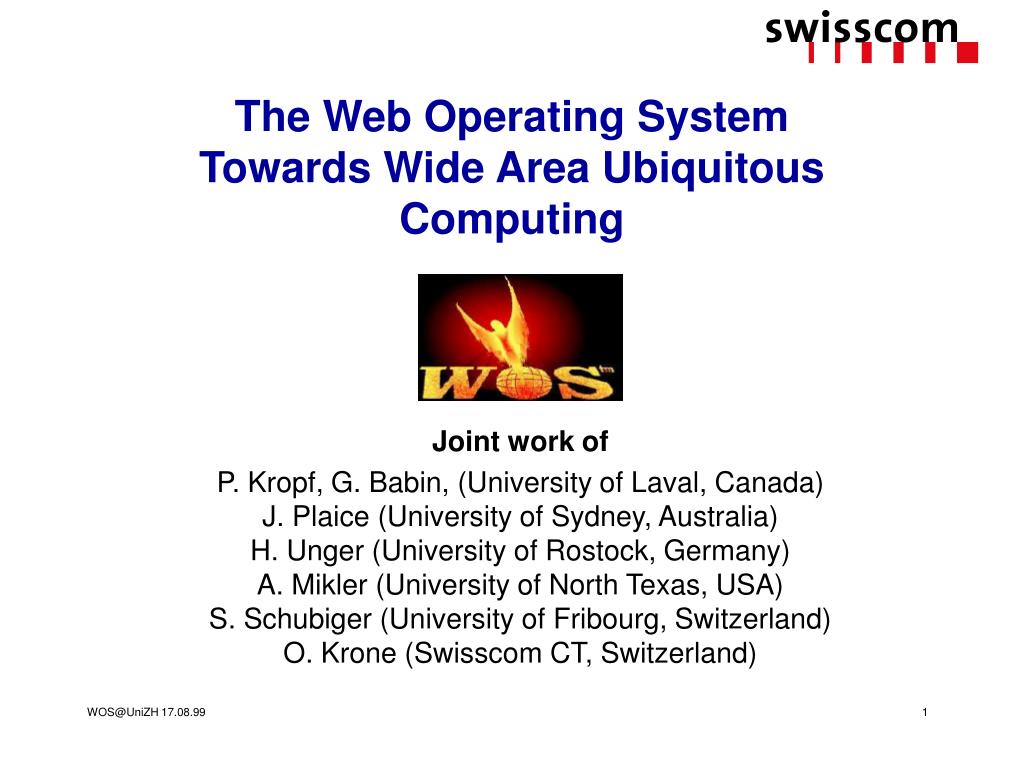

The Web Operating System Towards Wide Area Ubiquitous Computing

Joint work of

P. Kropf, G. Babin, (University of Laval, Canada)J. Plaice (University of Sydney, Australia)H. Unger (University of Rostock, Germany)A. Mikler (University of North Texas, USA) S. Schubiger (University of Fribourg, Switzerland)O. Krone (Swisscom CT, Switzerland)

overview
Overview
  • Motivation
  • The WOS Approach
    • Resources
    • Warehouses
    • Eductive Engine
    • WOSNode, WOSpace
  • Web Components (WebComs)
  • Current Research Issues
  • Related, and Future Work, Conclusion
motivation

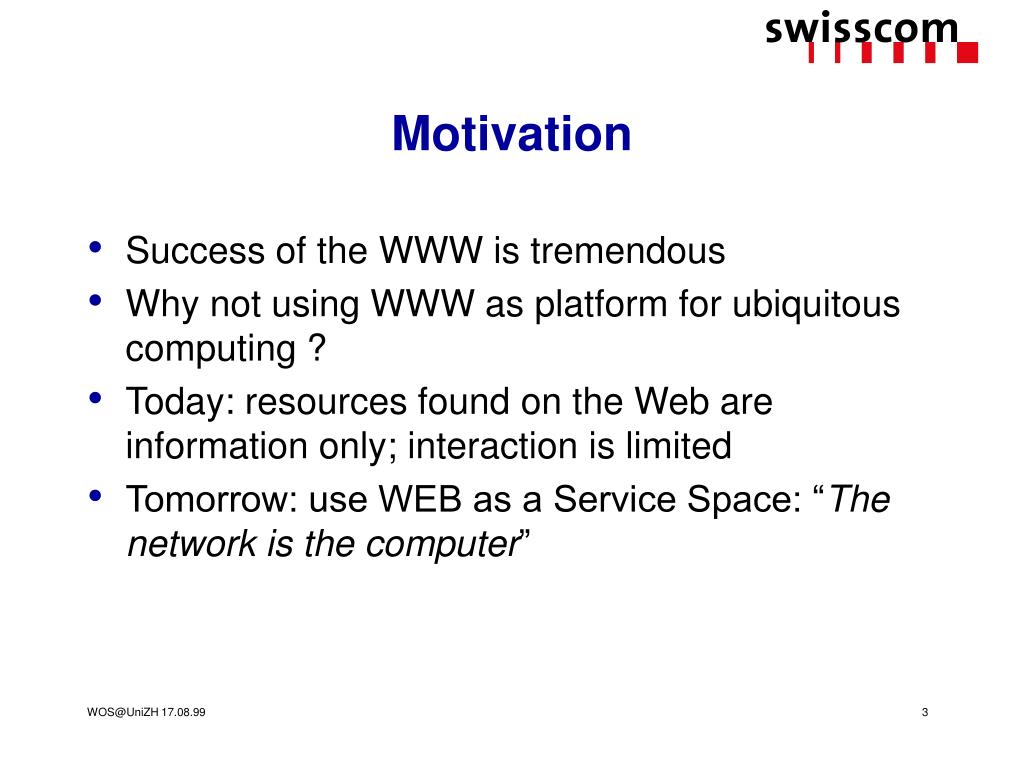

Motivation
  • Success of the WWW is tremendous
  • Why not using WWW as platform for ubiquitous computing ?
  • Today: resources found on the Web are information only; interaction is limited
  • Tomorrow: use WEB as a Service Space: “The network is the computer”
motivation cont1
Motivation (cont.)
  • Network Applications
    • WWW, email, video
  • Computational Applications
    • number crunching, distributed simulation
  • Virtual Entities
    • classrooms, companies
  • Knowledge based Applications
    • data mining, databases
  • Real Time Applications
    • process control real-time multimedia
the wos approach

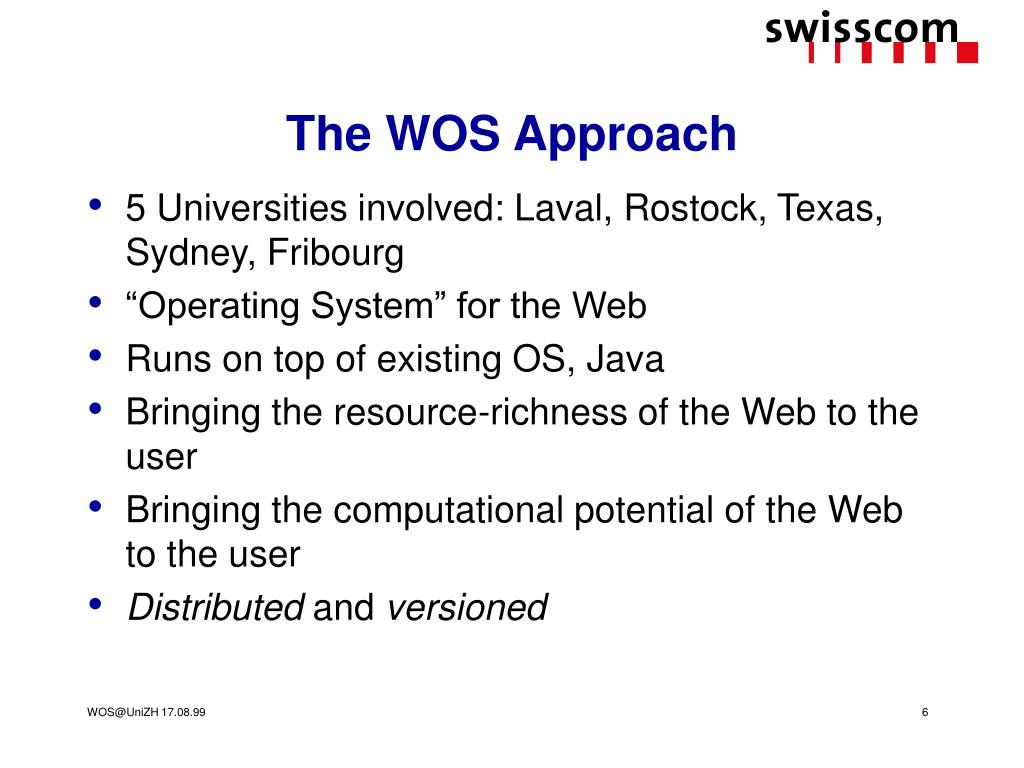

The WOS Approach
  • 5 Universities involved: Laval, Rostock, Texas, Sydney, Fribourg
  • “Operating System” for the Web
  • Runs on top of existing OS, Java
  • Bringing the resource-richness of the Web to the user
  • Bringing the computational potential of the Web to the user
  • Distributed and versioned
web operating system warehouses
Web Operating System - Warehouses
  • Resource database
  • Resource management
  • Resource cache
  • Passive Warehouses
    • storage for service information
    • information out of date, must be replaced
  • Active Warehouses
    • information obtained from which other warehouse
  • Adaptive Warehouses
    • user profiles and access statistics: update of information
web operating system resources

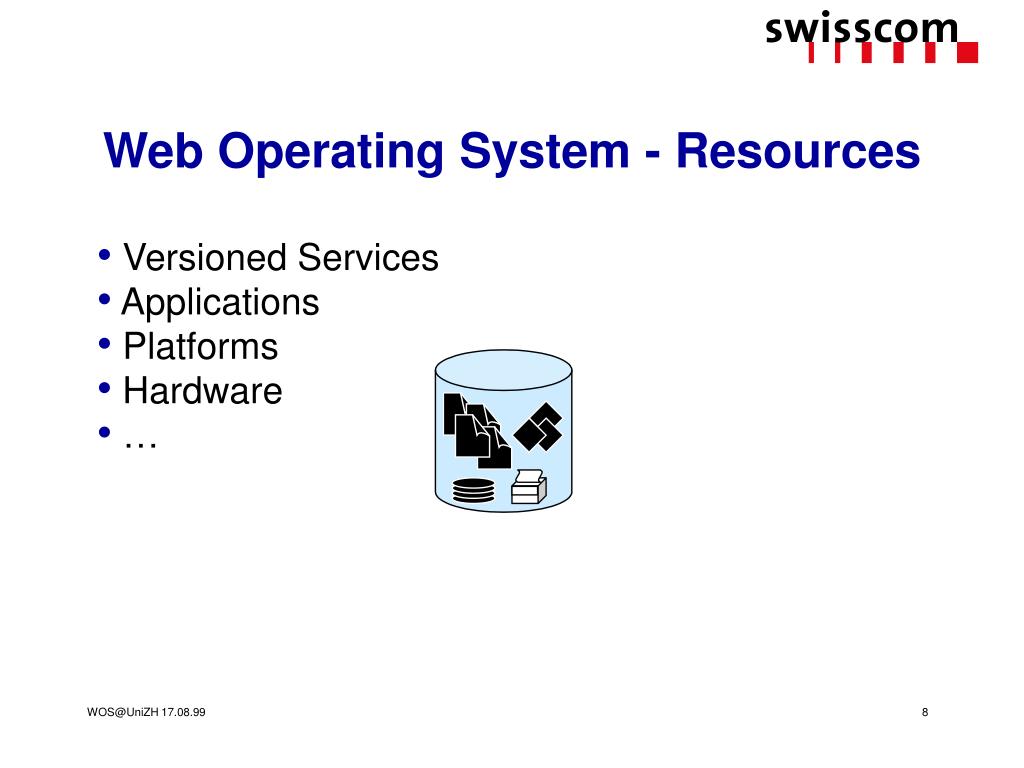

Web Operating System - Resources
  • Versioned Services
  • Applications
  • Platforms
  • Hardware
web operating system eductive engines
Web Operating System - Eductive Engines
  • Provides services using a warehouse
  • Reactive system
  • Responds to requests
  • Eduction (Oxford English Dictionary):
    • “The action of drawing forth, eliciting, or developing from a state of latent, rudimentary, or potential existence; the action of educing (principles, results or calculations) from the data.”

?

web operating system wos node
Web Operating System - WOS Node

Eductive engine + Warehouse

?

web operating system wosnet

?

?

?

?

?

?

?

?

?

?

?

?

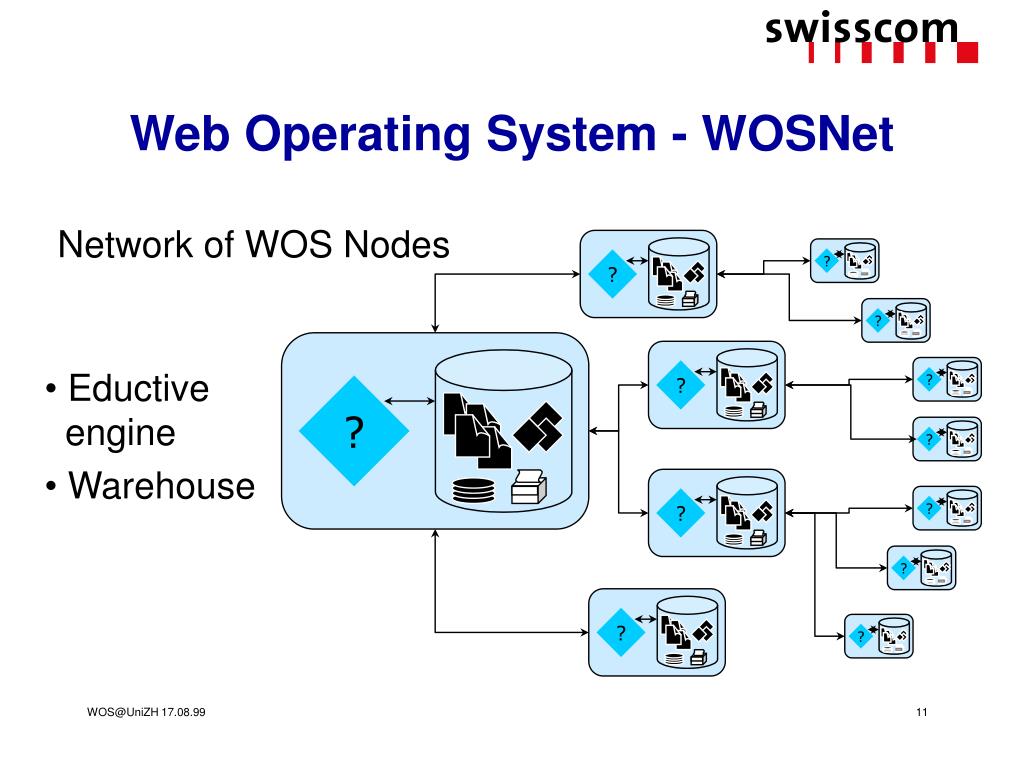

Web Operating System - WOSNet

Network of WOS Nodes

  • Eductive engine
  • Warehouse
webcomponents webcoms

hello.c

?

hello.exe

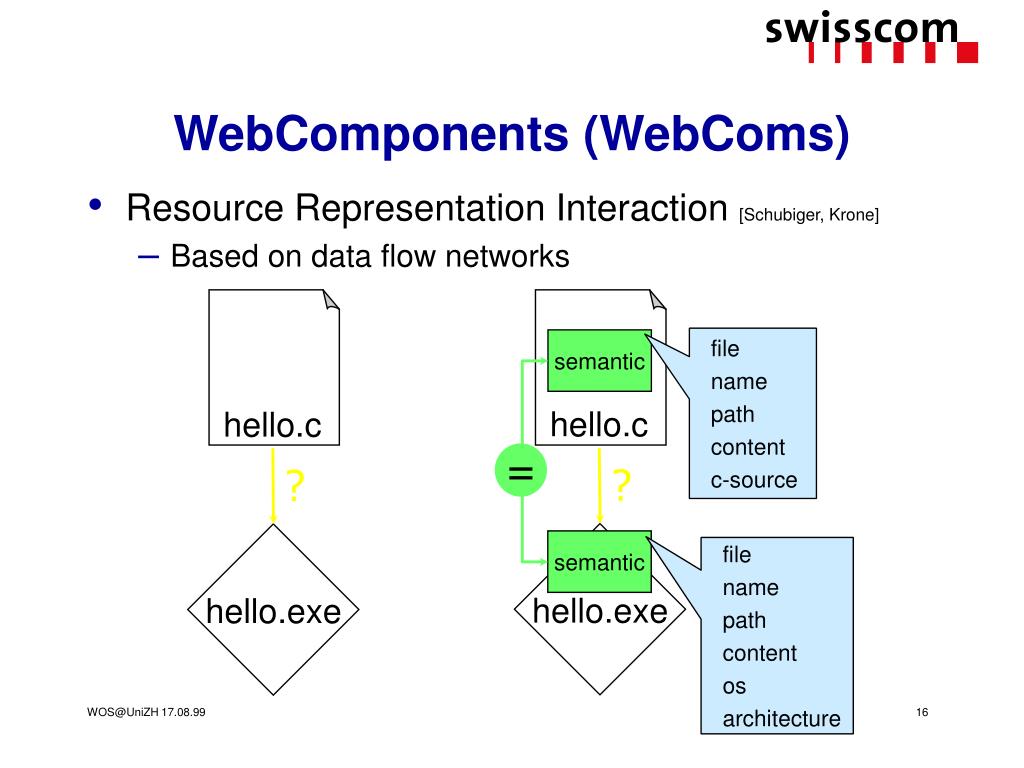

WebComponents (WebComs)
  • Resource Representation Interaction [Schubiger, Krone]
    • Based on data flow networks

semantic

file

name

path

content

c-source

hello.c

=

?

semantic

file

name

path

content

os

architecture

hello.exe

webcoms cont

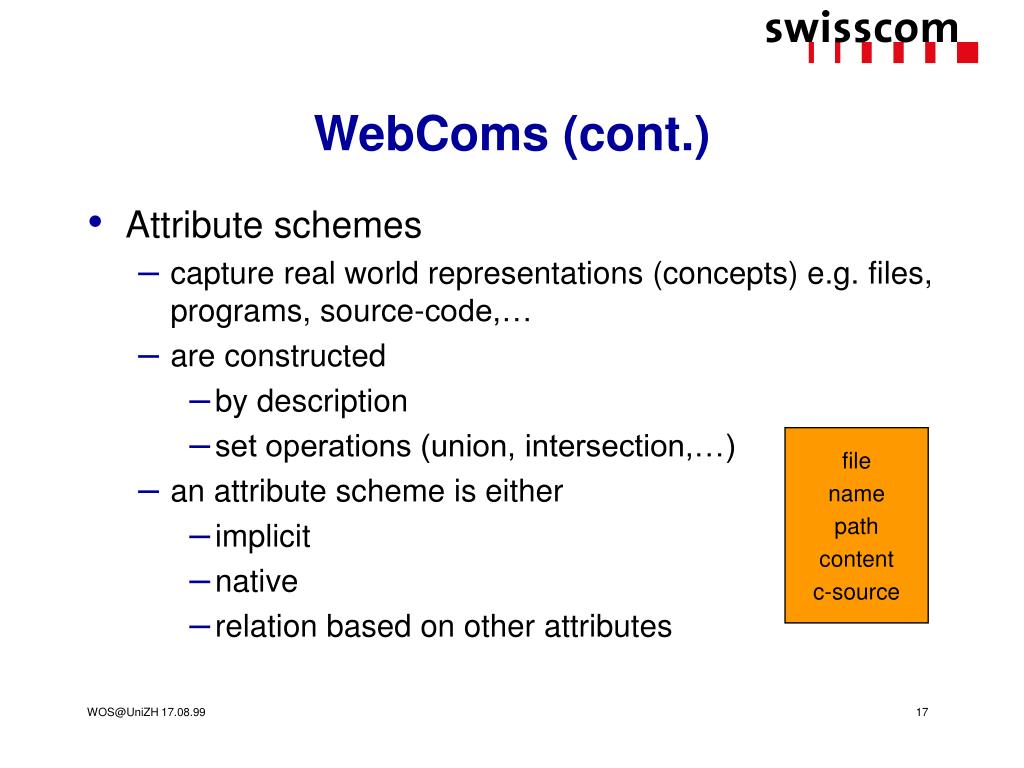

WebComs (cont.)
  • Attribute schemes
    • capture real world representations (concepts) e.g. files, programs, source-code,…
    • are constructed
      • by description
      • set operations (union, intersection,…)
    • an attribute scheme is either
      • implicit
      • native
      • relation based on other attributes

file

name

path

content

c-source

webcoms cont1

file

name

path

content

c-source

semantic

WebComs (cont.)
  • Passive WebComs
    • representations for non-executable resources
    • passive WebComs have an attribute scheme
  • Active WebComs
    • representations for executable resources
    • active WebComs are passive WebComs with an action
    • an action has two sets of plugs
      • input plugs
      • output plugs
    • each plug has an associated attribute scheme

hello.c

content

semantic

c-source

compile

content

semantic

o-file

=

debug

optimized

webcoms cont2

file

name

path

content

c-source

file

name

path

content

c-source

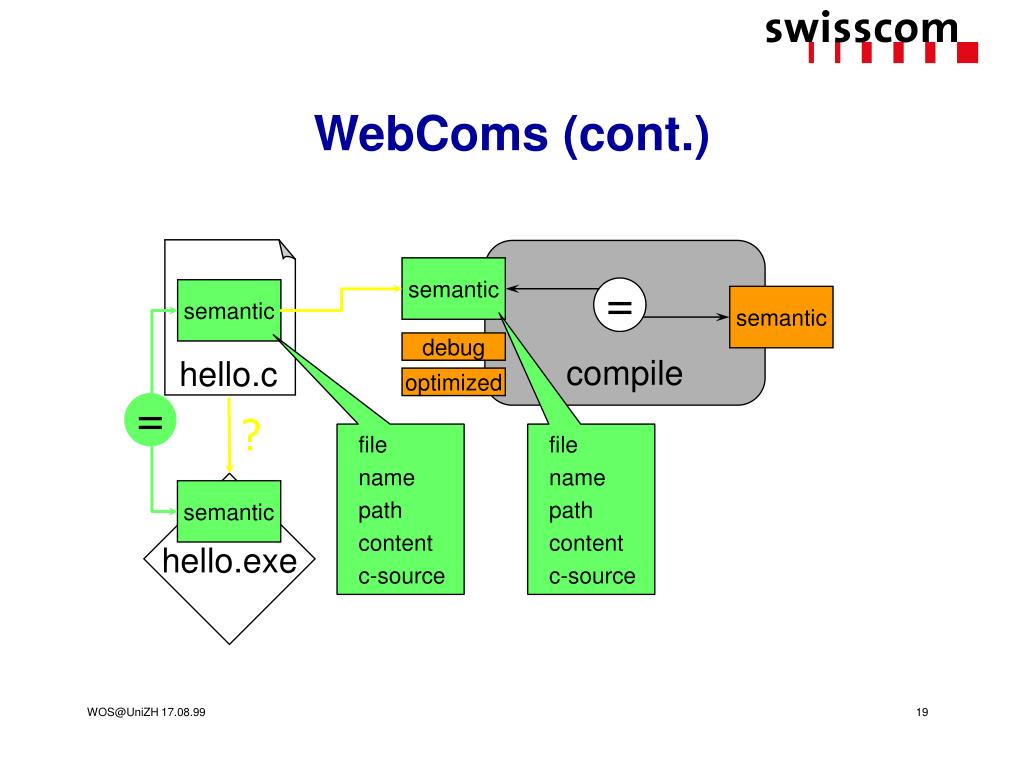

WebComs (cont.)

compile

semantic

=

semantic

semantic

debug

hello.c

optimized

=

?

semantic

hello.exe

webcoms cont3

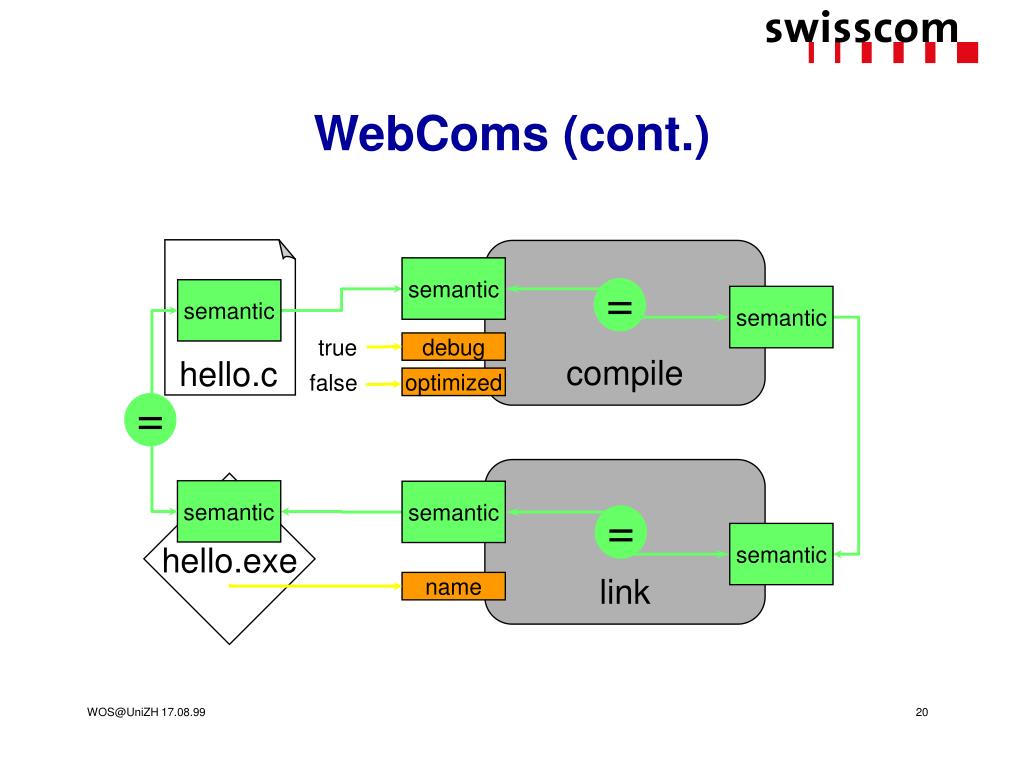

WebComs (cont.)

compile

semantic

=

semantic

semantic

true

debug

hello.c

false

optimized

=

link

semantic

semantic

=

semantic

hello.exe

name

webcoms cont4

content

semantic

c-source

=

compile

link

content

semantic

o-file

content

semantic

o-file

content

semantic

executable

=

=

debug

optimized

file

name

path

content

c-source

semantic

hello.c

WebComs (cont.)

Attribute scheme of a plug has to be equal to attribute scheme

of the other plug

The attribute scheme of the plug has to be a subset of the

attribute scheme of the passive WebCom

Ê

content

semantic

c-source

compile

content

semantic

o-file

=

debug

optimized

webcoms cont5

hello.c

hello.o

Warehouses

WebComs (cont.)

WebComs

=

=

hello

link

hello.c

compile

ServicesResources

gcc

ld

hello

  • Example: Unified Messaging
    • input WebCom: message
    • output WebCom: desired format of the message
current research issues

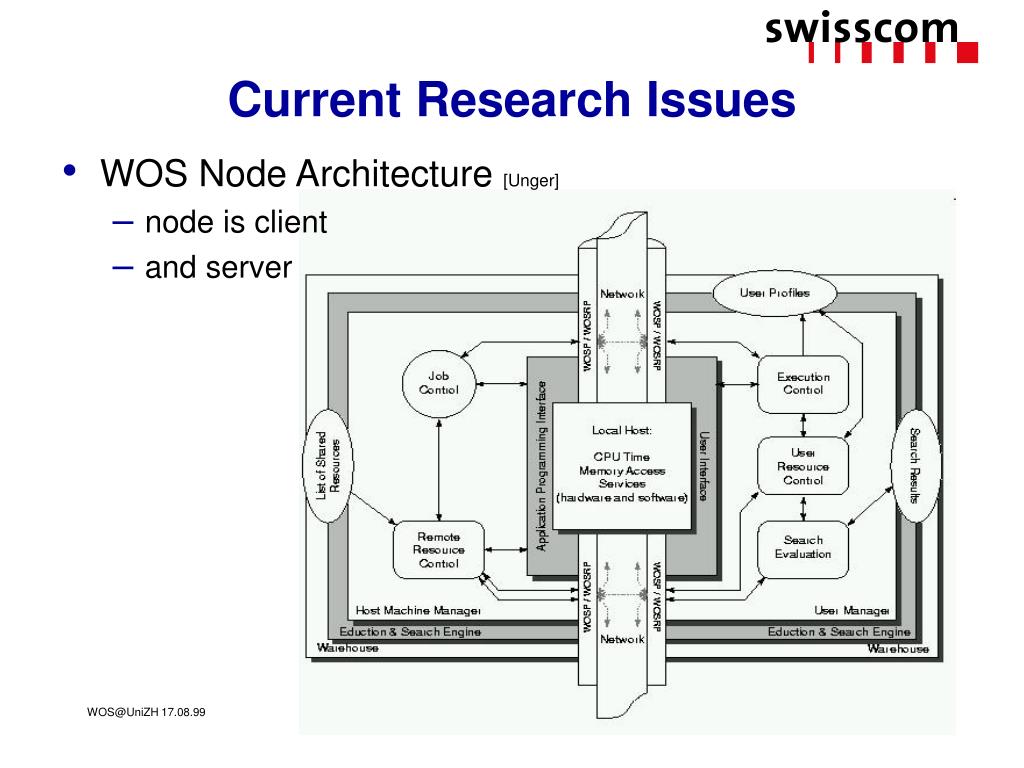

Current Research Issues
  • WOS Node Architecture [Unger]
    • node is client
    • and server
current research issues cont

t2

Node

t1

Current Research Issues (cont.)
  • Communication Protocols [Babin, Kropf, Unger]
    • Two level communication protocol

discovery/location protocol (WOSRP) location of specific WOS nodes

generic Service Protocol (WOSP)

* versioned protocol; bind node to appropriate instance of WOSP analyzer

* setup, execution, query commands

current research issues cont1

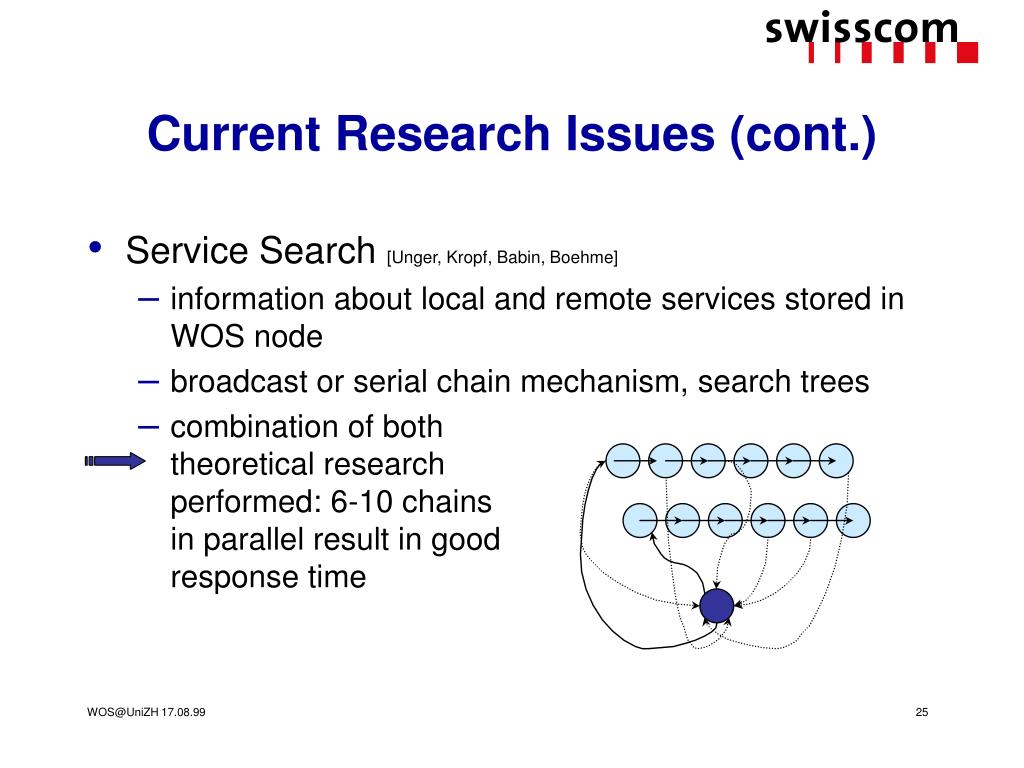

Current Research Issues (cont.)
  • Service Search [Unger, Kropf, Babin, Boehme]
    • information about local and remote services stored in WOS node
    • broadcast or serial chain mechanism, search trees
    • combination of both theoretical research performed: 6-10 chainsin parallel result in goodresponse time
research issues cont

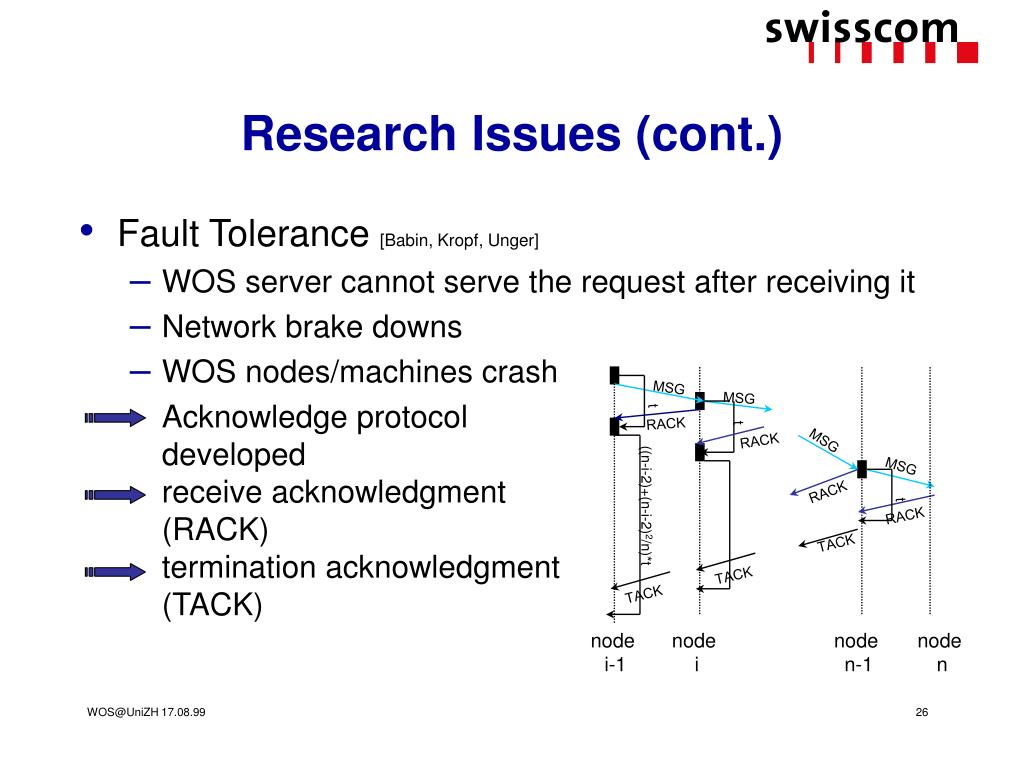

Research Issues (cont.)
  • Fault Tolerance [Babin, Kropf, Unger]
    • WOS server cannot serve the request after receiving it
    • Network brake downs
    • WOS nodes/machines crash

Acknowledge protocol developedreceive acknowledgment(RACK)termination acknowledgment(TACK)

MSG

MSG

t

t

RACK

RACK

MSG

MSG

RACK

((n-i-2)+(n-i-2)2/n)*t

t

RACK

TACK

TACK

TACK

node i-1

node i

node n-1

node n

current research issues cont2

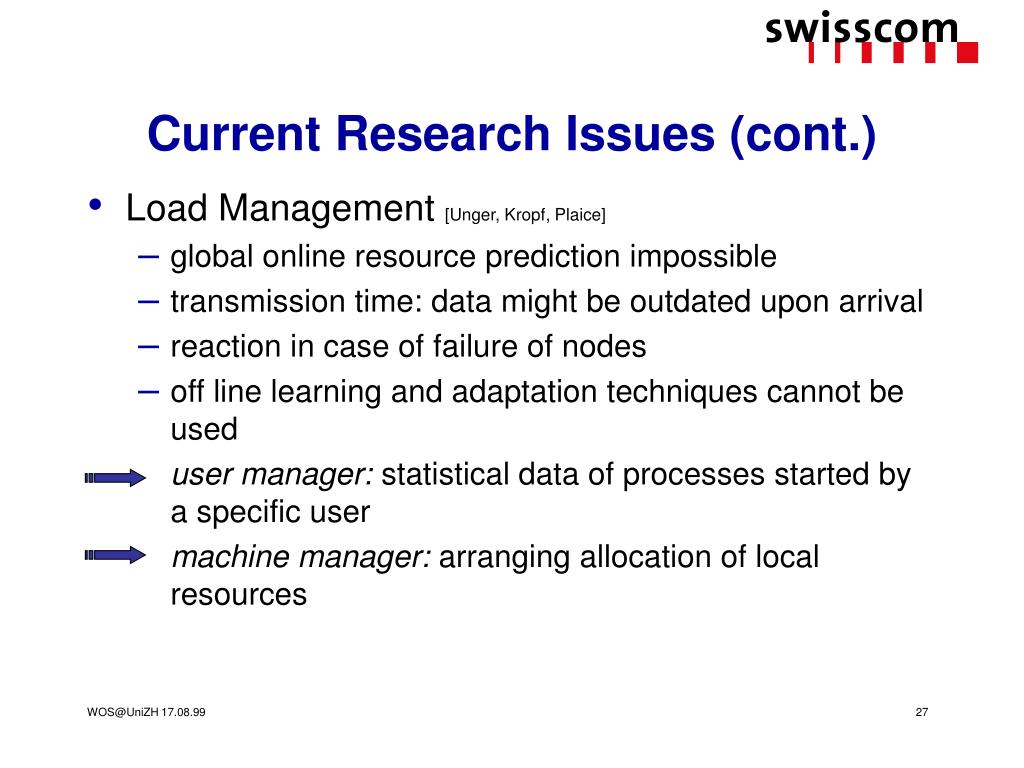

Current Research Issues (cont.)
  • Load Management [Unger, Kropf, Plaice]
    • global online resource prediction impossible
    • transmission time: data might be outdated upon arrival
    • reaction in case of failure of nodes
    • off line learning and adaptation techniques cannot be used

user manager: statistical data of processes started by a specific user

machine manager: arranging allocation of local resources

current research issues cont3
Current Research Issues (cont.)
  • Resource Representation & Interaction [Krone, Schubiger]
    • how can resources be manipulated and shareduse desktop metaphor for explicitmanipulation: WebRes* based on RMI;* introduced novel technique (dynamic linking) for runtime linking of objectsimplicit through (WebComs) data-flow driven
current research issues cont4

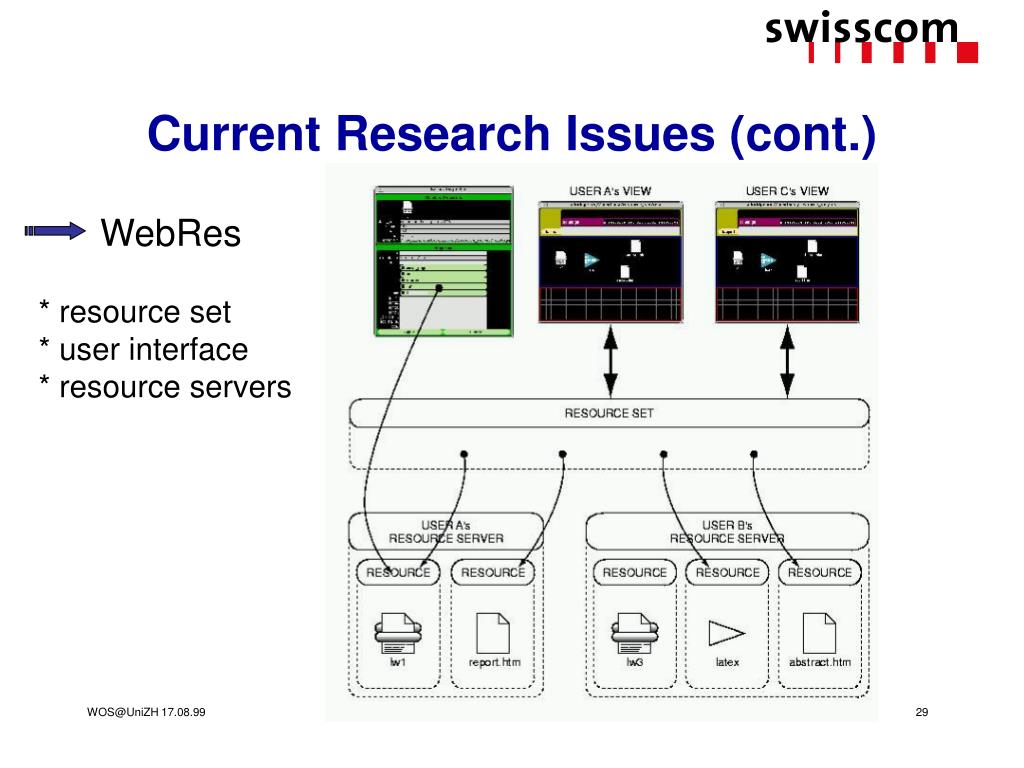

Current Research Issues (cont.)

WebRes

* resource set

* user interface

* resource servers

current research issues cont5

rd()

in()

Linda’s Tuple Space

[“Hallo”,12, y]

[x,12, y]

out()

eval()

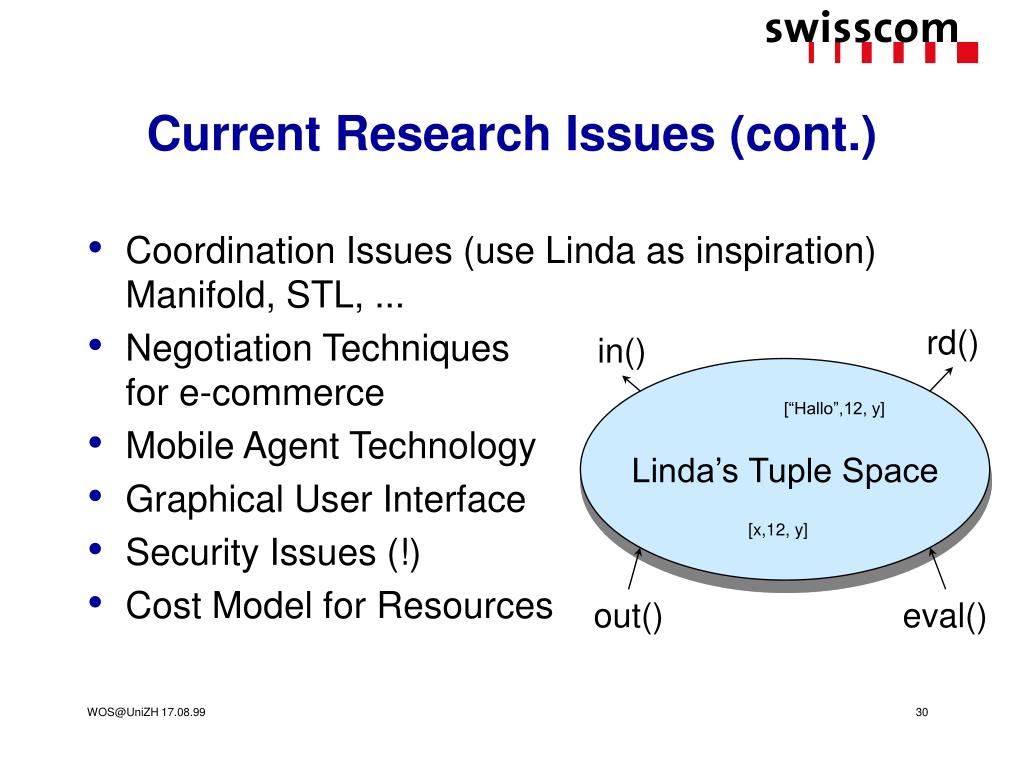

Current Research Issues (cont.)
  • Coordination Issues (use Linda as inspiration)Manifold, STL, ...
  • Negotiation Techniquesfor e-commerce
  • Mobile Agent Technology
  • Graphical User Interface
  • Security Issues (!)
  • Cost Model for Resources
related work

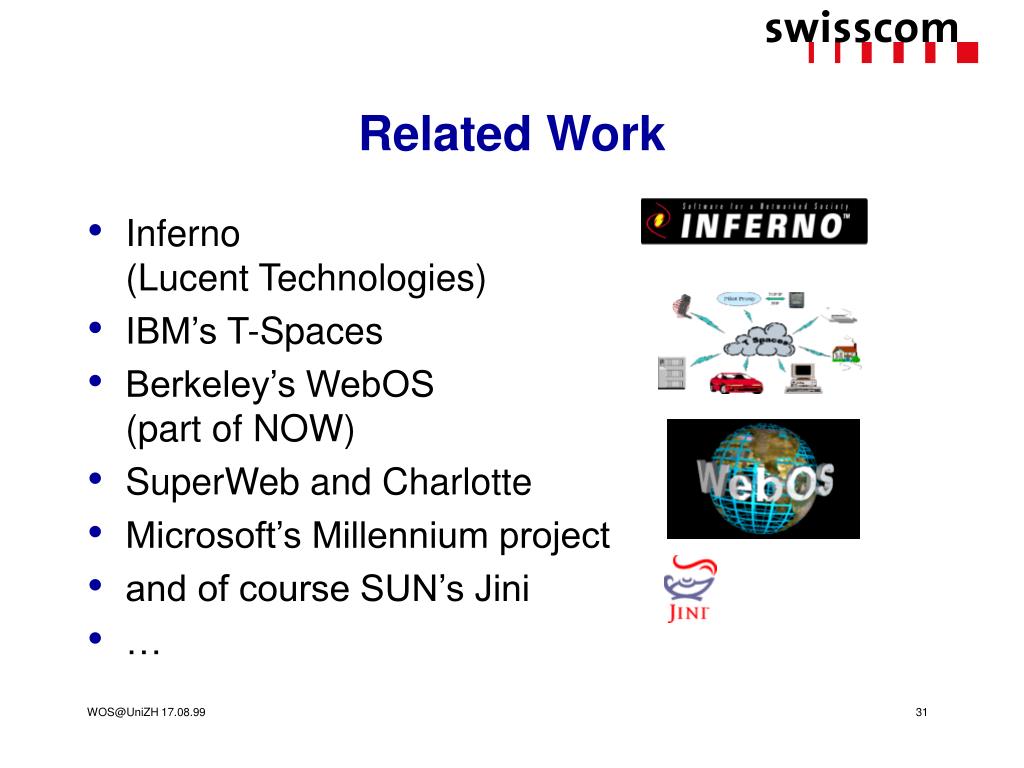

Related Work
  • Inferno (Lucent Technologies)
  • IBM’s T-Spaces
  • Berkeley’s WebOS (part of NOW)
  • SuperWeb and Charlotte
  • Microsoft’s Millennium project
  • and of course SUN’s Jini
related work cont

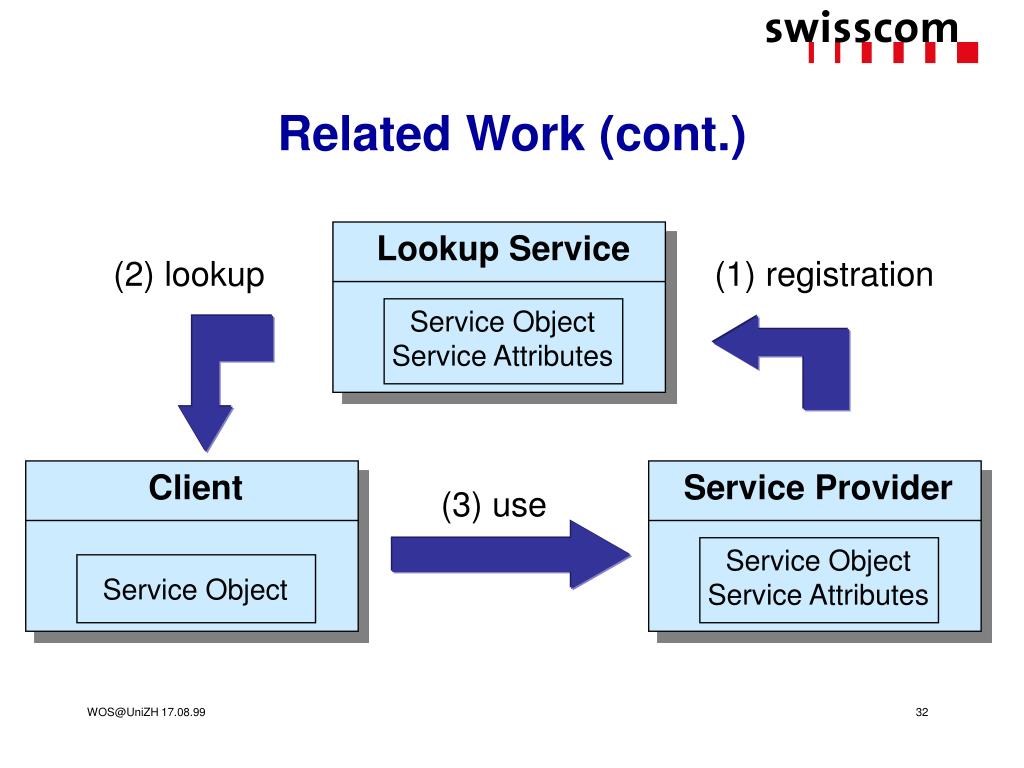

Related Work (cont.)

Lookup Service

(2) lookup

(1) registration

Service ObjectService Attributes

Client

Service Provider

(3) use

Service ObjectService Attributes

Service Object

related work cont1
Related Work (cont.)
  • Jini
    • services as resource encapsulation
    • lookup service as resource directory
    • leasing for access control
    • events for notification
    • based on JavaSpaces (Linda variant)
  • WOS
    • warehouses with versioned services
    • WOS’ “federations” are dynamically and autonomously created
    • language independent (protocol)
future work
Future Work
  • Extend WebRes to be used with WebComs
    • Definition of the network language
    • Graphical network builder
    • Interactive/automated resource selection (Agents/Web robots)
  • Develop adapters for legacy software (CORBA)
  • Validate Service Search Techniques
  • Further investigate CORBA and Jini and her friends
  • Look at Security Aspects
  • Consolidation of already developed prototypes
conclusion
Conclusion
  • Presented the WOS effort, ongoing research project, 5 Universities
  • Goals
    • develop methods, frameworks for future interconnected systems
    • contribute to future global information infrastructure
  • Both industry and academia is interested
  • Version 1.0 is on its way
  • Conference: Web Communities, June 2000, University of Laval
  • Info: http://paradis.ift.ulaval.ca/projects/wos
