shielded metal arc welding 2f position

Shielded Metal Arc Welding 2F position

Using 7018 and 6010 Electrodes

7018 t joint
7018 T-Joint
  • Single Pass 1/8 7018 115 amps DCEP polarity
correct rod angle
Correct Rod Angle
  • The rod should be at a 45 degree angle to the joint.
correct travel angle
Correct Travel Angle
  • The travel angle should be about 60 degrees from the horizontal plate on the joint.
7018 multi pass
7018 Multi -Pass
  • This is a multi-pass made with 3 beads showing. It has a 2 bead multi-pass under it and a single pass under those.
multi pass rod angle
Multi-Pass Rod Angle

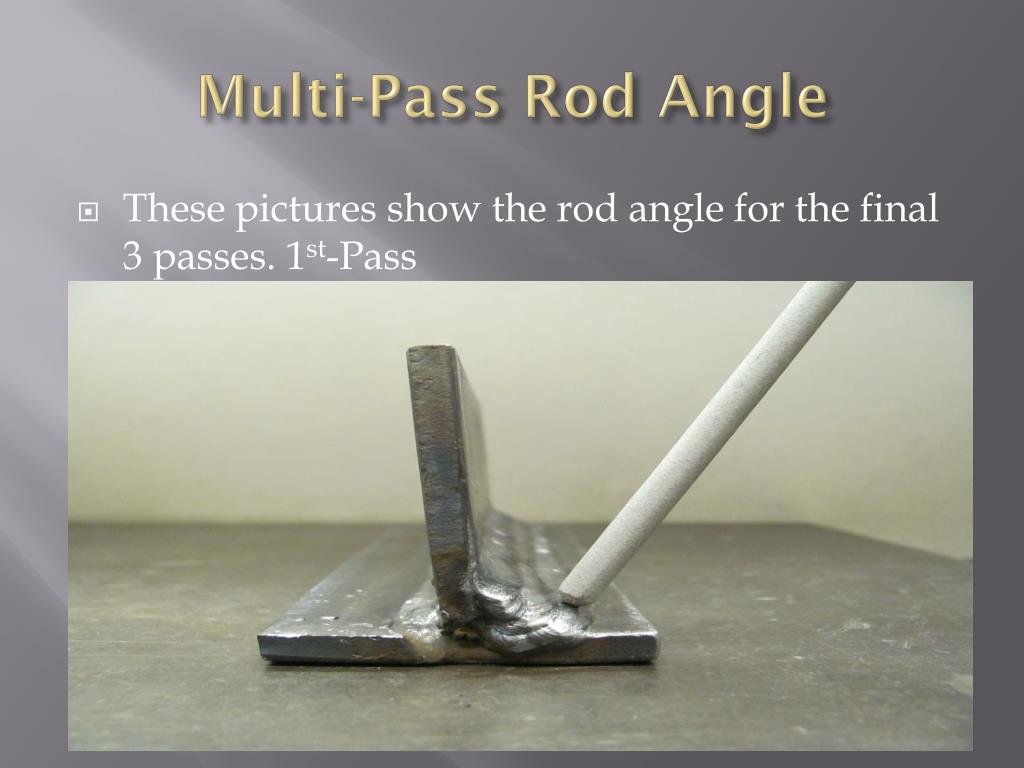

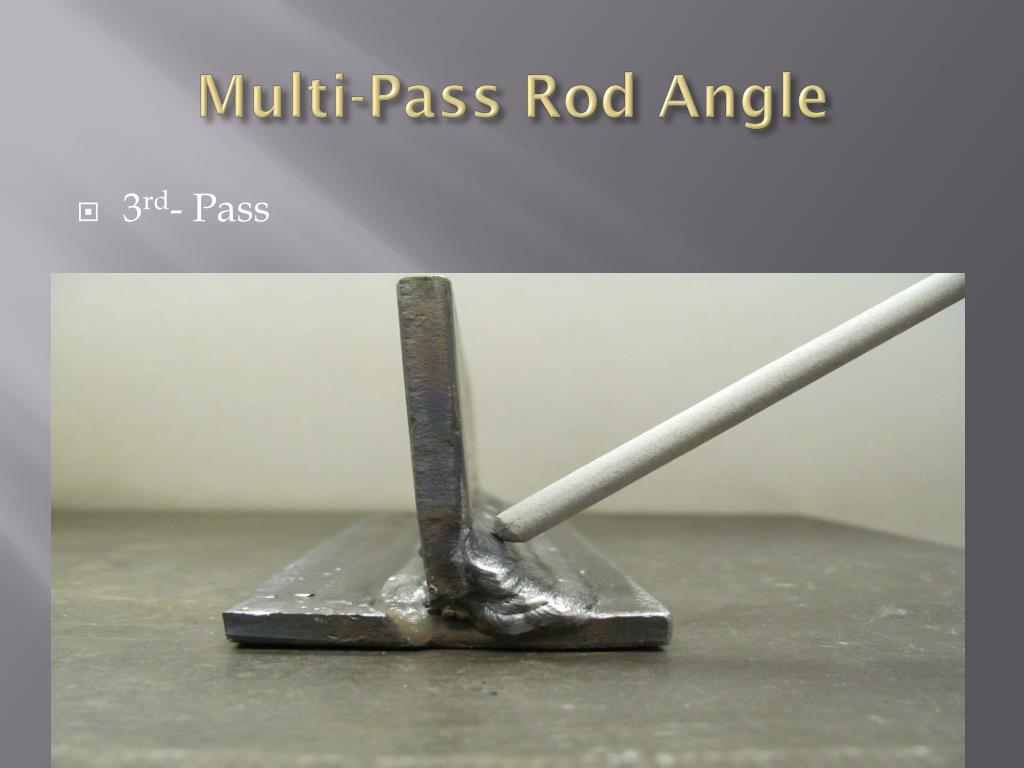

  • These pictures show the rod angle for the final 3 passes. 1st-Pass
