GAS METAL ARC WELDING (GMAW). What is GMAW. An arc welding process that uses an arc between a continuous filler metal electrode and the weld pool to produce a fusion (melting) together of the base metal The process is used with a shielding gas supplied from an external source without pressure.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'GAS METAL ARC WELDING (GMAW)' - ostinmannual


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
what is gmaw
What is GMAW
  • An arc welding process that uses an arc between a continuous filler metal electrode and the weld pool to produce a fusion (melting) together of the base metal
  • The process is used with a shielding gas supplied from an external source without pressure.
also known as
Also Known AS
  • Wire Feed
  • MIG = Metal Inert Gas
    • Inert Gas= Inactive gas that does not combine chemically with base or filler metal
  • MAG= Metal Active Gas
    • Active Gas= Gas will combine chemically with base or filler metal
slide4
Advantages

Variety of Metals

All Position Welding

Quality Welds

Little to No Slag

Low Spatter

Disadvantages

Cost

Portability

Outdoor Welding

Clean Base Material

gmaw safety
GMAW Safety
  • Cover all skin to prevent Radiation burns
  • Cover hair to prevent sparks setting hair on fire
  • Wear ear plugs to protect from noise and burning ear drums with sparks
  • Use a 14 shade welding helmet to protect eyes
  • Wear safety glasses at all times
  • Make sure pants pockets are empty
gmaw equipment
GMAW Equipment
  • Power Supply
    • Direct Current Electrode Positive (DCEP)
      • (Electrons flow from – to +)
  • Wire Feeder
    • Electrical mechanical device that feed required amount of filler material at a constant rate of speed
gmaw equipment cont
GMAW Equipment (Cont)
  • Welding filler electrode
    • Small diameter consumable electrode that is supplied to the welding gun by the roller drive system
  • Shielding Gas
    • Gas used to protect the molten metal from atmospheric contamination
      • 75%Argon (inert gas) & 25% Carbon Dioxide most common gas used for GMAW
gmaw set up
GMAW Set UP
  • Plug ground wire into (Neg) Terminal
  • Plug Wire Feeder into (Pos) Terminal
  • Select CV-Wire mode
  • Hot start is not used
  • Set Arc Control to “-5”
    • -10= soft arc (for use with inert gases)
    • +10= crisp arc (for use with CO2)

(See Next Slide)

slide10
Min. Arc Control

Soft Arc

Thicker Materials

Deeper Penetration

More Fluid Weld Pool

Flatter / Smoother Weld

Reduce Spatter

Stainless Steels

Max Arc Control

Crisp Arc

Thin Materials

Arc Stability On Open Gaps

Convex Weld Bead

Increased Spatter

Colder Arc

Improved Weld Pool Control

gmaw set up cont
GMAW Set Up (Cont)
  • Set Volts
    • See Chart for proper setting
  • Set Wire Speed
    • See Chart for proper setting
    • Increase wire speed = Increase amps
    • Decrease wire speed = Decrease amps
  • Set gas flow
    • See Chart for proper setting
    • Pull trigger to get gas flowing then adjust regulator
running a bead
Running a Bead
  • Hold tip 1/16” to 1/8” from work piece
  • Angle of tip should be 10-15°
  • Can push or pull bead
    • Pull (preferred)
      • More stable arc
      • Less Spatter
      • Deeper penetration
    • Push
      • More spatter
      • Less penetration
      • Good cleaning action
wire burnback
Possible Causes Corrective Actions

* Drive Rolls in Poor Condition *Tighten, Clean, or Replace Drive Rolls

* Excessive Welding Voltage * Reduce Voltage

* Insufficient Electrical Stickout * Increase Contact Tip to Work Piece Distance

* Contact Tip in Poor Condition * Clean or Replace Contact tip

* Spatter on Contact Tip * Remove Spatter

Wire Burnback
burnthrough
Possible Causes Corrective Actions

* Excessive Amperage *Reduce Amperage

* Improper Travel Angle * Use a Push Angle

*Travel Speed Too Low * Increase Travel Speed

* Insufficient Electrical Stickout * Increase Contact Tip to Work Distance

Burnthrough

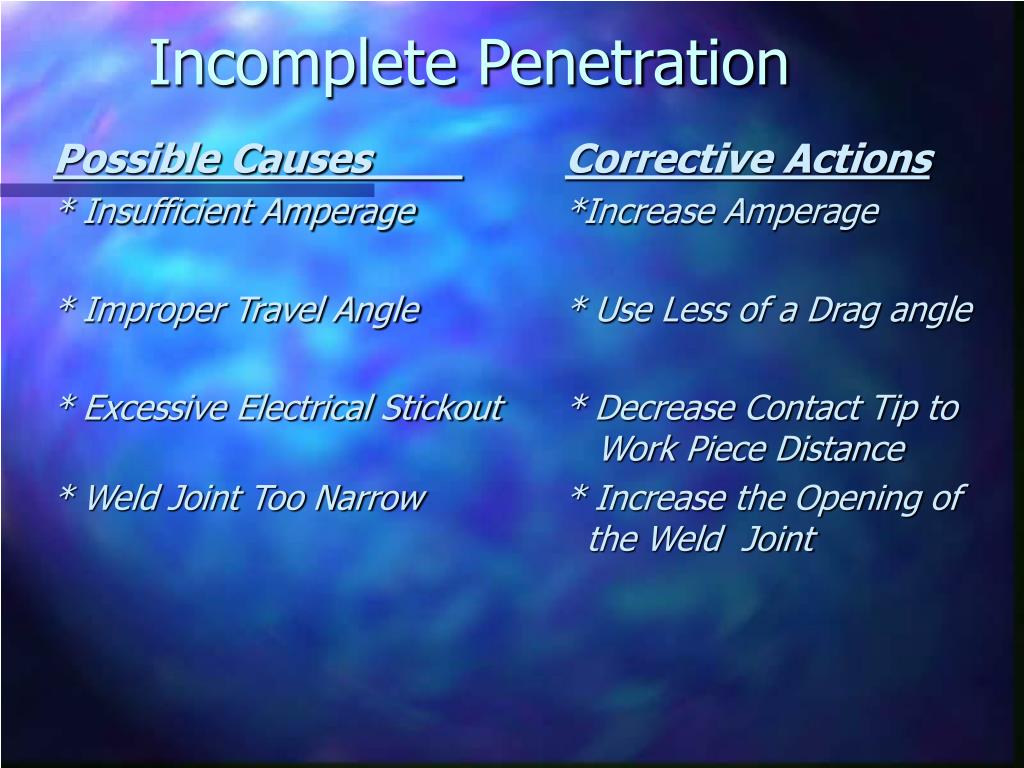

incomplete penetration
Possible Causes Corrective Actions

* Insufficient Amperage *Increase Amperage

* Improper Travel Angle * Use Less of a Drag angle

* Excessive Electrical Stickout * Decrease Contact Tip to Work Piece Distance

* Weld Joint Too Narrow * Increase the Opening of the Weld Joint

Incomplete Penetration
