Presentation Transcript
mining for cell phones

Talk About ItIs it important to think about the sources of the minerals we use?

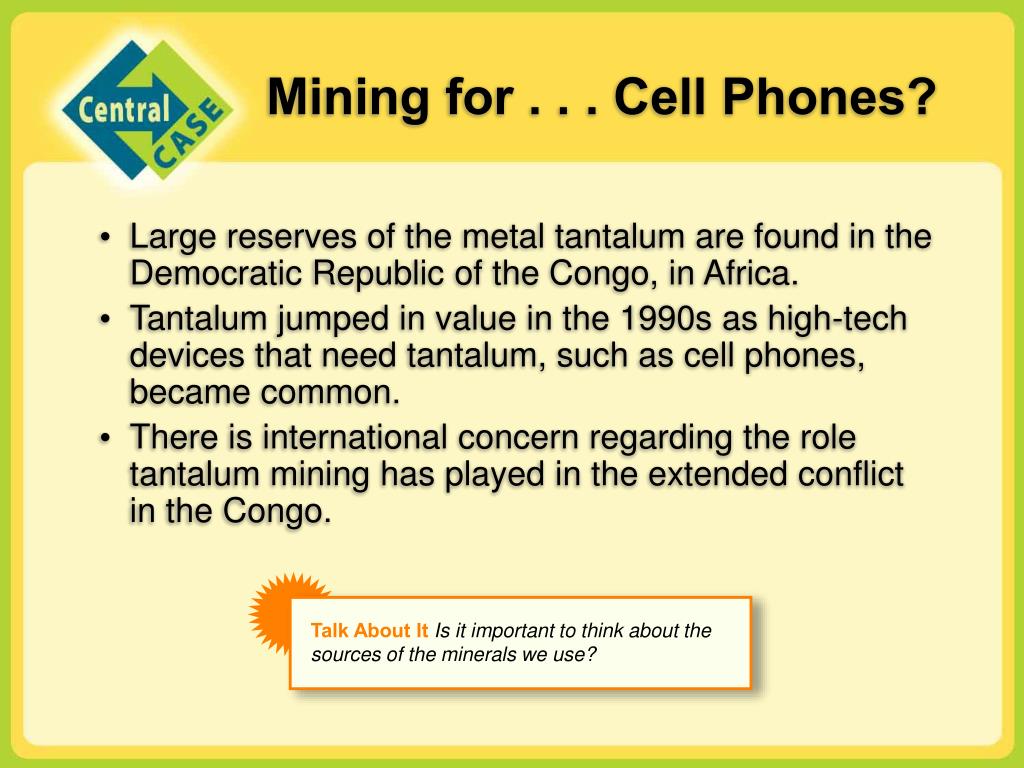

Mining for . . . Cell Phones?
  • Large reserves of the metal tantalum are found in the Democratic Republic of the Congo, in Africa.
  • Tantalum jumped in value in the 1990s as high-tech devices that need tantalum, such as cell phones, became common.
  • There is international concern regarding the role tantalum mining has played in the extended conflict in the Congo.

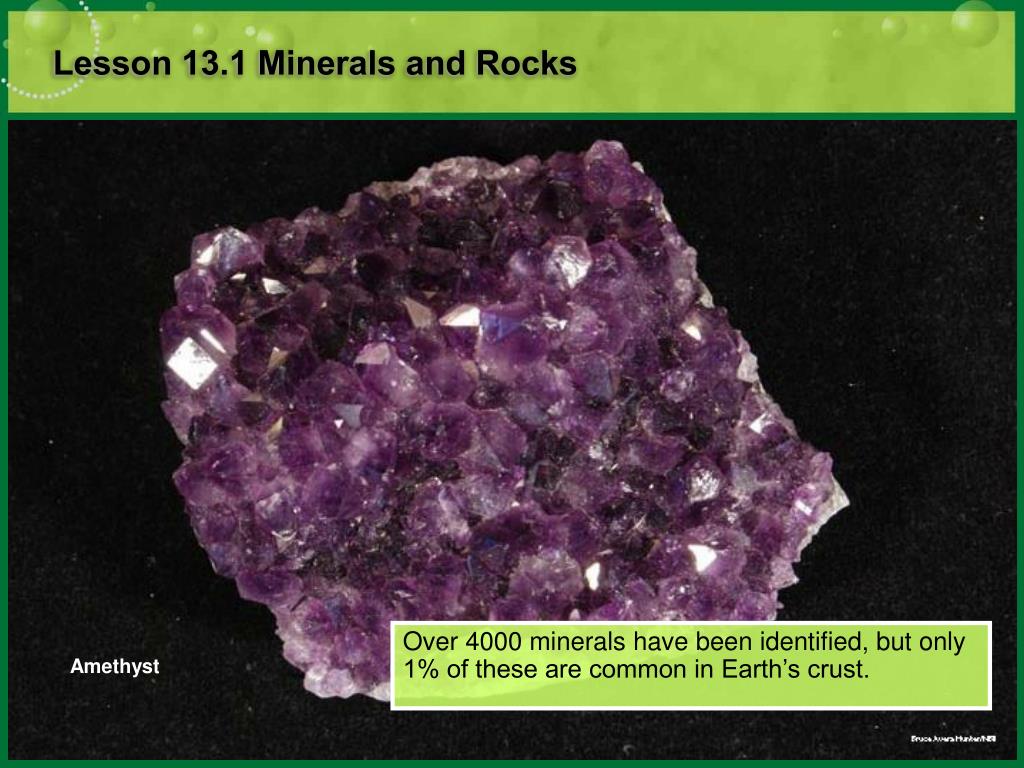

lesson 13 1 minerals and rocks

Lesson 13.1 Minerals and Rocks

Over 4000 minerals have been identified, but only 1% of these are common in Earth’s crust.


what are minerals

Lesson 13.1 Minerals and Rocks

What Are Minerals?
  • Occur in nature
  • Chemically inorganic
  • Solids
  • Have orderly crystalline structures
  • Have definite chemical compositions

Pyrite (Fool’s Gold)

mineral formation

Lesson 13.1 Minerals and Rocks

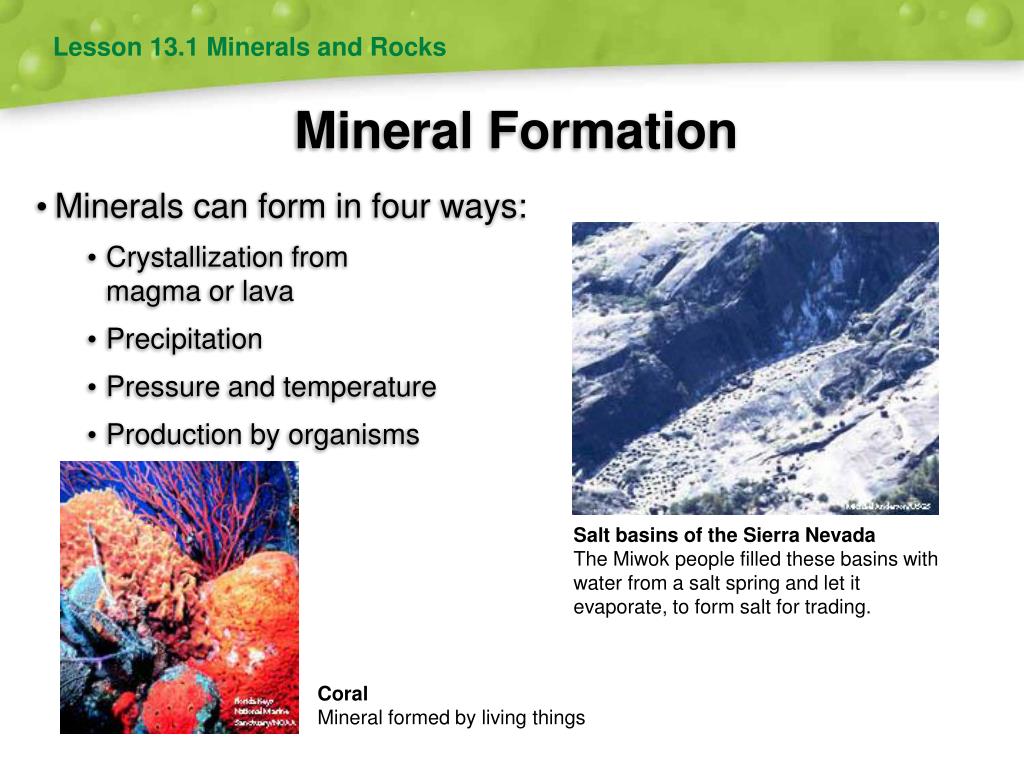

Mineral Formation
  • Minerals can form in four ways:
    • Crystallization from magma or lava
    • Precipitation
    • Pressure and temperature
    • Production by organisms

Salt basins of the Sierra Nevada The Miwok people filled these basins with water from a salt spring and let it evaporate, to form salt for trading.

Coral Mineral formed by living things

mineral classes

Lesson 13.1 Minerals and Rocks

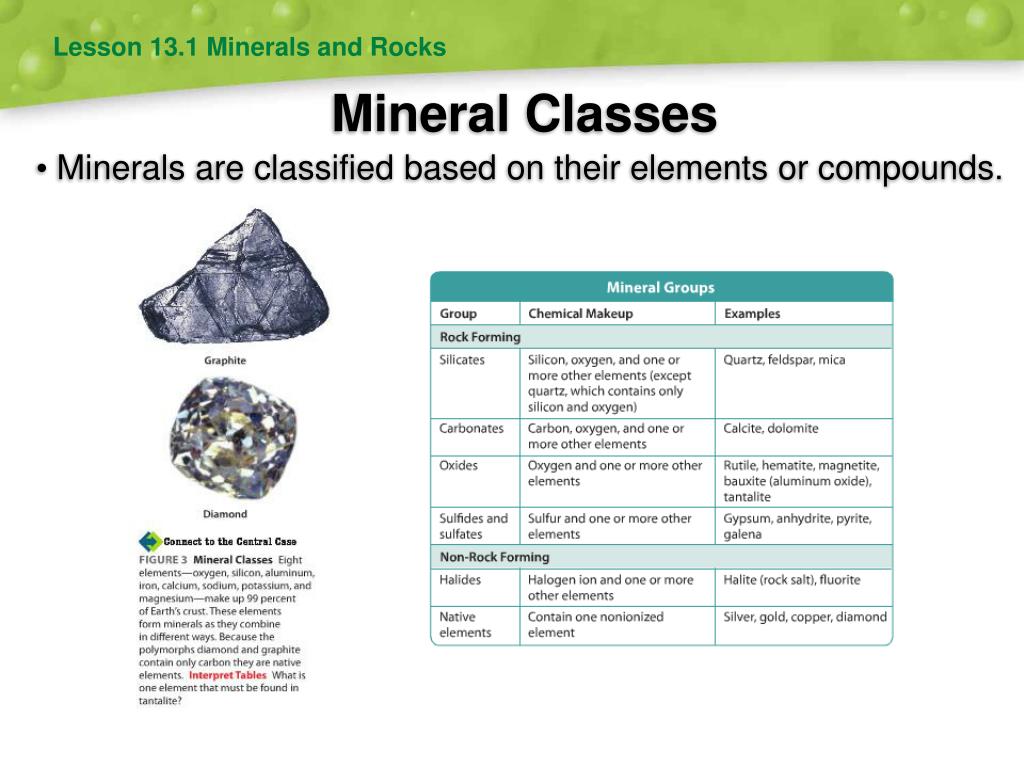

Mineral Classes
  • Minerals are classified based on their elements or compounds.

Lesson 13.1 Minerals and Rocks

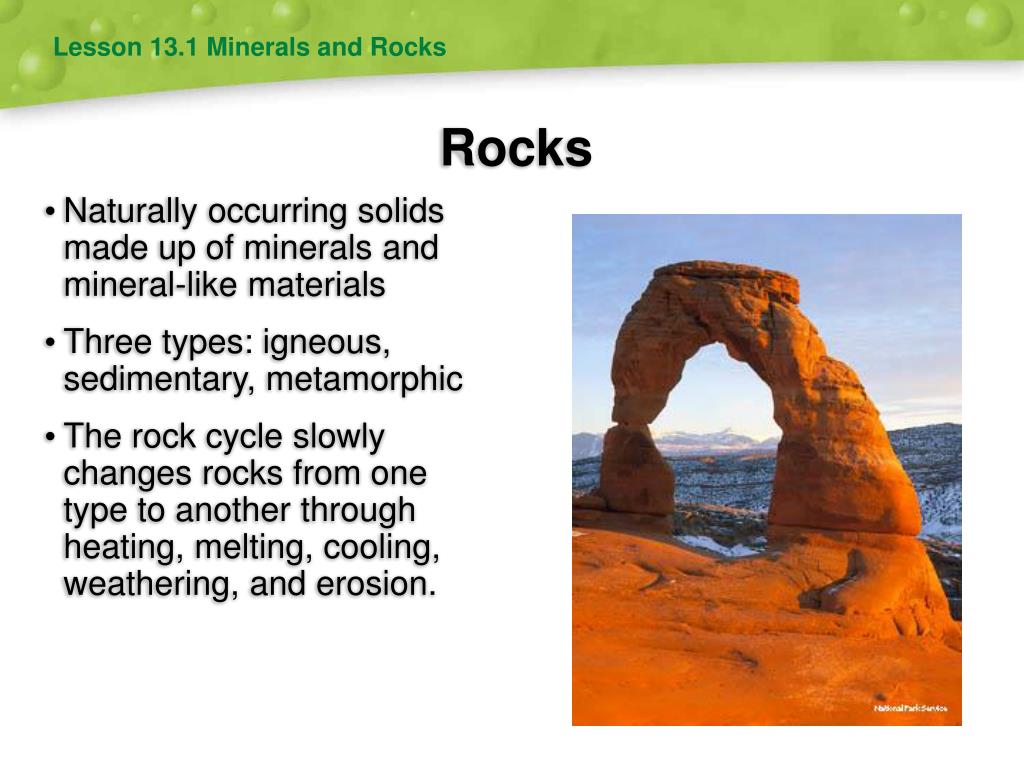

  • Naturally occurring solids made up of minerals and mineral-like materials
  • Three types: igneous, sedimentary, metamorphic
  • The rock cycle slowly changes rocks from one type to another through heating, melting, cooling, weathering, and erosion.
types of rocks

Lesson 13.1 Minerals and Rocks

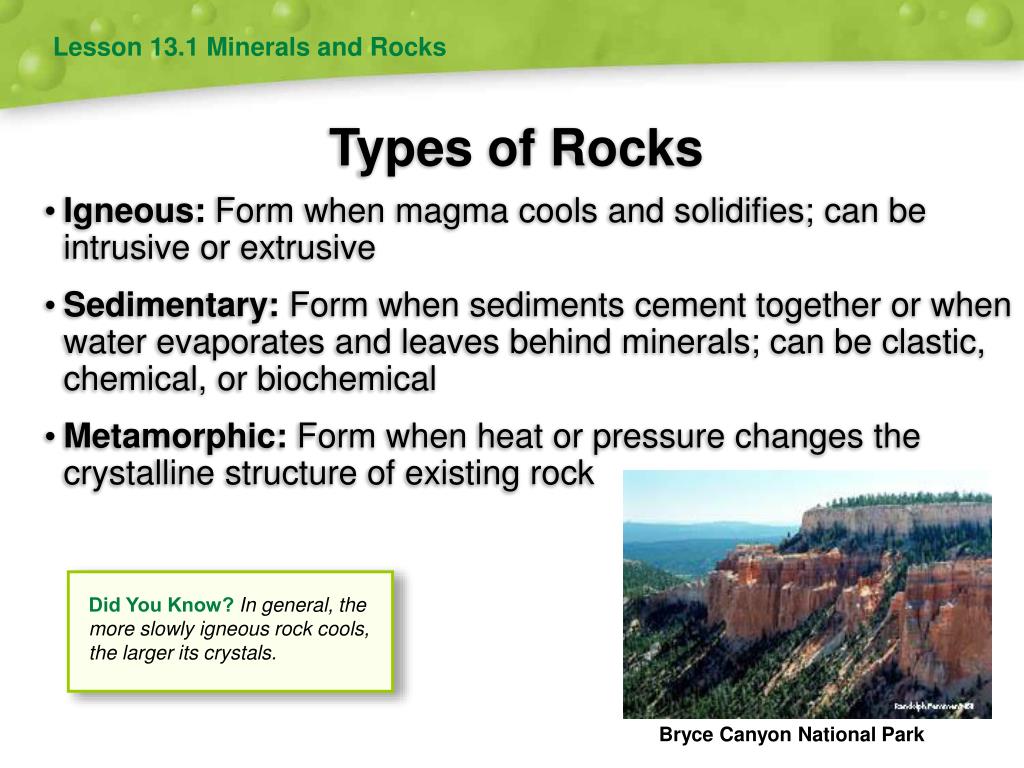

Types of Rocks
  • Igneous: Form when magma cools and solidifies; can be intrusive or extrusive
  • Sedimentary: Form when sediments cement together or when water evaporates and leaves behind minerals; can be clastic, chemical, or biochemical
  • Metamorphic: Form when heat or pressure changes the crystalline structure of existing rock

Did You Know?In general, the more slowly igneous rock cools, the larger its crystals.

Bryce Canyon National Park

lesson 13 2 mining

Lesson 13.2 Mining

More than a ton of waste may remain after extracting just a few hundredths of an ounce of gold.

what is mined

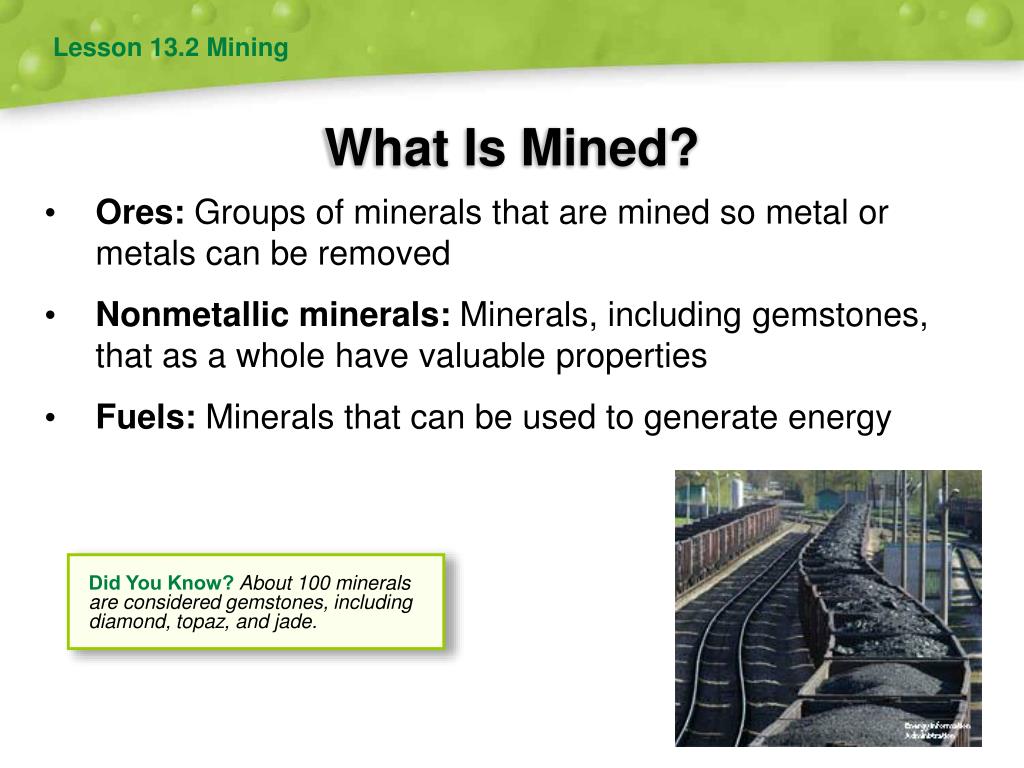

What Is Mined?

Lesson 13.2 Mining

  • Ores: Groups of minerals that are mined so metal or metals can be removed
  • Nonmetallic minerals: Minerals, including gemstones, that as a whole have valuable properties
  • Fuels: Minerals that can be used to generate energy

Did You Know?About 100 minerals are considered gemstones, including diamond, topaz, and jade.

process of mining and mineral use

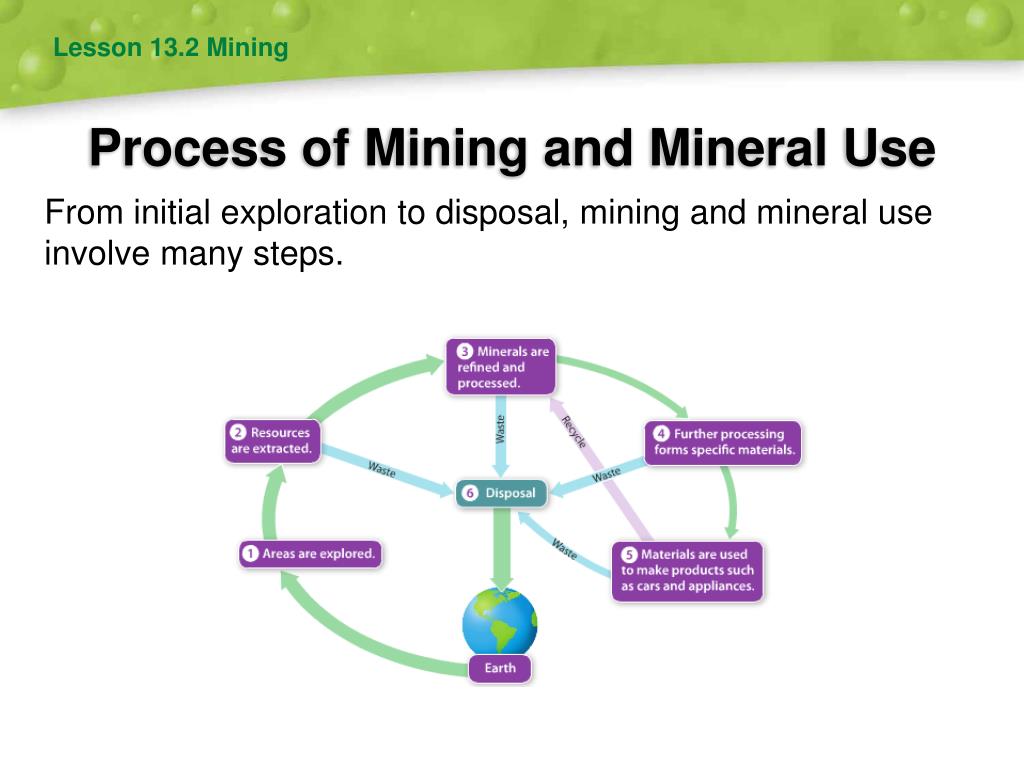

Process of Mining and Mineral Use

Lesson 13.2 Mining

From initial exploration to disposal, mining and mineral use involve many steps.

mining methods

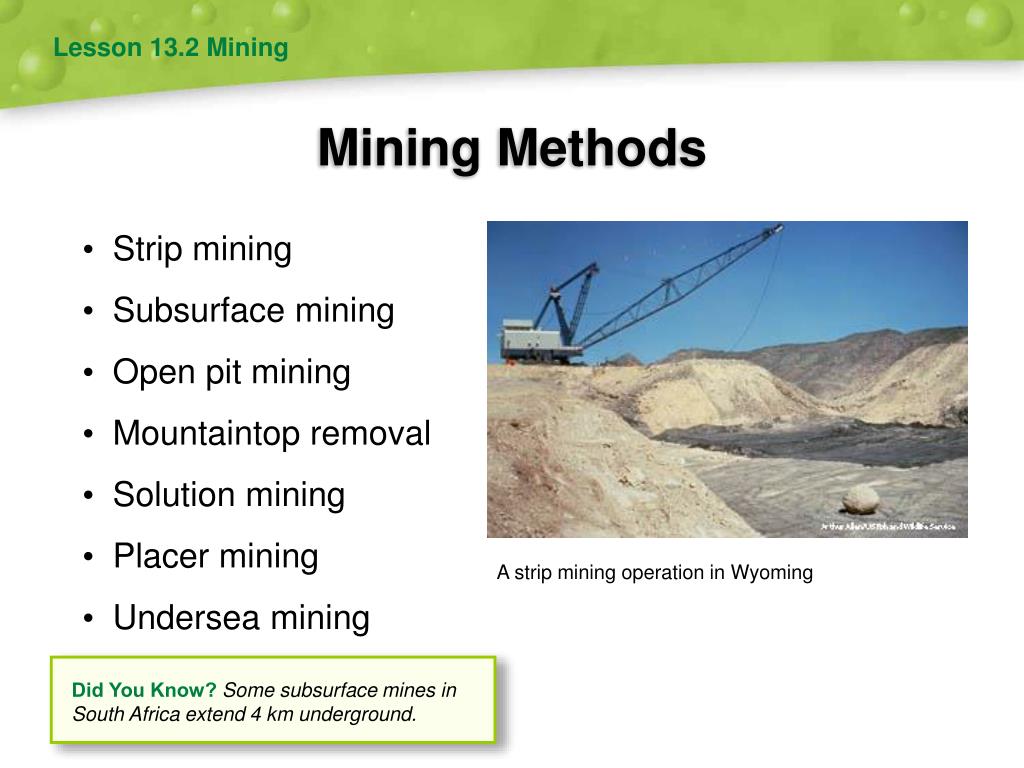

Mining Methods

Lesson 13.2 Mining

  • Strip mining
  • Subsurface mining
  • Open pit mining
  • Mountaintop removal
  • Solution mining
  • Placer mining
  • Undersea mining

A strip mining operation in Wyoming

Did You Know?Some subsurface mines in South Africa extend 4 km underground.

processing ore

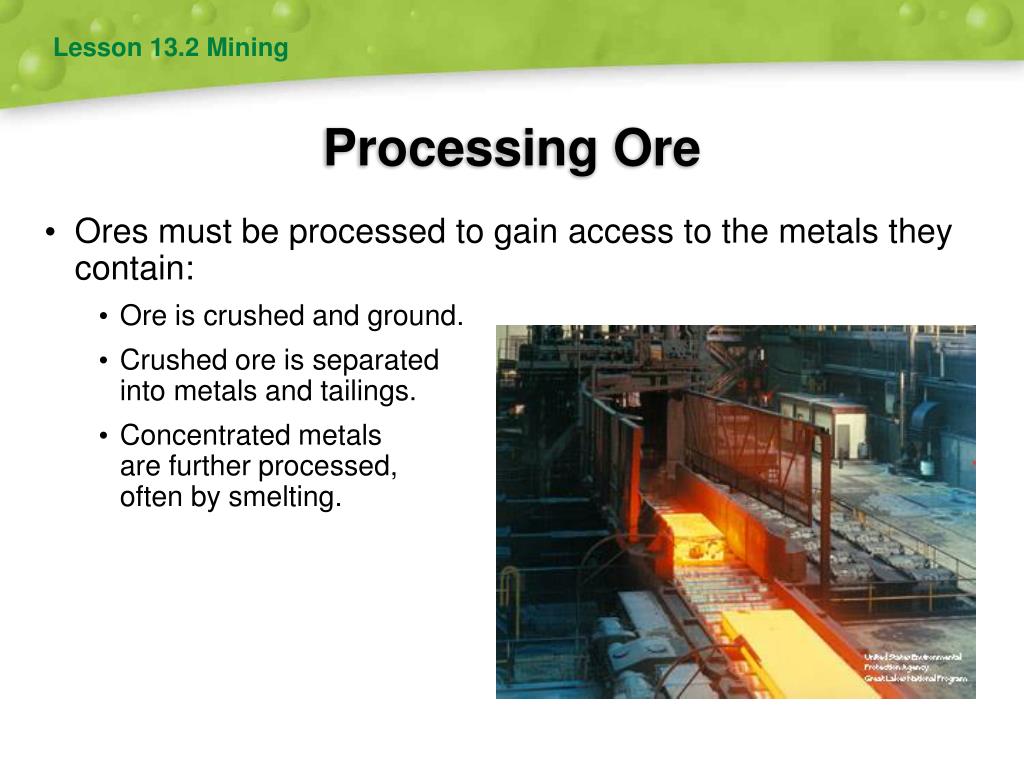

Processing Ore

Lesson 13.2 Mining

  • Ores must be processed to gain access to the metals they contain:
    • Ore is crushed and ground.
    • Crushed ore is separated into metals and tailings.
    • Concentrated metals are further processed, often by smelting.
lesson 13 3 mining impacts and regulation

Lesson 13.3 Mining Impacts and Regulation

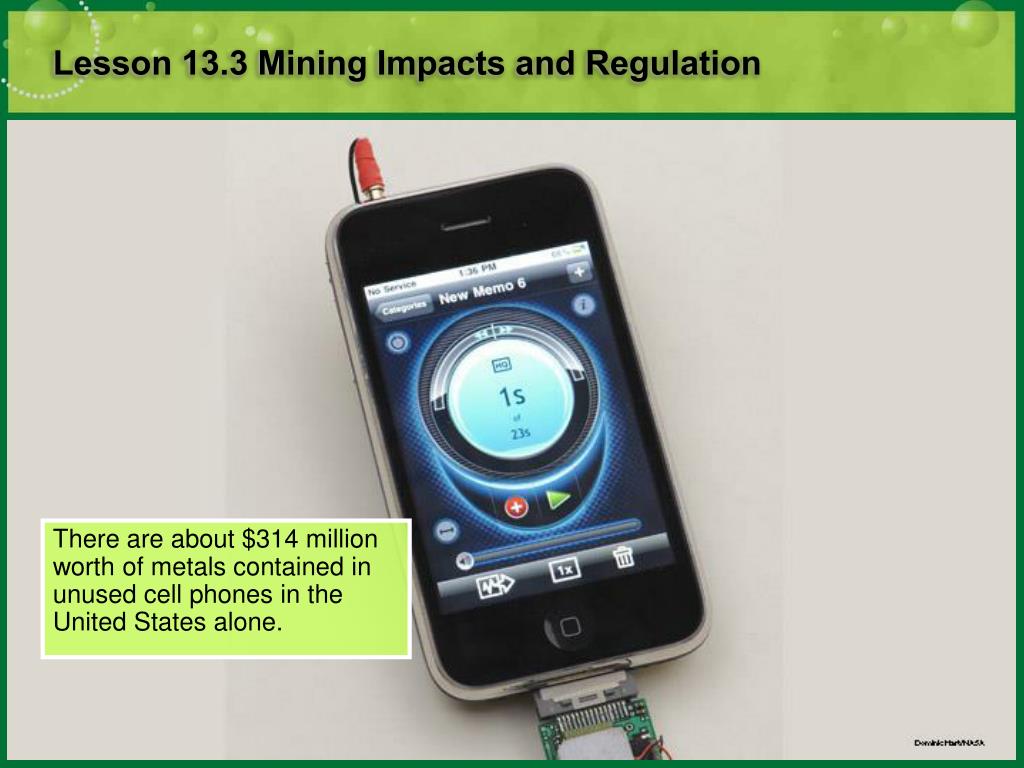

There are about $314 million worth of metals contained in unused cell phones in the United States alone.

environmental impacts of mining

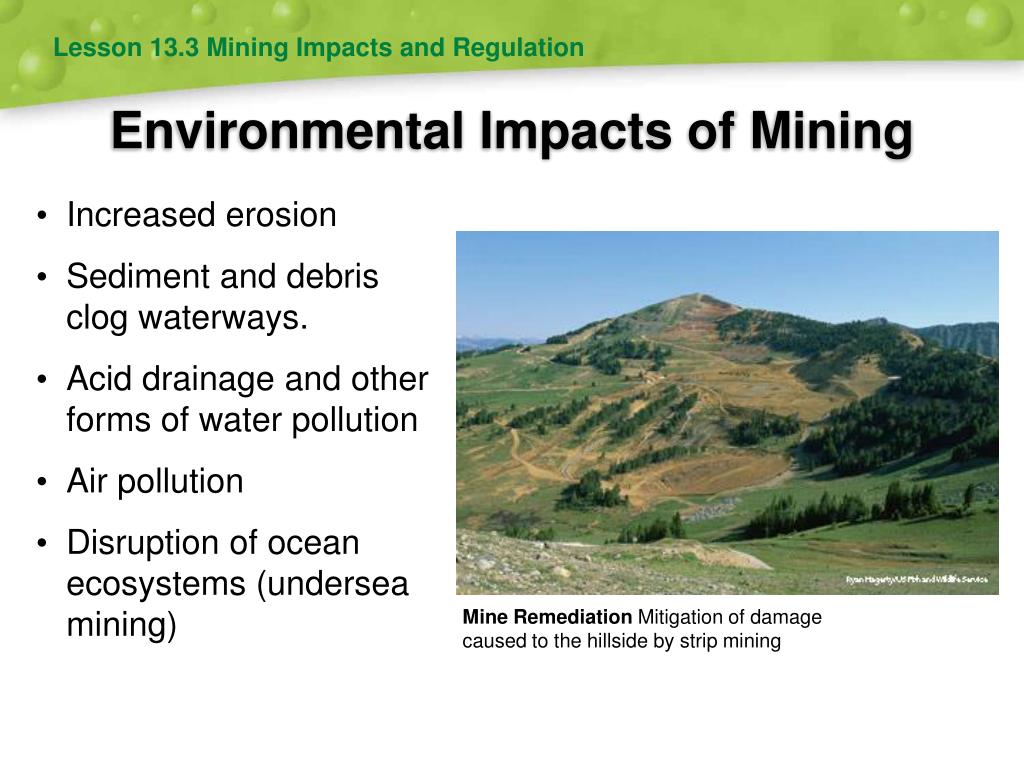

Environmental Impacts of Mining

Lesson 13.3 Mining Impacts and Regulation

  • Increased erosion
  • Sediment and debris clog waterways.
  • Acid drainage and other forms of water pollution
  • Air pollution
  • Disruption of ocean ecosystems (undersea mining)

Mine Remediation Mitigation of damage caused to the hillside by strip mining

social impacts of mining

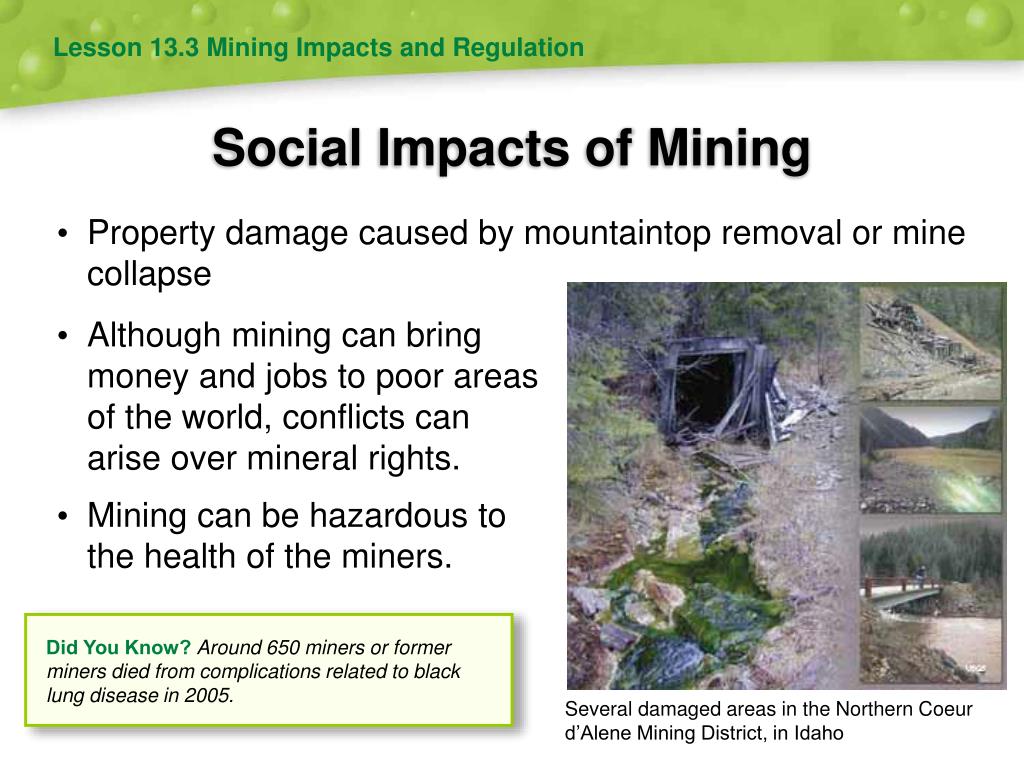

Social Impacts of Mining

Lesson 13.3 Mining Impacts and Regulation

  • Property damage caused by mountaintop removal or mine collapse
  • Although mining can bring money and jobs to poor areas of the world, conflicts can arise over mineral rights.
  • Mining can be hazardous to the health of the miners.

Did You Know?Around 650 miners or former miners died from complications related to black lung disease in 2005.

Several damaged areas in the Northern Coeur d’Alene Mining District, in Idaho

general mining law of 1872

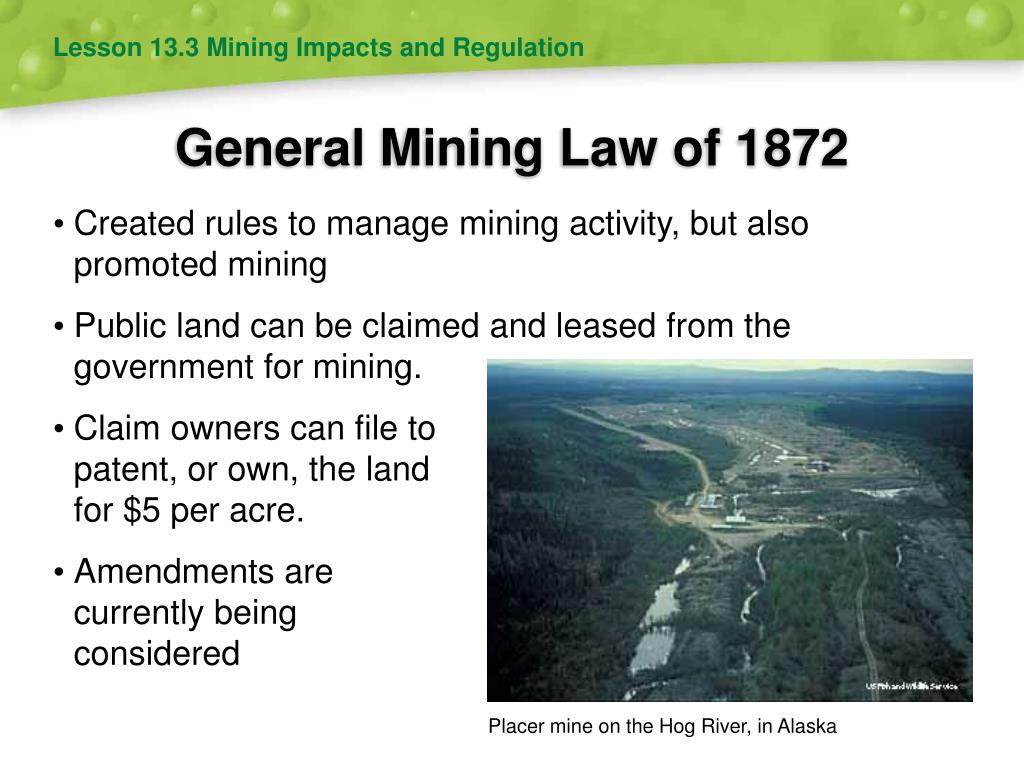

General Mining Law of 1872

Lesson 13.3 Mining Impacts and Regulation

  • Created rules to manage mining activity, but also promoted mining
  • Public land can be claimed and leased from the government for mining.
  • Claim owners can file to patent, or own, the land for $5 per acre.
  • Amendments are currently being considered

Placer mine on the Hog River, in Alaska

additional mining regulations

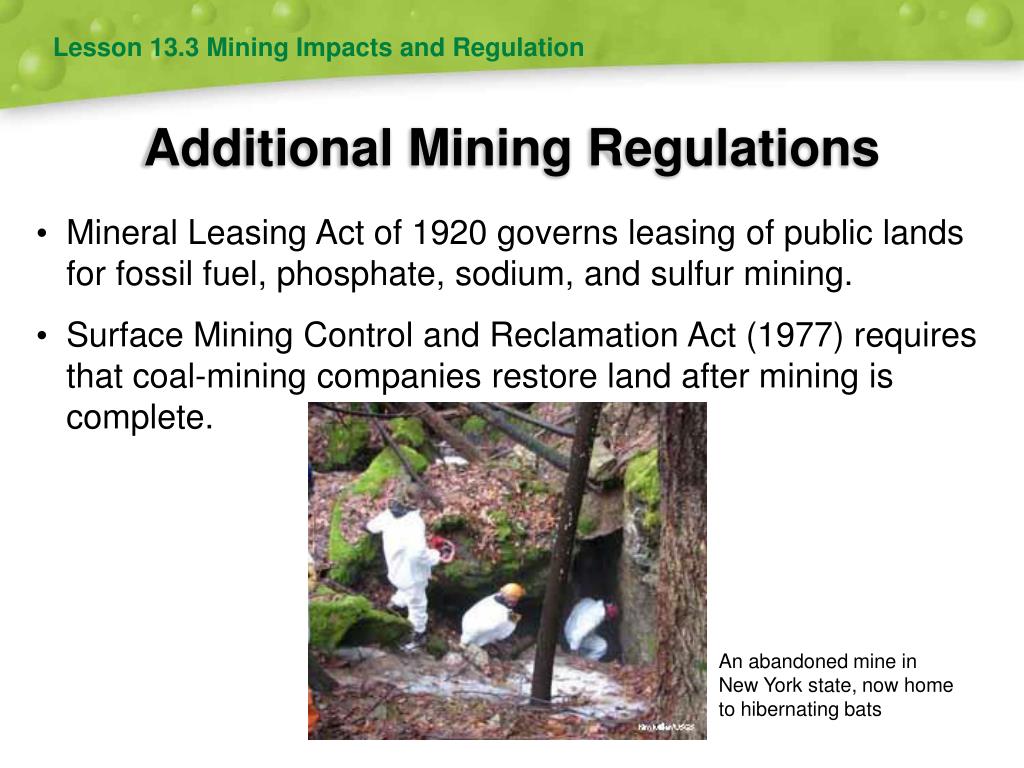

Additional Mining Regulations

Lesson 13.3 Mining Impacts and Regulation

  • Mineral Leasing Act of 1920 governs leasing of public lands for fossil fuel, phosphate, sodium, and sulfur mining.
  • Surface Mining Control and Reclamation Act (1977) requires that coal-mining companies restore land after mining is complete.

An abandoned mine in New York state, now home to hibernating bats

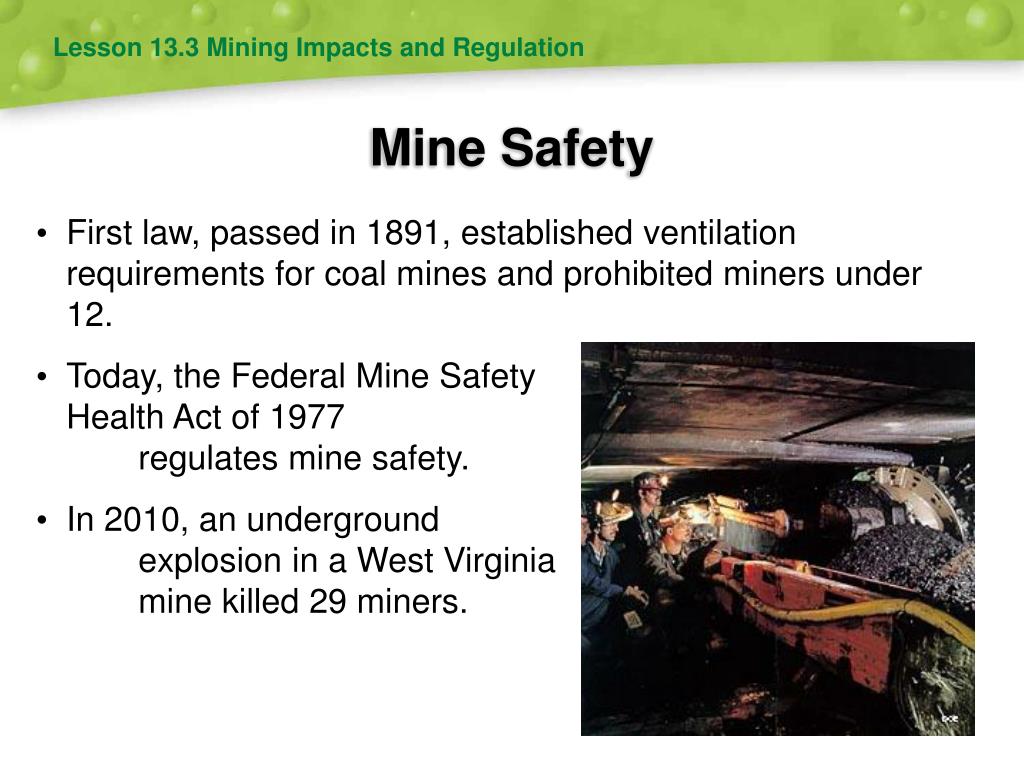

mine safety
Mine Safety

Lesson 13.3 Mining Impacts and Regulation

  • First law, passed in 1891, established ventilation requirements for coal mines and prohibited miners under 12.
  • Today, the Federal Mine Safety and Health Act of 1977 regulates mine safety.
  • In 2010, an underground explosion in a West Virginia mine killed 29 miners.
responsible mineral use

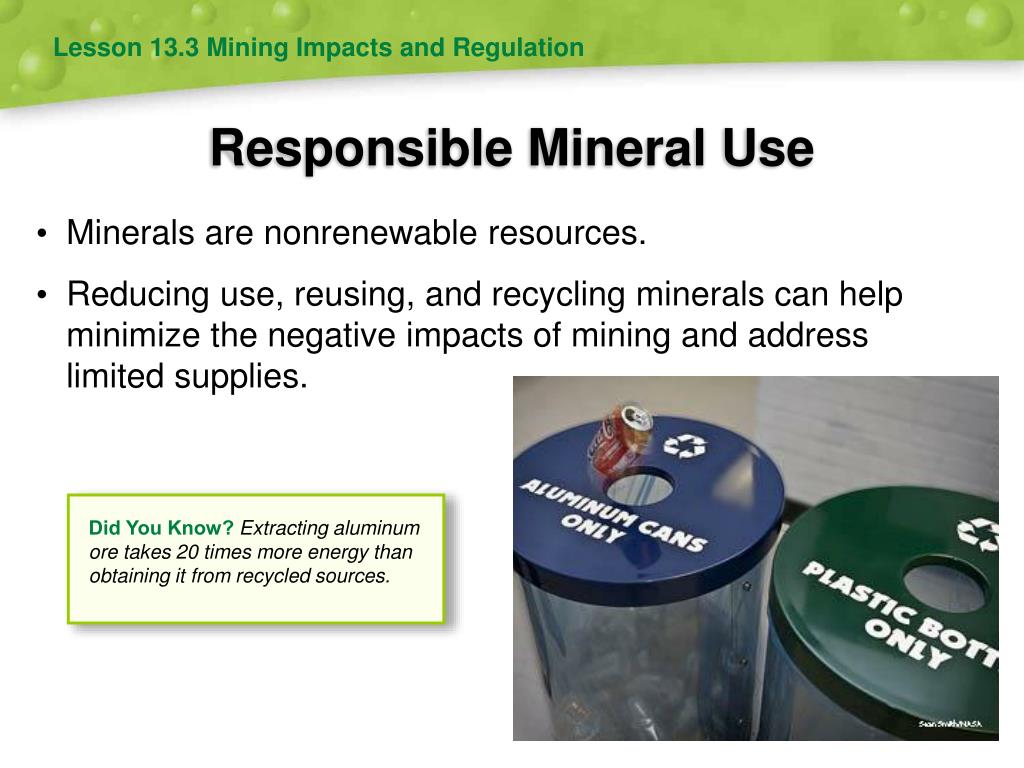

Responsible Mineral Use

Lesson 13.3 Mining Impacts and Regulation

  • Minerals are nonrenewable resources.
  • Reducing use, reusing, and recycling minerals can help minimize the negative impacts of mining and address limited supplies.

Did You Know?Extracting aluminum ore takes 20 times more energy than obtaining it from recycled sources.
