Presentation Transcript
Chapter 8 l.jpg

Chapter 8

Chemical Reactions


Indications of a chemical reaction l.jpg
Indications of a Chemical Reaction

  • Evolution of heat and light

  • Production of a gas

  • Formation of a precipitate

  • Color change


All chemical reactions l.jpg
All chemical reactions

  • have two parts

  • Reactants - the substances you start with

  • Products- the substances you end up with

  • Reactants yield Products


Characteristics of chemical equations l.jpg
Characteristics of Chemical Equations

  • Represent the known facts

  • Contain correct formulas and symbols

  • Satisfy the law of conservation of mass (they must be balanced using coefficients)


Word and formula equations l.jpg
Word and Formula Equations

  • Copper reacts with oxygen to form copper (II) oxide.

  • word equation

  • Copper + oxygen ® copper (II) oxide

  • formula equation

  • Cu + O2® CuO

  • balanced chemical equation

  • 2Cu + O2® 2CuO


Symbols used in chemical equations l.jpg
Symbols Used In Chemical Equations

  •  yields

  • + and

  • (s) or (cr) solid

  • (g) gas

  • (l) liquid

  • (aq) aqueous

    solution


Symbols used in chemical equations7 l.jpg
Symbols Used In Chemical Equations

  • ­ gaseous product

  • ¯ precipitate

  • reversible reaction

  • reactants are heated

  • A catalyst used to change the rate of the reaction

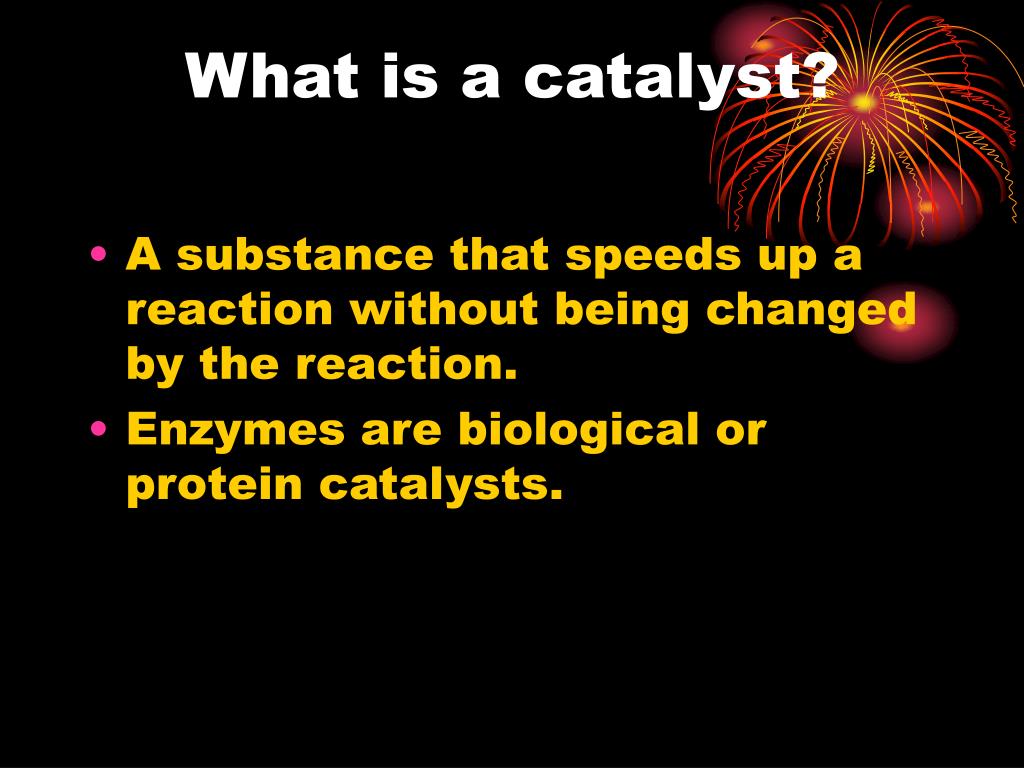

What is a catalyst l.jpg
What is a catalyst?

  • A substance that speeds up a reaction without being changed by the reaction.

  • Enzymes are biological or protein catalysts.

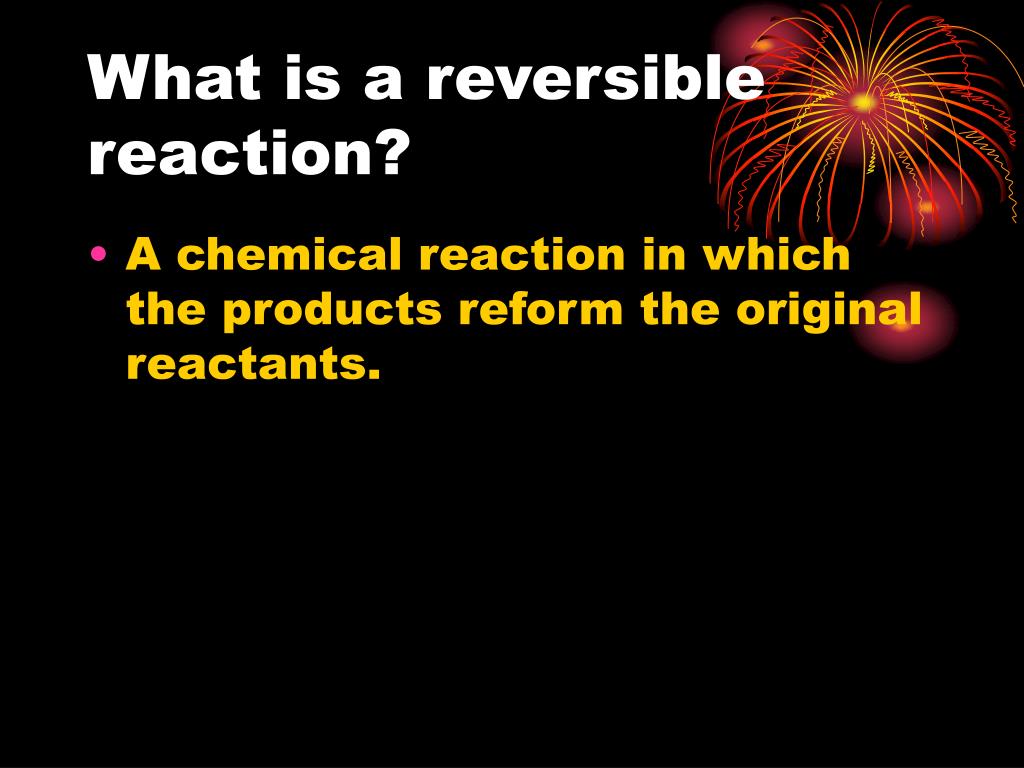

What is a reversible reaction l.jpg
What is a reversible reaction?

  • A chemical reaction in which the products reform the original reactants.


Write the formula equation l.jpg
Write the formula equation

  • Solid iron (III) sulfide reacts with gaseous hydrogen chloride to form solid iron (II) chloride and hydrogen sulfide gas.

  • Nitric acid dissolved in water reacts with solid sodium carbonate to form liquid water and carbon dioxide gas and sodium nitrate dissolved in water.


Write the word equations l.jpg
Write the word equations

  • Fe(s) + O2(g) ® Fe2O3(s)

  • Cu(s) + AgNO3(aq) ® Ag(s) + Cu(NO3)2(aq)

  • NO2 (g) N2(g) + O2(g)


Balancing chemical equations l.jpg

Balancing Chemical Equations

A step by step approach


Balanced equation l.jpg
Balanced Equation

  • Atoms can’t be created or destroyed

  • All the atoms we start with we must end up with

  • A balanced equation has the same number of each element on both sides of the equation.


Slide14 l.jpg

®

O

+

C

C

O

O

O

  • Carbon + oxygen yields carbon dioxide

  • C + O2® CO2

  • This equation is already balanced


Slide15 l.jpg

®

O

+

C

C

O

O

  • Carbon + oxygen yields carbon monoxide

  • C + O2® CO

  • We need one more oxygen in the products.

  • Can’t change the formula

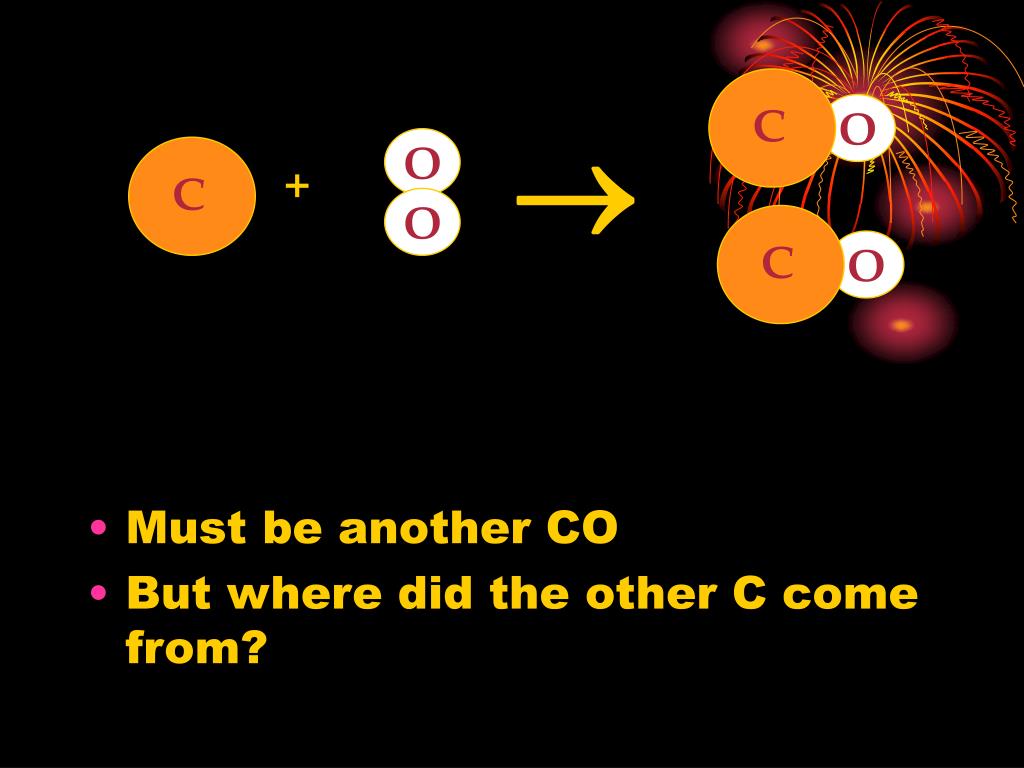

Slide16 l.jpg

C

O

®

O

+

C

O

  • Must be another CO

  • But where did the other C come from?

C

O


Slide17 l.jpg

C

C

O

®

O

+

O

  • Must have started with two C

  • 2 C + O2® 2 CO

C

O

C


Rules for balancing l.jpg
Rules for balancing

  • Write the correct formulas for all the reactants and products

  • Count the number of atoms of each type appearing on both sides

  • Balance the elements one at a time by adding coefficients (the numbers in front)

  • Balance polyatomic ions that appear on both sides of the equation as single units


Always l.jpg
Always

  • Recount atoms as coefficients are added or changed

  • Reduce the coefficients to represent the smallest whole number ratio of reactants and products


Never l.jpg
Never

  • Add, delete, or change a subscript to balance an equation.

  • Never put a coefficient in the middle of a formula


Example l.jpg
Example

H2 +

O2

®

H2O

Make a table to keep track of atoms

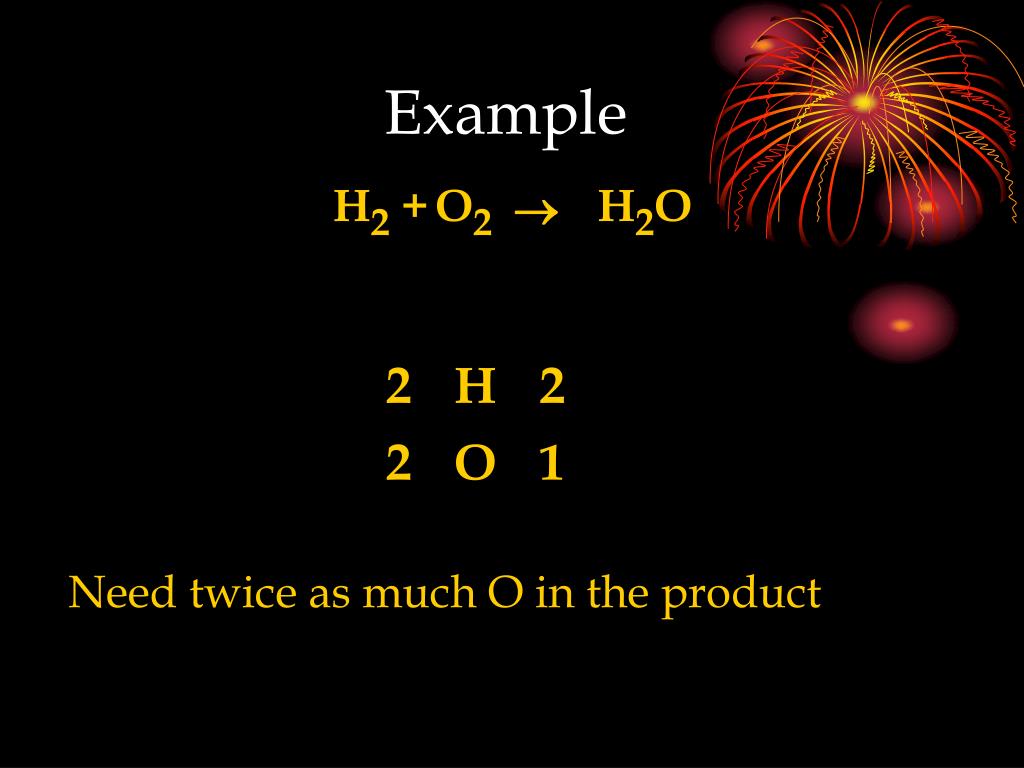

Slide22 l.jpg

Example

H2 +

O2

®

H2O

2

H

2

2

O

1

Need twice as much O in the product

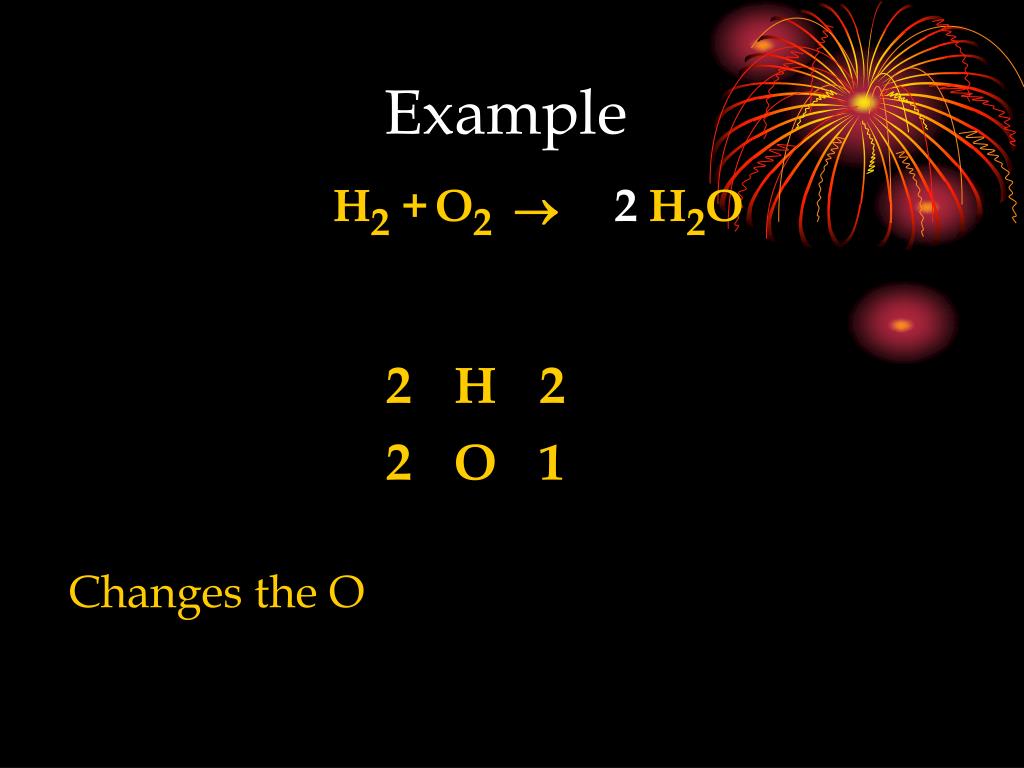

Slide23 l.jpg

Example

H2 +

O2

®

2

H2O

2

H

2

2

O

1

Changes the O


Slide24 l.jpg

Example

H2 +

O2

®

2

H2O

2

H

2

2

O

1

2

Also changes the H


Slide25 l.jpg

Example

H2 +

O2

®

2

H2O

2

H

2

4

2

O

1

2

Need twice as much H in the reactant

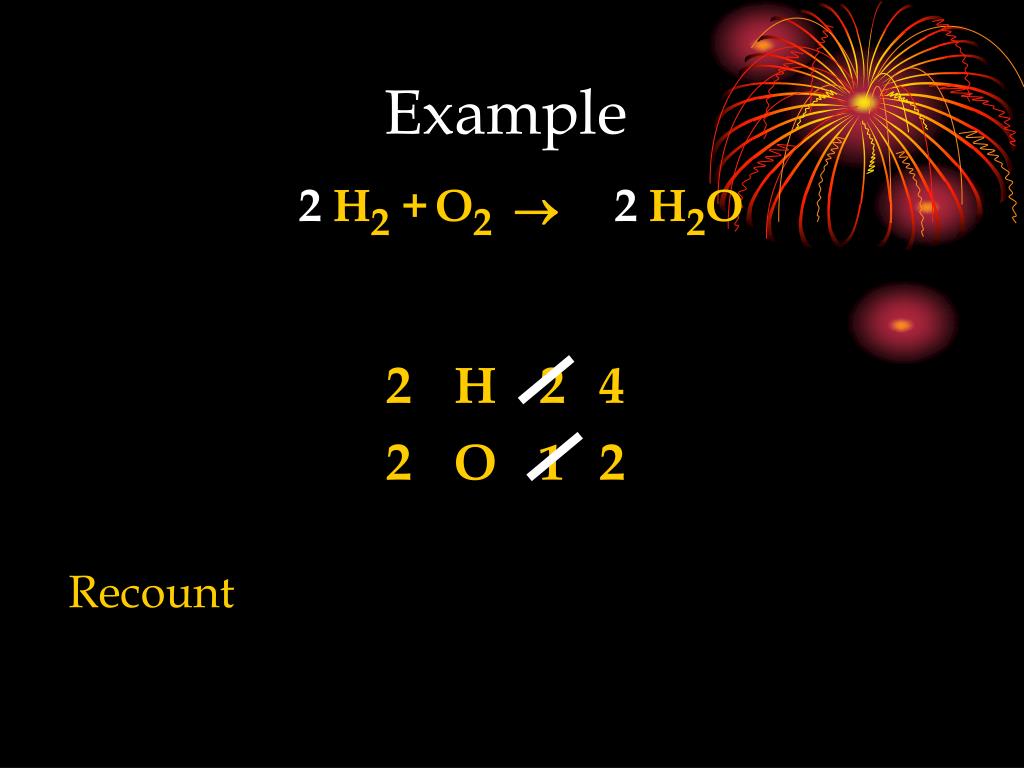

Slide26 l.jpg

Example

2

H2 +

O2

®

2

H2O

2

H

2

4

2

O

1

2

Recount


Slide27 l.jpg

Example

2

H2 +

O2

®

2

H2O

4

2

H

2

4

2

O

1

2

The equation is balanced, has the same

number of each kind of atom on both sides

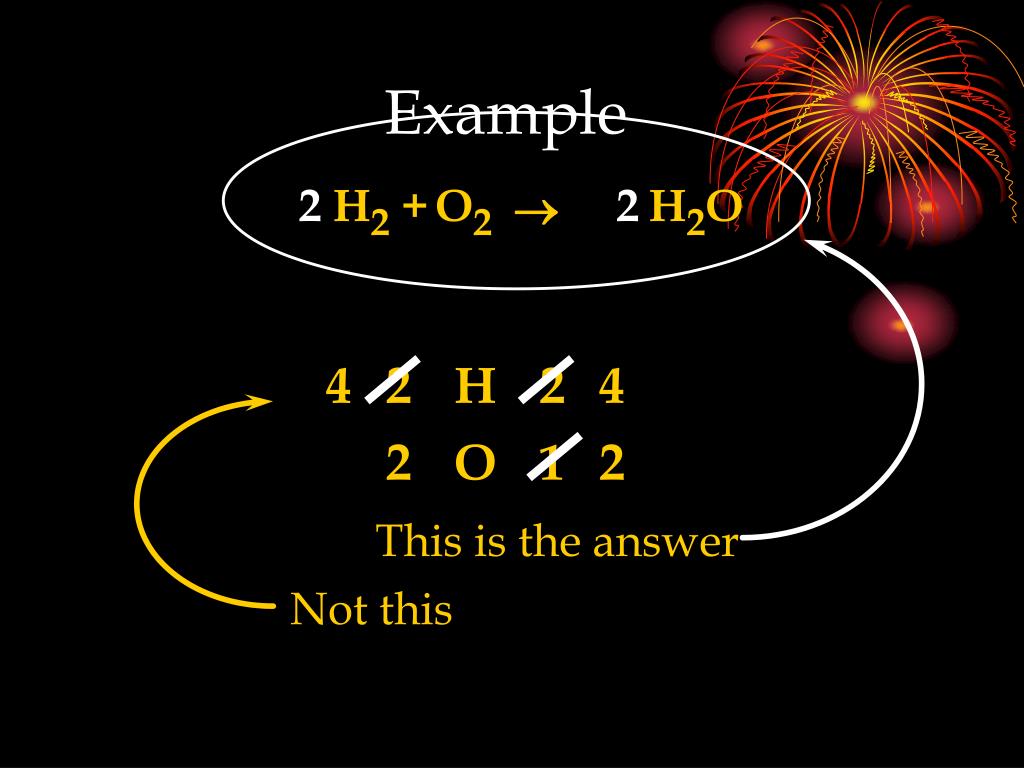

Slide28 l.jpg

Example

2

H2 +

O2

®

2

H2O

4

2

H

2

4

2

O

1

2

This is the answer

Not this

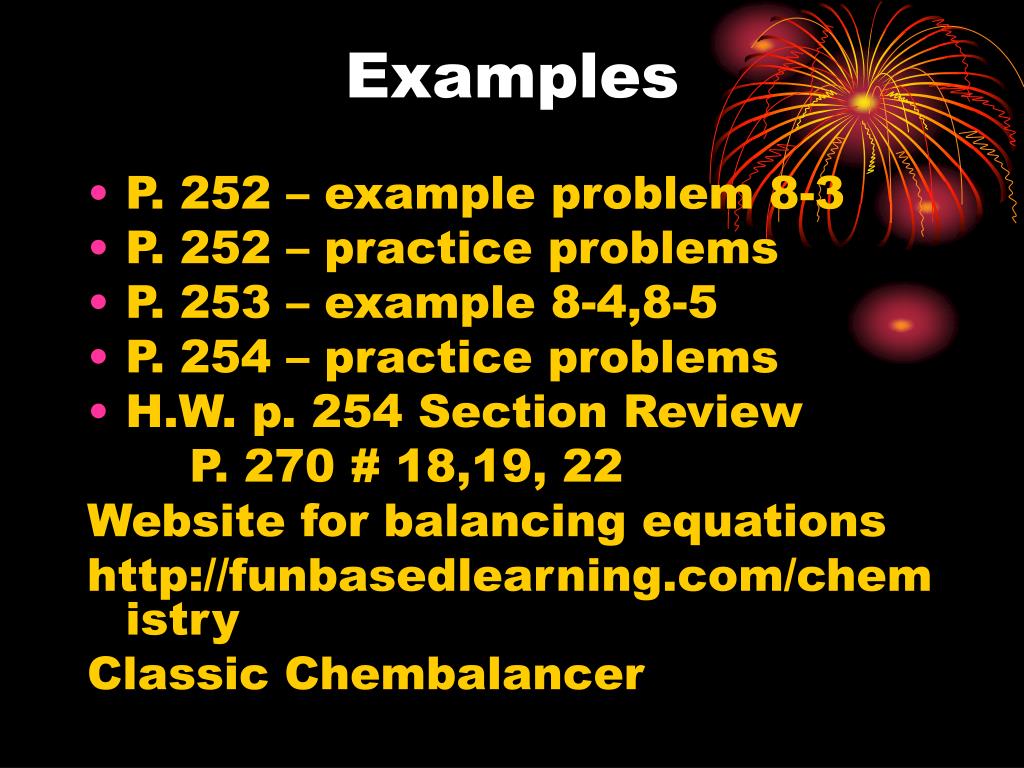

Examples l.jpg
Examples

  • P. 252 – example problem 8-3

  • P. 252 – practice problems

  • P. 253 – example 8-4,8-5

  • P. 254 – practice problems

  • H.W. p. 254 Section Review

    P. 270 # 18,19, 22

    Website for balancing equations

    http://funbasedlearning.com/chemistry

    Classic Chembalancer


Types of reactions 5 basic types pages 256 264 l.jpg

Types of Reactions5 Basic Types(pages 256-264)

Predicting the Products


Synthesis l.jpg
Synthesis

  • the combination of 2 or more substances to form a compound

  • Two reactants one product

A + B  AB


Synthesis32 l.jpg
Synthesis

H2(g) + Cl2(g)  2 HCl(g)


Synthesis33 l.jpg
Synthesis

  • 2 elements, or compounds combine to make one compound.

  • Three types:

  • Reaction of elements + oxygen or sulfur

  • Reaction of metals + halogens

  • Reactions with oxides

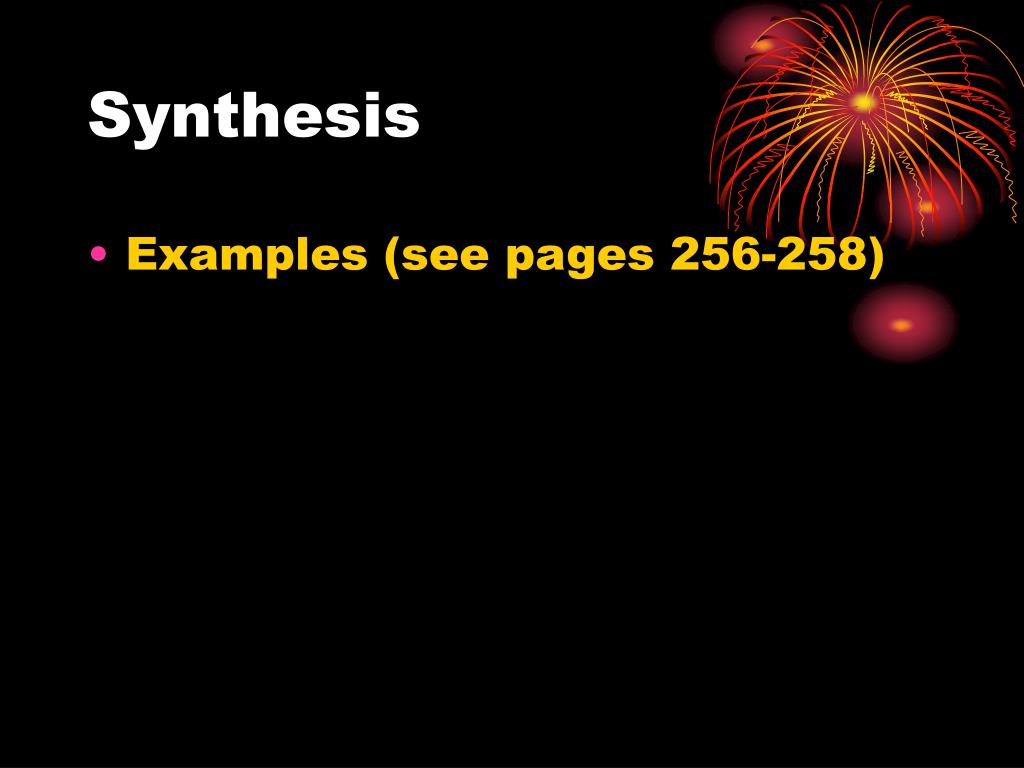

Synthesis34 l.jpg
Synthesis

  • Examples (see pages 256-258)


Decomposition l.jpg
Decomposition

  • a compound breaks down into 2 or more simpler substances

  • one reactant two products

AB  A + B


Decomposition36 l.jpg
Decomposition

  • one reactant breaks apart into two or more elements or compounds.

  • Usually requires heat or electricity

  • A catalyst may be used to speed up the reaction

  • The decomposition of a substance by electricity is called electrolysis


Decomposition37 l.jpg
Decomposition

  • Can predict the products easily if it is a binary compound

  • 2H2O 2H2 + O2

  • 2NaCl 2Na + Cl2

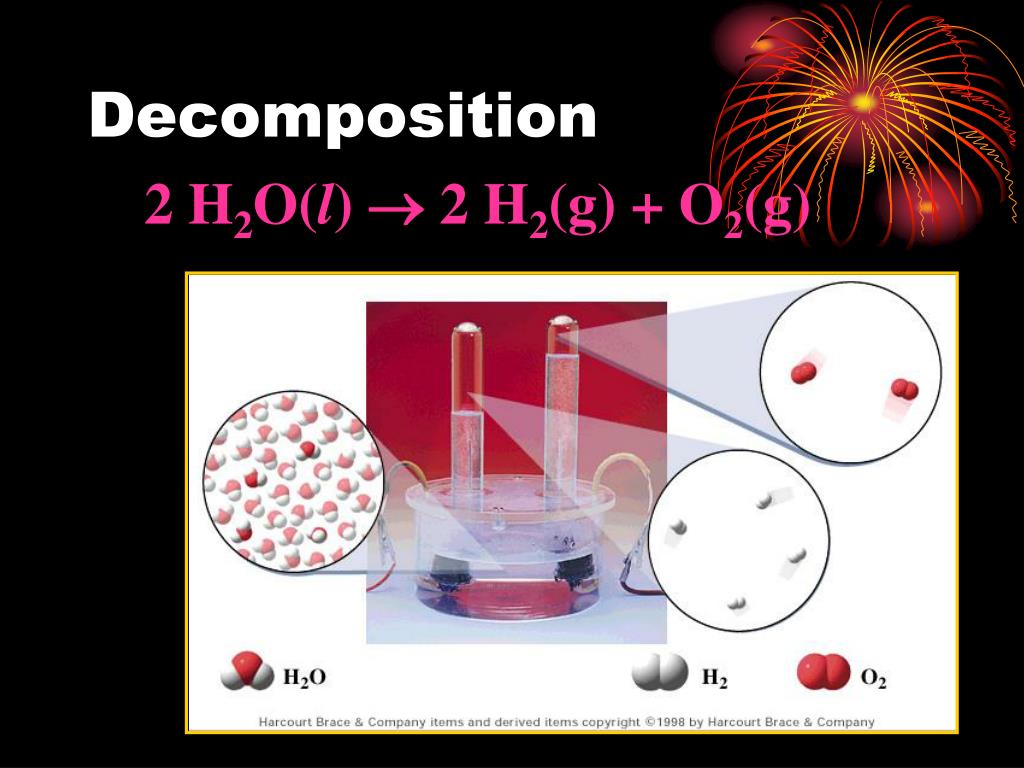

Decomposition38 l.jpg
Decomposition

2 H2O(l)  2 H2(g) + O2(g)

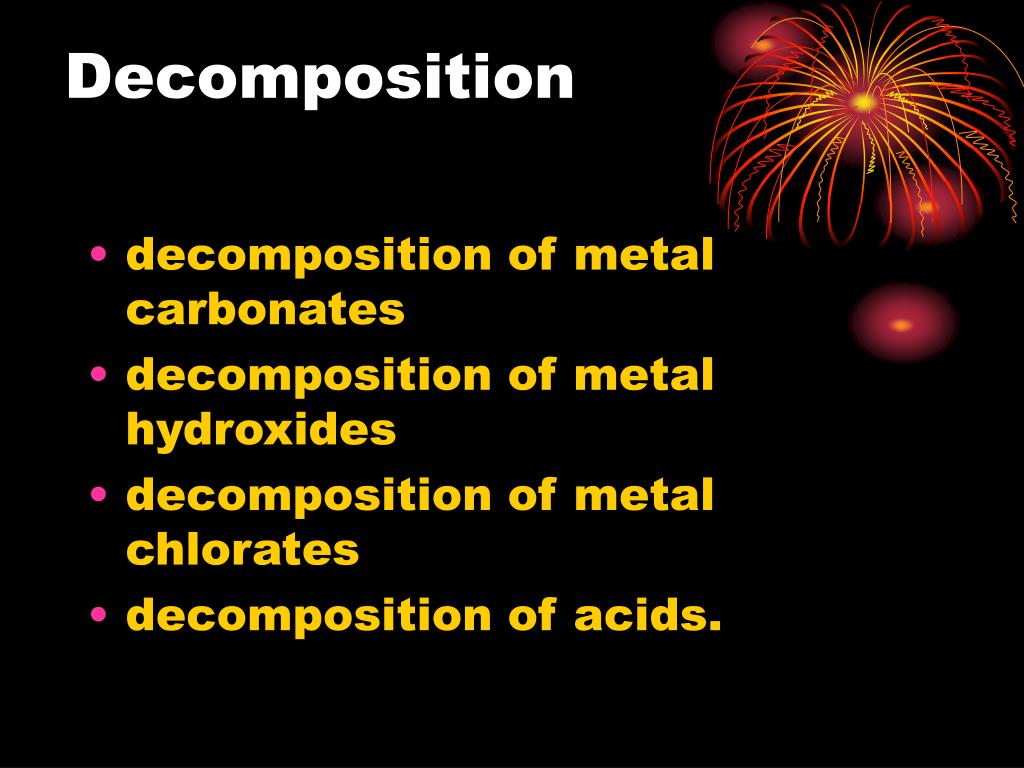

Decomposition39 l.jpg
Decomposition

  • decomposition of metal carbonates

  • decomposition of metal hydroxides

  • decomposition of metal chlorates

  • decomposition of acids.

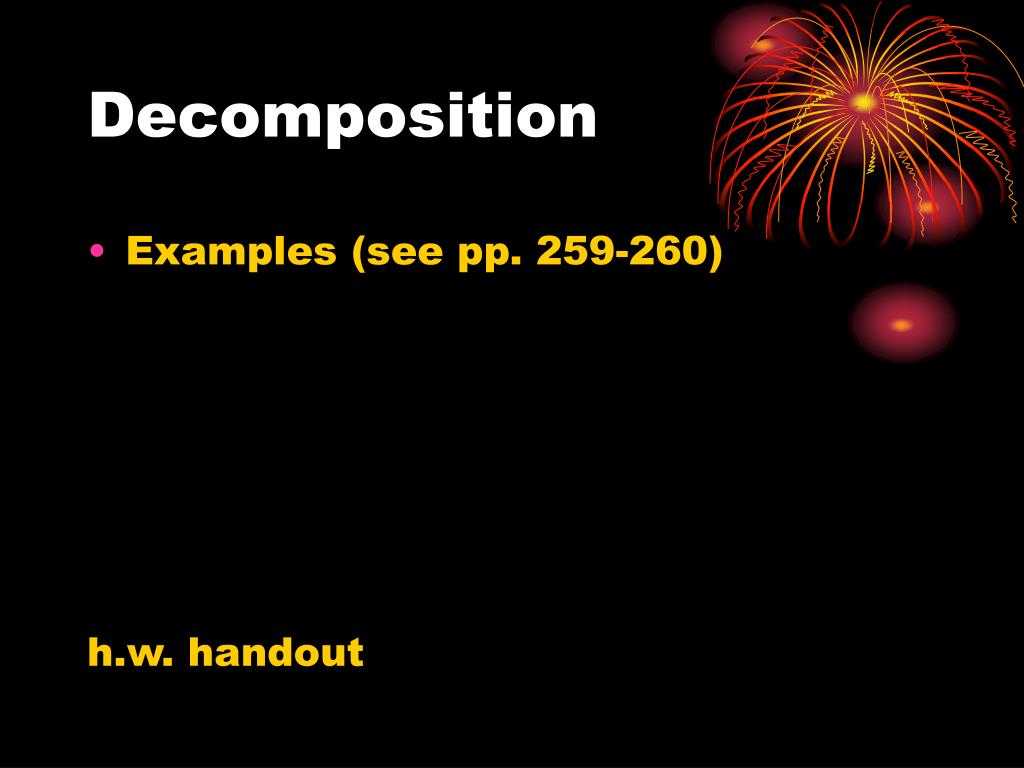

Decomposition40 l.jpg
Decomposition

  • Examples (see pp. 259-260)

    h.w. handout


Single replacement l.jpg
Single Replacement

  • one element replaces another in a compound

    • metal replaces metal (+) and hydrogen

    • nonmetal replaces nonmetal (-)

A + BC  B + AC


Single replacement42 l.jpg
Single Replacement

Cu(s) + 2AgNO3(aq)  Cu(NO3)2(aq) + 2Ag(s)


Single replacement43 l.jpg
Single Replacement

  • Examples: (see p. 261-262)


Double replacement l.jpg
Double Replacement

  • ions in two compounds “change partners”

  • cation of one compound combines with anion of the other

AB + CD  AD + CB

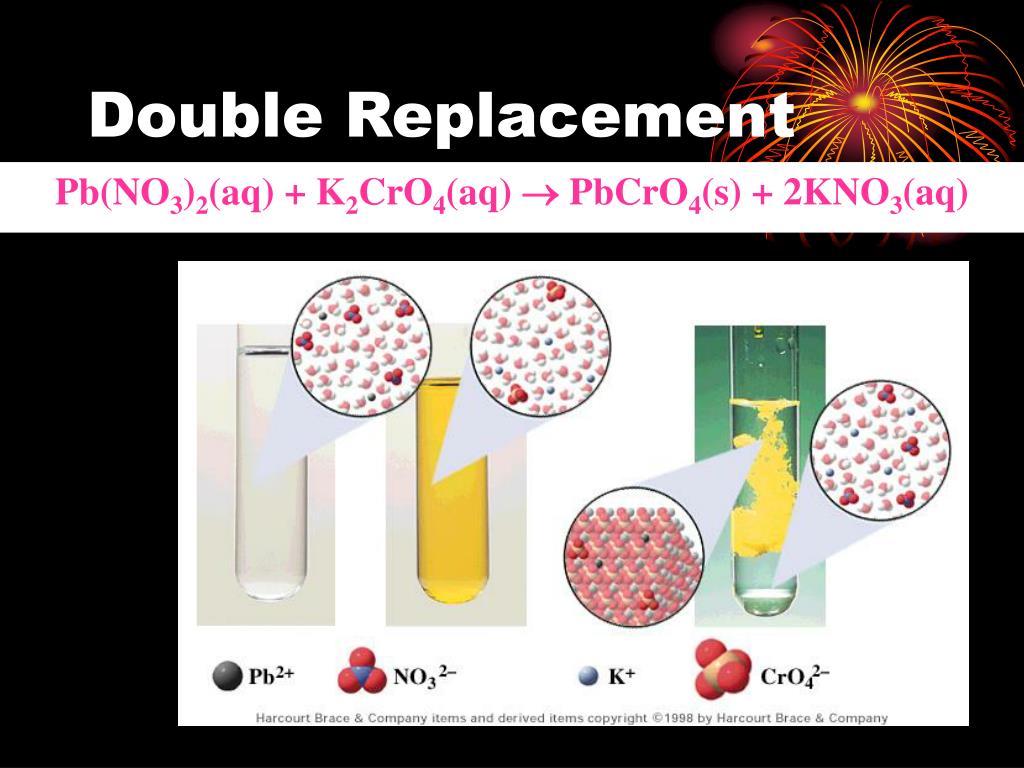

Double replacement45 l.jpg
Double Replacement

Pb(NO3)2(aq) + K2CrO4(aq)  PbCrO4(s) + 2KNO3(aq)


Double replacement46 l.jpg
Double Replacement

  • Formation of a precipitate, gas, or water

  • Examples ( see pages 262-263)

  • H.w. handout


Combustion l.jpg
Combustion

  • the burning of any substance in O2 to produce a large amount of energy in the form of heat and light

CH4(g) + 2O2(g)  CO2(g) + 2H2O(g)


Combustion48 l.jpg
Combustion

  • Combustion of a hydrocarbon with oxygen

  • the products will be CO2 and H2O.

    (may get C and CO under less than perfect conditions)

    Balance C, H, then O


Examples49 l.jpg
Examples

  • C2H6 + O2®

  • C3H8 + O2®

  • C4H10 + O2®

  • C7H16 + O2®


Homework l.jpg
Homework

  • P. 269 # 1-11

  • P. 264 # 1-4

  • P. 270 # 20, 21

  • P. 271 # 25-29, 33

  • P. 272 # 44, 48
