  1. Sensible Solutions for Refurbished Radiology Mobile C-Arms 101 By: Vikki Harmonay

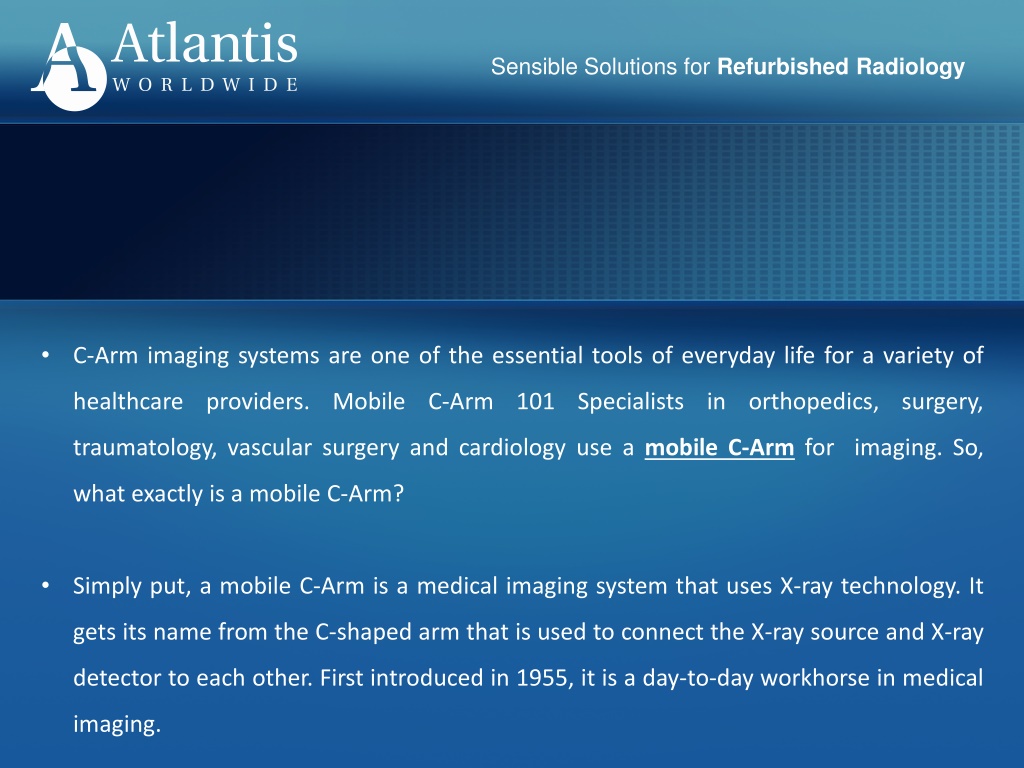

  2. Sensible Solutions for Refurbished Radiology • C-Arm imaging systems are one of the essential tools of everyday life for a variety of healthcare providers. Mobile C-Arm 101 Specialists in orthopedics, surgery, traumatology, vascular surgery and cardiology use a mobile C-Arm for imaging. So, what exactly is a mobile C-Arm? • Simply put, a mobile C-Arm is a medical imaging system that uses X-ray technology. It gets its name from the C-shaped arm that is used to connect the X-ray source and X-ray detector to each other. First introduced in 1955, it is a day-to-day workhorse in medical imaging.

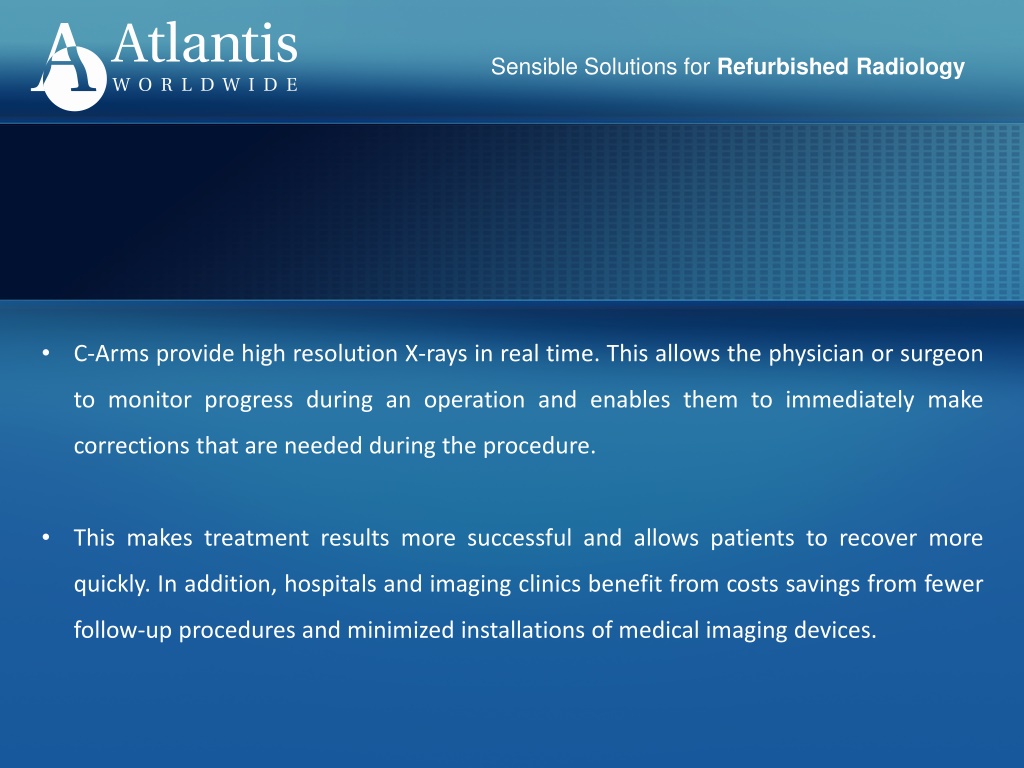

  3. Sensible Solutions for Refurbished Radiology • C-Arms provide high resolution X-rays in real time. This allows the physician or surgeon to monitor progress during an operation and enables them to immediately make corrections that are needed during the procedure. • This makes treatment results more successful and allows patients to recover more quickly. In addition, hospitals and imaging clinics benefit from costs savings from fewer follow-up procedures and minimized installations of medical imaging devices.

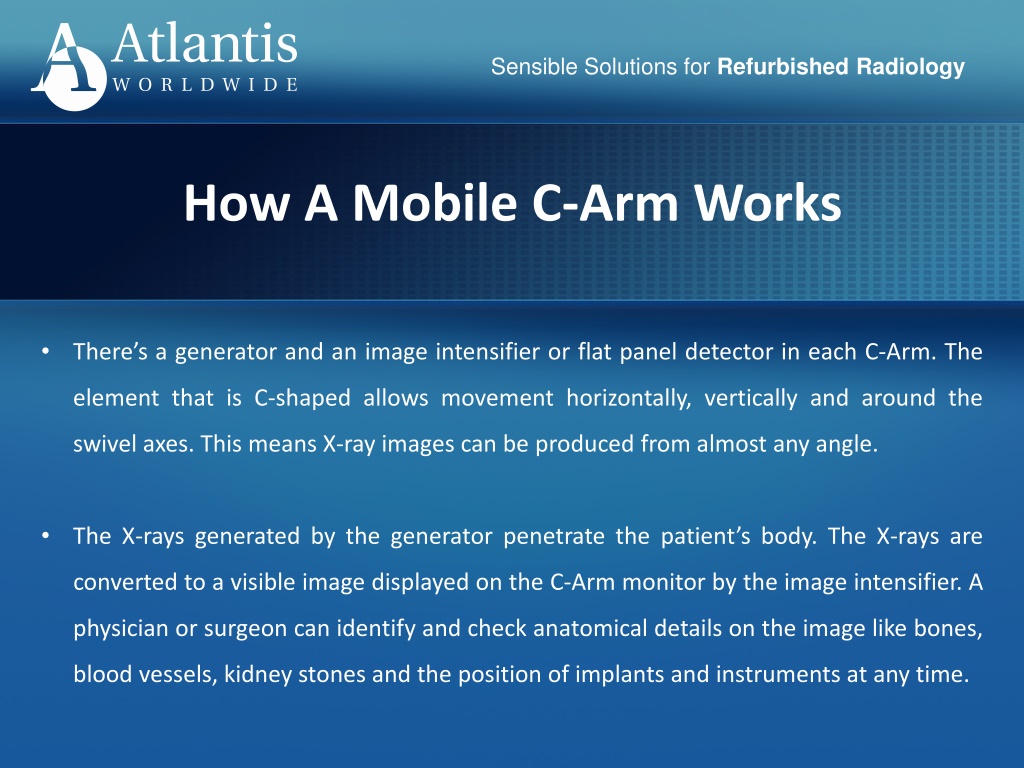

  4. Sensible Solutions for Refurbished Radiology How A Mobile C-Arm Works • There’s a generator and an image intensifier or flat panel detector in each C-Arm. The element that is C-shaped allows movement horizontally, vertically and around the swivel axes. This means X-ray images can be produced from almost any angle. • The X-rays generated by the generator penetrate the patient’s body. The X-rays are converted to a visible image displayed on the C-Arm monitor by the image intensifier. A physician or surgeon can identify and check anatomical details on the image like bones, blood vessels, kidney stones and the position of implants and instruments at any time.

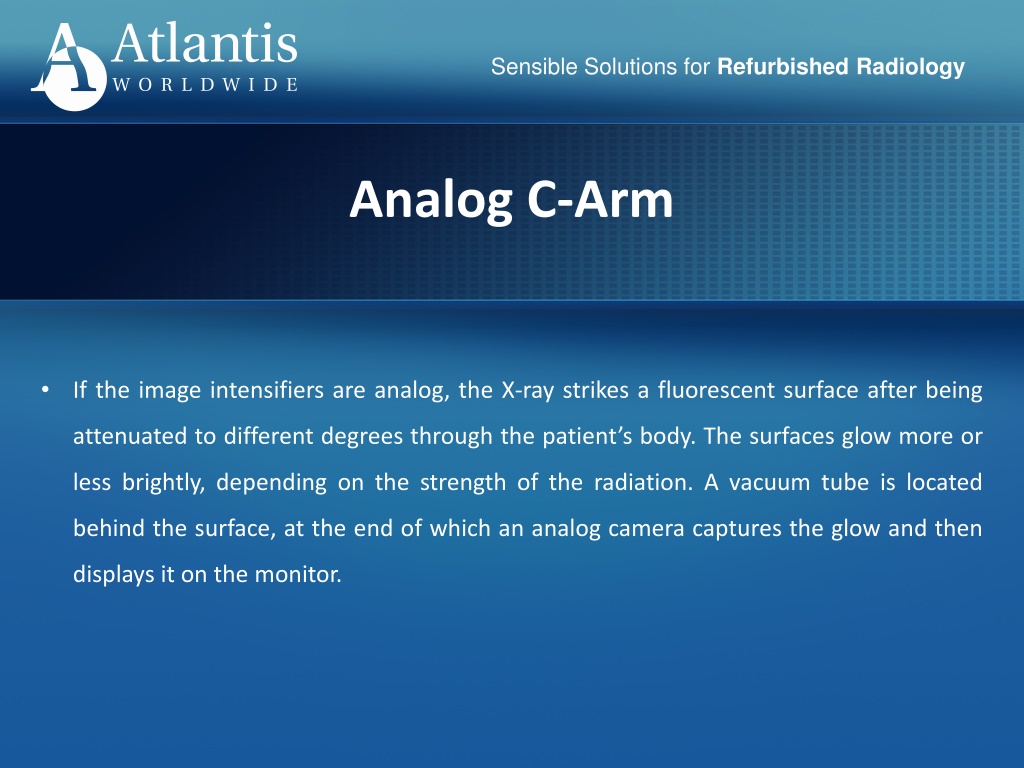

  5. Sensible Solutions for Refurbished Radiology Analog C-Arm • If the image intensifiers are analog, the X-ray strikes a fluorescent surface after being attenuated to different degrees through the patient’s body. The surfaces glow more or less brightly, depending on the strength of the radiation. A vacuum tube is located behind the surface, at the end of which an analog camera captures the glow and then displays it on the monitor.

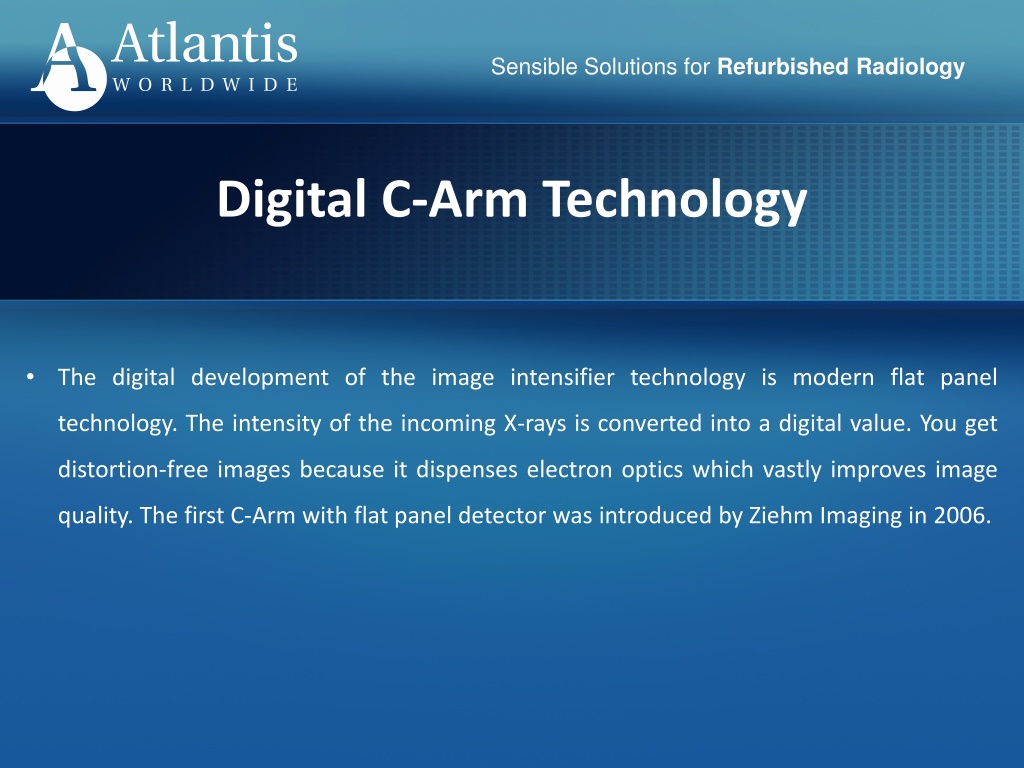

  6. Sensible Solutions for Refurbished Radiology Digital C-Arm Technology • The digital development of the image intensifier technology is modern flat panel technology. The intensity of the incoming X-rays is converted into a digital value. You get distortion-free images because it dispenses electron optics which vastly improves image quality. The first C-Arm with flat panel detector was introduced by Ziehm Imaging in 2006.

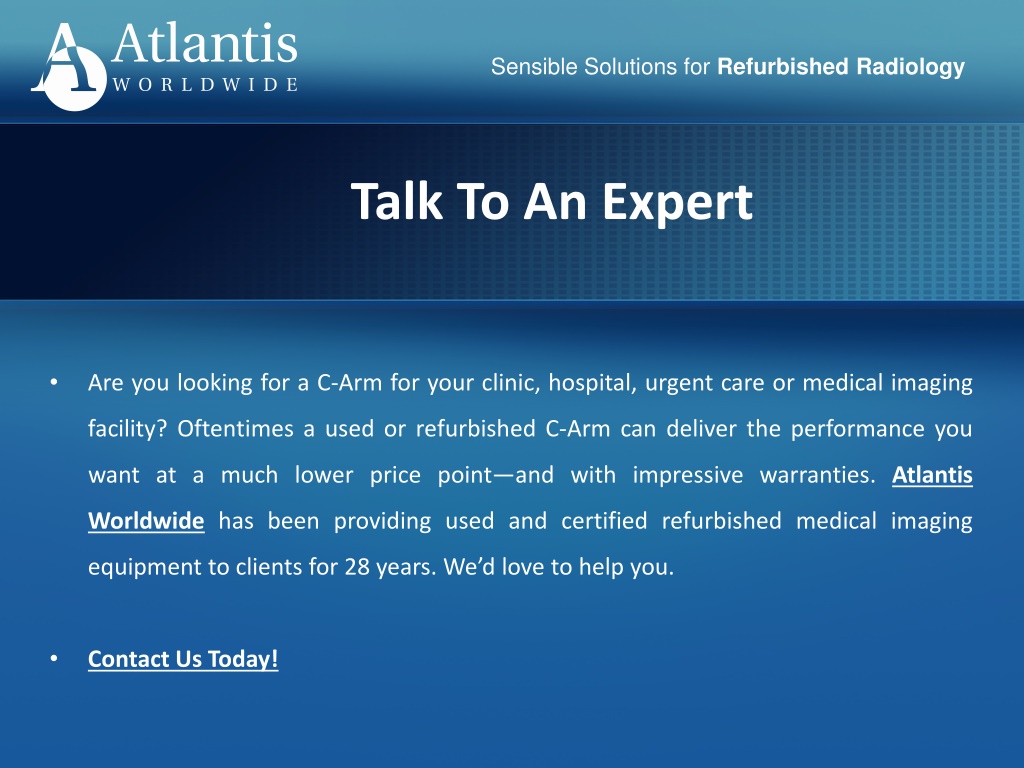

  7. Sensible Solutions for Refurbished Radiology Talk To An Expert • Are you looking for a C-Arm for your clinic, hospital, urgent care or medical imaging facility? Oftentimes a used or refurbished C-Arm can deliver the performance you want at a much lower price point—and with impressive warranties. Atlantis Worldwide has been providing used and certified refurbished medical imaging equipment to clients for 28 years. We’d love to help you. • Contact Us Today!

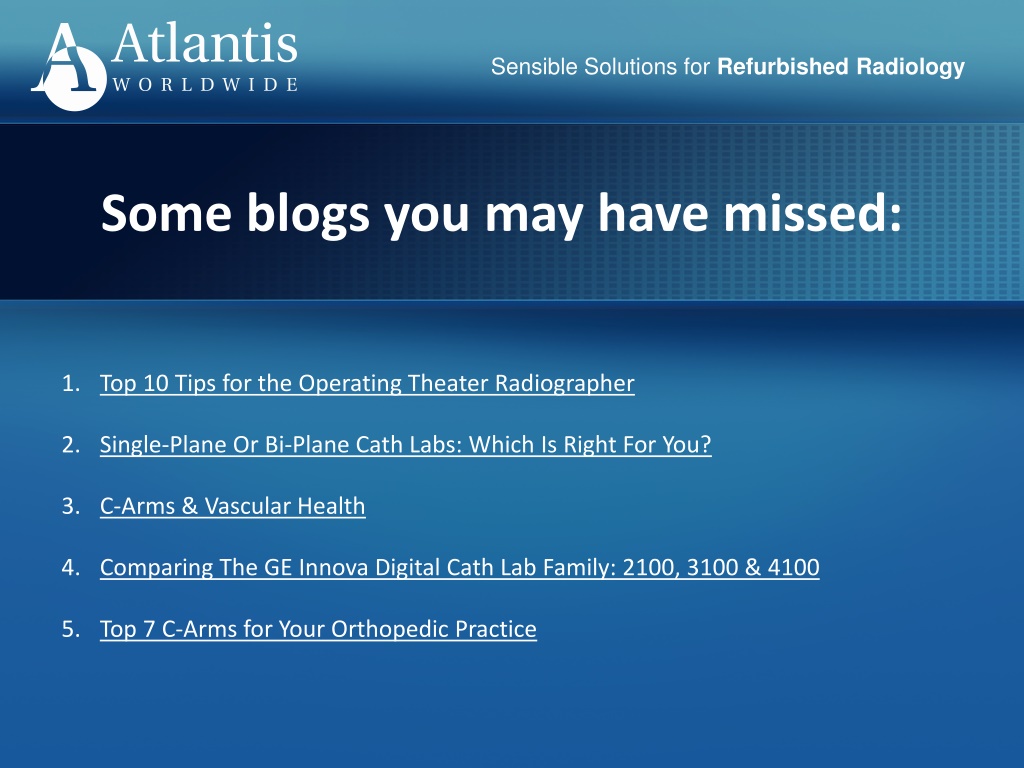

  8. Sensible Solutions for Refurbished Radiology Some blogs you may have missed: 1. Top 10 Tips for the Operating Theater Radiographer 2. Single-Plane Or Bi-Plane Cath Labs: Which Is Right For You? 3. C-Arms & Vascular Health 4. Comparing The GE Innova Digital Cath Lab Family: 2100, 3100 & 4100 5. Top 7 C-Arms for Your Orthopedic Practice

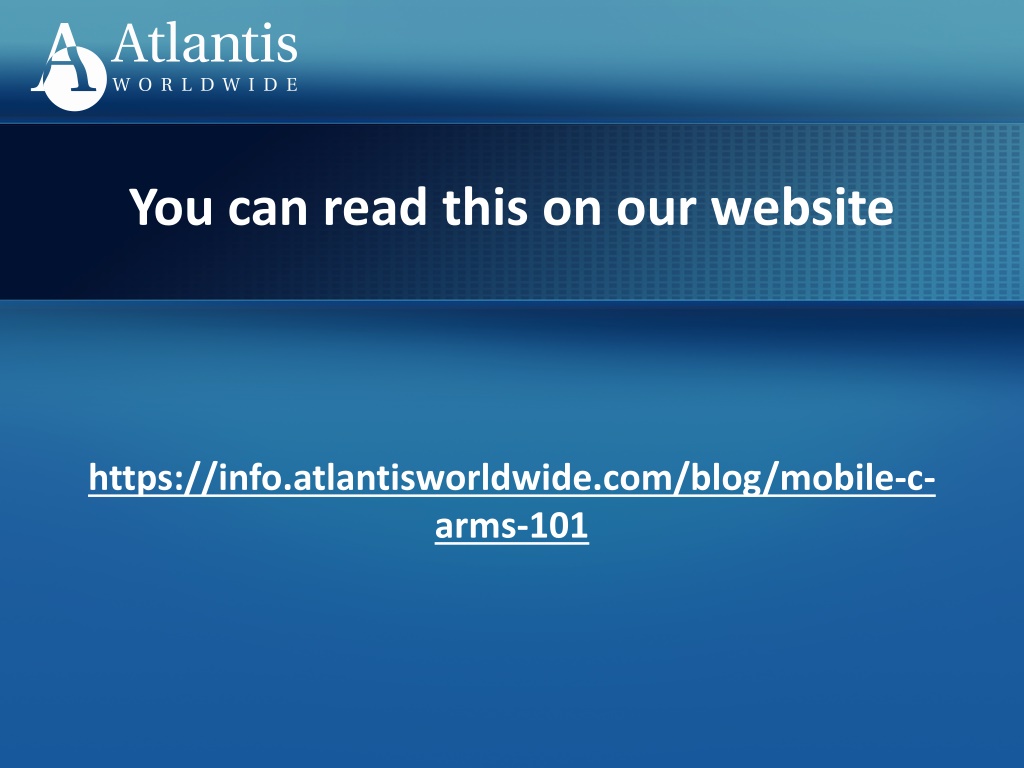

  9. You can read this on our website https://info.atlantisworldwide.com/blog/mobile-c- arms-101

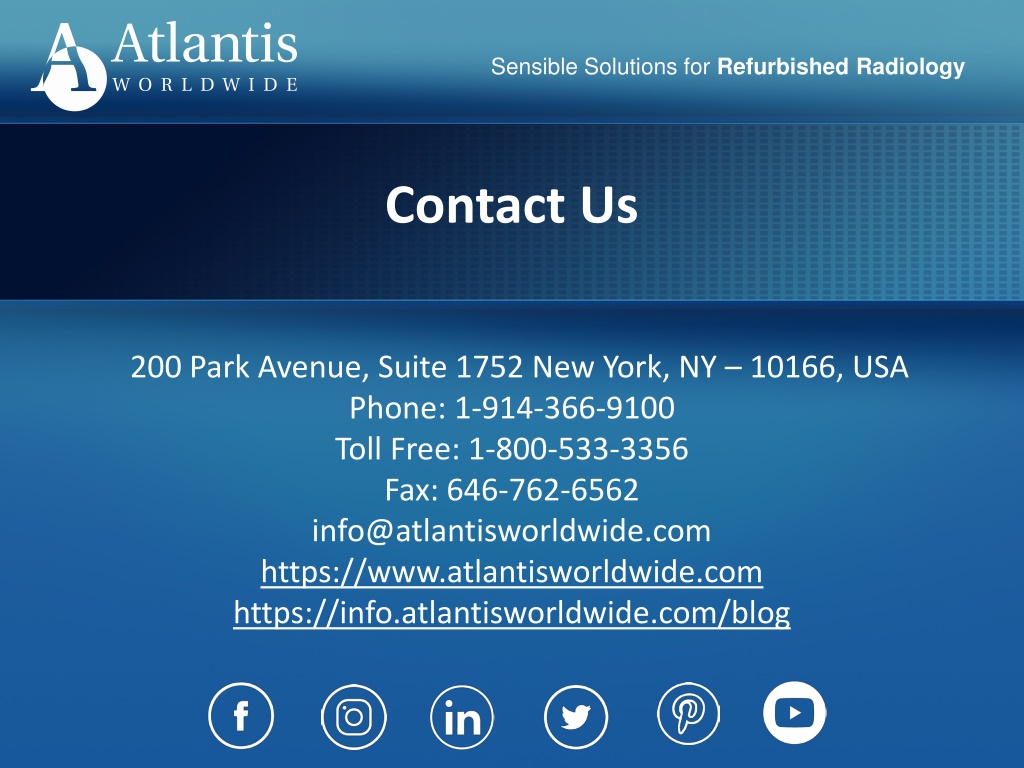

  10. Sensible Solutions for Refurbished Radiology Contact Us 200 Park Avenue, Suite 1752 New York, NY – 10166, USA Phone: 1-914-366-9100 Toll Free: 1-800-533-3356 Fax: 646-762-6562 info@atlantisworldwide.com https://www.atlantisworldwide.com https://info.atlantisworldwide.com/blog
