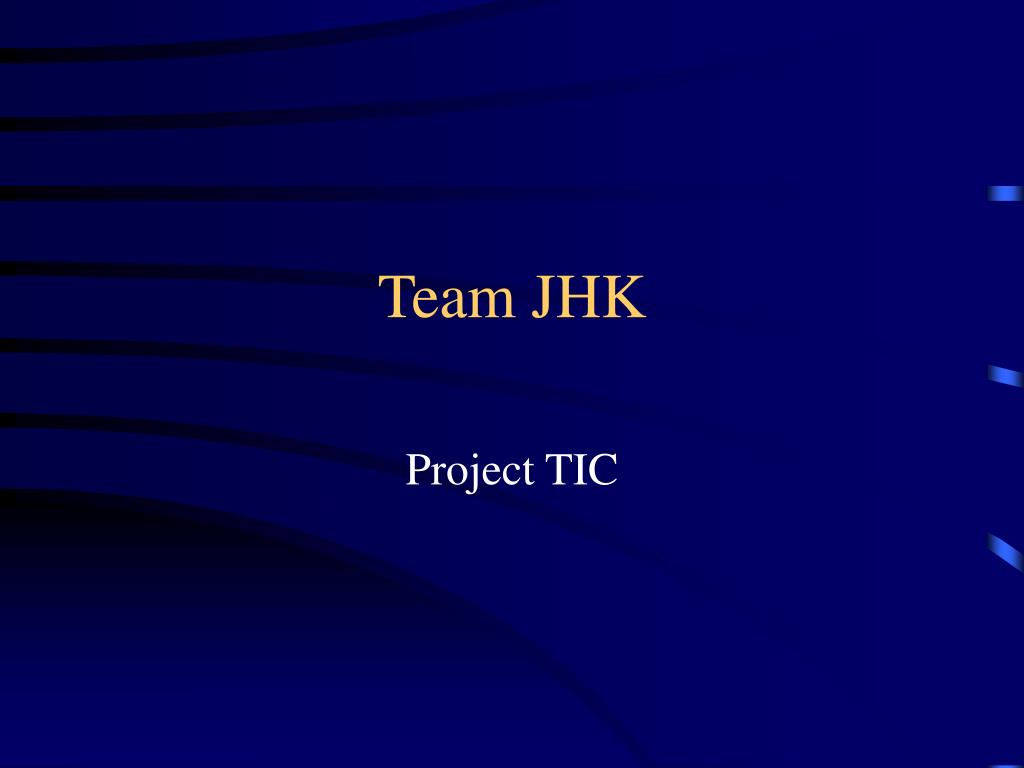

Project TIC


Personnel
Personnel

Supreme Commander

Jarrod Marsh


Personnel1
Personnel

Mistress of Money, Transactions, and Work No One Else Wants to Do

Hallie Baer


Personnel2
Personnel

Minister of Paperwork, Bureaucratic Nonsense, and Design Review

Koren Smith


Pdr presentation

PDR Presentation

Team JHK

Experiment TIC

February 27, 2003


Science objective

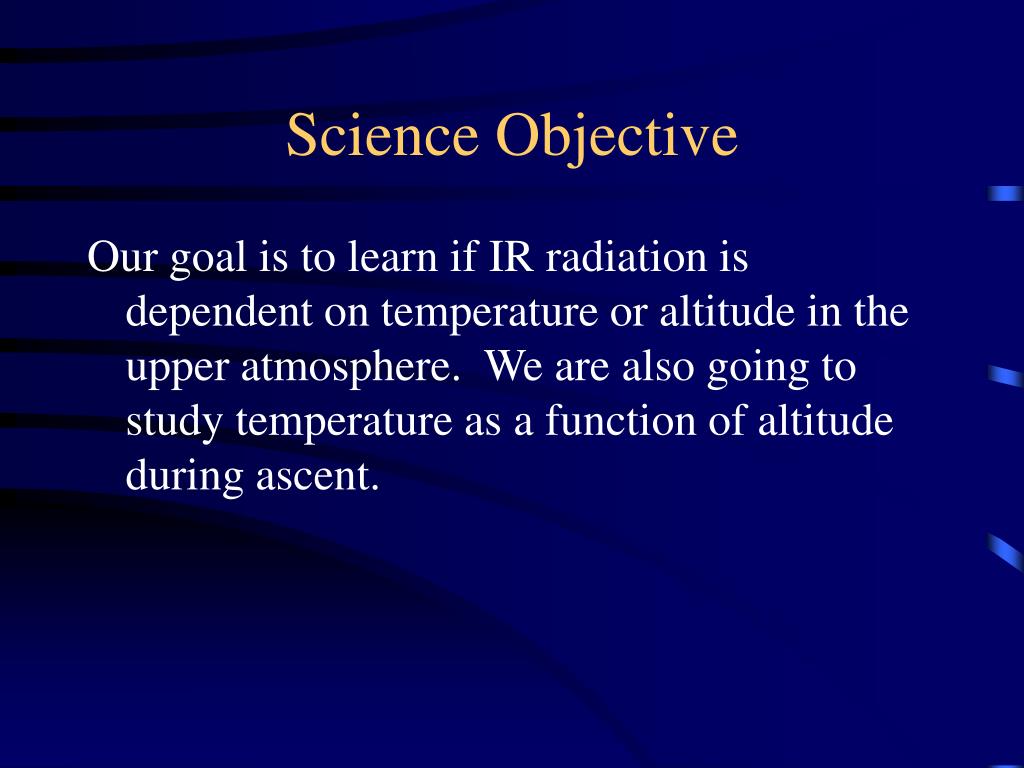

Science Objective

Our goal is to learn if IR radiation is dependent on temperature or altitude in the upper atmosphere. We are also going to study temperature as a function of altitude during ascent.


Payload design

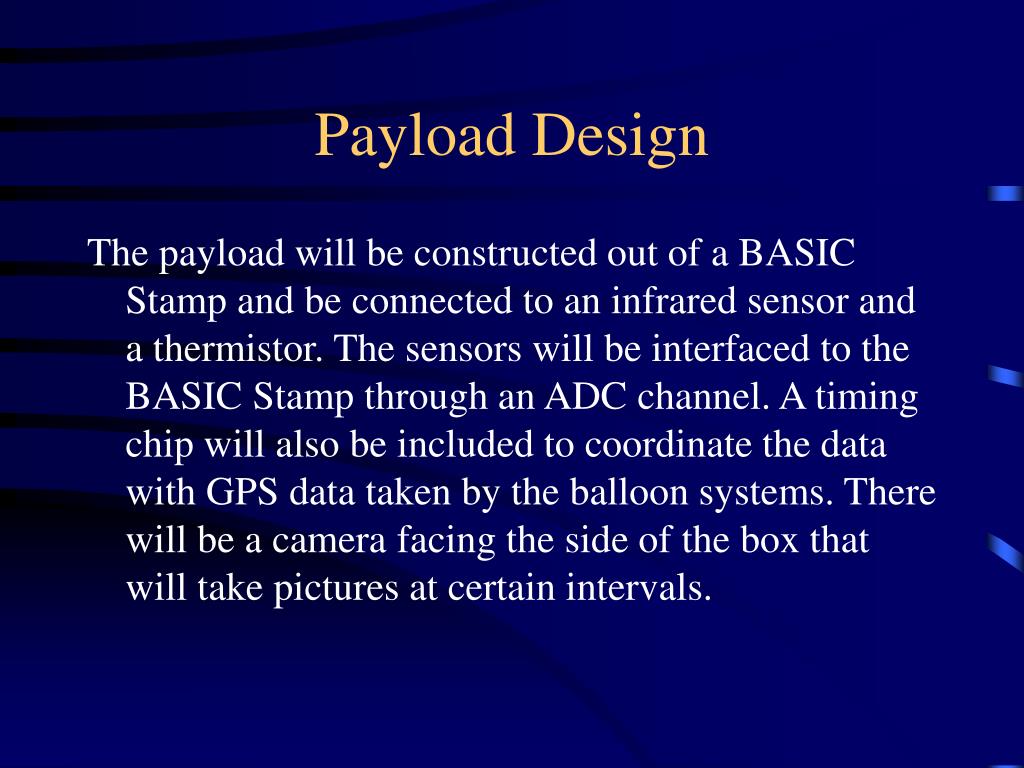

Payload Design

The payload will be constructed out of a BASIC Stamp and be connected to an infrared sensor and a thermistor. The sensors will be interfaced to the BASIC Stamp through an ADC channel. A timing chip will also be included to coordinate the data with GPS data taken by the balloon systems. There will be a camera facing the side of the box that will take pictures at certain intervals.


Fabrication and testing

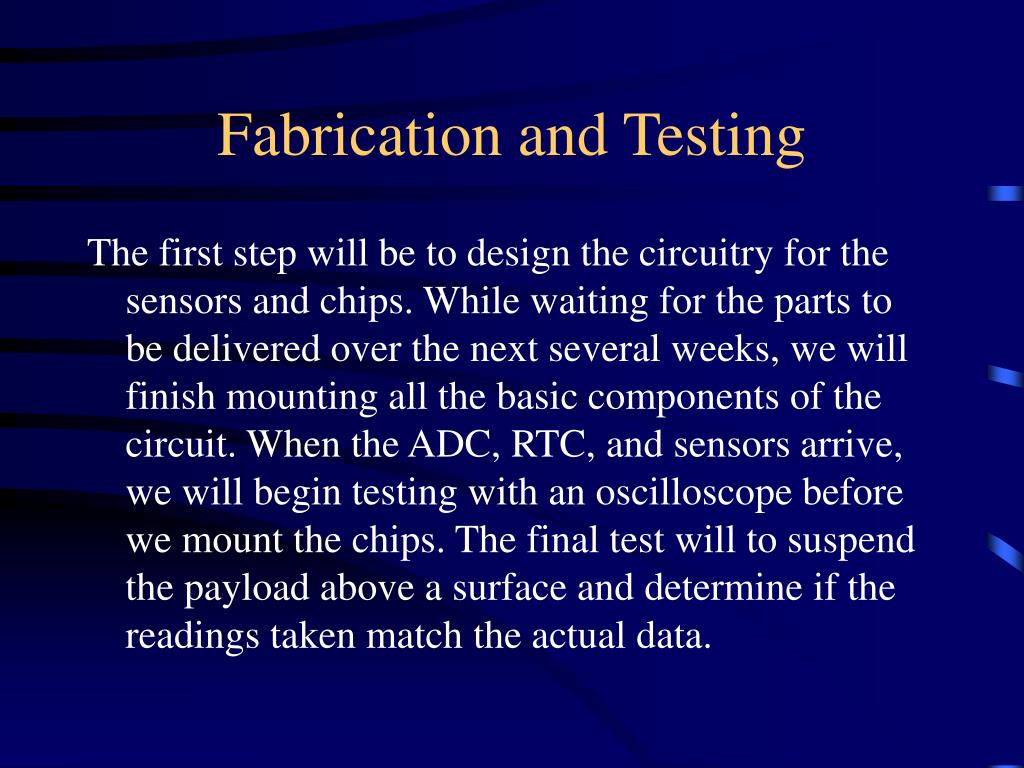

Fabrication and Testing

The first step will be to design the circuitry for the sensors and chips. While waiting for the parts to be delivered over the next several weeks, we will finish mounting all the basic components of the circuit. When the ADC, RTC, and sensors arrive, we will begin testing with an oscilloscope before we mount the chips. The final test will to suspend the payload above a surface and determine if the readings taken match the actual data.


Fabrication test list

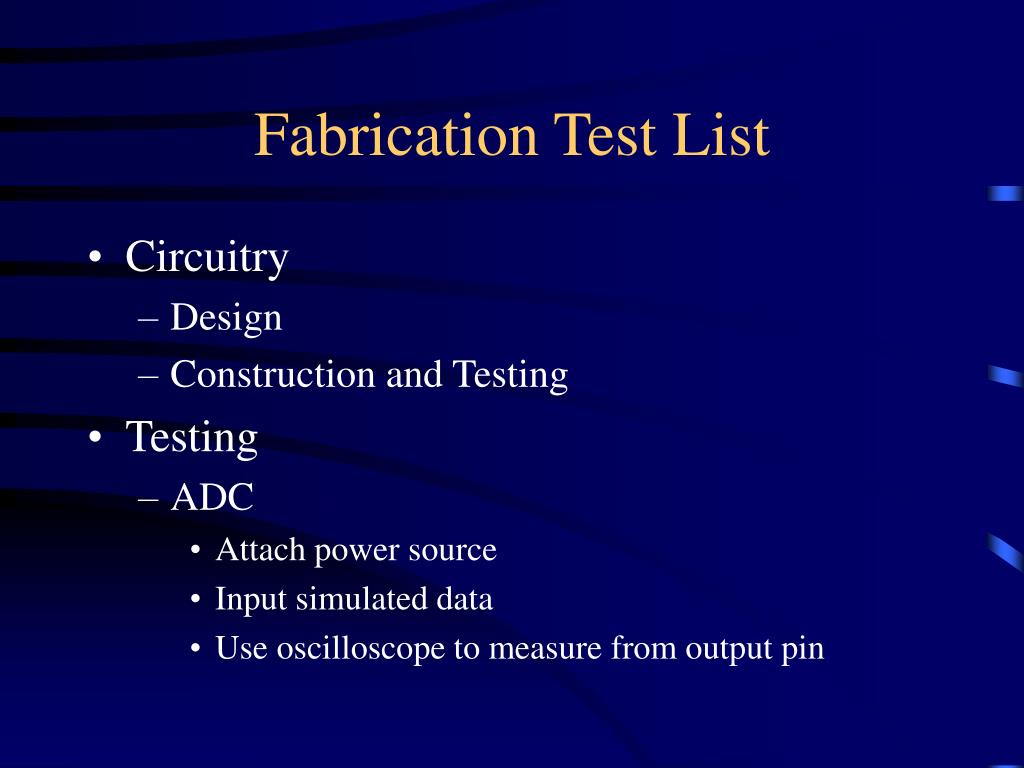

Fabrication Test List

  • Circuitry

    • Design

    • Construction and Testing

  • Testing

    • ADC

      • Attach power source

      • Input simulated data

      • Use oscilloscope to measure from output pin


Fabrication test list cont
Fabrication Test List (cont.)

  • RTC

    • Attach power source

    • Send command to begin transmitting time

    • Use Basic Stamp to interpret signal


Mission operations
Mission Operations

The payload will be launched and tracked from the ground. Upon recovery the EEPROM will be downloaded and the data converted to temperatures and light intensities to determine if a correlation exists between the two.


Weight budget
Weight Budget

Item Weight

CanSat 85g

Thermistor 10g

Sensor 300g

Camera 30g

Memory Chip 50g

Warming Device 100g

Total Weight 575g


Data analysis

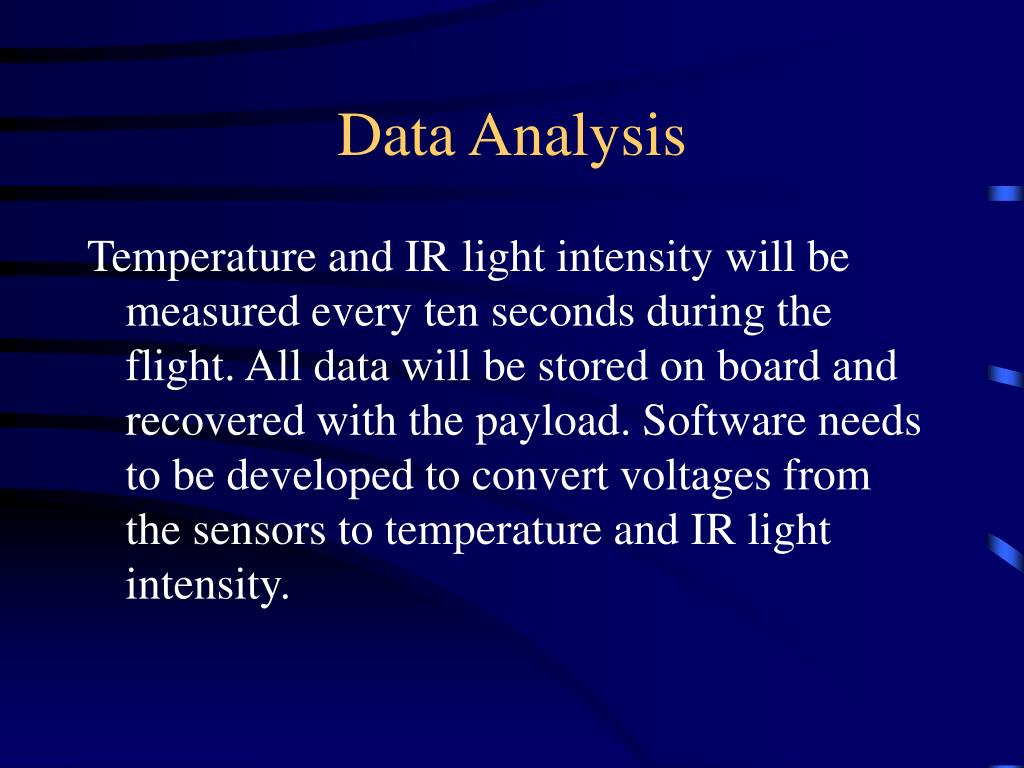

Data Analysis

Temperature and IR light intensity will be measured every ten seconds during the flight. All data will be stored on board and recovered with the payload. Software needs to be developed to convert voltages from the sensors to temperature and IR light intensity.


Power budget
Power Budget

Still waiting on specs for some parts


Master budget
Master Budget

ItemEstimated CostInfrared Sensor $200 Thermistor $20Digital Camera $40 Warming Device $20 Memory Chip $20 ADC Chip $5

$305

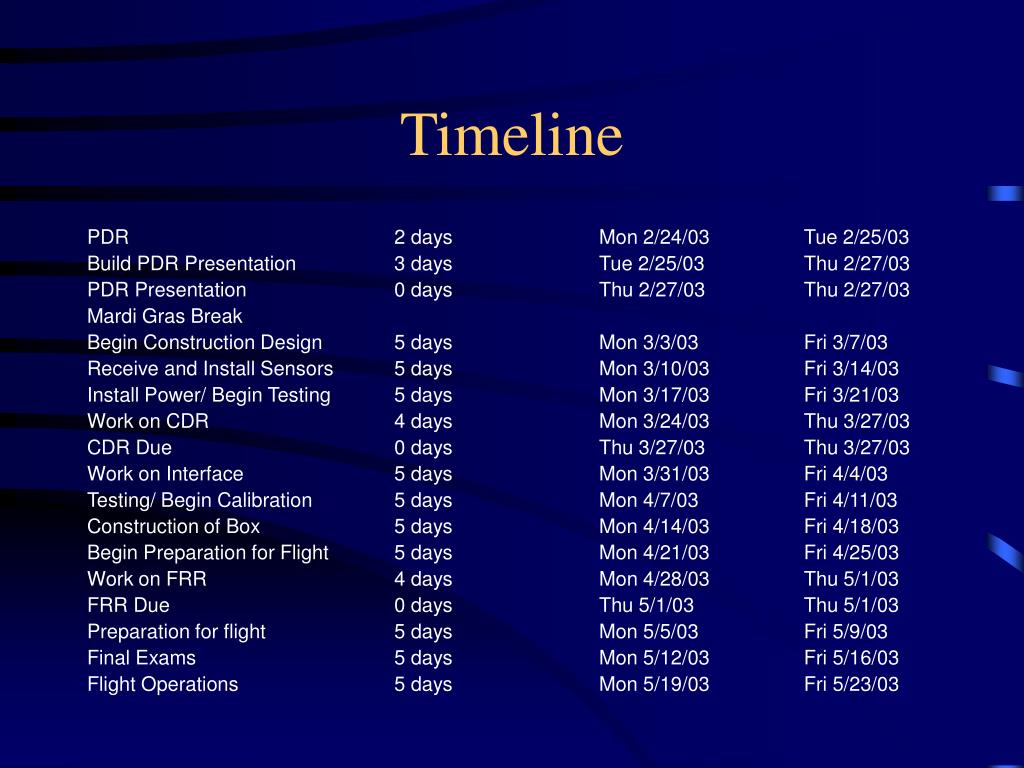

Timeline
Timeline

PDR 2 days Mon 2/24/03 Tue 2/25/03

Build PDR Presentation 3 days Tue 2/25/03 Thu 2/27/03

PDR Presentation 0 days Thu 2/27/03 Thu 2/27/03

Mardi Gras Break

Begin Construction Design 5 days Mon 3/3/03 Fri 3/7/03

Receive and Install Sensors 5 days Mon 3/10/03 Fri 3/14/03

Install Power/ Begin Testing 5 days Mon 3/17/03 Fri 3/21/03

Work on CDR 4 days Mon 3/24/03 Thu 3/27/03

CDR Due 0 days Thu 3/27/03 Thu 3/27/03

Work on Interface 5 days Mon 3/31/03 Fri 4/4/03

Testing/ Begin Calibration 5 days Mon 4/7/03 Fri 4/11/03

Construction of Box 5 days Mon 4/14/03 Fri 4/18/03

Begin Preparation for Flight 5 days Mon 4/21/03 Fri 4/25/03

Work on FRR 4 days Mon 4/28/03 Thu 5/1/03

FRR Due 0 days Thu 5/1/03 Thu 5/1/03

Preparation for flight 5 days Mon 5/5/03 Fri 5/9/03

Final Exams 5 days Mon 5/12/03 Fri 5/16/03

Flight Operations 5 days Mon 5/19/03 Fri 5/23/03


Team jhk
WBS

See Handouts


Credits
Credits

1.    Online Source: National Institute of Water and Atmospheric Research (NIWA), February 16, 2003, http://www.niwa.co.nz/edu/students/faq/layers

2.      Online Source: Online Journey through Astronomy, February 16, 2003, http://csep10/phys/utk/edu/astr161/lect/earth/atmosphere.html

3.      Online Source: NASA Website, February 16, 2003, http://liftoff.msfc.nasa.gov/academy/space/atmosphere/html

4.      Online Source: Earth Zone Website: Absorption, Radiation, & Greenhouse, February 23, 2003, http://207.10.97.102/earthzone/lessons/07meteor/greenhouse.html

5.      Online Source: University of Chicago, February 23, 2003, http://geosci.uchicago.edu/~archer/EnvChem/Labs/modtran.lite.html

6.      Online Source: Caltech University, February 23, 2003, http://www.ipac.caltech.edu/Outreach/Edu/infrared.html

7.      Online Source: Seiko Instruments, February 23, 2003, http://www.sih.com.hk.html

8.      Catalog Source: Edmund Industrial Optics, Optics and Optical Instruments Catalog, 2002, p. 191

Online Source: US Sensor Corporation, February 23, 2003, http://www.ussensor.com/products/precintr.html


And of course
And of course…

Thanks to the JHK team for putting up with me…
