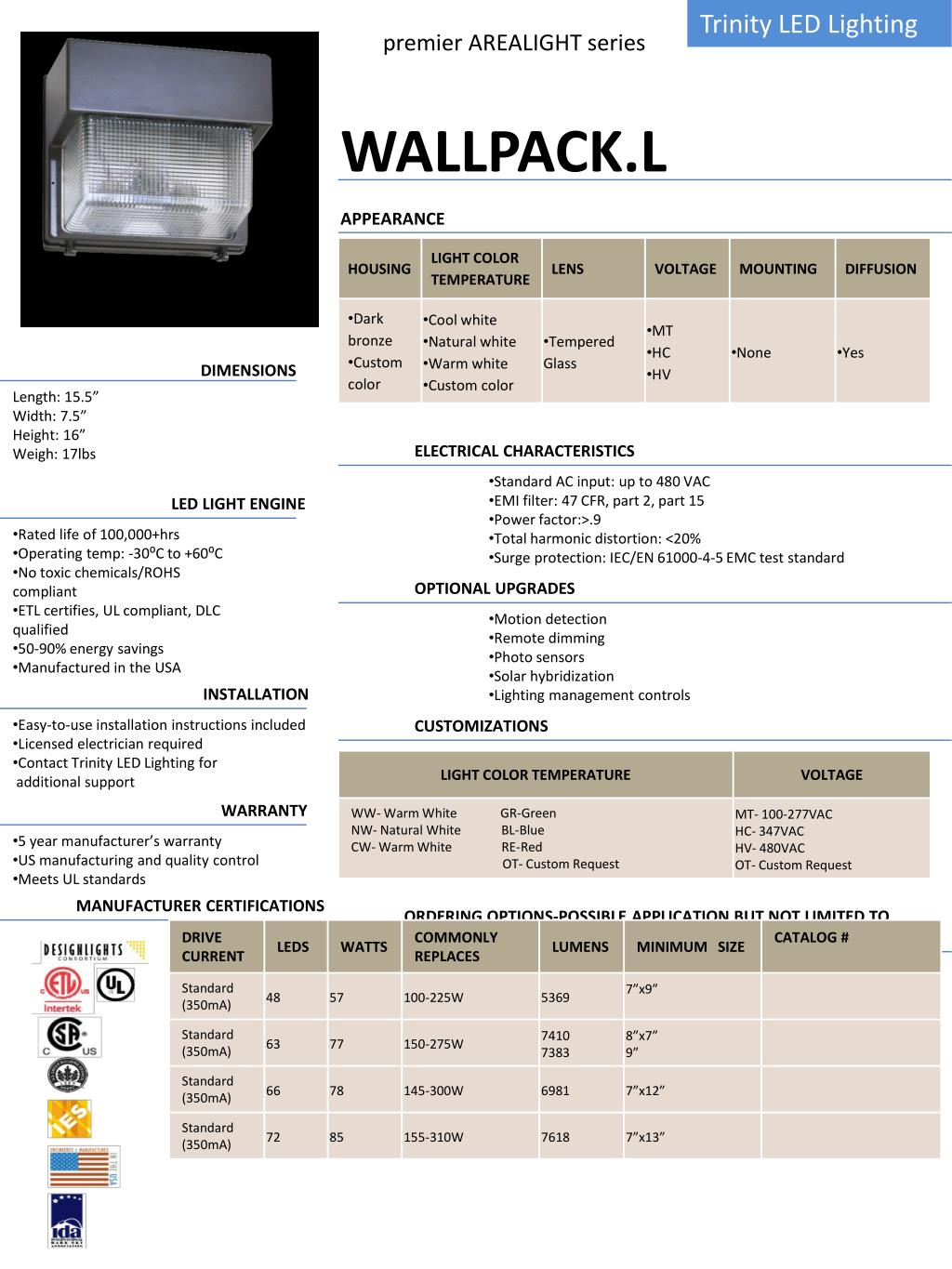

dimensions
Trinity LED Lighting

premier AREALIGHT series

WALLPACK.L

APPEARANCE

Length: 15.5”

Width: 7.5”

Height: 16”

Weigh: 17lbs

DIMENSIONS

ELECTRICAL CHARACTERISTICS

  • Standard AC input: up to 480 VAC
  • EMI filter: 47 CFR, part 2, part 15
  • Power factor:>.9
  • Total harmonic distortion: <20%
  • Surge protection: IEC/EN 61000-4-5 EMC test standard

LED LIGHT ENGINE

  • Rated life of 100,000+hrs
  • Operating temp: -30⁰C to +60⁰C
  • No toxic chemicals/ROHS compliant
  • ETL certifies, UL compliant, DLC qualified
  • 50-90% energy savings
  • Manufactured in the USA

OPTIONAL UPGRADES

  • Motion detection
  • Remote dimming
  • Photo sensors
  • Solar hybridization
  • Lighting management controls

INSTALLATION

  • Easy-to-use installation instructions included
  • Licensed electrician required
  • Contact Trinity LED Lighting for
  • additional support

CUSTOMIZATIONS

WARRANTY

  • 5 year manufacturer’s warranty
  • US manufacturing and quality control
  • Meets UL standards

MANUFACTURER CERTIFICATIONS

ORDERING OPTIONS-POSSIBLE APPLICATION BUT NOT LIMITED TO
