Biogas Blowers and Compressors

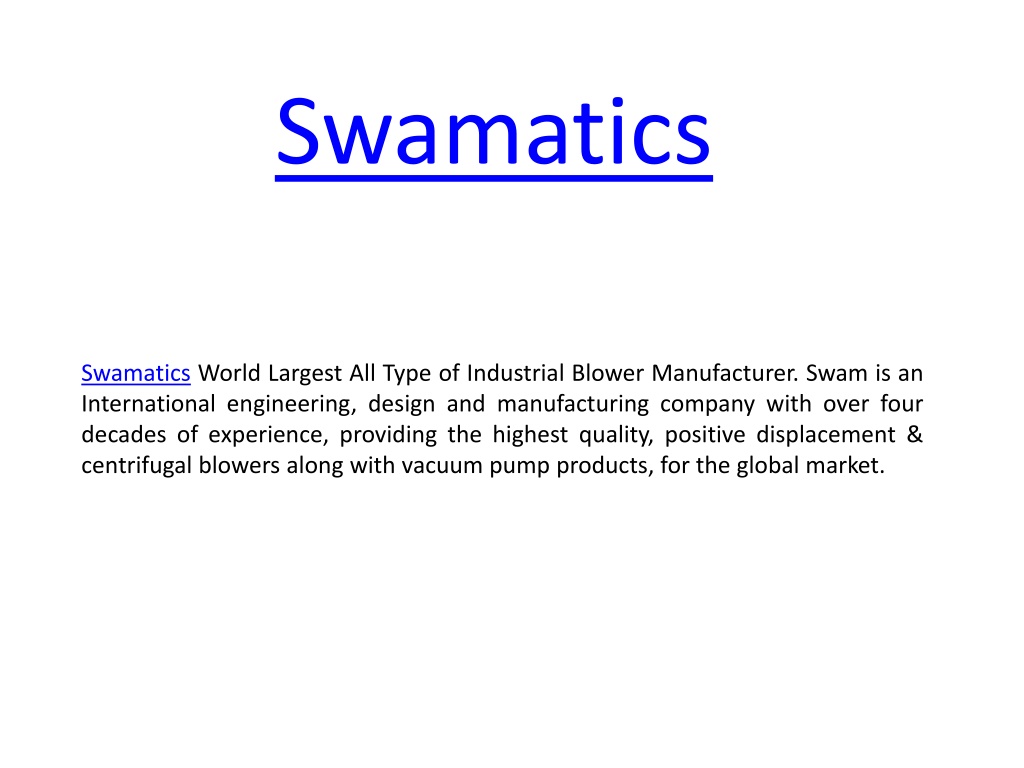

1. Swamatics Swamatics World Largest All Type of Industrial Blower Manufacturer. Swam is an International engineering, design and manufacturing company with over four decades of experience, providing the highest quality, positive displacement & centrifugal blowers along with vacuum pump products, for the global market.

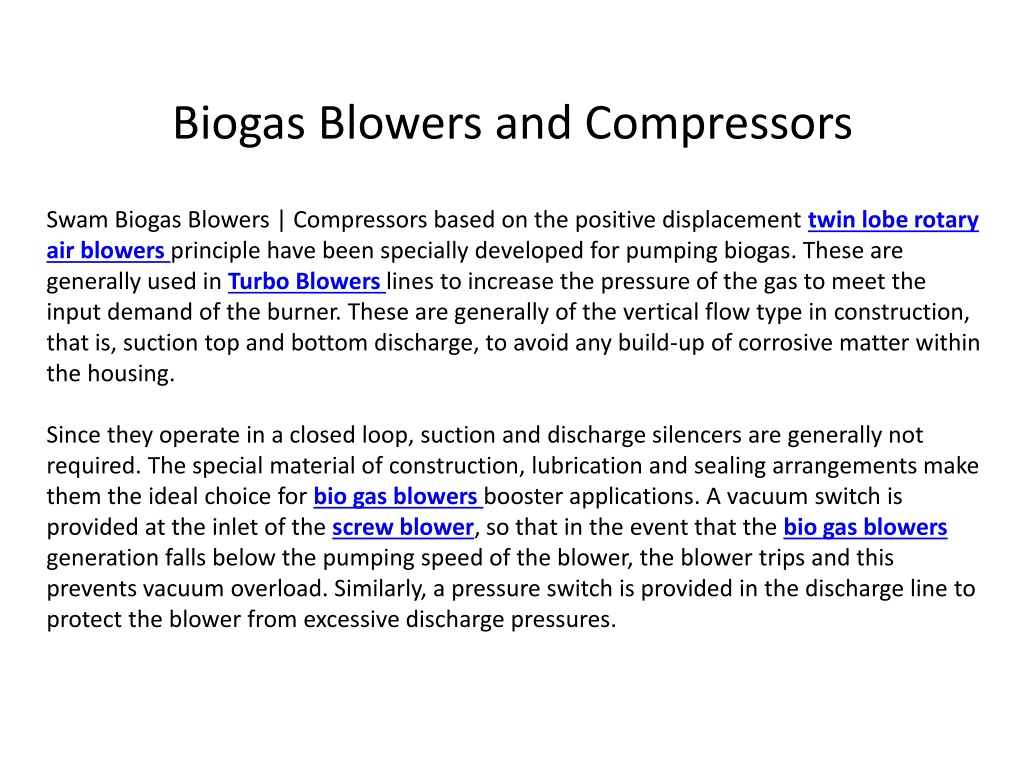

2. Biogas Blowers and Compressors Swam Biogas Blowers | Compressors based on the positive displacement twin lobe rotary air blowersprinciple have been specially developed for pumping biogas. These are generally used in Turbo Blowerslines to increase the pressure of the gas to meet the input demand of the burner. These are generally of the vertical flow type in construction, that is, suction top and bottom discharge, to avoid any build-up of corrosive matter within the housing. Since they operate in a closed loop, suction and discharge silencers are generally not required. The special material of construction, lubrication and sealing arrangements make them the ideal choice for bio gas blowersbooster applications. A vacuum switch is provided at the inlet of the screw blower, so that in the event that thebio gas blowersgeneration falls below the pumping speed of the blower, the blower trips and this prevents vacuum overload. Similarly, a pressure switch is provided in the discharge line to protect the blower from excessive discharge pressures.

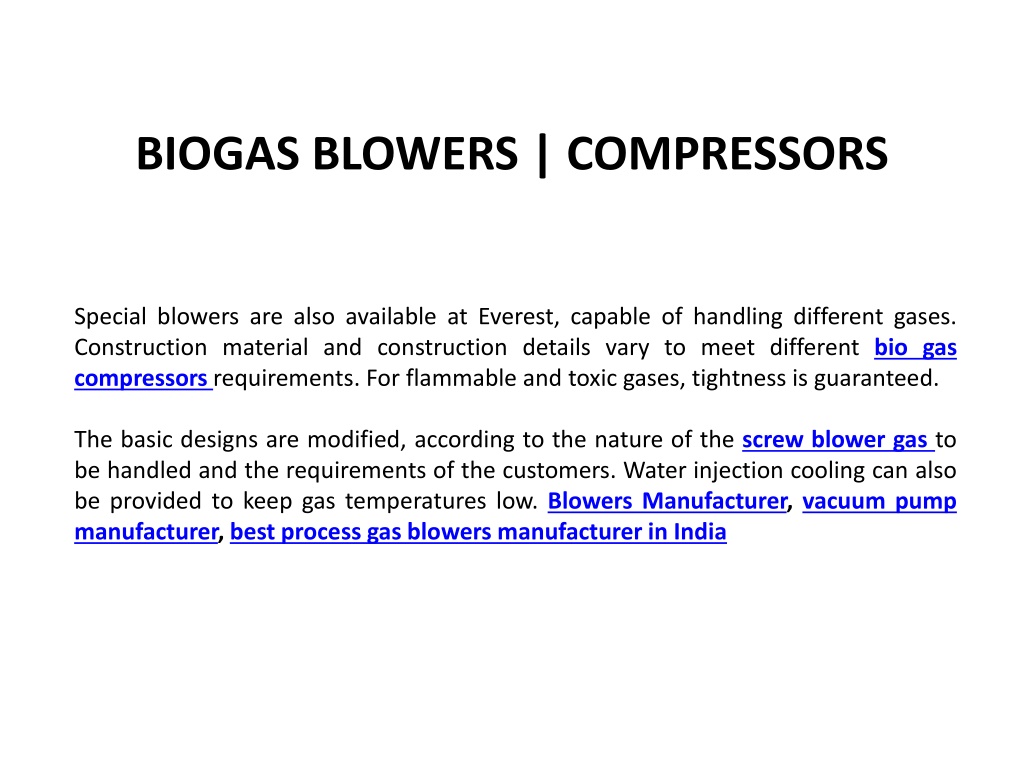

3. BIOGAS BLOWERS | COMPRESSORS Special blowers are also available at Everest, capable of handling different gases. Construction material and construction details vary to meet different bio gas compressorsrequirements. For flammable and toxic gases, tightness is guaranteed. The basic designs are modified, according to the nature of the screw blower gasto be handled and the requirements of the customers. Water injection cooling can also be provided to keep gas temperatures low. Blowers Manufacturer, vacuum pump manufacturer, best process gas blowers manufacturer in India

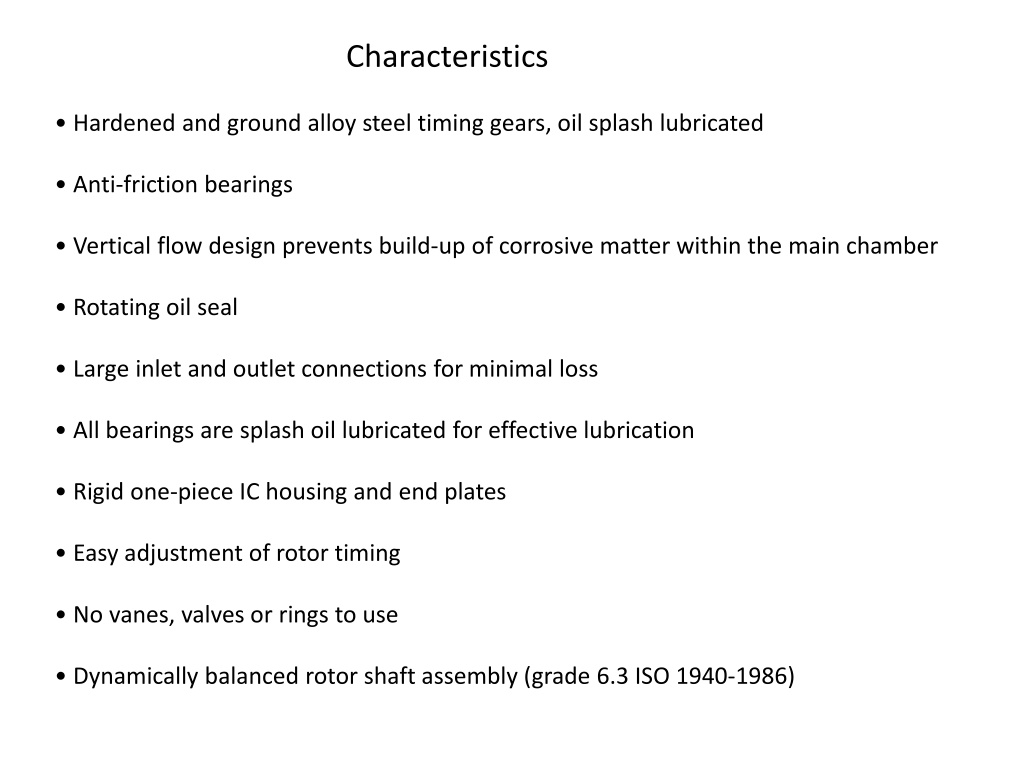

4. Characteristics • Hardened and ground alloy steel timing gears, oil splash lubricated • Anti-friction bearings • Vertical flow design prevents build-up of corrosive matter within the main chamber • Rotating oil seal • Large inlet and outlet connections for minimal loss • All bearings are splash oil lubricated for effective lubrication • Rigid one-piece IC housing and end plates • Easy adjustment of rotor timing • No vanes, valves or rings to use • Dynamically balanced rotor shaft assembly (grade 6.3 ISO 1940-1986)

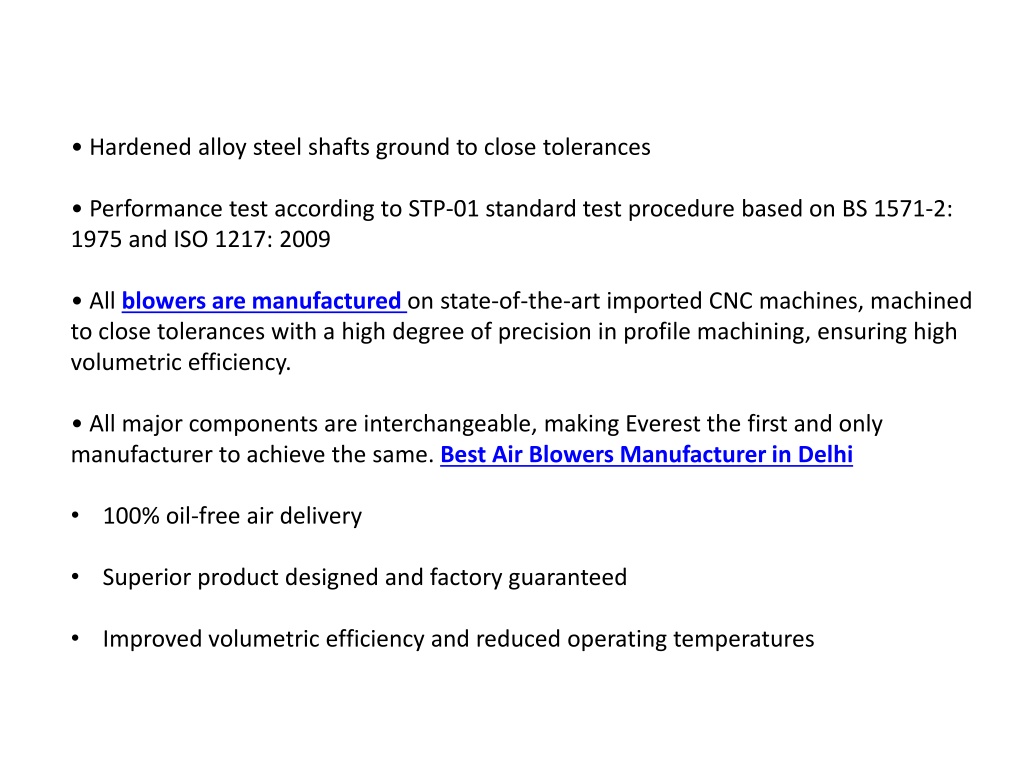

5. • Hardened alloy steel shafts ground to close tolerances • • Performance test according to STP-01 standard test procedure based on BS 1571-2: 1975 and ISO 1217: 2009 • • All blowers are manufacturedon state-of-the-art imported CNC machines, machined to close tolerances with a high degree of precision in profile machining, ensuring high volumetric efficiency. • • All major components are interchangeable, making Everest the first and only manufacturer to achieve the same. Best Air Blowers Manufacturer in Delhi • 100% oil-free air delivery • Superior product designed and factory guaranteed • Improved volumetric efficiency and reduced operating temperatures

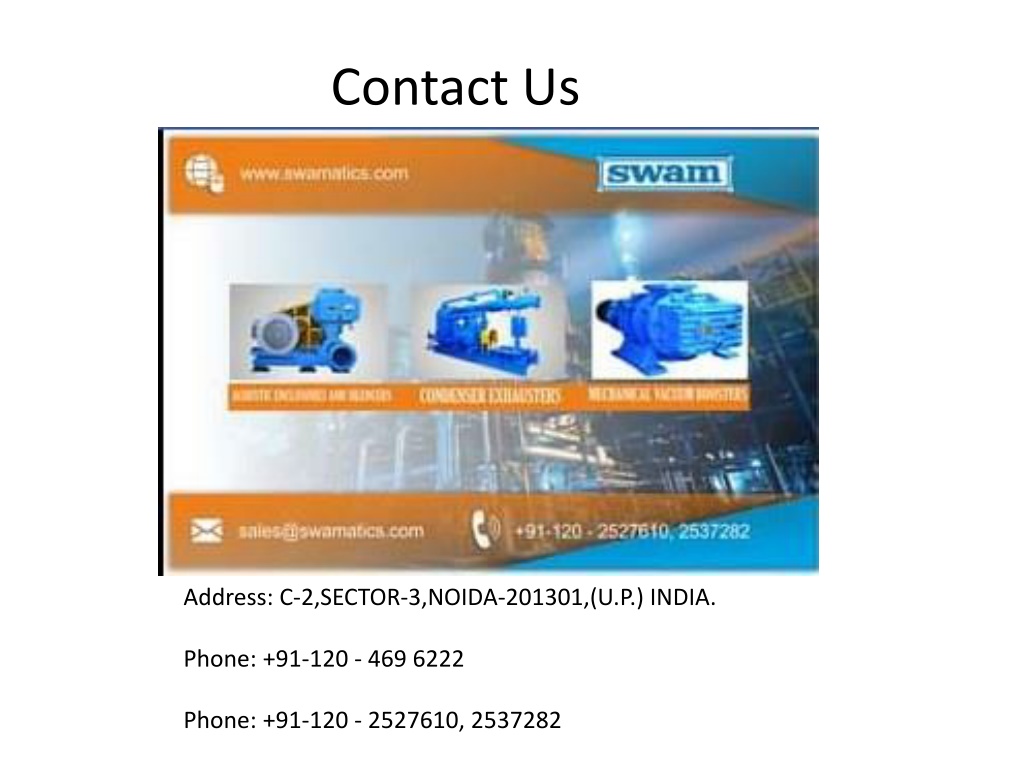

6. Contact Us Address: C-2,SECTOR-3,NOIDA-201301,(U.P.) INDIA. Phone: +91-120 - 469 6222 Phone: +91-120 - 2527610, 2537282
