Implementation of virtual laboratory for online e-learning of control and Instrumentation courses

  • R.Anandanatarajan M.E.,Ph.D.

    • Professor & Head,

    • Department of Electronics and Instrumentation Engineering,

    • Pondicherry Engineering College.

    • Puducherry 605 014.

www.pec.edu


Motivation
Motivation of control and Instrumentation courses

  • Creating virtual laboratory and a community of young learners, teachers and researchers to explore collaboratively the practical aspects of Engineering curriculum .

  • Significance and importance of laboratory work in E-Learning

  • Internet provides connectivity everywhere and broadband access enables high capacity connections.

  • Non – Availability of high-cost equipments in all universities.

  • Why not we Collaborate different universities in India and

    share the Laboratory resources for quality education.

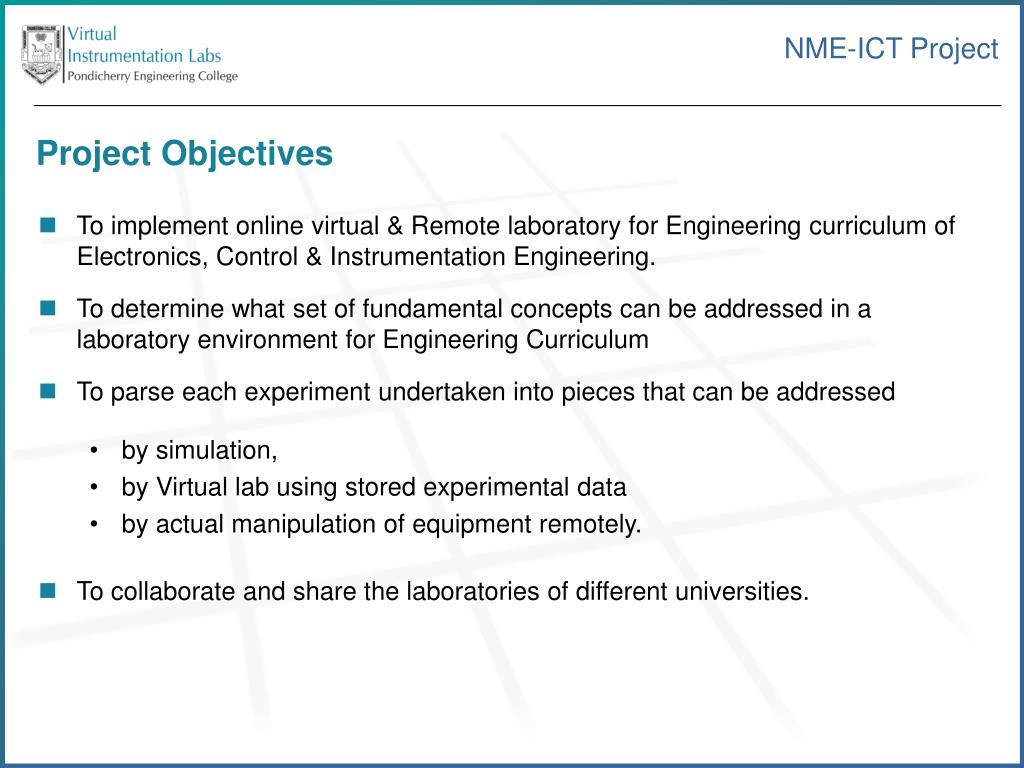

Project objectives
Project Objectives of control and Instrumentation courses

  • To implement online virtual & Remote laboratory for Engineering curriculum of Electronics, Control & Instrumentation Engineering.

  • To determine what set of fundamental concepts can be addressed in a laboratory environment for Engineering Curriculum

  • To parse each experiment undertaken into pieces that can be addressed

    • by simulation,

    • by Virtual lab using stored experimental data

    • by actual manipulation of equipment remotely.

  • To collaborate and share the laboratories of different universities.

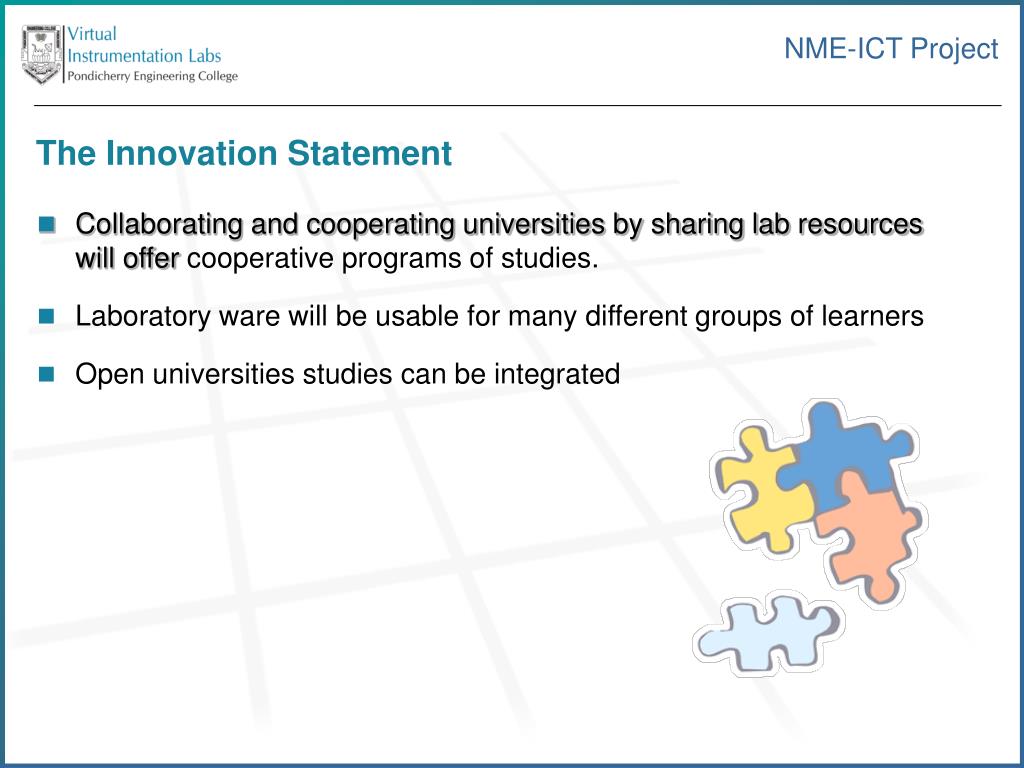

The innovation statement
The Innovation Statement of control and Instrumentation courses

  • Collaborating and cooperating universities by sharing lab resources will offer cooperative programs of studies.

  • Laboratory ware will be usable for many different groups of learners

  • Open universities studies can be integrated

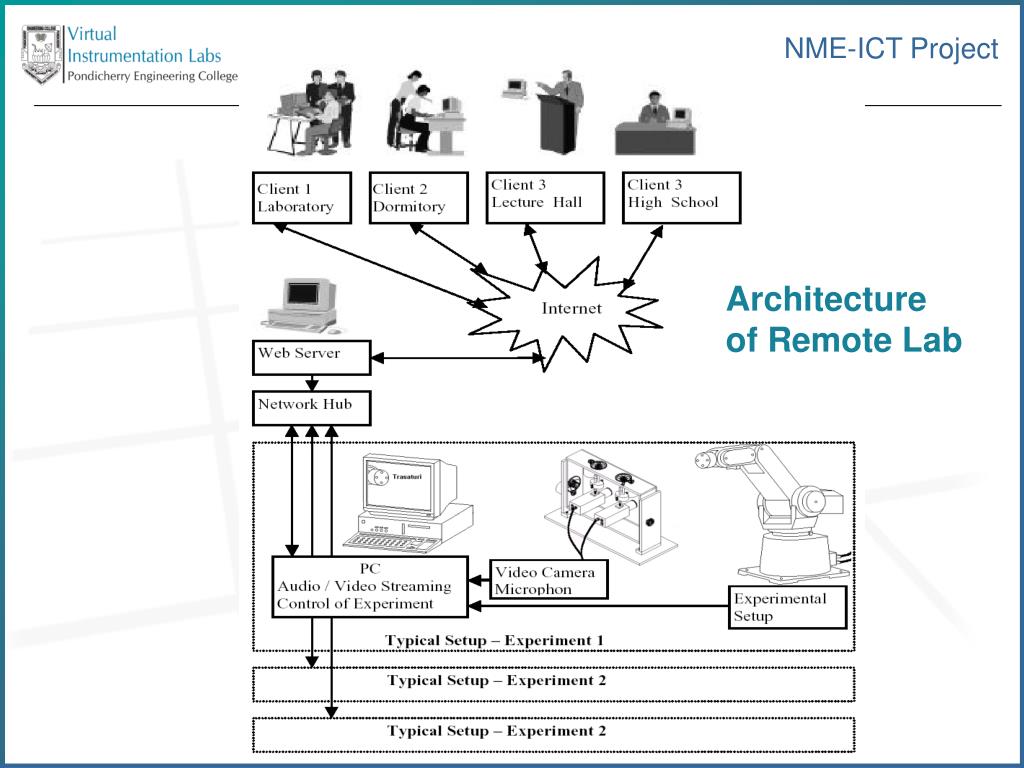

Architecture of remote lab
Architecture of control and Instrumentation coursesof Remote Lab


Course and lab integration
Course and Lab Integration of control and Instrumentation courses

Remote Lab

  • Hybrid Mode: Lecture in Class and experiment conducted on-line.

  • Each experiment can be conducted in three phases:

    • Simulation

    • Virtual lab using stored experimental data

    • Remote access & operation of real equipment

Physical Lab

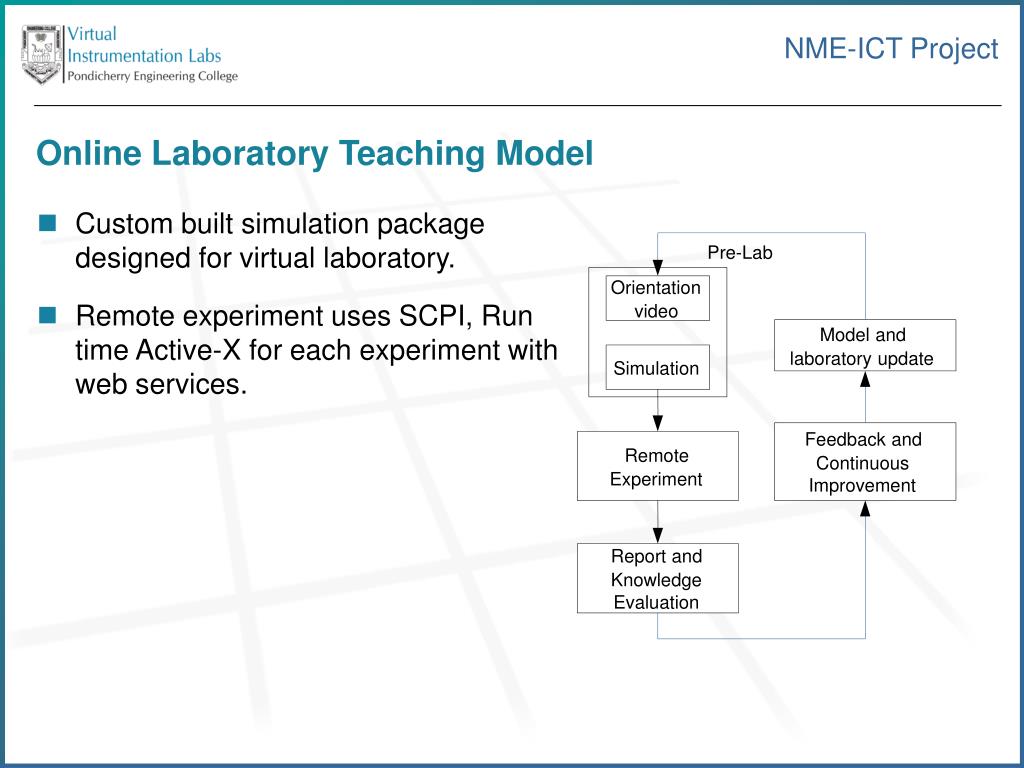

Online laboratory teaching model
Online Laboratory Teaching Model of control and Instrumentation courses

  • Custom built simulation package designed for virtual laboratory.

  • Remote experiment uses SCPI, Run time Active-X for each experiment with web services.

Pre-Lab

Orientation

video

Model and

laboratory update

Simulation

Feedback and

Remote

Continuous

Experiment

Improvement

Report and

Knowledge

Evaluation


Simulations
Simulations of control and Instrumentation courses

Used as Laboratory Primer – Functional verification

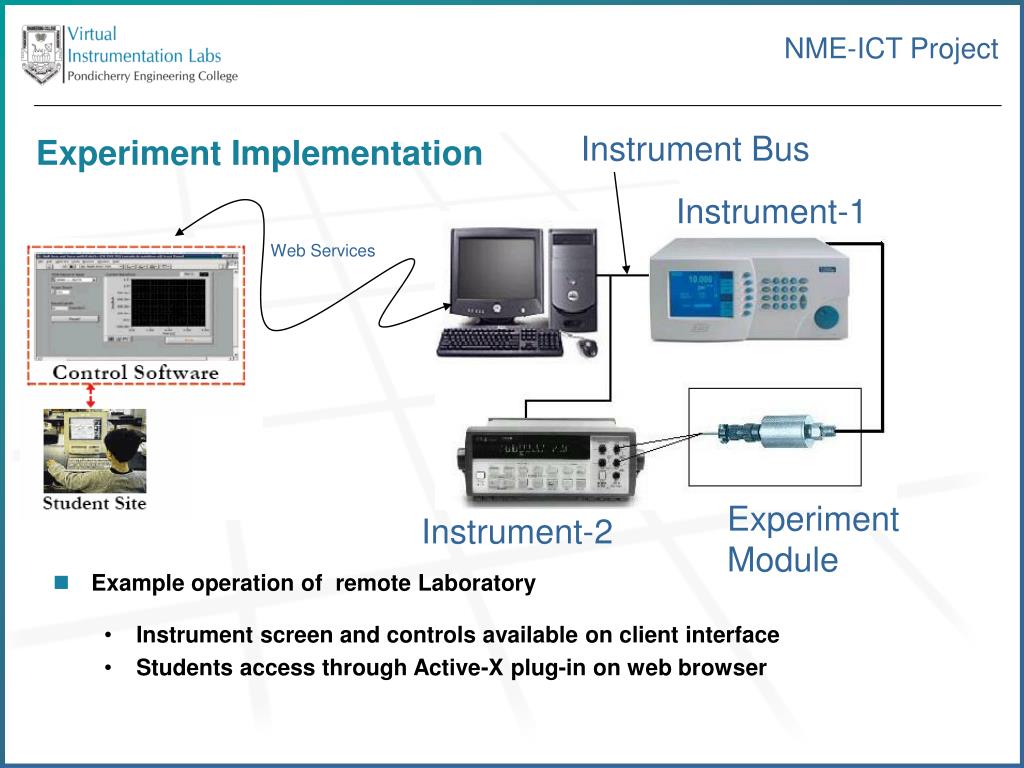

Experiment implementation
Experiment Implementation of control and Instrumentation courses

Instrument Bus

Instrument-1

Web Services

Experiment Module

Instrument-2

  • Example operation of remote Laboratory

    • Instrument screen and controls available on client interface

    • Students access through Active-X plug-in on web browser

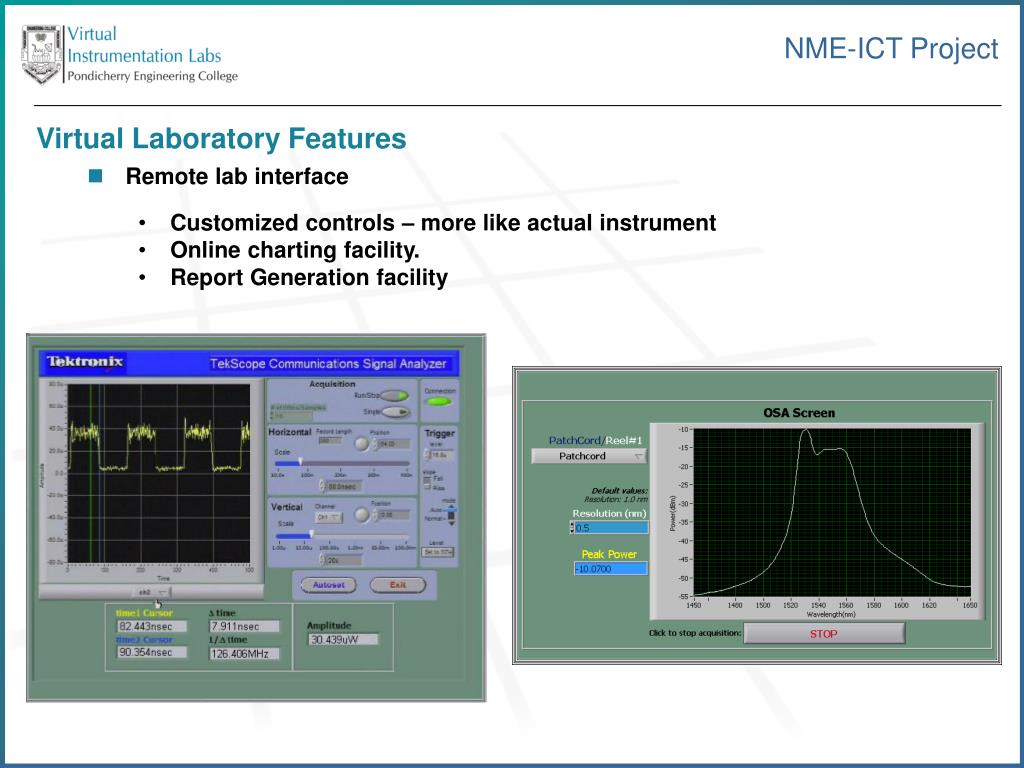

Virtual laboratory features
Virtual Laboratory Features of control and Instrumentation courses

  • Remote lab interface

    • Customized controls – more like actual instrument

    • Online charting facility.

    • Report Generation facility

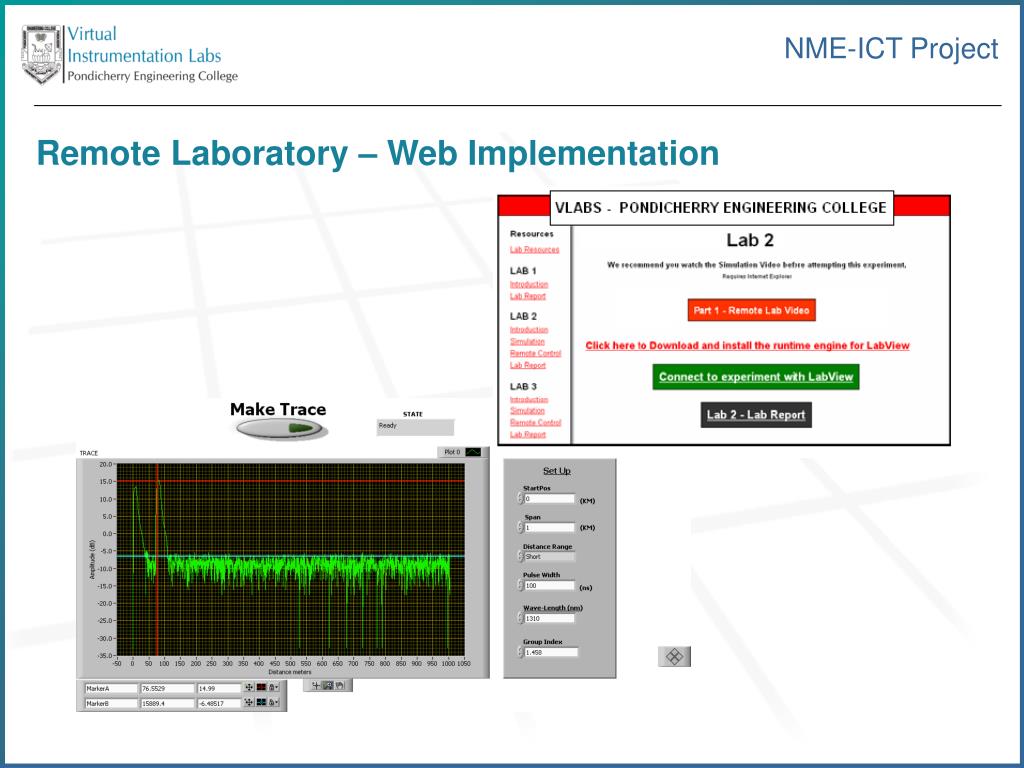

Remote laboratory web implementation
Remote Laboratory – Web Implementation of control and Instrumentation courses

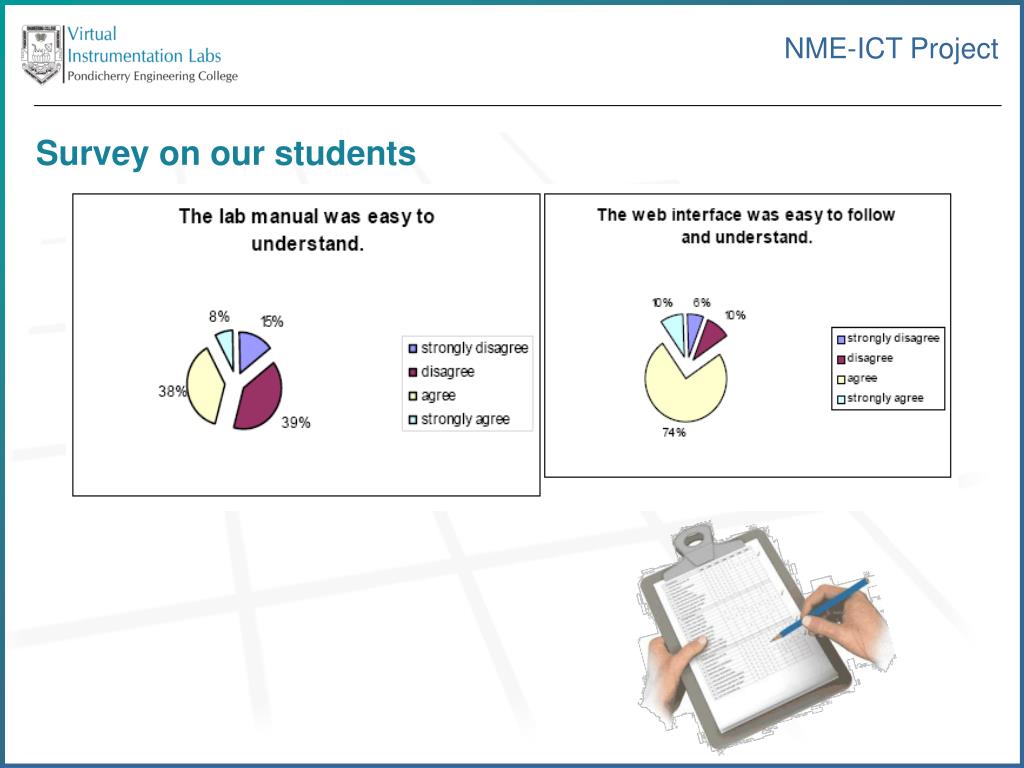

Survey on our students
Survey on our students of control and Instrumentation courses

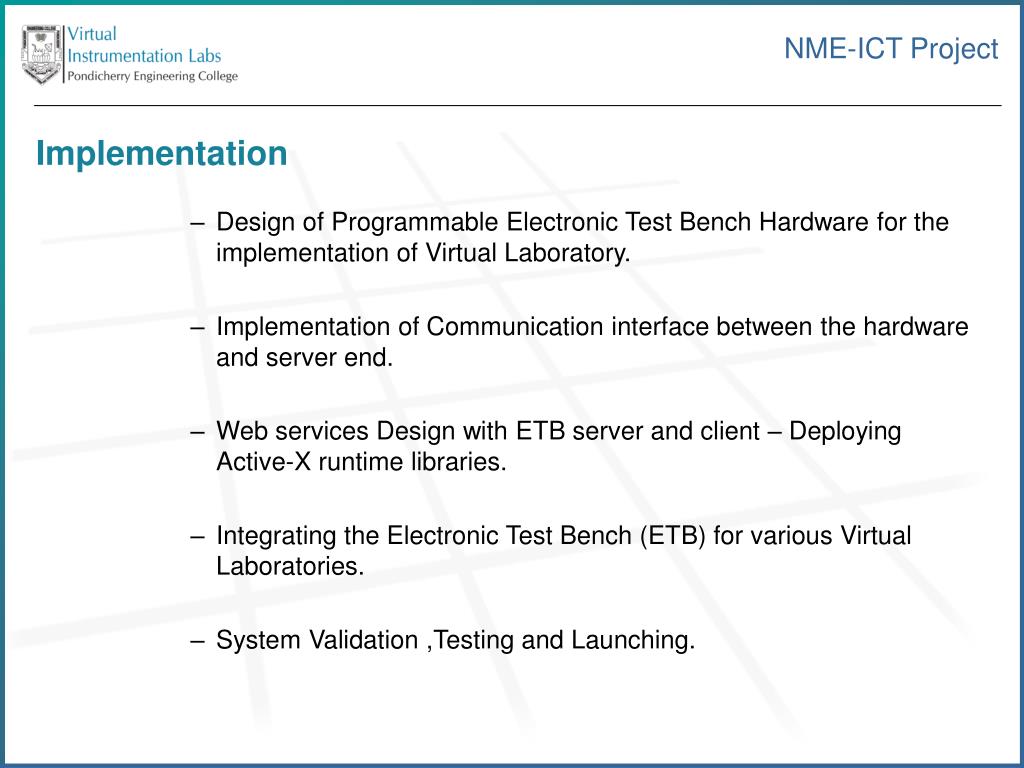

Implementation
Implementation of control and Instrumentation courses

  • Design of Programmable Electronic Test Bench Hardware for the implementation of Virtual Laboratory.

  • Implementation of Communication interface between the hardware and server end.

  • Web services Design with ETB server and client – Deploying Active-X runtime libraries.

  • Integrating the Electronic Test Bench (ETB) for various Virtual Laboratories.

  • System Validation ,Testing and Launching.

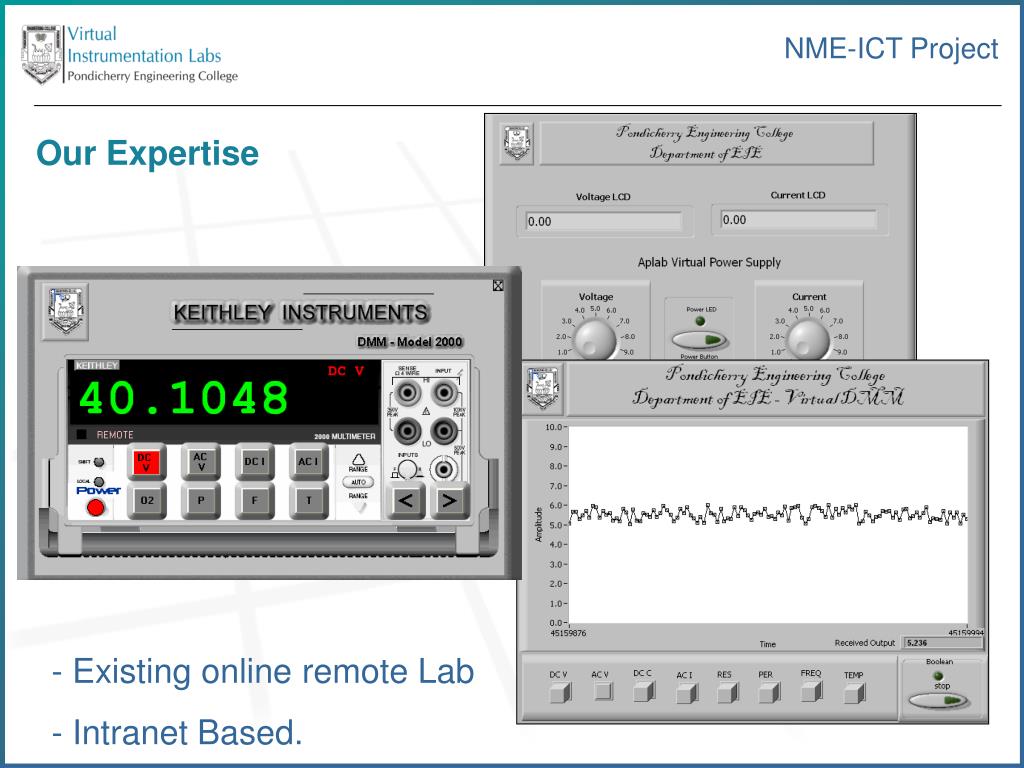

Our expertise
Our Expertise of control and Instrumentation courses

- Existing online remote Lab

- Intranet Based.


Budget estimates
Budget Estimates of control and Instrumentation courses

Recurring

Non-Recurring

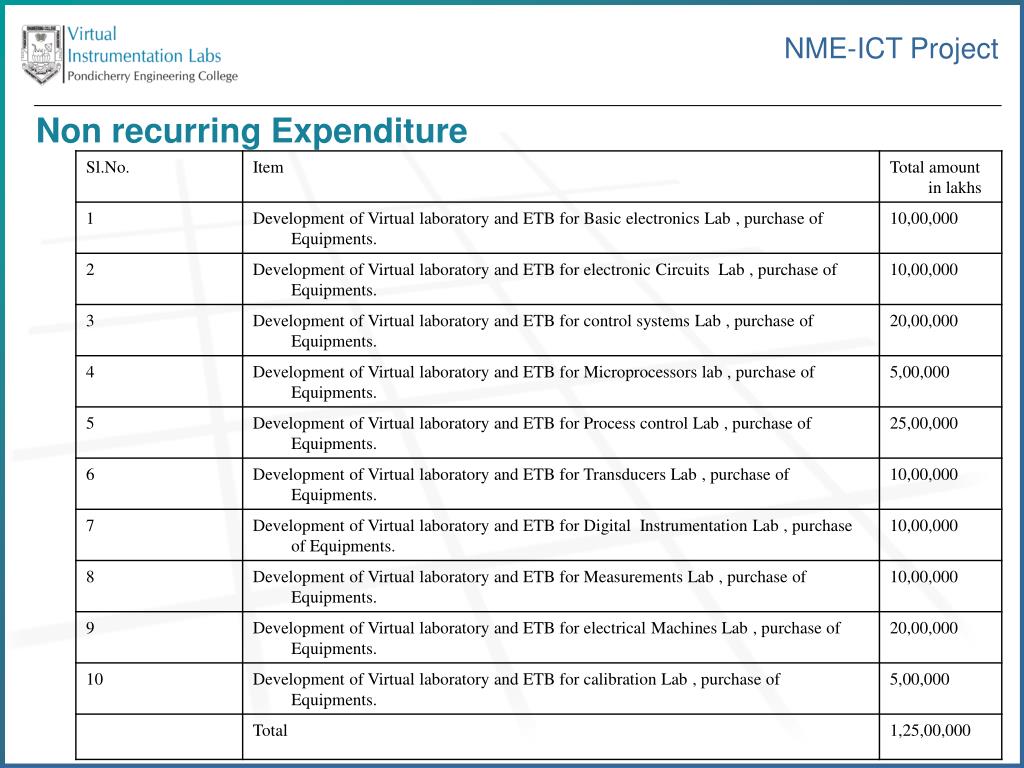

Non recurring expenditure
Non recurring Expenditure of control and Instrumentation courses

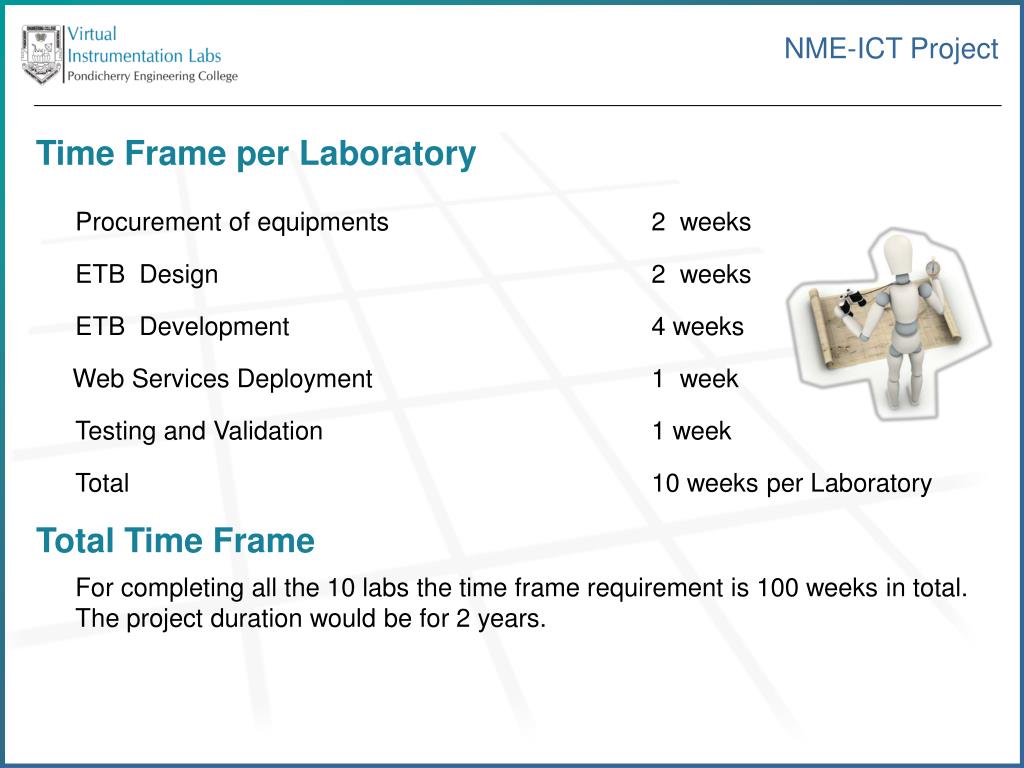

Time frame per laboratory
Time Frame per Laboratory of control and Instrumentation courses

Procurement of equipments 2 weeks

ETB Design 2 weeks

ETB Development 4 weeks

Web Services Deployment 1 week

Testing and Validation 1 week

Total 10 weeks per Laboratory

For completing all the 10 labs the time frame requirement is 100 weeks in total. The project duration would be for 2 years.

Total Time Frame

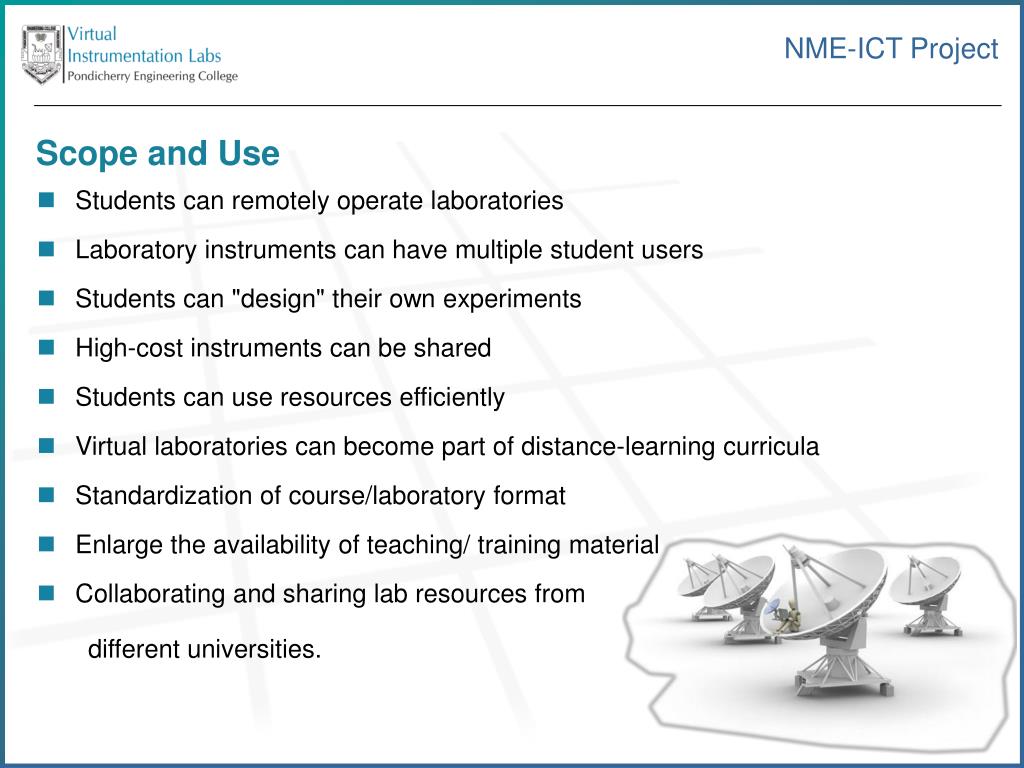

Scope and use
Scope and Use of control and Instrumentation courses

  • Students can remotely operate laboratories

  • Laboratory instruments can have multiple student users

  • Students can "design" their own experiments

  • High-cost instruments can be shared

  • Students can use resources efficiently

  • Virtual laboratories can become part of distance-learning curricula

  • Standardization of course/laboratory format

  • Enlarge the availability of teaching/ training material

  • Collaborating and sharing lab resources from

    different universities.


Thank you. of control and Instrumentation courses
