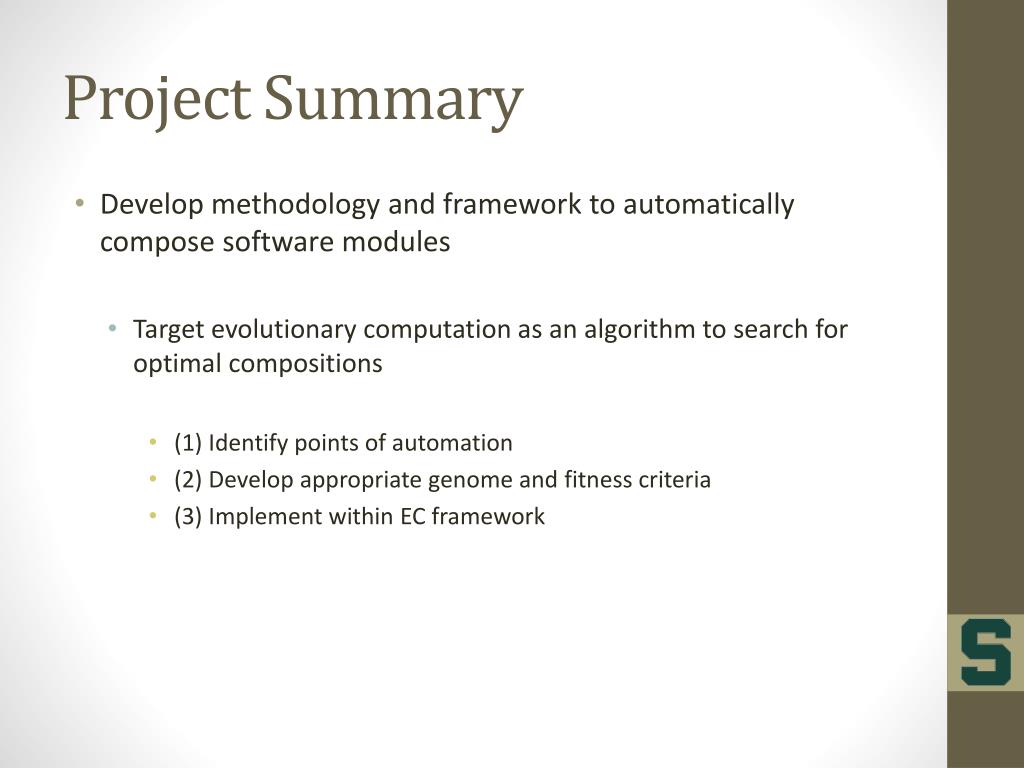

  1. Project Summary • Develop methodology and framework to automatically compose software modules • Target evolutionary computation as an algorithm to search for optimal compositions • (1) Identify points of automation • (2) Develop appropriate genome and fitness criteria • (3) Implement within EC framework

  2. Agenda • Working Example • CompositionTechniques • Key Milestones • Genome Structure • OpenBEAGLE Puppy

  3. Working Example • Attempt to find an open-source problem that we can tackle • Should be amenable to composition • Modularized • Well defined • Based in ANSI-C

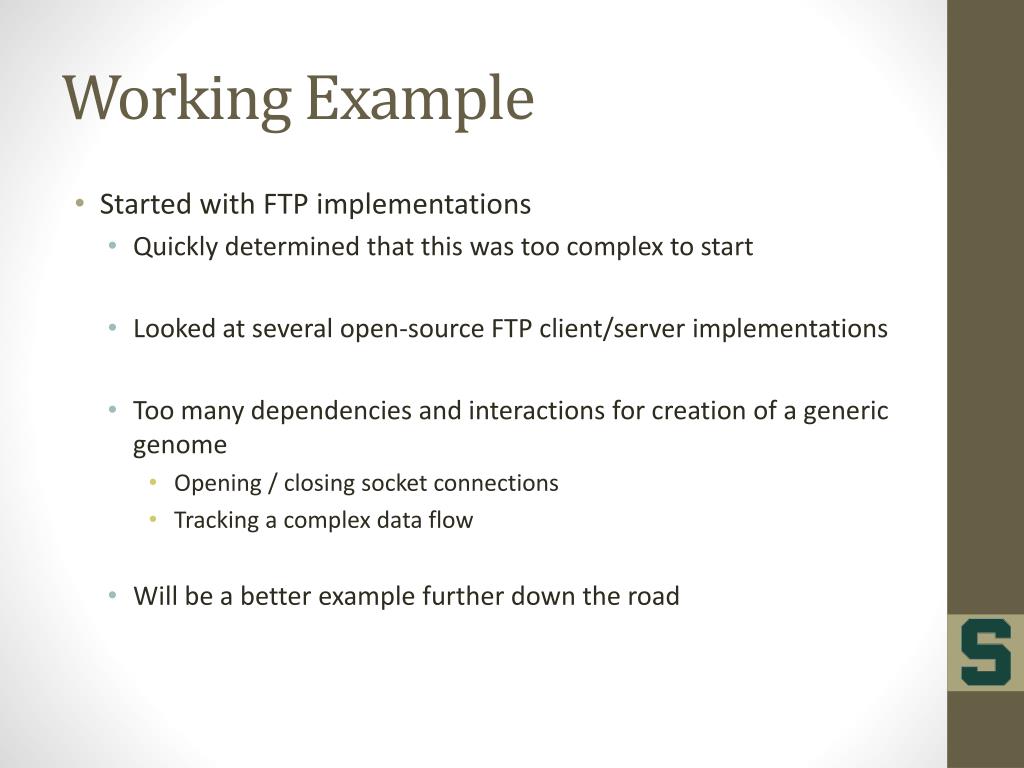

  4. Working Example • Started with FTP implementations • Quickly determined that this was too complex to start • Looked at several open-source FTP client/server implementations • Too many dependencies and interactions for creation of a generic genome • Opening / closing socket connections • Tracking a complex data flow • Will be a better example further down the road

  5. Working Example • Sorting algorithms • Targeting three different types of sort • Bubble sort • Merge sort • Quick sort • Ideal candidate for composition • e.g. Compose in merge sort to replace bubble sort functionality • Identify key concepts and extend for problems of higher complexity

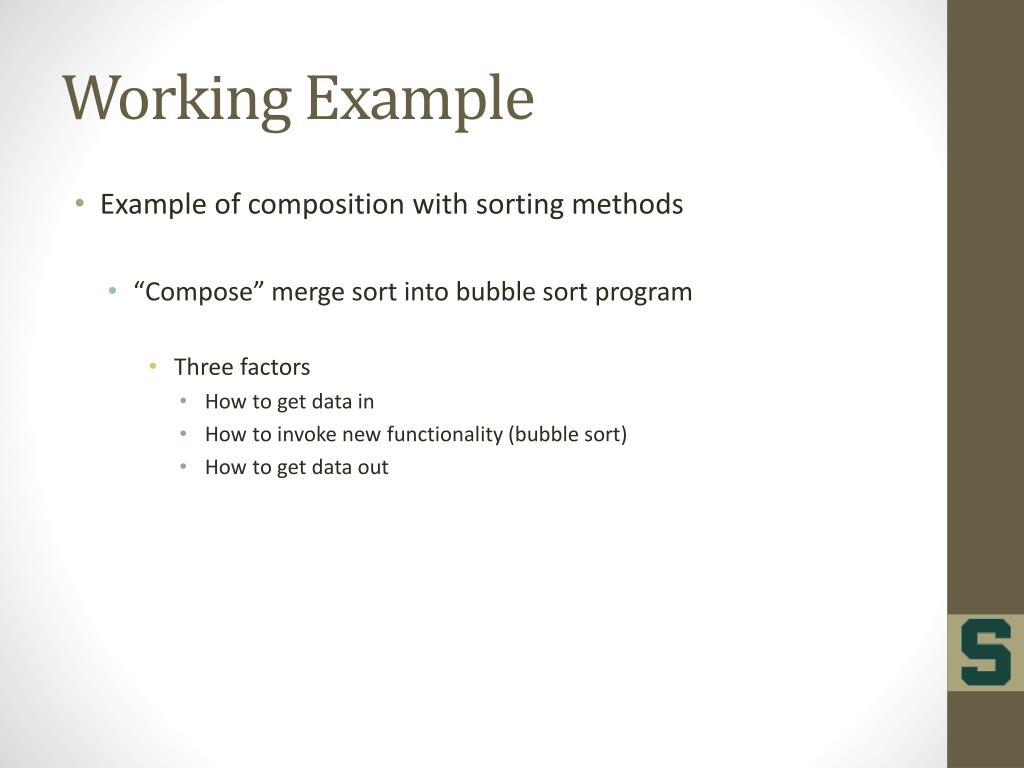

  6. Working Example • Example of composition with sorting methods • “Compose” merge sort into bubble sort program • Three factors • How to get data in • How to invoke new functionality (bubble sort) • How to get data out

  7. Working Example • Approach(es) • Compare function prototypes • Leverage method signatures, pre- and post-conditions • Structural compatibility • Do prototypes match in some fashion? • Can we translate source to target post-conditions? • Software engineering metrics • Intrusiveness, lines of code, etc.

  8. Agenda • Working Example • Composition Techniques • Key Milestones • Genome Structure • OpenBEAGLE Puppy

  9. Composition Techniques • The following slides discuss composition techniques, approaches, and how to do it by hand • We cannot automate what we do not understand

  10. Composition Techniques • Standard (OOP) definition: • Class has-a relationship with another class • Car has-a carburetor (1:1) • Lake has-aduck* (0:many) • Generic programhas-asorting algorithm* • When parent class is destroyed, composed classes are as well • Aggregation does not destroy child classes • In C++, achieve through inheritance, templates, design patterns, etc. • Provides capabilities for software reuse • Compose software modules together

  11. Composition Techniques • Develop a taxonomy of possible compositions • Large breadth of methods (design patterns) in OOP • Adapter pattern • Implements/inherits both expected and pre-existing interface • Class / method stereotyping • Abstraction of class’ role/responsibility in a system • Automatically understanding purpose and parameters of class/method • Could be leveraged in order to generate mappings between source and target modules

  12. Composition Techniques • Common operations / strategies (non-OOP) • Code injection • Directly inject code into existing method • Function pointer • Utilize pointer to hijack function call • Wrapper • Add a function that encapsulates new method invocation • At the ANSI-C level it is possible, but not easy, to utilize OOP paradigms • Presently, we will focus on the above methods

  13. Composition Techniques • Code injection (in this case, into a struct) struct Person { int age; char *name; }; Suppose we want to represent a Person’s gender

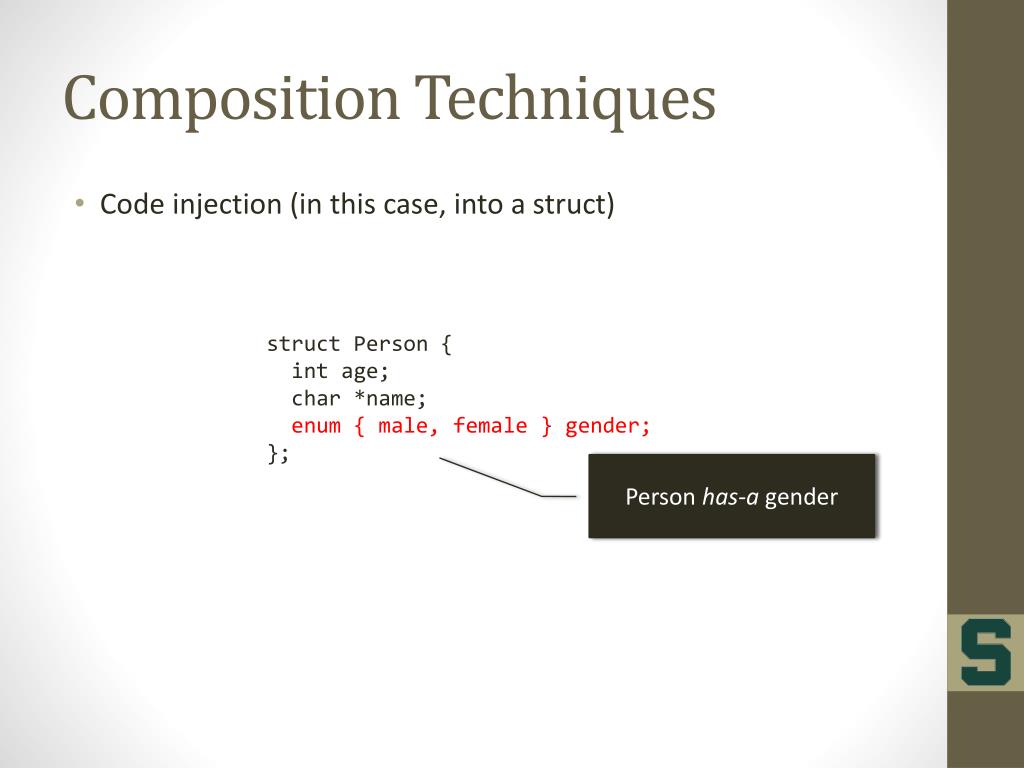

  14. Composition Techniques • Code injection (in this case, into a struct) struct Person { int age; char *name; enum{ male, female } gender; }; Person has-a gender

  15. Composition Techniques • Function pointers struct Sorter { Sorter(int* input); void print(); void call_sort(); intnumbers_[SIZE]; }; Allow generic sorting method invocation?

  16. Composition Techniques • Function pointers struct Sorter { Sorter(int* input); Sorter(int* input, void* sorting_function); void print(); void call_sort(); int* (*sort_fn)(int*, int, int); intnumbers_[SIZE]; }; Add a function pointer

  17. Composition Techniques • Wrapper int main() { … quicksort((int*)numbers); }; Easily replace quicksort?

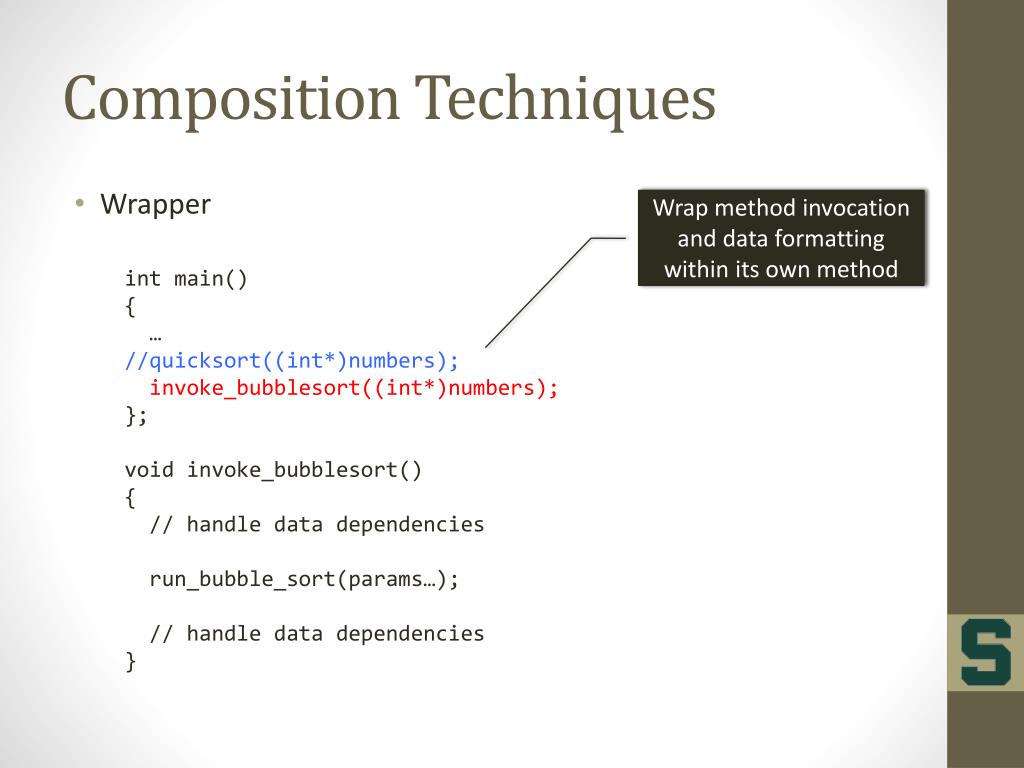

  18. Composition Techniques • Wrapper Wrap method invocation and data formatting within its own method int main() { … //quicksort((int*)numbers); invoke_bubblesort((int*)numbers); }; void invoke_bubblesort() { // handle data dependencies run_bubble_sort(params…); // handle data dependencies }

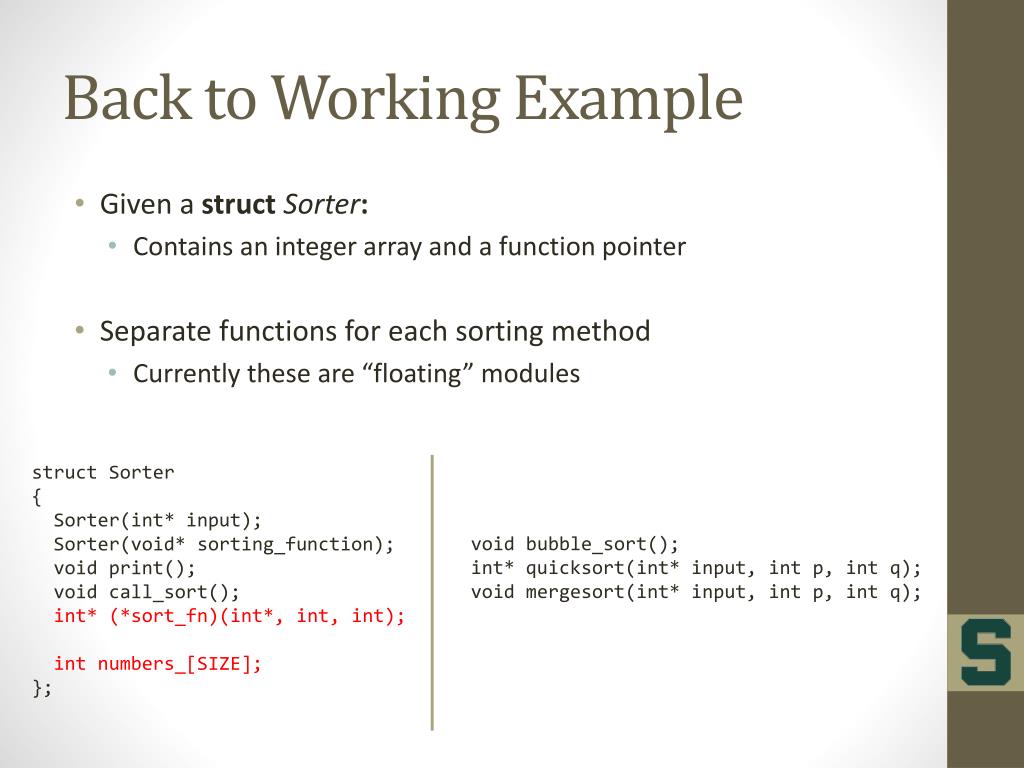

  19. Back to Working Example • Given astructSorter: • Contains an integer array and a function pointer • Separate functions for each sorting method • Currently these are “floating” modules struct Sorter { Sorter(int* input); Sorter(void* sorting_function); void print(); void call_sort(); int* (*sort_fn)(int*, int, int); intnumbers_[SIZE]; }; void bubble_sort(); int* quicksort(int* input, int p, int q); void mergesort(int* input, int p, int q);

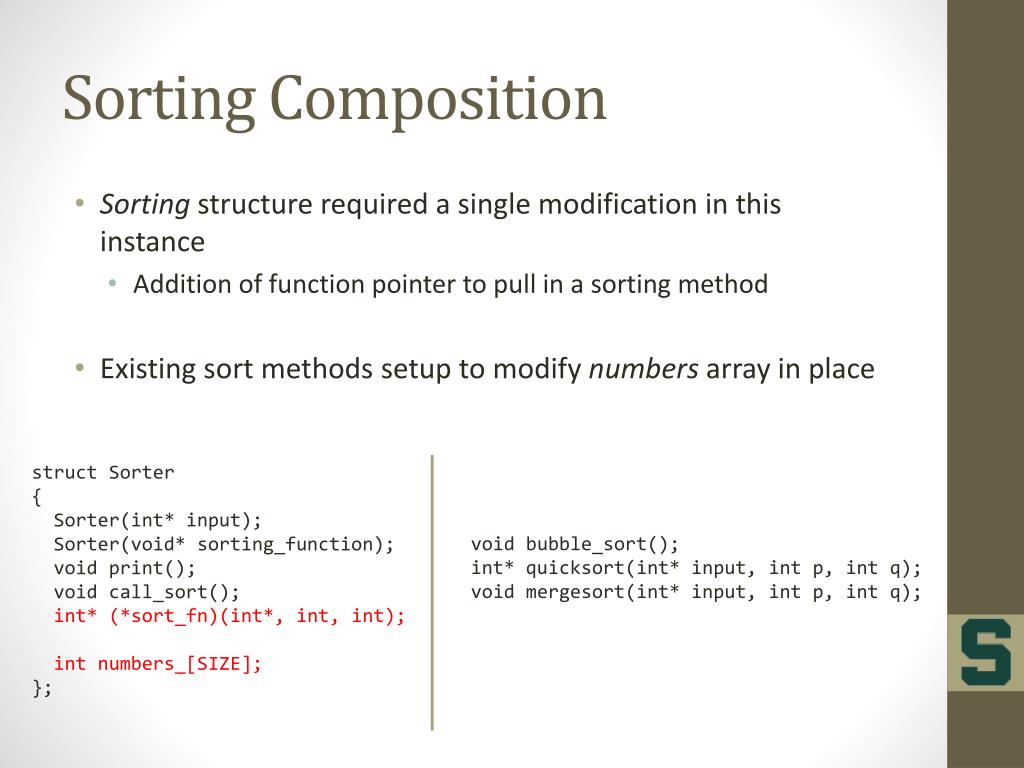

  20. Sorting Composition • Sorting structure required a single modification in this instance • Addition of function pointer to pull in a sorting method • Existing sort methods setup to modify numbers array in place struct Sorter { Sorter(int* input); Sorter(void* sorting_function); void print(); void call_sort(); int* (*sort_fn)(int*, int, int); intnumbers_[SIZE]; }; void bubble_sort(); int* quicksort(int* input, int p, int q); void mergesort(int* input, int p, int q);

  21. Sorting Composition • Sorting structure required a single modification in this instance • Addition of function pointer to pull in a sorting method • Existing sort methods setup to modify numbers array in place Initialize our Sorting structure with whichever sorting method we choose struct Sorter { Sorter(int* input); Sorter(int* input, void* sorting_function); void print(); void call_sort(); int* (*sort_fn)(int*, int, int); intnumbers_[SIZE]; }; void bubble_sort(); int* quicksort(int* input, int p, int q); void mergesort(int* input, int p, int q);

  22. Composition Steps • Technically, a successful composition factors in three key points: • Data producer provides data • Composed module handles expected functionality • Data consumer accepts data and program continues to run

  23. Composition Steps Taken • Data producer (structSorter) • Allow generic call to swap sorting method • Provide access to internal data storage • Composed module (method QuickSort) • Create function pointer • Provide function pointer to data producer • Call composed module method • If necessary, wrap module method

  24. Composition Steps Taken • Data consumer (structSorter) • Pull data from composed module into necessary location • In this case, Sorter.numbers_

  25. Wrapper Example • Wrapper function called from main • Passed in target data structure • Calls merge sort directly • Copies over sorted data into target data structure upon completion • In this case, passing in and copying out handled implicitly int main() { int numbers_ = [10,2,5,1,0,4,…]; … merge_sort_wrapper((int*)numbers_, 0, SIZE-1); … } void merge_sort_wrapper(int* input, int p, int q) { merge_sort((int*)input, 0, SIZE-1); }

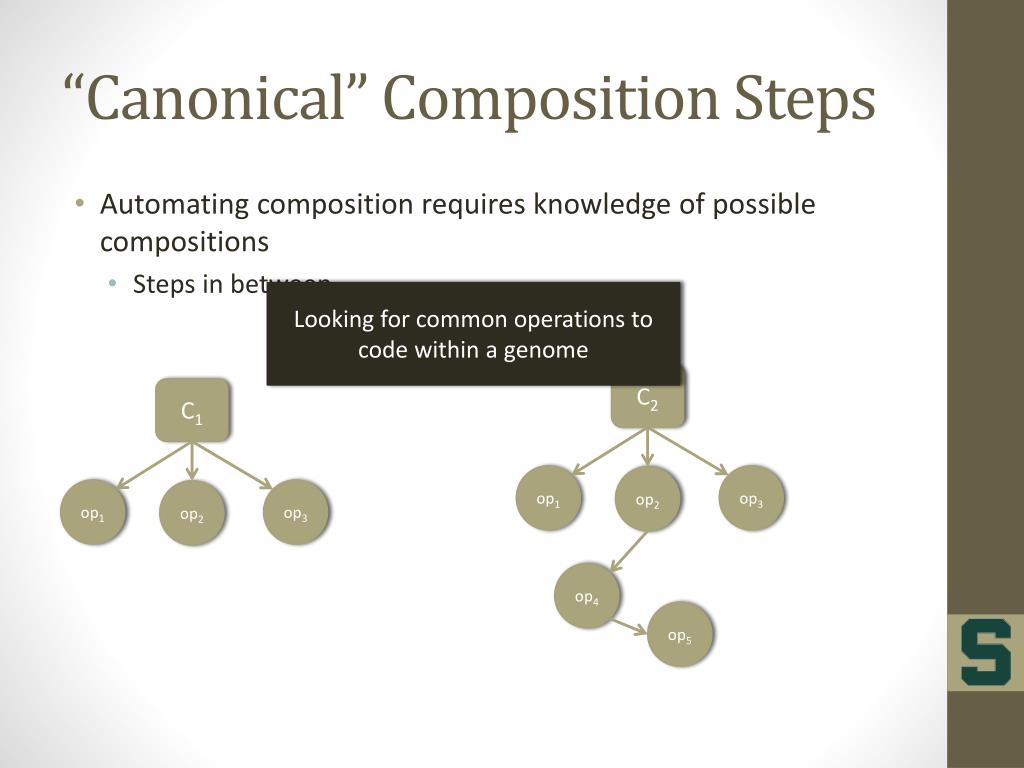

  26. “Canonical” Composition Steps • Automating composition requires knowledge of possible compositions • Steps in between C1 op1 op3 op2

  27. “Canonical” Composition Steps • Automating composition requires knowledge of possible compositions • Steps in between C2 C1 op1 op3 op2 op1 op3 op2 op4 op5

  28. “Canonical” Composition Steps • Automating composition requires knowledge of possible compositions • Steps in between Looking for common operations to code within a genome C2 C1 op1 op3 op2 op1 op3 op2 op4 op5

  29. Composition Steps • Function pointer (given same return type / parameters) • Add function pointer to data producer struct • Pass in algorithm function to struct • Ensure that data is either formatted in place or handled after called

  30. Composition Steps • Function pointer (different return types / parameters) • Similar approach to previous • Create wrapper that matches function pointer • Call necessary function inside wrapper • Ensure data is copied correctly

  31. Composition Steps • Wrapper without function pointer • Instantiate struct in wrapper function • Call desired algorithm directly in wrapper • Copy data over into desired data consumer

  32. Composition Steps • Code injection • Comment / remove previous code • Directly inject functionality as needed • Ensure correct variables contain necessary data

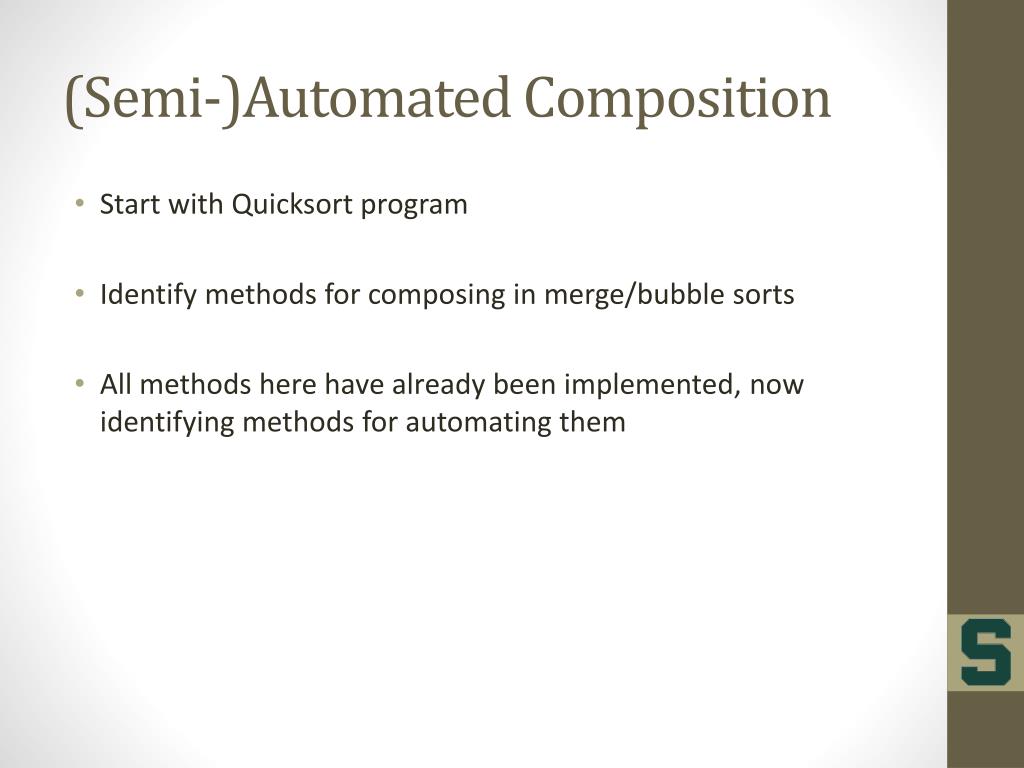

  33. (Semi-)Automated Composition • Start with Quicksort program • Identify methods for composing in merge/bubble sorts • All methods here have already been implemented, now identifying methods for automating them

  34. void run_sort(struct Sorter* s); int main(intargc, char* argv[]) { struct Sorter s; inti; // create and output original numbers int numbers[SIZE] = {10, 8, 5, 9, 1, 3, 7, 2, 4, 6}; // initialize generic data producer setup_data(&s, (int*)numbers); // print initial print(&s); // call our sorting function run_sort(&s); // print print(&s); return 0; } void run_sort(struct Sorter* _s) { // calling quicksort int* (*qs)(int*, int, int) = &quicksort; _s->sort_fn = qs; call_sort(_s); } $ [10 8 5 9 1 3 7 2 4 6 ] [1 2 3 4 5 6 7 8 9 10 ]

  35. void run_sort(struct Sorter* s); int main(intargc, char* argv[]) { struct Sorter s; inti; // create and output original numbers int numbers[SIZE] = {10, 8, 5, 9, 1, 3, 7, 2, 4, 6}; // initialize generic data producer setup_data(&s, (int*)numbers); // print initial print(&s); // call our sorting function run_sort(&s); // print print(&s); return 0; } void run_sort(struct Sorter* _s) { // calling quicksort int* (*qs)(int*, int, int) = &quicksort; _s->sort_fn = qs; call_sort(_s); } Data producer / consumer Kick off quicksort Calling quicksort via function pointer (existing) Could easily be a pure call to quicksort(int*, int, int) $ [10 8 5 9 1 3 7 2 4 6 ] [1 2 3 4 5 6 7 8 9 10 ]

  36. Prototypes Struct int* quicksort(int* input, int p, int r); intbubble_sort(int* input); void merge_sort(int* input, int p, int r); structSorter { int numbers_[SIZE]; int* (*sort_fn)(int*, int, int); } • Swap in bubble sort • From prototype, we know that bubble_sort takes in an int* and returns void • We can assume sorting is done either: • In-place (returned via parameter pointer) • Internally (updates local/global data) • Recognizing this method will require extra information in method signature

  37. Prototypes Struct int* quicksort(int* input, int p, int r); intbubble_sort(int* input); void merge_sort(int* input, int p, int r); structSorter { int numbers_[SIZE]; int* (*sort_fn)(int*, int, int); } • Assume sorting done in-place • Our data producer / consumer are the same (struct Sorter s) • Composition options: • [Data] • [1] – Simply pass pointer to our array (s.numbers) • [2] – Copy our array to a temporary variable, pass it in, and copy back after bubble_sortretursn • This has more overhead, but may be necessary if we want to preserve our original data structure

  38. Prototypes Struct int* quicksort(int* input, int p, int r); intbubble_sort(int* input); void merge_sort(int* input, int p, int r); structSorter { int numbers_[SIZE]; int* (*sort_fn)(int*, int, int); } • Composition options: • [Call] • [1] – Hijack run_sortmethod for use as our own wrapper (injection) • [2] – Comment out run_sortand inject our own code • From either [1] or [2], we can: • [1] – Call method in place (code injection) • [2] – Create a wrapper to directly call bubble_sort • [3] – Create a wrapper to use existing function pointer • [4] – Add a new function prototype to Sorter to match bubble_sort

  39. Prototypes Struct int* quicksort(int* input, int p, int r); intbubble_sort(int* input); void merge_sort(int* input, int p, int r); structSorter { int numbers_[SIZE]; int* (*sort_fn)(int*, int, int); } • Composition options: • [Call] • Parameter consideration • bubble_sorttakes a single int* parameter, where quick_sort takes an int* and 2 ints • Same issue will occur in merge_sort • We will need context from a method signature to decide what values should be used • Automate this with continuance or def-use chain analyses?

  40. Prototypes Struct int* quicksort(int* input, int p, int r); intbubble_sort(int* input); void merge_sort(int* input, int p, int r); structSorter { int numbers_[SIZE]; int* (*sort_fn)(int*, int, int); } • Now we want to compose in merge_sort • We determine from the prototype that it takes 3 parameters • Need context to understand what they all mean • For instance, if not an int* for the first parameter, but we know it will be the data to be sorted, we’d need to transform our data producer into what is necessary • The [Call] portion of composition would be essentially the same

  41. Agenda • Working Example • Composition Techniques • Key Milestones • Genome Structure • OpenBEAGLE Puppy

  42. Key Milestones • (1) Literature review • (2) Develop working example to understand composition specifics • (3) Develop genome based on strategies found from (1,2) • (4) Develop fitness criteria • (5) Implement genome and fitness criteria within an evolutionary algorithm

  43. (Next) Key Milestones • Define generalized context-free grammar • Increase complexity of working example • Increase genome complexity as necessary • Develop deliverable tool for configuring and deploying evolutionary algorithm • Mitigate environmental uncertainty

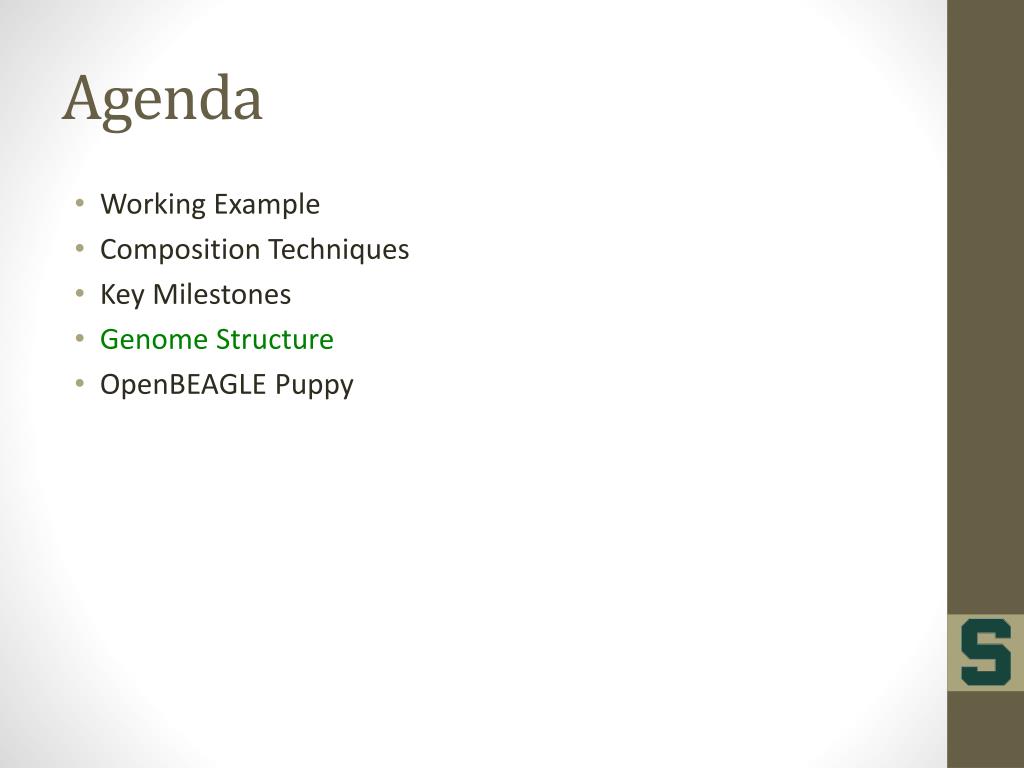

  44. Agenda • Working Example • Composition Techniques • Key Milestones • Genome Structure • OpenBEAGLE Puppy

  45. Genome Structure • Genetic programming • Typically uses a tree structure, represent a program as an abstract syntax tree • ADD/OR/MUL/etc. operations • Composed of ‘operators’ • Identify composition operations • Iteratively developed from working example

  46. Genome Structure

  47. Genome Structure

  48. Genome Structure Behavioral compatibility assumed

  49. Genome Example

  50. Genome Example Input / output
