Neural networks

Neural Networks

Marcel Jiřina

Institute of Computer Science, Prague


Introduction
Introduction

  • Neural networks and their use to classification and other tasks

  • ICS AS CR

    • Theoretical computer science

    • Neural networks, genetic alg. and nonlinear methods

    • Numeric algorithms ..1 mil. eq.

    • Fuzzy sets, approximate reasoning, possibility th.

    • Applications: Nuclear science, Ecology, Meteorology, Reliability in machinery, Medical informatics …

Institute of Computer Science, Prague

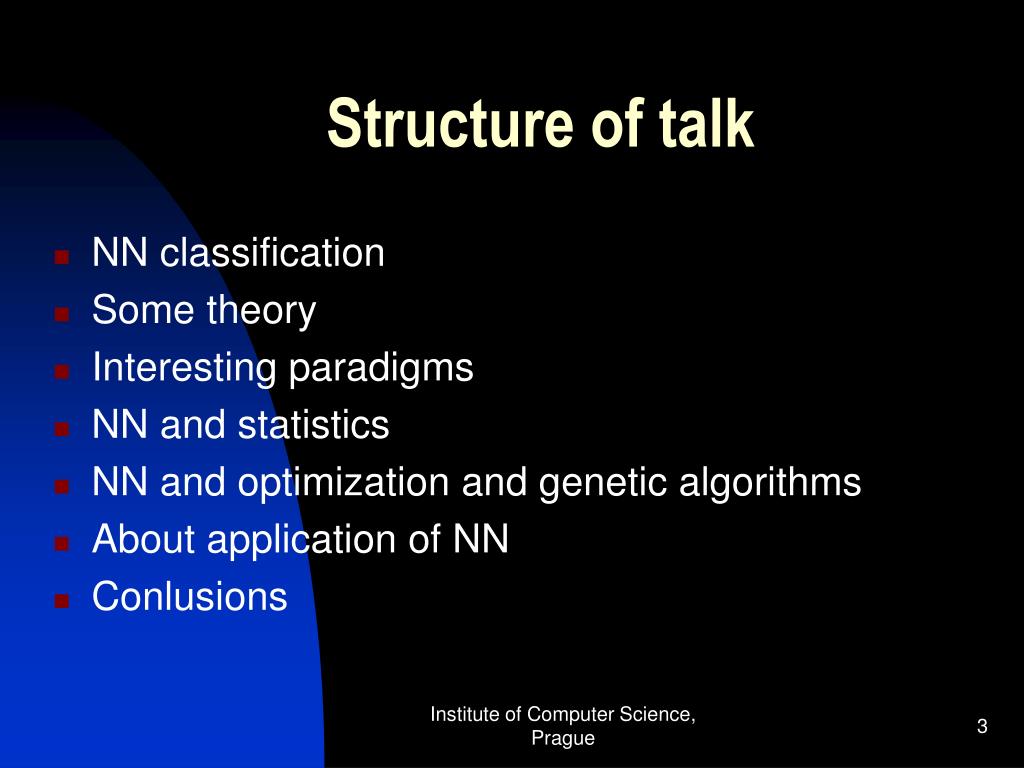

Structure of talk
Structure of talk

  • NN classification

  • Some theory

  • Interesting paradigms

  • NN and statistics

  • NN and optimization and genetic algorithms

  • About application of NN

  • Conlusions

Institute of Computer Science, Prague


Nn classification

Approximators

Associative memories

General

Predictors

Auto-associative

Hetero-associative

Classifiers

Teacher

MLP-BP

RBF

GMDH

NNSU

Marks

Klán

Hopfield

Perceptron(*)

Hamming

No teacher

Kohonen

CarpentierGrossberg

(SOM)

NE

Kohonen

(NE)

Signals

Continuous, real-valued

Binary, multi-valued (continuous)

NN classification

NE – not existing. Associated response can be arbitrary and then must be given - by teacher

Feed-forward, recurrent

Fixed structure - growing

Institute of Computer Science, Prague


Some theory

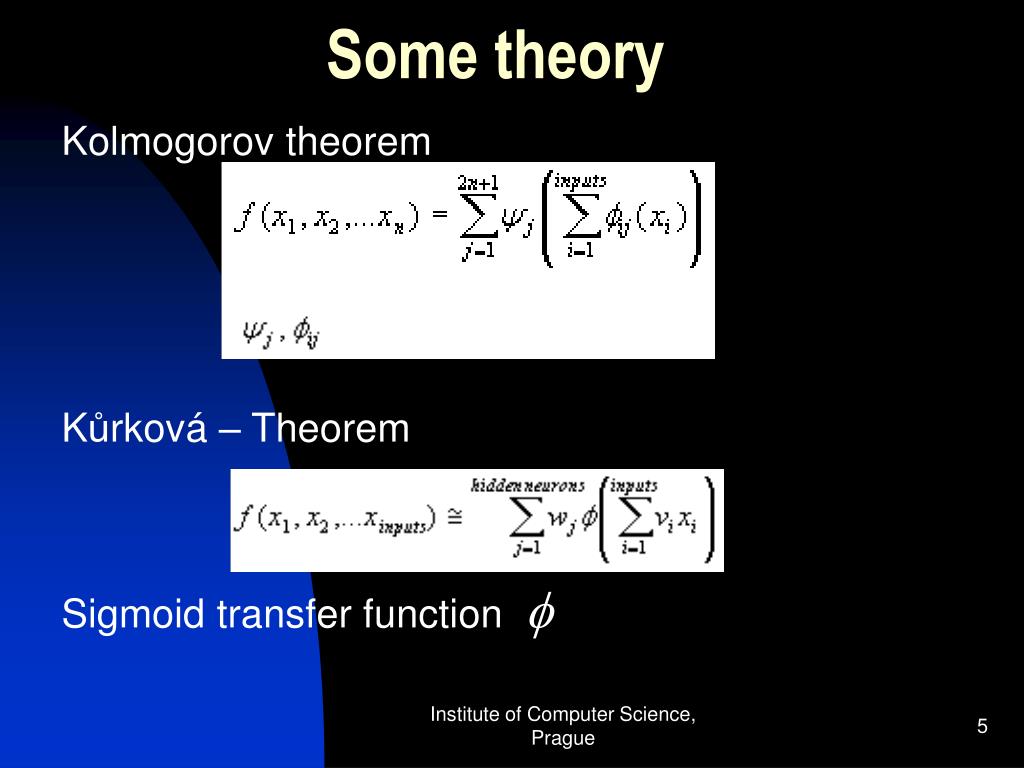

Some theory

Kolmogorov theorem

Kůrková – Theorem

Sigmoid transfer function 

Institute of Computer Science, Prague


Mlp bp
MLP - BP

Three layer - Single hidden layer MLP – 4 layer – 2 hidden

Other paradigms have its own theory – another

Institute of Computer Science, Prague


Interesting paradigms
Interesting paradigms

Paradigm – general notion on structure, functions and algorithms of NN

  • MLP - BP

  • RBF

  • GMDH

  • NNSU

    All: approximators

    Approximator + thresholding = Classifier

Institute of Computer Science, Prague


Mlp bp1
MLP - BP

MLP – error Back Propagation

coefficients , (0,1)

- Lavenberg-Marquart

- Optimization tools

MLP with jump transfer function

- Optimization

Feed – forward (in recall)

Matlab, NeuralWorks, …

Good when default is sufficient or when network is well tuned: Layers, neurons, , 

Institute of Computer Science, Prague


Neural networks
RBF

  • Structure same as in MLP

  • Bell-shaped transfer function (Gauss)

    • Number and positions of centers: random – cluster analysis

    • “broadness” of that bell

    • Size of individual bells

    • Learning methods

  • Theory similar to MLP

  • Matlab, NeuralWorks, …

    Good when default is sufficient or when network is well tuned : Layers mostly one hidden, # neurons, transfer function, proper cluster analysis (fixed No. of clusters, variable? Near – Far metric or criteria)

Institute of Computer Science, Prague


Gmdh 1 5
GMDH 1 (…5)

Group Method Data Handling

  • Group – initially a pair of signals only

  • “per partes” or successive polynomial approximator

  • Growing network

  • “parameterless” – parameter-barren

    • No. of new neurons in each layer only (processing time)

    • (output limits, stopping rule parameters)

  • Overtraining – learning set is split to

    • Adjusting set

    • Evaluation set

      GMDH 2-5: neuron, growing network, learning strategy, variants

  • Institute of Computer Science, Prague


    Gmdh 2 neuron
    GMDH 2 – neuron

    • Two inputs x1, x2 only

      • True inputs

      • Outputs from neurons of the preceding layer

  • Full second order polynomial

    y = a x12 + b x1 x2 + c x22 + d x1 + e x2 + f

    y = neuron’s output

  • n inputs => n(n-1)/2 neurons in the first layer

  • Number of neurons grows exponentially

  • Order of resulting polynomial grows exponentially: 2, 4, 8, 16, 32, …

  • Ivakhnenko polynomials … some elements are missing

  • Institute of Computer Science, Prague


    Gmdh 3 learning a neuron
    GMDH 3 – learning a neuron

    • Matrix of data: inputs and desired value

      u1, u2 , u3, …, un,y sample 1

      u1, u2 , u3, …, un,y sample 1

      …. sample m

    • A pair of two u’s are neuron’s inputs x1, x2

    • m approximating equations, one for each sample

      a x12 + b x1 x2 + c x22 + d x1 + e x2 + f = y

    • Matrix X = Y= (a, b, c, d, e, f)t

      • Each row of X is x12+x1x2+x22+x1+x2+1

  • LMS solution  = (XtX)-1XtY

  • If XtX is singular, we omit this neuron

  • Institute of Computer Science, Prague


    Gmdh 4 growing network

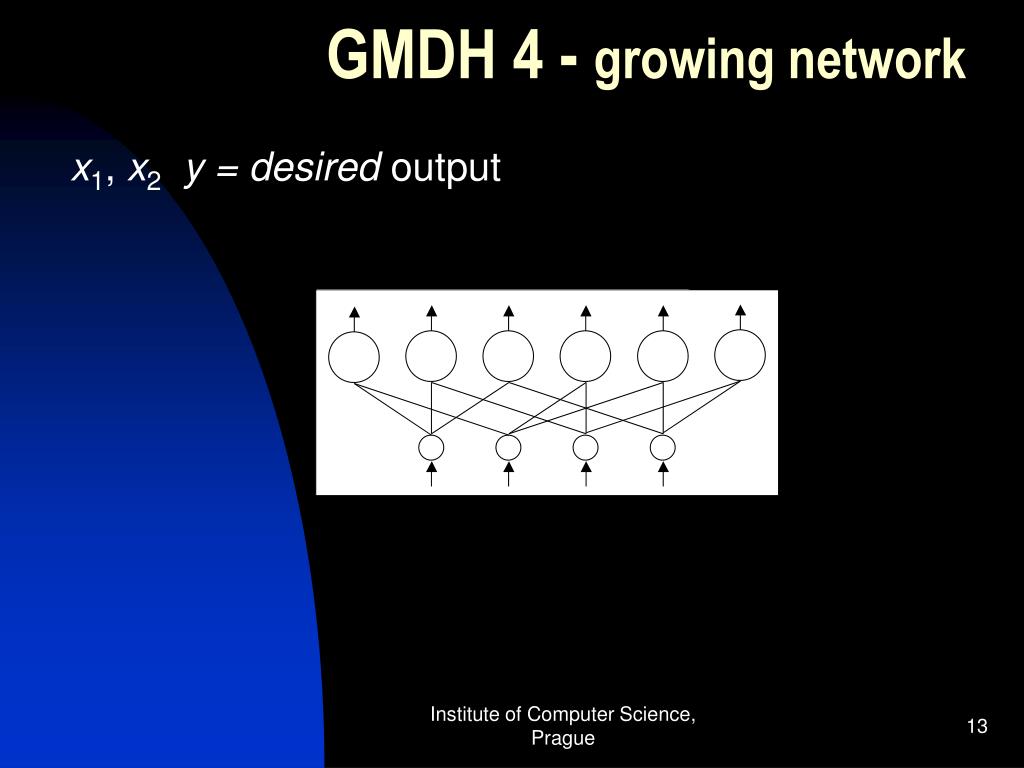

    GMDH 4 - growing network

    x1, x2 y = desired output

    Institute of Computer Science, Prague


    Gmdh 5 learn strategy
    GMDH 5 learn. strategy

    Problem: Number of neurons grows exponentially

    NN=n(n-1)2

    • Let the first layer of neurons grow unlimited

    • In next rows:

      • [learning set split to adjusting set and evaluating set]

      • Compute parameters a,…f using adjusting set

      • Evaluate error using evaluating set and sort

      • Select some n best neurons and delete the others

      • Build the next layer OR

      • Stop learning if stopping condition is met.

    Institute of Computer Science, Prague

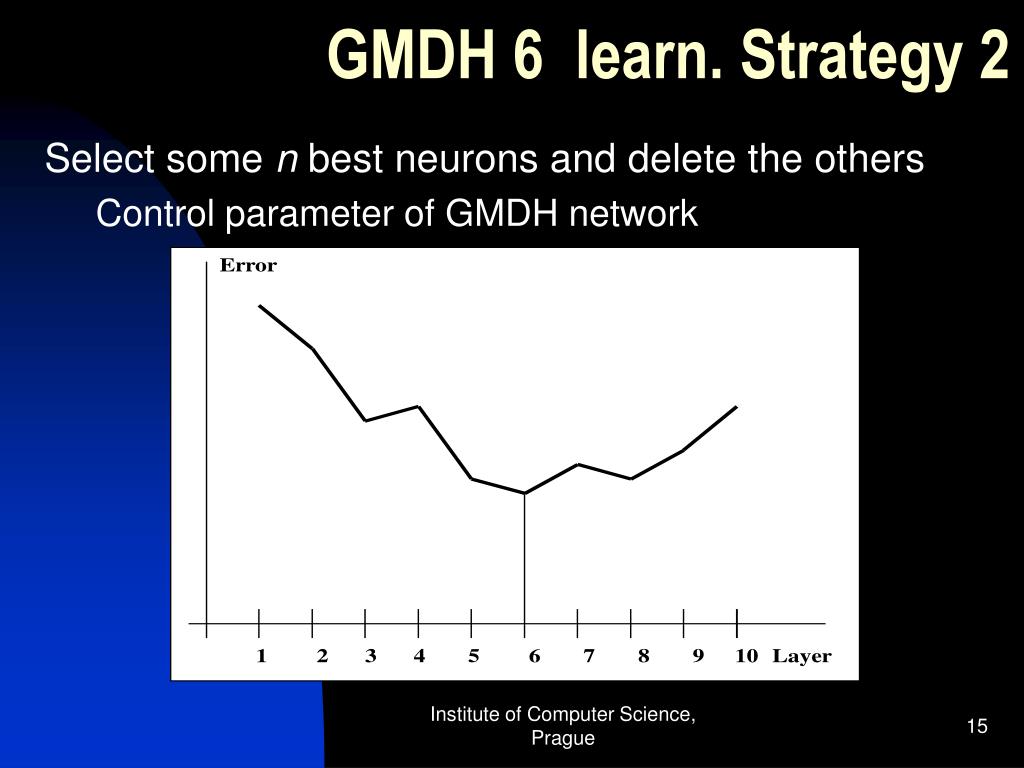

    Gmdh 6 learn strategy 2
    GMDH 6 learn. Strategy 2

    Select some n best neurons and delete the others

    Control parameter of GMDH network

    Institute of Computer Science, Prague


    Gmdh 7 variants
    GMDH 7 - variants

    • Basic – full quadratic polynomial – Ivakh. poly

    • Cubic, Fourth order simplified …

      • Reach higher order in less layers and less params

    • Different stopping rules

    • Different ratio of sizes of adjusting set and evaluating set

    Institute of Computer Science, Prague


    Nnsu ga
    NNSU GA

    Neural Network with Switching Units

    learned by the use of Genetic Algorithm

    • Approximator by lot of local hyper-planes; today also by local more general hyper-surfaces

    • Feed-forward network

    • Originally derived from MLP for optical implementation

    • Structure looks like columns above individual inputs

    • More … František

    Institute of Computer Science, Prague

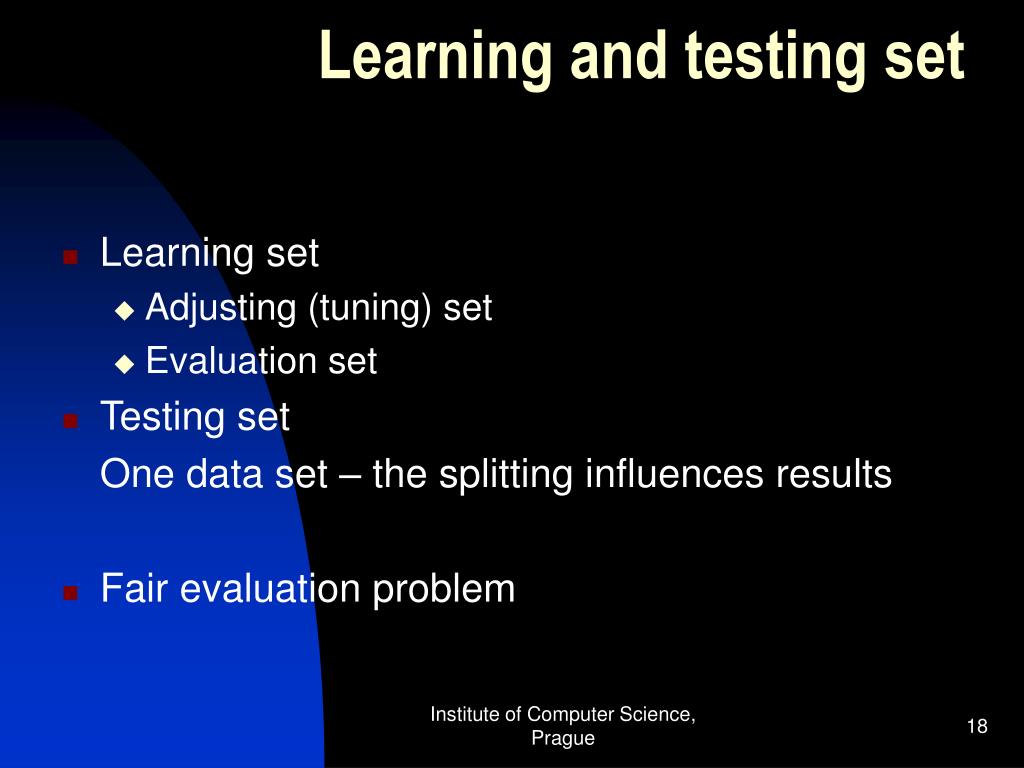

    Learning and testing set
    Learning and testing set

    • Learning set

      • Adjusting (tuning) set

      • Evaluation set

    • Testing set

      One data set – the splitting influences results

    • Fair evaluation problem

    Institute of Computer Science, Prague

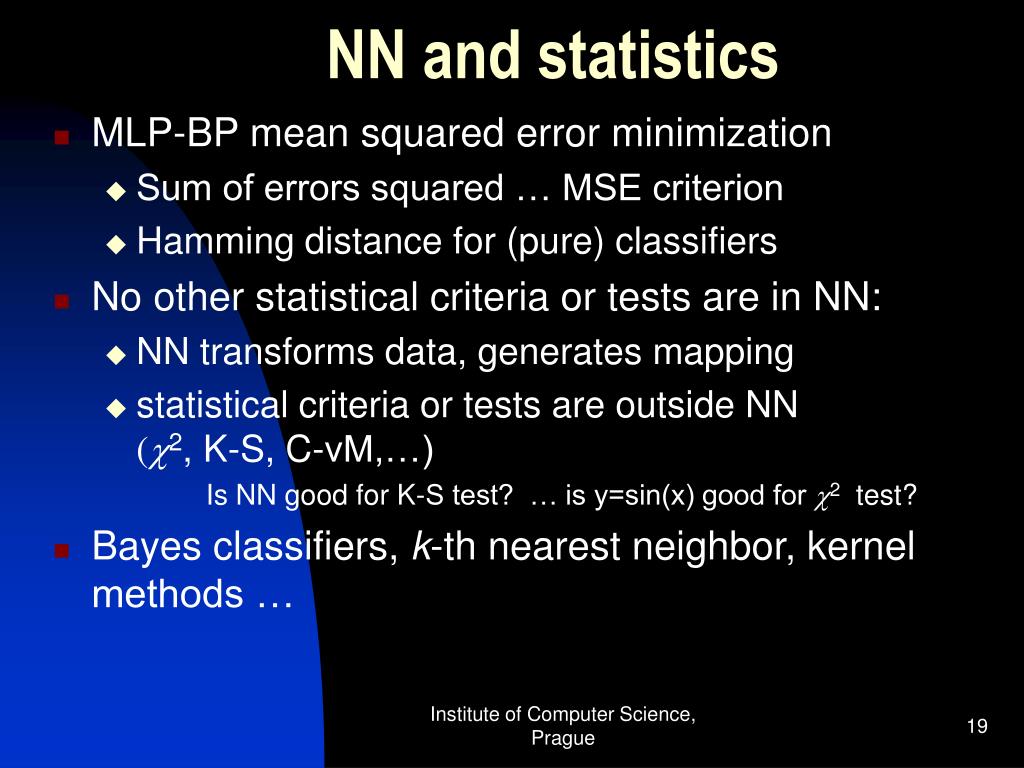

    Nn and statistics
    NN and statistics

    • MLP-BP mean squared error minimization

      • Sum of errors squared … MSE criterion

      • Hamming distance for (pure) classifiers

    • No other statistical criteria or tests are in NN:

      • NN transforms data, generates mapping

      • statistical criteria or tests are outside NN (2, K-S, C-vM,…)

        Is NN good for K-S test? … is y=sin(x) good for 2 test?

    • Bayes classifiers, k-th nearest neighbor, kernel methods …

    Institute of Computer Science, Prague

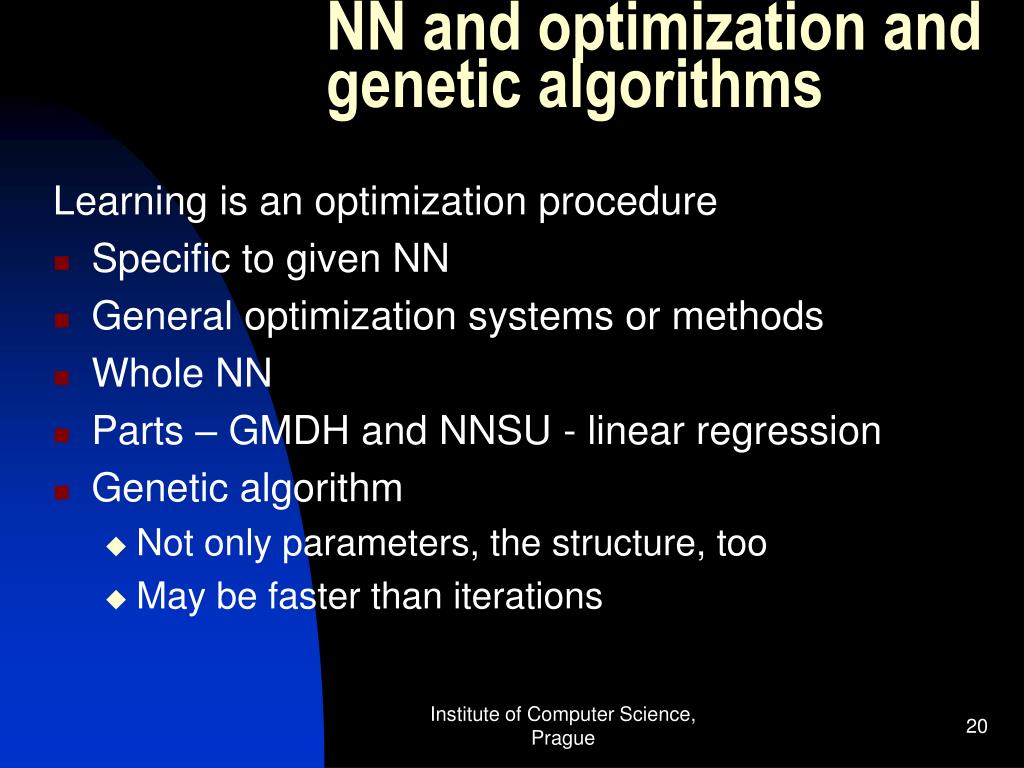

    Nn and optimization and genetic algorithms
    NN and optimization and genetic algorithms

    Learning is an optimization procedure

    • Specific to given NN

    • General optimization systems or methods

    • Whole NN

    • Parts – GMDH and NNSU - linear regression

    • Genetic algorithm

      • Not only parameters, the structure, too

      • May be faster than iterations

    Institute of Computer Science, Prague

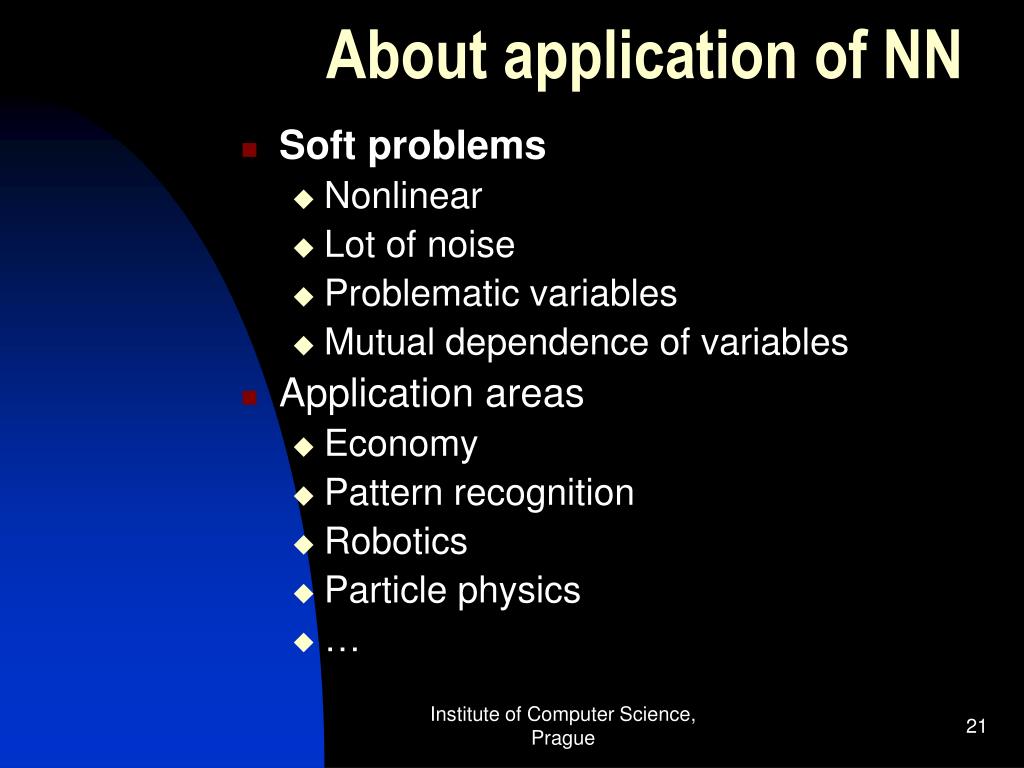

    About application of nn
    About application of NN

    • Soft problems

      • Nonlinear

      • Lot of noise

      • Problematic variables

      • Mutual dependence of variables

    • Application areas

      • Economy

      • Pattern recognition

      • Robotics

      • Particle physics

    Institute of Computer Science, Prague

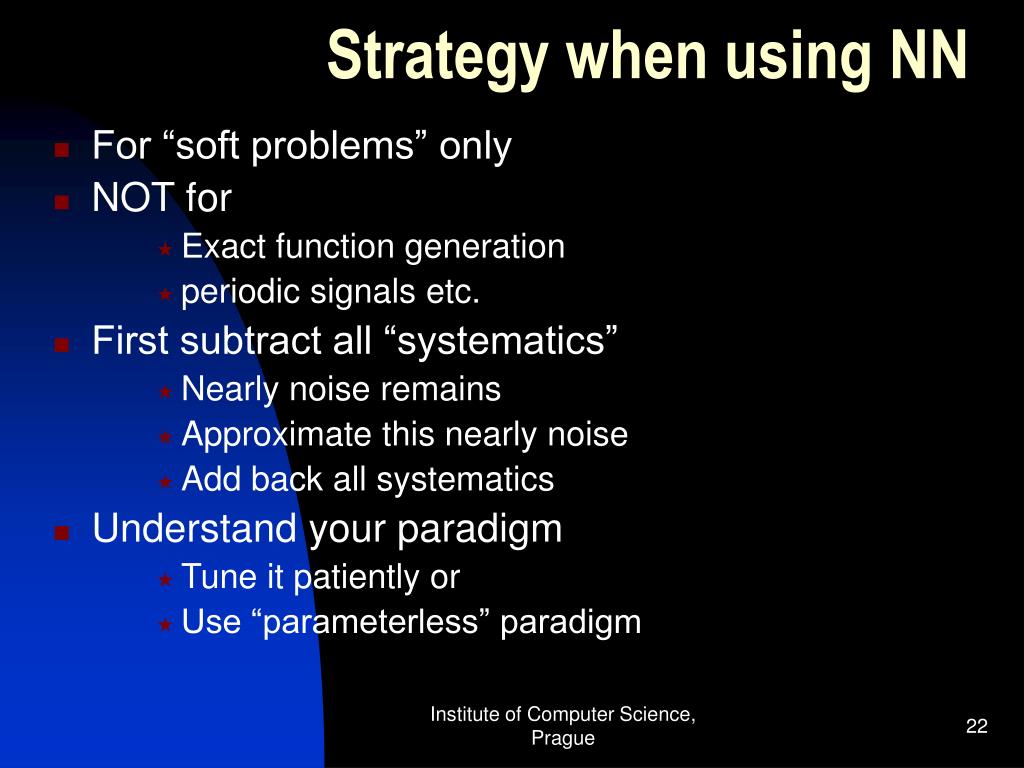

    Strategy when using nn
    Strategy when using NN

    • For “soft problems” only

    • NOT for

      • Exact function generation

      • periodic signals etc.

  • First subtract all “systematics”

    • Nearly noise remains

    • Approximate this nearly noise

    • Add back all systematics

  • Understand your paradigm

    • Tune it patiently or

    • Use “parameterless” paradigm

  • Institute of Computer Science, Prague


    Conlusions

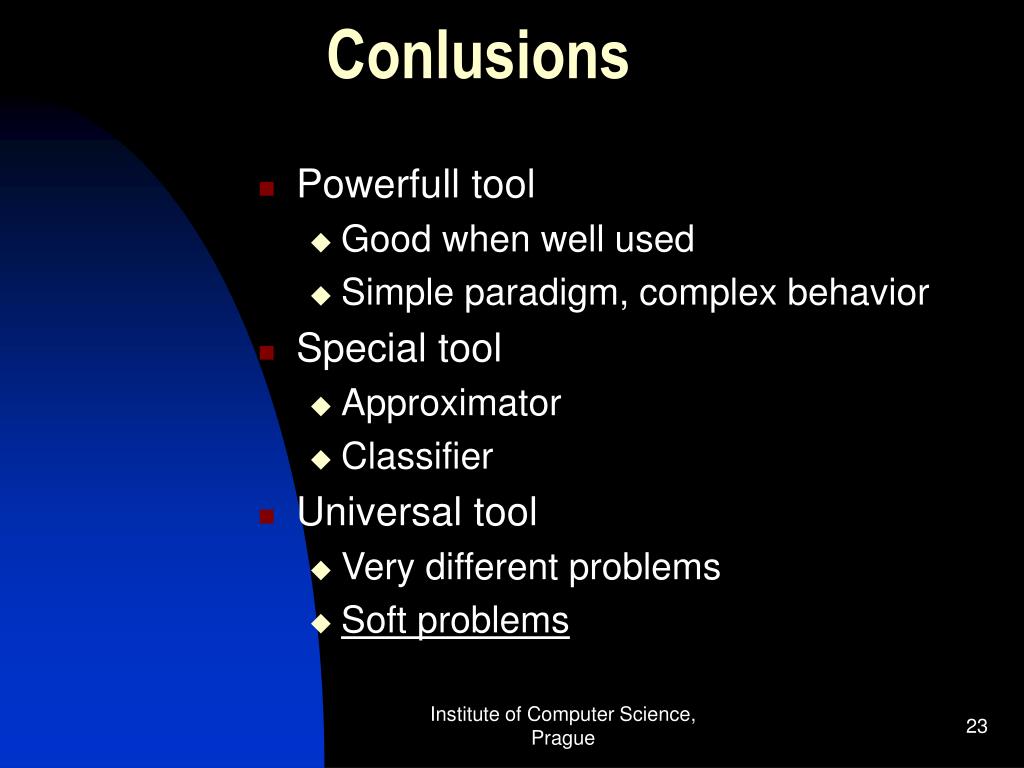

    Conlusions

    • Powerfull tool

      • Good when well used

      • Simple paradigm, complex behavior

    • Special tool

      • Approximator

      • Classifier

    • Universal tool

      • Very different problems

      • Soft problems

    Institute of Computer Science, Prague
