Presentation Transcript
Unix continuum of tools

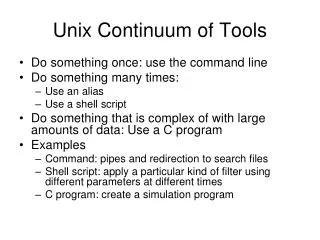

Unix Continuum of Tools

  • Do something once: use the command line

  • Do something many times:

    • Use an alias

    • Use a shell script

  • Do something that is complex of with large amounts of data: Use a C program

  • Examples

    • Command: pipes and redirection to search files

    • Shell script: apply a particular kind of filter using different parameters at different times

    • C program: create a simulation program


C advantages and disadvantages
C Advantages and Disadvantages

  • Advantages

    • Super fast

    • Concise set of syntax

    • Portable: all systems can compile c

    • Very popular

  • Disadvantages

    • Not object oriented meaning that procedures and functions are written to operate on data constructs


History
History

  • 1972

    • Dennis Ritchie creates the c language

    • The classic book by Kernigham and Ritchie defines the syntax for this language.

    • 1990 ANSI C with some minor extensions

    • 1999 ANSI C with some more minor extensions

  • 1979

    • C++ which is C with classes

    • Additional enhancements since then

  • 1990s: Java

    • programming language based on C++ syntax

  • 2002: C#

    • .net language with characteristics of Java and C++

Note:If you know Java, you know lots of C ("Just Like Java" or JLJ)


Making a c program
Making a C Program

  • Create your program

    >vi hello.c

  • Complile and link

    • The standard UNIX command: >cc <file>

    • The GNU command: >gcc <file>

    • Flags

      • -o <file> creates an executable named <file> instead of a.out

      • -g create symbolic information for the gdb debugger

      • -l <library> include a run time library

      • -L <path> search path for libraries

  • Debug: >gdb executable (we will cover this later)

  • To run: just type <executable> or ./<executable> if . is not in the search path


Development cycle
Development Cycle

  • Design and code

  • Editor to enter the code: program.c

  • Compile: program.o

  • Link: program

  • If link errors, return to step 2

  • Execute program

  • If logic errors return to step 1

Note: Steps 3 and 4 is normally done by gcc in one step

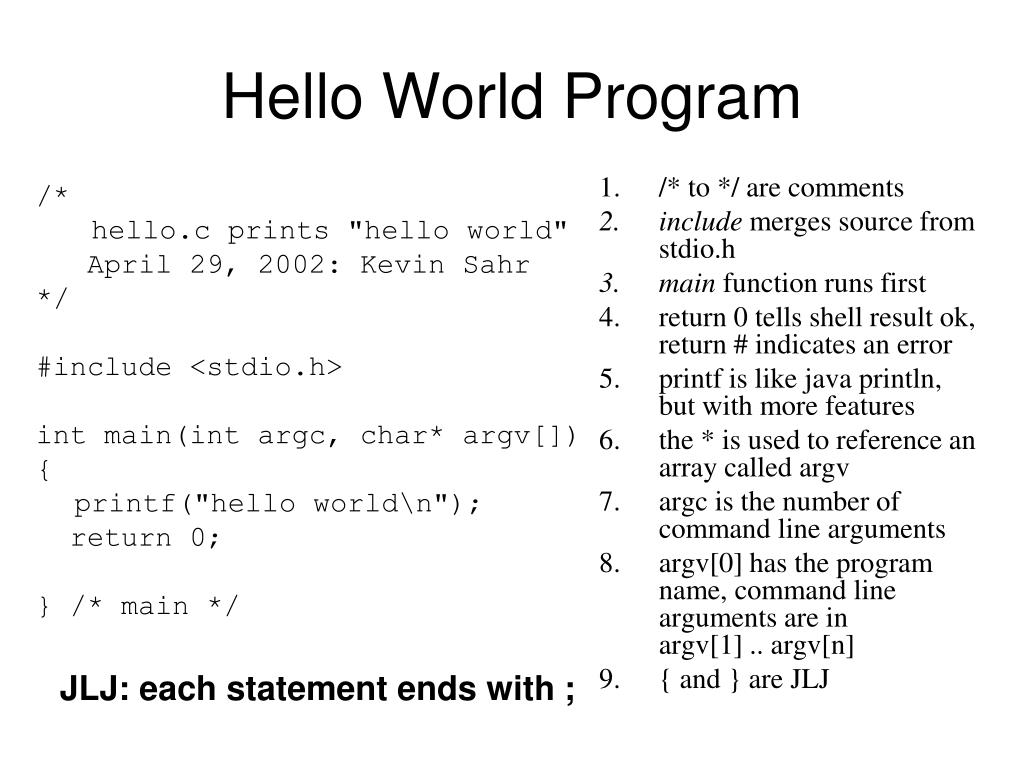

Hello world program

/*

hello.c prints "hello world"

  April 29, 2002: Kevin Sahr

*/

#include <stdio.h>

int main(int argc, char* argv[])

{

printf("hello world\n");

  return 0;

} /* main */

/* to */ are comments

include merges source from stdio.h

main function runs first

return 0 tells shell result ok, return # indicates an error

printf is like java println, but with more features

the * is used to reference an array called argv

argc is the number of command line arguments

argv[0] has the program name, command line arguments are in argv[1] .. argv[n]

{ and } are JLJ

Hello World Program

JLJ: each statement ends with ;


C program structure
C Program Structure

  • Comments

    • At top: File name, date, author, purpose

    • Throughout: clarify code as needed

  • Preprocessor directives

    • C programs run through a preprocessor phase first

    • This phase: Include other source files, perform modifications to the source file

    • Preprocessor directives do not end with ;

  • Include the main function

  • Include other functions (Subject for a later week)


Comments
Comments

  • C comments are /* … */

    • Do not nest comments

    • In labs, include the name of the file, your name, and date at the top of every file you submit

    • Other comments will be optional, but use when the code is not easy to follow

  • The // format were introduced in C++

    • They presently are not part of C

    • They are proposed for the next version of C


Header files stdio h and stdlib h
Header files: stdio.h and stdlib.h

  • Includes: analogous to Java Includes

    • stdio.h is a text file containing prototypes for stream based I/O functions

    • stdlib.h another text file containing prototypes to the C "standard library"

  • Prototypes:

    • analogous to Java Interfaces

    • function bodies completed when linking


Main function
main() function

  • main()

    • Every C program must have a main function

    • Analogous to Java "static void main(String[] args)"

    • Syntax: int main(int argc, char *argv[])

      • argc: number of arguments

      • argv: an array of argument strings

    • return statement returns to the caller

      • main() function returns to the shell

      • return 0; tells the shell that the run was successful

      • return #; returns an error code to the shell


Converting string data
Converting String Data

  • Commonly used functions

    • Ascii to integer: atoi(string);

    • Ascii to float: atof(string);

    • String to double: strtod(char *start, char *end);

  • Example

    Int main(intargc, char *args[])

    {

    int x = atoi(args[1]);

    double y = atof(args[2]);

    double z = strtod(args[2], NULL); // entire string

    }
