russell foundation monorail support system

Russell Foundation Monorail Support System

ME 462 Capstone Design

Group Members: Kelly Moore, Bart Sudhoff, Danny Compton,

Katie Iaizzo, Mary Croucher

Advisors: Dr. Jie Chen and Dr. Roger Knutson

12 Decmeber 2007

introduction
Introduction
  • Background
  • Design Objectives
  • Material Selection
  • Cost Evaluation
  • Concept Design
  • Product Evaluation
  • Conclusion
  • Recommendations
  • Answer Questions

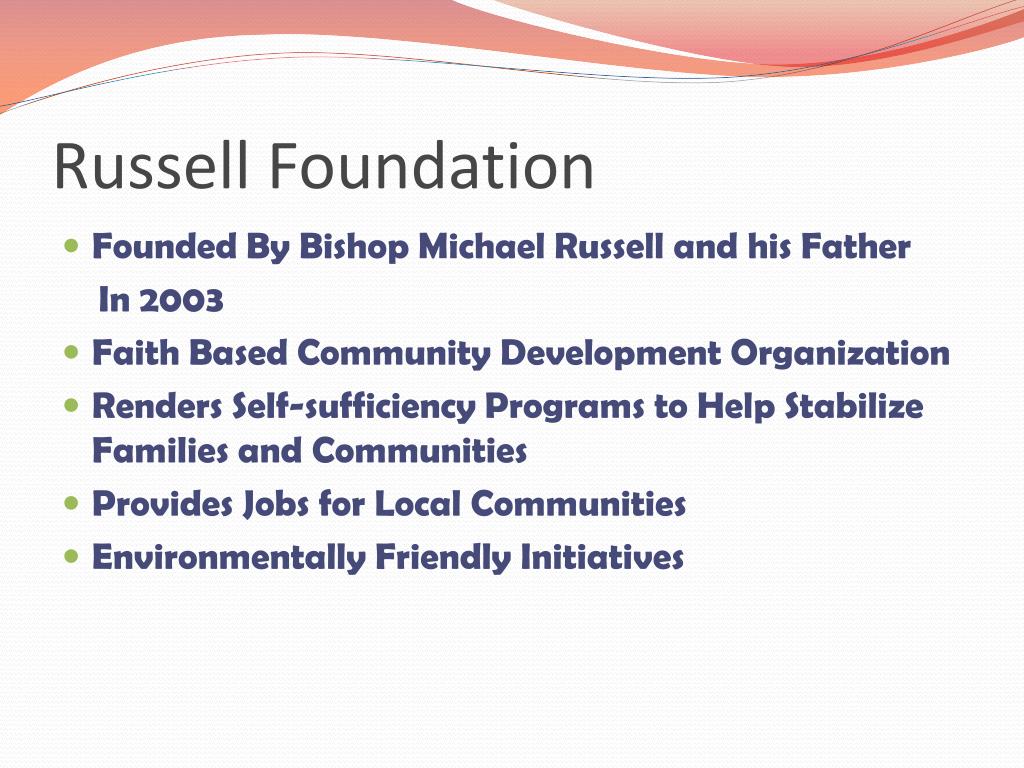

russell foundation
Russell Foundation
  • Founded By Bishop Michael Russell and his Father

In 2003

  • Faith Based Community Development Organization
  • Renders Self-sufficiency Programs to Help Stabilize Families and Communities
  • Provides Jobs for Local Communities
  • Environmentally Friendly Initiatives
reasons for design
Reasons For Design
  • Reduce Traffic Congestion around Chicago-Indiana Area
  • Provide High Speed Transportation
  • Create Jobs in Indiana
  • Pioneering Environmentally Friendly Mass Transit Solutions
customer requirements
Customer Requirements
  • Travel 75 MPH
  • Support Renewable Energy Source
  • Easy Assembly
  • Easy Maintenance
  • Smooth Rail Transition
  • Appearance
  • Support 160,000 lb load
  • Minimize Stopping Time
  • Minimize Cost
  • Minimize Environmental Effects
engineering requirements
Engineering Requirements
  • Minimize Resistance (Rail)
  • Maximize Allowable Stress (Structure)
  • Equipment Hours
  • Labor Hours
  • Minimize Rail Height Difference
  • Public Appearance Rating
  • Maximize Allowable Stress (Rail)
  • Maximize Allowable Stopping Force
  • Minimize Cost
  • Minimize Environmental Effects on Material

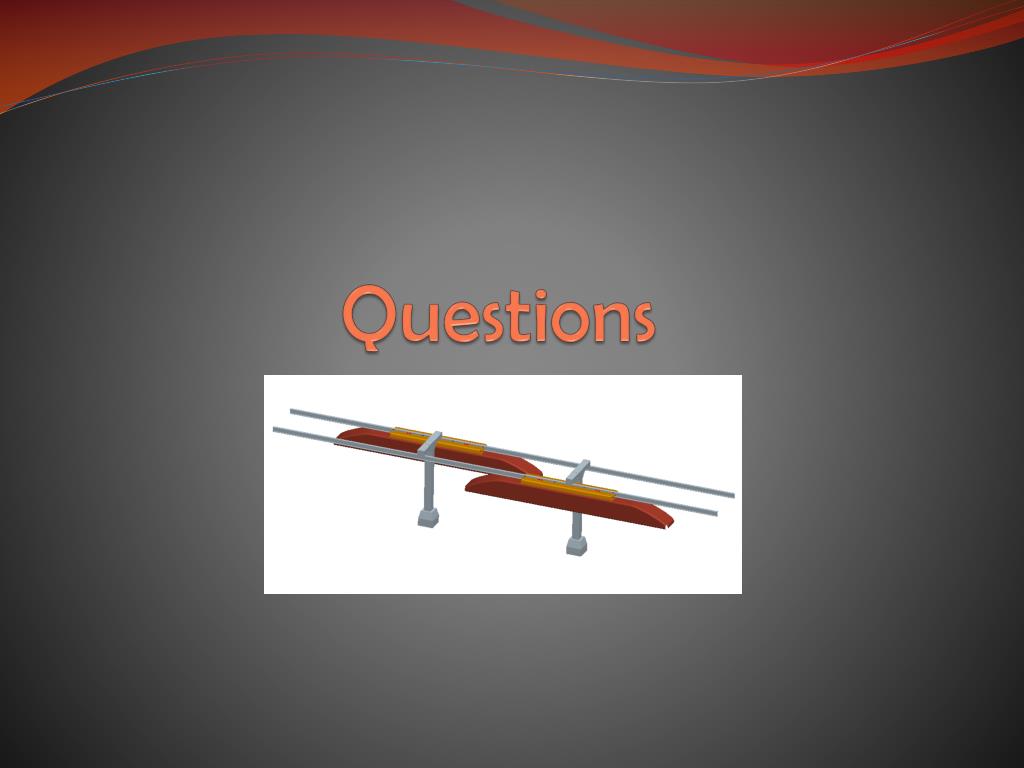

column support

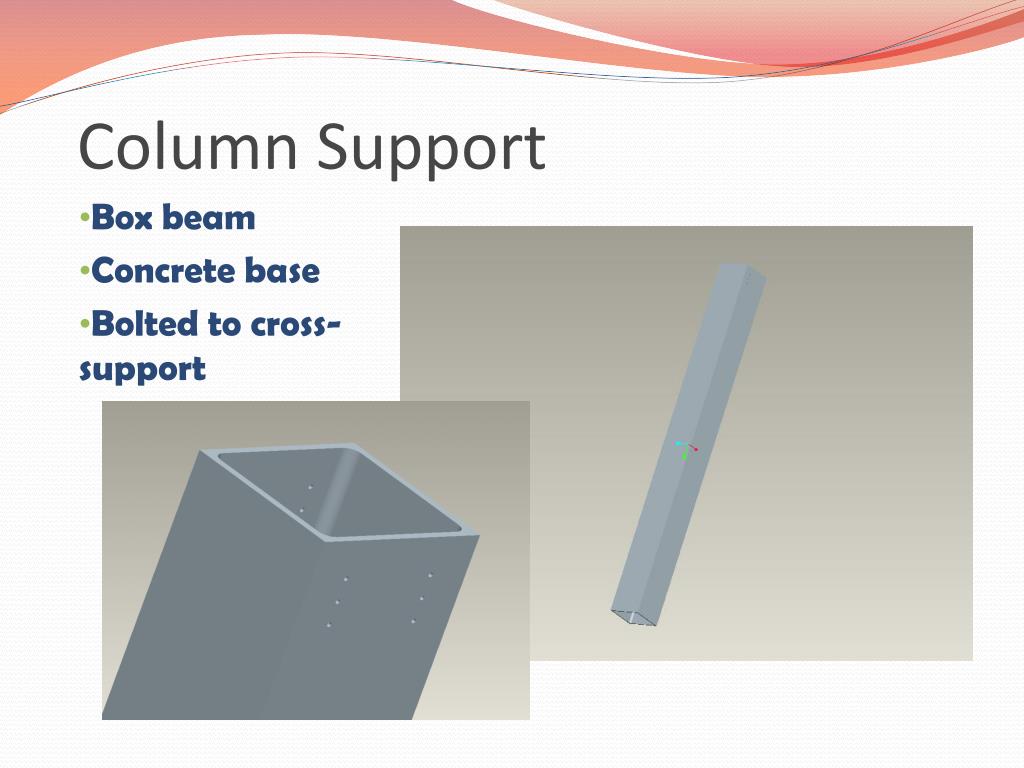

Column Support

Box beam

Concrete base

Bolted to cross-support

cross support

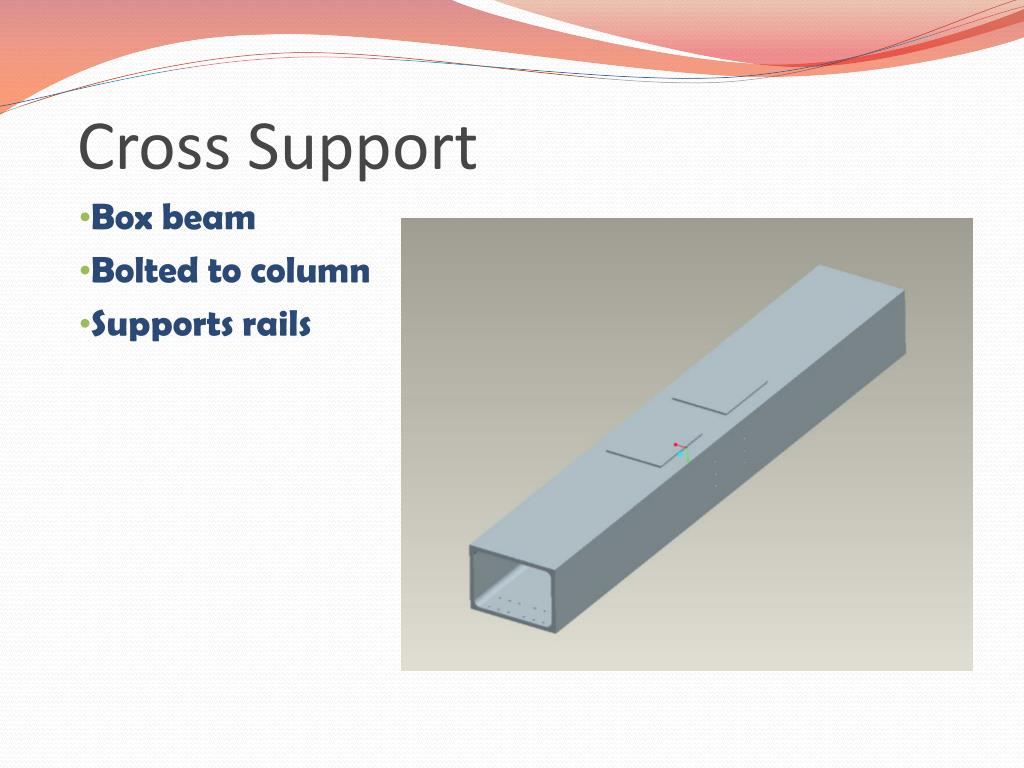

Cross Support

Box beam

Bolted to column

Supports rails

standard i beam w27 x 368
Standard I-Beam W27 x 368

Standard Size

Internal height equal to 25.43 inches

Fits standard 22 inch tire diameter

column support assembly
Column Support Assembly

All parts bolted and welded

types of steel

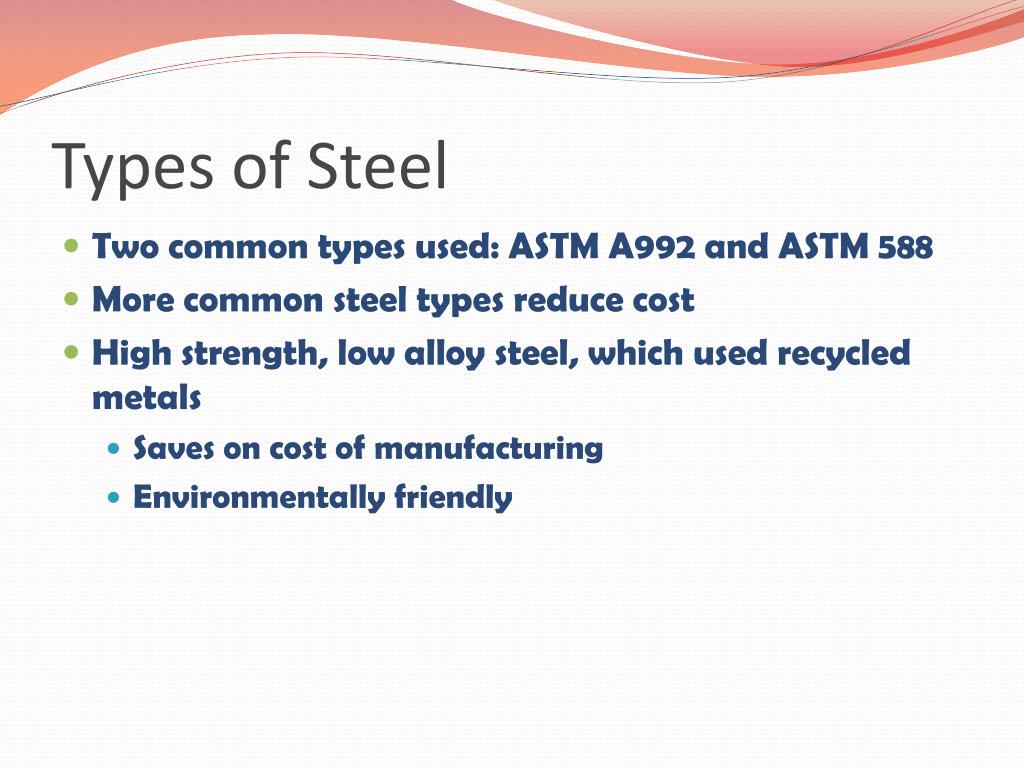

Types of Steel
  • Two common types used: ASTM A992 and ASTM 588
  • More common steel types reduce cost
  • High strength, low alloy steel, which used recycled metals
    • Saves on cost of manufacturing
    • Environmentally friendly

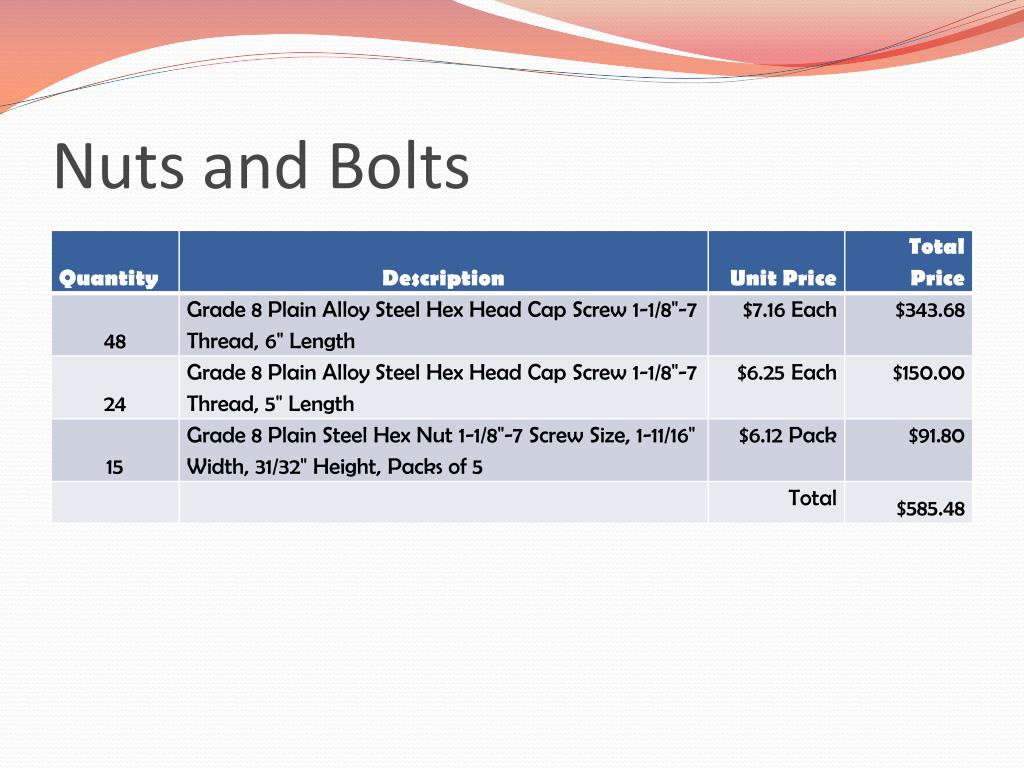

price comparison
Price Comparison
  • Consider long term maintenance and repair cost
  • Northwestern University experiment
    • A992 corrodes 64% more over time than A588
  • A992 would last less than half as long as A588 (weathering steel)
loading structure
Loading (Structure)
  • Deadweight Load
    • 80,000 lbs (355868 N)

per Rail

  • Braking Force
    • 9.8 m/s2 * 80,000 lbs
  • Fixed Supports
    • Base – Ground Interface
    • Open End Rails
shear stress structure
Shear Stress (Structure)
  • Maximum
    • 2.81 e7 Pa

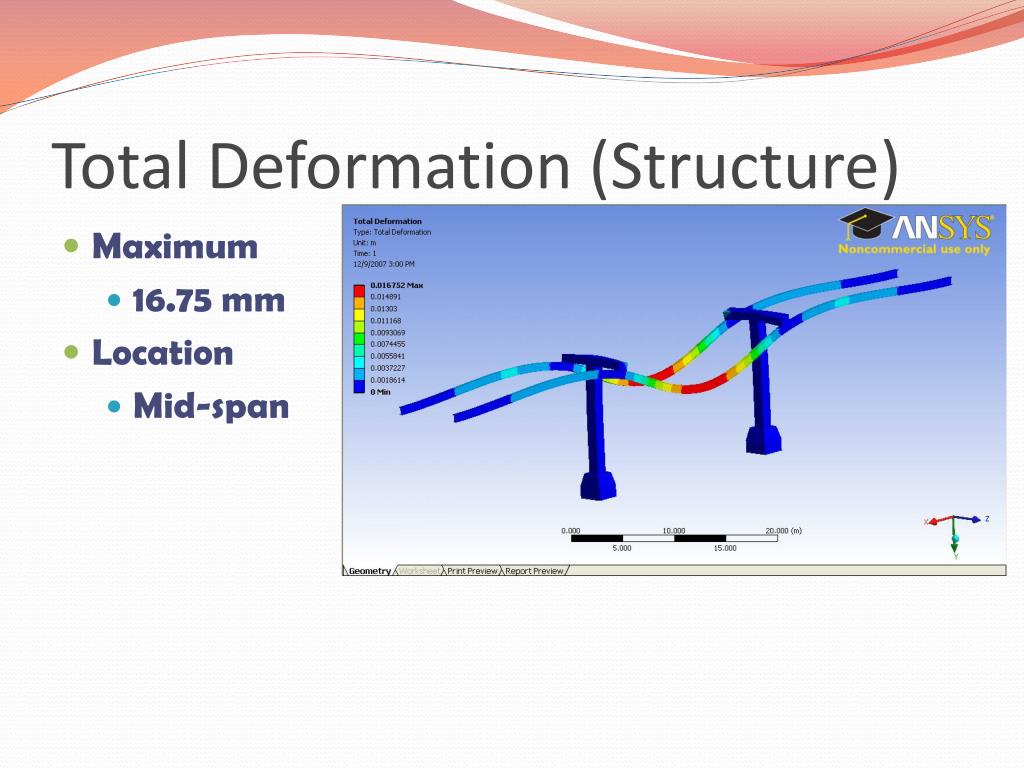

total deformation structure
Total Deformation (Structure)
  • Maximum
    • 16.75 mm
  • Location
    • Mid-span
factor of safety structure
Factor of Safety (Structure)
  • Minimum
    • 6.15
  • Location
    • Beam-

Near Connection

loading beam
Loading (Beam)
  • Deadweight load
    • 40,000 lbs

per Flange

  • Fixed Supports
    • Open Ends of

Beam

fatigue life beam
Fatigue Life (Beam)
  • Minimum
    • 8.03e5 cycles

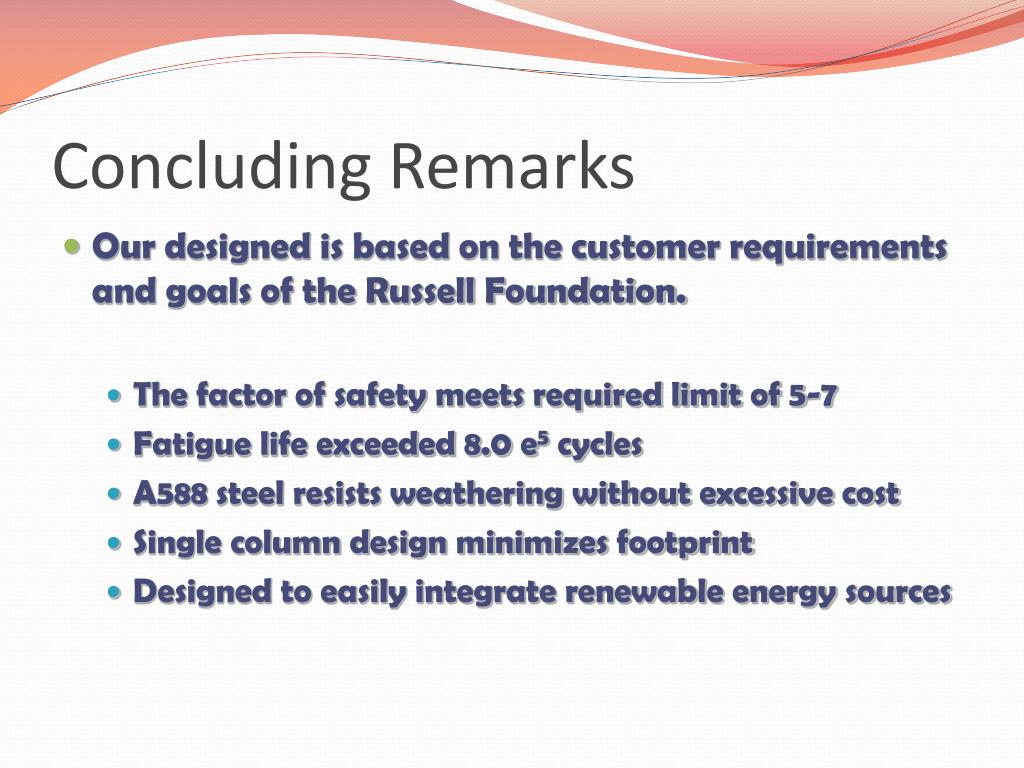

concluding remarks
Concluding Remarks
  • Our designed is based on the customer requirements and goals of the Russell Foundation.
    • The factor of safety meets required limit of 5-7
    • Fatigue life exceeded 8.0 e5 cycles
    • A588 steel resists weathering without excessive cost
    • Single column design minimizes footprint
    • Designed to easily integrate renewable energy sources
structure span length

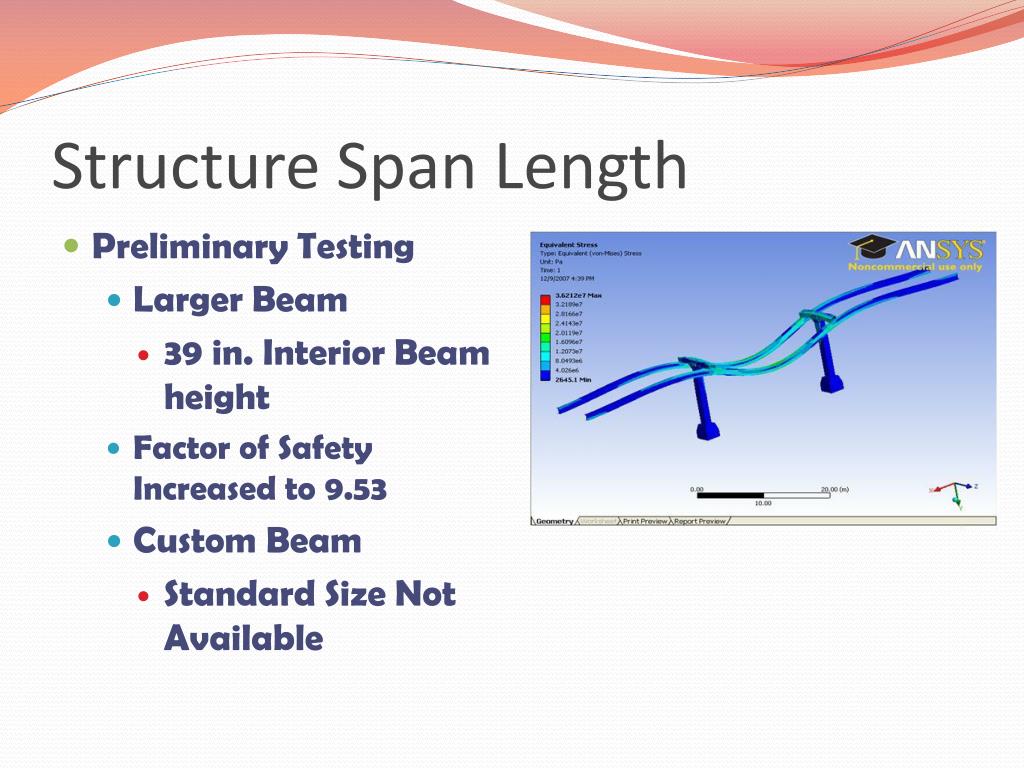

Structure Span Length
  • Preliminary Testing
    • Larger Beam
      • 39 in. Interior Beam height
    • Factor of Safety Increased to 9.53
    • Custom Beam
      • Standard Size Not Available
references

References

http://www.uspto.gov/patft/index.html

http://www.delphion.com/home

Project definition packet, Russell Foundation

“IndianaFreight and IndianaMonorail,” Roger Knutson; Russell Foundation;

Advance Transit Solutions, LLC, May 2007

http://www.wisegeek.com/what-is-a-steel-i-beam.htm

http://en.wikipedia.org/wiki/I-beam

Machinist’s Handbook 12th Edition, Lang, page 397

http://www.matweb.com
