  1. Chapter 6The Periodic Table and Periodic Law

  2. Section 6.1 Development of the Modern Periodic Table

  3. Objectives • Trace the development and Identify key features of the periodic table.

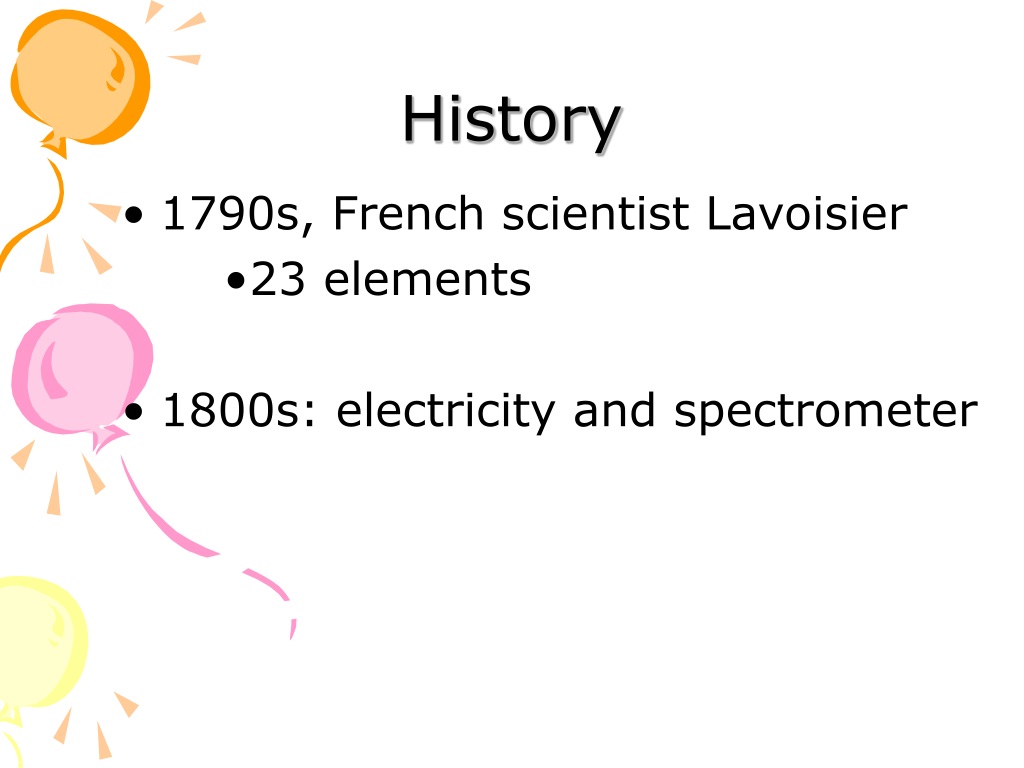

  4. History • 1790s, French scientist Lavoisier • 23 elements • 1800s: electricity and spectrometer

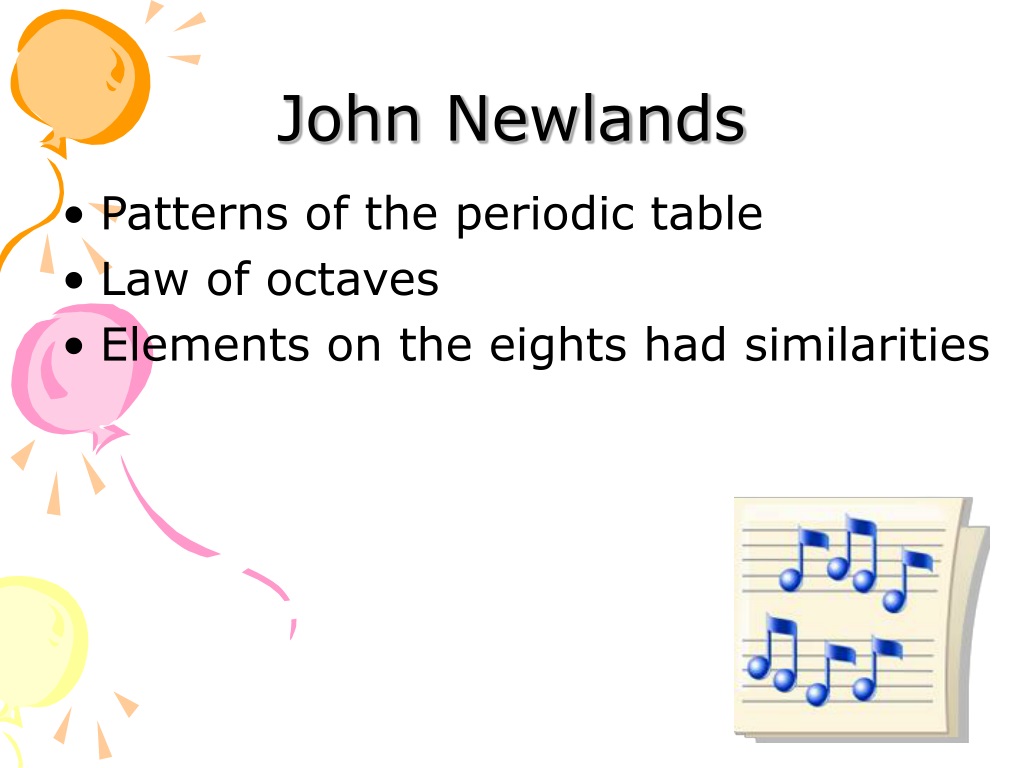

  5. John Newlands • Patterns of the periodic table • Law of octaves • Elements on the eights had similarities

  6. Meyer & Mendeleev • 1869-Meyer and Mendeleev: connection between atomic mass and properties • Mendeleev published it first • Left holes of undiscovered elements • Predicted properties of undiscovered elements- Sc, Ga, Ge

  7. Moseley • Problems with Mendeleev • Rows by increasing atomic mass • Moseley used atomic number instead

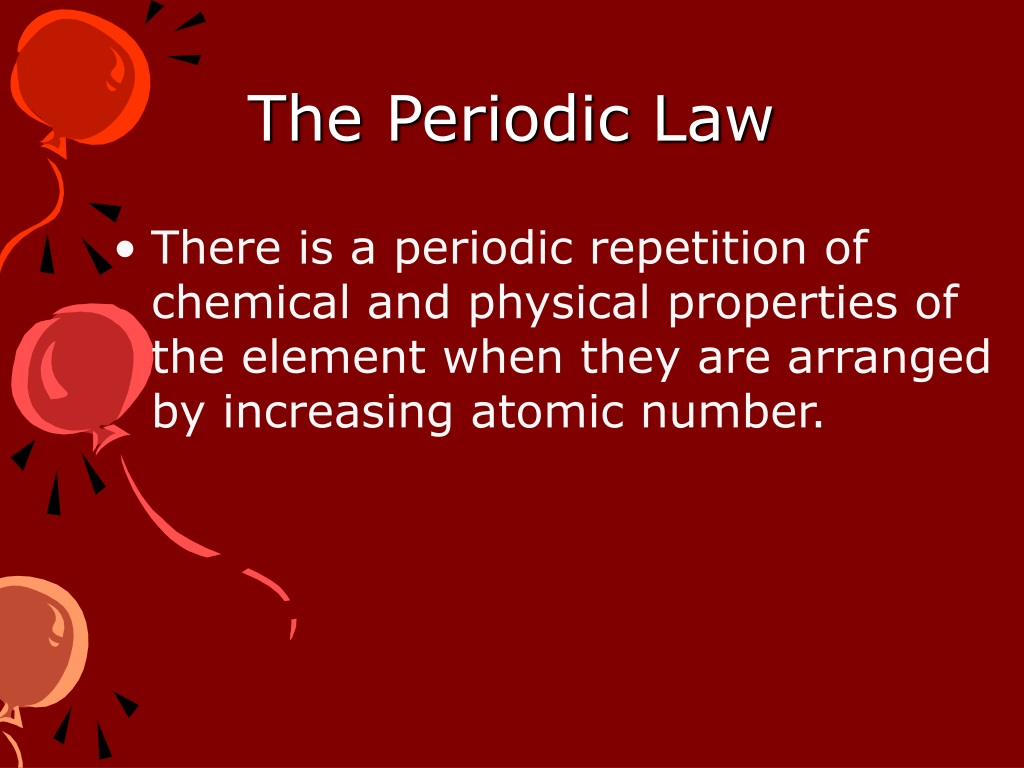

  8. The Periodic Law • There is a periodic repetition of chemical and physical properties of the element when they are arranged by increasing atomic number.

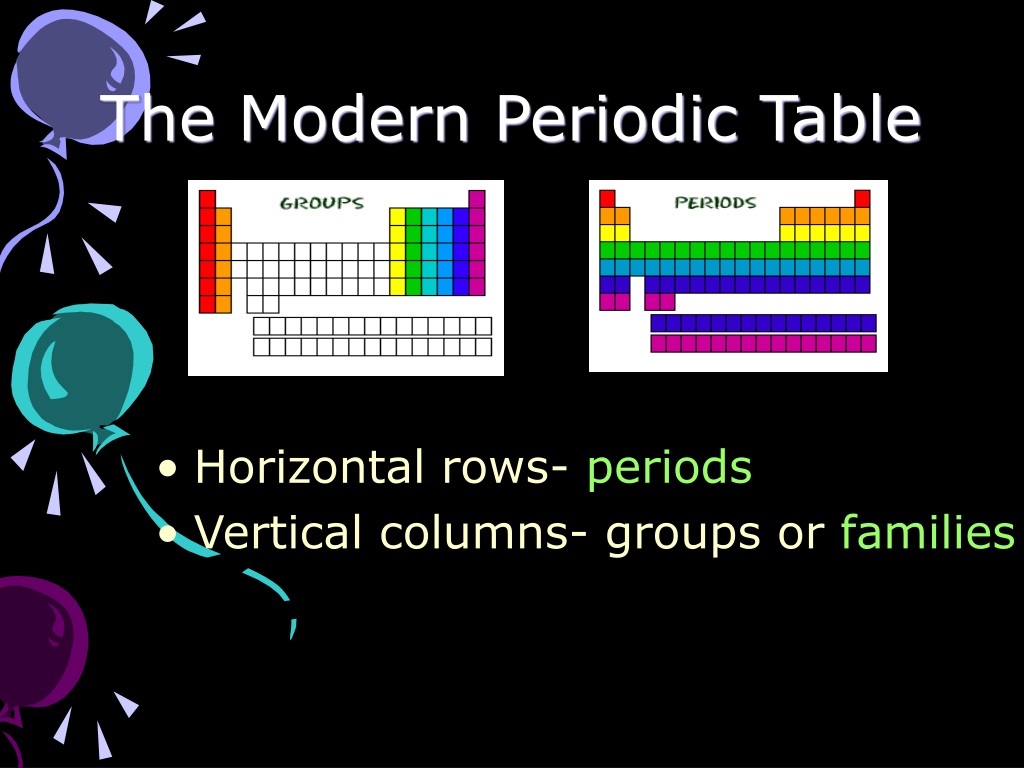

  9. The Modern Periodic Table • Horizontal rows- periods • Vertical columns- groups or families

  10. Groups 1A through 8A = Representative Elements • Wide range of chemical and physical properties • Groups 1B through 8B = Transition Elements

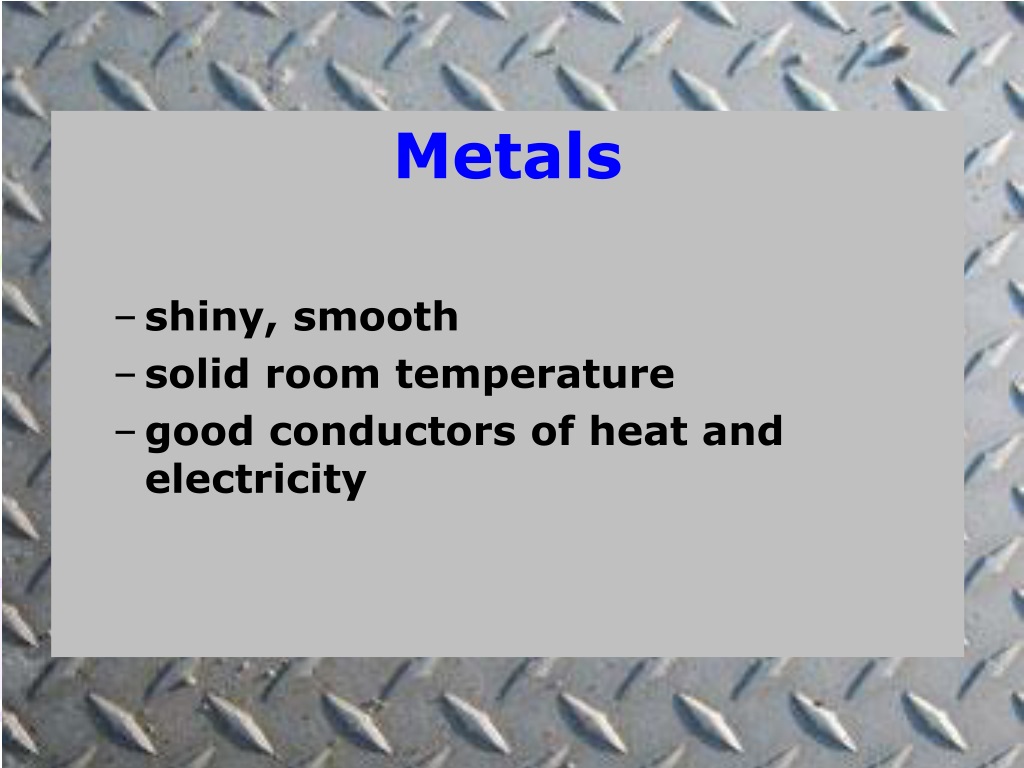

  11. Metals • shiny, smooth • solid room temperature • good conductors of heat and electricity

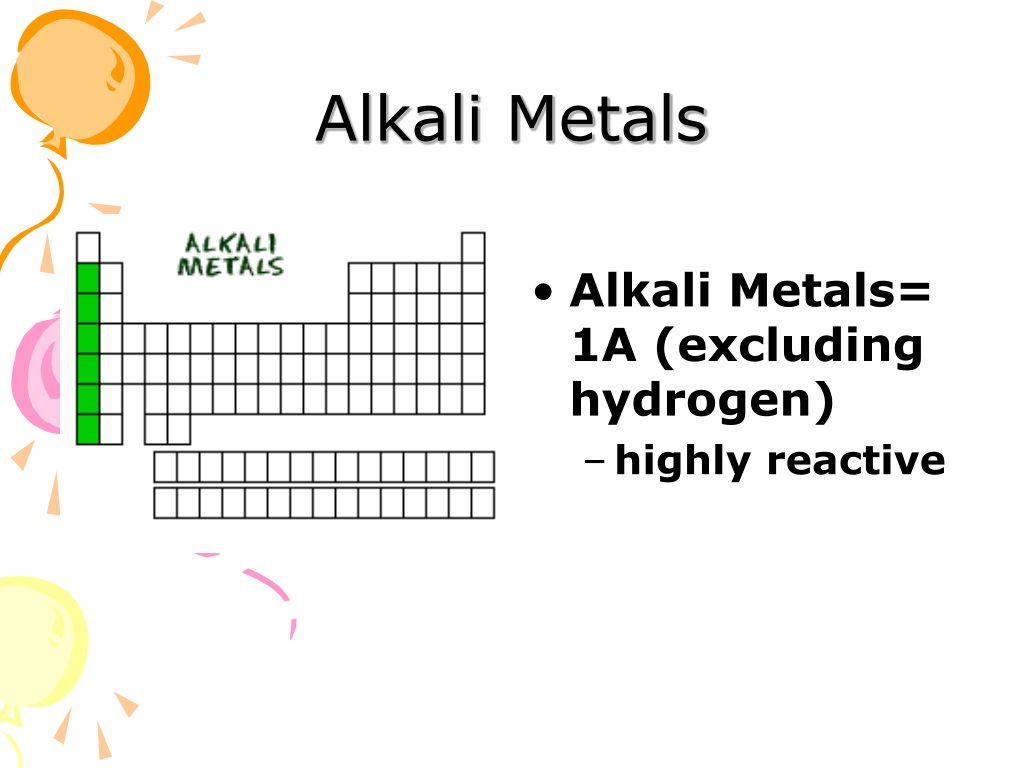

  12. Alkali Metals • Alkali Metals= 1A (excluding hydrogen) • highly reactive

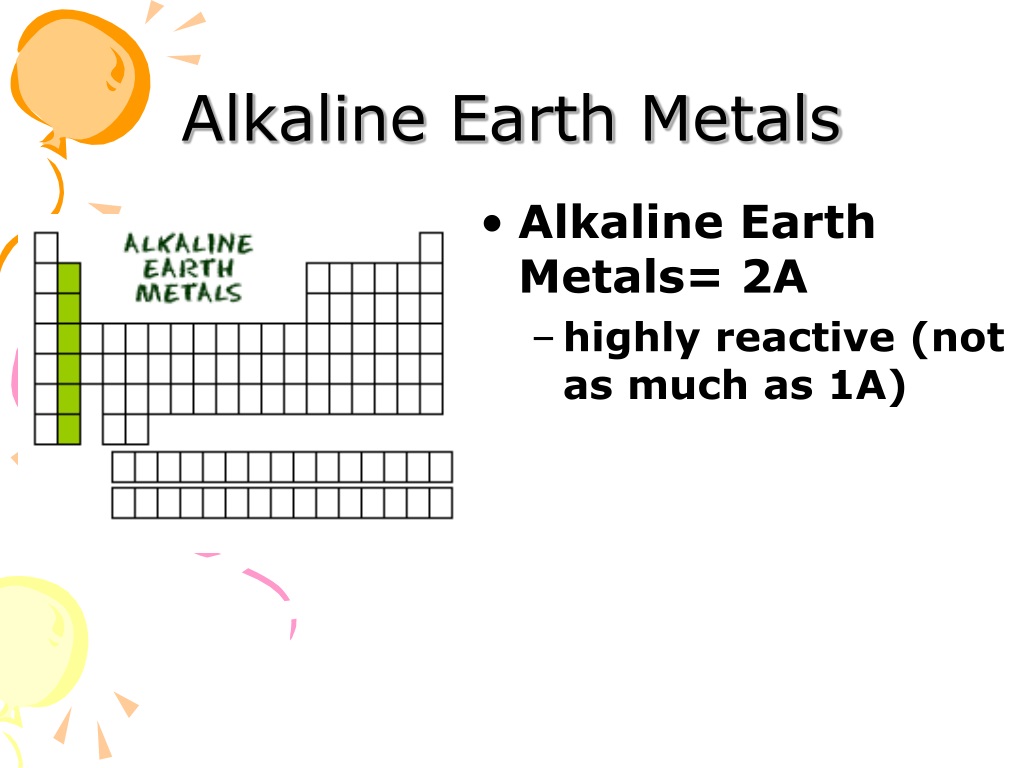

  13. Alkaline Earth Metals • Alkaline Earth Metals= 2A • highly reactive (not as much as 1A)

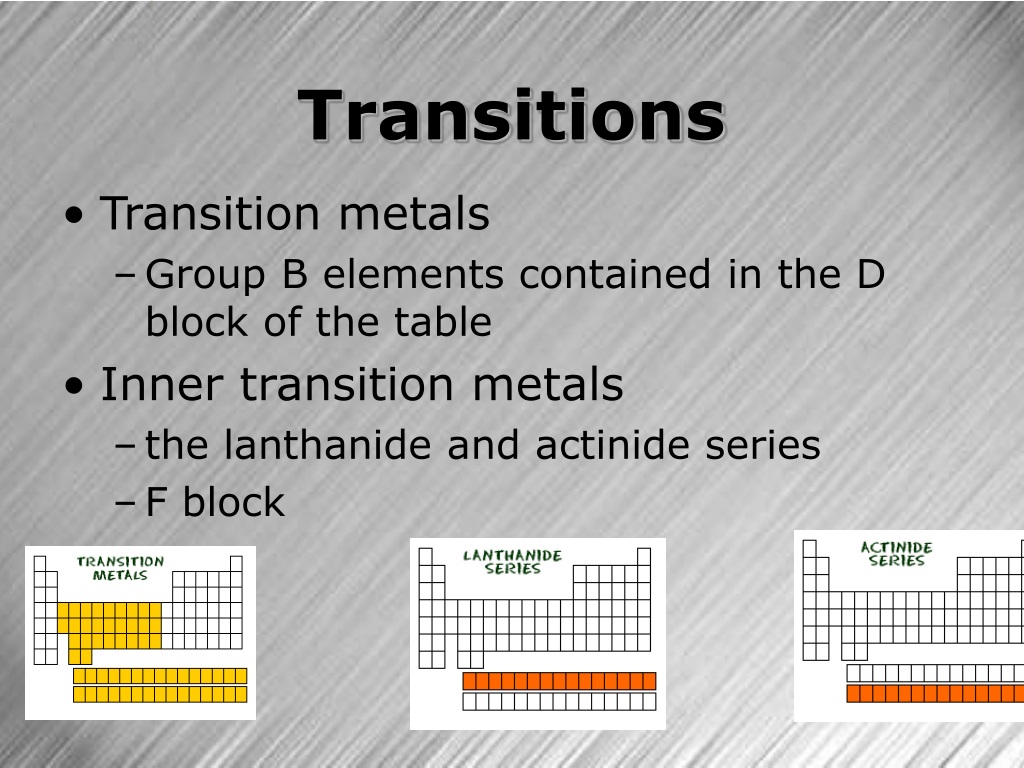

  14. Transitions • Transition metals • Group B elements contained in the D block of the table • Inner transition metals • the lanthanide and actinide series • F block

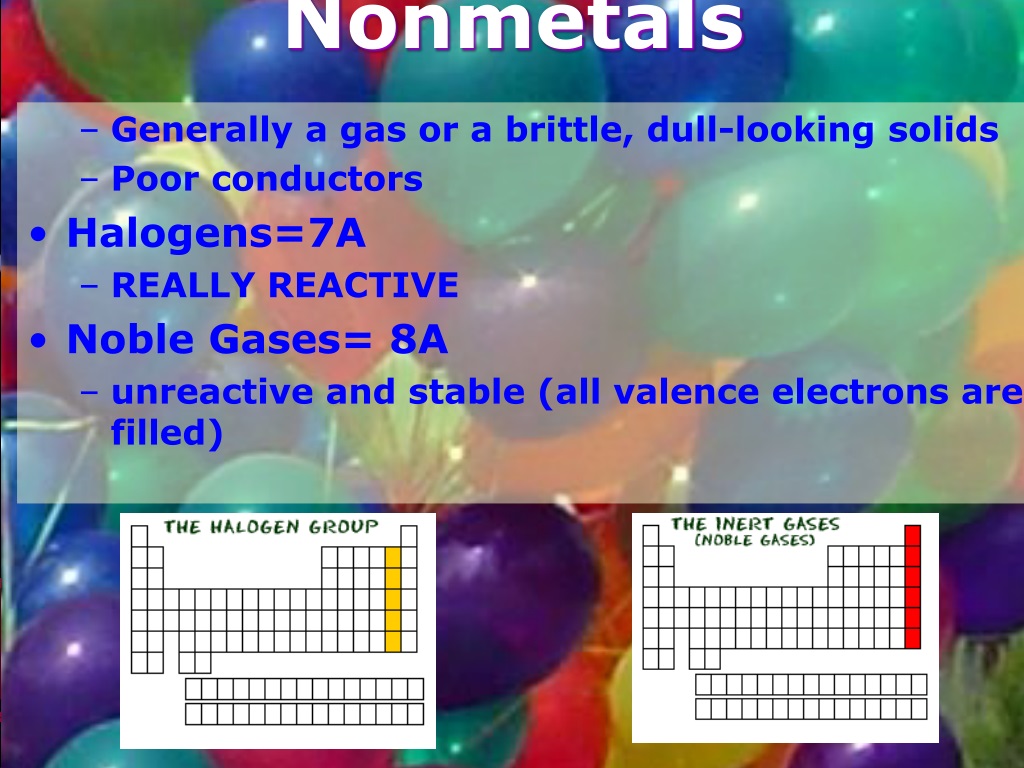

  15. Nonmetals • Generally a gas or a brittle, dull-looking solids • Poor conductors • Halogens=7A • REALLY REACTIVE • Noble Gases= 8A • unreactive and stable (all valence electrons are filled)

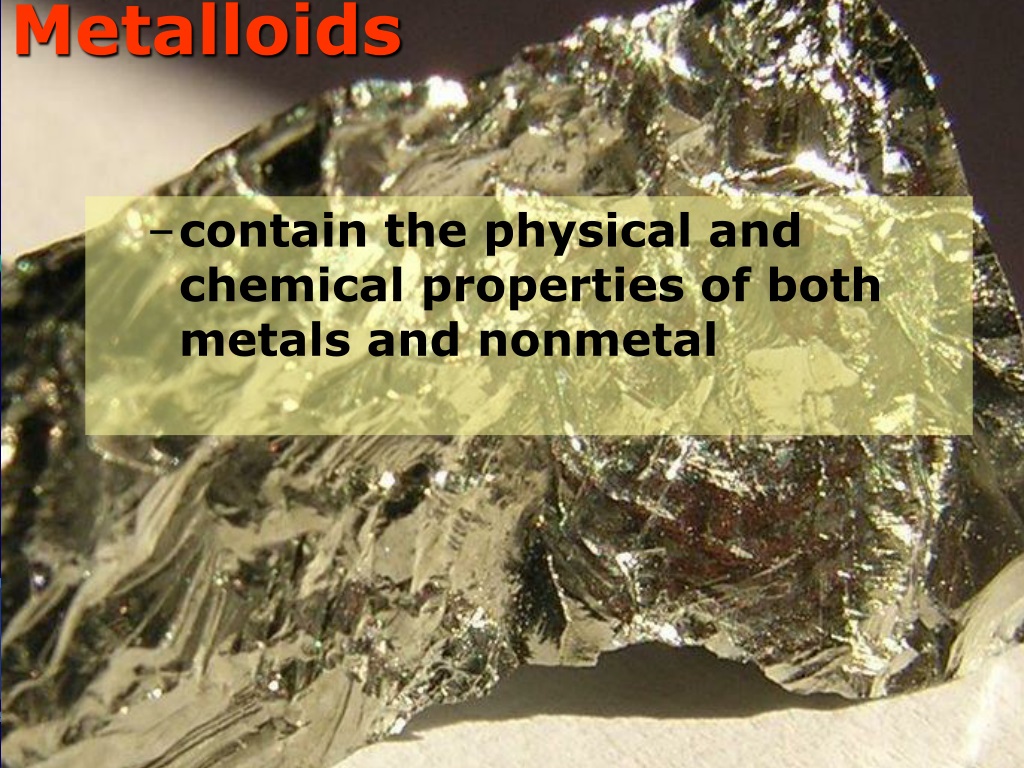

  16. Metalloids • contain the physical and chemical properties of both metals and nonmetal

  17. Homework • Section 6.1 Assessment • 1-6 on page 158

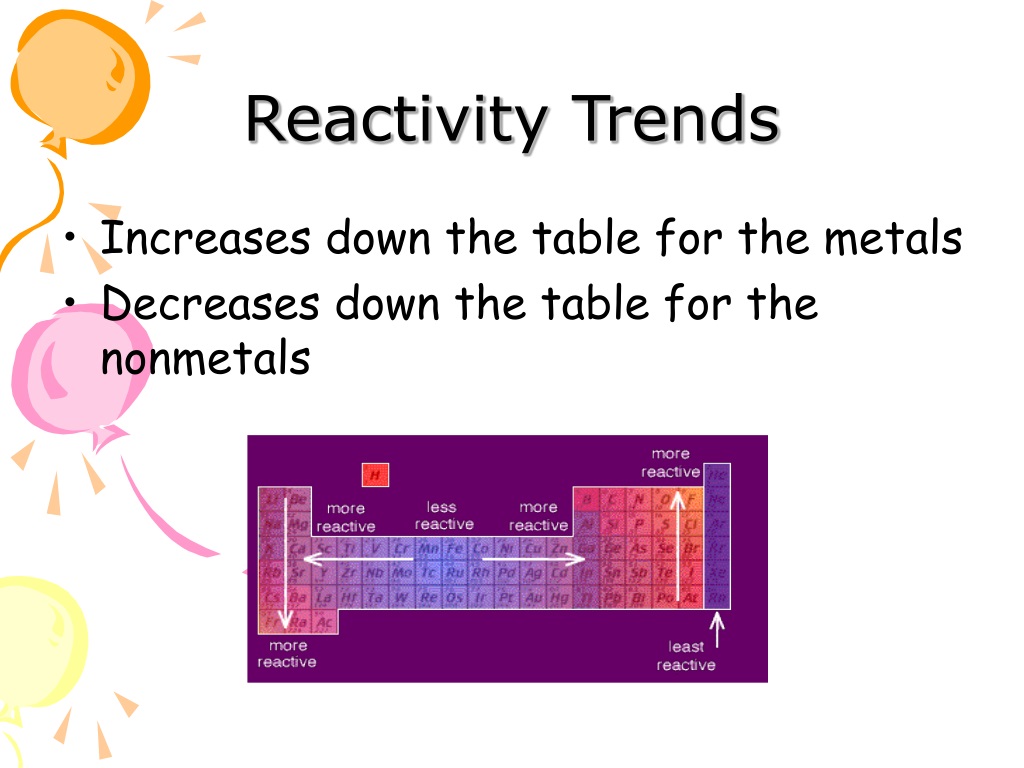

  18. Reactivity Trends • Increases down the table for the metals • Decreases down the table for the nonmetals

  19. Section 6.2 Classification of the Elements

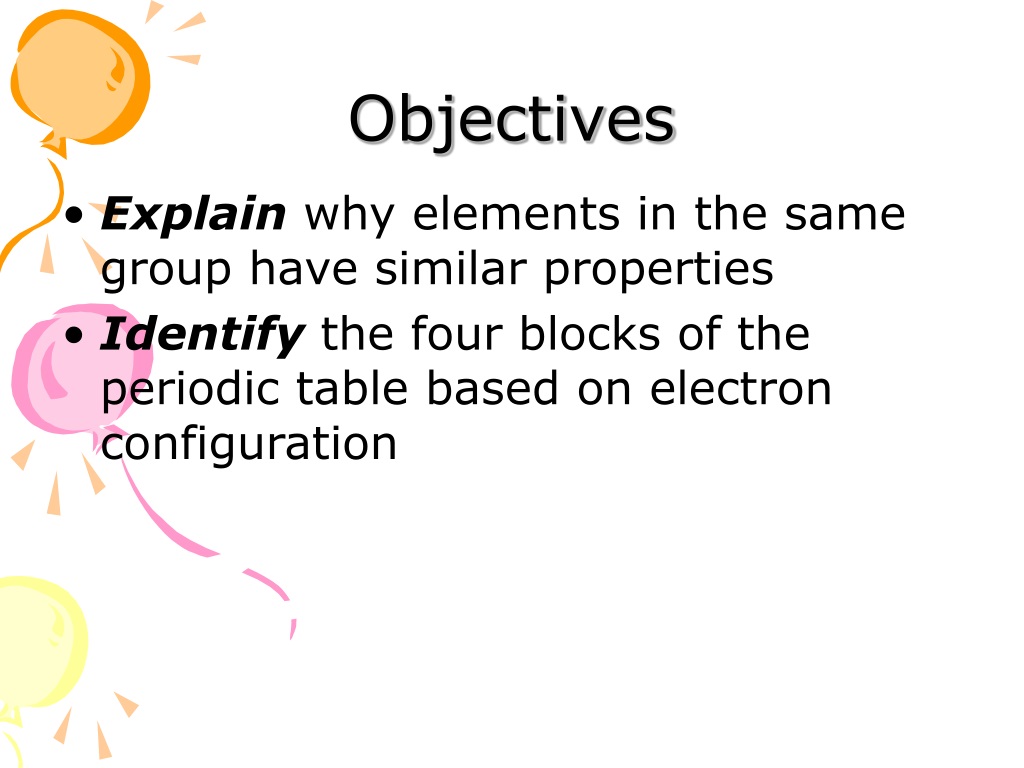

  20. Objectives • Explain why elements in the same group have similar properties • Identify the four blocks of the periodic table based on electron configuration

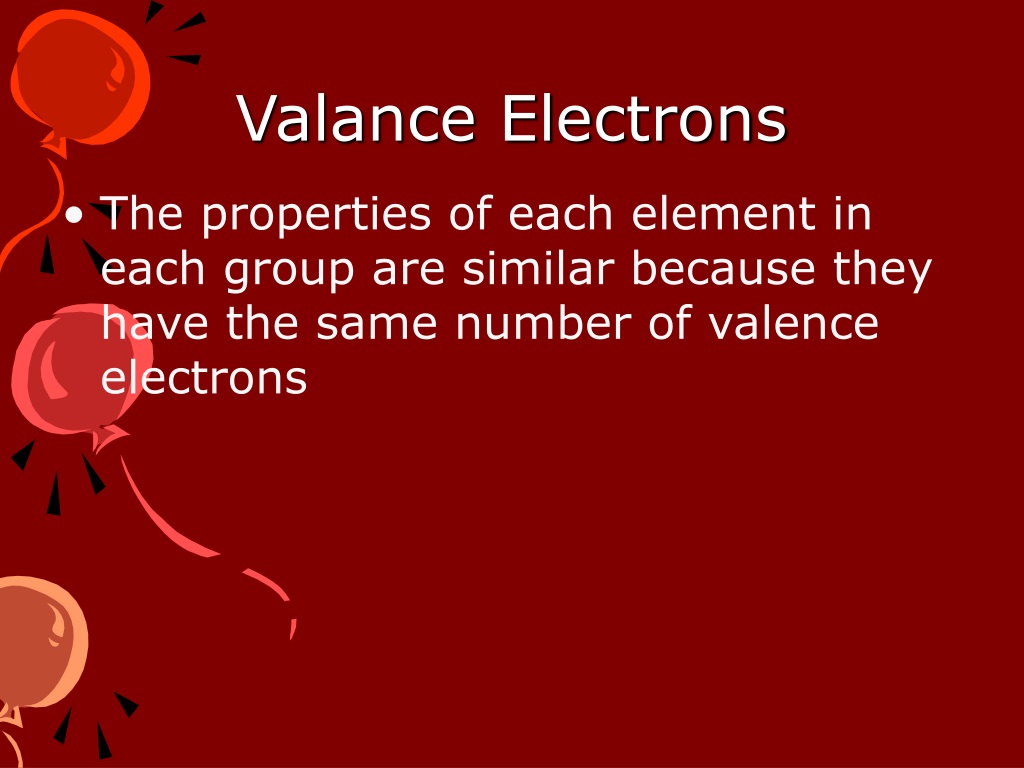

  21. Valance Electrons • The properties of each element in each group are similar because they have the same number of valence electrons

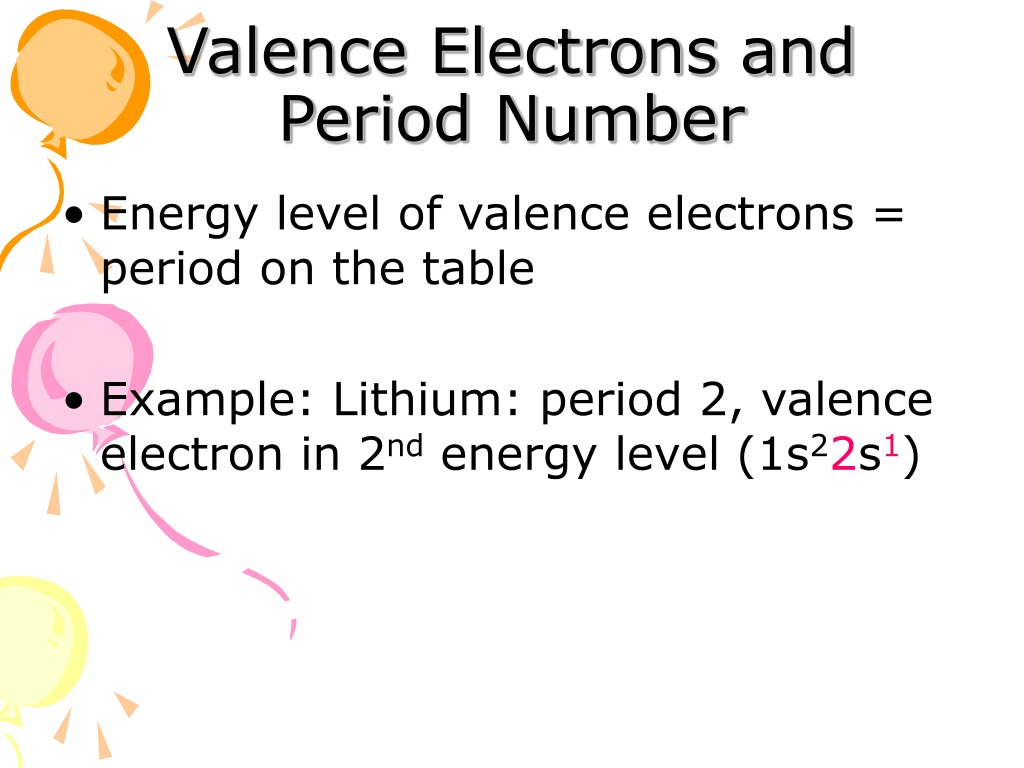

  22. Valence Electrons and Period Number • Energy level of valence electrons = period on the table • Example: Lithium: period 2, valence electron in 2nd energy level (1s22s1)

  23. Valence Electrons and Group Number • Group number (1A-8A) = number of valence electrons

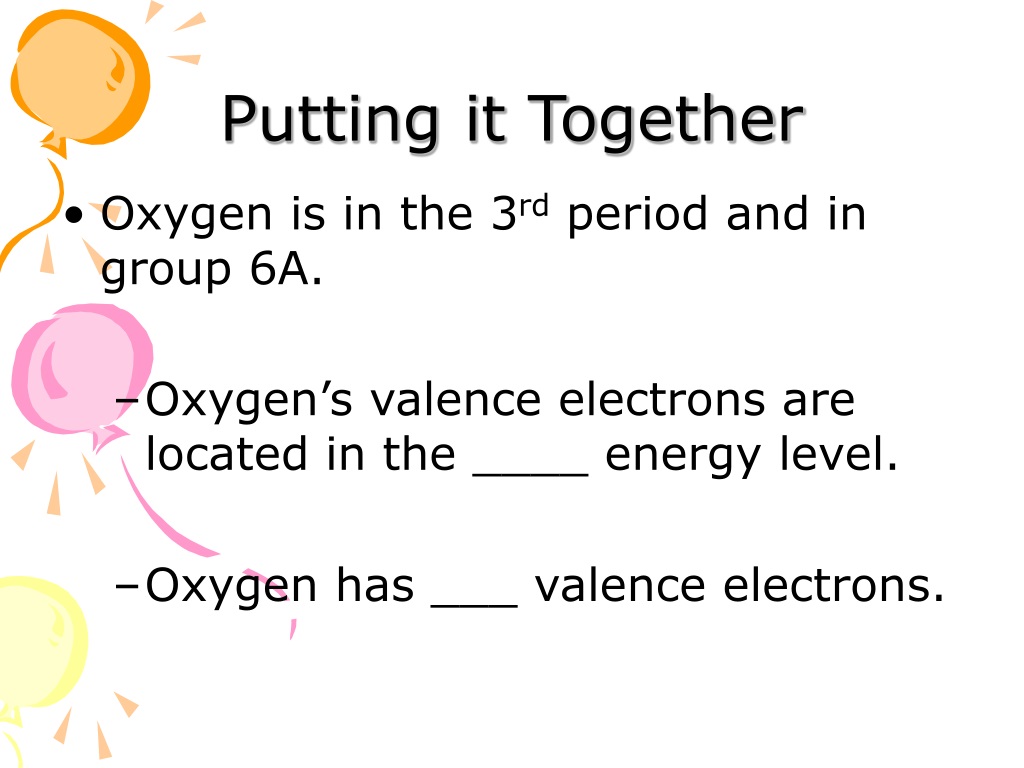

  24. Putting it Together • Oxygen is in the 3rd period and in group 6A. • Oxygen’s valence electrons are located in the ____ energy level. • Oxygen has ___ valence electrons.

  25. S,P,D, and F Blocks • 4 different energy sublevels: s, p, d, and f • S block= 1A and 2A • holds max of 2 electrons • P block= 3A through 8A • max holds 6 electrons • S block must fill before P block can fill • Noble gases are stable because of filled S and P blocks

  26. S,P,D, and F Blocks Continued… • D block = transition metals • max of 10 electron • F block= inner transition metals • unpredictable manner of filling • max of 14 electrons

  27. Reactivity Trends • Increases down the table for the metals • Decreases down the table for the nonmetals

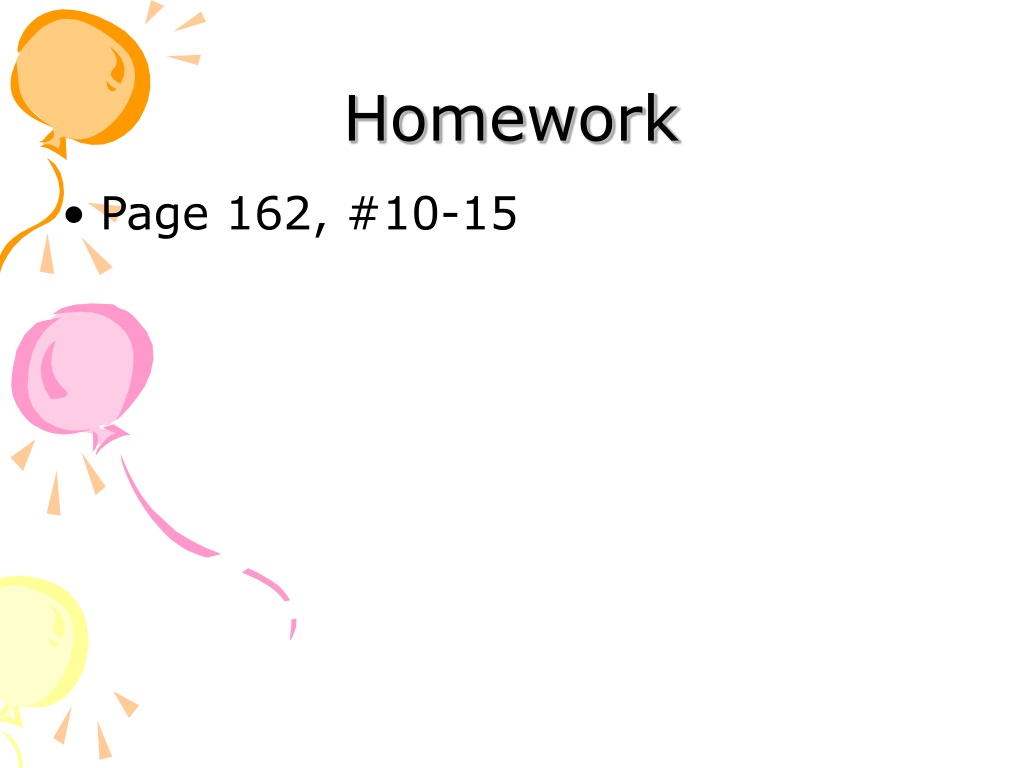

  28. Homework • Page 162, #10-15

  29. Periodic Trends: Atomic Radius For metals, atomic radius = ½ distance between adjacent nuclei in a crystal element For nonmetals, atomic radius = ½ distance between nuclei of identical atoms that are chemically bonded

  30. Periodic Trends: Atomic Radius DECREASES I N C R E A S E S

  31. Atomic Radius • The increase from top to bottom is due to adding electron shells. • The decrease from left to right is due to increased nuclear charge as you move to the right, which draws electrons closer to the nucleus.

  32. Periodic Trends: Ionization Energy • Ionization energy= energy required to remove an electron from a gaseous atom • Octet rule = atoms tend to gain lose or share electrons to acquire a full set of 8 valence electrons

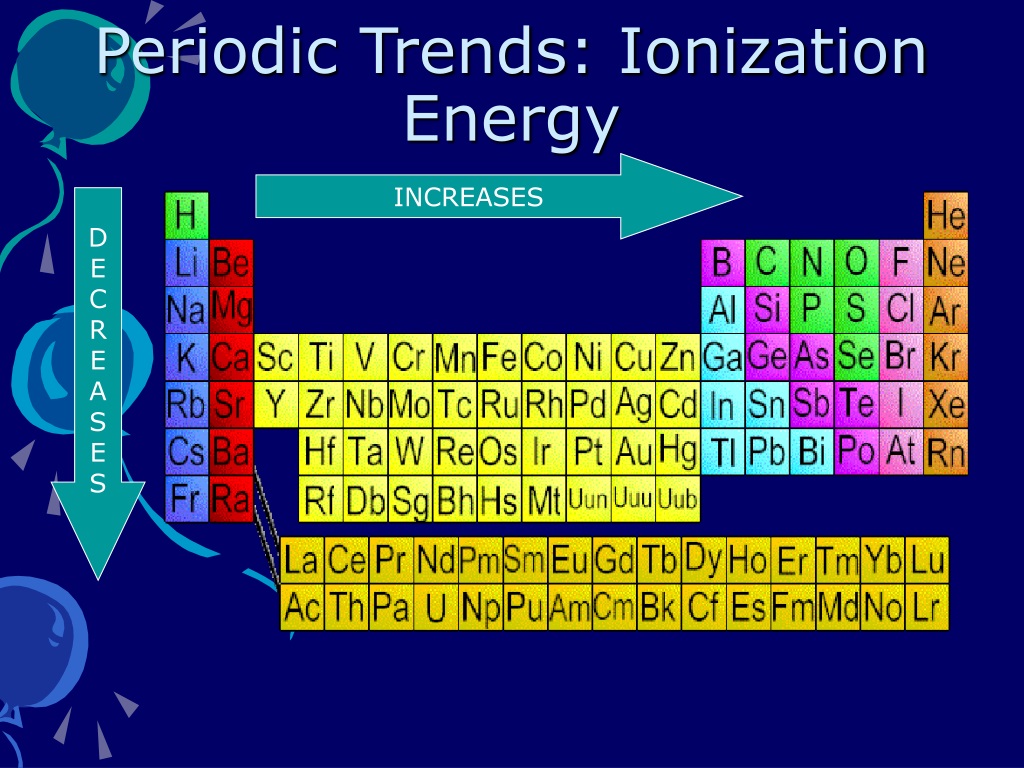

  33. Periodic Trends: Ionization Energy INCREASES D E C R E A S E S

  34. Periodic Trends: Electronegativity • Electronegativity= relative ability of an atom to attract electrons in a chemical bond.

  35. Electronegativity • Arbitrary units called Paulings (after Linus Pauling) are used to express electronegativity. • Electronegativity increases from left to right across a period and from top to bottom down a group.

  36. Periodic Trends: Electronegativity INCREASES D E C R E A S E S
