slide1

7

UTILITY AND DEMAND

CHAPTER

© 2003 Pearson Education Canada Inc.

7-1

budget constraint

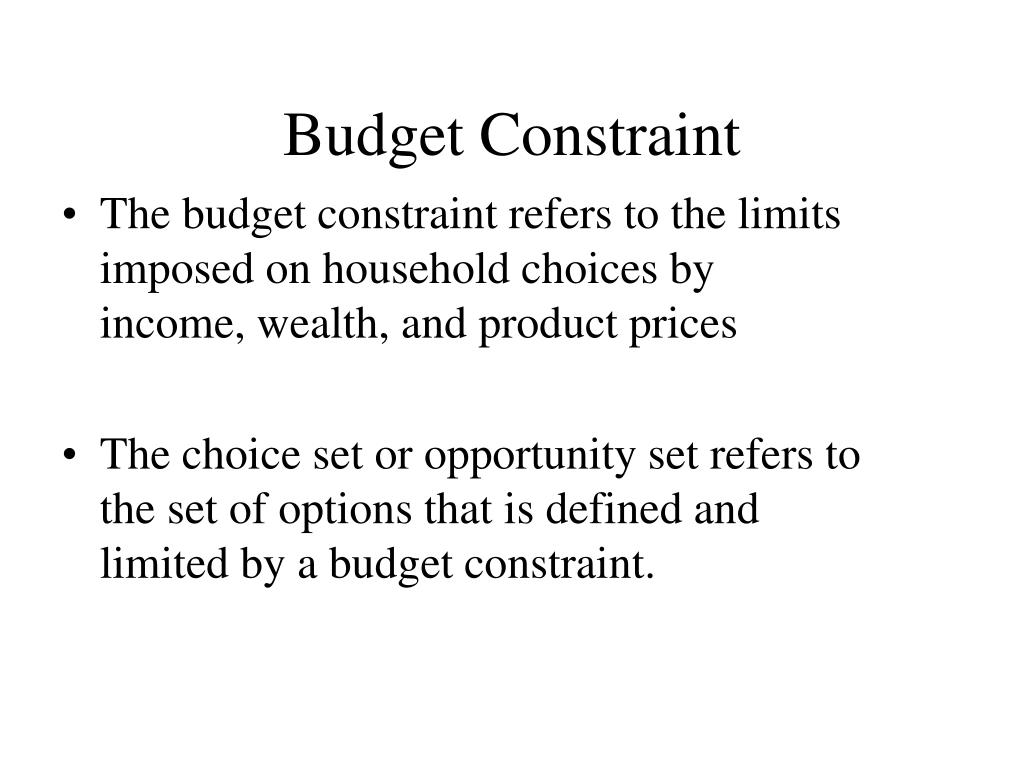

Budget Constraint
  • The budget constraint refers to the limits imposed on household choices by income, wealth, and product prices
  • The choice set or opportunity set refers to the set of options that is defined and limited by a budget constraint.
budget constraint and opportunity set for trudee and mark
Budget Constraint and Opportunity Set for Trudee and Mark
  • Points A, B, and C are each on the budget constraint, meaning that Trudee and Mark have spent their income.
  • Point D does not spend the entire $200 and point E is unattainable as it would cost more than $200.
the effect of a decrease in price on trudee and mark s budget constraint
The Effect of a Decrease in Price on Trudee and Mark’s Budget Constraint
  • When the price of a good decreases, in this case Thai meals fall from $20 to $10, the budget constraint swivels to the right, increasing the opportunities available and expanding choice.
the basis of choice utility
The Basis of Choice: Utility
  • Utility is the satisfaction, or reward, a product yields relative to its alternative. It is the basis for choice.
  • Marginal utility is the additional satisfaction gained by the consumption or use of one more unit of something.
  • Total utility is the total amount of satisfaction obtained from consumption of a good or service.
law of diminishing marginal utility
Law of Diminishing Marginal Utility
  • The more of any one good consumed in a given period, the less satisfaction (utility) is generated by consuming each additional (marginal) unit of the same good.
allocation of fixed expenditures per week between two alternatives
Allocation of Fixed Expenditures per Week Between Two Alternatives

Frank’s utility maximizing decision between basketball games and trips to the club.

utility maximizing rule

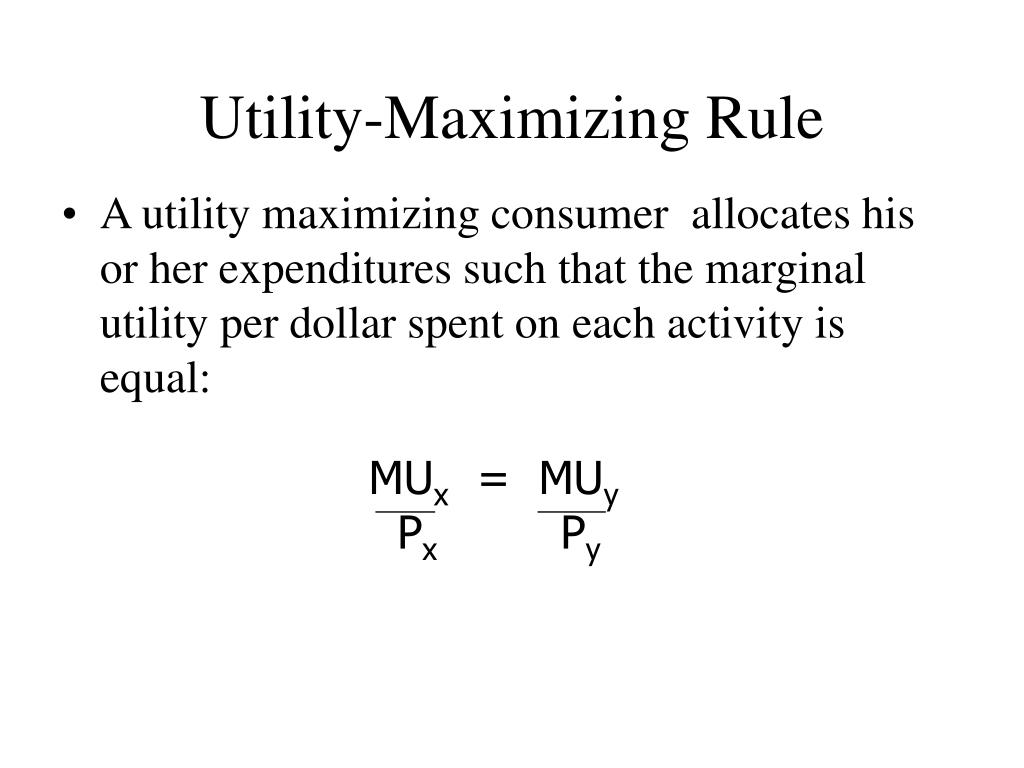

Utility-Maximizing Rule
  • A utility maximizing consumer allocates his or her expenditures such that the marginal utility per dollar spent on each activity is equal:

MUx = MUy

Px Py

slide11

8

POSSIBILITIES, PREFERENCES, AND CHOICES

CHAPTER

© 2003 Pearson Education Canada Inc.

8-11

consumption possibilities
Consumption Possibilities
  • The Budget Equation
        • We can describe the budget line by using a budget equation.
        • The budget equation states that:
    • Expenditure = IncomePPQP + PMQM = Y

QP = Y/PP – (PM/PP)QM

  • The term Y/PP is Lisa’s real income in terms of pop.
      • A household’s real income is the income expressed as a quantity of goods the household can afford to buy.
      • Lisa’s real income in terms of pop is the point on her budget line where it meets the y-axis.
  • The term PM/PPis the relative price of a movie in terms of pop.
      • A relative price is the price of one good divided by the price of another good.
      • It is the magnitude of the slope of the budget line.
      • The relative price shows how many pops must be forgone to see an additional movie.

8-12

preferences and indifference curves
Preferences and Indifference Curves
  • An indifference curve is a line that shows combinations of goods among which a consumer is indifferent.
  • All the points above the indifference curve are preferred over the points on the curve.
  • And all the points on the indifference curve are preferred over the points below the curve.

8-13

preferences and indifference curves14
Preferences and Indifference Curves
  • An indifference curve above I1 is I2 . All the points on I2 are preferred to those on I1 .
  • For example, point J is preferred to either point C or point G.

8-14

preferences and indifference curves15
Preferences and Indifference Curves
  • Marginal Rate of Substitution
    • The marginal rate of substitution, (MRS) measures the rate at which a person is willing to give up good y (the good measured on the y-axis) to get an additional unit of good x (the good measured on the x-axis) and at the same time remain indifferent (remain on the same indifference curve).
  • The marginal rate of substitution is the ratio at which a household is willing to substitute good Y for good X.
  • MRS = MUx / MUy
    • The magnitude of the slope of the indifference curve measures the marginal rate of substitution.

8-15

preferences and indifference curves16
Preferences and Indifference Curves
  • A diminishing marginal rate of substitution is the key assumption of consumer theory.
  • A diminishing marginal rate of substitution is a general tendency for a person to be willing to give up less of good y to get one more unit of good x, and at the same time remain indifferent, as the quantity of good x increases.
      • If the indifference curve is relatively steep, the MRS is high.
      • In this case, the person would be willing to give up a large quantity of y to get a bit more x.
      • If the indifference curve is relatively flat, the MRS is low.
      • In this case, the person would be willing to give up a small quantity of y to get more x.

8-16

preferences and indifference curves17
Preferences and Indifference Curves
  • Figure 8.4 shows the diminishing MRS of movies for pop.
  • At point C, Lisa is willing to give up 2 six-packs to see one more movie—her MRS is 2.
  • At point G, Lisa is willing to give up 1/2 a six-pack to see one more movie—her MRS is 1/2.

8-17

preferences and indifference curves18
Preferences and Indifference Curves
  • Degree of Substitutability
    • The shape of the indifference curves reveals the degree of substitutability between two goods.
    • Figure 8.5 shows the indifference curves for ordinary goods, perfect substitutes, and perfect complements.

8-18

predicting consumer behaviour

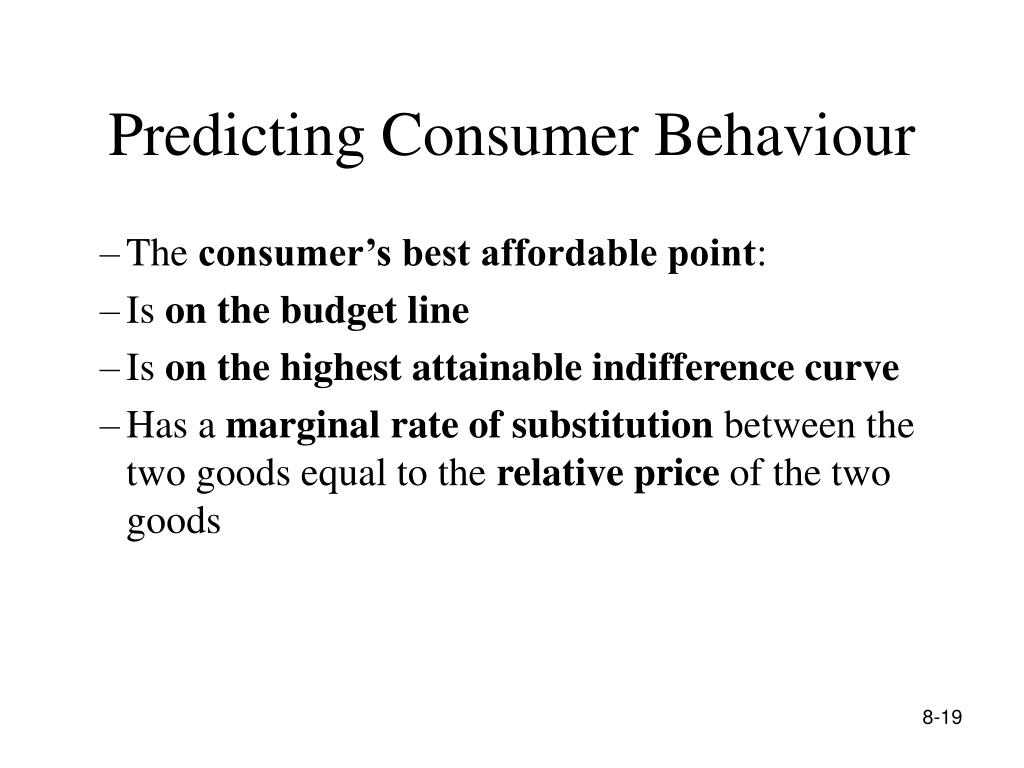

Predicting Consumer Behaviour
  • The consumer’s best affordable point:
  • Is on the budget line
  • Is on the highest attainable indifference curve
  • Has a marginal rate of substitution between the two goods equal to the relative price of the two goods

8-19

predicting consumer behaviour20
Predicting Consumer Behaviour
  • At point F, Lisa’s MRS is greater than the relative price.
  • At point H, Lisa’s MRS is less than the relative price.
  • At point C, Lisa’s MRS is equal to the relative price.

8-20

predicting
Predicting …
  • A Change in Price
    • The effect of a change in the price of a good on the quantity consumed is the price effect.
    • Figure 8.7 illustrates the price effect and shows how a demand curve is generated.
    • Initially, the price of a movie is $6 and Lisa consumes at point C in part (a) and at point A in part (b).

8-21

predicting22
Predicting …
  • The price of a movie then falls to $3.
  • The budget line rotates outward.
  • Lisa’s best affordable point is now J in part (a).
  • In part (b), Lisa moves to point B, which is a movement along her demand curve for movies.

8-22

predicting consumer behaviour23
Predicting Consumer Behaviour
  • Substitution Effect and Income Effect
    • For a normal good, a fall in price always increases the quantity consumed.
    • We can prove this assertion by dividing the price effect into two parts:
    • Substitution effect:
        • is the effect of a change in price on the quantity bought when the consumer remains indifferent between the original situation and the new situation.
    • Income effect:
        • When a good is a normal good, the quantity consumed changes in the same direction as the change in income.
        • When a good is an inferior good, the quantity consumed changes in the opposite direction to the change in income.

8-23

slide24
Substitution Effect
  • When the relative price (opportunity cost) of a good or service rises, people seek substitutes for it, so the quantity demanded decreases.
      • When the price of a product falls, that product becomes more attractive relative to potential substitutes.
  • Income Effect
  • When the price of a good or service rises relative to income, people cannot afford all the things they previously bought, so the quantity demanded decreases.
      • When the price of a product falls, a consumer has more purchasing power with the same amount of income and is better off.

3-24

predicting consumer behaviour25
Predicting Consumer Behaviour
  • The price of a movie falls from $6 to $3 and her budget line rotates outward.
  • Lisa’s best affordable point is then J.

8-25

predicting consumer behaviour26
Predicting Consumer Behaviour
  • We’re going to break the move from C to J into two parts.
  • The first part is the substitution effect, and the second is the income effect.

8-27

predicting consumer behaviour27
Predicting Consumer Behaviour
  • To isolate the substitution effect, we give Lisa a hypothetical pay cut.
  • Lisa is now back on her original indifference curve but with a lower price of movies, and her best affordable point isK.
  • The move from C to K is the substitution effect.

8-29

predicting consumer behaviour28
Predicting Consumer Behaviour
  • The direction of the substitution effect never varies: a fall in price brings an increase in the quantity bought.
  • The substitution effect is the first reason why the demand curve slopes downward.

8-30

predicting consumer behaviour29
Predicting Consumer Behaviour
  • To isolate the income effect, we reverse the hypothetical pay cut and restore Lisa’s income to its original level (its actual level).
  • Lisa is on indifference curve I2 and her best affordable point is J.
  • The move from K to J is the income effect.

8-31

predicting consumer behaviour30
Predicting Consumer Behaviour
  • For Lisa, movies are a normal good.
  • When her income increases, she sees more movies—the income effect is positive.
  • For a normal good, the income effect reinforces the substitution effect and is the second reason why the demand curve slopes downward.

8-32

slide31

9

ORGANIZING PRODUCTION

CHAPTER

© 2003 Pearson Education Canada Inc.

9-33

profit
Profit
  • Profit is the difference between total revenue and total costs.

Profit = Total Revenue (TR) - Total Cost (TC)

Where Total Revenue is the receipts from the sale of a product (P x q)

technology and economic efficiency
Technology and Economic Efficiency
  • Technological efficiency occurs when a firm produces a given level of output by using the least amount of inputs.
  • Economic efficiency occurs when the firm produces a given level of output at the least cost.
      • The difference between technological and economic efficiency is that technological efficiency concerns the quantity of inputs used in production for a given level of output, whereas economic efficiency concerns the cost of the inputs used.
      • An economically efficient production process is also technologically efficient.
      • A technologically efficient process may not be economically efficient.

9-36

slide35

10

OUTPUT AND COSTS

CHAPTER

© 2003 Pearson Education Canada Inc.

10-37

decision time frames
Decision Time Frames
  • The short run is a time frame in which the quantity of one or more resources used in production is fixed.
      • For most firms, the capital, called the firm’s plant, is fixed in the short run.
      • Other resources used by the firm (such as labour, raw materials, and energy) can be changed in the short run.
  • The long run is a time frame in which the quantities of all resources—including the plant size—can be varied.
short run technology constraint

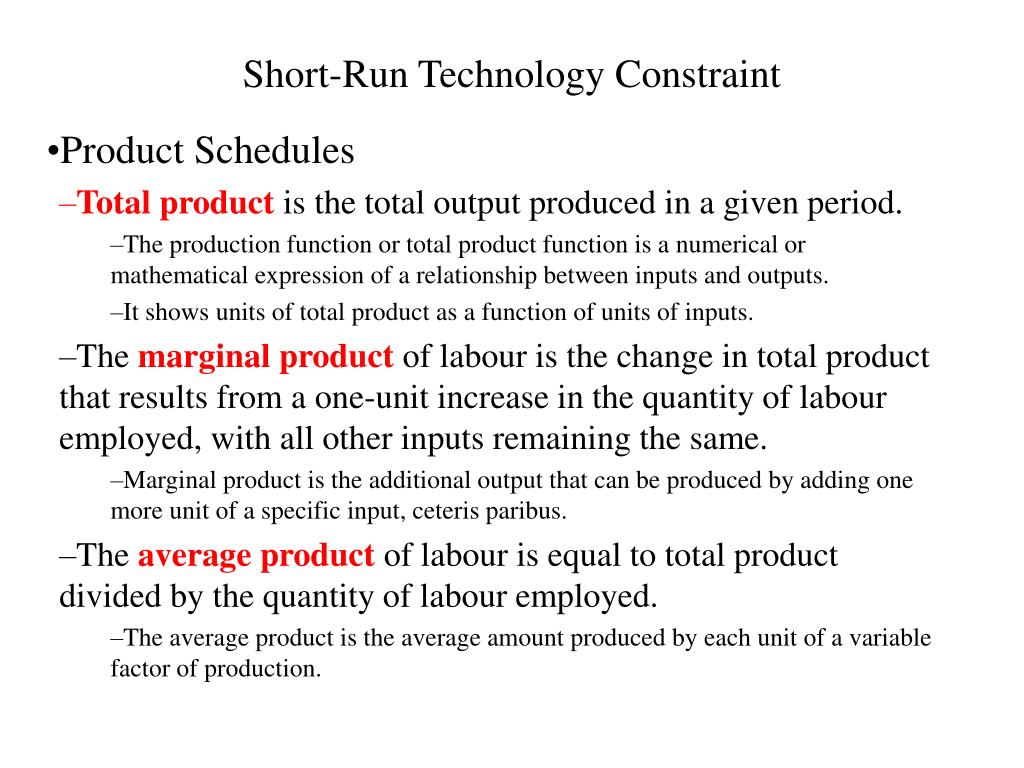

Short-Run Technology Constraint
  • Product Schedules
    • Total product is the total output produced in a given period.
        • The production function or total product function is a numerical or mathematical expression of a relationship between inputs and outputs.
        • It shows units of total product as a function of units of inputs.
    • Themarginal product of labour is the change in total product that results from a one-unit increase in the quantity of labour employed, with all other inputs remaining the same.
        • Marginal product is the additional output that can be produced by adding one more unit of a specific input, ceteris paribus.
    • Theaverage product of labour isequal to total product divided by the quantity of labour employed.
        • The average product is the average amount produced by each unit of a variable factor of production.
law of diminishing returns
Law of Diminishing Returns
  • The law of diminishing returns states that when additional units of an input are added to fixed inputs after a certain point, the marginal product of the variable input declines.
production function sandwich making
Production Function (Sandwich Making)

Labor Total Marginal Average

Units Product Product Product

0 0 --- ---

1 10 10 10.0

2 25 15 12.5

3 35 10 11.7

4 40 5 10.0

5 42 2 8.4

6 42 0 7.0

typical production function
Typical Production Function
  • Marginal and average product curves can be derived from total product curves.
  • The marginal product of labour is the slope of the total product curve.
  • Average product follows marginal product; it rises when marginal product is above it and falls when marginal product is below it.
short run cost
Short-Run Cost
  • Total Cost
    • A firm’s total cost(TC) is the cost of all resources used.
    • Total fixed cost(TFC) is the cost of the firm’s fixed inputs. Fixed costs do not change with output.
        • A fixed cost is any cost that a firm bears in the short run that does not depend on its level of output. These costs are incurred even if the firm is producing nothing. There are no fixed costs in the long run.
    • Total variable cost(TVC) is the cost of the firm’s variable inputs. Variable costs do change with output.
        • A variable cost is any cost that a firm bears that depends on the level of production chosen
total costs tc
Total Costs (TC)
    • Total cost equals total fixed cost plus total variable cost. That is:
  • Total Costs = Total + Total Fixed Costs Variable Costs
  • TC = TFC + TVC
short run cost43

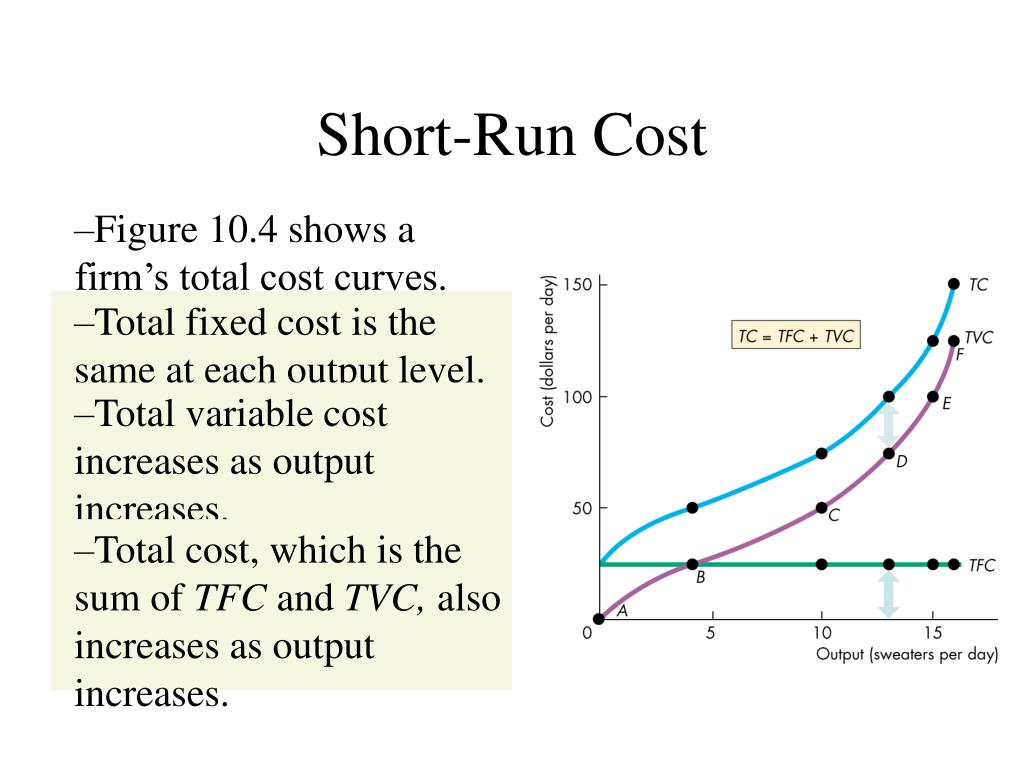

Short-Run Cost
  • Figure 10.4 shows a firm’s total cost curves.
  • Total fixed cost is the same at each output level.
  • Total variable cost increases as output increases.
  • Total cost, which is the sum of TFC and TVC, also increases as output increases.
short run cost44
Short-Run Cost
  • Marginal Cost
    • Marginal cost(MC) is the increase in total cost that results from a one-unit increase in total product (producing one more unit of output).
        • Marginal costs reflect changes in variable costs.
    • In the short run, every firm is constrained by some fixed input that leads to diminishing returns to variable inputs and that limits its capacity to produce. As the firm approaches capacity, it becomes increasingly costly to produce more output. Marginal costs ultimately increase with output in the short run.
    • Over the output range withincreasing marginal returns, marginal cost falls as output increases.
    • Over the output range withdiminishing marginal returns, marginal cost rises as output increases.
short run cost46
Short-Run Cost
  • Average Cost
    • Average cost measures can be derived from each of the total cost measures:
    • Average fixed cost(AFC) is total fixed cost per unit of output.
    • Average variable cost(AVC) is total variable cost per unit of output.
    • Average total cost(ATC) is total cost per unit of output.

ATC = AFC + AVC

short run cost47
Short-Run Cost
  • The ATC curve is also U-shaped.
  • The MC curve is very special.
  • Where AVC is falling, MC is below AVC.
  • Where AVC is rising, MC is above AVC.
  • At the minimum AVC, MC equals AVC.
short run cost48
Short-Run Cost
  • Shifts in Cost Curves
    • The position of a firm’s cost curves depend on two factors:
    • Technology
    • Prices of productive resources
long run cost
Long-Run Cost
  • Long-Run Average Cost Curve
    • The long-run average cost curve is the relationship between the lowest attainable average total cost and output when both the plant size and labour are varied.
    • The long-run average cost curve is a planning curve that tells the firm the plant size that minimizes the cost of producing a given output range.
    • Once the firm has chosen that plant size, it incurs the costs that correspond to the ATC curve for that plant.
long run cost50
Long-Run Cost

Figure 10.8 illustrates the long-run average cost (LRAC) curve.

long run cost51
Long-Run Cost
  • Economies and Diseconomies of Scale
    • Economies of scale are features of a firm’s technology that lead to falling long-run average cost as output increases.
    • Diseconomies of scale are features of a firm’s technology that lead to rising long-run average cost as output increases.
    • Constant returns to scale are features of a firm’s technology that lead to constant long-run average cost as output increases.
long run cost52
Long-Run Cost

Figure 10.8 illustrates economies and diseconomies of scale.

long run cost53
Long-Run Cost
  • A firm experiences economies of scale up to some output level.
  • Beyond that output level, it moves into constant returns to scale or diseconomies of scale.
  • Minimum efficient scale is the smallest quantity of output at which the long-run average cost reaches its lowest level.
  • If the long-run average cost curve is U-shaped, the minimum point identifies the minimum efficient scale output level.
