Presentation Transcript
overview
Overview
  • Basic science
    • What are they?
    • How do they work?
  • Methods of assessing platelet function
    • Full blood count
    • Microaggregation
    • Macroaggregation
    • Thromboelastography (TEG)
    • Platelet function analyser
    • Bleeding time
  • Clinical scenarios
    • Drugs
    • Medical conditions
    • Congenital disorders
    • Cardiopulmonary bypass
    • Aprotinin
    • HIT
    • On the ward
basic science

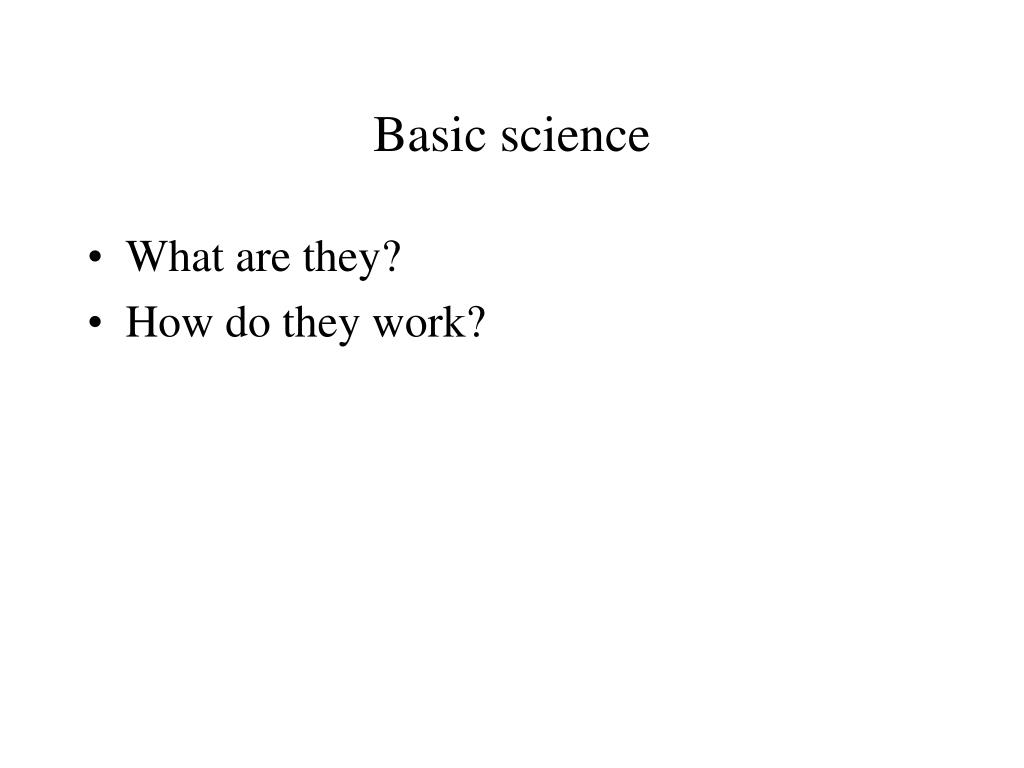

Basic science
  • What are they?
  • How do they work?
coagulation system

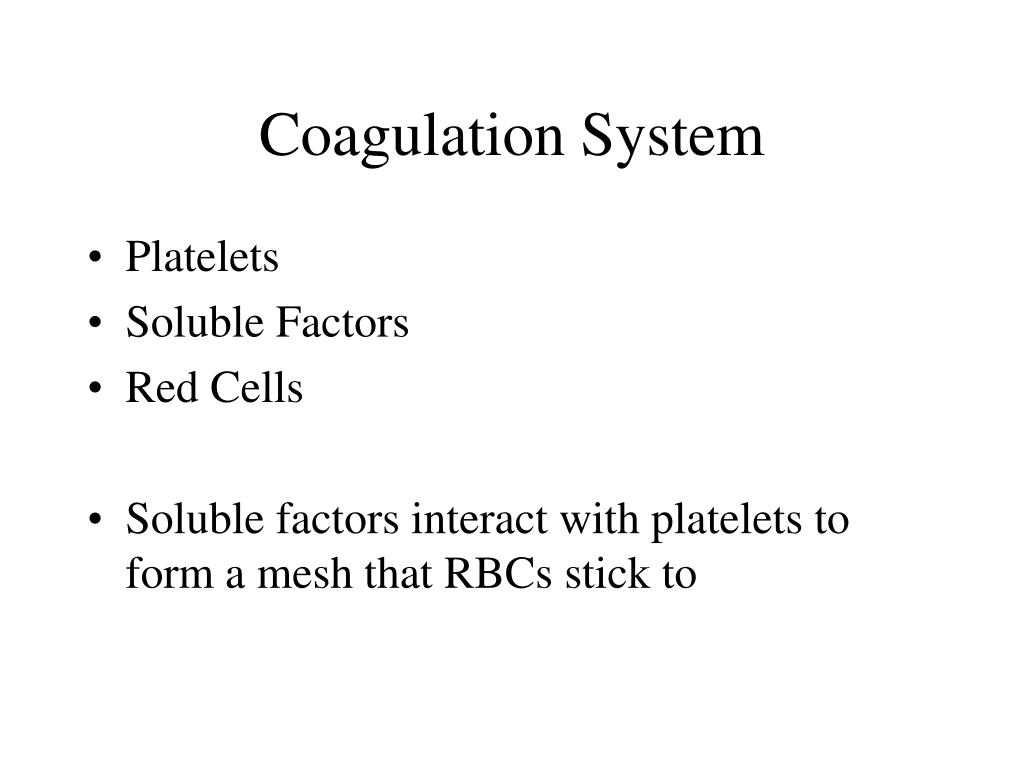

Coagulation System
  • Platelets
  • Soluble Factors
  • Red Cells
  • Soluble factors interact with platelets to form a mesh that RBCs stick to
how do platelets work
How Do Platelets Work ?
  • Afferent pathway
  • Inside platelet pathway
  • Efferent pathway

Inside

platelet

pathway

Efferent pathway

Afferent pathway

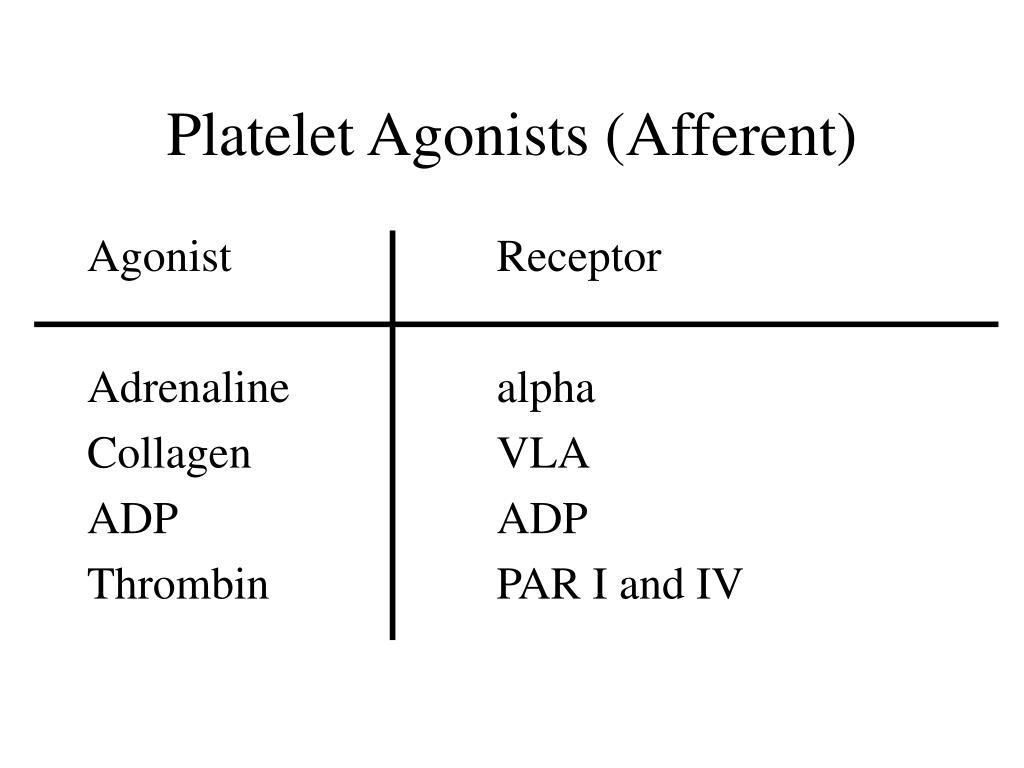

platelet agonists afferent
Platelet Agonists (Afferent)

Agonist Receptor

Adrenaline alpha

Collagen VLA

ADP ADP

Thrombin PAR I and IV

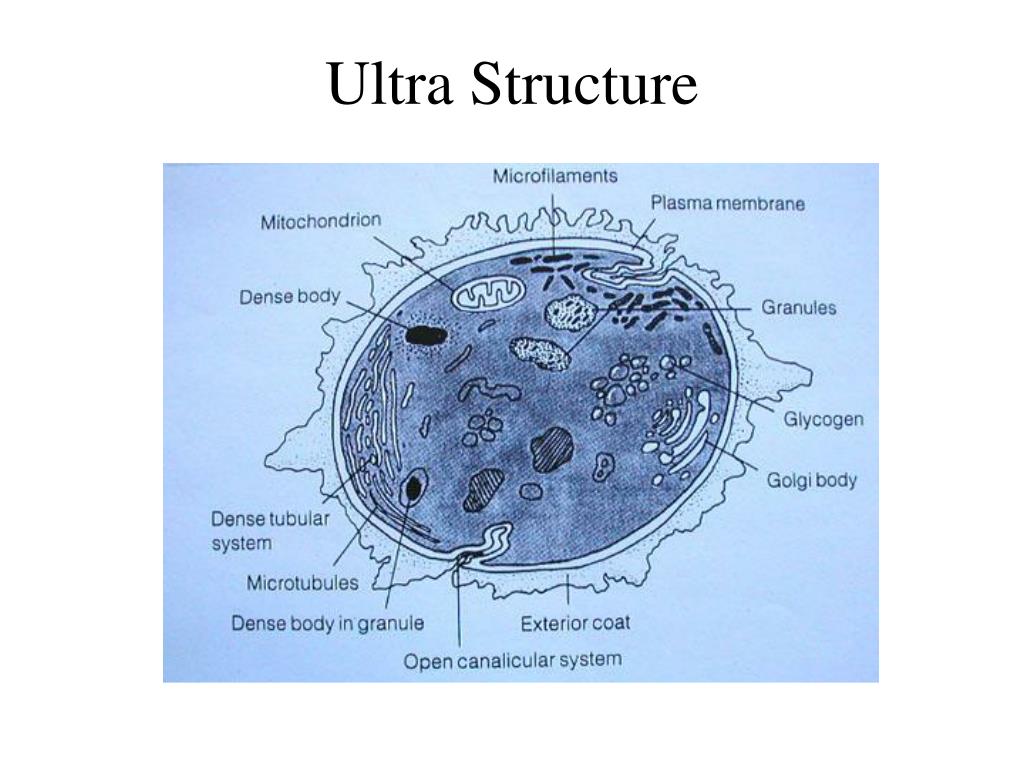

the platelet
The platelet

Microaggregation and Macroaggregation

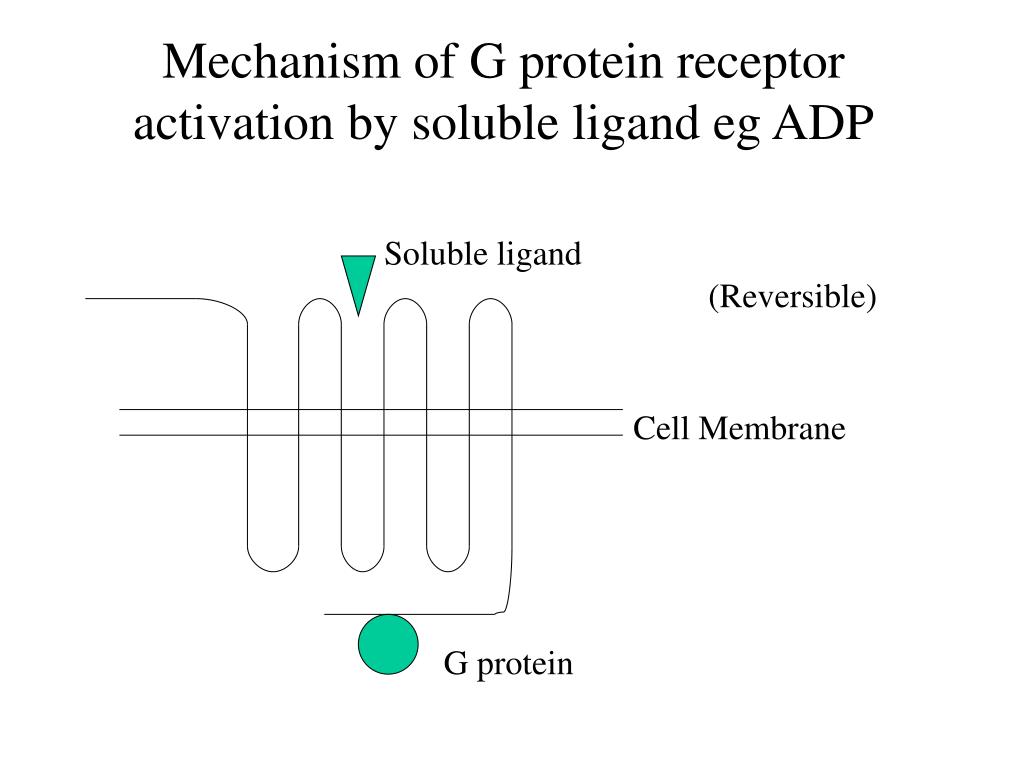

mechanism of g protein receptor activation by soluble ligand eg adp
Mechanism of G protein receptor activation by soluble ligand eg ADP

Soluble ligand

(Reversible)

Cell Membrane

G protein

mechanism of g protein receptor activation by protease eg thrombin

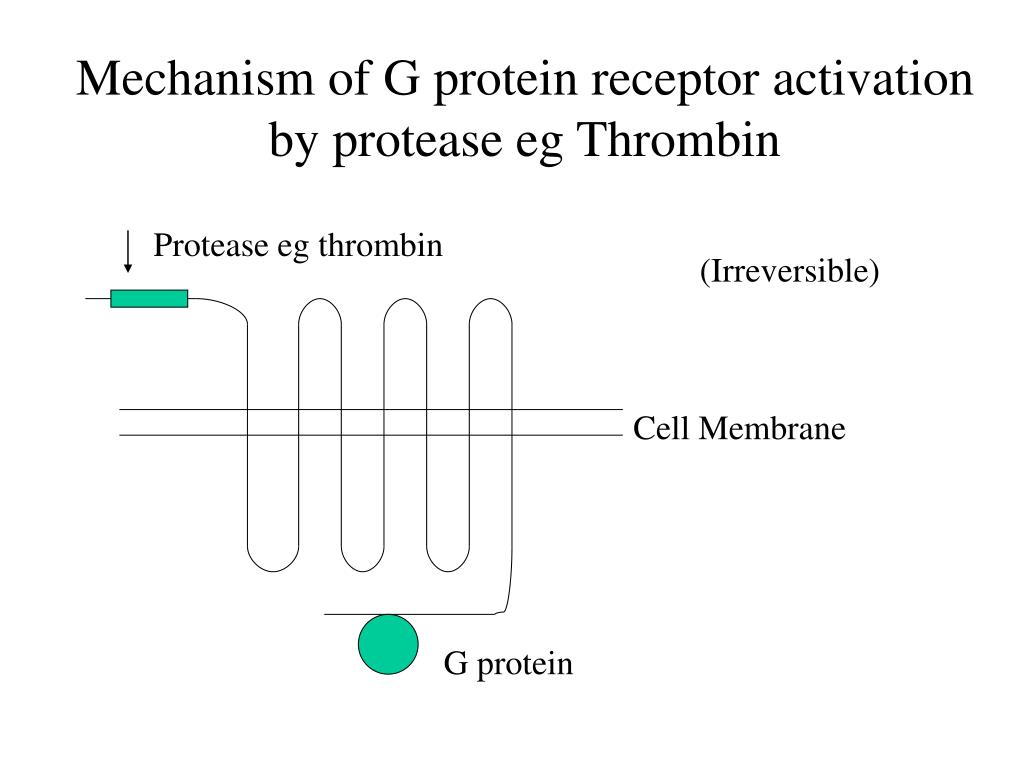

Mechanism of G protein receptor activation by protease eg Thrombin

Protease eg thrombin

(Irreversible)

Cell Membrane

G protein

slide15
(cont)

Tethered ligand

(Irreversible)

Peptide

Cell Membrane

G protein

Activation

par activating peptides

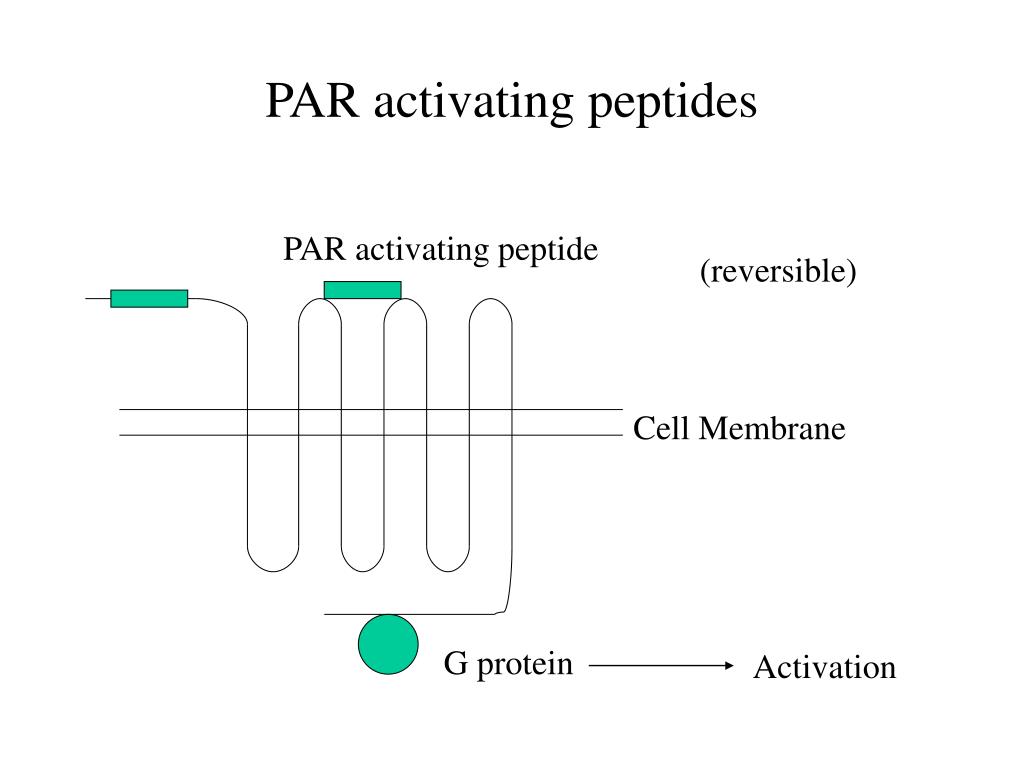

PAR activating peptides

PAR activating peptide

(reversible)

Cell Membrane

G protein

Activation

actions proteolytic inhibitors eg aprotinin

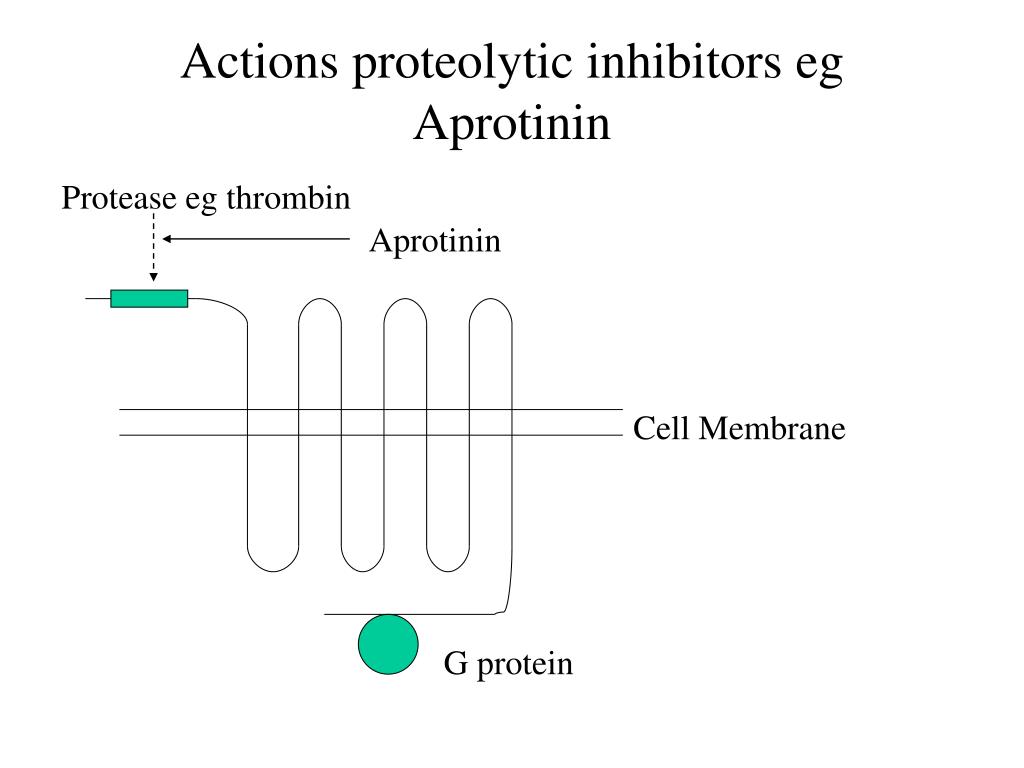

Actions proteolytic inhibitors eg Aprotinin

Protease eg thrombin

Aprotinin

Cell Membrane

G protein

par deactivation
PAR deactivation

Protease eg thrombin

Deactivator eg elastase

aa 43/44 & 55/56

aa 41/42

(Irreversible)

NH2

Cell Membrane

G protein

platelet thrombin desensitisation
Platelet Thrombin desensitisation

1

Neutrophil elastase cleaves PAR-1

Specific cleavage inhibits activation

2

Thrombin fragment deactivation theory

efferent
Efferent

Agonist Receptor

GP IIb/IIIa Fibrinogen

GP Ib Von Willebrand Factor

techniques to understand

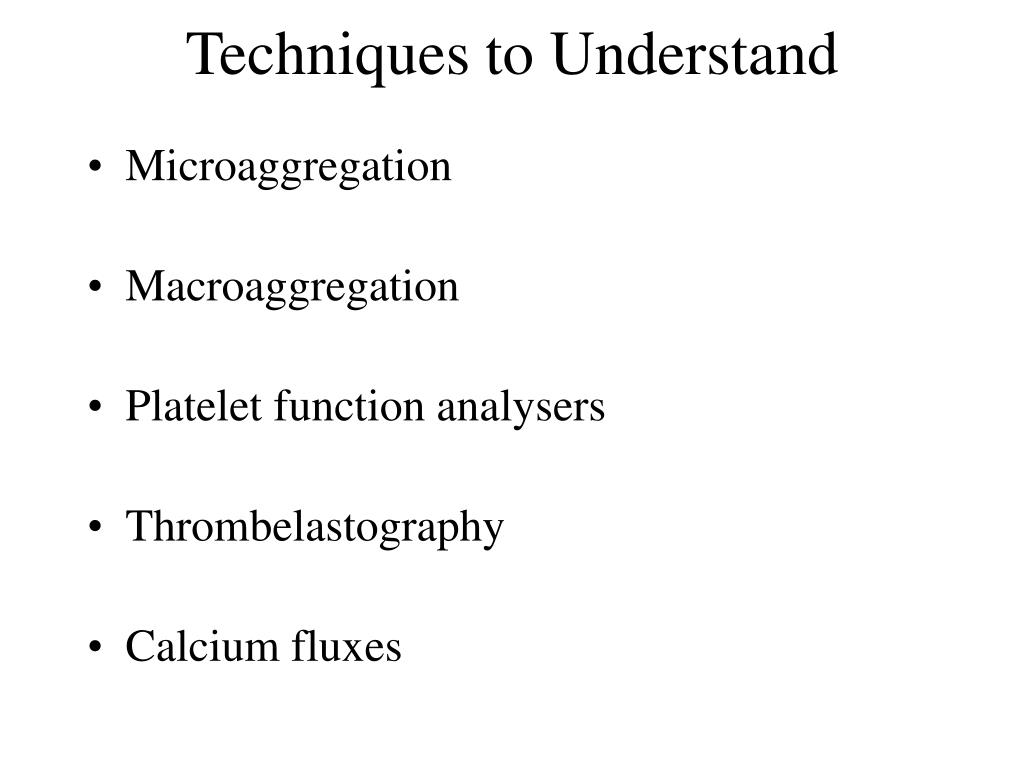

Techniques to Understand
  • Microaggregation
  • Macroaggregation

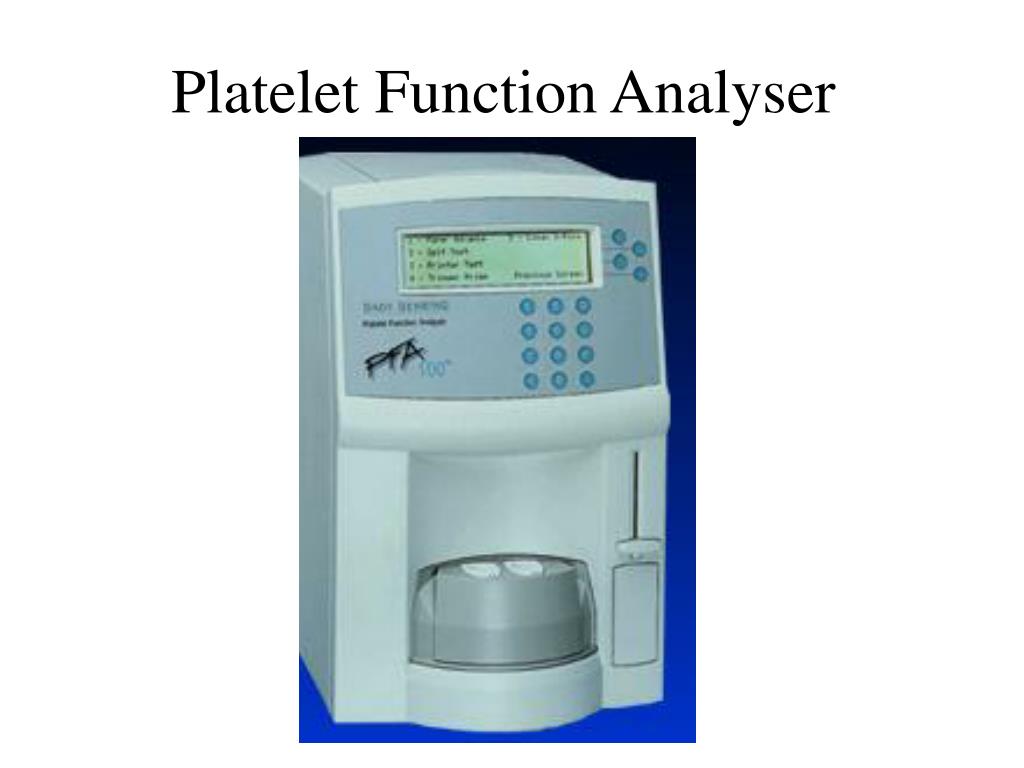

  • Platelet function analysers
  • Thrombelastography
  • Calcium fluxes
macroaggregation
Macroaggregation

Increasing

aggregation

Time

what the numbers letters mean
What the Numbers/letters Mean
  • R: Time from initiation to initial fibrin formation
  • k: Time of clot formation until amplitude of 20 mm
  • Alpha angle: Acceleration (kinetics) of fibrin build up and cross-linking
  • MA - Maximum amplitude strength of clot (number function platelets, fibrin)
  • MA60: The rate of amplitude reduction 60 min. after MA (stability) of the clot
tips and tricks
Tips and Tricks
  • Heparinase
  • Adding c7E3 Fab (ReoPro) to the TEG sample will eliminate platelet function from the thromboelastogram.
  • Antifibrinolytic agents such as Epsilon-Aminocaproic Acid, Tranexamic acid and Aprotinin
normal coagulation profile
Normal Coagulation Profile

Heparinase

No Heparinase

heparin effect
Heparin Effect

Heparinase

No Heparinase

calcium flux measurements1

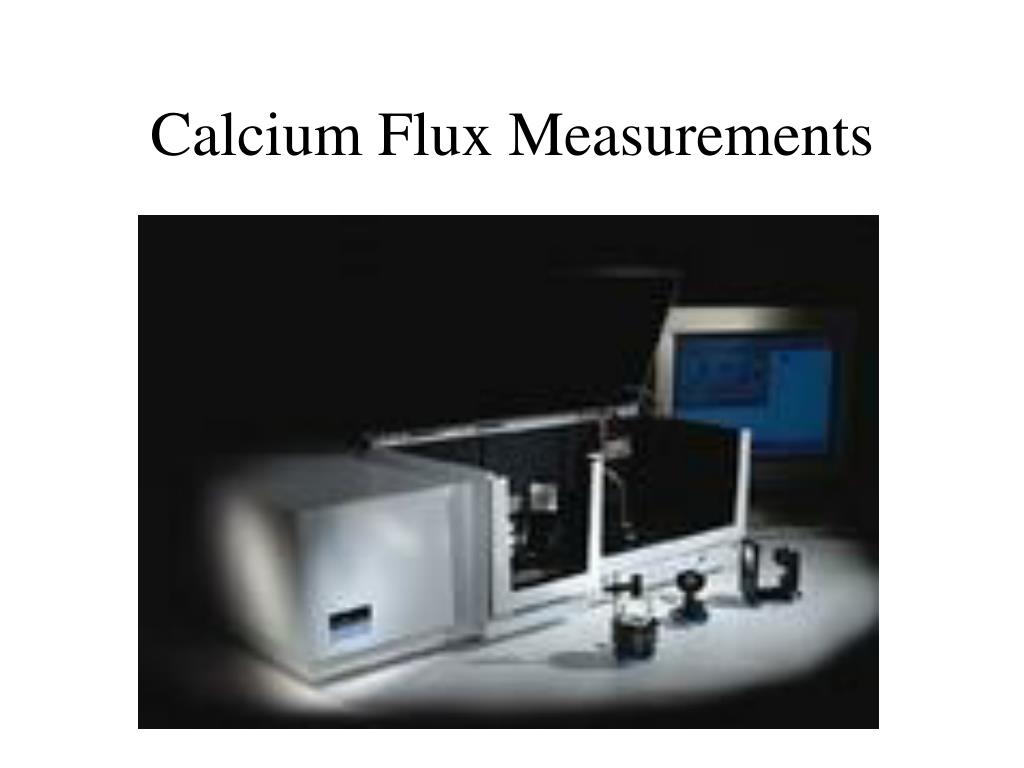

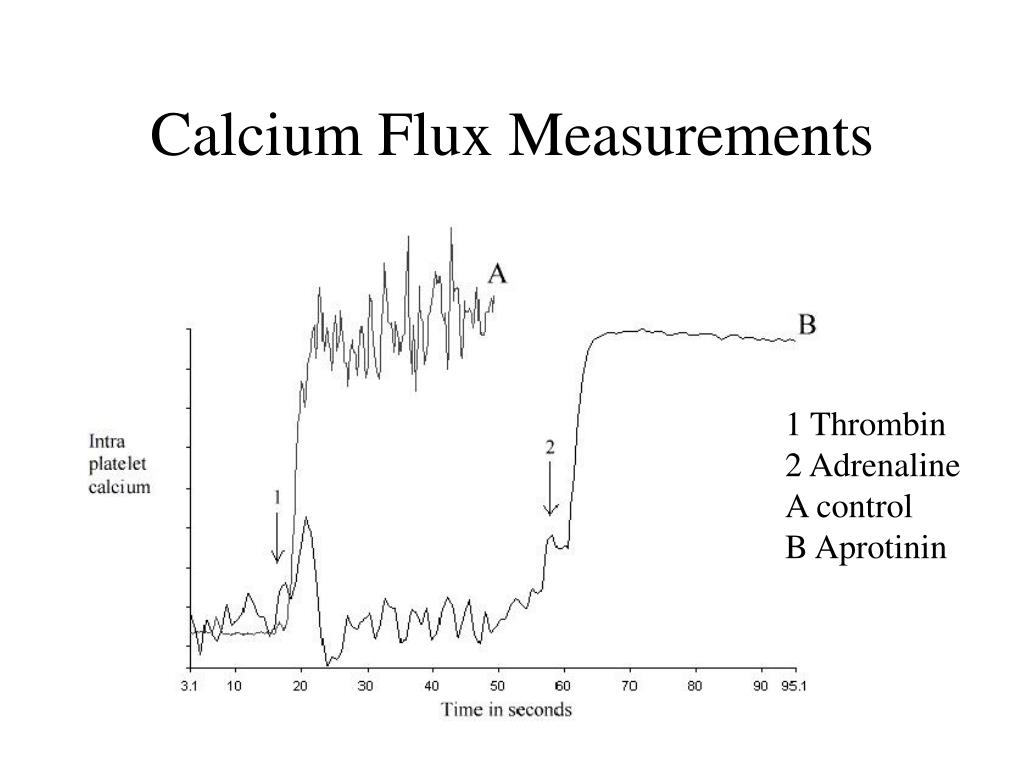

Calcium Flux Measurements

1 Thrombin

2 Adrenaline

A control

B Aprotinin

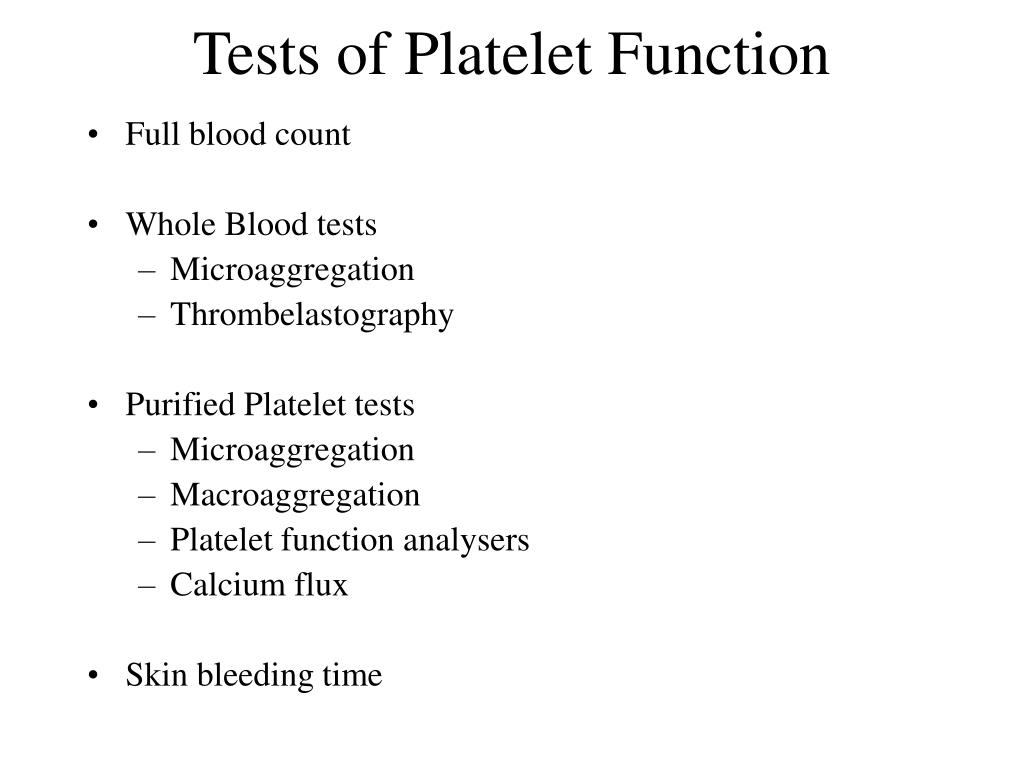

tests of platelet function
Tests of Platelet Function
  • Full blood count
  • Whole Blood tests
    • Microaggregation
    • Thrombelastography
  • Purified Platelet tests
    • Microaggregation
    • Macroaggregation
    • Platelet function analysers
    • Calcium flux
  • Skin bleeding time
advantages of techniques
Advantages of Techniques
  • Full blood count
    • Quick, easy, reproducible, understandable
  • Whole Blood tests
    • Microaggregation, Thrombelastography Easy

MAJOR ADVANTAGE IS NO SAMPLE PREPERATION

  • Purified Platelet tests
    • Microaggregation Easy
    • Macroaggregation PRECISE DEFECT
    • Platelet function analysers PRECISE DEFECT
    • Calcium flux PRECISE DEFECT
  • Skin bleeding time
    • Whole body answer
limitations of techniques
Limitations of Techniques
  • Full blood count
    • Number not function
  • Whole Blood tests
    • Microaggregation No commercial kit
    • Thrombelastography?sensitivity
  • Purified Platelet tests

YOU HAVE TO PREPARE THE PLATELETS

    • Microaggregation No commercial kit
    • Macroaggregation Experienced technician
    • Platelet function analysers No enzymes available
    • Calcium flux Expensive and experience needed
  • Skin bleeding time
    • Invasive, not specific
clinical scenarios
Clinical Scenarios
  • Drugs
  • Medical conditions
  • Congenital disorders
  • Cardiopulmonary bypass
  • Aprotinin
  • HIT
  • On the ward
effect of drugs on platelet function
Effect of Drugs on Platelet Function

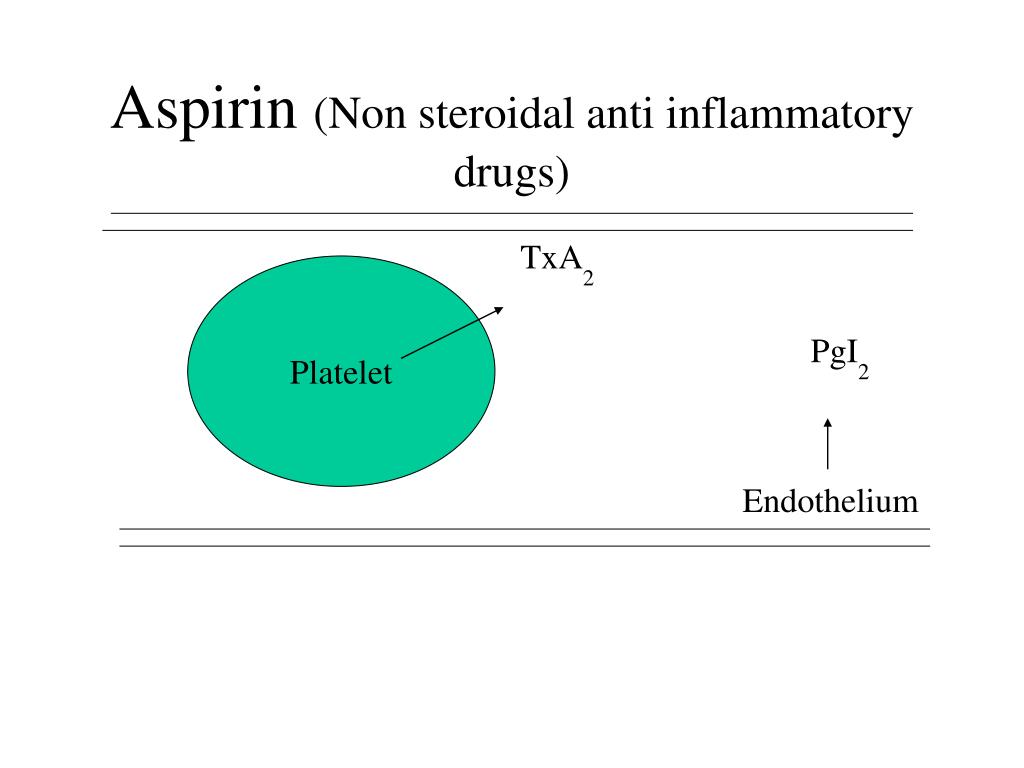

  • Aspirin (Non steroidal anti inflammatory drugs)
  • Clopidogrel, Ticlopidine
  • ReoPro, Tirofiban
  • Prostacyclin
  • Hirudin
  • Ancrod
reopro tirofiban integrilin
ReoPro / Tirofiban / Integrilin

Platelet

Platelet

GP 11b/111a

Fibrin

GP 11b/111a

medical conditions
Medical Conditions
  • Hyperglobulinaemia
    • Multiple myeloma and
    • Waldestrons macroglobulinaemia
  • Renal failure Uraemia
  • Liver disease
  • Myeloproliferative disorders
    • Essential thrombocythaemia
    • Polycytheamia
    • Myelodysplasias
congenital platelet disorders
Congenital Platelet disorders
  • All rare
  • VonWillibrands (commonest)
  • Glanzmann Thrombasthenia (Acquired common)
  • Bernard-Soulier
  • Platelet storage disorders
von willebrands

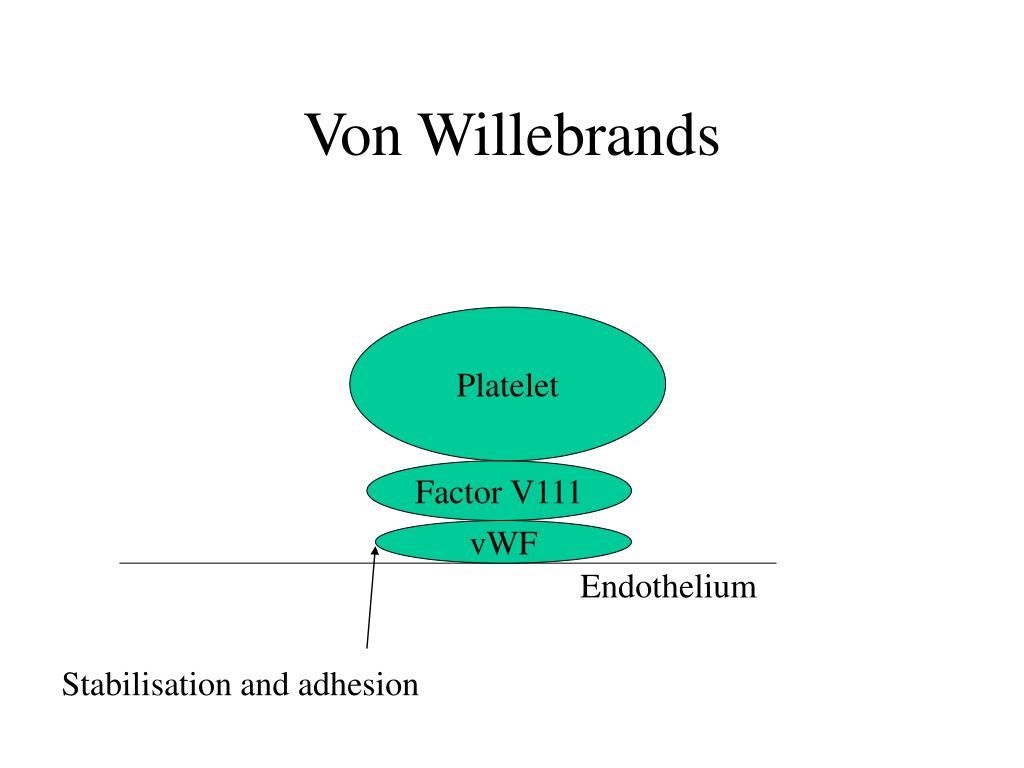

Von Willebrands

Platelet

Factor V111

vWF

Endothelium

Stabilisation and adhesion

glanzmann thrombasthenia

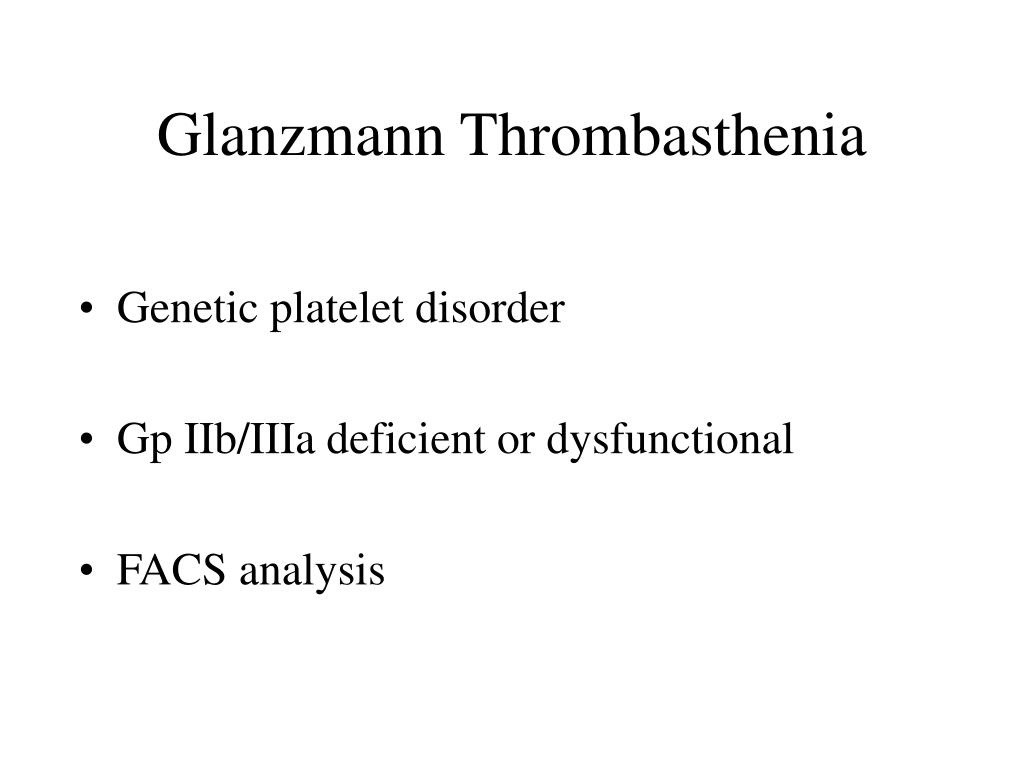

Glanzmann Thrombasthenia
  • Genetic platelet disorder
  • Gp IIb/IIIa deficient or dysfunctional
  • FACS analysis
bernard soulier

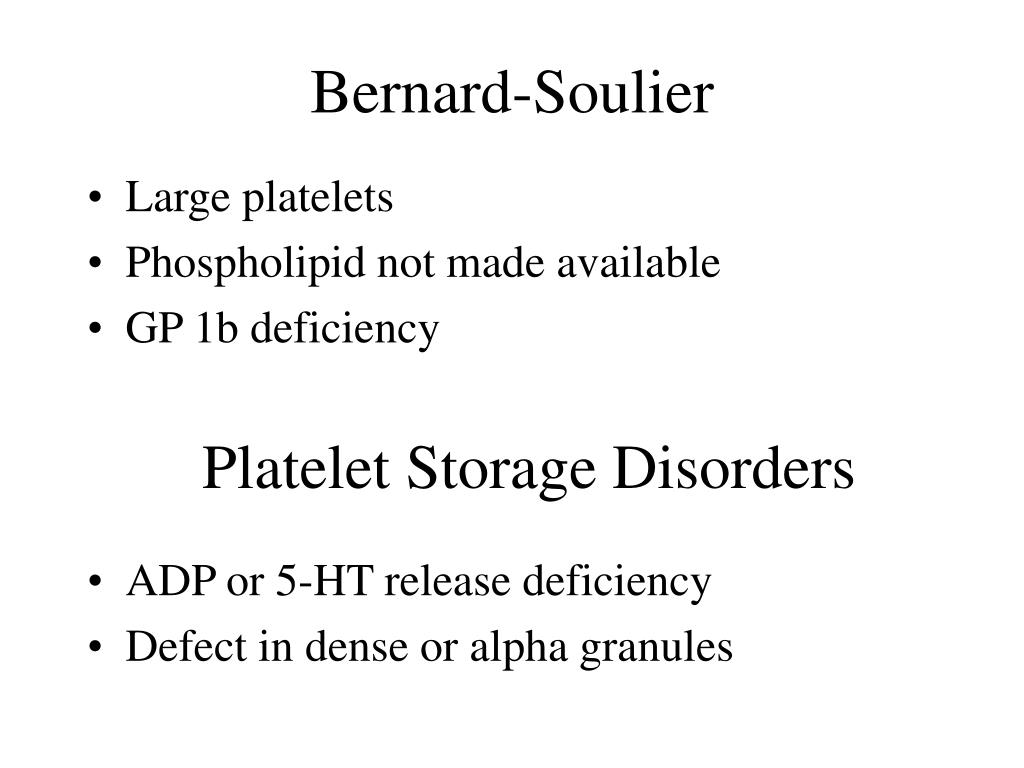

Bernard-Soulier
  • Large platelets
  • Phospholipid not made available
  • GP 1b deficiency

Platelet Storage Disorders

  • ADP or 5-HT release deficiency
  • Defect in dense or alpha granules
how are platelets protected during cpb
How are platelets protected during CPB?
  • Heparin only works on soluble factors!
thrombin
Thrombin

Intrinsic

Extrinsic VII

HEPARIN

CLOT

platelet dysfunction post cpb
Platelet Dysfunction Post CPB
  • Activation decreased numbers and causes clumping
  • Thrombin receptor desensitisation (Neutrophil elastase)
  • Thrombin fragment deactivation theory
  • GP Ib depletion
  • Other
platelets and aprotinin
Platelets and Aprotinin
  • Aprotinin inhibits thrombin induced platelet aggregation but not adrenaline, collagen, and ADP induced aggregation
  • Aprotinin protects GP1b levels
  • Neutrophil enzymes can cleave PAR receptor and make it functionless
hit hitt cpb and aprotinin
HIT, HITT, CPB and Aprotinin
  • PF-4 and heparin antibody
    • Clinical suspicion
    • Immunoassay
    • Bioassay
  • How do you develop HIT?
    • Tissues and blood cell activation
    • Heparin exposure
    • Antibody formation
    • Antibody has to have a functional Fc
drugs to treat hit
Drugs to treat HIT
  • LMW
  • Prostacyclin
  • Ancrod
  • Aprotinin
  • Thrombin antagonists Hirudin
  • Ancrod - aprotinin interaction is important
thrombocytopenia in the well patient on day 5 ready for home
Thrombocytopenia in the well patient on day 5 ready for home
  • Blood film for platelet clumping
  • Repeat in Citrate not EDTA
  • Look at coulter trace
  • ? Need extra dose of aspirin or clopidogrel
interpreting cardiac surgery papers on platelet function
Interpreting Cardiac Surgery Papers on Platelet Function
  • Agonist
  • Technique
  • What is the likely defect?
  • Is it relevant?
  • Methodology quirk “Correcting count for tests”
