mobile and location based services

Mobile and Location-Based Services

Jason I. Hong

jasonh@cs.cmu.edu

May 04 2007

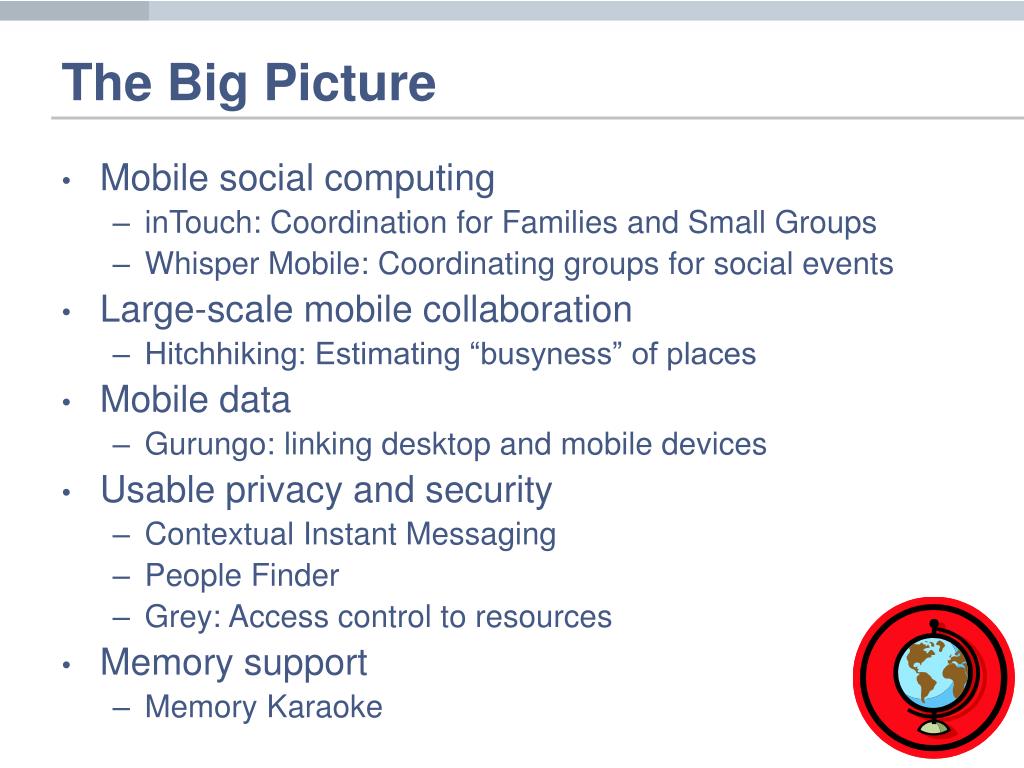

the big picture
The Big Picture
  • Mobile social computing
    • inTouch: Coordination for Families and Small Groups
    • Whisper Mobile: Coordinating groups for social events
  • Large-scale mobile collaboration
    • Hitchhiking: Estimating “busyness” of places
  • Mobile data
    • Gurungo: linking desktop and mobile devices
  • Usable privacy and security
    • Contextual Instant Messaging
    • People Finder
    • Grey: Access control to resources
  • Memory support
    • Memory Karaoke

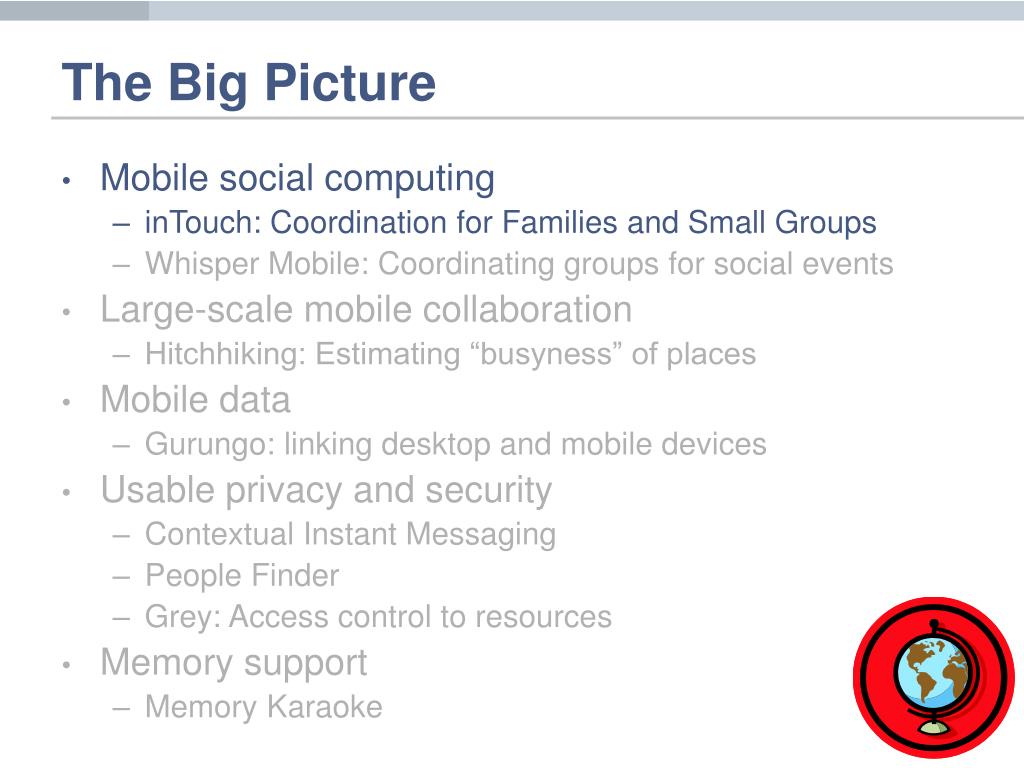

the big picture3
The Big Picture
  • Mobile social computing
    • inTouch: Coordination for Families and Small Groups
    • Whisper Mobile: Coordinating groups for social events
  • Large-scale mobile collaboration
    • Hitchhiking: Estimating “busyness” of places
  • Mobile data
    • Gurungo: linking desktop and mobile devices
  • Usable privacy and security
    • Contextual Instant Messaging
    • People Finder
    • Grey: Access control to resources
  • Memory support
    • Memory Karaoke
intouch coordination for families
inTouch: Coordination for Families
  • Make it easier to coordinate with others while mobile
    • Better awareness and messaging
  • Target Users:
  • Small to med. groups of people
  • Fluid and demanding schedule
  • Multiple responsibilities
  • Examples:
  • Dual-career families
  • Work groups
  • Ad hoc (ex. conferences)
  • Carpools

Mobility

Messaging

Awareness

dual career families

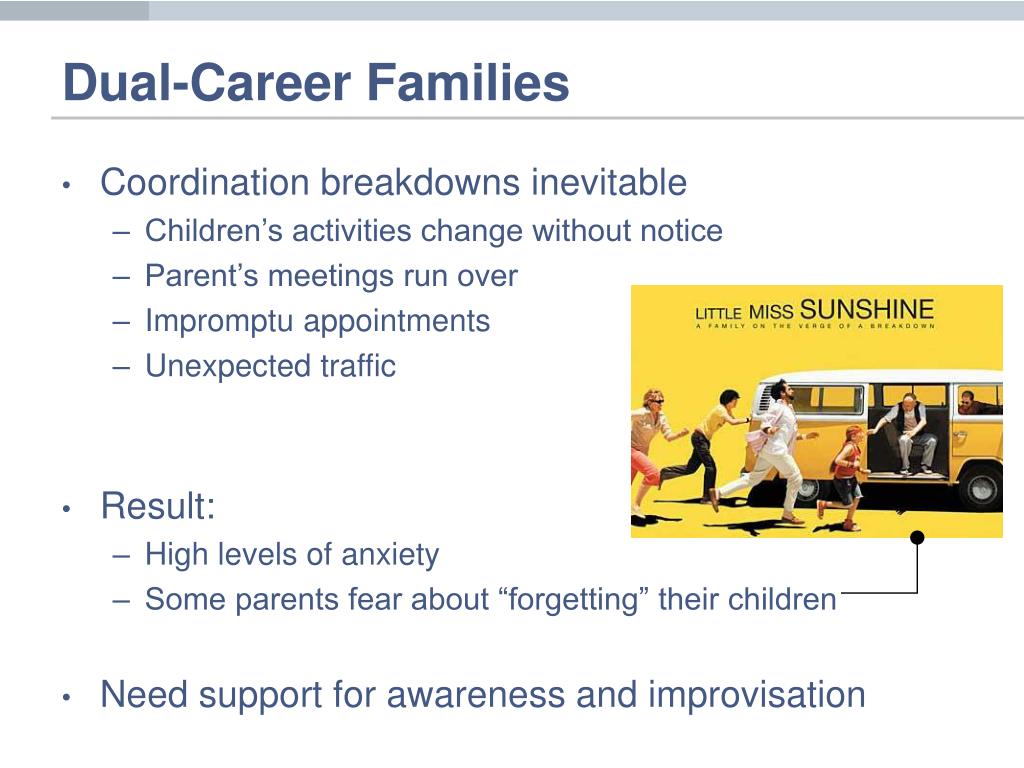

Dual-Career Families
  • Coordination breakdowns inevitable
    • Children’s activities change without notice
    • Parent’s meetings run over
    • Impromptu appointments
    • Unexpected traffic
  • Result:
    • High levels of anxiety
    • Some parents fear about “forgetting” their children
  • Need support for awareness and improvisation
intouch coordination for families6
inTouch: Coordination for Families
  • Two week field study with six dual-career families
intouch coordination for families9
inTouch: Coordination for Families
  • Make it easier to coordinate with others while mobile
    • Better awareness
    • Contextual messaging
  • Combines:
  • Shared calendar
  • Shared todo lists
  • Reminders
  • Real-time location
  • Proximity
project intouch
Project: InTouch

It’s 4:30pm and Mom is

stuck in traffic

inTouch checks her calendar and sees she’s supposed to pick up Cindy from ballet

project intouch11

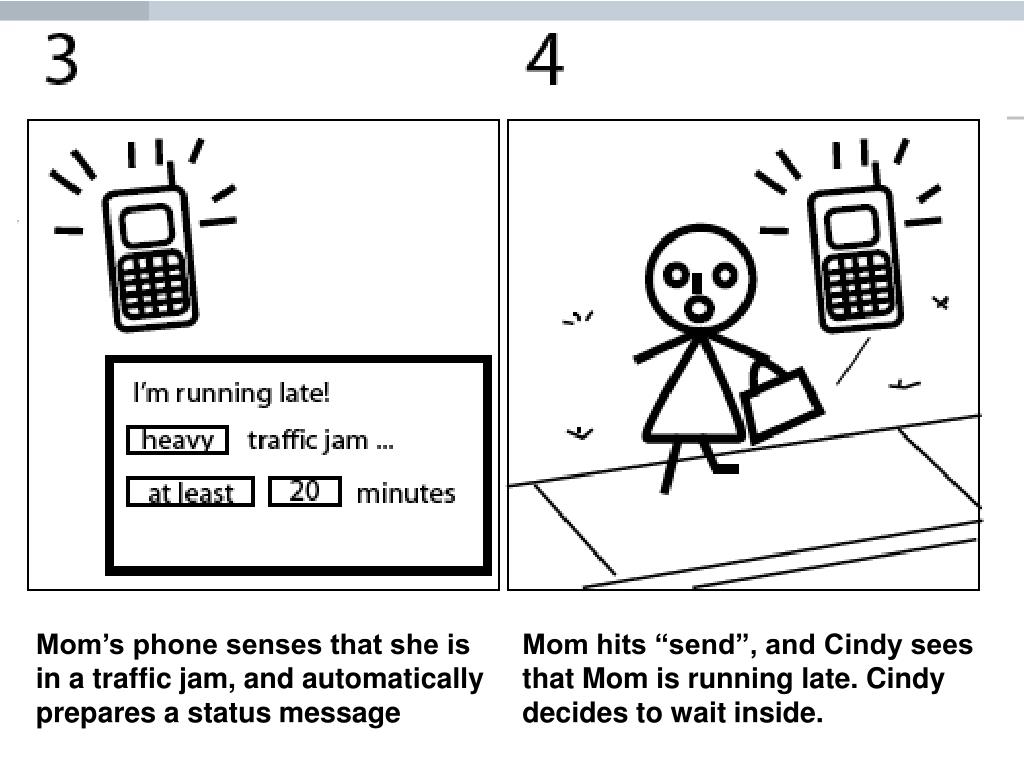

Project: InTouch

Mom’s phone senses that she is in a traffic jam, and automatically prepares a status message

Mom hits “send”, and Cindy sees that Mom is running late. Cindy decides to wait inside.

contextual messaging
Contextual Messaging
  • Using current context to:
    • Select a message template
    • Fill in the blanks (like a MadLib)
    • In most cases, can just hit “send”
  • When is contextual messaging useful?
    • Calendar alarms “running late, will be there in <ETA>”
    • Current activity “in a meeting now, done at <time>”
    • Daily rhythms “picked up kid ok” at 3PM
    • Messages received “where r u?” -> “I am at <place>”
contextual messaging13
Contextual Messaging
  • Messaging can be linked to calendar or reminders
    • S: Can you get dinner tonight?
    • J: Ok, I will pick up __________ on my way home
    • Activate as a reminder when you leave work

Message easy to select around 4PM

Fill in the blank based on patterns

and what’s near your home

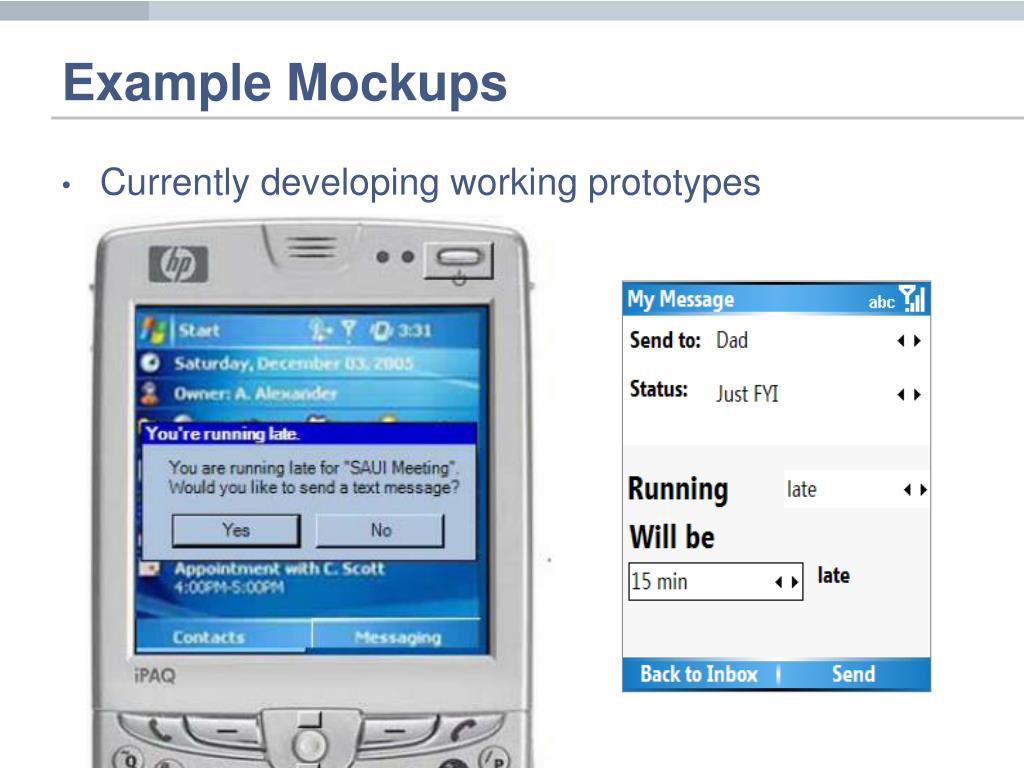

example mockups
Example Mockups
  • Currently developing working prototypes
the big picture15
The Big Picture
  • Mobile social computing
    • inTouch: Coordination for Families and Small Groups
    • Whisper Mobile: Coordinating groups for social events
  • Large-scale mobile collaboration
    • Hitchhiking: Estimating “busyness” of places
  • Mobile data
    • Gurungo: linking desktop and mobile devices
  • Usable privacy and security
    • Contextual Instant Messaging
    • People Finder
    • Grey: Access control to resources
  • Memory support
    • Memory Karaoke
whisper mobile
Whisper Mobile
  • Goal: Make it easy to find, share, and coordinate friends going to social events
whisper mobile creating an event

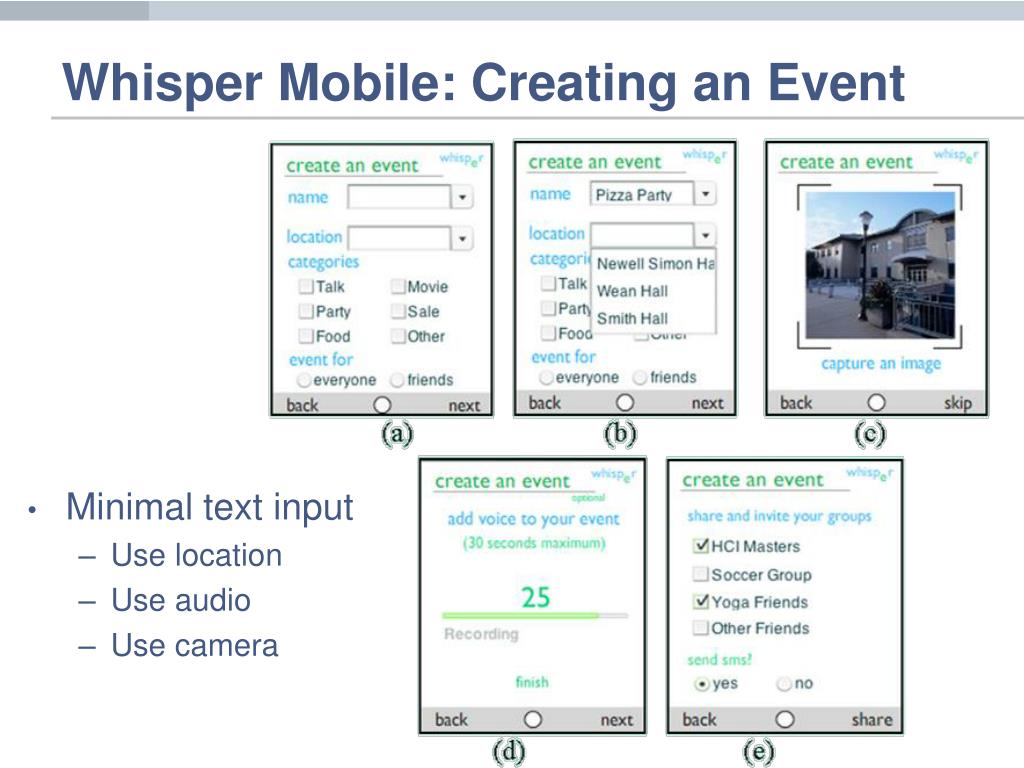

Whisper Mobile: Creating an Event
  • Minimal text input
    • Use location
    • Use audio
    • Use camera

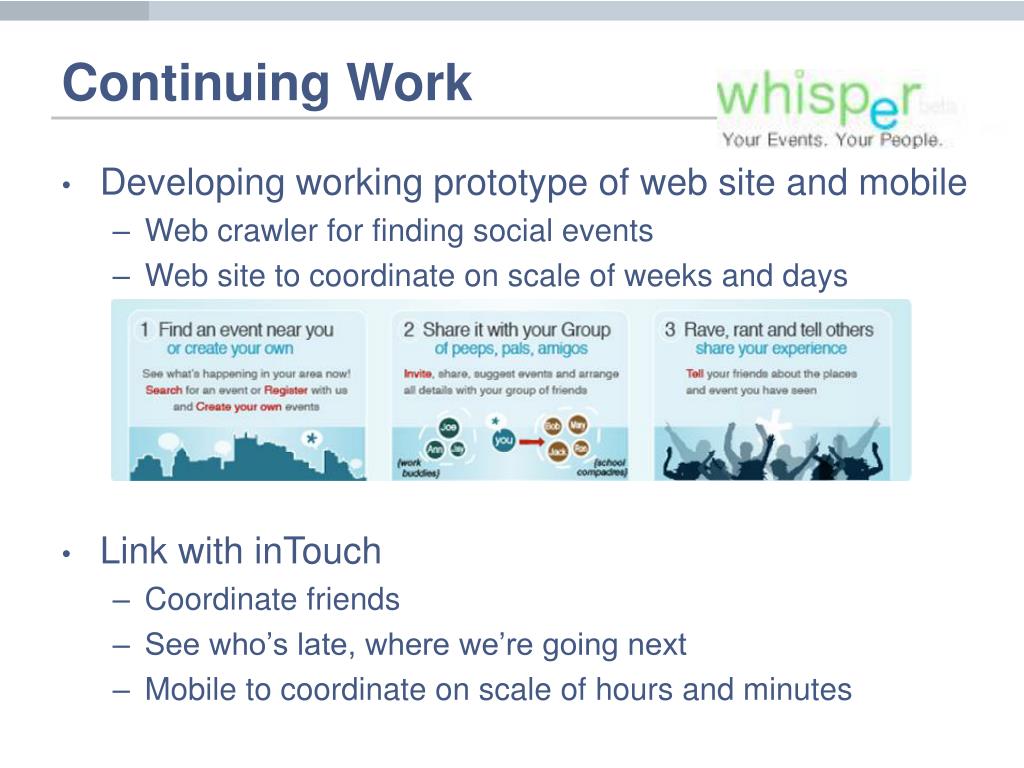

continuing work
Continuing Work
  • Developing working prototype of web site and mobile
    • Web crawler for finding social events
    • Web site to coordinate on scale of weeks and days
  • Link with inTouch
    • Coordinate friends
    • See who’s late, where we’re going next
    • Mobile to coordinate on scale of hours and minutes
the big picture19

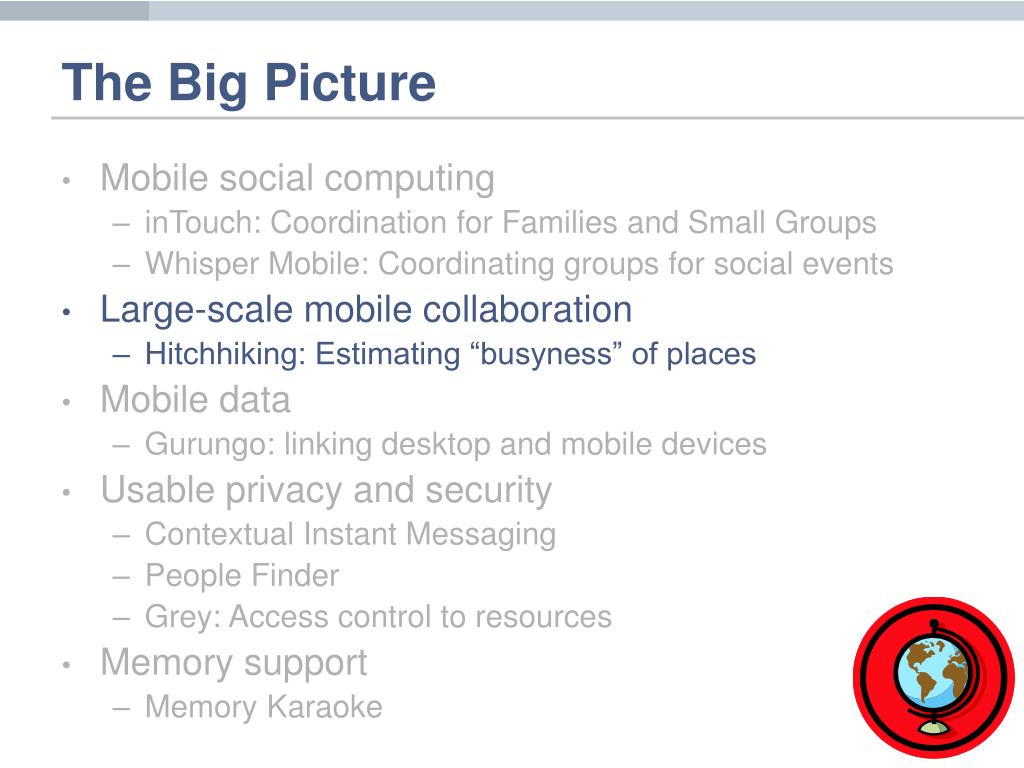

The Big Picture
  • Mobile social computing
    • inTouch: Coordination for Families and Small Groups
    • Whisper Mobile: Coordinating groups for social events
  • Large-scale mobile collaboration
    • Hitchhiking: Estimating “busyness” of places
  • Mobile data
    • Gurungo: linking desktop and mobile devices
  • Usable privacy and security
    • Contextual Instant Messaging
    • People Finder
    • Grey: Access control to resources
  • Memory support
    • Memory Karaoke
project hitchhiking
Project: Hitchhiking
  • Most location-based services about where you are
  • Hitchhiking is about the “busyness” of places
    • “Is the café busy?”
    • “How long are the lines at the airport?”
    • “Where’s an empty room?”
    • Is there any parking at the shopping district?
project hitchhiking21
Project: Hitchhiking
  • Estimate number of people in a place by counting the number of wireless devices there
  • Periodically upload count + location to our servers
  • Other people can query our servers
project hitchhiking22
Project: Hitchhiking
  • How well does Hitchhiking work?
project hitchhiking23
Project: Hitchhiking
  • Privacy?
    • Upload anonymized counts only
    • Upload from approved places only
    • Our server shows “busyness” of a place only
  • Advantages
    • Cheap, uses existing devices (everyone is a “sensor”)
    • Deployable, don’t have to set up lots of new sensors
    • Privacy
  • What’s next?
    • Map visualizations
the big picture25
The Big Picture
  • Mobile social computing
    • inTouch: Coordination for Families and Small Groups
    • Whisper Mobile: Coordinating groups for social events
  • Large-scale mobile collaboration
    • Hitchhiking: Estimating “busyness” of places
  • Mobile data
    • Gurungo: linking desktop and mobile devices
  • Usable privacy and security
    • Contextual Instant Messaging
    • People Finder
    • Grey: Access control to resources
  • Memory support
    • Memory Karaoke
gurungo
GurunGo
  • Goal: Make it easy to access useful information while mobile
  • Observation #1: People still tend to print out online maps, despite having mobile device. Why?
    • Found it via desktop, easier to print than to copy to mobile
    • Slow or expensive wireless connections
    • Inconvenient form factor on mobile device
  • Observation #2: People don’t do the same kind of web browsing on mobile phones as on desktops
    • Don’t have to support all information finding tasks, just ones more likely to be done when mobile
gurungo scenarios

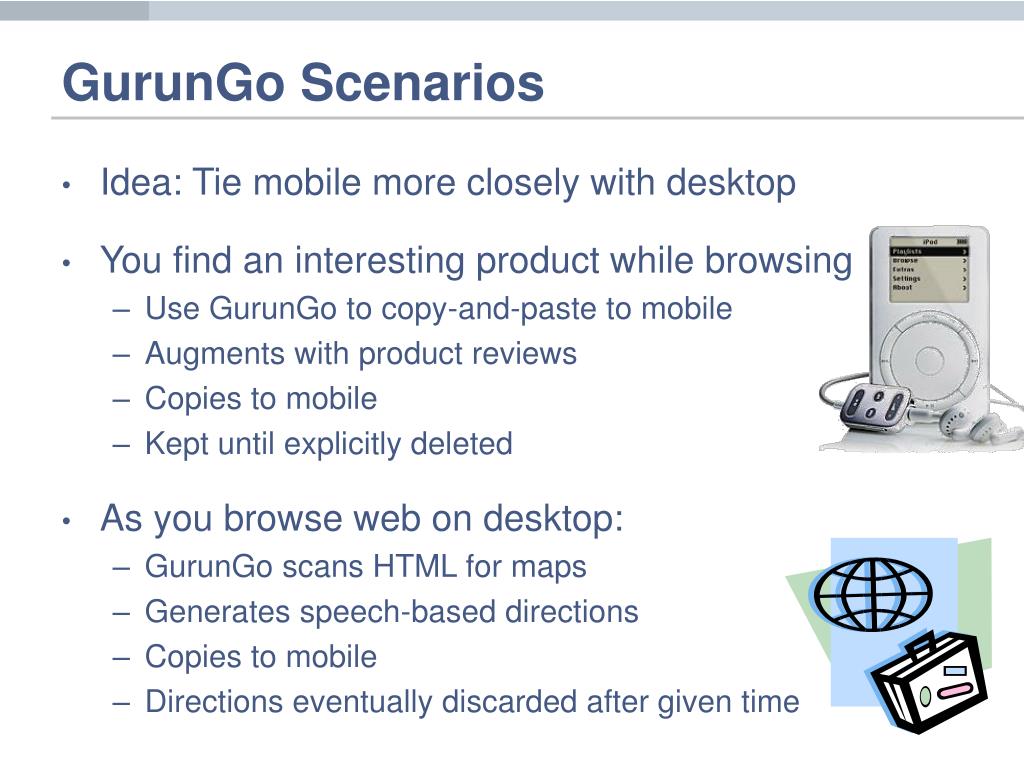

GurunGo Scenarios
  • Idea: Tie mobile more closely with desktop
  • You find an interesting product while browsing
    • Use GurunGo to copy-and-paste to mobile
    • Augments with product reviews
    • Copies to mobile
    • Kept until explicitly deleted
  • As you browse web on desktop:
    • GurunGo scans HTML for maps
    • Generates speech-based directions
    • Copies to mobile
    • Directions eventually discarded after given time
gurungo usage
GurunGo Usage
  • Acquire
    • Let people explicitly copy-and-paste info to mobile
    • Let people implicitly copy info via regular web browsing
      • GurunGo scans pages seen for potentially useful stuff
  • Augment
    • Look for known data types, make mobile data more useful

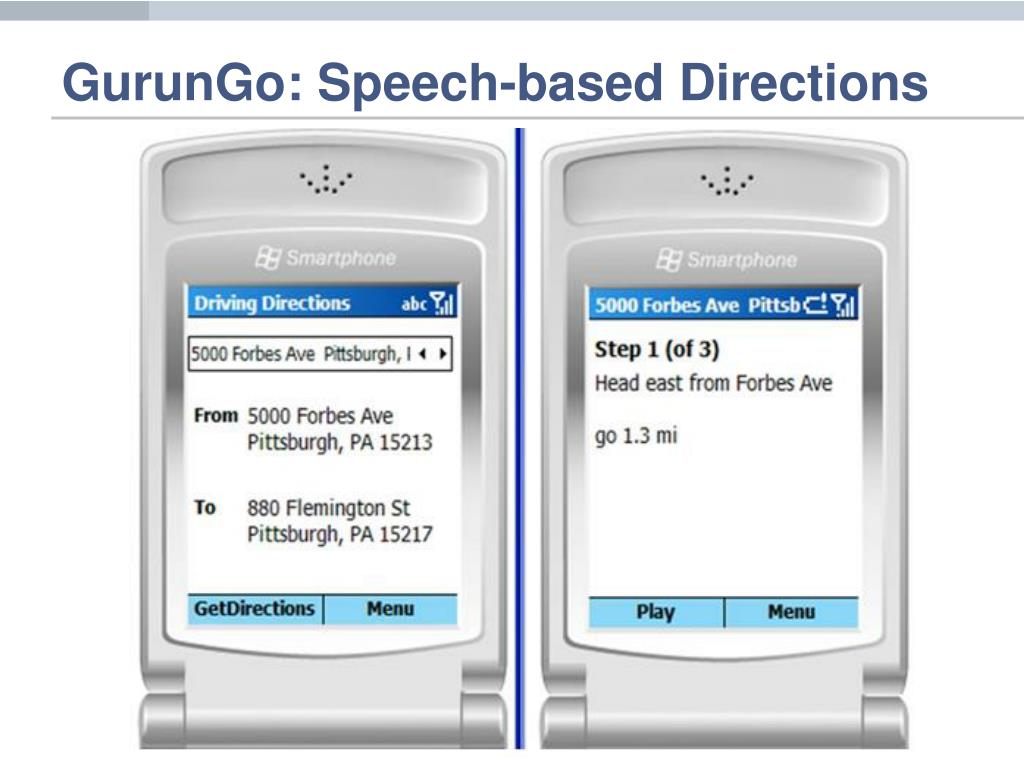

    • Ex. Augment maps with speech-based directions
  • Copy (to mobile in the background)
  • Browse
    • Organize data based on common data types
    • Street addresses, product comparisons, phone #s
nice features of gurungo

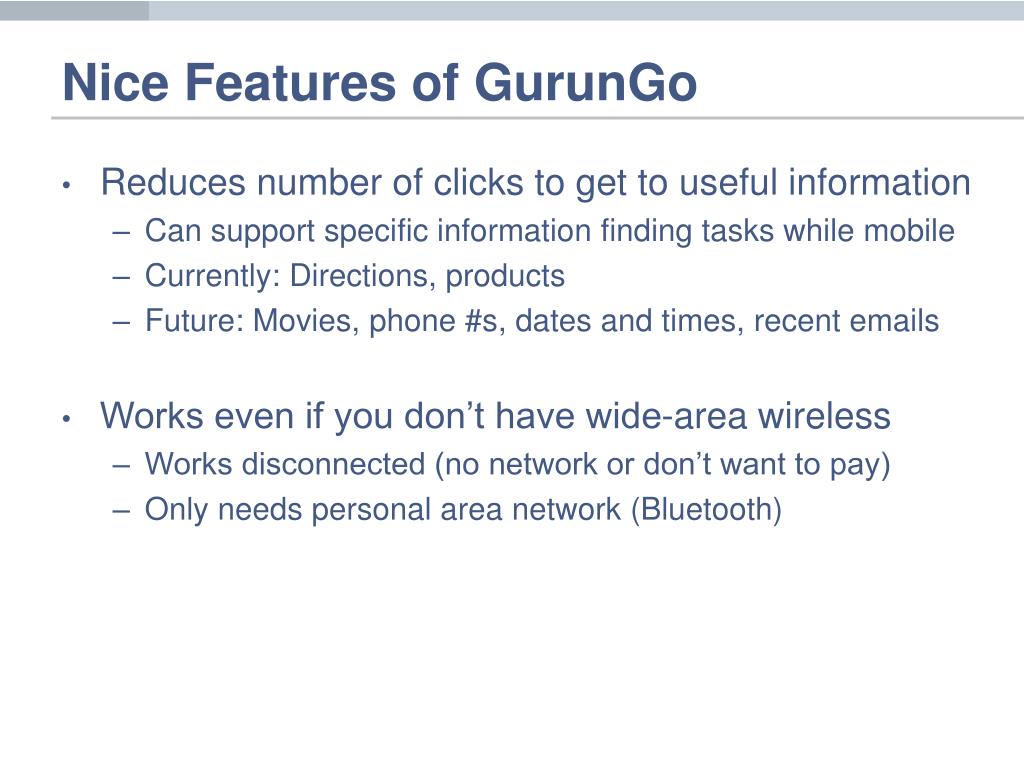

Nice Features of GurunGo
  • Reduces number of clicks to get to useful information
    • Can support specific information finding tasks while mobile
    • Currently: Directions, products
    • Future: Movies, phone #s, dates and times, recent emails
  • Works even if you don’t have wide-area wireless
    • Works disconnected (no network or don’t want to pay)
    • Only needs personal area network (Bluetooth)

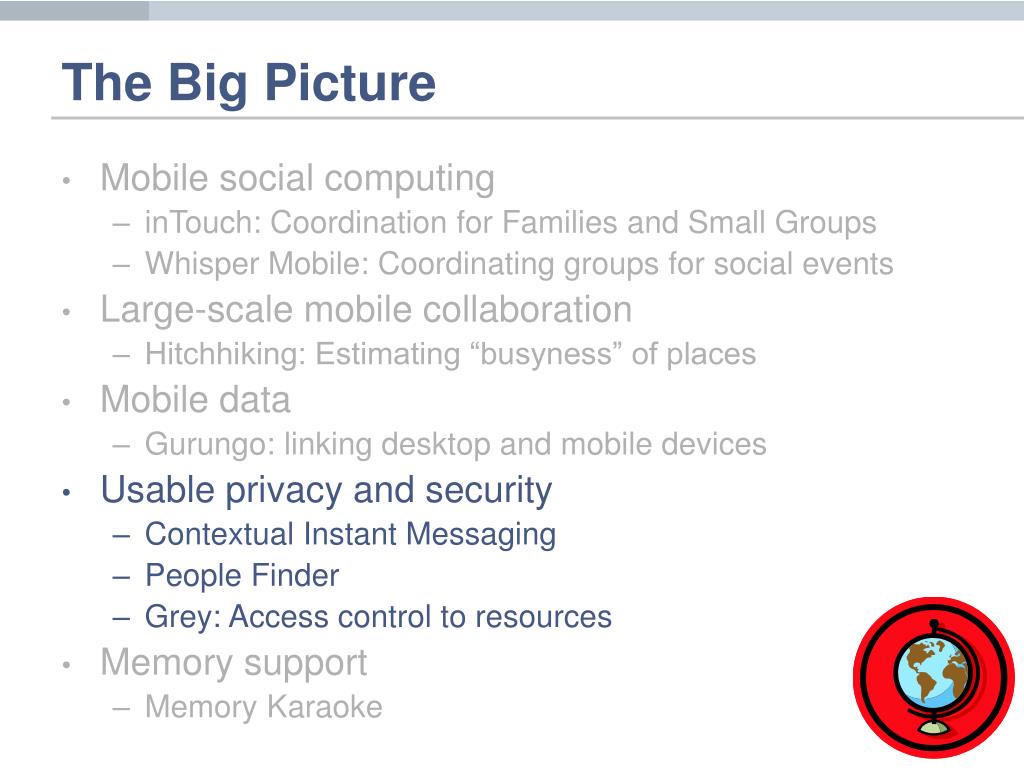

the big picture31
The Big Picture
  • Mobile social computing
    • inTouch: Coordination for Families and Small Groups
    • Whisper Mobile: Coordinating groups for social events
  • Large-scale mobile collaboration
    • Hitchhiking: Estimating “busyness” of places
  • Mobile data
    • Gurungo: linking desktop and mobile devices
  • Usable privacy and security
    • Contextual Instant Messaging
    • People Finder
    • Grey: Access control to resources
  • Memory support
    • Memory Karaoke

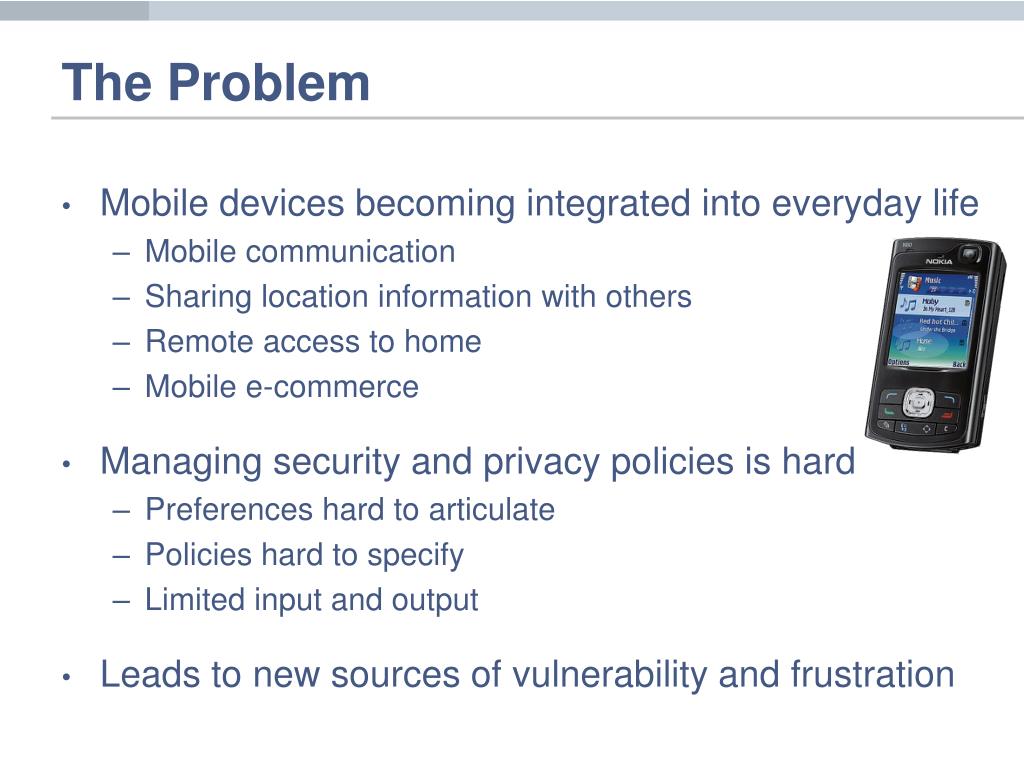

the problem
The Problem
  • Mobile devices becoming integrated into everyday life
    • Mobile communication
    • Sharing location information with others
    • Remote access to home
    • Mobile e-commerce
  • Managing security and privacy policies is hard
    • Preferences hard to articulate
    • Policies hard to specify
    • Limited input and output
  • Leads to new sources of vulnerability and frustration
our goal
Our Goal
  • Develop core set of technologies for managing privacy and security on mobile devices
    • Simple UIs for specifying policies
    • Clear notifications and explanations of what happened
    • Better visualizations to summarize results
    • Machine learning for learning preferences
    • Start with small evaluations, continue with large-scale ones
  • Large multi-disciplinary team and project
    • Six faculty, 1.5 postdocs, six students
    • Supported by NSF, CMU CyLab
    • Roughly 1 year into project
the big picture34
The Big Picture
  • Mobile social computing
    • inTouch: Coordination for Families and Small Groups
    • Whisper Mobile: Coordinating groups for social events
  • Large-scale mobile collaboration
    • Hitchhiking: Estimating “busyness” of places
  • Mobile data
    • Gurungo: linking desktop and mobile devices
  • Usable privacy and security
    • Contextual Instant Messaging
    • People Finder
    • Grey: Access control to resources
  • Memory support
    • Memory Karaoke
contextual instant messaging

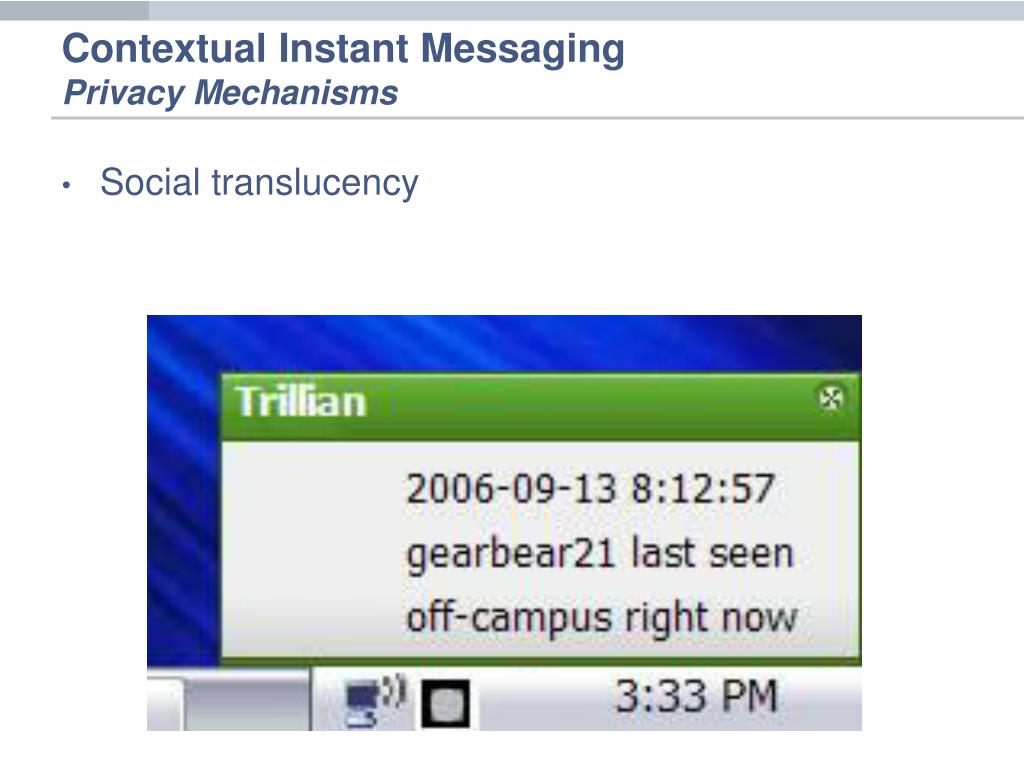

Contextual Instant Messaging
  • Facilitate coordination and communication by letting people request contextual information via IM
    • Interruptibility (via SUBTLE toolkit)
    • Location (via Place Lab WiFi positioning)
    • Active window
  • Developed a custom client and robot on top of AIM
    • Client (Trillian plugin) captures and sends context to robot
    • People can query imbuddy411 robot for info
      • “howbusyis username”
    • Robot also contains privacy rules governing disclosure
contextual instant messaging privacy mechanisms
Contextual Instant MessagingPrivacy Mechanisms
  • Web-based specification of privacy preferences
    • Users can create groups andput screennames into groups
    • Users can specify what each group can see
contextual instant messaging evaluation
Contextual Instant MessagingEvaluation
  • Recruited ten people for two weeks
    • Selected people highly active in IM (ie undergrads )
    • Each participant had ~90 buddies and 1300 incoming and outgoing messages per week
  • Notified other parties of imbuddy411 service
    • Update AIM profile to advertise
    • Would notify other parties at start of conversation
contextual instant messaging results
Contextual Instant MessagingResults
  • Total of 242 requests for contextual information
    • 53 distinct screen names, 13 repeat users

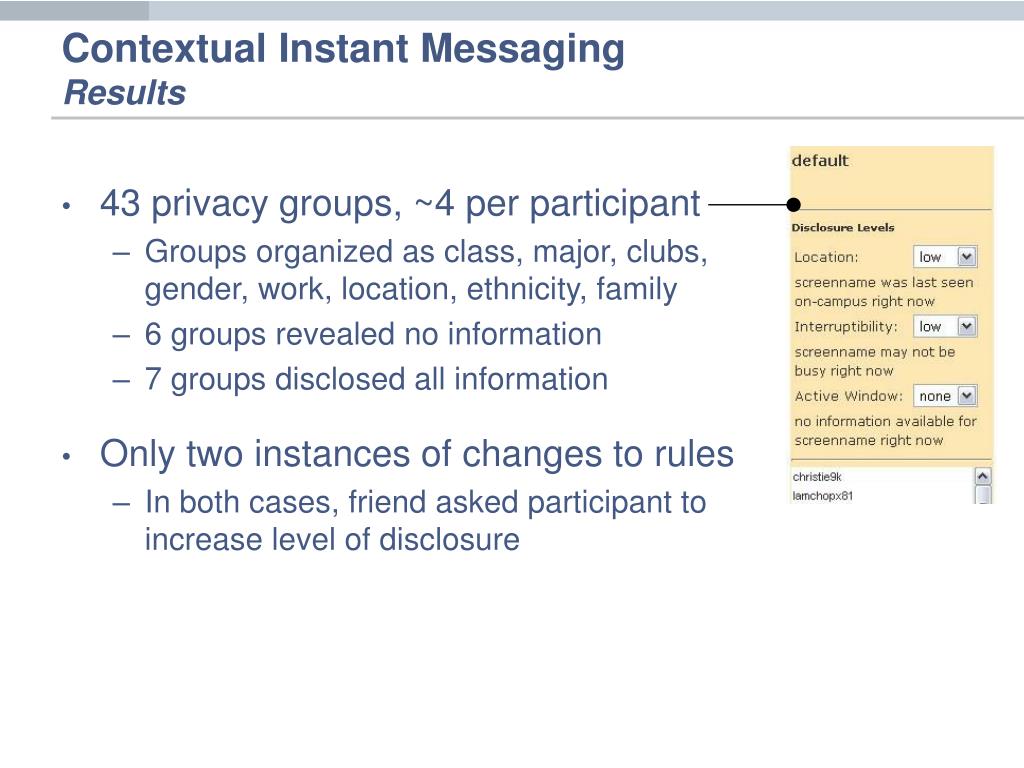

contextual instant messaging results42
Contextual Instant MessagingResults
  • 43 privacy groups, ~4 per participant
    • Groups organized as class, major, clubs,gender, work, location, ethnicity, family
    • 6 groups revealed no information
    • 7 groups disclosed all information
  • Only two instances of changes to rules
    • In both cases, friend asked participant to increase level of disclosure

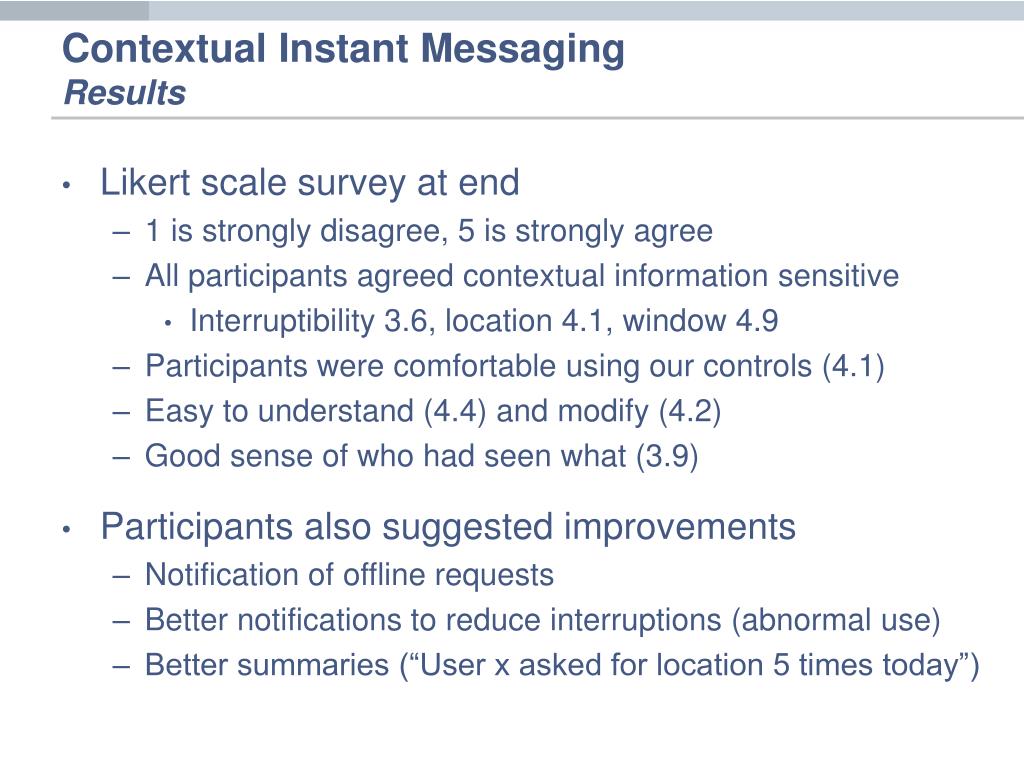

contextual instant messaging results43
Contextual Instant MessagingResults
  • Likert scale survey at end
    • 1 is strongly disagree, 5 is strongly agree
    • All participants agreed contextual information sensitive
      • Interruptibility 3.6, location 4.1, window 4.9
    • Participants were comfortable using our controls (4.1)
    • Easy to understand (4.4) and modify (4.2)
    • Good sense of who had seen what (3.9)
  • Participants also suggested improvements
    • Notification of offline requests
    • Better notifications to reduce interruptions (abnormal use)
    • Better summaries (“User x asked for location 5 times today”)
contextual instant messaging current status
Contextual Instant MessagingCurrent Status
  • Preparing for another round of deployment
    • Larger group of people
    • A few more kinds of contextual information
  • Developing privacy controls that scale better
    • More people, more kinds of information
the big picture45
The Big Picture
  • Mobile social computing
    • inTouch: Coordination for Families and Small Groups
    • Whisper Mobile: Coordinating groups for social events
  • Large-scale mobile collaboration
    • Hitchhiking: Estimating “busyness” of places
  • Mobile data
    • Gurungo: linking desktop and mobile devices
  • Usable privacy and security
    • Contextual Instant Messaging
    • People Finder
    • Grey: Access control to resources
  • Memory support
    • Memory Karaoke
people finder
People Finder
  • Location useful for micro-coordination
    • Meeting up
    • Okayness checking
  • Developed phone-based client
    • GSM localization (Intel)
  • Conducted studies to see how people specify rules (& how well)
  • See how well machine learning can learn preferences
people finder machine learning
People FinderMachine Learning
  • Using case-based reasoning (CBR)
    • “My colleagues can only see my location on weekdays and only between 8am and 6pm”
    • It’s now 6:15pm, so the CBR might allow, or interactively ask
  • Chose CBR over other machine learning
    • Better dialogs with users (ie more understandable)
    • Can be done as you go (rather than accumulating large corpus and doing post-hoc)
people finder current work
People FinderCurrent Work
  • Small-scale deployment of phone-based People Finder with a group of friends
    • Still needs more value, people finder by itself not sufficient
    • Trying to understand pain points on next iteration
  • Need more accurate location
    • GSM localization accuracy haphazard
  • Integration with imbuddy411
    • Smart phones expensive, IM vastly increases user base

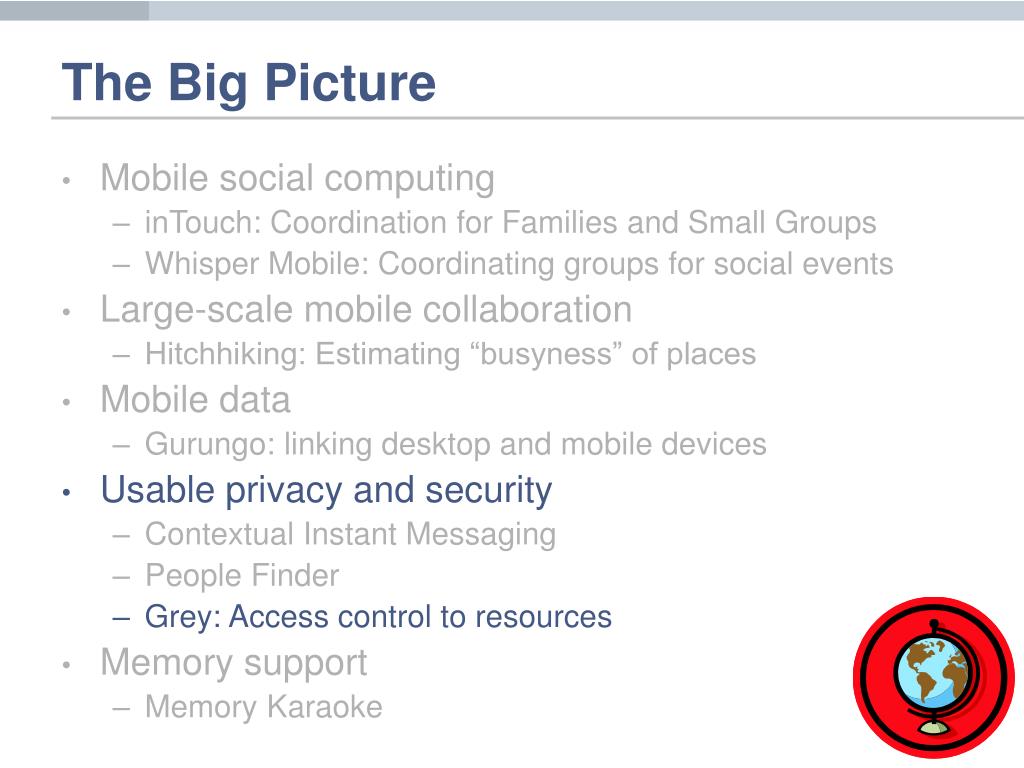

the big picture49
The Big Picture
  • Mobile social computing
    • inTouch: Coordination for Families and Small Groups
    • Whisper Mobile: Coordinating groups for social events
  • Large-scale mobile collaboration
    • Hitchhiking: Estimating “busyness” of places
  • Mobile data
    • Gurungo: linking desktop and mobile devices
  • Usable privacy and security
    • Contextual Instant Messaging
    • People Finder
    • Grey: Access control to resources
  • Memory support
    • Memory Karaoke
grey access control to resources
Grey – Access Control to Resources
  • Distributed smartphone-based access control system
    • physical resources like office doors, computers, and coke machines
    • electronic ones like computer accounts and electronic files
    • currently only physical doors
  • Proofs assembled from credentials
    • No central access control list
    • End-users can create flexible policies
grey creating policies
GreyCreating Policies
  • Proactive policies
    • Manually create a policy beforehand
    • “Alice can always enter my office”
  • Reactive policies
    • Create a policy based on a request
    • “Can I get into your office?”
    • Grey sees who is responsible for resource, and forwards
      • Might select from multiple people (owner, secretary, etc)
    • Can add the user, add time limits too
grey deployment at cmu
GreyDeployment at CMU
  • 25 participants (9 part of the Grey team)
  • Floor plan with Grey-enabled Bluetooth doors
grey evaluation
GreyEvaluation
  • Monitored Grey usage over several months
  • Interviews with each participant every 4-8 weeks
  • Time on task in using a shared kitchen door
grey surprises
GreySurprises
  • Grey policies did not mirror physical keys
    • Grey more flexible and easier to change
  • Lots of non-research obstacles
    • user perception that the system was slow
    • system failures causing users to get locked out
    • need network effects to study some interesting issues
  • Security is about unauthorized users out, our users more concerned with how easy for them to get in
    • never mentioned security concerns when interviewed
the big picture56
The Big Picture
  • Mobile social computing
    • inTouch: Coordination for Families and Small Groups
    • Whisper Mobile: Coordinating groups for social events
  • Large-scale mobile collaboration
    • Hitchhiking: Estimating “busyness” of places
  • Mobile data
    • Gurungo: linking desktop and mobile devices
  • Usable privacy and security
    • Contextual Instant Messaging
    • People Finder
    • Grey: Access control to resources
  • Memory support
    • Memory Karaoke
memory karaoke
Memory Karaoke
  • Phone-based system for preventing cognitive decline
    • Take pictures with camera phone
    • Tag with location, time
    • Tell stories about them
summary
Summary
  • Mobile social computing
  • Large-scale mobile collaboration
  • Mobile data
  • Usable privacy and security
  • Memory support
  • NSF
  • DARPA
  • Microsoft SenseMap
  • Motorola
  • Nokia

Jason I. Hong

jasonh@cs.cmu.edu
