Sling Psychrometer

Sling Psychrometer. ISN. Link. What does the word “sling” mean?. Essential Question. ?. How do you use a sling psychrometer ?. What’s it for?. Measures the relative humidity (amount of water vapor in the air). How does it work?. The dry bulb measures the room temperature.

ariane
Download Presentation

Sling Psychrometer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Sling Psychrometer ISN

  2. Link What does the word “sling” mean?

  3. Essential Question ? • How do you use a sling psychrometer?

  4. What’s it for? • Measures the relative humidity (amount of water vapor in the air)

  5. How does it work? • The dry bulb measures the room temperature. • The wet bulb has some of the water evaporate off. This cools the bulb making its reading lower than the dry bulb. • Depending on how much water vapor the air already has, the difference between the dry and wet bulb can be big or small.

  6. How do I use it? • Find the dry bulb reading. • Find the wet bulb reading. • Subtract the wet bulb from the dry bulb. (Difference) • Use the chart to calculate the relative humidity.

  7. The Chart

  8. Practice • Write down the following table.

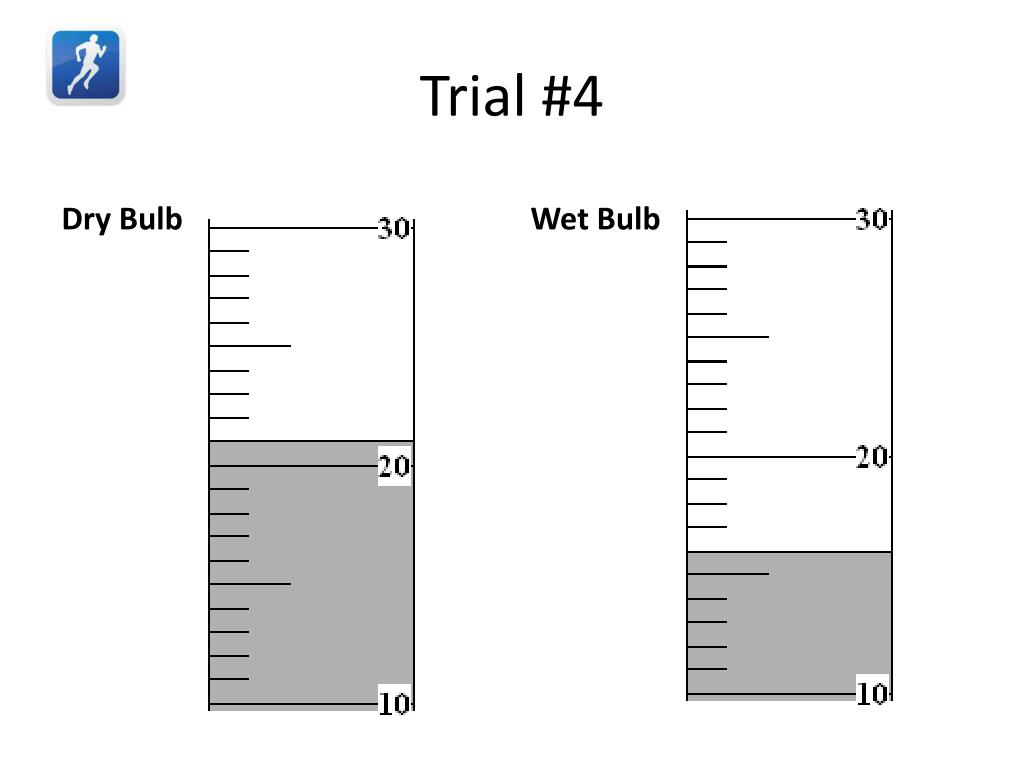

  9. Trial #1 Dry Bulb Wet Bulb

  10. Trial #2 Dry Bulb Wet Bulb

  11. Trial #3 Dry Bulb Wet Bulb

  12. Trial #4 Dry Bulb Wet Bulb

  13. Trial #5 Dry Bulb Wet Bulb

  14. Trial # 6 Dry Bulb Wet Bulb

  15. Trial # 7 Dry Bulb Wet Bulb

  16. Trial # 8 Dry Bulb Wet Bulb

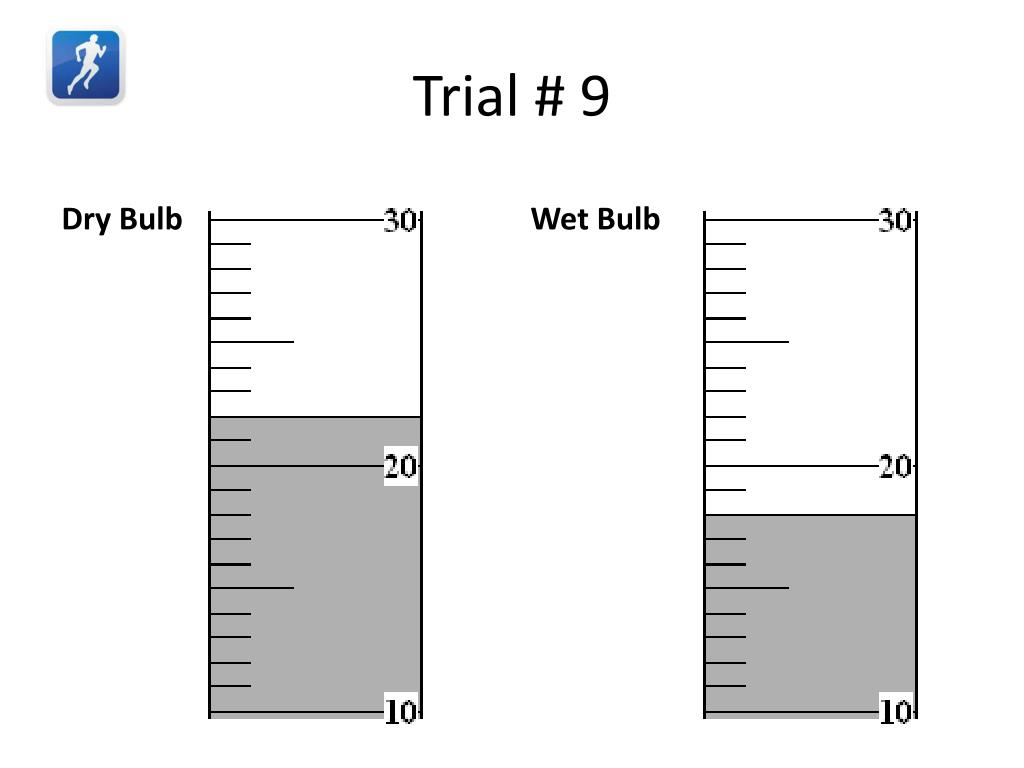

  17. Trial # 9 Dry Bulb Wet Bulb

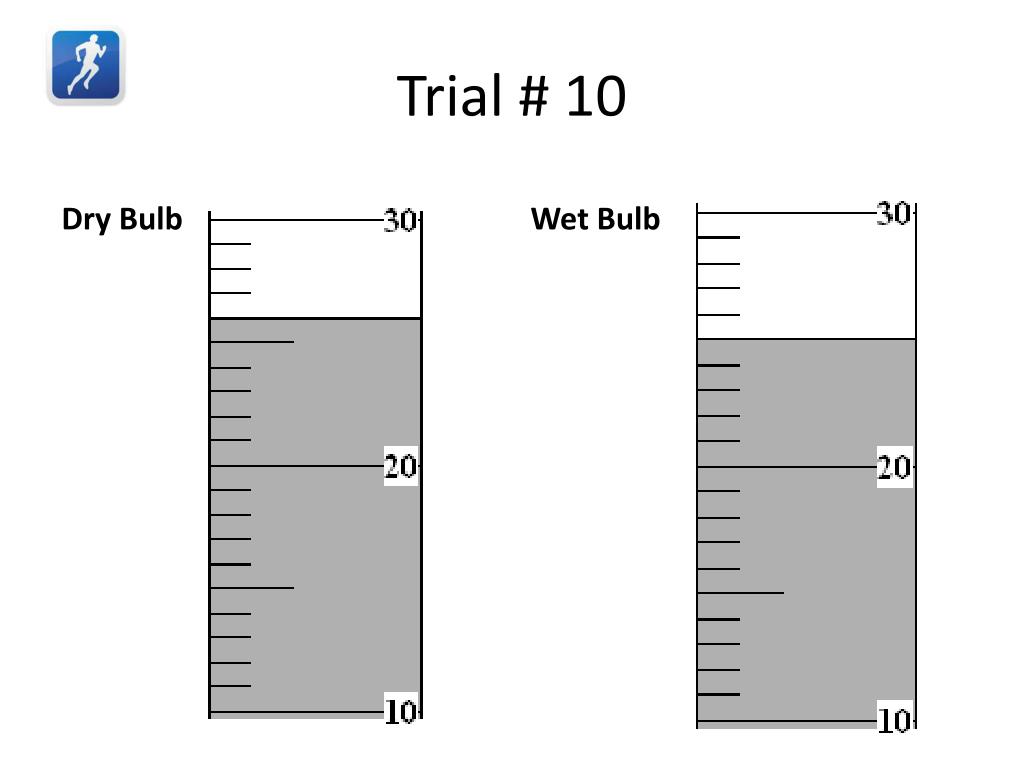

  18. Trial # 10 Dry Bulb Wet Bulb

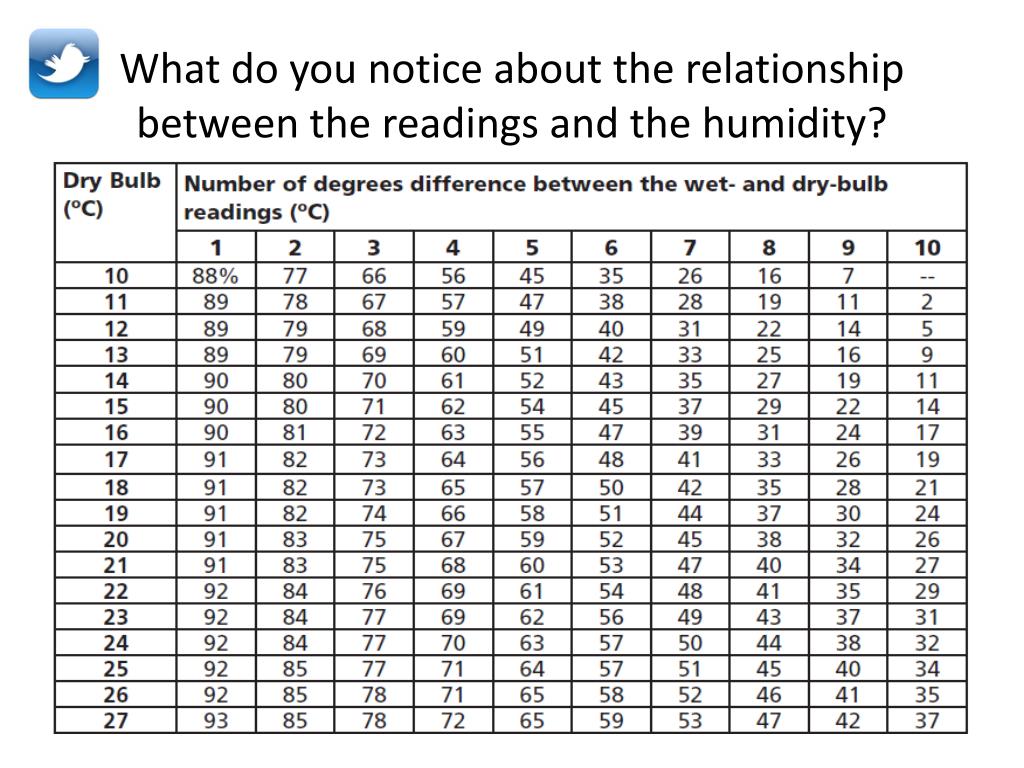

  19. What do you notice about the relationship between the readings and the humidity?

  20. The smaller the difference the higher the humidity. • The difference between what this box has inside and what it can hold is small. This means that it’s already pretty full. • The difference between what this box has inside and what it can hold is large. This means that it’s pretty much empty to begin with.

  21. Warmer air holds more water vapor. • This is why it’s “sticky” during the summer. • This is why we need lotion more during the winter because the air is drier and we need more moisture.
