Cryptanalysis of a Communication-EfficientThree-Party Password Authenticated KeyExchange Protocol Source: Information Sciences in review Presenter: Tsuei-Hung Sun (孫翠鴻) Date: 2010/10/29

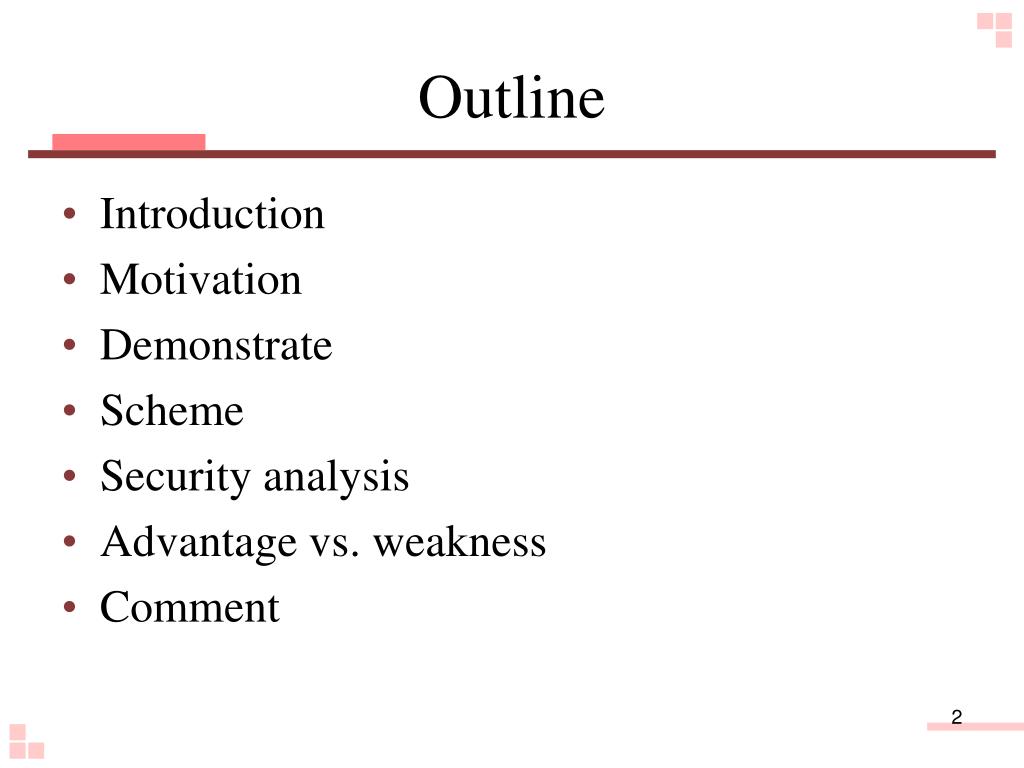

Outline • Introduction • Motivation • Demonstrate • Scheme • Security analysis • Advantage vs. weakness • Comment

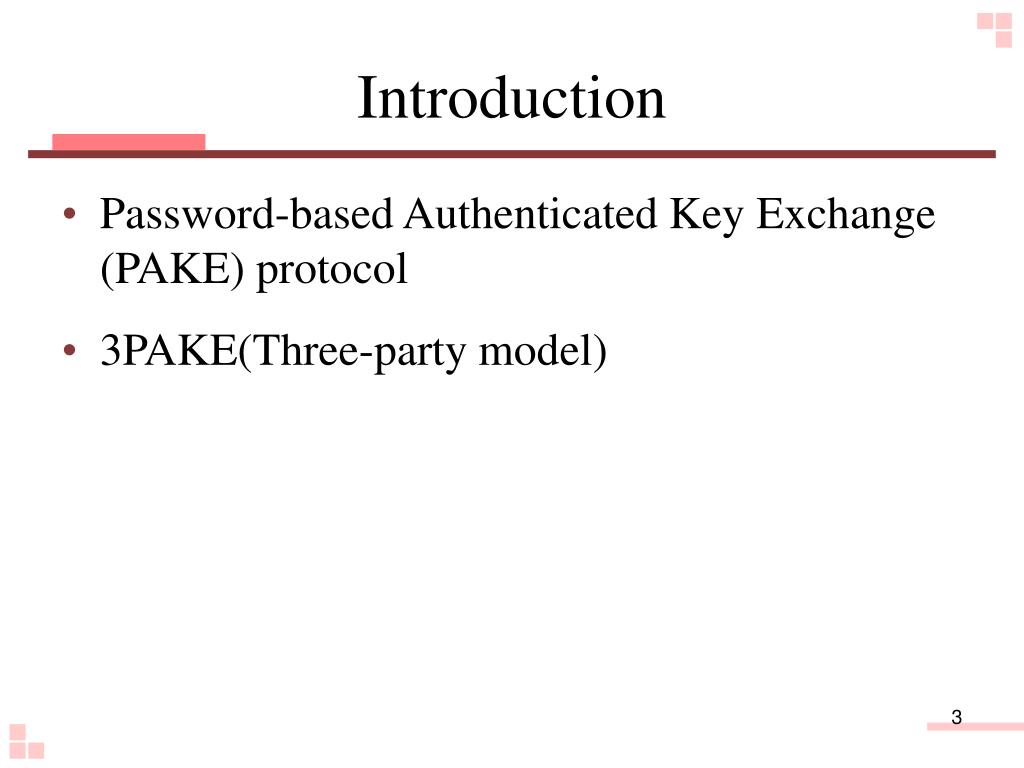

Introduction • Password-based Authenticated Key Exchange (PAKE) protocol • 3PAKE(Three-party model)

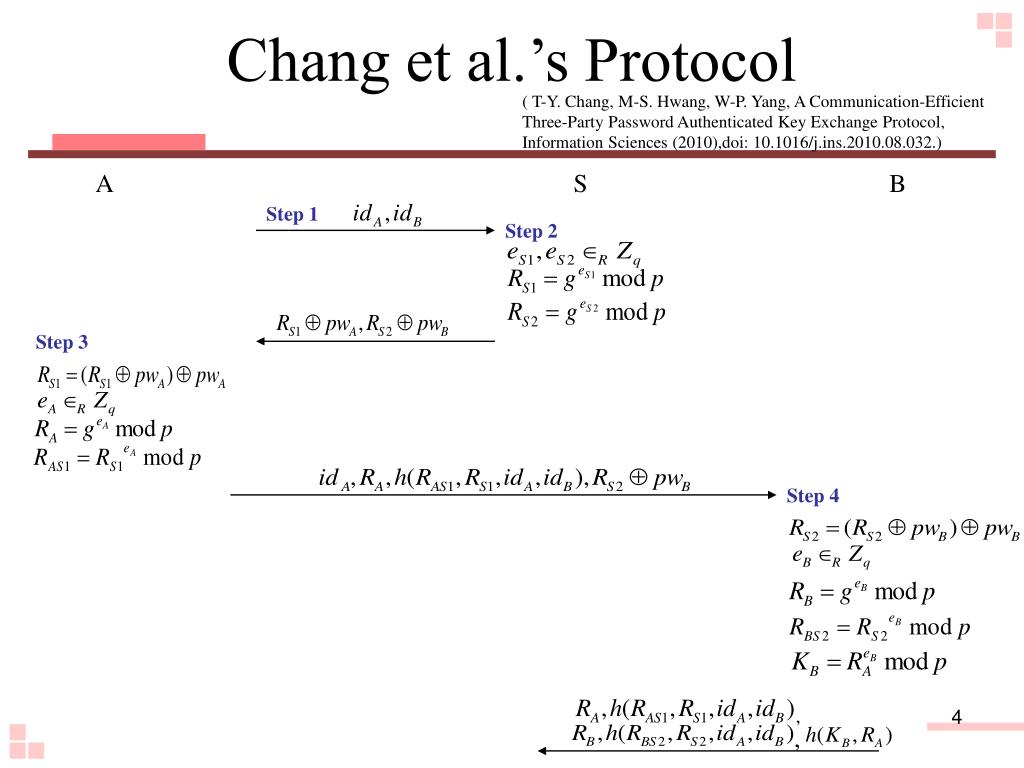

, , Chang et al.’s Protocol ( T-Y. Chang, M-S. Hwang, W-P. Yang, A Communication-Efficient Three-Party Password Authenticated Key Exchange Protocol, Information Sciences (2010),doi: 10.1016/j.ins.2010.08.032.) S B A Step 1 Step 2 Step 3 Step 4

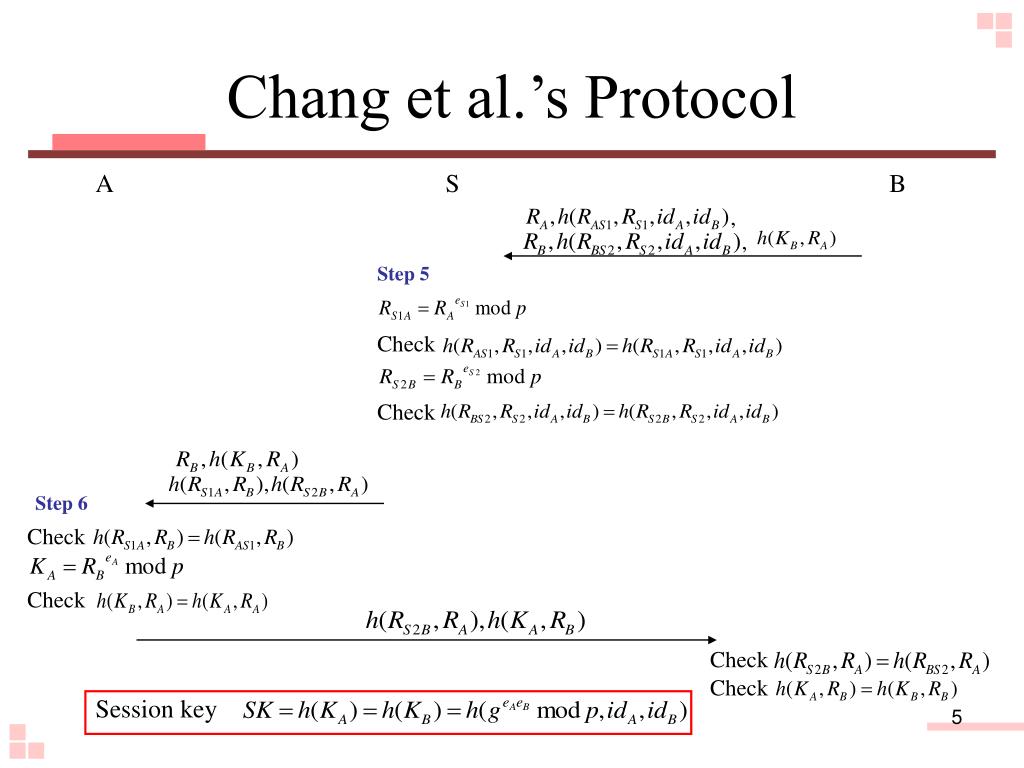

Check Check Check , , Check Check Check Session key Chang et al.’s Protocol S B A Step 5 Step 6

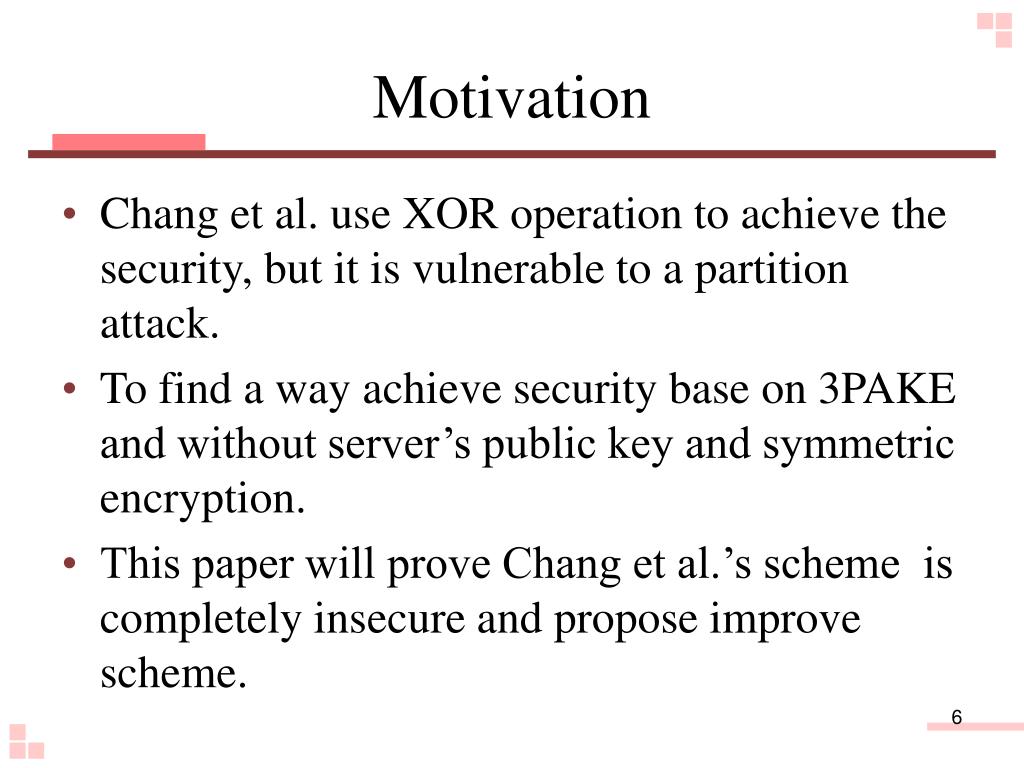

Motivation • Chang et al. use XOR operation to achieve the security, but it is vulnerable to a partition attack. • To find a way achieve security base on 3PAKE and without server’s public key and symmetric encryption. • This paper will prove Chang et al.’s scheme is completely insecure and propose improve scheme.

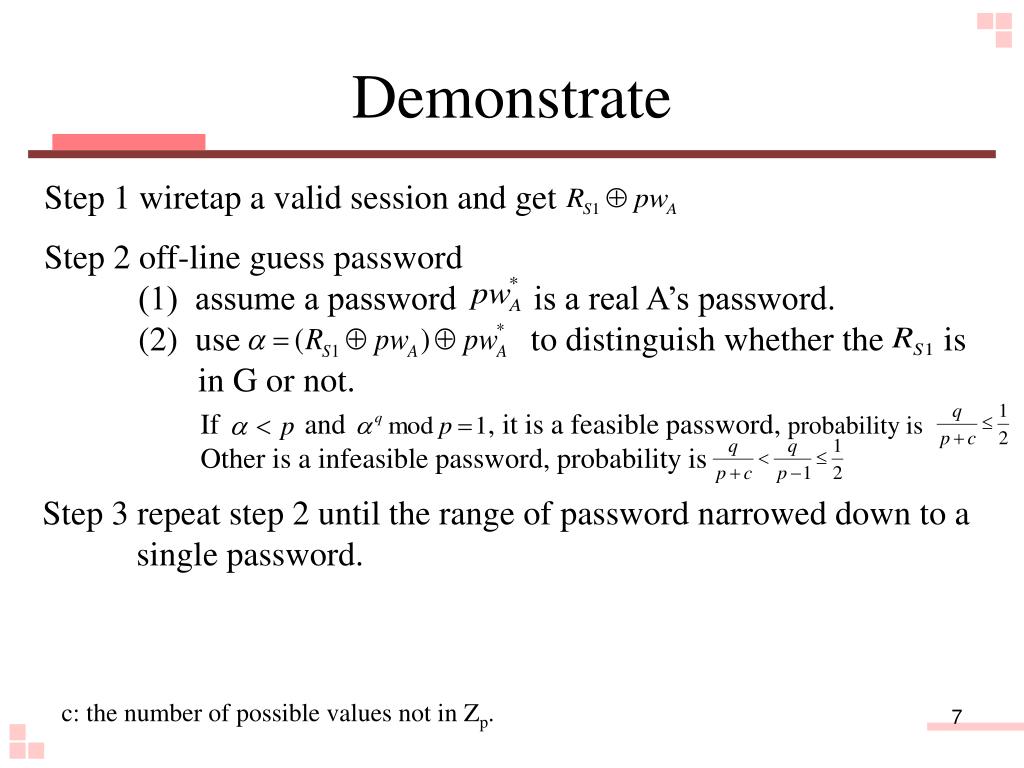

Step 2 off-line guess password (1) assume a password is a real A’s password. (2) use to distinguish whether the is in G or not. If and , it is a feasible password, probability is Other is a infeasible password, probability is Demonstrate Step 1 wiretap a valid session and get Step 3 repeat step 2 until the range of password narrowed down to a single password. c: the number of possible values not in Zp.

First partition: True: eS1=9 Demonstrate • Example p= 23; Zp={0,1,…,41,22}; generator g=2 G={ } CD=D; D={pw1,pw2,pw3,pw4}={1,2,4,8} Assume A’s password is pw4 CD: set of candidate passwords. D: space of password. FD: feasible passwords : infeasible passwords (m)b: binary representation of message m

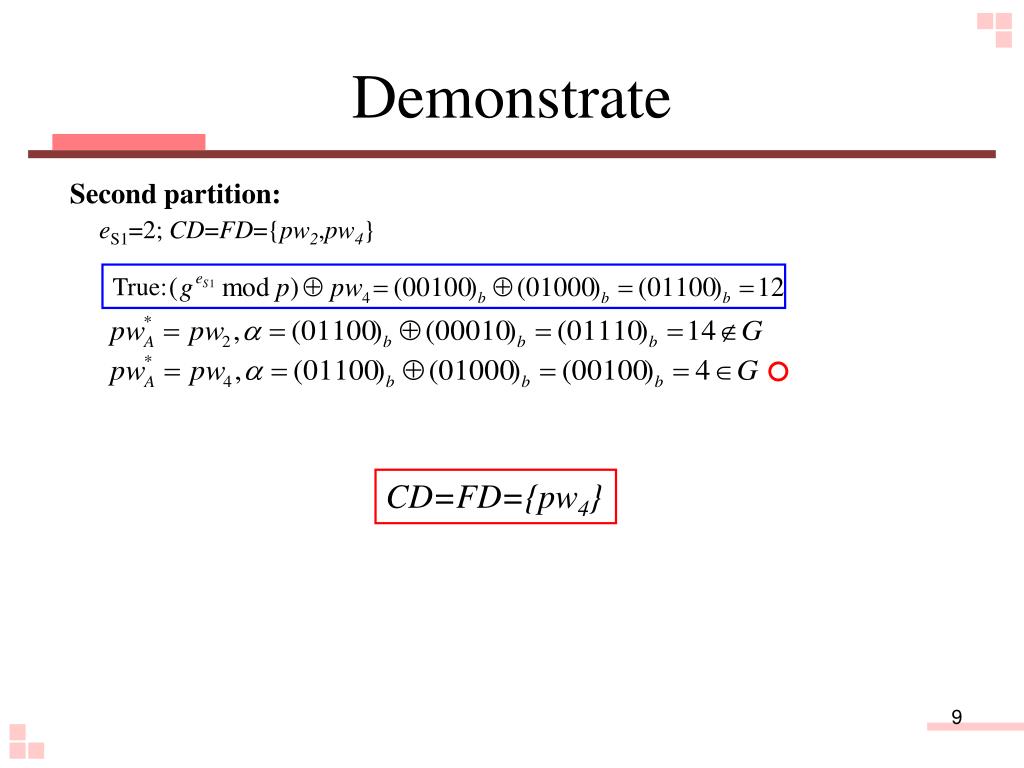

True: Demonstrate Second partition: eS1=2; CD=FD={pw2,pw4} CD=FD={pw4}

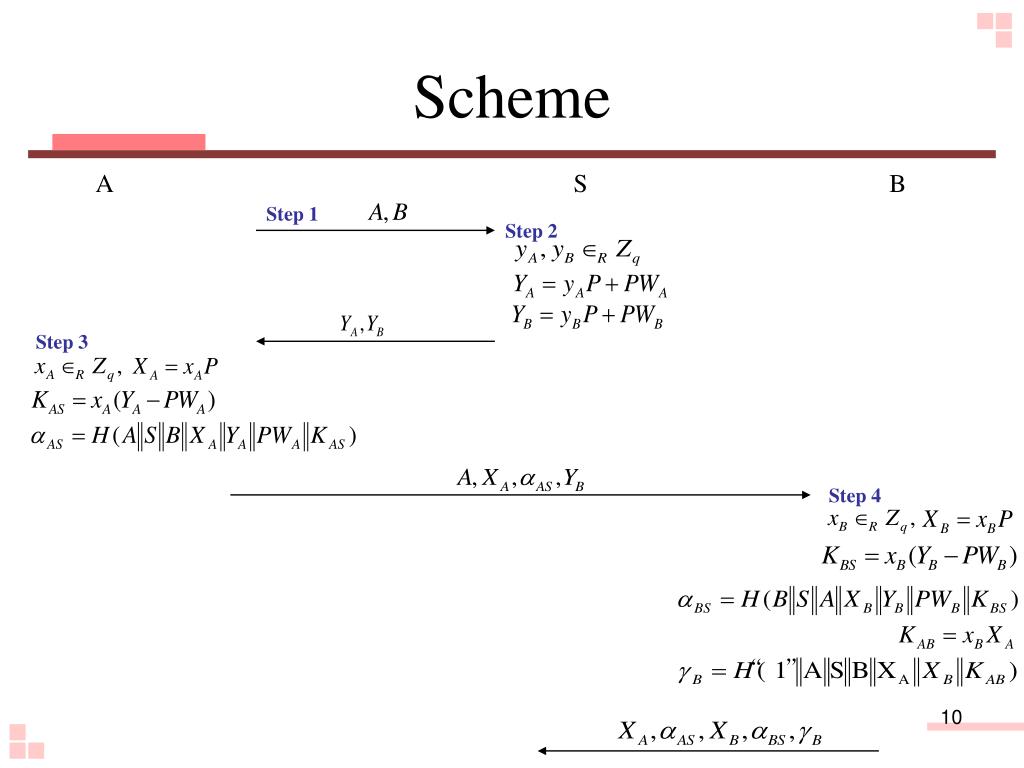

Scheme S B A Step 1 Step 2 Step 3 Step 4

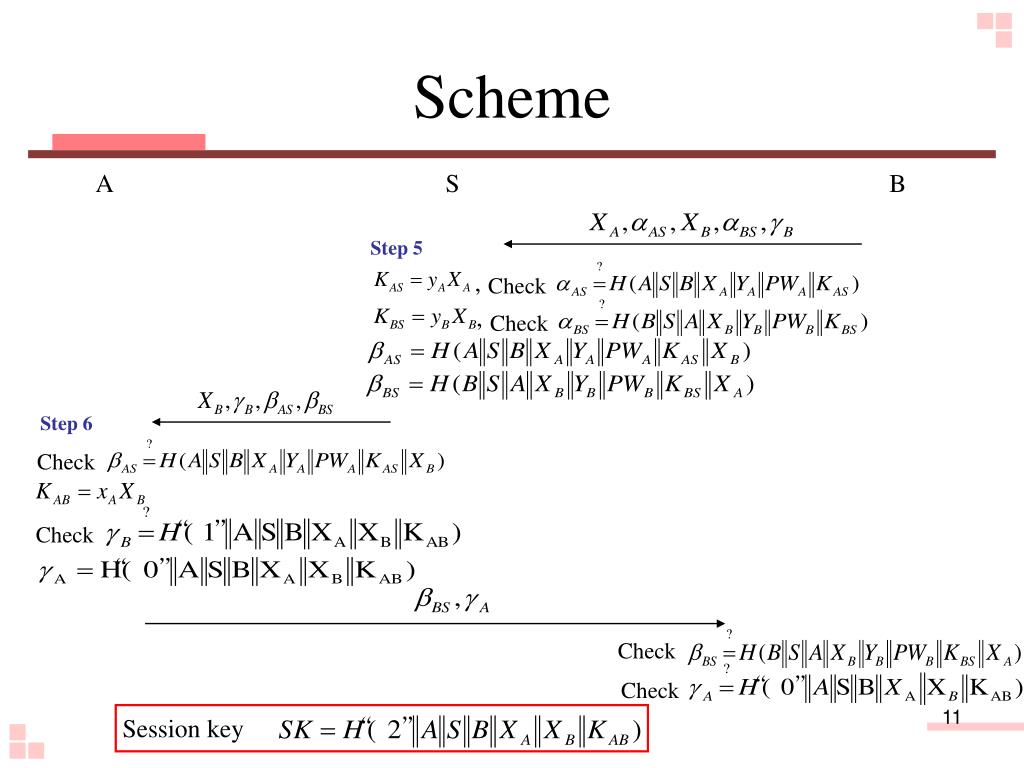

, , Check Check Check Check Check Check Session key Scheme S B A Step 5 Step 6

Security analysis • Undetectable on-line guessing attack • Off-line guessing attack • Forward security of session key

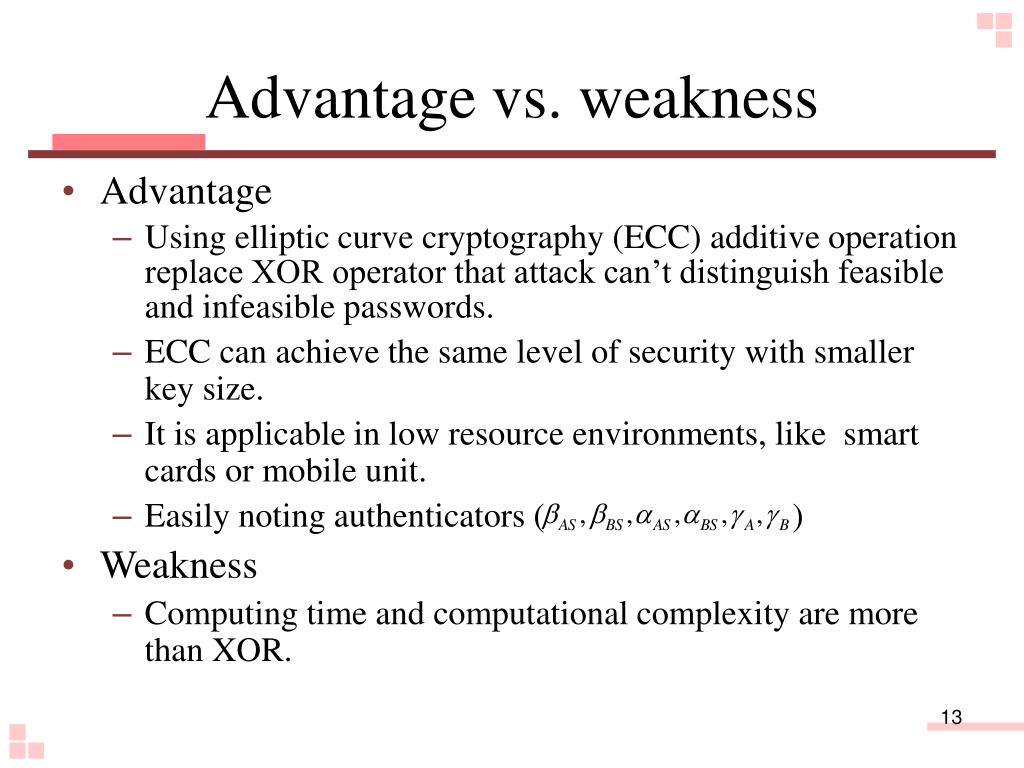

Advantage vs. weakness • Advantage • Using elliptic curve cryptography (ECC) additive operation replace XOR operator that attack can’t distinguish feasible and infeasible passwords. • ECC can achieve the same level of security with smaller key size. • It is applicable in low resource environments, like smart cards or mobile unit. • Easily noting authenticators ( ) • Weakness • Computing time and computational complexity are more than XOR.

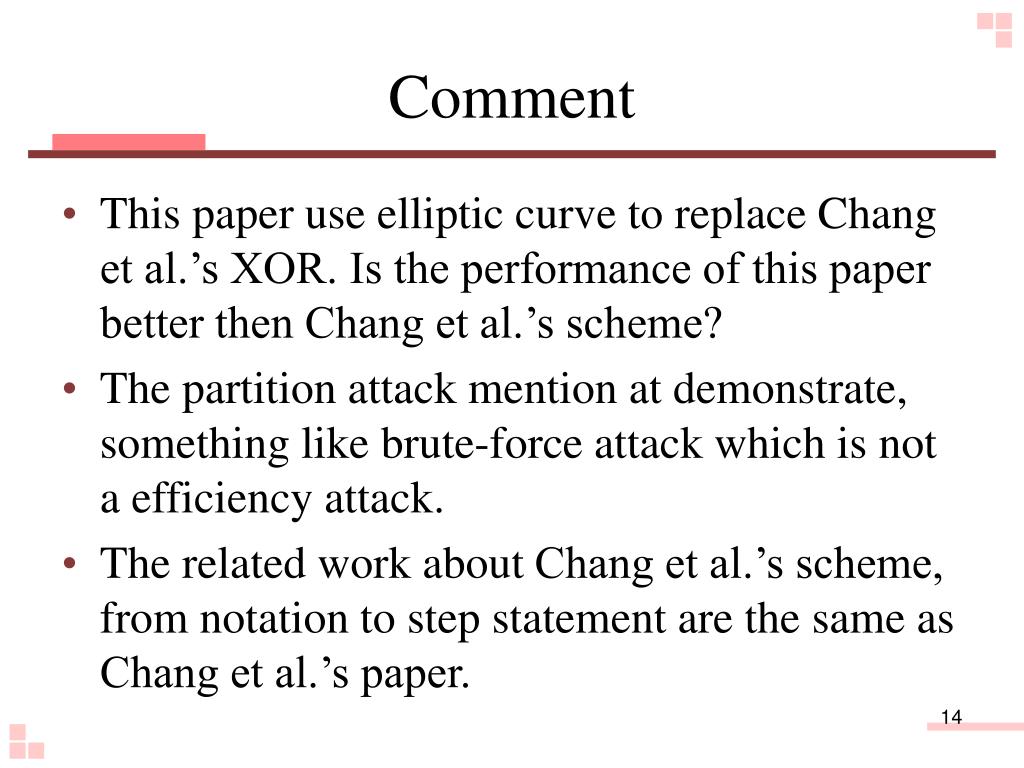

Comment • This paper use elliptic curve to replace Chang et al.’s XOR. Is the performance of this paper better then Chang et al.’s scheme? • The partition attack mention at demonstrate, something like brute-force attack which is not a efficiency attack. • The related work about Chang et al.’s scheme, from notation to step statement are the same as Chang et al.’s paper.
