Ucsb 4 hybrid thermal test system status

UCSB 4-Hybrid Thermal Test System Status

13 October 2003

Sam Burke

Lance Simms

UCSB HEP Group

CMS 4-Hybrid Test System Sam Burke EE


Progress
Progress

  • Pulser sync problem resolved

    • No LVDS Trigger pulse from ARC VME Controller board

    • Discovered ARC VME Controller board assembly error

  • Complete 4 Hybrid-PA Test time of 42 min

CMS 4-Hybrid Test System Sam Burke EE


Progress1
Progress

  • Complete testing of newly bonded Hybrid/PA’s

    • Hybrid 30216711500708

  • Introduced intentional open wire-bonds in one Hybrid/PA which were detected during testing.

CMS 4-Hybrid Test System Sam Burke EE


Pulser troubleshooting
Pulser Troubleshooting

  • Pulser had been triggering on noise. Needs to be synchronized with ARC Clock .

    • Twisted cable from ARC Controller card used

    • Eliminated noise in UCSB LVDS/CMOS Converter

  • No LVDS signals from ARC Controller Card

CMS 4-Hybrid Test System Sam Burke EE


Arc controller problem

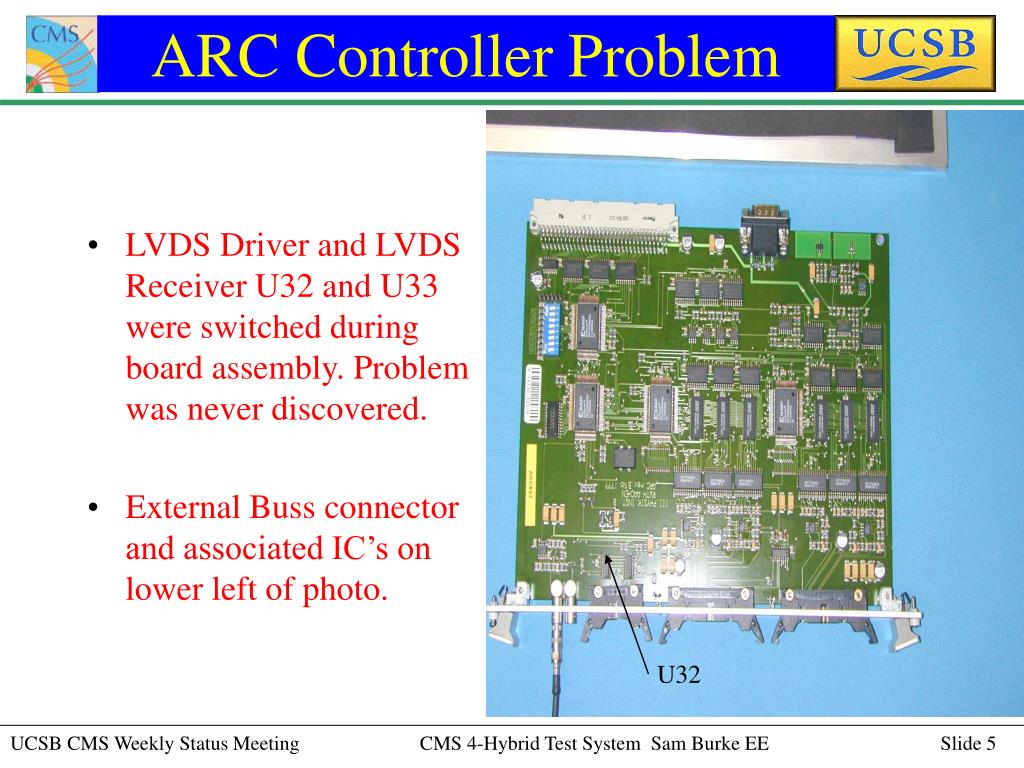

ARC Controller Problem

  • LVDS Driver and LVDS Receiver U32 and U33 were switched during board assembly. Problem was never discovered.

  • External Buss connector and associated IC’s on lower left of photo.

U32

CMS 4-Hybrid Test System Sam Burke EE


Arc controller problem1
ARC Controller Problem

  • ARC Controller Boards with functioning External Buss

    • Ser 29

    • Ser 31

  • U32 and U33 Switched on these boards causing inoperative External Buss function.

    • Ser 56

    • Ser 57

    • Ser 59

CMS 4-Hybrid Test System Sam Burke EE


Cold box in clean room
Cold Box in Clean Room

CMS 4-Hybrid Test System Sam Burke EE



3 open h pa wire bonds
3 Open H/PA wire bonds

CMS 4-Hybrid Test System Sam Burke EE


Installing hybrid pa s
Installing Hybrid/PA’s

CMS 4-Hybrid Test System Sam Burke EE


Ucsb cold box
UCSB Cold Box

CMS 4-Hybrid Test System Sam Burke EE


Recent test sequence
Recent Test Sequence

CMS 4-Hybrid Test System Sam Burke EE


4hybrid temp test report
4Hybrid Temp Test Report

CMS 4-Hybrid Test System Sam Burke EE


New arc ground straps
New ARC Ground Straps

CMS 4-Hybrid Test System Sam Burke EE


Future plans
Future Plans

  • Install copper grounding bars at each hybrid test position to reduce noise levels

    • this method has been tested and verified

  • Reduce mass of aluminum hybrid test position base plate

    • Reduce thermal mass of chamber to reduce test time

CMS 4-Hybrid Test System Sam Burke EE
