File catalogues

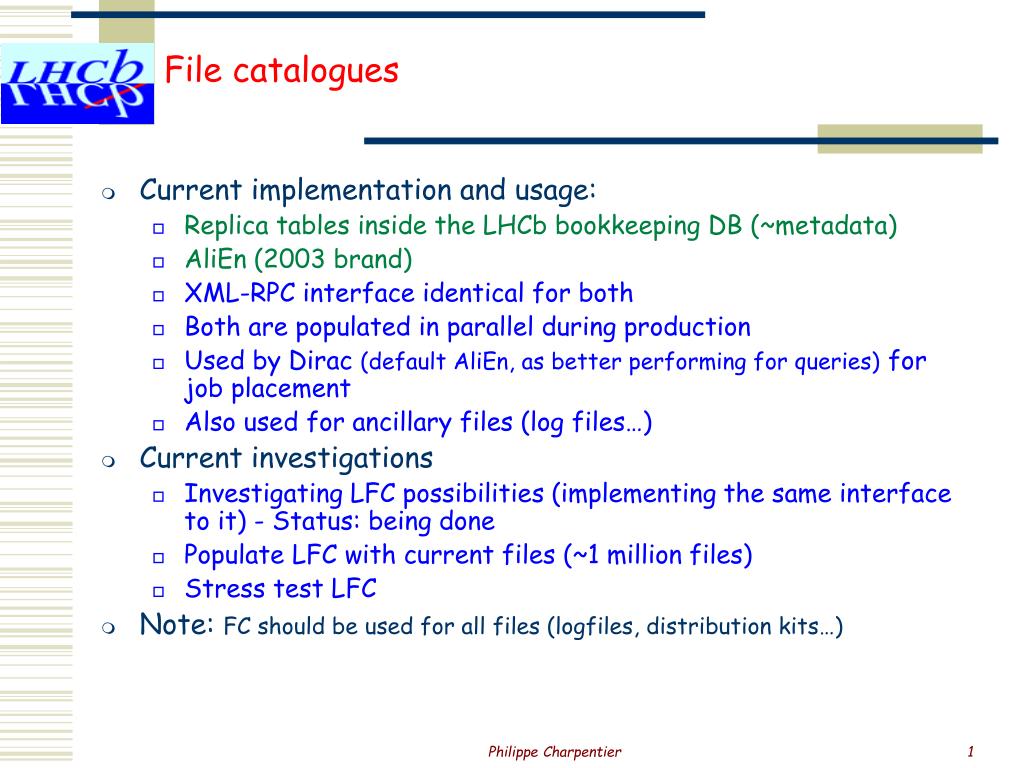

1. File catalogues • Current implementation and usage: • Replica tables inside the LHCb bookkeeping DB (~metadata) • AliEn (2003 brand) • XML-RPC interface identical for both • Both are populated in parallel during production • Used by Dirac (default AliEn, as better performing for queries) for job placement • Also used for ancillary files (log files…) • Current investigations • Investigating LFC possibilities (implementing the same interface to it) - Status: being done • Populate LFC with current files (~1 million files) • Stress test LFC • Note: FC should be used for all files (logfiles, distribution kits…) Philippe Charpentier

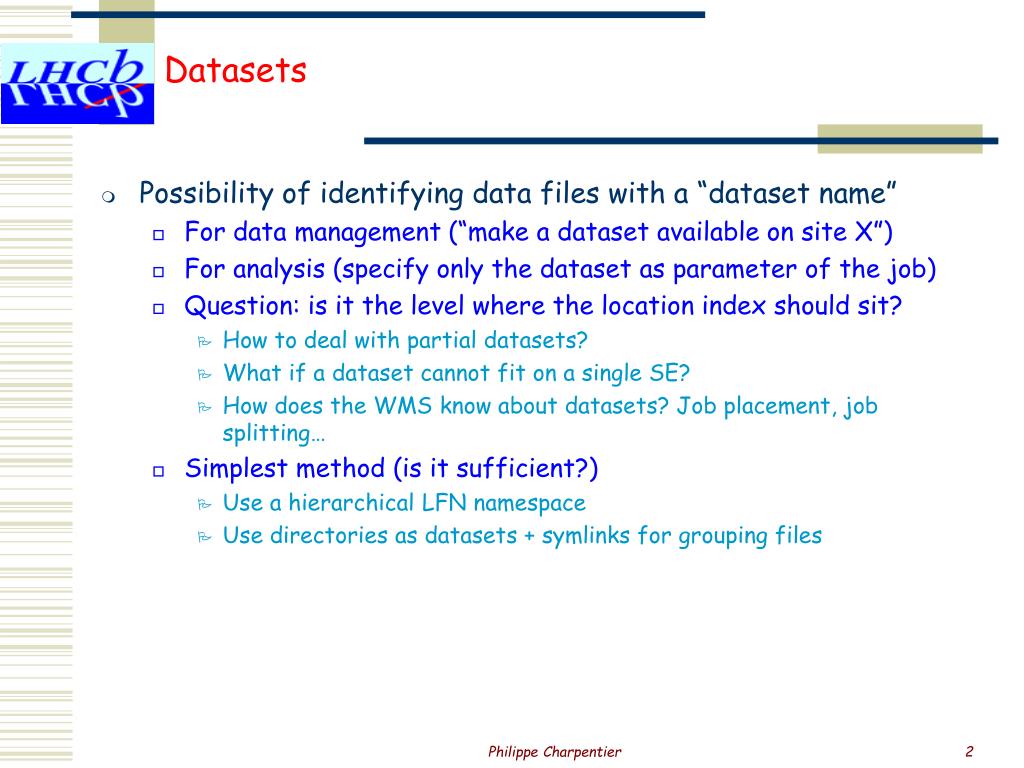

2. Datasets • Possibility of identifying data files with a “dataset name” • For data management (“make a dataset available on site X”) • For analysis (specify only the dataset as parameter of the job) • Question: is it the level where the location index should sit? • How to deal with partial datasets? • What if a dataset cannot fit on a single SE? • How does the WMS know about datasets? Job placement, job splitting… • Simplest method (is it sufficient?) • Use a hierarchical LFN namespace • Use directories as datasets + symlinks for grouping files Philippe Charpentier

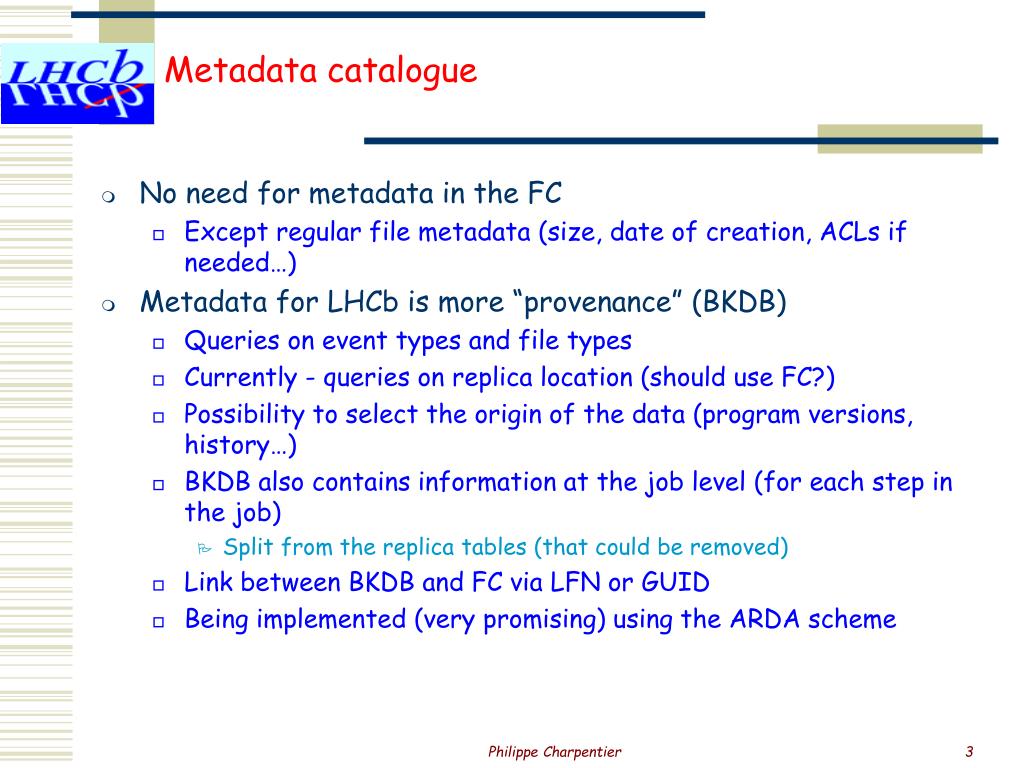

3. Metadata catalogue • No need for metadata in the FC • Except regular file metadata (size, date of creation, ACLs if needed…) • Metadata for LHCb is more “provenance” (BKDB) • Queries on event types and file types • Currently - queries on replica location (should use FC?) • Possibility to select the origin of the data (program versions, history…) • BKDB also contains information at the job level (for each step in the job) • Split from the replica tables (that could be removed) • Link between BKDB and FC via LFN or GUID • Being implemented (very promising) using the ARDA scheme Philippe Charpentier
