The ILC - Status & Plans

1. The baseline design and R&D efforts The GDE The path to the RDR The EGDE & summary Why/what is the ILC? Detectors The ILC - Status & Plans Brian Foster - Cosener's Forum May 06

2. Why/what is ILC? Brian Foster - Cosener's Forum May 06

3. The only way to restore the luminosity is to crush the beams to a tiny volume so that one pass gives all the particles the same chance to interact that many passes gives less dense bunches. The ILC is a linear collider – thus there is no synchrotron radiation produced in bending e+e- in a circular orbit. The challenges stem from this – in circular machines, the beams pass through each other many times/ second, giving many chances for interaction – “luminosity”. In ILC, they pass through each other once and then are dumped. Because radiated synchrotron-radiation power goes like m-5, circular e+e- colliders bigger than LEP (the previous CERN machine) are uneconomical. We didn’t know how to build complementary machines (like Tevatron (p-antip) and LEP) when LHC was proposed. Now we do – the ILC. Why/what is ILC? Brian Foster - Cosener's Forum May 06

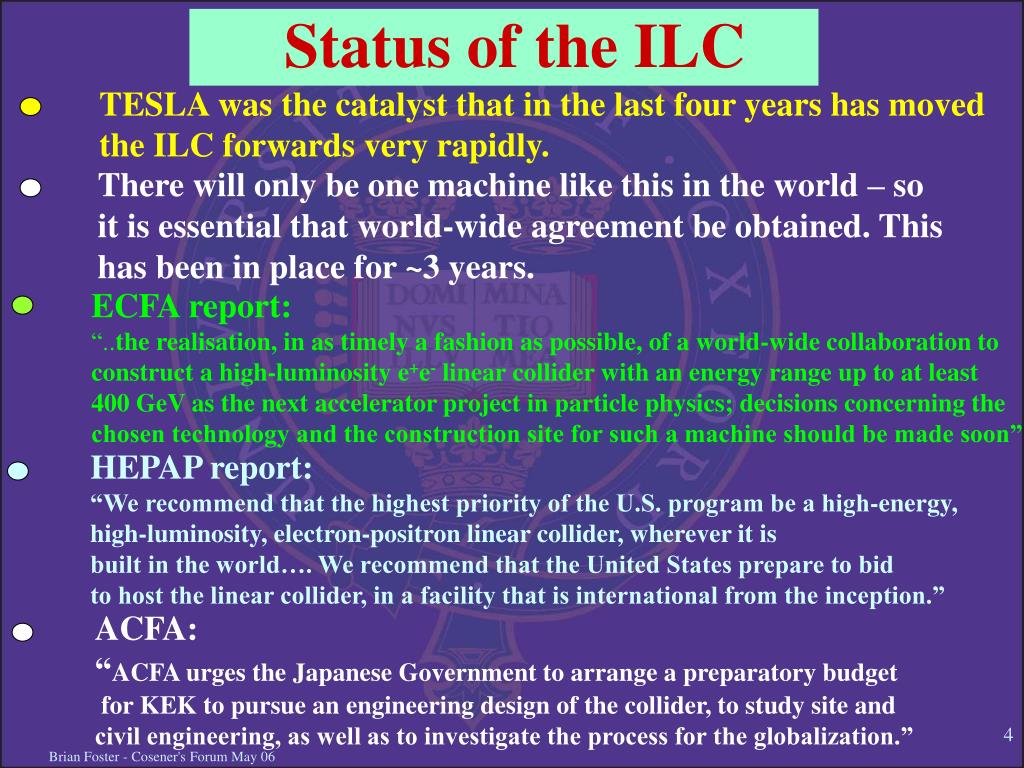

4. There will only be one machine like this in the world – so it is essential that world-wide agreement be obtained. This has been in place for ~3 years. TESLA was the catalyst that in the last four years has moved the ILC forwards very rapidly. HEPAP report: “We recommend that the highest priority of the U.S. program be a high-energy, high-luminosity, electron-positron linear collider, wherever it is built in the world…. We recommend that the United States prepare to bid to host the linear collider, in a facility that is international from the inception.” ECFA report: “..the realisation, in as timely a fashion as possible, of a world-wide collaboration to construct a high-luminosity e+e- linear collider with an energy range up to at least 400 GeV as the next accelerator project in particle physics; decisions concerning the chosen technology and the construction site for such a machine should be made soon” ACFA: “ACFA urges the Japanese Government to arrange a preparatory budget for KEK to pursue an engineering design of the collider, to study site and civil engineering, as well as to investigate the process for the globalization.” Status of the ILC Brian Foster - Cosener's Forum May 06

5. In January 2004 the Science Ministers of the OECD met in Paris and, following the detailed work of a GSF Consultative Group on particle physics that produced a road Map, agreed a statement on the Linear Collider: Ministers “acknowledged the importance of ensuring access to large-scale research infrastructure and the importance of the long-term vitality of high-energy physics. They noted the worldwide consensus of the scientific community, which has chosen an electron-positron linear collider as the next accelerator-based facility to complement and expand on the discoveries that are likely to emerge from the Large Hadron Collider currently being built at CERN. They agreed that the planning and implementation of such a large, multi-year project should be carried out on a global basis, and should involve consultations among not just scientists, but also representatives of science funding agencies from interested countries. Accordingly, Ministers endorsed the statement prepared by the OECD Global Science Forum Consultative Group on High-Energy Physics (see Appendix).” Status of the ILC Brian Foster - Cosener's Forum May 06

6. Despite the fact that both US and Asian research had been in warm technology, both regions accepted the decision and united behind cold technology; now, transition is complete. In August 2004, group of “Wise Men”, chaired by B. Barish, chose the “cold”, superconducting, RF technology over the competing “warm” X-band RF. B. Barish appointed as GDE director, with three regional directors: BF (Europe), F. Takasaki (Asia), G. Dugan (Americas) ICFA moved ahead quickly to appoint a Global Design Effort (GDE) to transform the technology decision into a full Technical Design Report, capable of being presented to world governments for a decision to construct. M. Nozaki Status of the ILC Brian Foster - Cosener's Forum May 06

7. P. Burrows was a member of the EPP2010 committee and can give more details at he end of my talk. At end of April, EPP2010 panel produced its report. This gave a ringing endorsement for the ILC strategy and strong support for the US bidding to host the machine. Status of the ILC Brian Foster - Cosener's Forum May 06

8. GDE • The Mission of the GDE • Produce a design for the ILC in 3 stages - BCD, RDR and TDR, that includes a detailed design concept, performance assessments, reliable international costing, an industrialization plan , siting analysis, as well as detector concepts and scope. • Coordinate worldwide prioritized proposal driven R & D efforts (to demonstrate and improve the performance, reduce the costs, attain the required reliability, etc.) Brian Foster - Cosener's Forum May 06

9. GDE – Staffing Chris Adolphsen, SLAC Jean-Luc Baldy, CERN Philip Bambade, LAL, Orsay Barry Barish, Caltech Wilhelm Bialowons, DESY Grahame Blair, Royal Holloway Jim Brau, University of Oregon Karsten Buesser, DESY Elizabeth Clements, Fermilab Michael Danilov, ITEP Jean-Pierre Delahaye, CERN, Gerald Dugan, Cornell University Atsushi Enomoto, KEK Brian Foster, Oxford University Warren Funk, JLAB Jie Gao, IHEP Terry Garvey, LAL-IN2P3 Hitoshi Hayano, KEK Tom Himel, SLAC Bob Kephart, Fermilab Eun San Kim, Pohang Acc Lab Hyoung Suk Kim, Kyungpook Nat’l Univ Shane Koscielniak, TRIUMF Vic Kuchler, Fermilab Lutz Lilje, DESY Tom Markiewicz, SLAC David Miller, Univ College of London Shekhar Mishra, Fermilab Youhei Morita, KEK Olivier Napoly, CEA-Saclay Hasan Padamsee, Cornell University Carlo Pagani, DESY Nan Phinney, SLAC Dieter Proch, DESY Pantaleo Raimondi, INFN Tor Raubenheimer, SLAC Francois Richard, LAL-IN2P3 Perrine Royole-Degieux, GDE/LAL Kenji Saito, KEK Daniel Schulte, CERN Tetsuo Shidara, KEK Sasha Skrinsky, Budker Institute Fumihiko Takasaki, KEK Laurent Jean Tavian, CERN Nobu Toge, KEK Nick Walker, DESY Andy Wolski, LBL Hitoshi Yamamoto, Tohoku Univ Kaoru Yokoya, KEK 49 members New Members Peter Garbincius (FNAL) Marc Ross (SLAC) Bill Willis (Columbia) Andre Seryi (SLAC) John Sheppard (SLAC) Ewan Patterson (SLAC) Maseo Kuriki (KEK) Kiyoshi Kubo (KEK) Nobuhiro Terunuma (KEK) Norihito Ohuchi (KEK) Susanna Guiducci (INFN) Deepa Angal-Kalinin (CCLRC) G. Shirkov (JINR, Dubna) Totals Americas 23 Europe 24 Asia 16 Brian Foster - Cosener's Forum May 06

10. ILC Parameters • Ecm adjustable from 200 – 500 GeV • Luminosity ∫Ldt = 500 fb-1 in 4 years • Ability to scan between 200 and 500 GeV • Energy stability and precision below 0.1% • Electron polarization of at least 80% • The machine must be upgradeable to 1 TeV Brian Foster - Cosener's Forum May 06

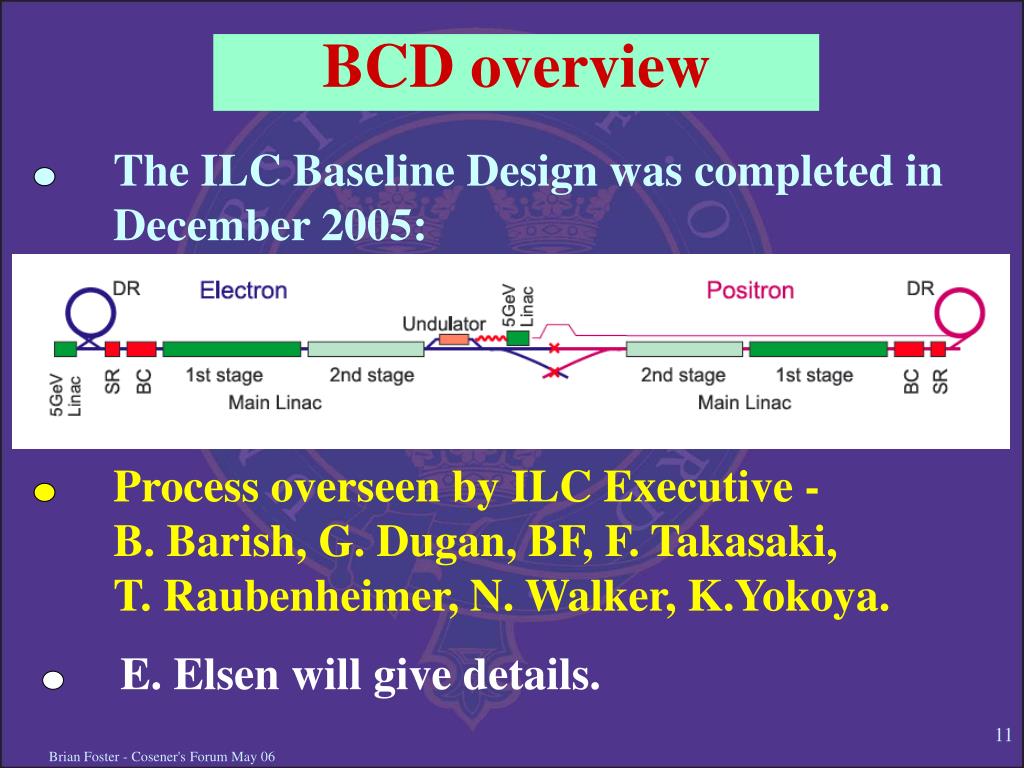

11. The ILC Baseline Design was completed in December 2005: Process overseen by ILC Executive - B. Barish, G. Dugan, BF, F. Takasaki, T. Raubenheimer, N. Walker, K.Yokoya. E. Elsen will give details. BCD overview Brian Foster - Cosener's Forum May 06

12. TTF exists at DESY, SMTF (FNAL), STF (KEK): Stimulate SC industry in the regions - collaborate on SC technology Test facilities Brian Foster - Cosener's Forum May 06

13. ATF @ KEK has been a great success. Time for further improvement: Test facilities Brian Foster - Cosener's Forum May 06

14. Extend ATF to give FF prototype - squeeze down to 35 nm and stabilise to 2 nm. Test facilities Brian Foster - Cosener's Forum May 06

15. ILCCommunications • Launch of New ILC Website @ Snowmass www.linearcollider.org • “One Stop Shopping” • electronic data management system (EDMS), news, calendar of events, education and communication Brian Foster - Cosener's Forum May 06

16. Brian Foster - Cosener's Forum May 06

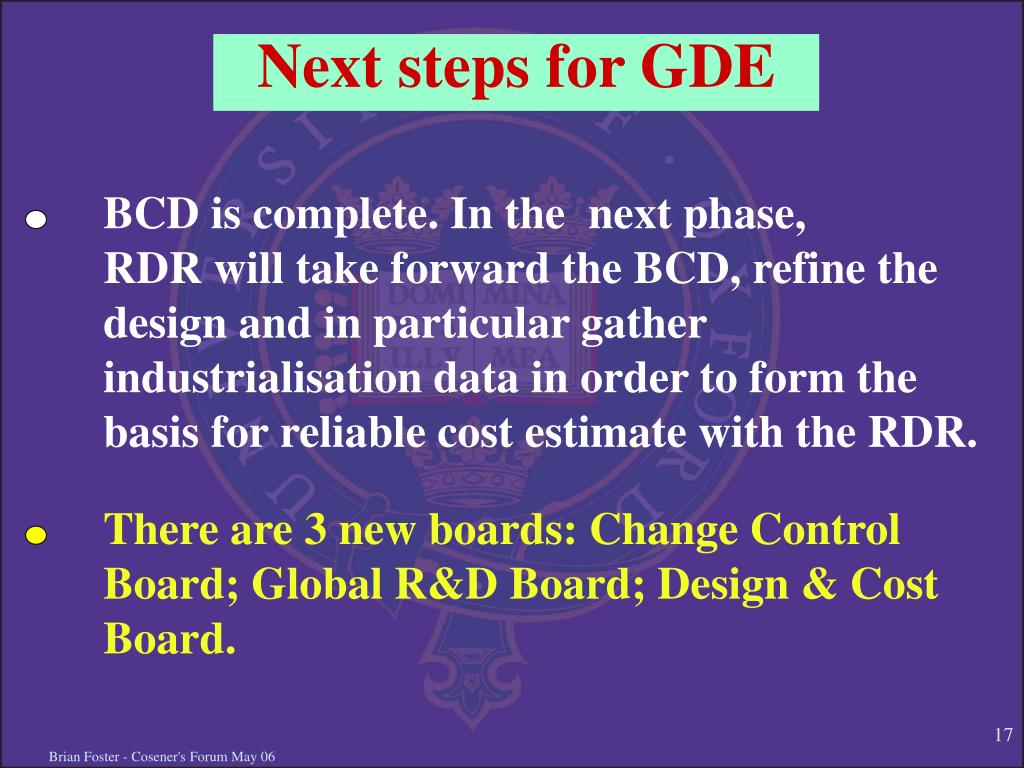

17. BCD is complete. In the next phase, RDR will take forward the BCD, refine the design and in particular gather industrialisation data in order to form the basis for reliable cost estimate with the RDR. There are 3 new boards: Change Control Board; Global R&D Board; Design & Cost Board. Next steps for GDE Brian Foster - Cosener's Forum May 06

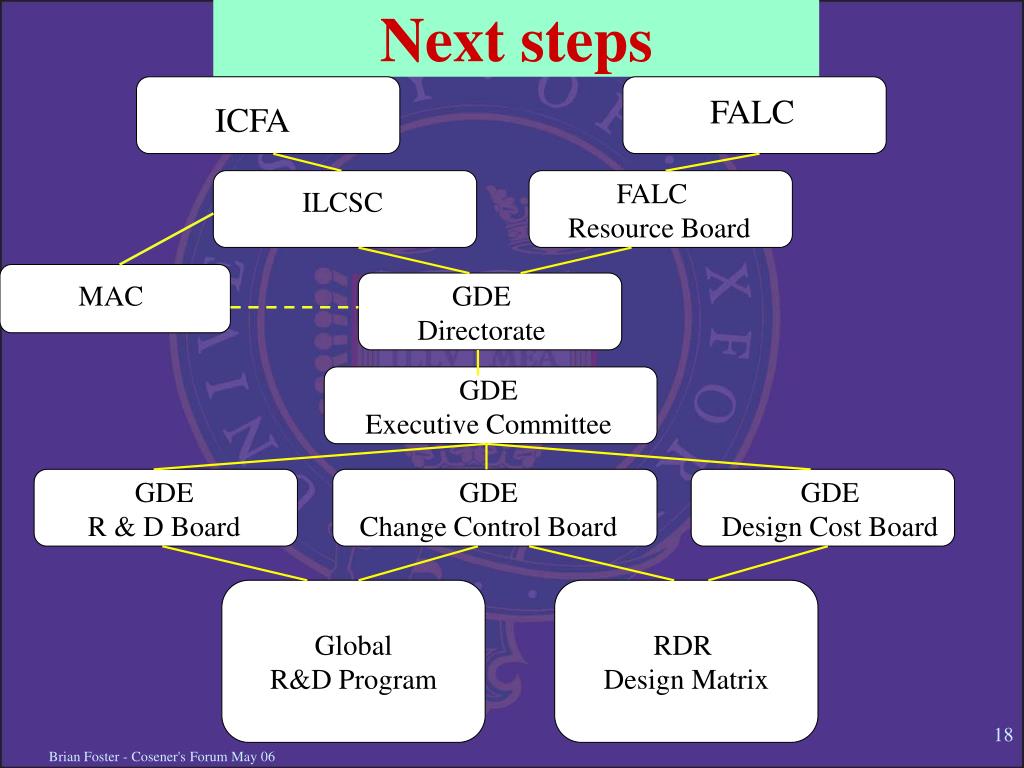

18. FALC ICFA FALC Resource Board ILCSC MAC GDE Directorate GDE Executive Committee GDE R & D Board GDE Change Control Board GDE Design Cost Board Global R&D Program RDR Design Matrix Next steps Brian Foster - Cosener's Forum May 06

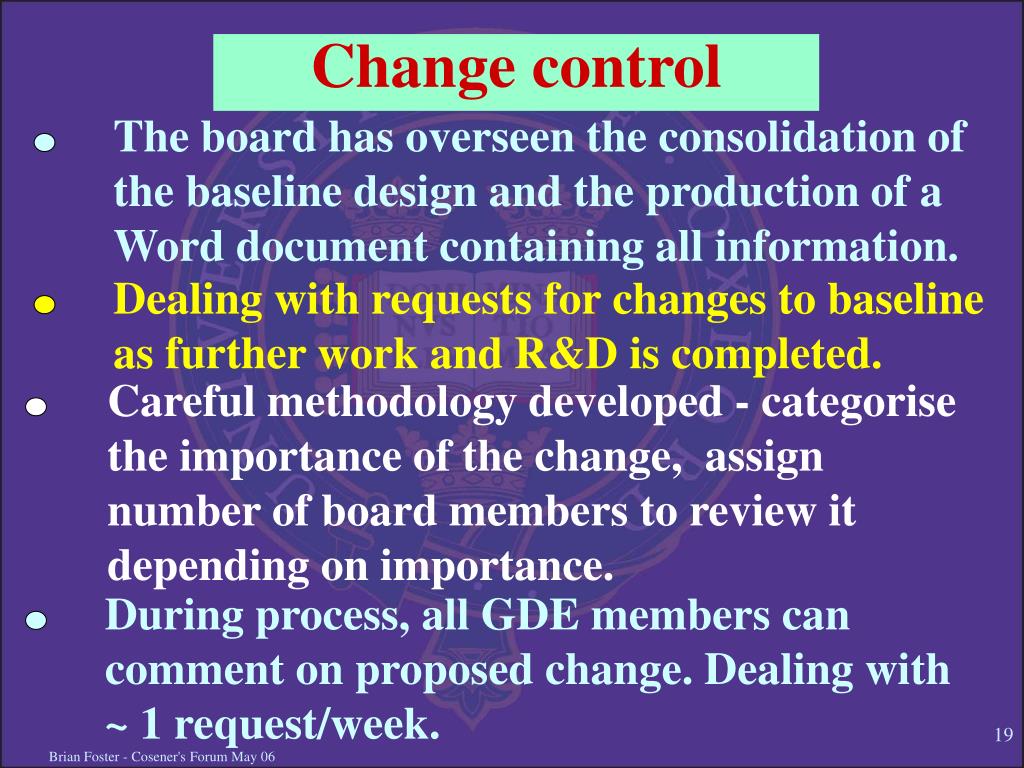

19. The board has overseen the consolidation of the baseline design and the production of a Word document containing all information. Dealing with requests for changes to baseline as further work and R&D is completed. During process, all GDE members can comment on proposed change. Dealing with ~ 1 request/week. Careful methodology developed - categorise the importance of the change, assign number of board members to review it depending on importance. Change control Brian Foster - Cosener's Forum May 06

20. Design & cost board produced a (very) • detailed programme of work to lead us • towards the most important RDR deliverable • a believable, robust and affordable costing; • a preliminary, non-public version will be • available by the summer Vancouver meeting. • R&D board has to try to impose a structure • and discipline on inherently chaotic system • R&D - eliminating wasteful duplication • while preserving & enhancing necessary • duplication. Other boards Brian Foster - Cosener's Forum May 06

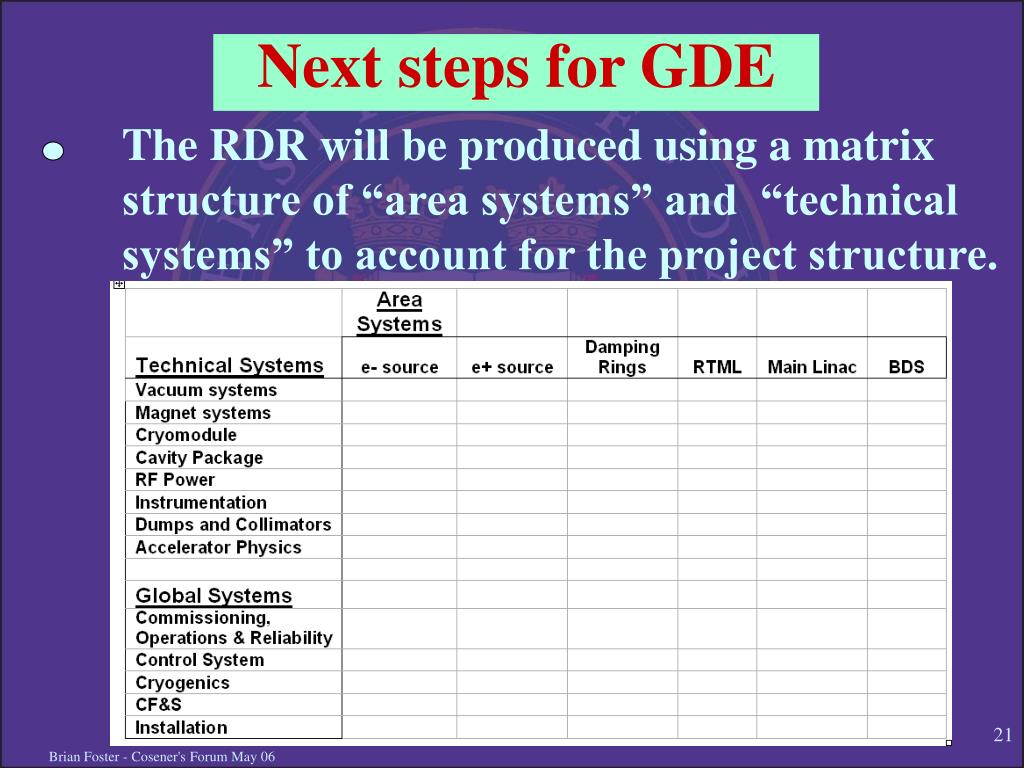

21. The RDR will be produced using a matrix structure of “area systems” and “technical systems” to account for the project structure. Next steps for GDE Brian Foster - Cosener's Forum May 06

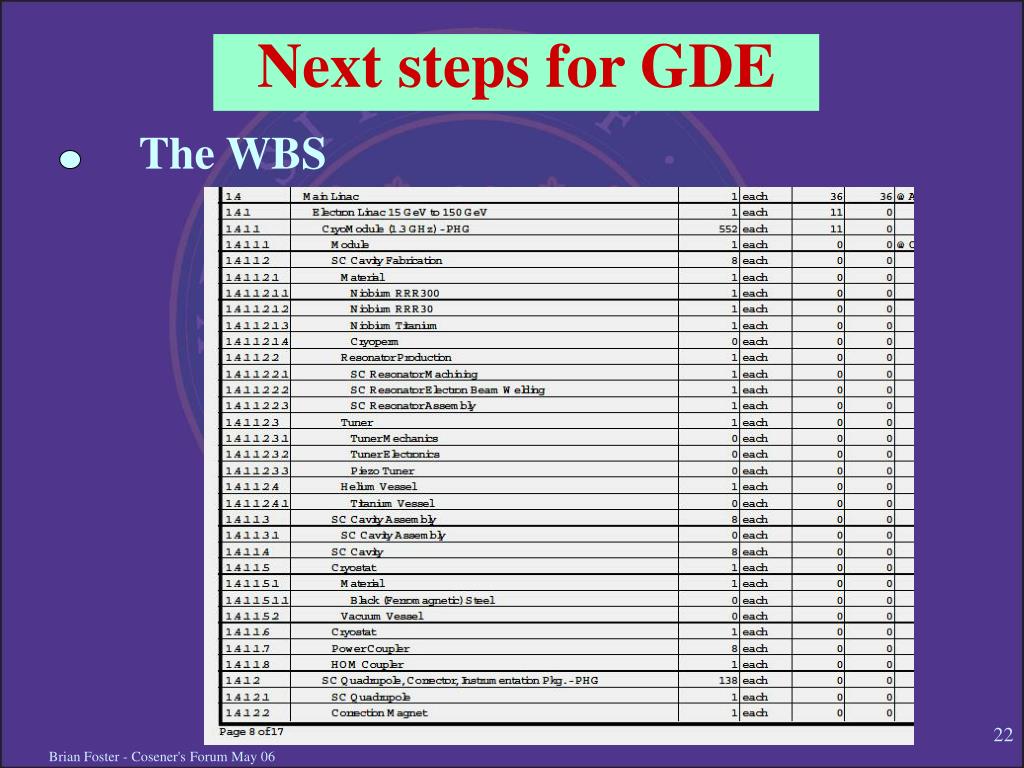

22. The WBS Next steps for GDE Brian Foster - Cosener's Forum May 06

23. The meetings are going well and detailed progress is being made. The day-to-day work of constructing the RDR will be supervised by an RDR board chaired by N. Walker (DESY) which will meet every week by telephone and report to the ILC Executive Committee. Next steps Brian Foster - Cosener's Forum May 06

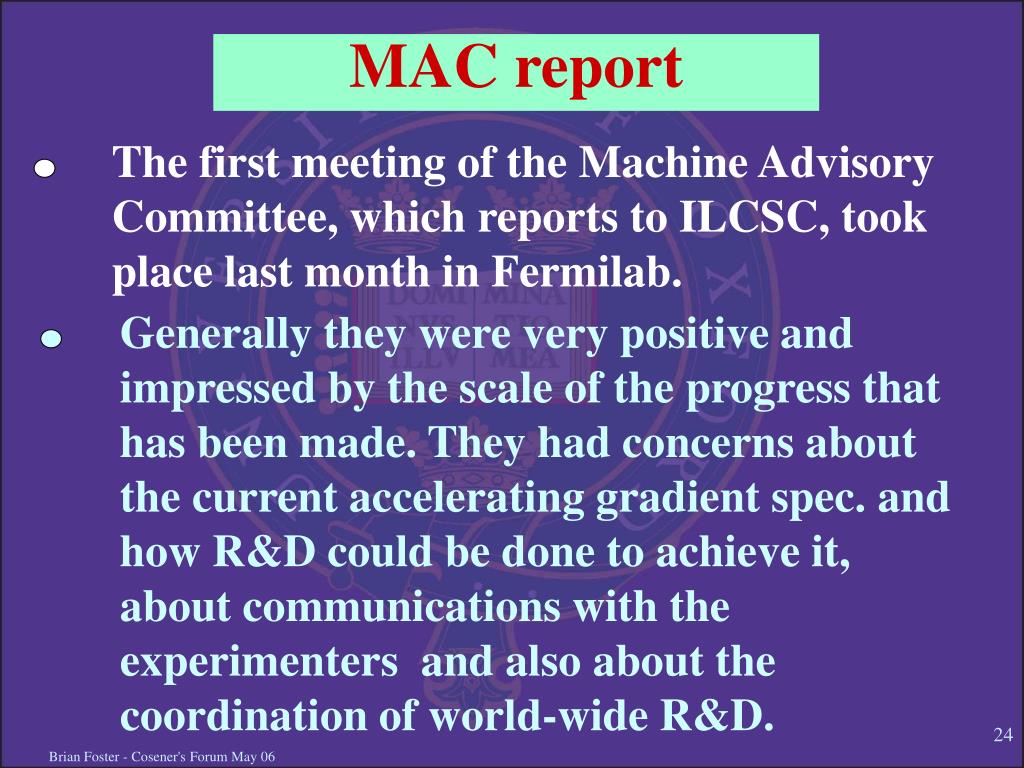

24. Generally they were very positive and impressed by the scale of the progress that has been made. They had concerns about the current accelerating gradient spec. and how R&D could be done to achieve it, about communications with the experimenters and also about the coordination of world-wide R&D. The first meeting of the Machine Advisory Committee, which reports to ILCSC, took place last month in Fermilab. MAC report Brian Foster - Cosener's Forum May 06

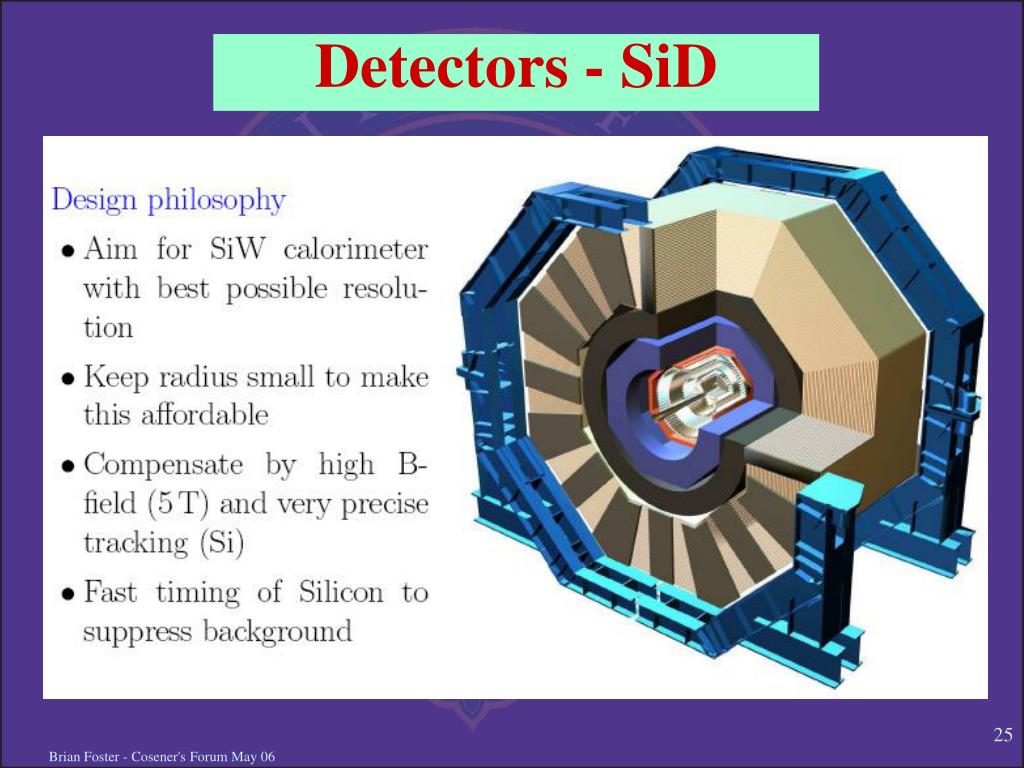

25. Detectors - SiD Brian Foster - Cosener's Forum May 06

26. Detectors - LDC Brian Foster - Cosener's Forum May 06

27. Detectors - GLD Brian Foster - Cosener's Forum May 06

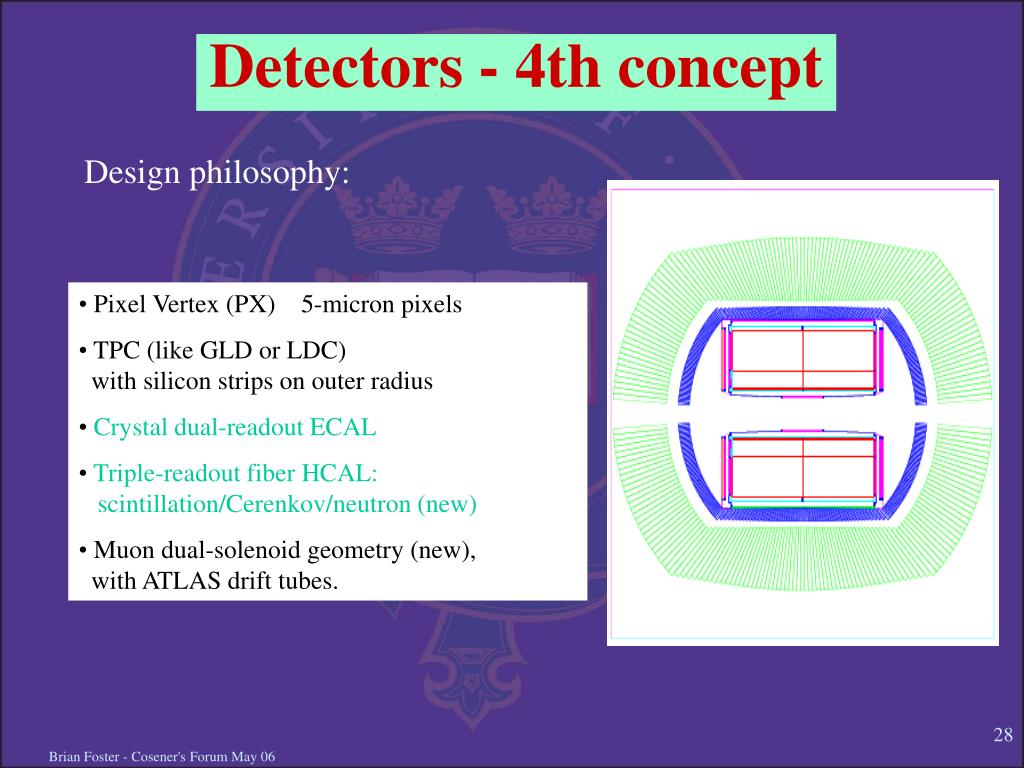

28. Design philosophy: • Pixel Vertex (PX) 5-micron pixels • TPC (like GLD or LDC) with silicon strips on outer radius • Crystal dual-readout ECAL • Triple-readout fiber HCAL: scintillation/Cerenkov/neutron (new) • Muon dual-solenoid geometry (new), with ATLAS drift tubes. Detectors - 4th concept Brian Foster - Cosener's Forum May 06

29. European GDE meets about every 6 months. • Discusses obviously regional issues: • how to get more resources from inside • Europe, in particular the EU; • - regional outreach - Europe has particular • difficulties & challenges here. The European GDE does NOT discuss the technical issues of the BCD or take up European positions on them - these are matters for the full GDE. European GDE Brian Foster - Cosener's Forum May 06

30. Two meetings in CERN to explore in particular the similarity between LHC and ILC cryogenics and to utilise CERN expertise, particularly in civil engineering. Very encouraged by the great interest on the ground in CERN in the project, the very constructive and positive meetings we have had and the growing involvement of CERN staff in the ILC. European GDE Brian Foster - Cosener's Forum May 06

31. European Outreach group re-established at Orsay meeting in January. B. Warmbein joined the team recently as PA to EGDE director, based at DESY. Meeting held in DESY just before Easter. EGDE director’s advisory group also meets regularly. Discussed plans for FP7 initiative for European cryogenic RF development centre based probably at one of big labs. LoI for such a facility was input to CERN Council Strategy group. European GDE Brian Foster - Cosener's Forum May 06

32. There is an EGDE meeting in DESY next week to discuss the shape of the FP7 proposal. It will hear about European cryogenic RF development centre, about possible continuation of some current FP6 activities, the use of HERA as a prototype damping ring, etc. European GDE Brian Foster - Cosener's Forum May 06

33. EGDE director’s advisory group also meets regularly to advise on strategy, particularly for R&D. It is clear that world-wide coordination of R&D is going to be an important issue in the future and we need to think about how this can be achieved; Europe has particular features that make this a challenge. European GDE Brian Foster - Cosener's Forum May 06

34. 2005 2006 2007 2008 2009 2010 Global Design Effort Project LHC Physics; CLIC Baseline configuration Reference Design GDE Plan & Schedule Technical Design ILC R&D Program Bids to Host; Site Selection; International Mgmt

35. Next steps July Dec Jan Frascati Bangalore Valencia Vancouver Freeze Configuration Organize for RDR Review Design/Cost Methodology Review Initial Design / Cost Review Final Design / Cost RDR Document Design and Costing Preliminary RDR Released Brian Foster - Cosener's Forum May 06

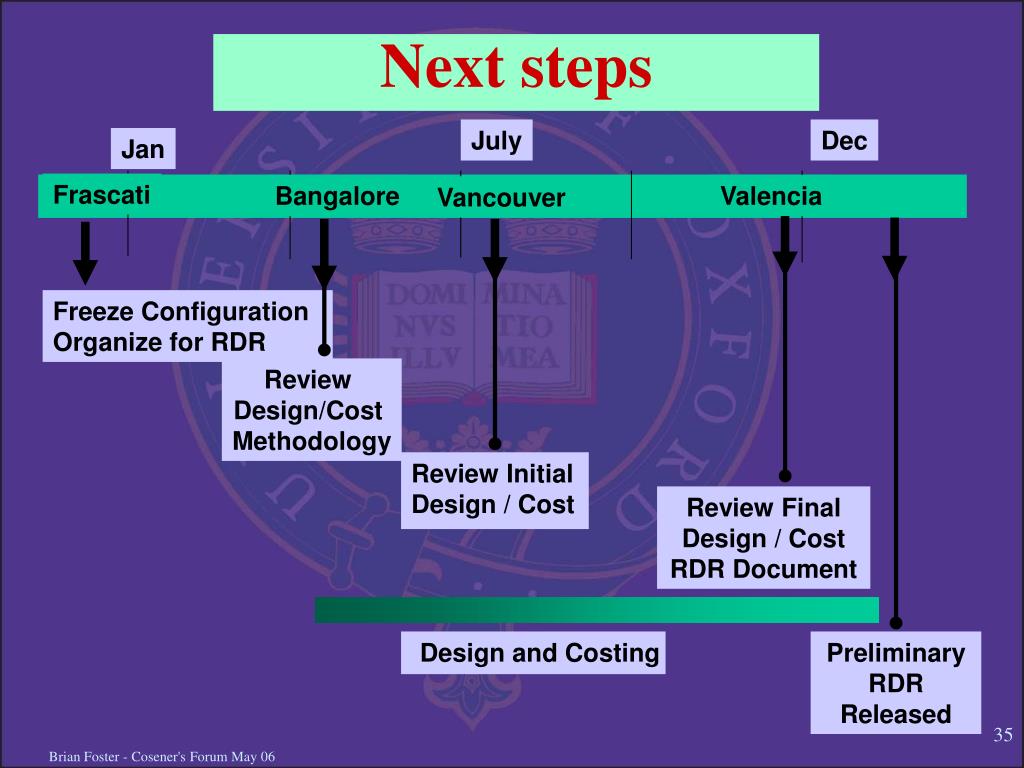

36. The ILC is making excellent progress and the GDE is well established. Producing the RDR & the cost estimate by the end of the year is going to be very tough - we need all the help & expertise that we can get. This is a very exciting and challenging enterprise that is vital for the future of world particle physics. Summary Brian Foster - Cosener's Forum May 06
