Presentation Transcript
properties of gases
Properties of Gases
  • No definite shape
    • It fills its container
  • Compressible
    • With increases in pressure
  • Low Density
    • Molecules are far apart
    • Intermolecular forces are ignored
  • Diffusion
    • Molecules can randomly spread out
ideal gas
Ideal Gas
  • Theoretical description of gases
    • Disregard the volume of the molecule itself
    • Disregard any attractive force between molecules
  • Real gases stray from ideal gases at:
    • LOW Temperatures
    • HIGH Pressures
slide4

At STP (Standard temperature and pressure), all gases have a volume of 22.4 L.

  • Standard Temperature:
    • 0oC
    • 273 K
  • Standard Pressure:
    • 101.3 kPa
    • 1 atm
    • 760 torr (or mmHg)
charles law
Charles Law
  • The volume of a quantity of gas, at constant pressure, varies directly with the Kelvin temperature.
  • Temperature MUST be in Kelvin! (oC + 273)

@ constant Pressure

slide6

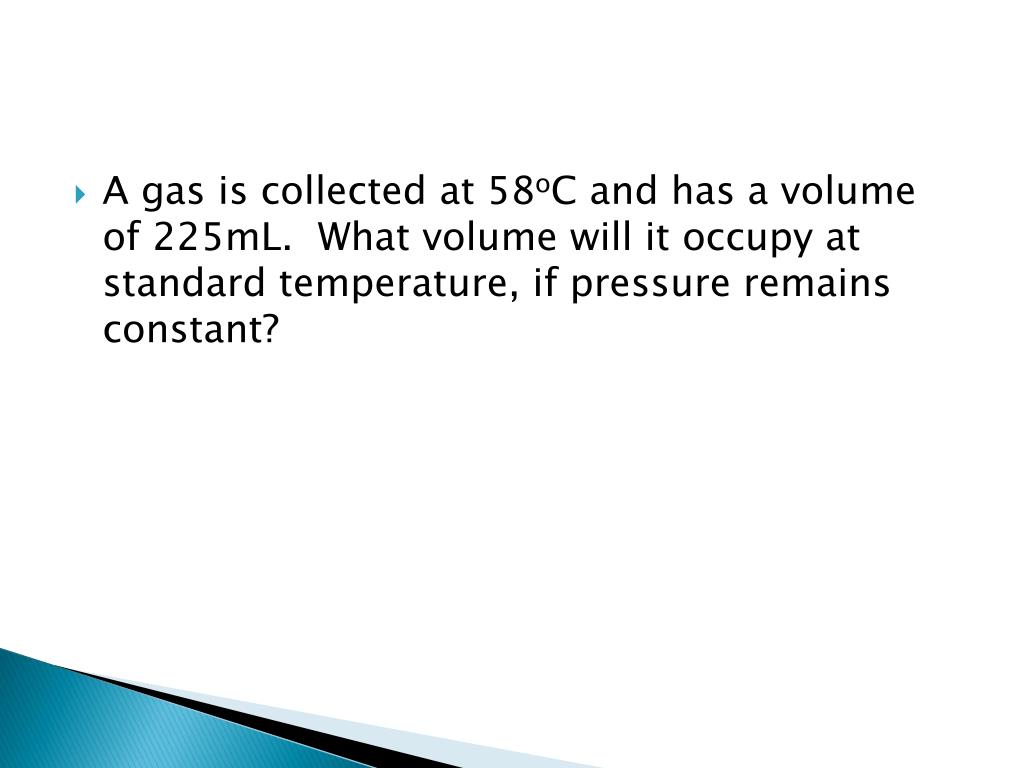

A gas is collected at 58oC and has a volume of 225mL. What volume will it occupy at standard temperature, if pressure remains constant?

slide7

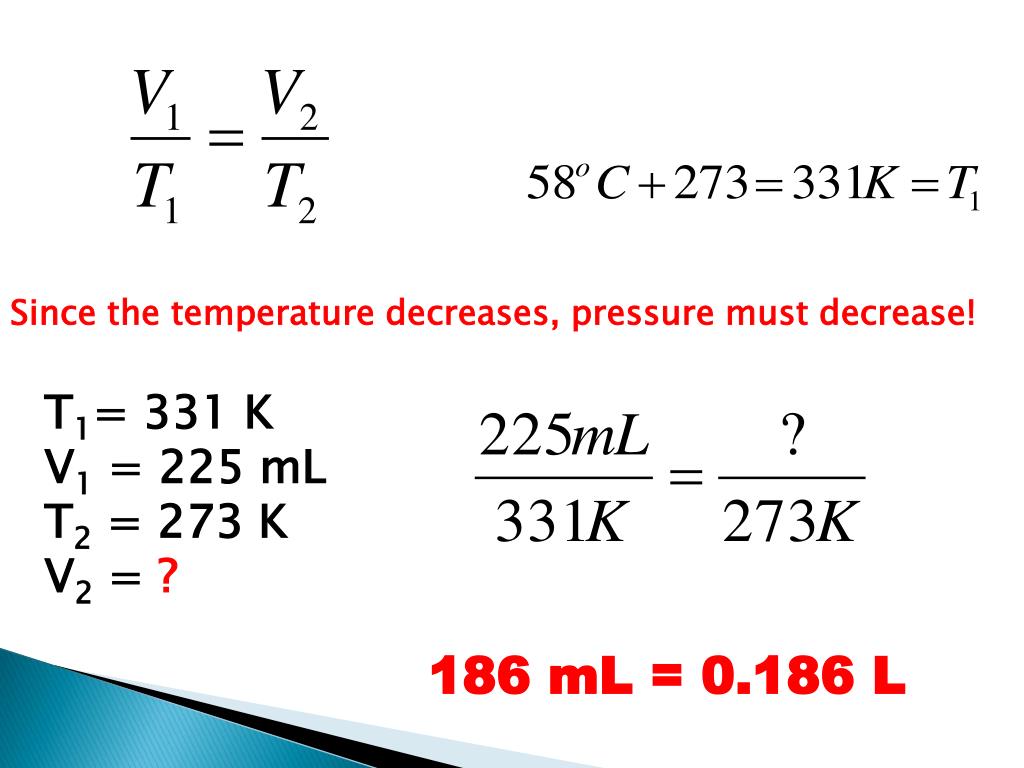

Since the temperature decreases, pressure must decrease!

T1= 331 K

V1 = 225 mL

T2 = 273 K

V2 = ?

186 mL = 0.186 L

boyles law
Boyles Law
  • As pressure increases, volume decreases.
  • Temperature MUST be constant.
slide9

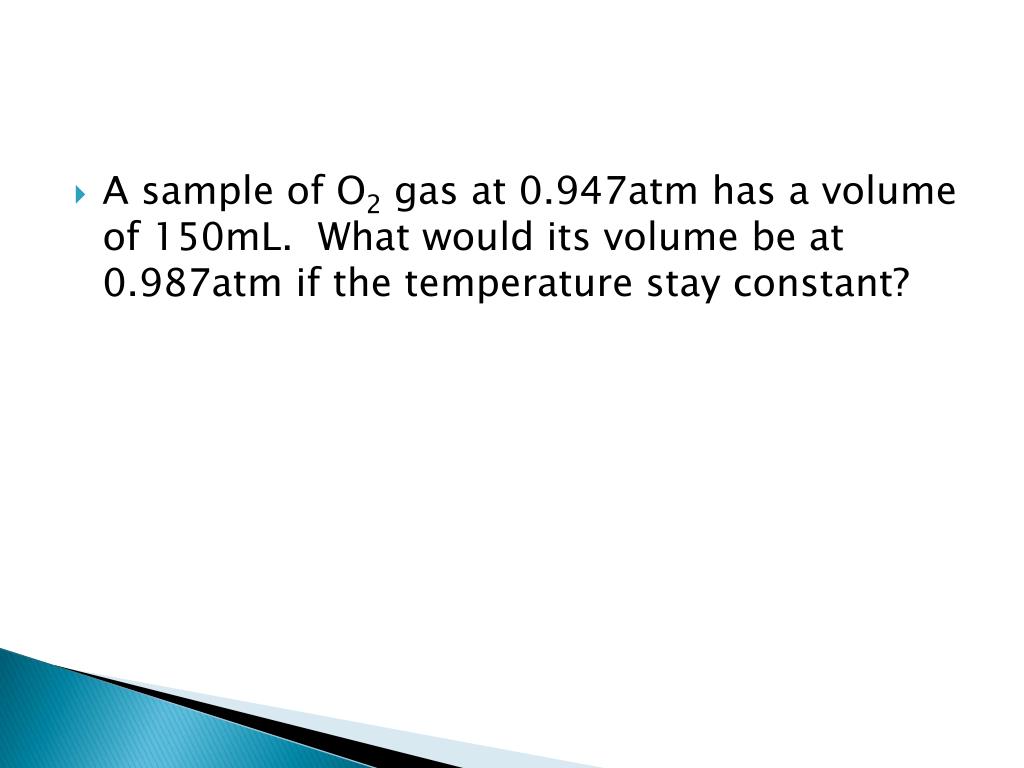

A sample of O2 gas at 0.947atm has a volume of 150mL. What would its volume be at 0.987atm if the temperature stay constant?

slide10

P1 = 0.947 atm

V1 = 150 mL

P2 = 0.987 atm

V2 = ?

144mL = 0.144L

gay lussac s law
Gay-Lussac’s Law

Volume is constant

* Remember, Temperature MUST be in Kelvin

slide13

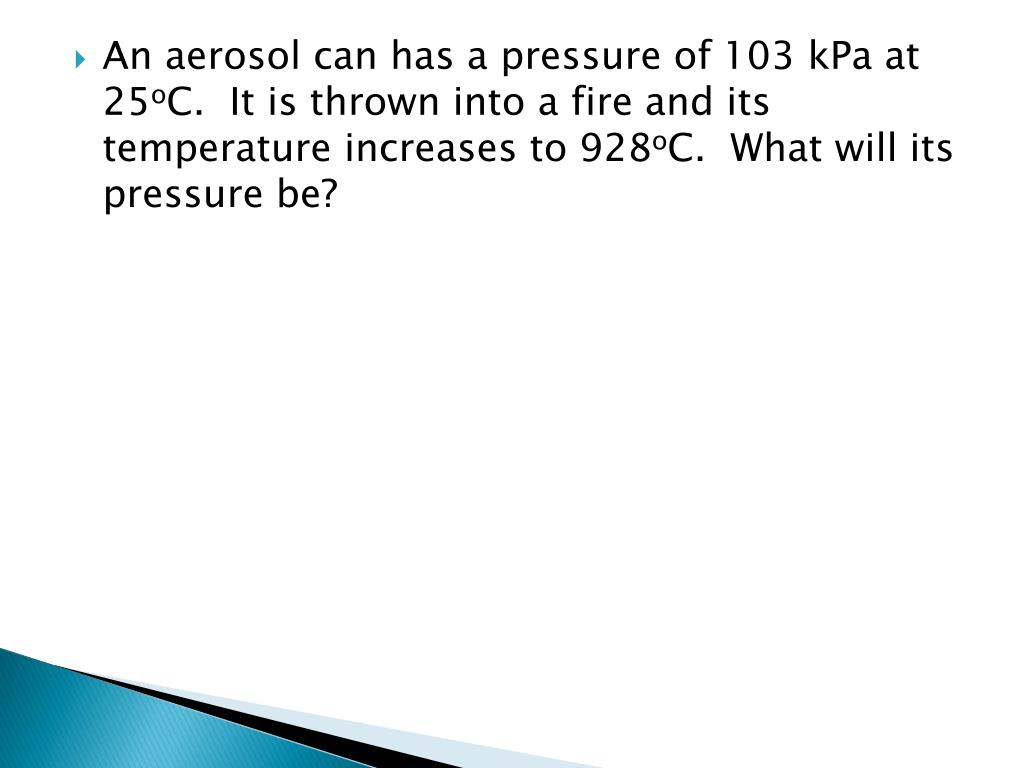

An aerosol can has a pressure of 103 kPa at 25oC. It is thrown into a fire and its temperature increases to 928oC. What will its pressure be?

slide14

P1 = 103 kPa

P2 = ?

T1 = 25 oC + 273 = 298 K

T2 = 928 oC + 273 = 1201 K

P2 = 415 kPa

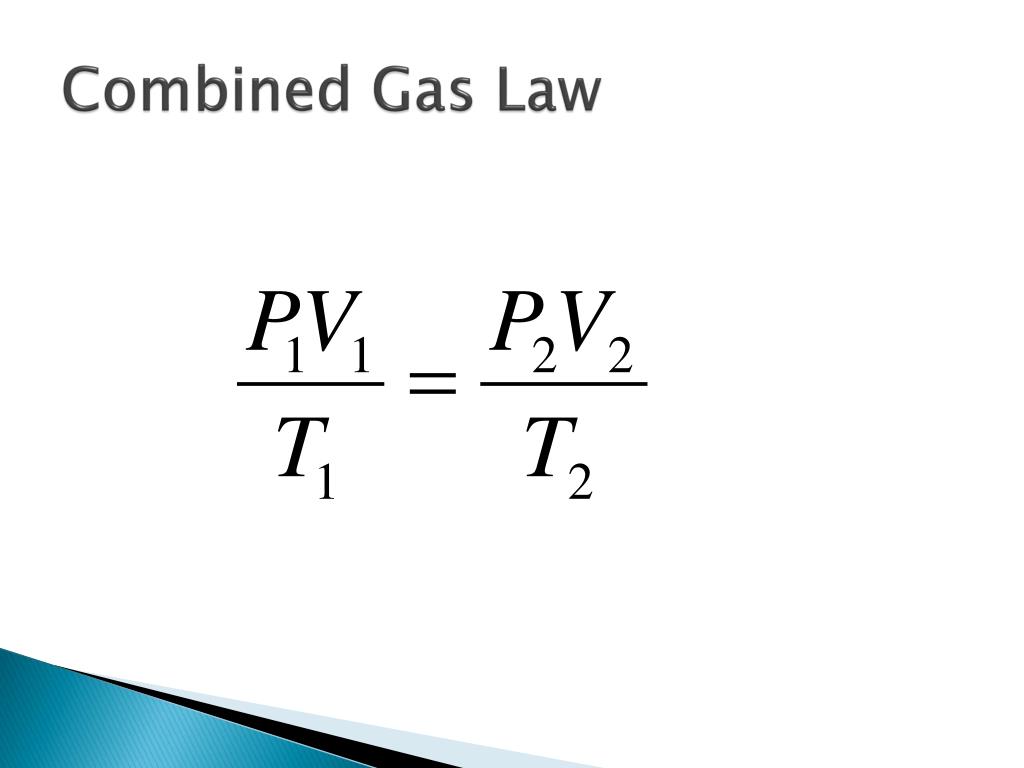

slide15

The volume of a gas-filled balloon is 30.0 L at 313 K and 153 kPa. What would the volume be at STP?

slide16

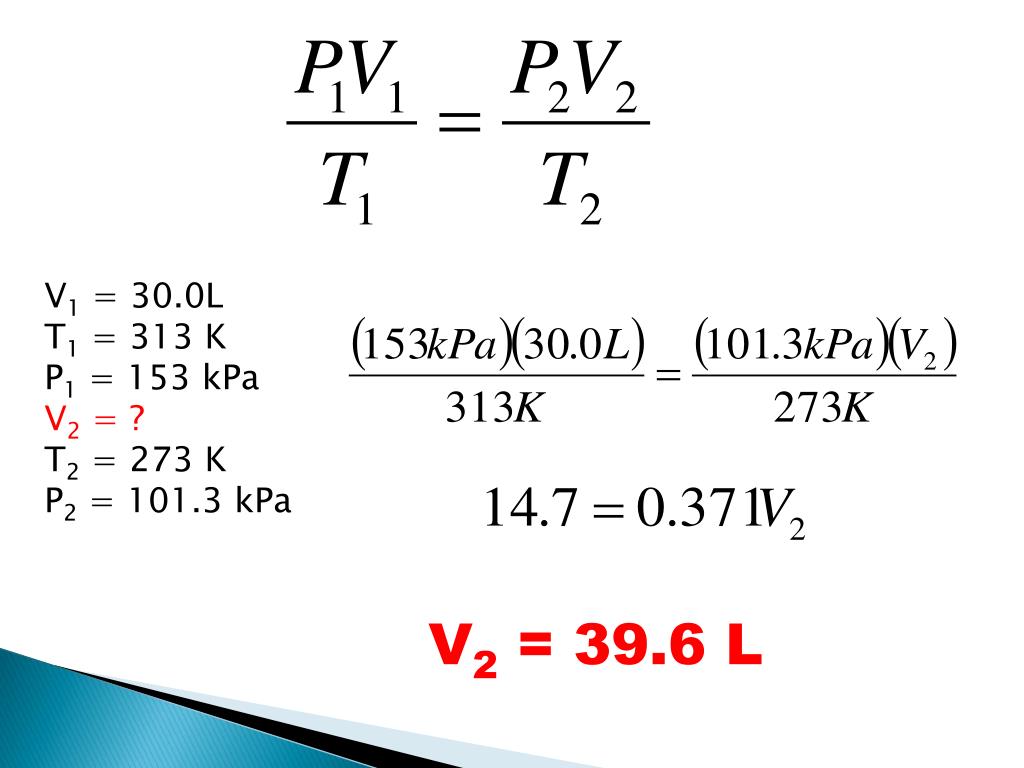

V1 = 30.0L

T1 = 313 K

P1 = 153 kPa

V2 = ?

T2 = 273 K

P2 = 101.3 kPa

V2 = 39.6 L

ideal gas law
Ideal Gas Law

P = pressure

V = volume

(in Liters!)

n = moles

T = temperatre

(in Kelvin!)

R = gas constant

Gas constants

find volume

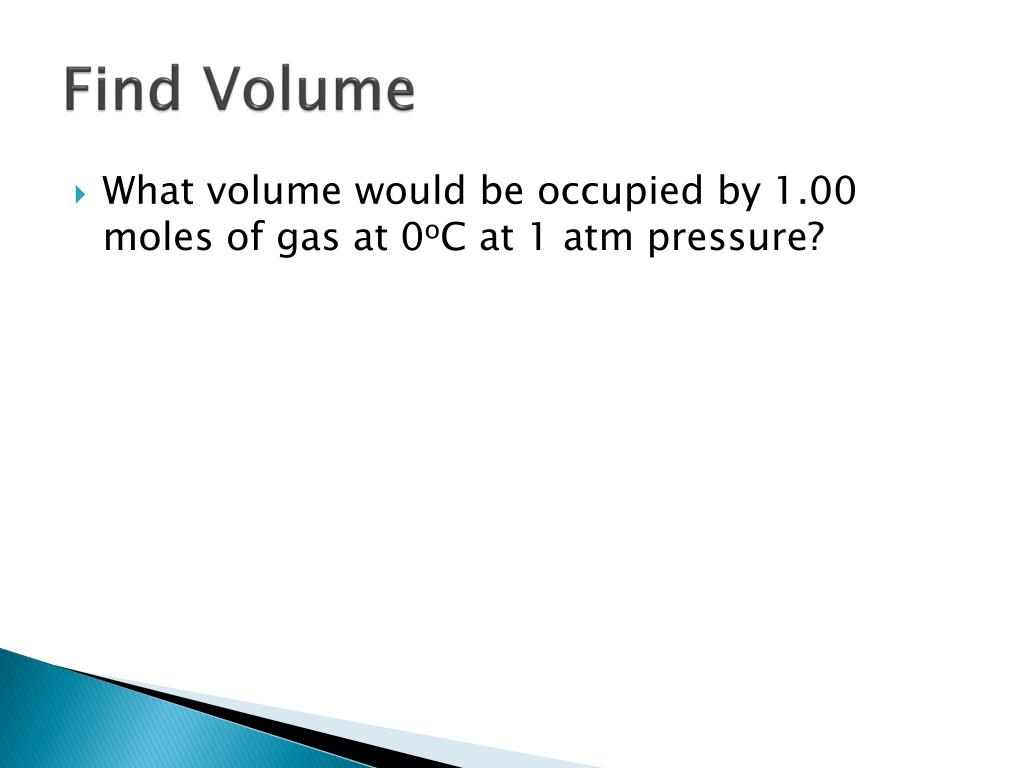

Find Volume
  • What volume would be occupied by 1.00 moles of gas at 0oC at 1 atm pressure?
slide19

P = 1 atm

V = ?

n = 1 mol

R = 0.082 (because pressure is in atm)

T = 0oC + 273 = 273 K

V = 22.4L

avogadro s principle

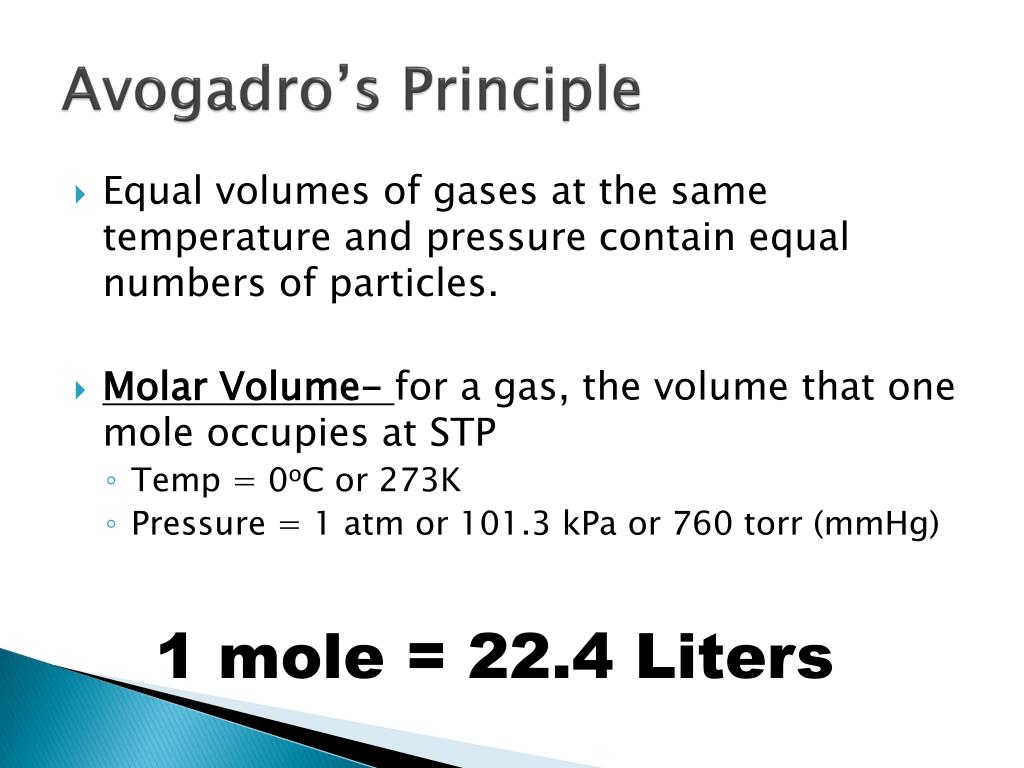

Avogadro’s Principle
  • Equal volumes of gases at the same temperature and pressure contain equal numbers of particles.
  • Molar Volume- for a gas, the volume that one mole occupies at STP
    • Temp = 0oC or 273K
    • Pressure = 1 atm or 101.3 kPa or 760 torr (mmHg)

1 mole = 22.4 Liters

practice
Practice

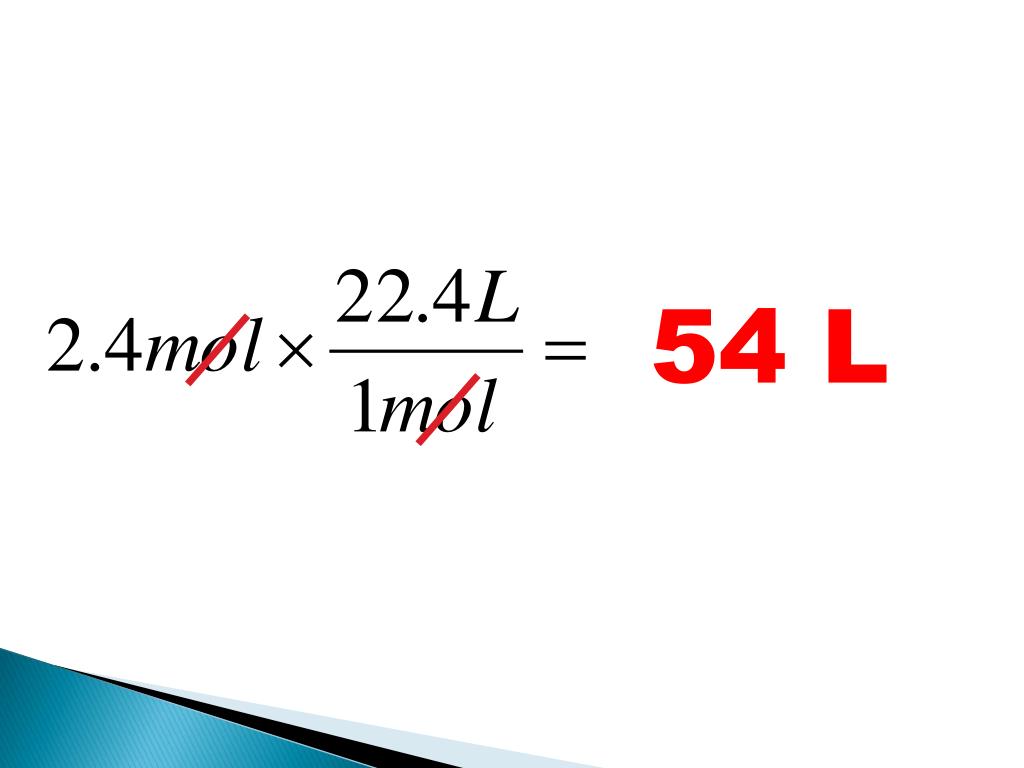

  • Determine the volume of a container that holds 2.4 mol of gas at STP.
1 h 2 1 cl 2 2 hcl

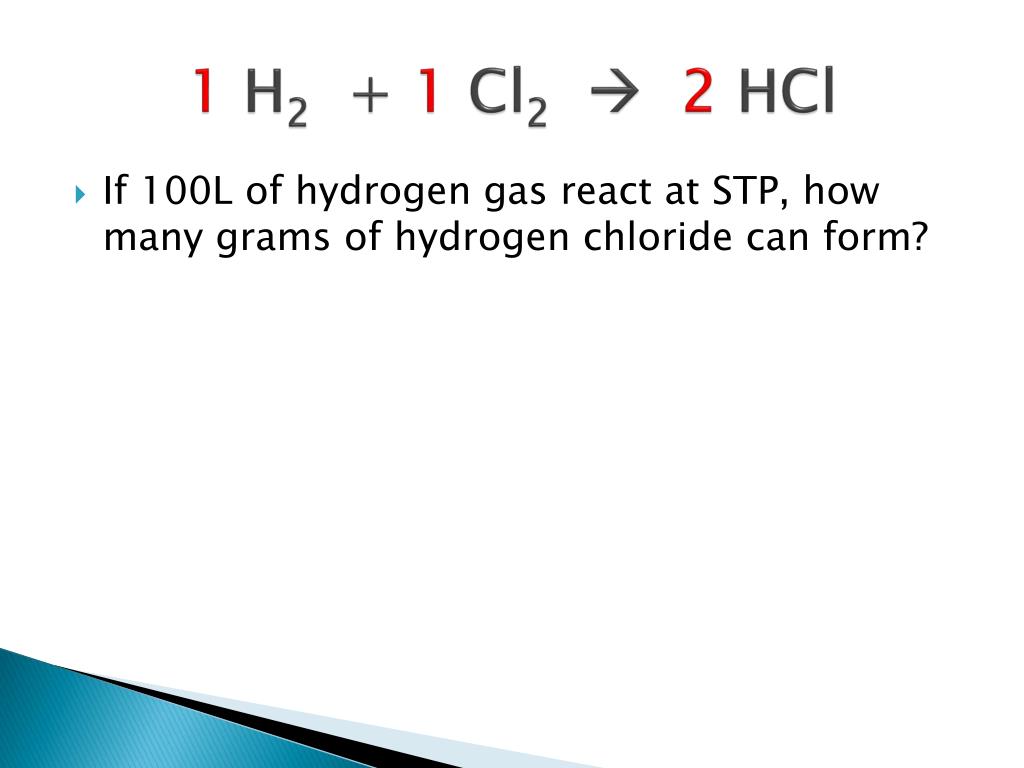

1 H2 + 1 Cl2 2HCl
  • If 100L of hydrogen gas react at STP, how many grams of hydrogen chloride can form?
dalton s law of partial pressure
Dalton’s Law of Partial Pressure
  • The sum of the individual gas pressures equals the overall pressure of the mixture of gases.
slide26

If a container has 166 torr H2, 109 torr CO2 and 176 torr of O2, what is the total pressure of the mixture?

116 torr + 109 torr + 176 torr = 401 torr

slide27

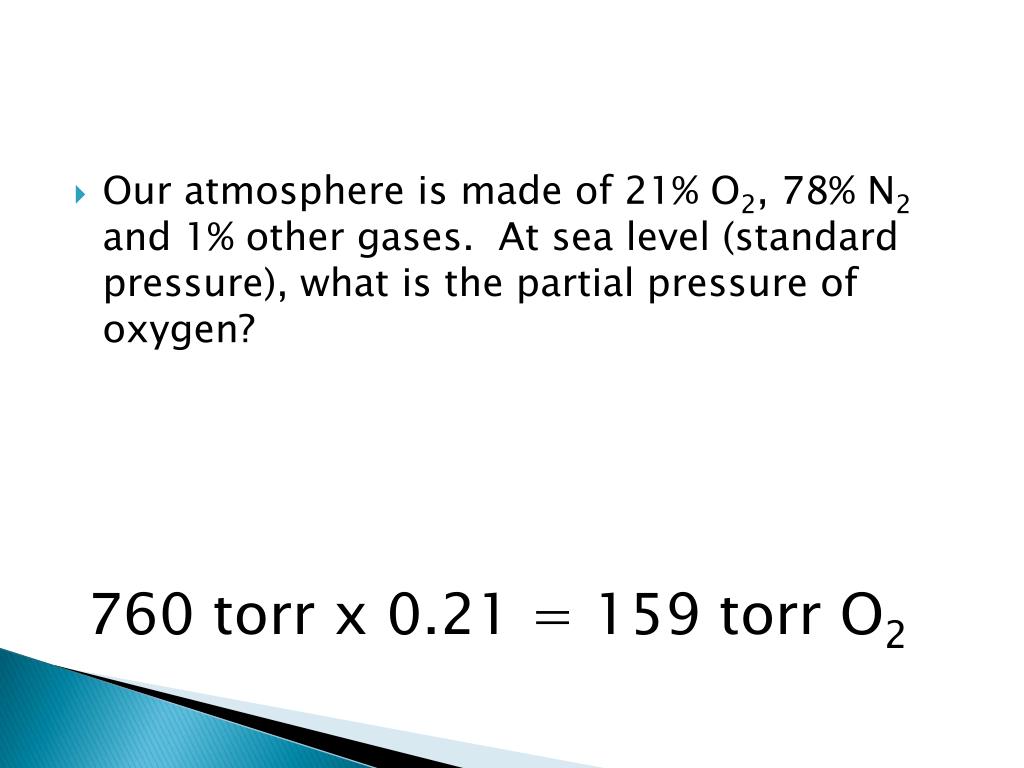

Our atmosphere is made of 21% O2, 78% N2 and 1% other gases. At sea level (standard pressure), what is the partial pressure of oxygen?

760 torr x 0.21 = 159 torr O2

diffusion
Diffusion
  • The spontaneous spreading of particles
  • The rate of diffusion depends on the velocities and masses of the molecules
  • Effusion – the process by which a gas escapes from a small hole in a container
  • Lighter gases ALWAYS diffuse/effuse faster than heavier molecules
grahams law of diffusion
Grahams Law of Diffusion
  • The relative rates at which two gases, at the same temperature and pressure, will diffuse, vary inversely as the square root of the molecular mass of the gases.

**Always consider gas 1 the lighter gas

slide30

Compute the relative rates of diffusion of helium and argon.

    • go to the periodic table for molar mass of He and Ar

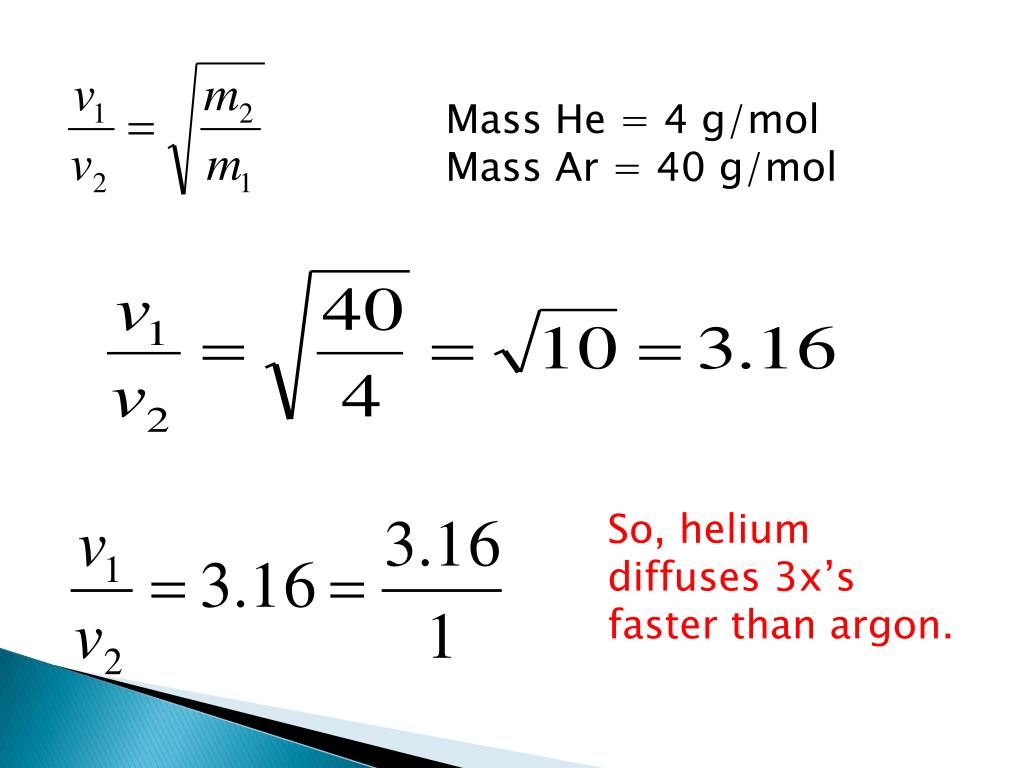

slide31

Mass He = 4 g/mol

Mass Ar = 40 g/mol

So, helium diffuses 3x’s faster than argon.
