  1. IDEAL GAS LAW AOS 101 Section 301 9 February 2009

  2. Boyle's Law Charles's Law IDEAL GAS LAW Gay-Lussac's Law

  3. Charles's Law • When pressure is held constant: V = C T V = Volume T = Temperature C = Constant

  4. Charles's Law • This is just a special case of the Ideal Gas Law with pressure held constant: P = ρ R T P = Pressure ρ = Density R = Constant T = Temperature

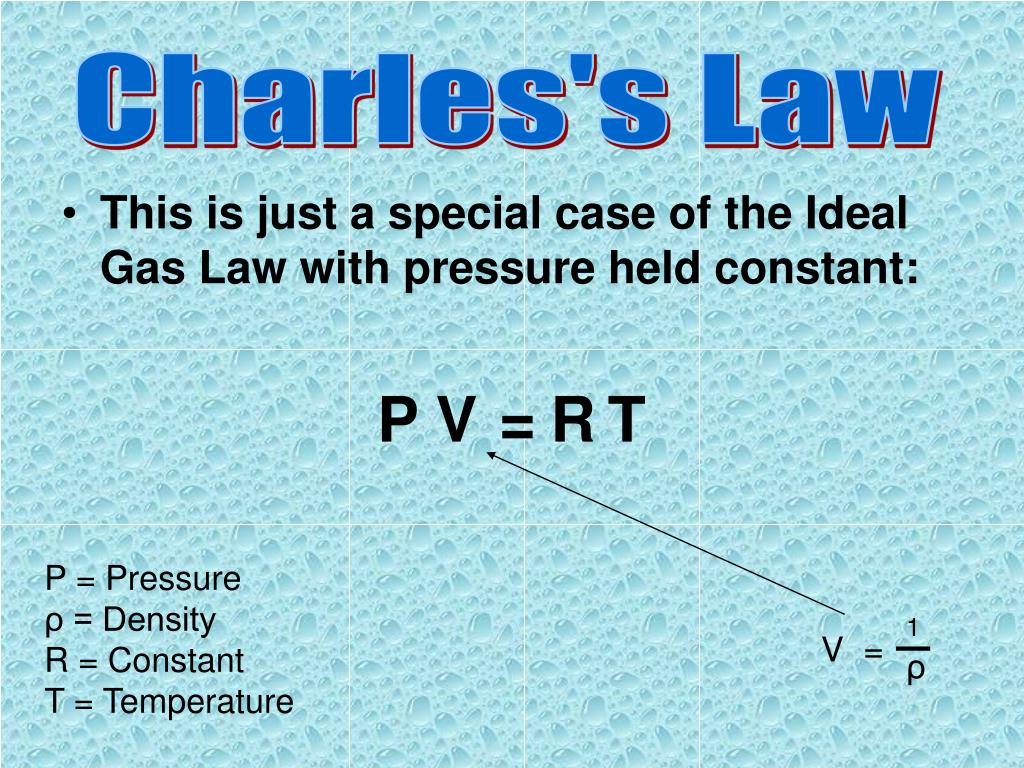

  5. Charles's Law • This is just a special case of the Ideal Gas Law with pressure held constant: P V = R T P = Pressure ρ = Density R = Constant T = Temperature 1 V = ρ

  6. Charles's Law • This is just a special case of the Ideal Gas Law with pressure held constant: V R = T P P = Pressure ρ = Density R = Constant T = Temperature 1 V = ρ

  7. Charles's Law • This is just a special case of the Ideal Gas Law with pressure held constant: V = C T P = Pressure ρ = Density R = Constant T = Temperature R 1 C = V = ρ P

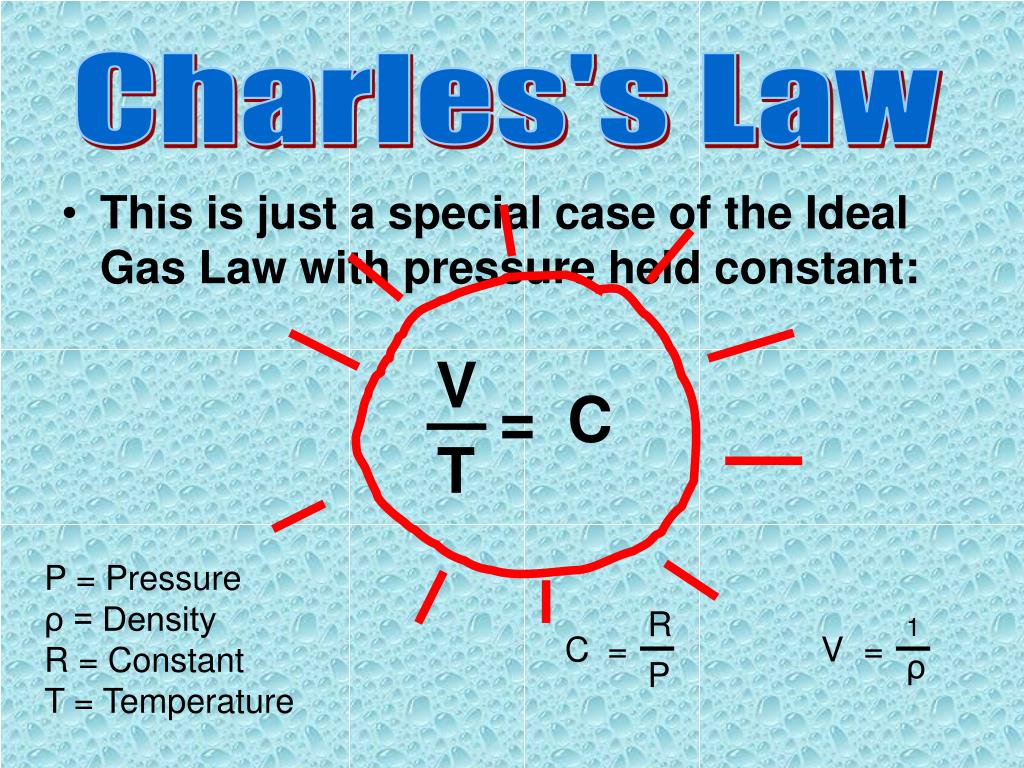

  8. Charles's Law • This is just a special case of the Ideal Gas Law with pressure held constant: V = C T P = Pressure ρ = Density R = Constant T = Temperature R 1 C = V = ρ P

  9. My Birthday…

  10. My Birthday…

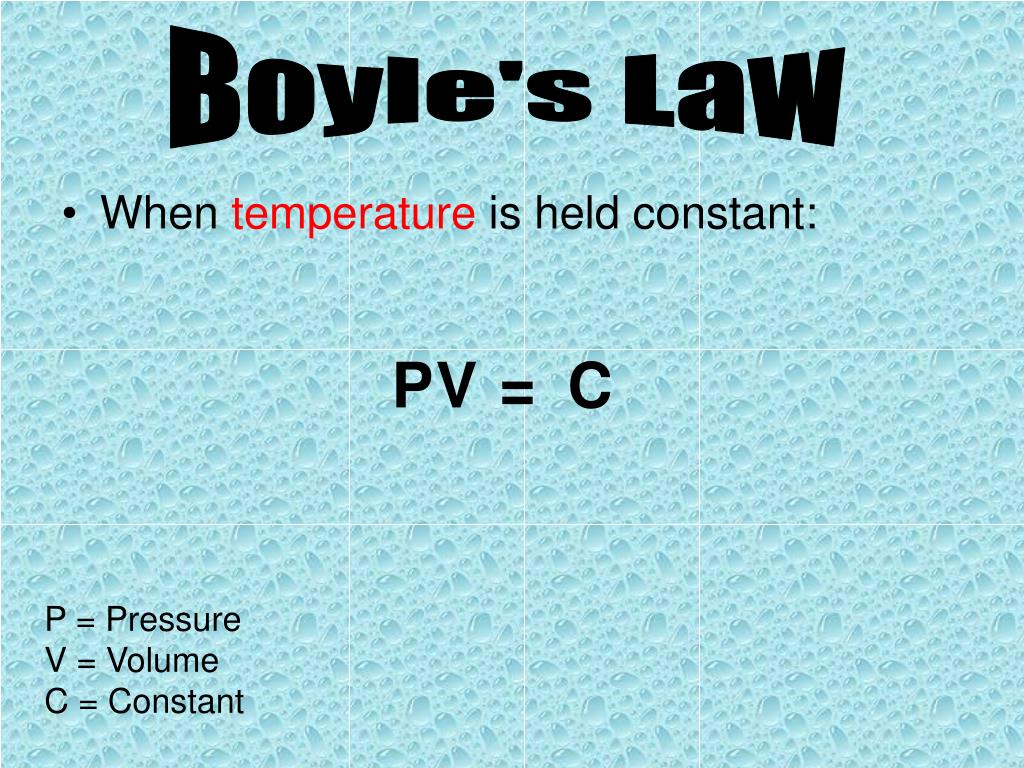

  11. Boyle's Law • When temperature is held constant: P V = C P = Pressure V = Volume C = Constant

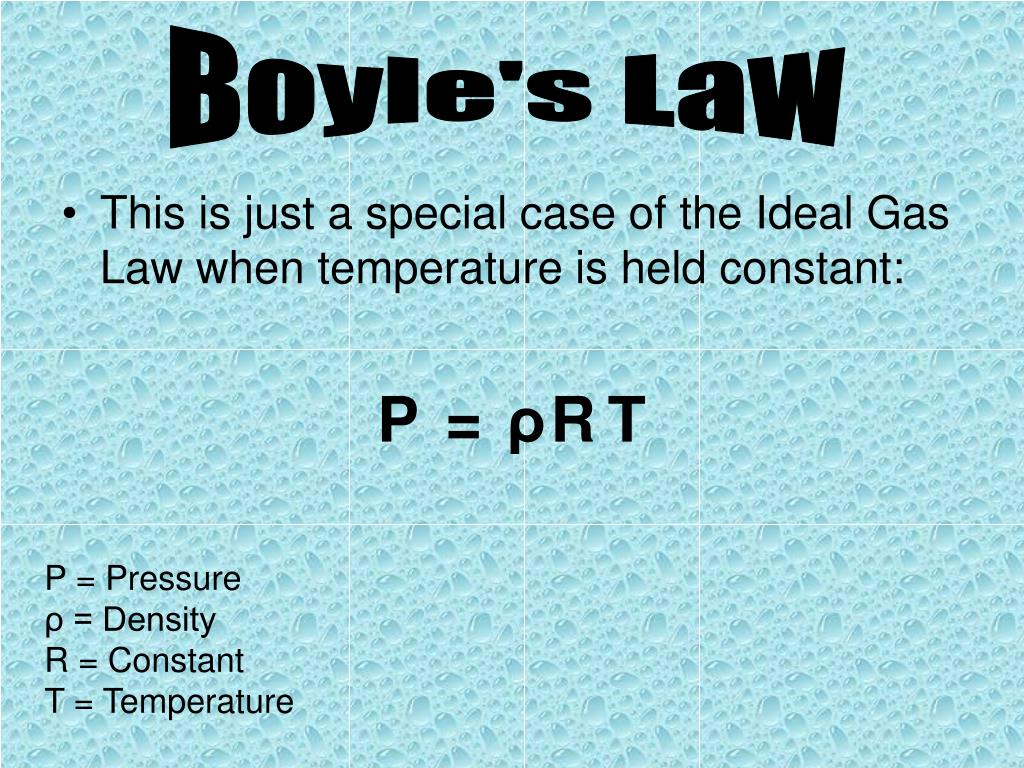

  12. Boyle's Law • This is just a special case of the Ideal Gas Law when temperature is held constant: P = ρ R T P = Pressure ρ = Density R = Constant T = Temperature

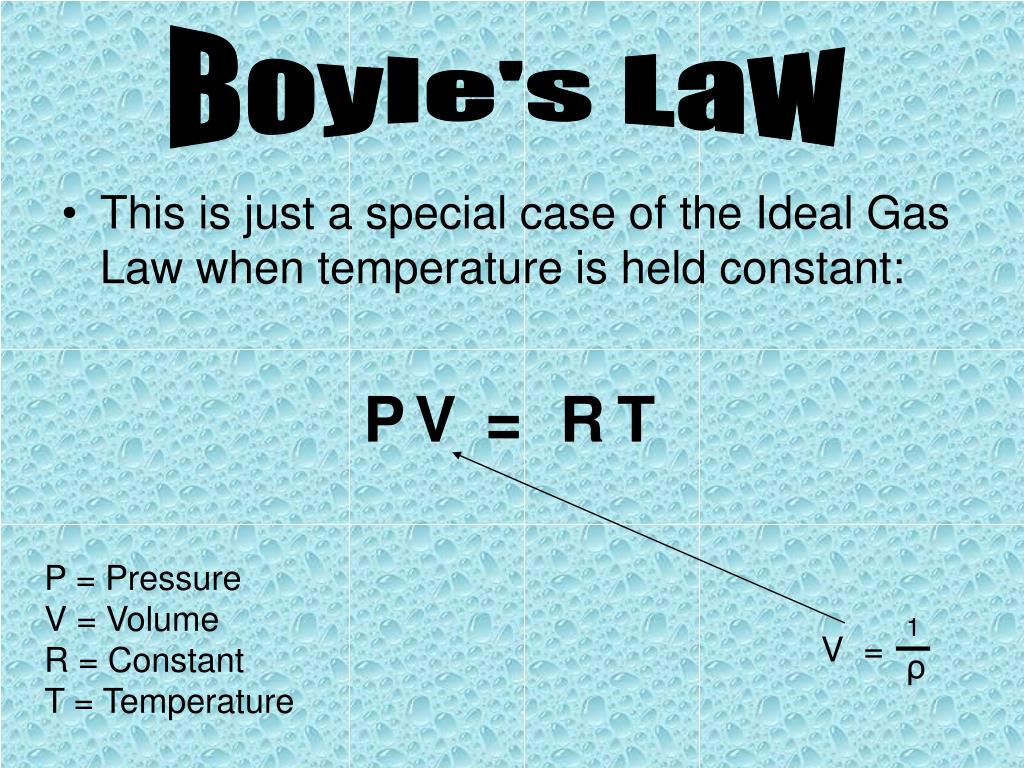

  13. Boyle's Law • This is just a special case of the Ideal Gas Law when temperature is held constant: P V = R T P = Pressure V = Volume R = Constant T = Temperature 1 V = ρ

  14. Boyle's Law • This is just a special case of the Ideal Gas Law when temperature is held constant: P V = C P = Pressure V = Volume R = Constant T = Temperature 1 C = R T V = ρ

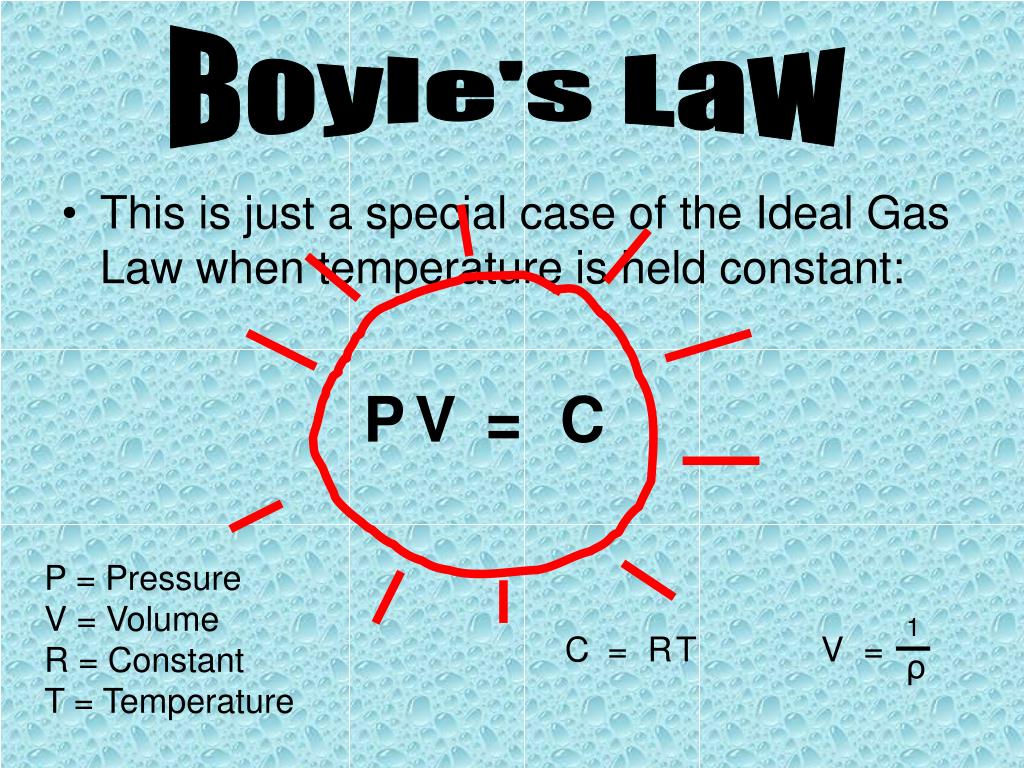

  15. Boyle's Law • This is just a special case of the Ideal Gas Law when temperature is held constant: P V = C P = Pressure V = Volume R = Constant T = Temperature 1 C = R T V = ρ

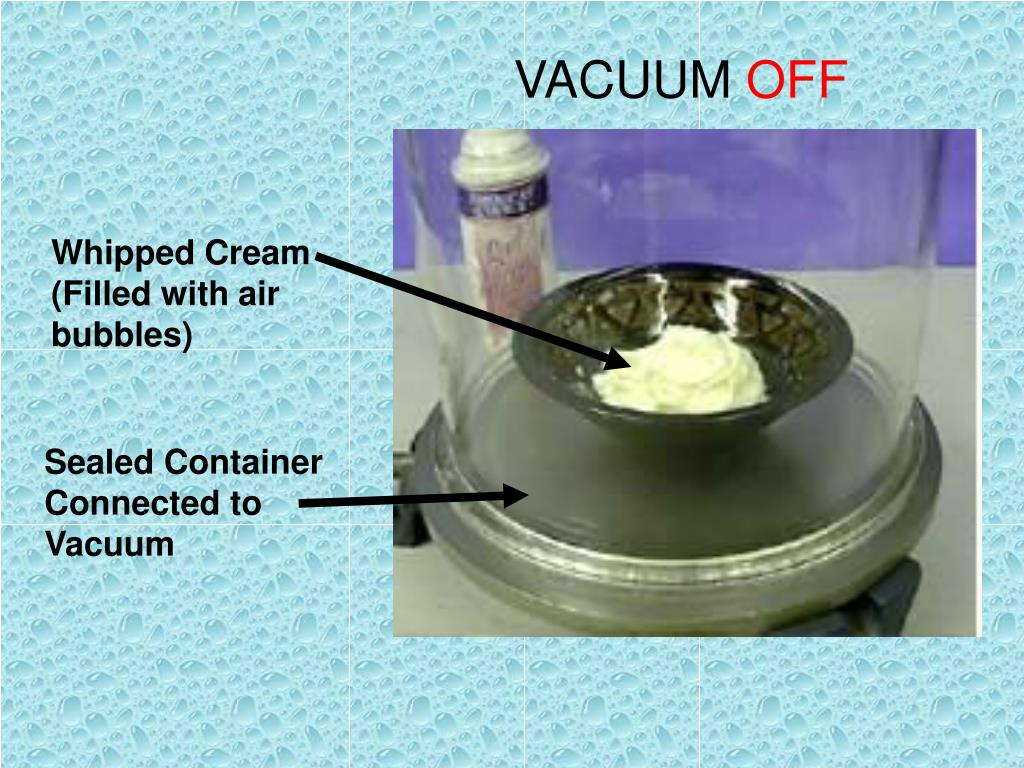

  16. VACUUM OFF Whipped Cream (Filled with air bubbles) Sealed Container Connected to Vacuum

  17. VACUUM ON As pressure goes down, the volume of the bubbles must increase, and the whipped cream increases in size

  18. Gay-Lussac's Law • When density is held constant: P = C T P = Pressure T = Temperature C = Constant

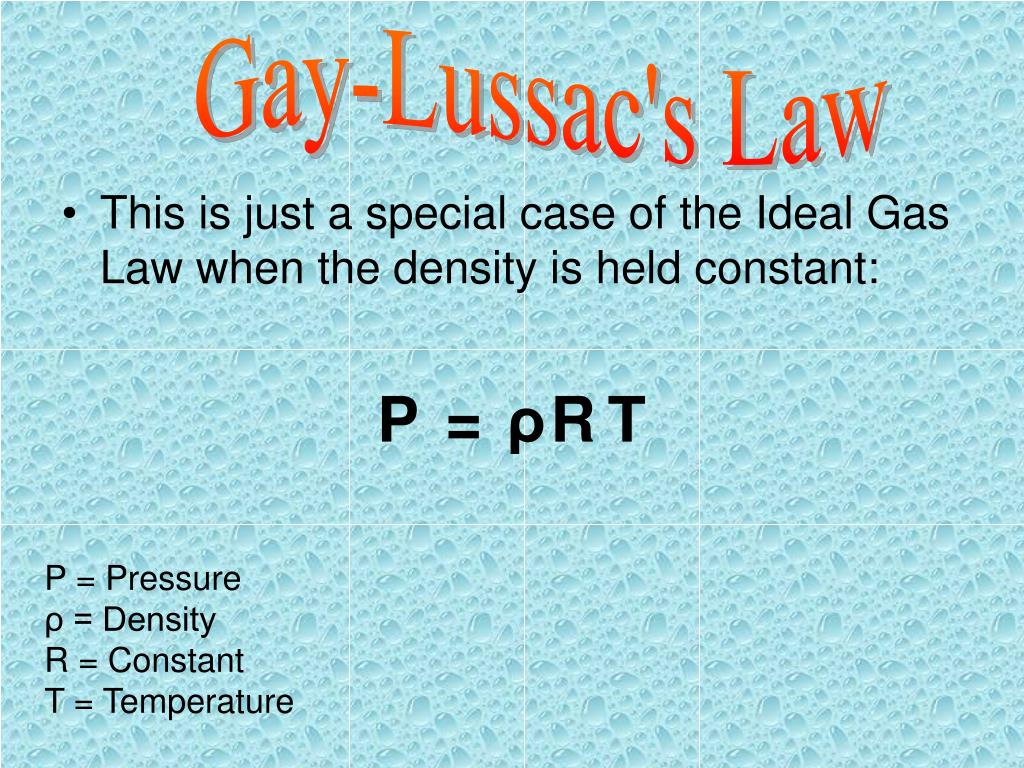

  19. Gay-Lussac's Law • This is just a special case of the Ideal Gas Law when the density is held constant: P = ρ R T P = Pressure ρ = Density R = Constant T = Temperature

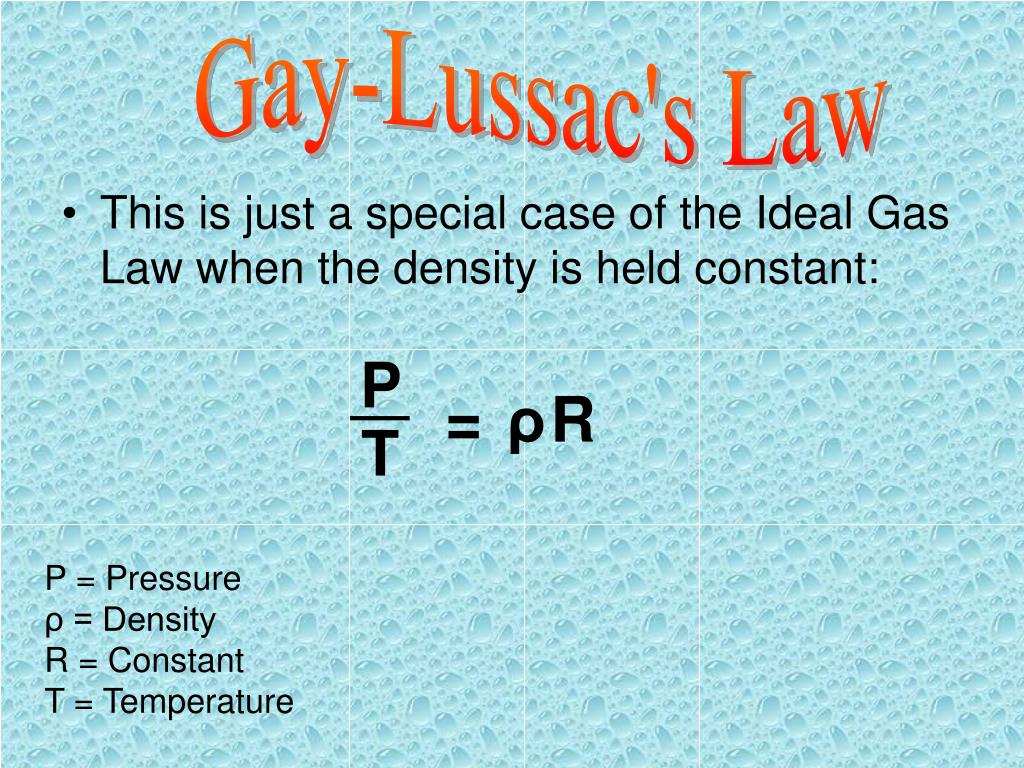

  20. Gay-Lussac's Law • This is just a special case of the Ideal Gas Law when the density is held constant: P = ρ R T P = Pressure ρ = Density R = Constant T = Temperature

  21. Gay-Lussac's Law • This is just a special case of the Ideal Gas Law when the density is held constant: P = C T P = Pressure ρ = Density R = Constant T = Temperature R ρ = C

  22. Gay-Lussac's Law • This is just a special case of the Ideal Gas Law when the density is held constant: P = C T P = Pressure ρ = Density R = Constant T = Temperature R ρ = C

  23. CO2 canister at room temperature

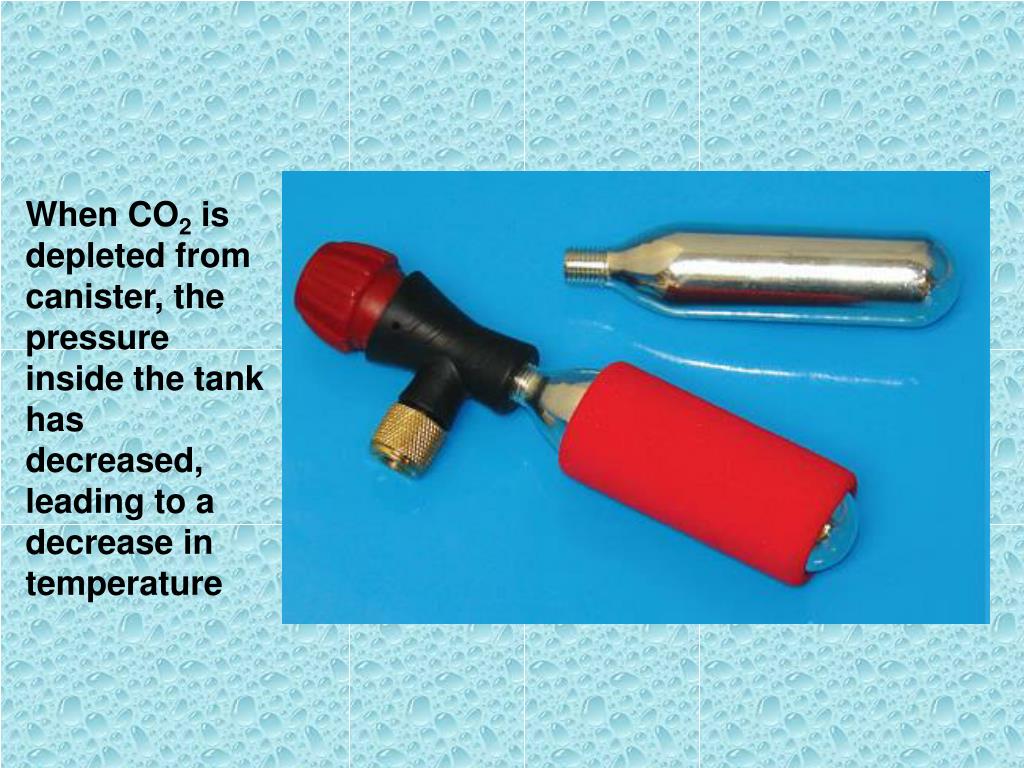

  24. When CO2 is depleted from canister, the pressure inside the tank has decreased, leading to a decrease in temperature

  25. DO THE BAR-BET TRICK
