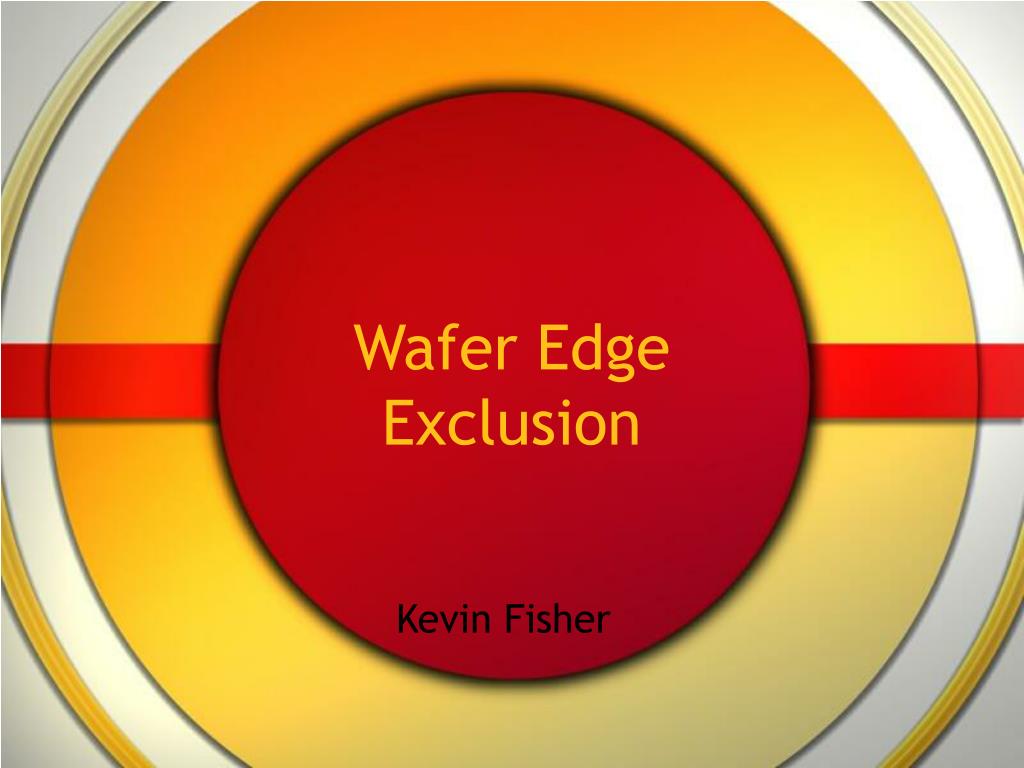

  1. Wafer Edge Exclusion Kevin Fisher

  2. Outline • What is Edge Exclusion? • Motivation for reducing edge exclusion • ITRS Roadmap • Problems on the Edge • Example: Copper Deposition

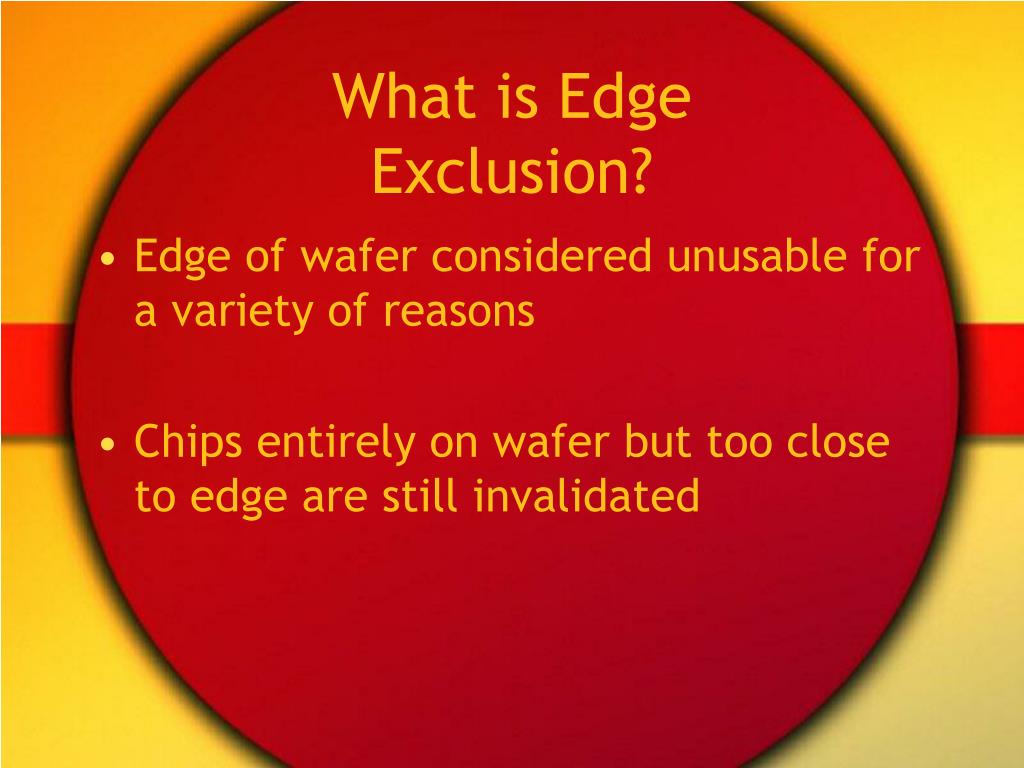

  3. What is Edge Exclusion? • Edge of wafer considered unusable for a variety of reasons • Chips entirely on wafer but too close to edge are still invalidated

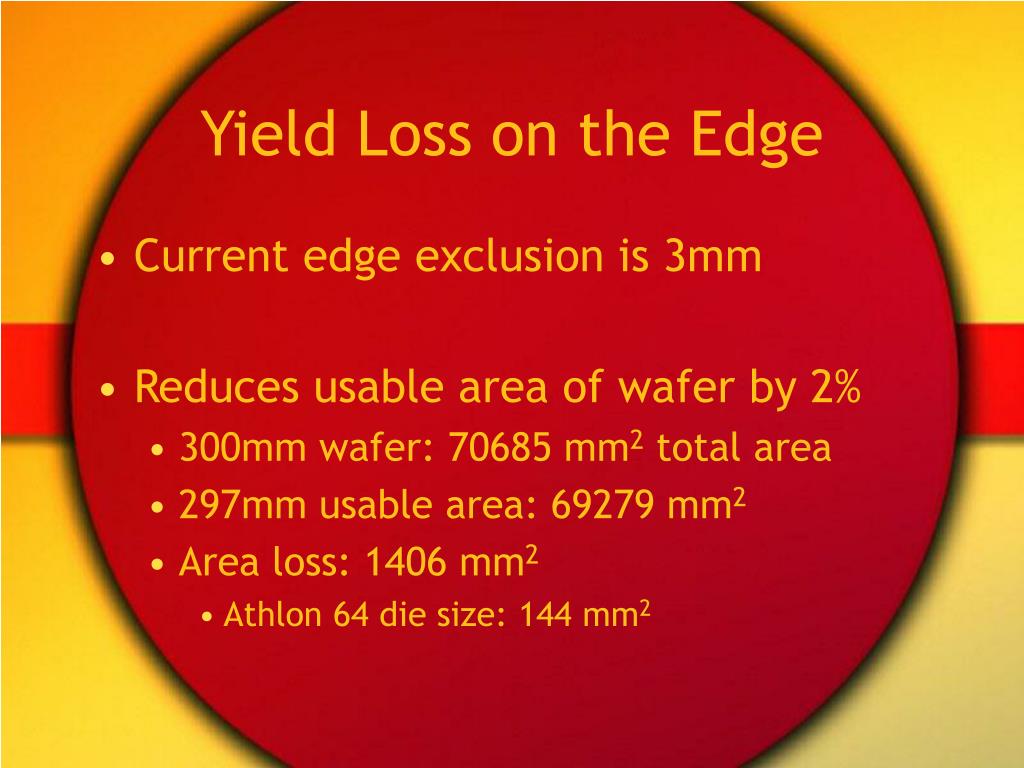

  4. Yield Loss on the Edge • Current edge exclusion is 3mm • Reduces usable area of wafer by 2% • 300mm wafer: 70685 mm2 total area • 297mm usable area: 69279 mm2 • Area loss: 1406 mm2 • Athlon 64 die size: 144 mm2

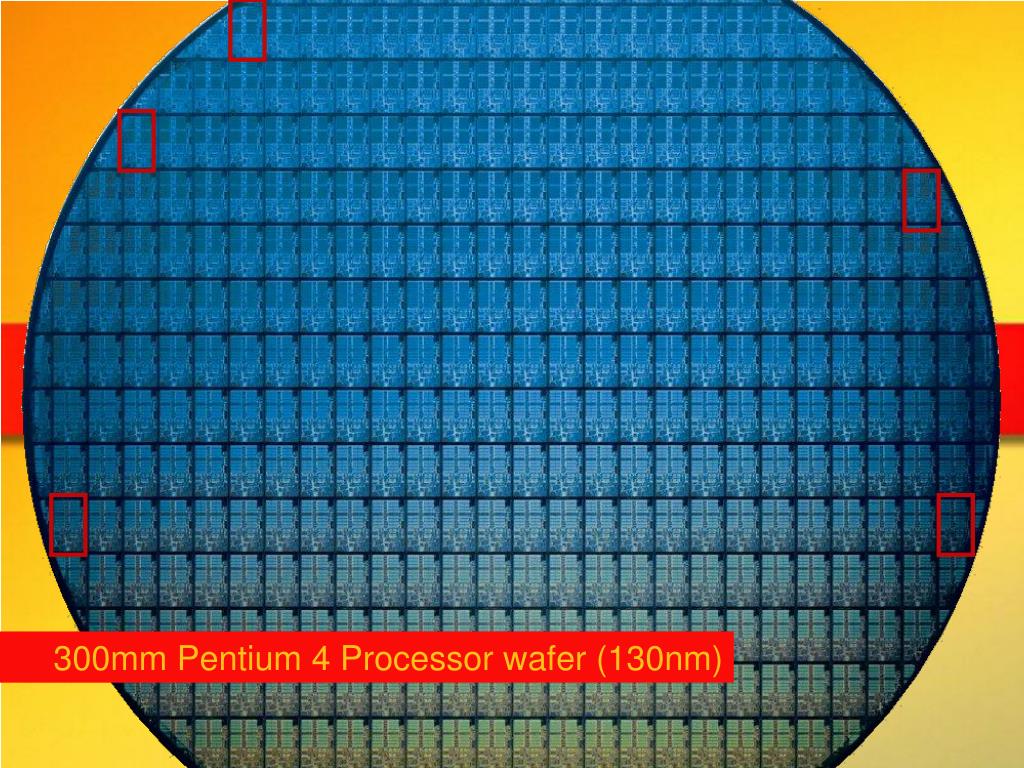

  5. Increasing Yield 300mm Pentium 4 Processor wafer (130nm)

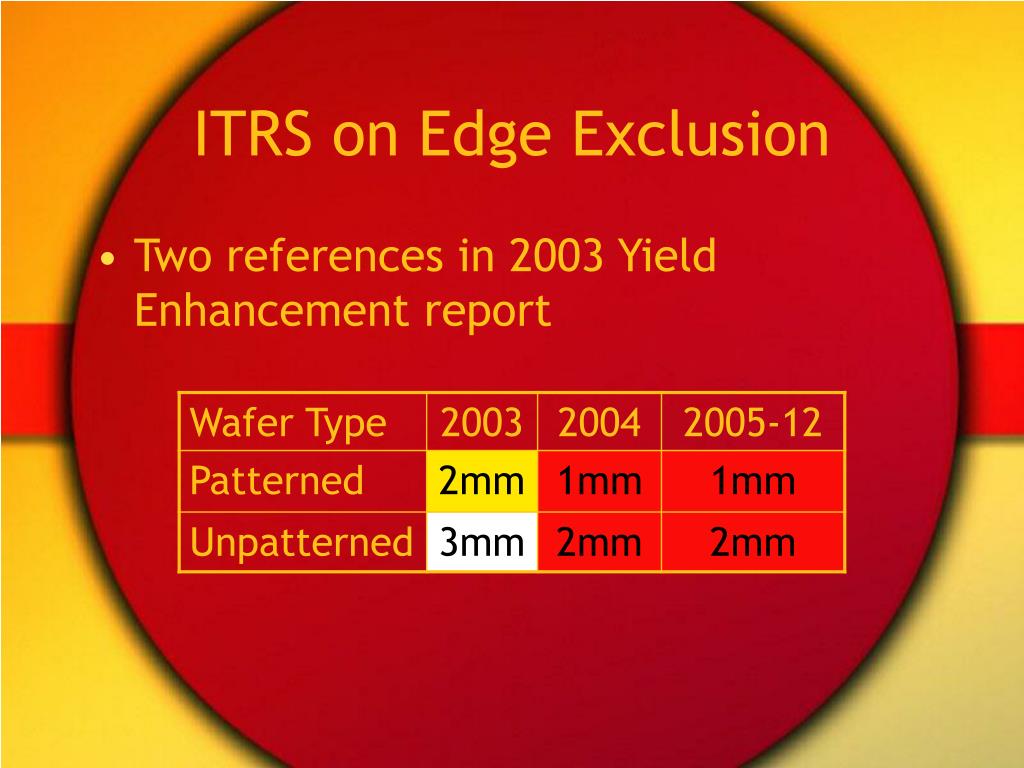

  6. ITRS on Edge Exclusion • Two references in 2003 Yield Enhancement report

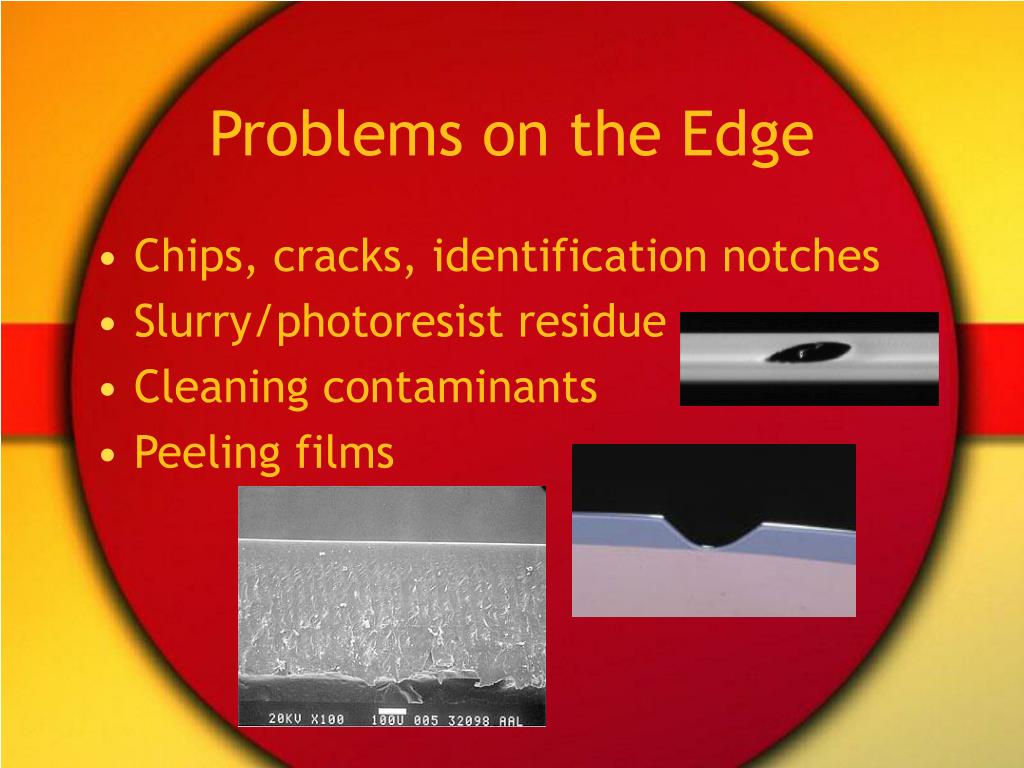

  7. Problems on the Edge • Chips, cracks, identification notches • Slurry/photoresist residue • Cleaning contaminants • Peeling films

  8. Copper Interconnects • Two problems affect edges of wafers with copper metal layers • Barrier, seed layer residue • Copper islands

  9. Barrier/Seed Residue

  10. Copper Islands

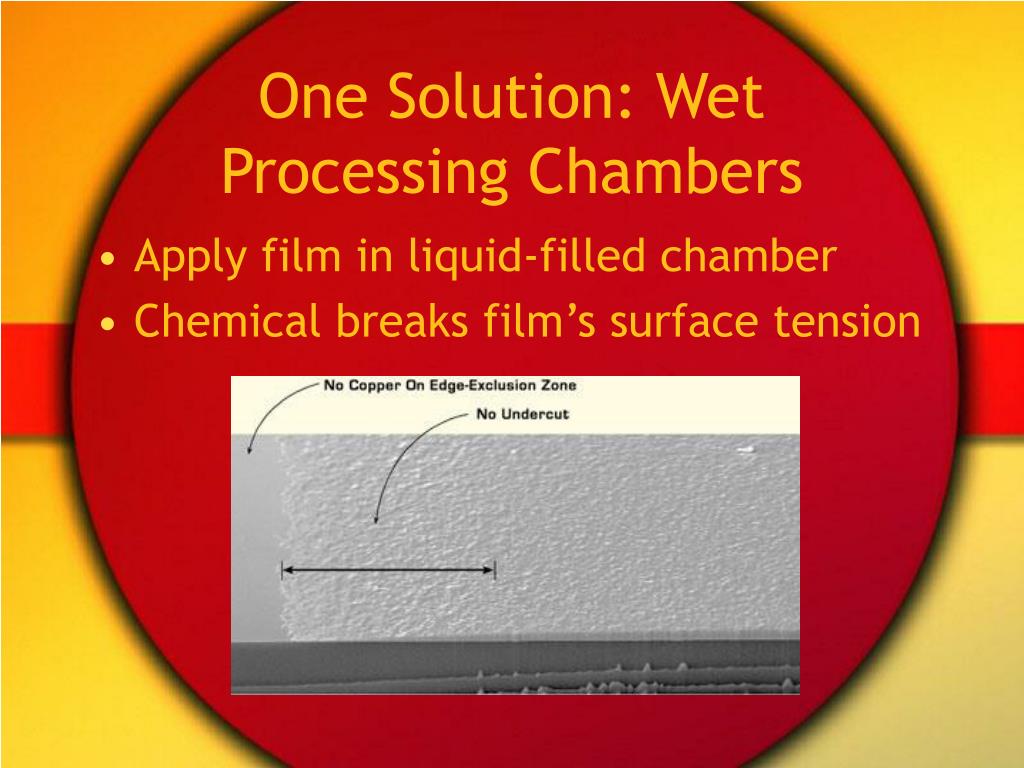

  11. One Solution: Wet Processing Chambers • Apply film in liquid-filled chamber • Chemical breaks film’s surface tension
