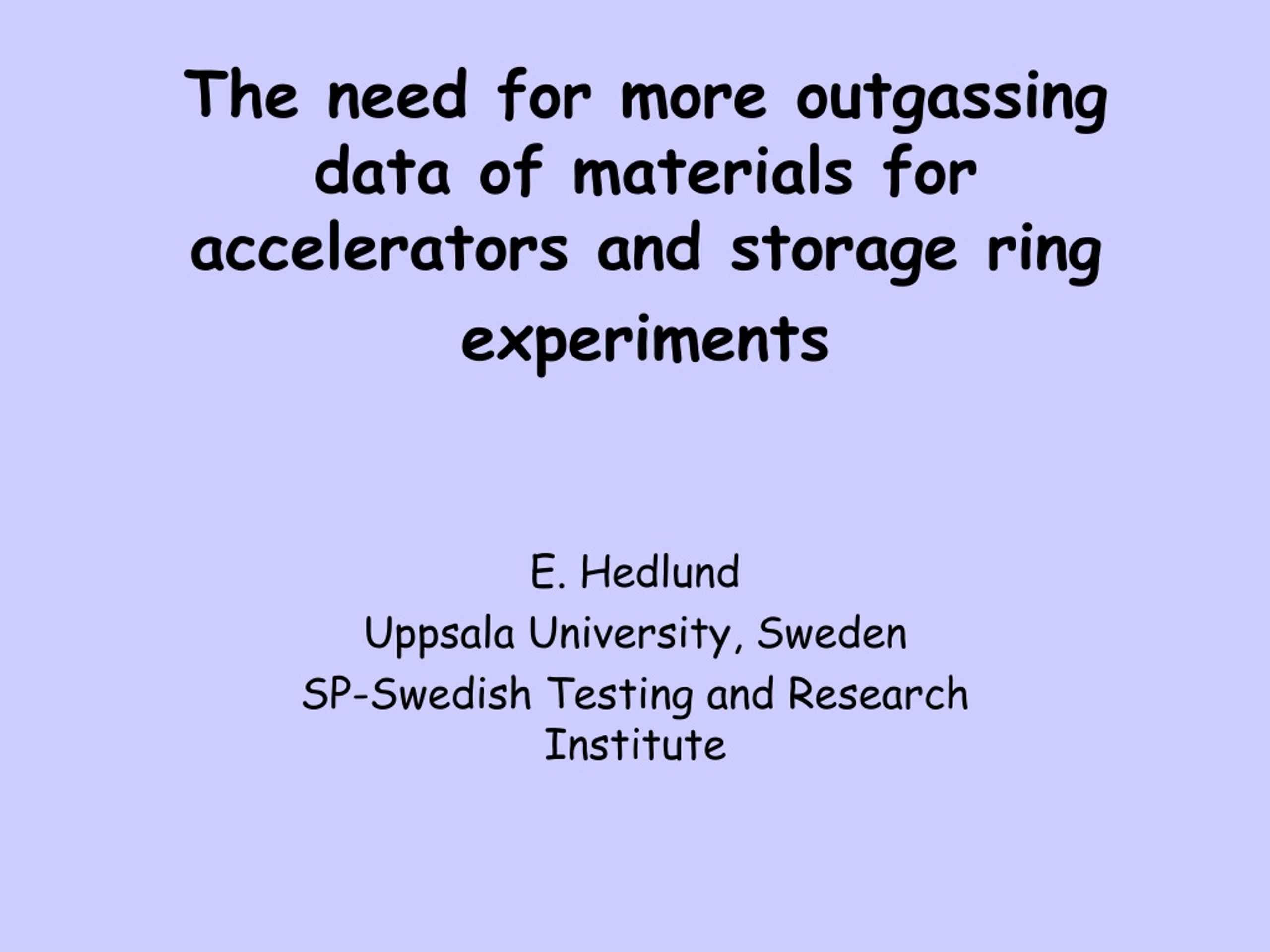

  1. The need for more outgassing data of materials for accelerators and storage ring experiments E. Hedlund Uppsala University, Sweden SP-Swedish Testing and Research Institute

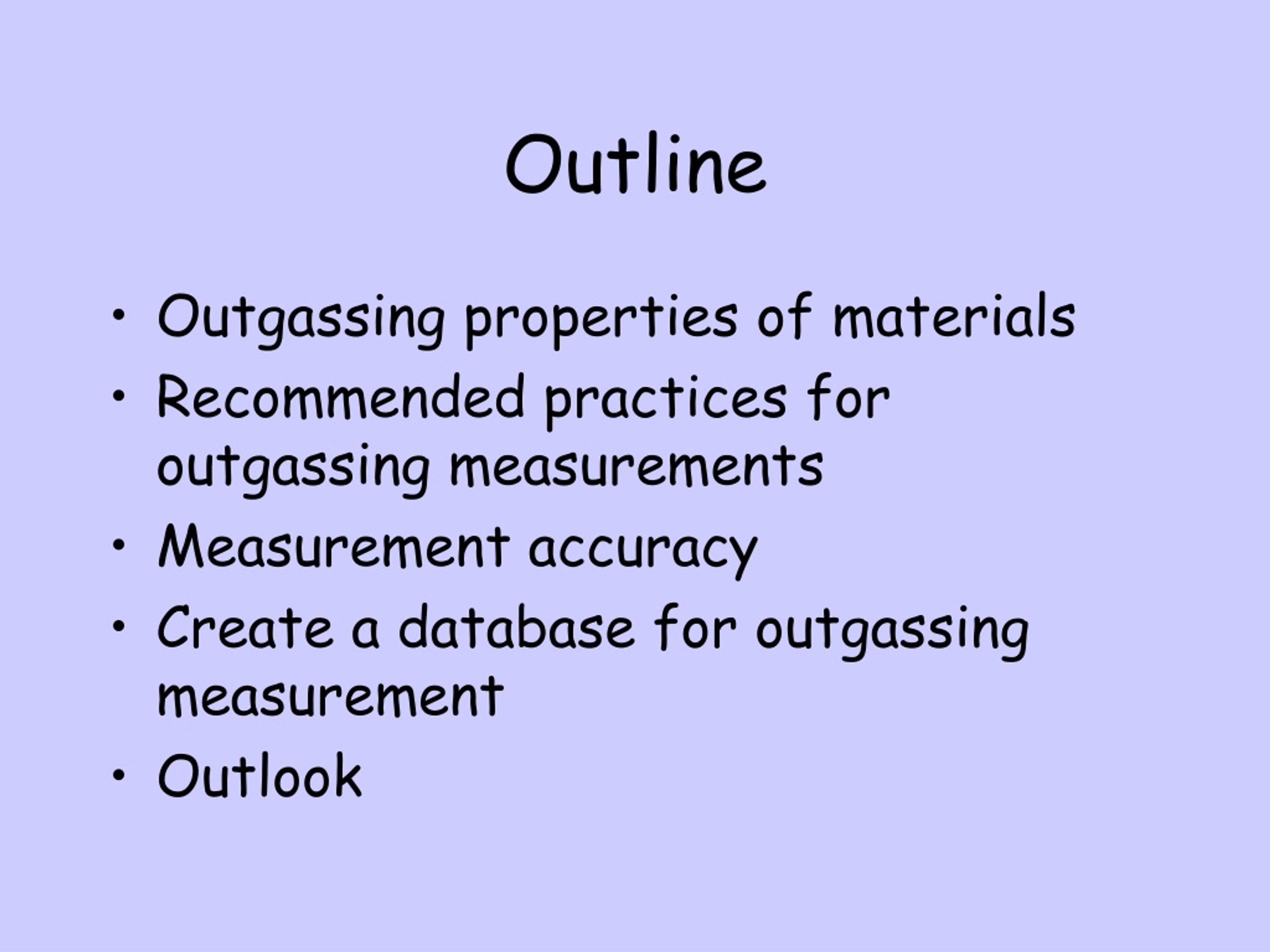

  2. Outline • Outgassing properties of materials • Recommended practices for outgassing measurements • Measurement accuracy • Create a database for outgassing measurement • Outlook

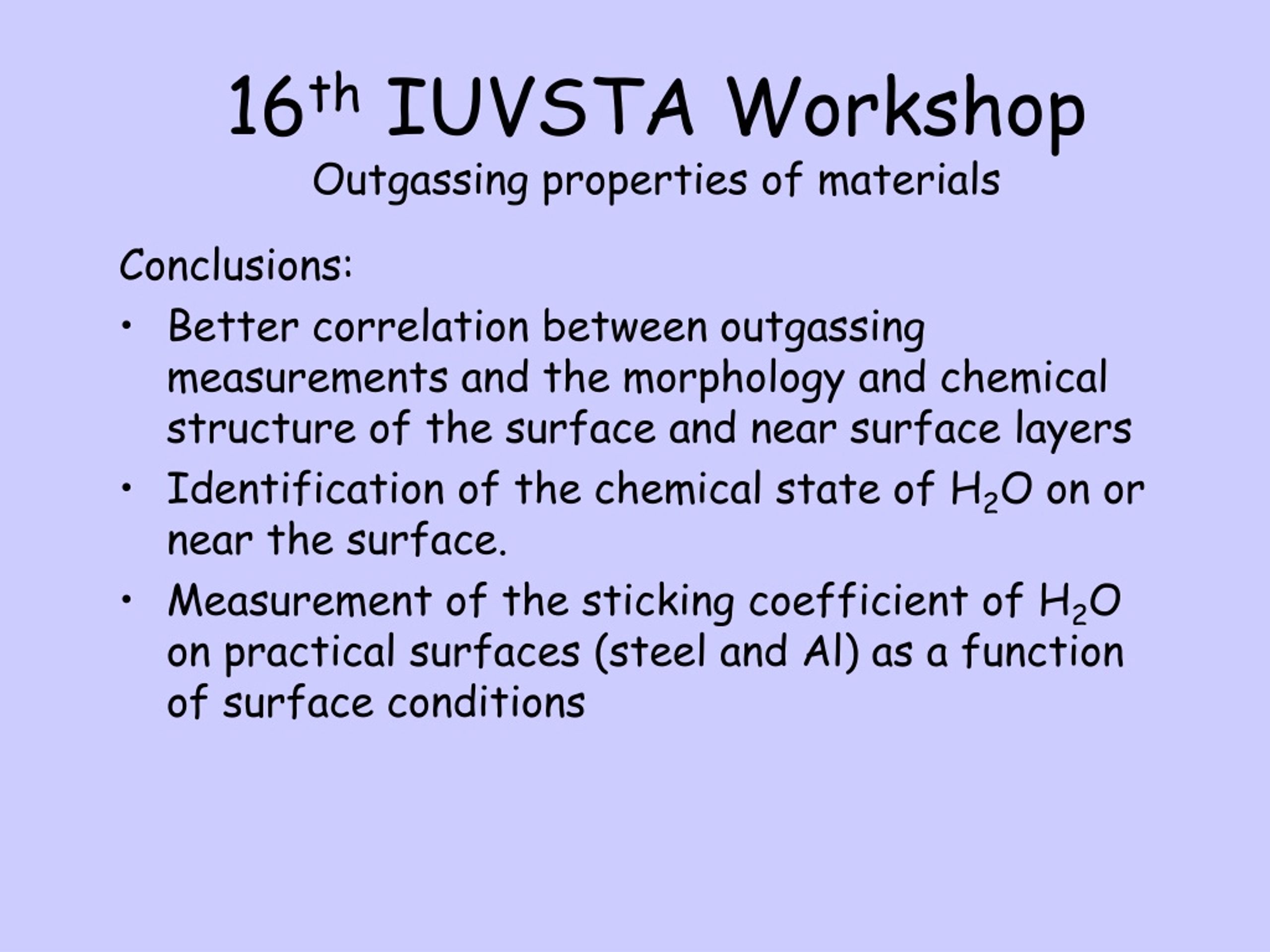

  3. 16th IUVSTA Workshop Outgassing properties of materials Conclusions: • Better correlation between outgassing measurements and the morphology and chemical structure of the surface and near surface layers • Identification of the chemical state of H2O on or near the surface. • Measurement of the sticking coefficient of H2O on practical surfaces (steel and Al) as a function of surface conditions

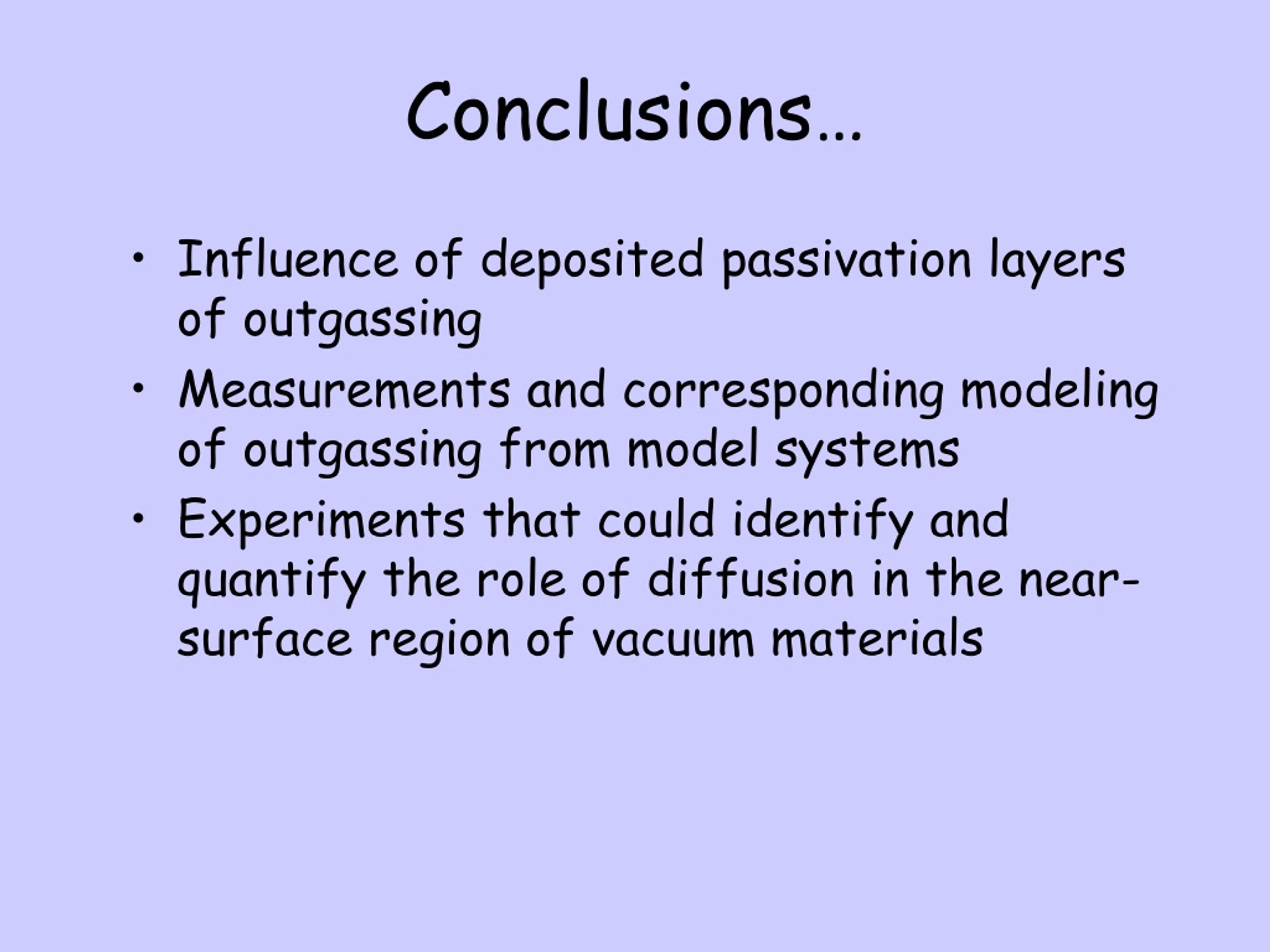

  4. Conclusions… • Influence of deposited passivation layers of outgassing • Measurements and corresponding modeling of outgassing from model systems • Experiments that could identify and quantify the role of diffusion in the near-surface region of vacuum materials

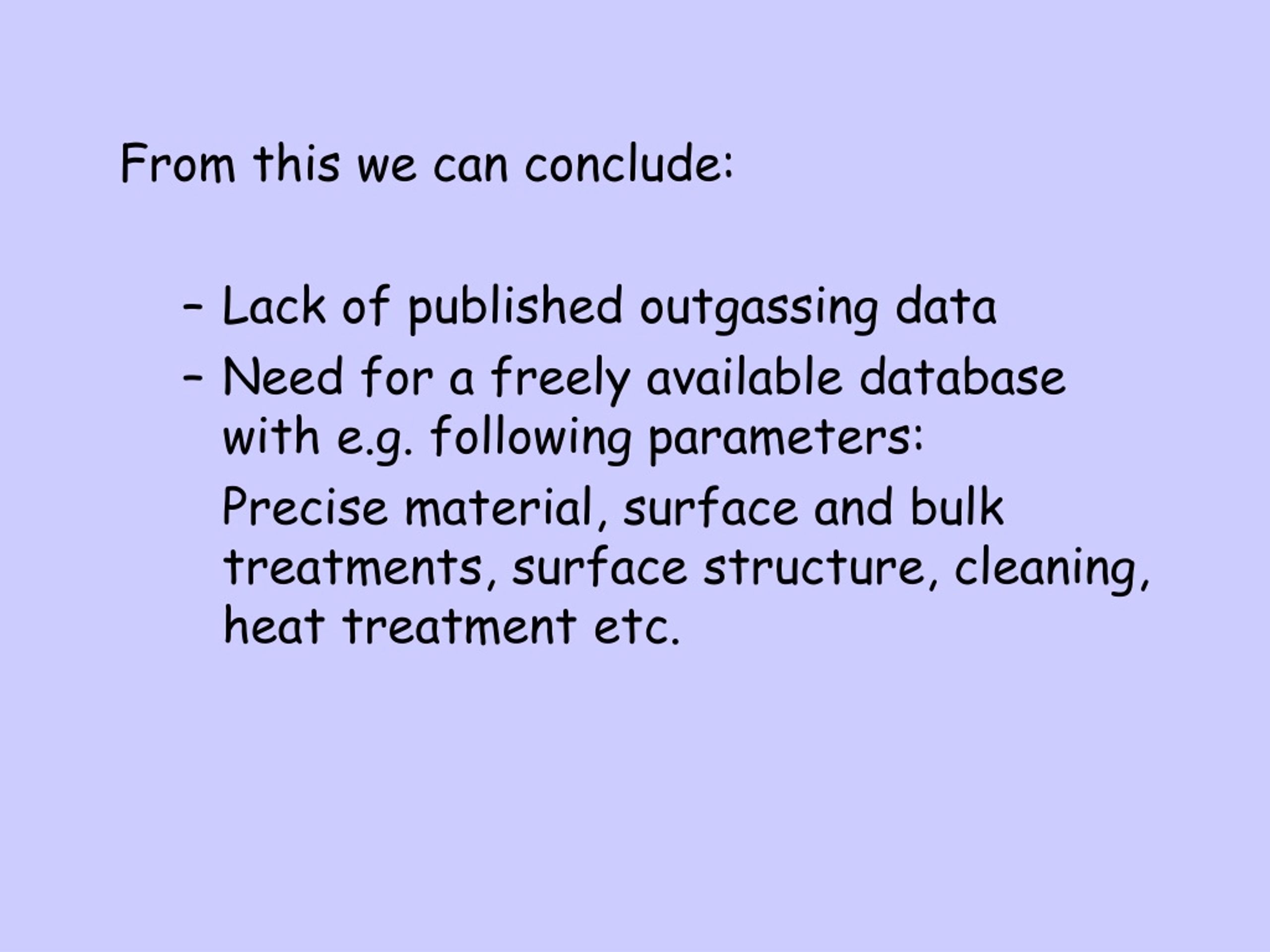

  5. From this we can conclude: • Lack of published outgassing data • Need for a freely available database with e.g. following parameters: Precise material, surface and bulk treatments, surface structure, cleaning, heat treatment etc.

  6. Outgassing methods • Throughput method • Conductance modulation method • Two-path method • Gas ackumulation method • Mass-loss measurements ”Recommended practices for measuring and reporting outgassing data” by P. A. Redhead in J. Vac. Sci. Technol. A 20(2002) 1667-1675

  7. CHICSi

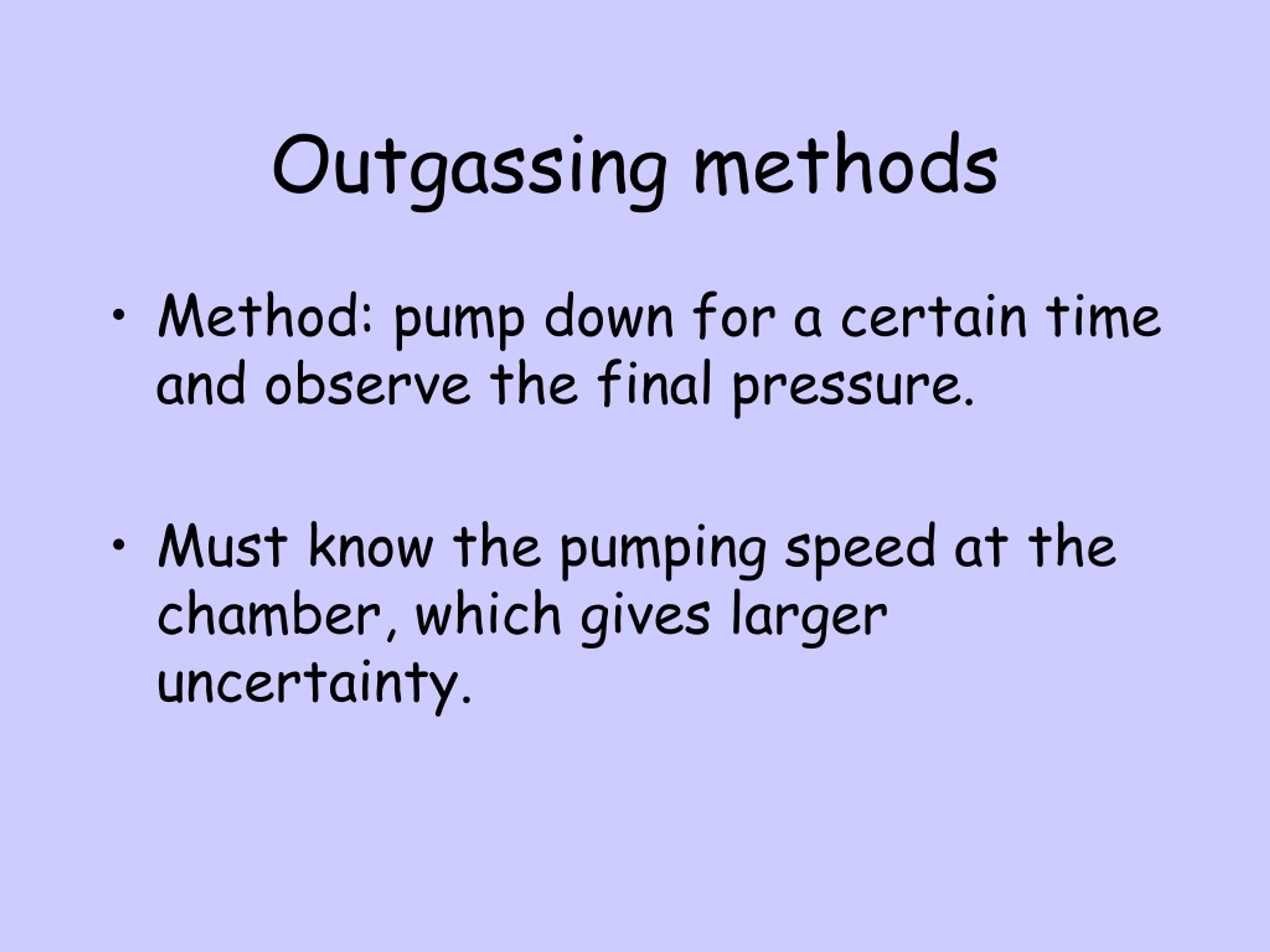

  8. Outgassing methods • Method: pump down for a certain time and observe the final pressure. • Must know the pumping speed at the chamber, which gives larger uncertainty.

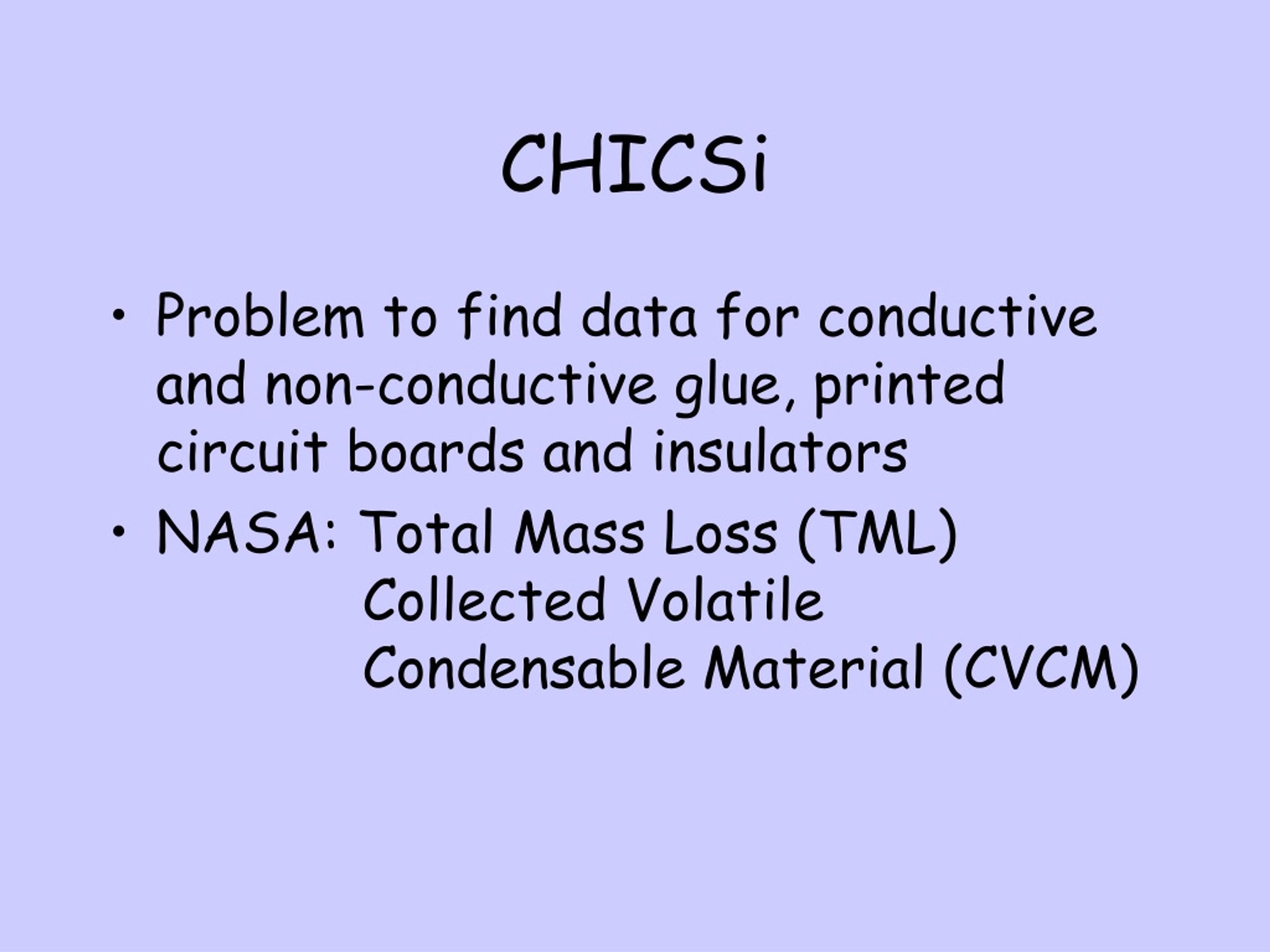

  9. CHICSi • Problem to find data for conductive and non-conductive glue, printed circuit boards and insulators • NASA: Total Mass Loss (TML) Collected Volatile Condensable Material (CVCM)

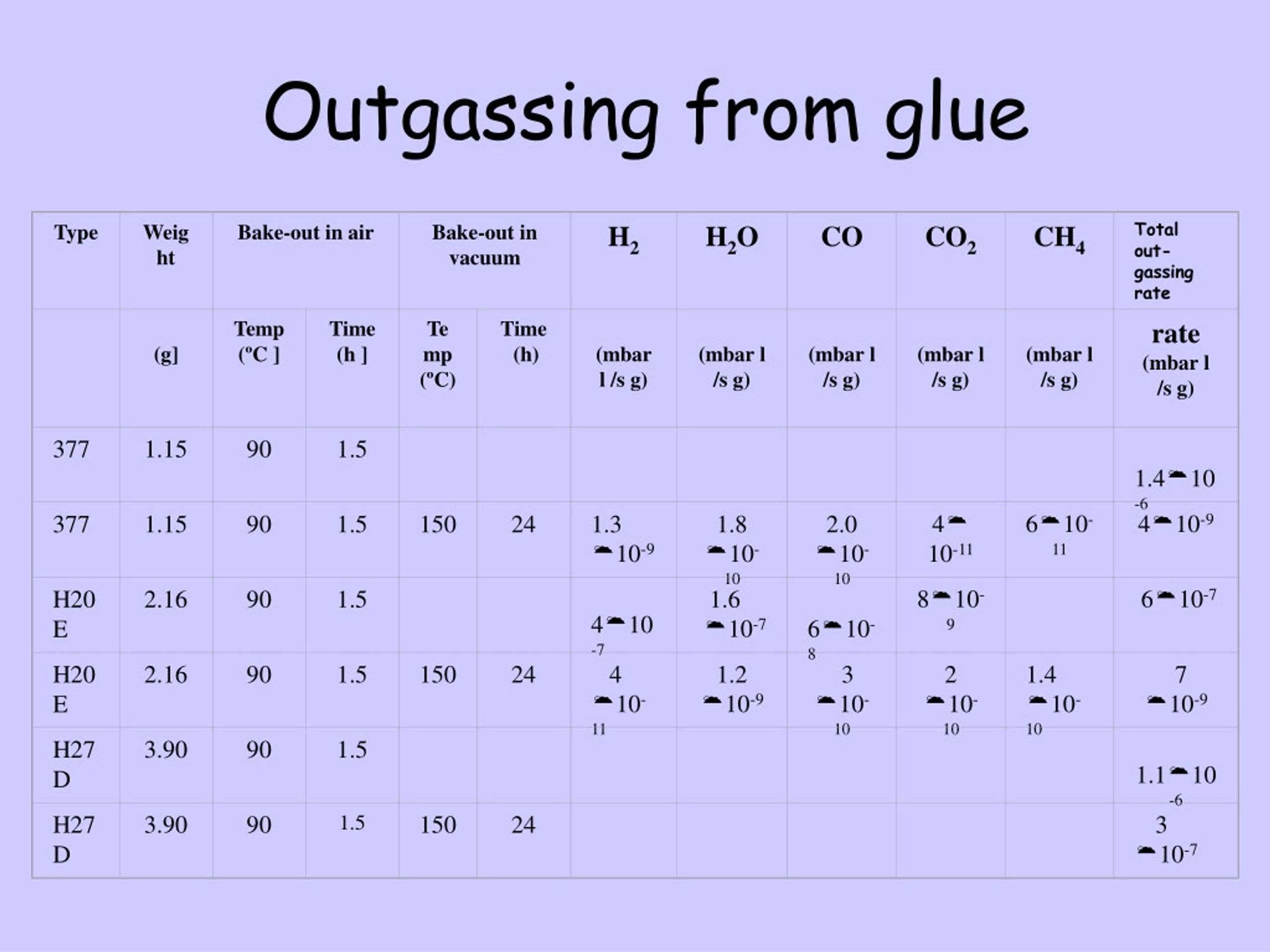

  10. Type Weight Bake-out in air Bake-out in vacuum H2 H2O CO CO2 CH4 Total out-gassing rate (g] Temp(ºC ] Time (h ] Temp (ºC) Time (h) (mbar l /s g) (mbar l /s g) (mbar l /s g) (mbar l /s g) (mbar l /s g) rate (mbar l /s g) 377 1.15 90 1.5 1.410-6 377 1.15 90 1.5 150 24 1.3 10-9 1.8 10-10 2.0 10-10 4 10-11 610-11 410-9 H20E 2.16 90 1.5 410-7 1.6 10-7 610-8 810-9 610-7 H20E 2.16 90 1.5 150 24 4 10-11 1.2 10-9 3 10-10 2 10-10 1.4 10-10 7 10-9 H27D 3.90 90 1.5 1.110-6 H27D 3.90 90 1.5 150 24 3 10-7 Outgassing from glue

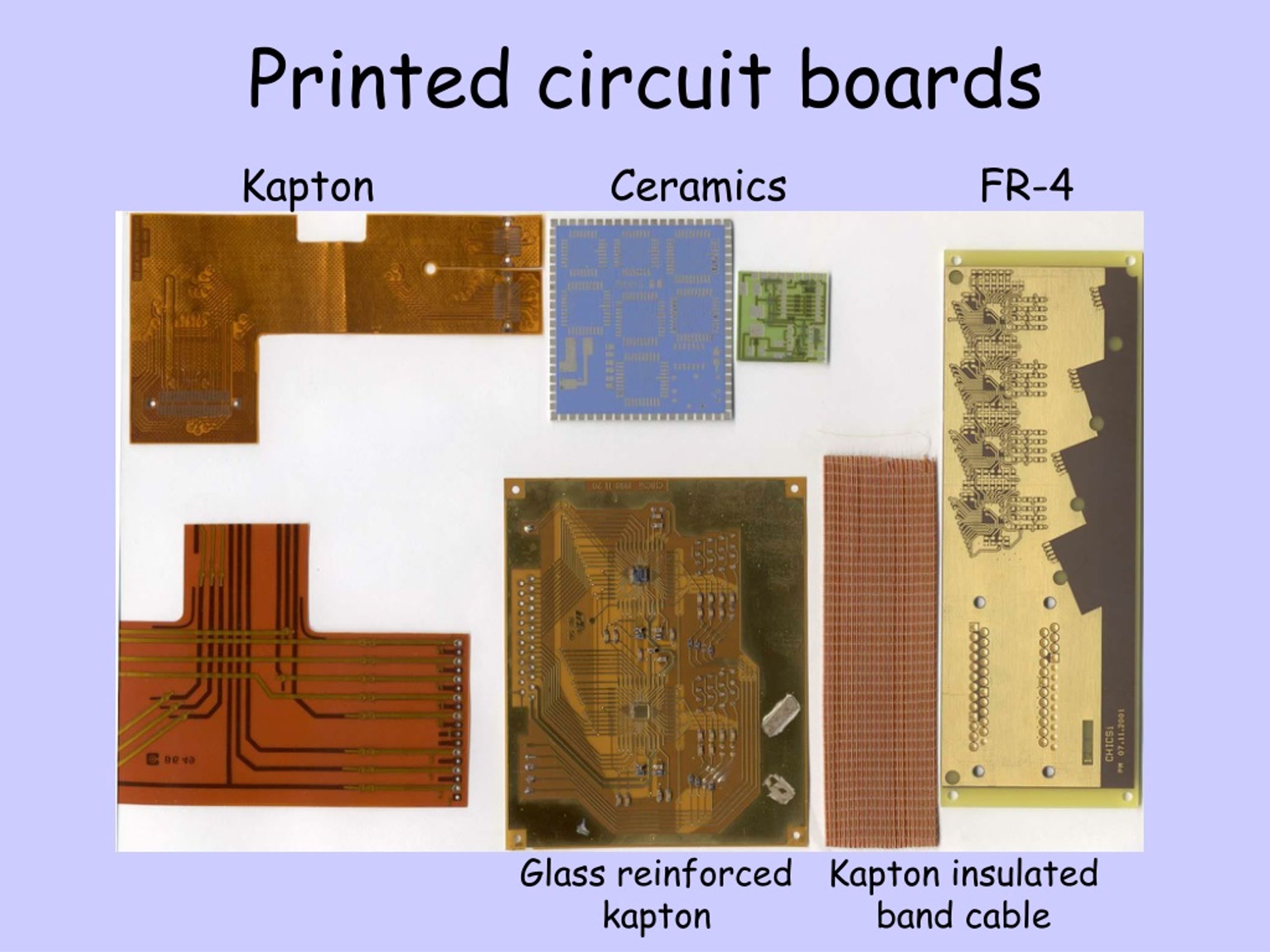

  11. Printed circuit boards Kapton Ceramics FR-4 Glass reinforced kapton Kapton insulated band cable

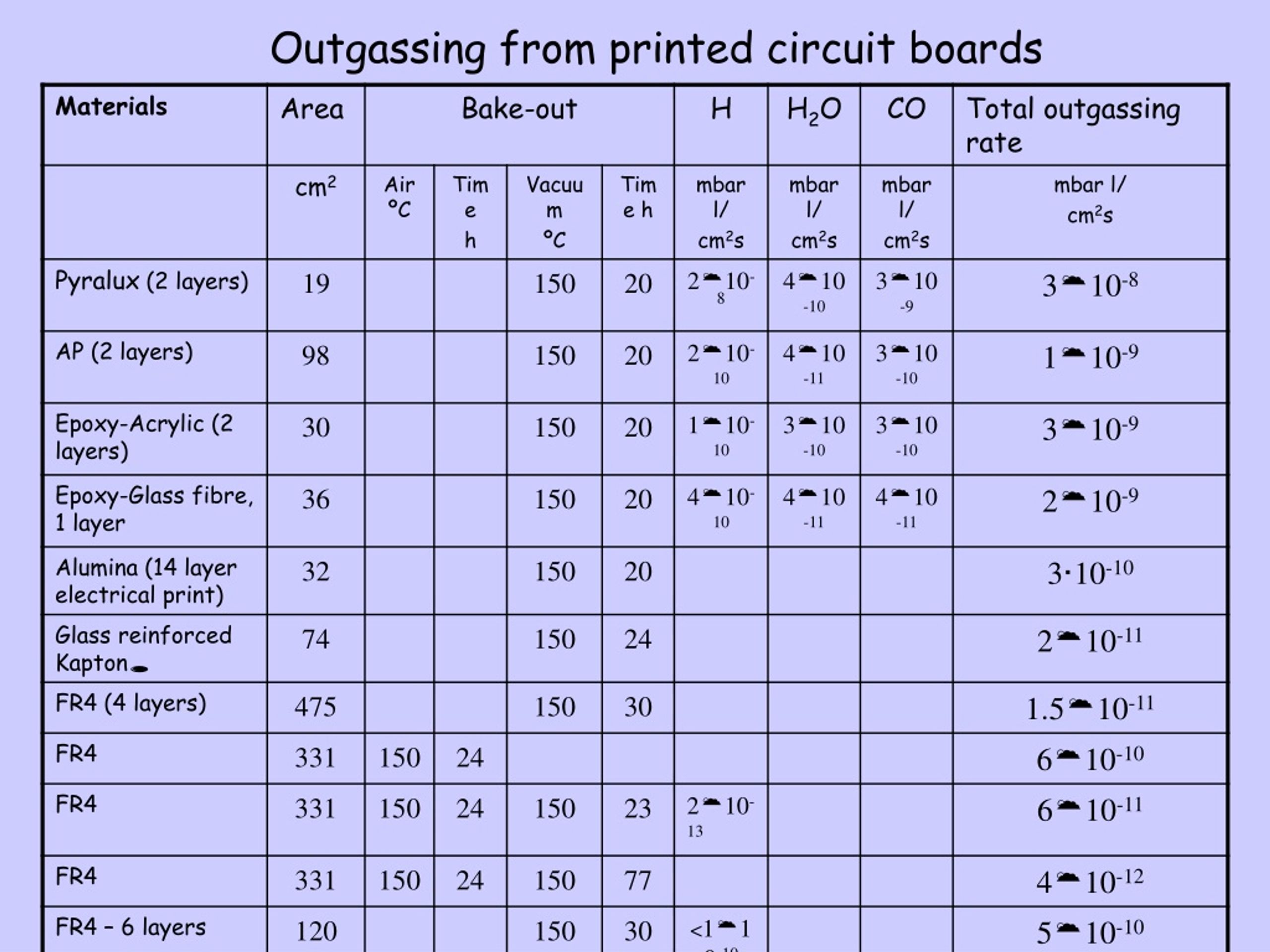

  12. Outgassing from printed circuit boards

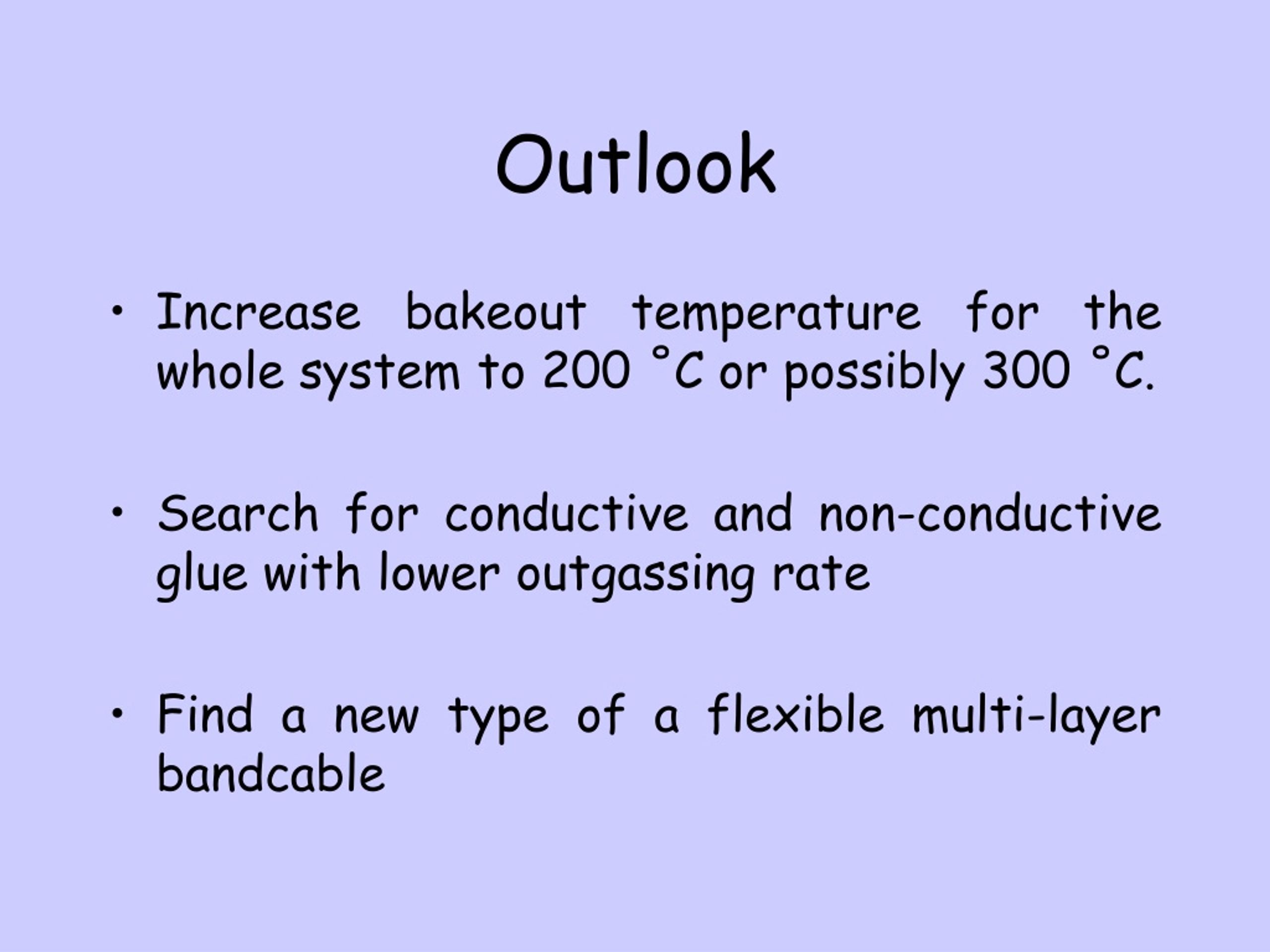

  13. Outlook • Increase bakeout temperature for the whole system to 200 ˚C or possibly 300 ˚C. • Search for conductive and non-conductive glue with lower outgassing rate • Find a new type of a flexible multi-layer bandcable

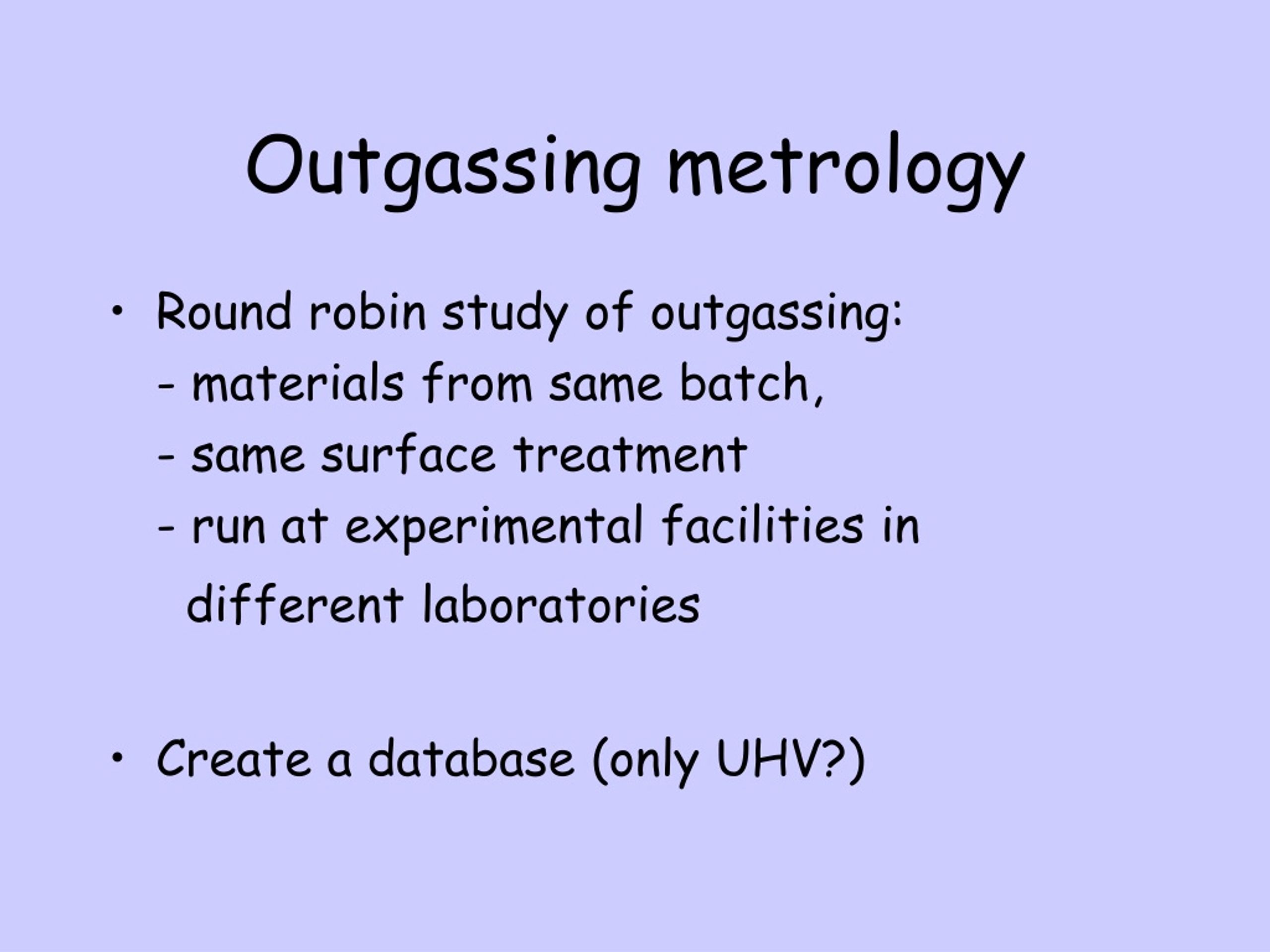

  14. Outgassing metrology • Round robin study of outgassing: - materials from same batch, - same surface treatment - run at experimental facilities in different laboratories • Create a database (only UHV?)
